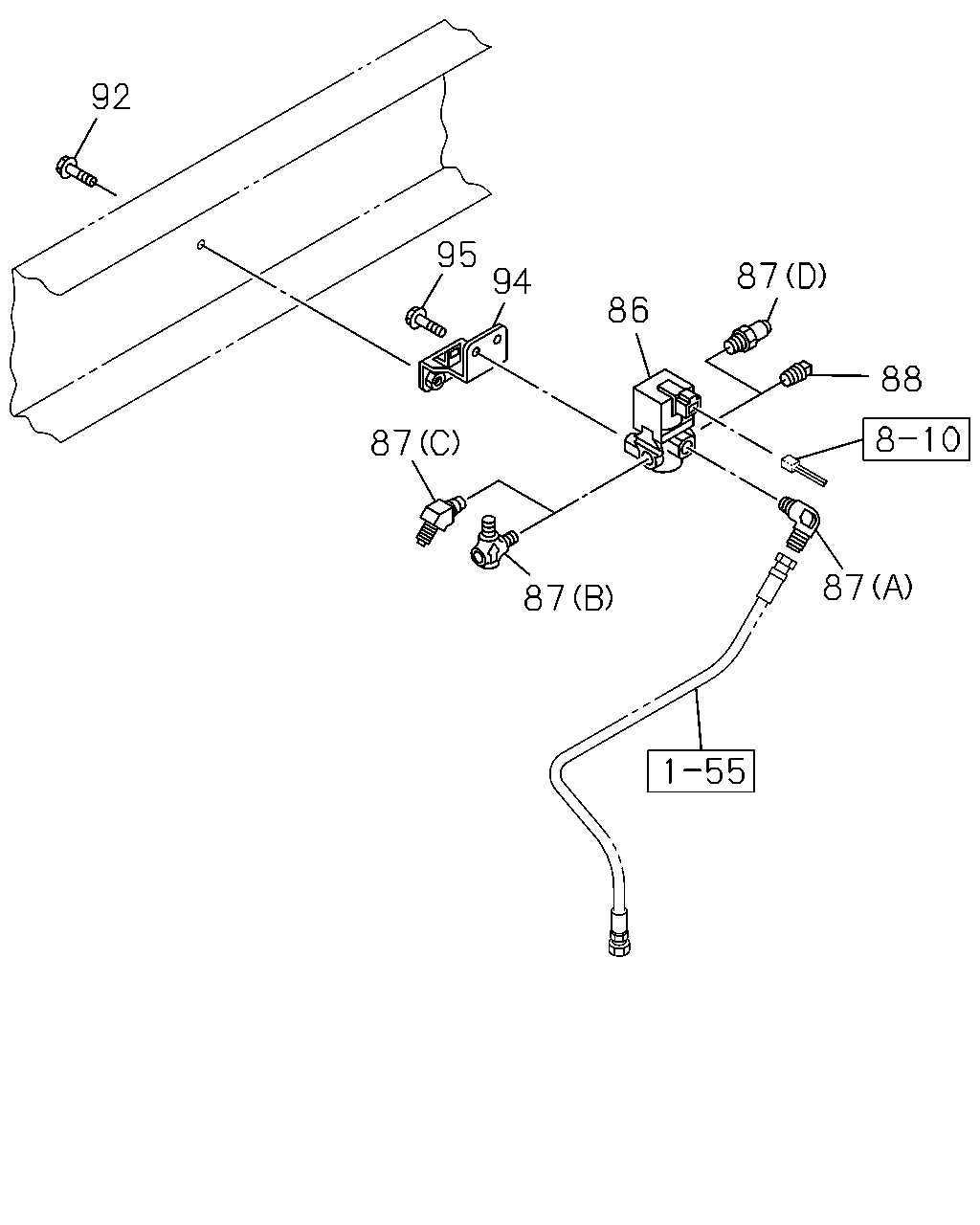

1-56 — EXHAUST BRAKE SYSTEM (#38216) — 28 parça

92 95 94 86 87 88 87 87 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
86	VALVE; MAG,EXH BRK	1-82563-871-2	01	1	0809-1011	●
86	VALVE; MAG,EXH BRK	1-82563-871-2	01	1	1012-	●	●
87	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1510-	●	●
87	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1510-	●	●
87	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1510-	●	●
87	CONNECTOR (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0809-1011	●
87	CONNECTOR (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1012-1509	●	●
87	CONNECTOR EXC. BRAKE REGULATION ECE(TDV) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1510-	●	●
87	CONNECTOR BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1510-	●	●
87	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1510-	●	●
87	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1510-	●	●
87	CONNECTOR (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0809-1011	●
87	CONNECTOR (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-1509	●	●
87	CONNECTOR EXC. BRAKE REGULATION ECE(TDV) (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1510-	●	●
87	CONNECTOR BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1510-	●	●
87	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> BRAKE REGULATION ECE(TDV) (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1510-	●	●
87	CONNECTOR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ECE(TDV) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1510-	●	●
88	PLUG PT1/4	9-99204-513-0	01	1	0809-1011	●
88	PLUG PT1/4	9-99204-513-0	01	1	1012-1509	●	●
88	PLUG EXC. BRAKE REGULATION ECE(TDV) PT1/4	9-99204-513-0	01	1	1510-	●	●
88	PLUG BRAKE REGULATION ECE(TDV) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT1/4	9-99204-513-0	01	1	1510-	●	●
92	BOLT; MAG VLV M10X25 FLANGE	0-28651-025-0	02	1	0809-1008	●
92	BOLT; MAG VLV M10X30 FLANGE	0-28651-030-0	02	1	1009-1011	●
92	BOLT; MAG VLV M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
94	BRACKET; MAG VLV,EXH BRAKE	8-98078-098-0	01	1	0809-1011	●
94	BRACKET; MAG VLV,EXH BRAKE	8-98078-098-0	01	1	1012-	●	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE M8X20 FLANGE	0-28650-820-0	02	1	0809-1011	●
95	BOLT; BRKT,MAG VLV,EXH BRAKE M8X20 FLANGE	0-28650-820-0	02	1	1012-	●	●
