Sayfa 1-50 - Isuzu EPC

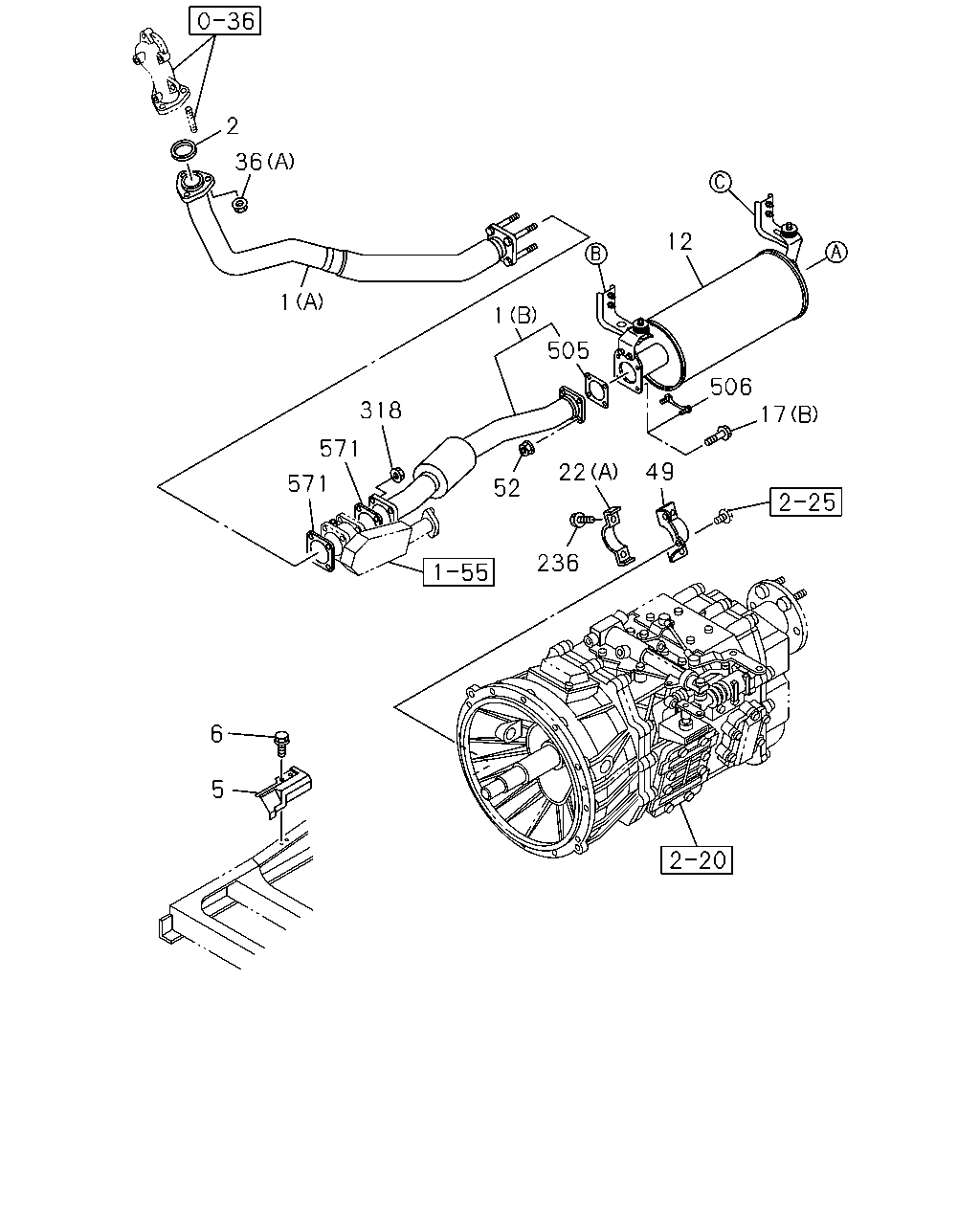

1-50 — EXHAUST PIPE AND SILENCER (#38214) — 592 parça

2 36 12 1 1 505 506 17 318 571 49 22 571 52 236 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH (A)	8-98082-498-0	01	1	0809-
1	PIPE; EXH (B)	8-98096-347-0	01	1	0809-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-97381-455-0	01	1	0809-
5	PROTECTOR; HEAT	8-98089-287-1	01	1	0809-0809
5	PROTECTOR; HEAT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98089-287-1	01	1	0810-
5	PROTECTOR; HEAT EXC. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>	8-98044-122-0	01	1	0810-
6	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28650-825-0	02	1	0809-
12	SILENCER ASM; EXH	8-98090-389-2	01	1	0809-
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (B) M12X35 FLANGE	0-28051-235-0	04	1	1204-
17	BOLT; EXH PIPE (A) M10X35 FLANGE	0-28651-035-0	02	1	0809-
22	CLAMP; EXH PIPE EURO3 SPECIFICATION<NT3> (B) ID=80-84	1-22133-233-0	06	1	0810-1007
22	CLAMP; EXH PIPE CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B) ID=80-84	1-22133-233-0	06	1	1008-1110
22	CLAMP; EXH PIPE EURO2 SPECIFICATION<NT2> (B) ID=80-84	1-22133-233-0	02	1	1111-
22	CLAMP; EXH PIPE EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (B) ID=80-84	1-22133-233-0	02	1	1111-
22	CLAMP; EXH PIPE (A)	1-22133-295-0	01	1	0809-1309
22	CLAMP; EXH PIPE (A)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE EURO2 SPECIFICATION<NT2> (B) ID=80-84	1-22133-233-0	02	1	0809-1007
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	0809-1007
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1008-1110
22	CLAMP; EXH PIPE SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (B) ID=80-84	1-22133-233-0	02	1	1008-1110
22	CLAMP; EXH PIPE EURO2 SPECIFICATION<NT2> (B) ID=80-84	1-22133-233-0	02	1	1008-1110
22	CLAMP; EXH PIPE PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B) ID=80-84	1-22133-233-0	06	1	1111-1309
22	CLAMP; EXH PIPE PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B) ID=80-84	1-22133-233-0	04	1	1310-
36	NUT; EXH PIPE (B) M10 FLANGE	0-91180-210-0	02	1	0809-
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0809-
49	BRACKET; EXH PIPE TO TRANS	8-98042-786-0	01	1	0809-1301
49	BRACKET; EXH PIPE TO TRANS	8-98234-530-0	01	1	1302-
52	NUT; BRKT M12 FLANGE	0-91180-212-0	04	1	0809-
236	BOLT; PIPE CLAMP TO BRKT M10X30 FLANGE	0-28651-030-0	02	1	0809-
318	NUT; EXH PIPE,FRT M8 W/LK WASHER	8-97581-234-0	04	1	0809-
505	GASKET; CONV TO EXH PIPE	8-98096-305-0	01	1	0809-
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	0809-1203
506	BRACKET; STUD EXC. KD PREPARATORY PACK<6HF> M12X35	1-22131-963-0	02	1	1204-
571	GASKET ID=64	8-97373-108-0	02	1	0809-

81 75 62 56 75 60 81 107 70 105 22 126 22 94 94 22 11 22 128 126 105 70 226 107 60 118 81 121 226 62 56

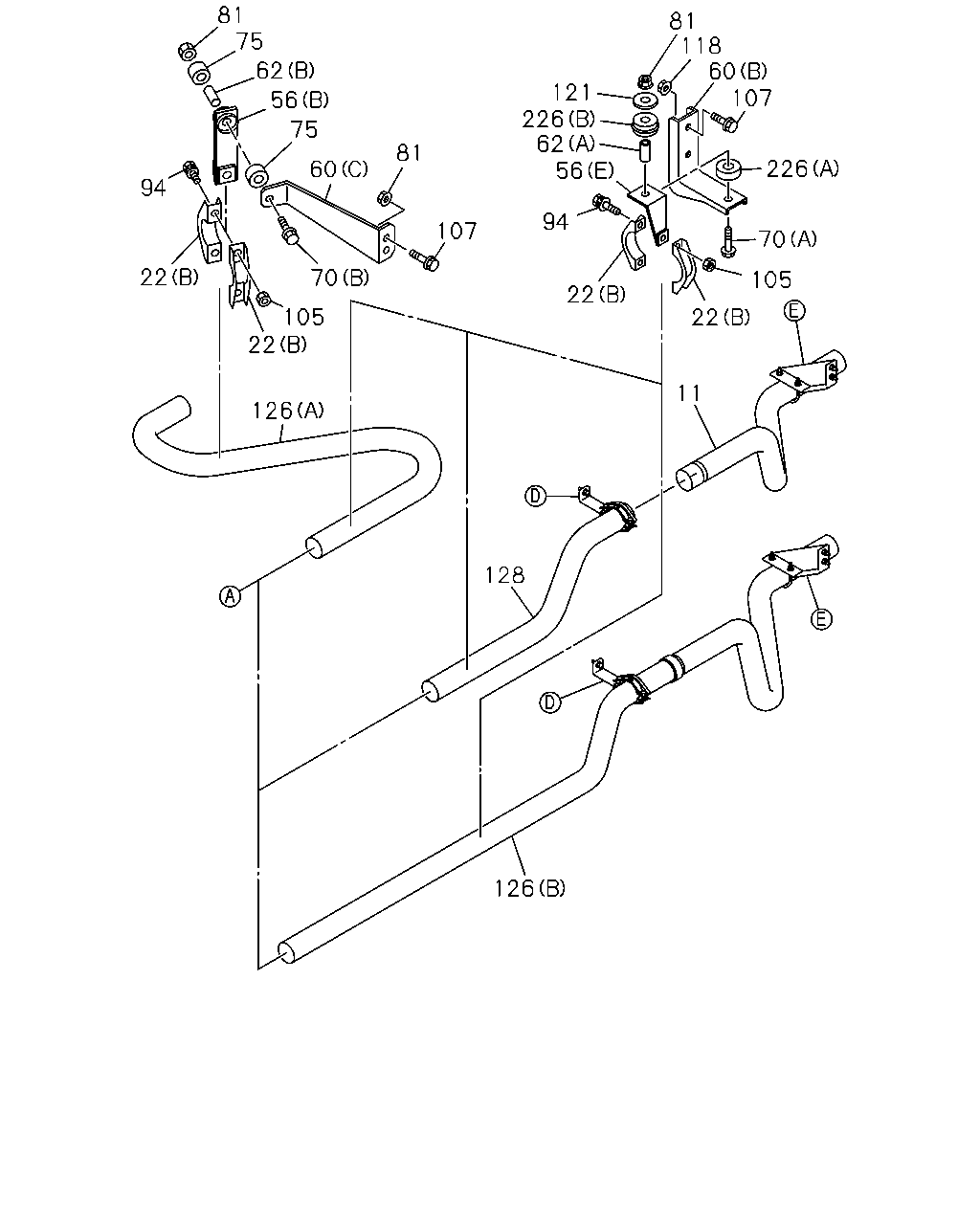

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	PIPE; EXH,RR EURO3 SPECIFICATION<NT3>	8-98056-458-0	01	1	0810-1007
11	PIPE; EXH,RR CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3>	8-98056-458-0	01	1	1008-
22	CLAMP; EXH PIPE EURO3 SPECIFICATION<NT3> (B) ID=80-84	1-22133-233-0	06	1	0810-1007
22	CLAMP; EXH PIPE CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B) ID=80-84	1-22133-233-0	06	1	1008-1110
22	CLAMP; EXH PIPE EURO2 SPECIFICATION<NT2> (B) ID=80-84	1-22133-233-0	02	1	1111-
22	CLAMP; EXH PIPE EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (B) ID=80-84	1-22133-233-0	02	1	1111-
22	CLAMP; EXH PIPE (A)	1-22133-295-0	01	1	0809-1309
22	CLAMP; EXH PIPE (A)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE EURO2 SPECIFICATION<NT2> (B) ID=80-84	1-22133-233-0	02	1	0809-1007
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	0809-1007
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1008-1110
22	CLAMP; EXH PIPE SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (B) ID=80-84	1-22133-233-0	02	1	1008-1110
22	CLAMP; EXH PIPE EURO2 SPECIFICATION<NT2> (B) ID=80-84	1-22133-233-0	02	1	1008-1110
22	CLAMP; EXH PIPE PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B) ID=80-84	1-22133-233-0	06	1	1111-1309
22	CLAMP; EXH PIPE PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B) ID=80-84	1-22133-233-0	04	1	1310-
56	BRACKET; CLAMP,EXH PIPE EURO3 SPECIFICATION<NT3> (E)	8-98059-756-0	02	1	0810-1007
56	BRACKET; CLAMP,EXH PIPE CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (E)	8-98059-756-0	02	1	1008-1110
56	BRACKET; CLAMP,EXH PIPE PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (E)	8-98059-756-0	02	1	1111-1309
56	BRACKET; CLAMP,EXH PIPE PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (E)	8-98245-534-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-584-0	01	1	0809-0809
56	BRACKET; CLAMP,EXH PIPE EURO2 SPECIFICATION<NT2> (B)	1-22131-584-0	01	1	0810-1007
56	BRACKET; CLAMP,EXH PIPE SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (B)	1-22131-584-0	01	1	1008-1110
56	BRACKET; CLAMP,EXH PIPE EURO2 SPECIFICATION<NT2> (B)	1-22131-584-0	01	1	1008-1110
56	BRACKET; CLAMP,EXH PIPE EURO2 SPECIFICATION<NT2> (B)	1-22131-584-0	01	1	1111-1309
56	BRACKET; CLAMP,EXH PIPE EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (B)	1-22131-584-0	01	1	1111-1309
56	BRACKET; CLAMP,EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-98245-522-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (B)	8-98245-522-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE (D)	8-98074-824-1	01	1	0809-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98086-352-0	01	1	0809-
56	BRACKET; CLAMP,EXH PIPE EURO3 SPECIFICATION<NT3> (A)	8-98056-460-0	01	1	0810-1007
56	BRACKET; CLAMP,EXH PIPE CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A)	8-98056-460-0	01	1	1008-1110
56	BRACKET; CLAMP,EXH PIPE PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A)	8-98056-460-0	01	1	1111-1112
56	BRACKET; CLAMP,EXH PIPE EURO3 SPECIFICATION<NT3> (F)	8-98085-168-0	01	1	0810-1007
56	BRACKET; CLAMP,EXH PIPE CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (F)	8-98085-168-0	01	1	1008-1110
56	BRACKET; CLAMP,EXH PIPE PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (F)	8-98085-168-0	01	1	1111-
60	BRACKET; FRAME TO BRKT EURO3 SPECIFICATION<NT3> (B)	8-98059-753-1	02	1	0810-1007
60	BRACKET; FRAME TO BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B)	8-98059-753-1	02	1	1008-1110
60	BRACKET; FRAME TO BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B)	8-98059-753-1	02	1	1111-1309
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98245-530-0	01	1	1310-
60	BRACKET; FRAME TO BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B)	8-98245-530-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	0809-
60	BRACKET; FRAME TO BRKT (B)	8-98059-753-1	01	1	0809-1309
60	BRACKET; FRAME TO BRKT (C)	8-98090-167-0	01	1	0809-0809
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION<NT2> (C)	8-98090-167-0	01	1	0810-1007
60	BRACKET; FRAME TO BRKT SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (C)	8-98090-167-0	01	1	1008-1110
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION<NT2> (C)	8-98090-167-0	01	1	1008-1110
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION<NT2> (C)	8-98090-167-0	01	1	1111-
60	BRACKET; FRAME TO BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (C)	8-98090-167-0	01	1	1111-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	1310-
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0809-0809
62	TUBE; DIST,BRKT EURO2 SPECIFICATION<NT2> (B) L=22	1-22159-392-0	01	1	0810-0906
62	TUBE; DIST,BRKT EURO2 SPECIFICATION<NT2> (B) L=22	9-22159-024-0	01	1	0907-1007
62	TUBE; DIST,BRKT SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (B) L=22	9-22159-024-0	01	1	1008-1110
62	TUBE; DIST,BRKT EURO2 SPECIFICATION<NT2> (B) L=22	9-22159-024-0	01	1	1008-1110
62	TUBE; DIST,BRKT EURO2 SPECIFICATION<NT2> (B) L=22	9-22159-024-0	01	1	1111-
62	TUBE; DIST,BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (B) L=22	9-22159-024-0	01	1	1111-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	0809-0809
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	0810-1007
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	0810-1007
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	1008-1011
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	1008-1011
62	TUBE; DIST,BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	1012-1110
62	TUBE; DIST,BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	1012-1110
62	TUBE; DIST,BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	1111-1309
62	TUBE; DIST,BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	1111-1309
62	TUBE; DIST,BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	01	1	1310-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1310-
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0809-0809
70	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M10X50 FLANGE	0-28051-050-0	01	1	0810-1007
70	BOLT; BRKT SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (B) M10X50 FLANGE	0-28051-050-0	01	1	1008-1110
70	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M10X50 FLANGE	0-28051-050-0	01	1	1008-1110
70	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M10X50 FLANGE	0-28051-050-0	01	1	1111-
70	BOLT; BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (B) M10X50 FLANGE	0-28051-050-0	01	1	1111-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	0809-0809
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	0810-1007
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	0810-1007
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	1008-1011
70	BOLT; BRKT 4HK1-TCS ENG(RJS) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	1008-1011
70	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	1012-1110
70	BOLT; BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	1012-1110
70	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	1111-1309
70	BOLT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	1111-1309
70	BOLT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	01	1	1310-
70	BOLT; BRKT EURO3 SPECIFICATION<NT3> (A) M10X35 FLANGE	0-28651-035-0	03	1	0810-1007
70	BOLT; BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) M10X35 FLANGE	0-28651-035-0	03	1	1008-1110
70	BOLT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) M10X35 FLANGE	0-28651-035-0	03	1	1111-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-193-0	02	1	0809-0809
75	RUBBER; SUPPORT,BRKT EURO2 SPECIFICATION<NT2> OD=40	1-22159-193-0	02	1	0810-1007
75	RUBBER; SUPPORT,BRKT SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> OD=40	1-22159-193-0	02	1	1008-1110
75	RUBBER; SUPPORT,BRKT EURO2 SPECIFICATION<NT2> OD=40	1-22159-193-0	02	1	1008-1110
75	RUBBER; SUPPORT,BRKT EURO2 SPECIFICATION<NT2> OD=40	1-22159-193-0	02	1	1111-
75	RUBBER; SUPPORT,BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) OD=40	1-22159-193-0	02	1	1111-
81	NUT; BRKT EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	05	1	0810-1007
81	NUT; BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	05	1	1008-1110
81	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	1111-
81	NUT; BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	01	1	1111-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0809
81	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	0810-1007
81	NUT; BRKT SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	01	1	1008-1110
81	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	1008-1110
81	NUT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	05	1	1111-1309
81	NUT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	04	1	1310-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-1007
81	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	0809-1007
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-1007
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1008-1110
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1008-1110
81	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1008-1110
81	NUT; BRKT SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	02	1	1008-1110
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1111-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1111-
81	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1111-
81	NUT; BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	02	1	1111-
81	NUT; BRKT EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	02	1	0810-1007
81	NUT; BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	02	1	1008-1110
81	NUT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	02	1	1111-
94	BOLT; CLAMP EURO3 SPECIFICATION<NT3> M10X40 FLANGE	0-28651-040-0	06	1	0810-1007
94	BOLT; CLAMP CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10X40 FLANGE	0-28651-040-0	06	1	1008-1110
94	BOLT; CLAMP EURO2 SPECIFICATION<NT2> M10X40 FLANGE	0-28651-040-0	02	1	1111-
94	BOLT; CLAMP EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) M10X40 FLANGE	0-28651-040-0	02	1	1111-
94	BOLT; CLAMP EURO2 SPECIFICATION<NT2> M10X40 FLANGE	0-28651-040-0	02	1	0809-1007
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0809-1007
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1008-1110
94	BOLT; CLAMP SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> M10X40 FLANGE	0-28651-040-0	02	1	1008-1110
94	BOLT; CLAMP EURO2 SPECIFICATION<NT2> M10X40 FLANGE	0-28651-040-0	02	1	1008-1110
94	BOLT; CLAMP PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10X40 FLANGE	0-28651-040-0	06	1	1111-1309
94	BOLT; CLAMP PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10X40 FLANGE	0-28651-040-0	04	1	1310-
105	NUT; CLAMP EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	06	1	0810-1007
105	NUT; CLAMP CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	06	1	1008-1110
105	NUT; CLAMP EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1111-
105	NUT; CLAMP EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	02	1	1111-
105	NUT; CLAMP EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	0809-1007
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0809-1007
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1008-1110
105	NUT; CLAMP SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	02	1	1008-1110
105	NUT; CLAMP EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1008-1110
105	NUT; CLAMP PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	06	1	1111-1309
105	NUT; CLAMP PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	04	1	1310-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-1007
107	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0809-1007
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-1007
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1008-1110
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1008-1110
107	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	1008-1110
107	BOLT; BRKT SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> M10X35 FLANGE	0-28651-035-0	02	1	1008-1110
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1111-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1111-
107	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	1111-
107	BOLT; BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) M10X35 FLANGE	0-28651-035-0	02	1	1111-
107	BOLT; BRKT EURO3 SPECIFICATION<NT3> M8X35 FLANGE	0-28650-835-0	02	1	0810-1007
107	BOLT; BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M8X35 FLANGE	0-28650-835-0	02	1	1008-1110
107	BOLT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M8X35 FLANGE	0-28650-835-0	02	1	1111-1112
107	BOLT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M8X30 FLANGE	0-28650-830-0	02	1	1201-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	0809-
121	WASHER; PL,BRKT EURO3 SPECIFICATION<NT3> ID=11 OD=54	1-09503-154-2	01	1	0810-1007
121	WASHER; PL,BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> ID=11 OD=54	1-09503-154-2	01	1	1008-1110
121	WASHER; PL,BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> ID=11 OD=54	1-09503-154-2	01	1	1111-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	0809-
126	PIPE; EXH,RR WHEEL BASE 4600MM(46W) PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> (B)	8-98205-008-0	01	1	1111-
126	PIPE; EXH,RR (A)	8-98073-427-0	01	1	0809-0809
126	PIPE; EXH,RR EURO2 SPECIFICATION<NT2> (A)	8-98073-427-0	01	1	0810-1007
126	PIPE; EXH,RR SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (A)	8-98073-427-0	01	1	1008-1110
126	PIPE; EXH,RR EURO2 SPECIFICATION<NT2> (A)	8-98073-427-0	01	1	1008-1110
126	PIPE; EXH,RR EURO2 SPECIFICATION<NT2> (A)	8-98073-427-0	01	1	1111-
126	PIPE; EXH,RR EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (A)	8-98073-427-0	01	1	1111-
128	PIPE; EXH,RR WHEEL BASE 4600MM(46W) EURO3 SPECIFICATION<NT3>	8-98114-833-0	01	1	0810-1007
128	PIPE; EXH,RR WHEEL BASE 4600MM(46W) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3>	8-98114-833-0	01	1	1008-
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1310-
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1310-
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	0809-0809
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	0810-1007
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	0810-1007
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	1008-1011
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	1008-1011
226	RUBBER; CUSHION EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	1012-1110
226	RUBBER; CUSHION CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	1012-1110
226	RUBBER; CUSHION EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	1111-1309
226	RUBBER; CUSHION PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	1111-1309
226	RUBBER; CUSHION PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	01	1	1310-
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	0809-0809
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	0810-1007
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	0810-1007
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	1008-1011
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	1008-1011
226	RUBBER; CUSHION EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	1012-1110
226	RUBBER; CUSHION CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	1012-1110
226	RUBBER; CUSHION EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	1111-1309
226	RUBBER; CUSHION PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	1111-1309
226	RUBBER; CUSHION PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	01	1	1310-

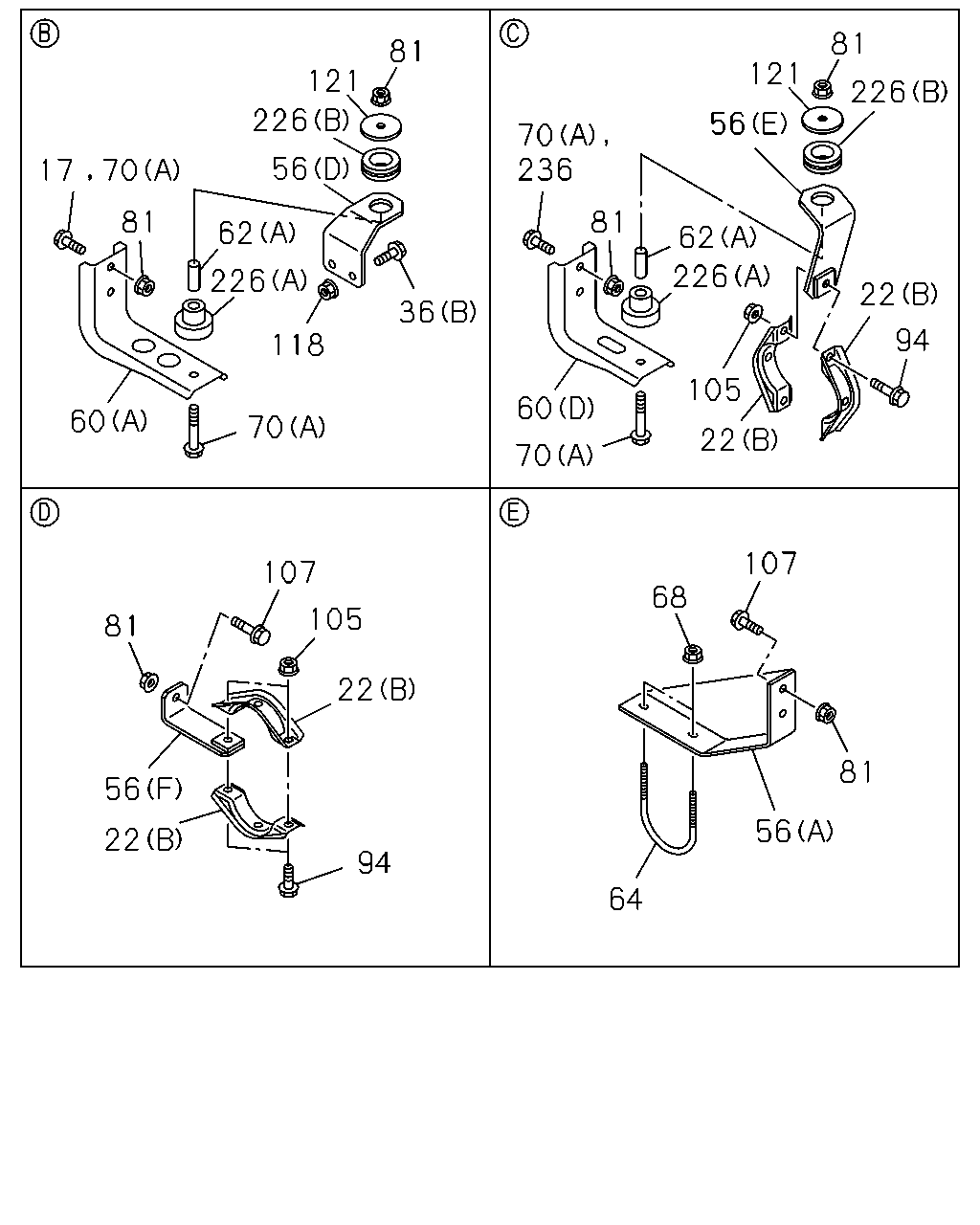

81 81 121 121 226 226 56 70 236 56 17 70 81 81 62 62 226 226 22 36 94 118 105 60 60 70 22 70 107 107 68 105 81 22 81 56 56 22 94 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (B) M12X35 FLANGE	0-28051-235-0	04	1	1204-
17	BOLT; EXH PIPE (A) M10X35 FLANGE	0-28651-035-0	02	1	0809-
22	CLAMP; EXH PIPE EURO3 SPECIFICATION<NT3> (B) ID=80-84	1-22133-233-0	06	1	0810-1007
22	CLAMP; EXH PIPE CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B) ID=80-84	1-22133-233-0	06	1	1008-1110
22	CLAMP; EXH PIPE EURO2 SPECIFICATION<NT2> (B) ID=80-84	1-22133-233-0	02	1	1111-
22	CLAMP; EXH PIPE EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (B) ID=80-84	1-22133-233-0	02	1	1111-
22	CLAMP; EXH PIPE (A)	1-22133-295-0	01	1	0809-1309
22	CLAMP; EXH PIPE (A)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE EURO2 SPECIFICATION<NT2> (B) ID=80-84	1-22133-233-0	02	1	0809-1007
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	0809-1007
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1008-1110
22	CLAMP; EXH PIPE SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (B) ID=80-84	1-22133-233-0	02	1	1008-1110
22	CLAMP; EXH PIPE EURO2 SPECIFICATION<NT2> (B) ID=80-84	1-22133-233-0	02	1	1008-1110
22	CLAMP; EXH PIPE PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B) ID=80-84	1-22133-233-0	06	1	1111-1309
22	CLAMP; EXH PIPE PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B) ID=80-84	1-22133-233-0	04	1	1310-
36	NUT; EXH PIPE (B) M10 FLANGE	0-91180-210-0	02	1	0809-
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0809-
56	BRACKET; CLAMP,EXH PIPE EURO3 SPECIFICATION<NT3> (E)	8-98059-756-0	02	1	0810-1007
56	BRACKET; CLAMP,EXH PIPE CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (E)	8-98059-756-0	02	1	1008-1110
56	BRACKET; CLAMP,EXH PIPE PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (E)	8-98059-756-0	02	1	1111-1309
56	BRACKET; CLAMP,EXH PIPE PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (E)	8-98245-534-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-584-0	01	1	0809-0809
56	BRACKET; CLAMP,EXH PIPE EURO2 SPECIFICATION<NT2> (B)	1-22131-584-0	01	1	0810-1007
56	BRACKET; CLAMP,EXH PIPE SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (B)	1-22131-584-0	01	1	1008-1110
56	BRACKET; CLAMP,EXH PIPE EURO2 SPECIFICATION<NT2> (B)	1-22131-584-0	01	1	1008-1110
56	BRACKET; CLAMP,EXH PIPE EURO2 SPECIFICATION<NT2> (B)	1-22131-584-0	01	1	1111-1309
56	BRACKET; CLAMP,EXH PIPE EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (B)	1-22131-584-0	01	1	1111-1309
56	BRACKET; CLAMP,EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-98245-522-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (B)	8-98245-522-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE (D)	8-98074-824-1	01	1	0809-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98086-352-0	01	1	0809-
56	BRACKET; CLAMP,EXH PIPE EURO3 SPECIFICATION<NT3> (A)	8-98056-460-0	01	1	0810-1007
56	BRACKET; CLAMP,EXH PIPE CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A)	8-98056-460-0	01	1	1008-1110
56	BRACKET; CLAMP,EXH PIPE PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A)	8-98056-460-0	01	1	1111-1112
56	BRACKET; CLAMP,EXH PIPE EURO3 SPECIFICATION<NT3> (F)	8-98085-168-0	01	1	0810-1007
56	BRACKET; CLAMP,EXH PIPE CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (F)	8-98085-168-0	01	1	1008-1110
56	BRACKET; CLAMP,EXH PIPE PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (F)	8-98085-168-0	01	1	1111-
60	BRACKET; FRAME TO BRKT EURO3 SPECIFICATION<NT3> (B)	8-98059-753-1	02	1	0810-1007
60	BRACKET; FRAME TO BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B)	8-98059-753-1	02	1	1008-1110
60	BRACKET; FRAME TO BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B)	8-98059-753-1	02	1	1111-1309
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98245-530-0	01	1	1310-
60	BRACKET; FRAME TO BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B)	8-98245-530-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	0809-
60	BRACKET; FRAME TO BRKT (B)	8-98059-753-1	01	1	0809-1309
60	BRACKET; FRAME TO BRKT (C)	8-98090-167-0	01	1	0809-0809
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION<NT2> (C)	8-98090-167-0	01	1	0810-1007
60	BRACKET; FRAME TO BRKT SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (C)	8-98090-167-0	01	1	1008-1110
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION<NT2> (C)	8-98090-167-0	01	1	1008-1110
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION<NT2> (C)	8-98090-167-0	01	1	1111-
60	BRACKET; FRAME TO BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (C)	8-98090-167-0	01	1	1111-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	1310-
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0809-0809
62	TUBE; DIST,BRKT EURO2 SPECIFICATION<NT2> (B) L=22	1-22159-392-0	01	1	0810-0906
62	TUBE; DIST,BRKT EURO2 SPECIFICATION<NT2> (B) L=22	9-22159-024-0	01	1	0907-1007
62	TUBE; DIST,BRKT SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (B) L=22	9-22159-024-0	01	1	1008-1110
62	TUBE; DIST,BRKT EURO2 SPECIFICATION<NT2> (B) L=22	9-22159-024-0	01	1	1008-1110
62	TUBE; DIST,BRKT EURO2 SPECIFICATION<NT2> (B) L=22	9-22159-024-0	01	1	1111-
62	TUBE; DIST,BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (B) L=22	9-22159-024-0	01	1	1111-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	0809-0809
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	0810-1007
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	0810-1007
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	1008-1011
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	1008-1011
62	TUBE; DIST,BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	1012-1110
62	TUBE; DIST,BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	1012-1110
62	TUBE; DIST,BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	1111-1309
62	TUBE; DIST,BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	1111-1309
62	TUBE; DIST,BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	01	1	1310-
64	U-BOLT; EXH PIPE,RR EURO3 SPECIFICATION<NT3>	1-22113-101-0	01	1	0810-1007
64	U-BOLT; EXH PIPE,RR CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3>	1-22113-101-0	01	1	1008-1110
64	U-BOLT; EXH PIPE,RR PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3>	1-22113-101-0	01	1	1111-
68	NUT; U BOLT EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	01	1	0810-0811
68	NUT; U BOLT EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	02	1	0812-1007
68	NUT; U BOLT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	02	1	1008-1110
68	NUT; U BOLT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	02	1	1111-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1310-
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0809-0809
70	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M10X50 FLANGE	0-28051-050-0	01	1	0810-1007
70	BOLT; BRKT SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (B) M10X50 FLANGE	0-28051-050-0	01	1	1008-1110
70	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M10X50 FLANGE	0-28051-050-0	01	1	1008-1110
70	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M10X50 FLANGE	0-28051-050-0	01	1	1111-
70	BOLT; BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (B) M10X50 FLANGE	0-28051-050-0	01	1	1111-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	0809-0809
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	0810-1007
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	0810-1007
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	1008-1011
70	BOLT; BRKT 4HK1-TCS ENG(RJS) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	1008-1011
70	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	1012-1110
70	BOLT; BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	1012-1110
70	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	1111-1309
70	BOLT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	1111-1309
70	BOLT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	01	1	1310-
70	BOLT; BRKT EURO3 SPECIFICATION<NT3> (A) M10X35 FLANGE	0-28651-035-0	03	1	0810-1007
70	BOLT; BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) M10X35 FLANGE	0-28651-035-0	03	1	1008-1110
70	BOLT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) M10X35 FLANGE	0-28651-035-0	03	1	1111-
81	NUT; BRKT EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	05	1	0810-1007
81	NUT; BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	05	1	1008-1110
81	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	1111-
81	NUT; BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	01	1	1111-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0809
81	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	0810-1007
81	NUT; BRKT SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	01	1	1008-1110
81	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	1008-1110
81	NUT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	05	1	1111-1309
81	NUT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	04	1	1310-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-1007
81	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	0809-1007
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-1007
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1008-1110
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1008-1110
81	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1008-1110
81	NUT; BRKT SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	02	1	1008-1110
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1111-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1111-
81	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1111-
81	NUT; BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	02	1	1111-
81	NUT; BRKT EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	02	1	0810-1007
81	NUT; BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	02	1	1008-1110
81	NUT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	02	1	1111-
94	BOLT; CLAMP EURO3 SPECIFICATION<NT3> M10X40 FLANGE	0-28651-040-0	06	1	0810-1007
94	BOLT; CLAMP CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10X40 FLANGE	0-28651-040-0	06	1	1008-1110
94	BOLT; CLAMP EURO2 SPECIFICATION<NT2> M10X40 FLANGE	0-28651-040-0	02	1	1111-
94	BOLT; CLAMP EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) M10X40 FLANGE	0-28651-040-0	02	1	1111-
94	BOLT; CLAMP EURO2 SPECIFICATION<NT2> M10X40 FLANGE	0-28651-040-0	02	1	0809-1007
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0809-1007
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1008-1110
94	BOLT; CLAMP SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> M10X40 FLANGE	0-28651-040-0	02	1	1008-1110
94	BOLT; CLAMP EURO2 SPECIFICATION<NT2> M10X40 FLANGE	0-28651-040-0	02	1	1008-1110
94	BOLT; CLAMP PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10X40 FLANGE	0-28651-040-0	06	1	1111-1309
94	BOLT; CLAMP PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10X40 FLANGE	0-28651-040-0	04	1	1310-
105	NUT; CLAMP EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	06	1	0810-1007
105	NUT; CLAMP CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	06	1	1008-1110
105	NUT; CLAMP EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1111-
105	NUT; CLAMP EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	02	1	1111-
105	NUT; CLAMP EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	0809-1007
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0809-1007
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1008-1110
105	NUT; CLAMP SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	02	1	1008-1110
105	NUT; CLAMP EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1008-1110
105	NUT; CLAMP PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	06	1	1111-1309
105	NUT; CLAMP PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	04	1	1310-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-1007
107	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0809-1007
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-1007
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1008-1110
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1008-1110
107	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	1008-1110
107	BOLT; BRKT SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> M10X35 FLANGE	0-28651-035-0	02	1	1008-1110
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1111-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1111-
107	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	1111-
107	BOLT; BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) M10X35 FLANGE	0-28651-035-0	02	1	1111-
107	BOLT; BRKT EURO3 SPECIFICATION<NT3> M8X35 FLANGE	0-28650-835-0	02	1	0810-1007
107	BOLT; BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M8X35 FLANGE	0-28650-835-0	02	1	1008-1110
107	BOLT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M8X35 FLANGE	0-28650-835-0	02	1	1111-1112
107	BOLT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M8X30 FLANGE	0-28650-830-0	02	1	1201-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	0809-
121	WASHER; PL,BRKT EURO3 SPECIFICATION<NT3> ID=11 OD=54	1-09503-154-2	01	1	0810-1007
121	WASHER; PL,BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> ID=11 OD=54	1-09503-154-2	01	1	1008-1110
121	WASHER; PL,BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> ID=11 OD=54	1-09503-154-2	01	1	1111-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	0809-
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1310-
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1310-
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	0809-0809
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	0810-1007
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	0810-1007
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	1008-1011
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	1008-1011
226	RUBBER; CUSHION EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	1012-1110
226	RUBBER; CUSHION CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	1012-1110
226	RUBBER; CUSHION EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	1111-1309
226	RUBBER; CUSHION PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	1111-1309
226	RUBBER; CUSHION PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	01	1	1310-
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	0809-0809
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	0810-1007
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	0810-1007
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	1008-1011
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	1008-1011
226	RUBBER; CUSHION EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	1012-1110
226	RUBBER; CUSHION CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	1012-1110
226	RUBBER; CUSHION EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	1111-1309
226	RUBBER; CUSHION PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	1111-1309
226	RUBBER; CUSHION PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	01	1	1310-
236	BOLT; PIPE CLAMP TO BRKT M10X30 FLANGE	0-28651-030-0	02	1	0809-

64 81 68 107 70 60 105 22 94 22 226 62 81 236 70 56 121 81 226 81 121 226 56 62 70 17 81 36 118 70 60 226 105 107 22 81 94 22 56 56 108

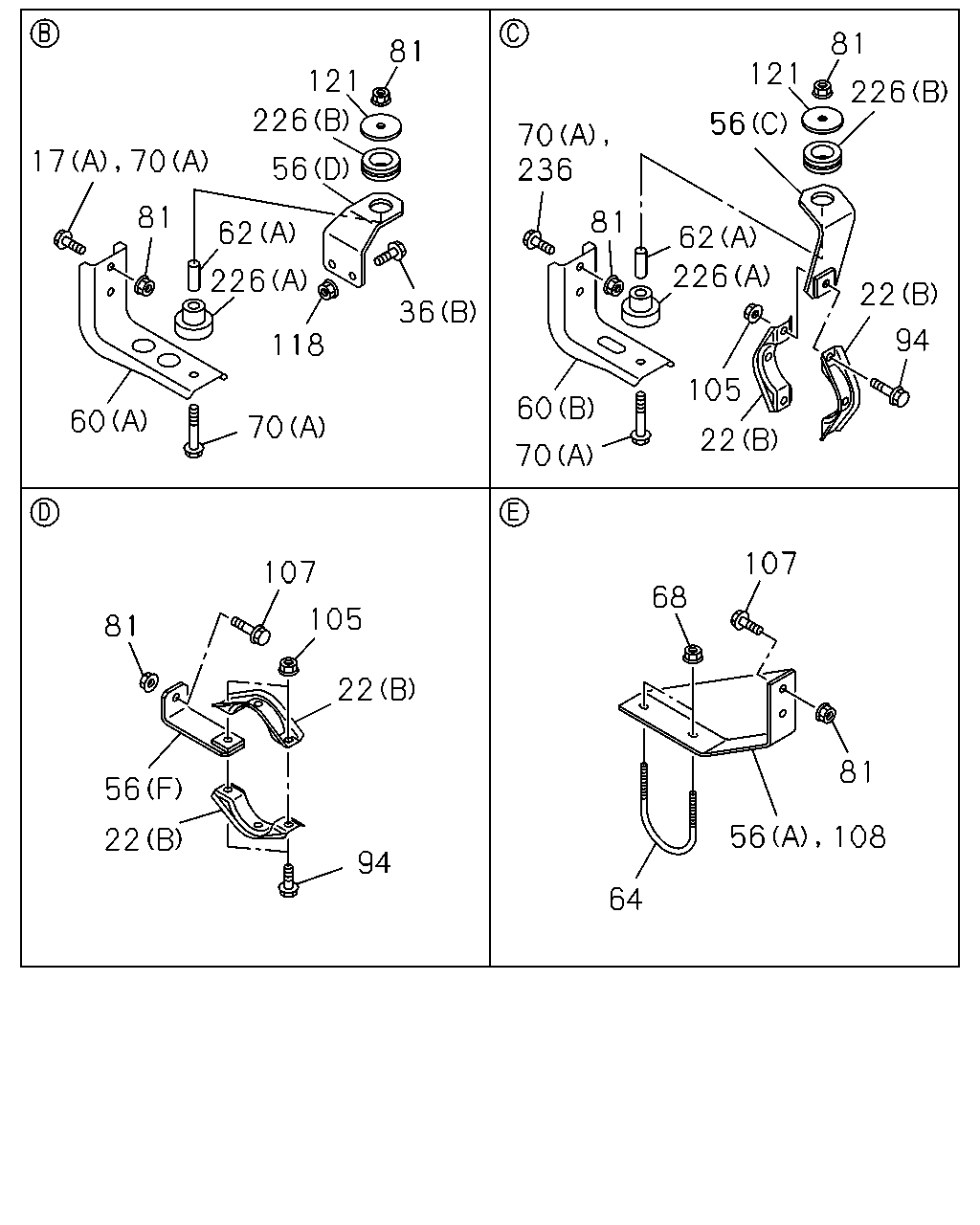

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; EXH PIPE KD PREPARATORY PACK<6HF> (B) M12X35 FLANGE	0-28051-235-0	04	1	1204-
17	BOLT; EXH PIPE (A) M10X35 FLANGE	0-28651-035-0	02	1	0809-
22	CLAMP; EXH PIPE EURO3 SPECIFICATION<NT3> (B) ID=80-84	1-22133-233-0	06	1	0810-1007
22	CLAMP; EXH PIPE CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B) ID=80-84	1-22133-233-0	06	1	1008-1110
22	CLAMP; EXH PIPE EURO2 SPECIFICATION<NT2> (B) ID=80-84	1-22133-233-0	02	1	1111-
22	CLAMP; EXH PIPE EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (B) ID=80-84	1-22133-233-0	02	1	1111-
22	CLAMP; EXH PIPE (A)	1-22133-295-0	01	1	0809-1309
22	CLAMP; EXH PIPE (A)	8-97646-674-0	01	1	1310-
22	CLAMP; EXH PIPE EURO2 SPECIFICATION<NT2> (B) ID=80-84	1-22133-233-0	02	1	0809-1007
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	0809-1007
22	CLAMP; EXH PIPE (B) ID=80-84	1-22133-233-0	02	1	1008-1110
22	CLAMP; EXH PIPE SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (B) ID=80-84	1-22133-233-0	02	1	1008-1110
22	CLAMP; EXH PIPE EURO2 SPECIFICATION<NT2> (B) ID=80-84	1-22133-233-0	02	1	1008-1110
22	CLAMP; EXH PIPE PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B) ID=80-84	1-22133-233-0	06	1	1111-1309
22	CLAMP; EXH PIPE PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B) ID=80-84	1-22133-233-0	04	1	1310-
36	NUT; EXH PIPE (B) M10 FLANGE	0-91180-210-0	02	1	0809-
36	NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0809-
56	BRACKET; CLAMP,EXH PIPE EURO3 SPECIFICATION<NT3> (E)	8-98059-756-0	02	1	0810-1007
56	BRACKET; CLAMP,EXH PIPE CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (E)	8-98059-756-0	02	1	1008-1110
56	BRACKET; CLAMP,EXH PIPE PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (E)	8-98059-756-0	02	1	1111-1309
56	BRACKET; CLAMP,EXH PIPE PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (E)	8-98245-534-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-584-0	01	1	0809-0809
56	BRACKET; CLAMP,EXH PIPE EURO2 SPECIFICATION<NT2> (B)	1-22131-584-0	01	1	0810-1007
56	BRACKET; CLAMP,EXH PIPE SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (B)	1-22131-584-0	01	1	1008-1110
56	BRACKET; CLAMP,EXH PIPE EURO2 SPECIFICATION<NT2> (B)	1-22131-584-0	01	1	1008-1110
56	BRACKET; CLAMP,EXH PIPE EURO2 SPECIFICATION<NT2> (B)	1-22131-584-0	01	1	1111-1309
56	BRACKET; CLAMP,EXH PIPE EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (B)	1-22131-584-0	01	1	1111-1309
56	BRACKET; CLAMP,EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-98245-522-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (B)	8-98245-522-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE (D)	8-98074-824-1	01	1	0809-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98086-352-0	01	1	0809-
56	BRACKET; CLAMP,EXH PIPE EURO3 SPECIFICATION<NT3> (A)	8-98056-460-0	01	1	0810-1007
56	BRACKET; CLAMP,EXH PIPE CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A)	8-98056-460-0	01	1	1008-1110
56	BRACKET; CLAMP,EXH PIPE PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A)	8-98056-460-0	01	1	1111-1112
56	BRACKET; CLAMP,EXH PIPE EURO3 SPECIFICATION<NT3> (F)	8-98085-168-0	01	1	0810-1007
56	BRACKET; CLAMP,EXH PIPE CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (F)	8-98085-168-0	01	1	1008-1110
56	BRACKET; CLAMP,EXH PIPE PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (F)	8-98085-168-0	01	1	1111-
60	BRACKET; FRAME TO BRKT EURO3 SPECIFICATION<NT3> (B)	8-98059-753-1	02	1	0810-1007
60	BRACKET; FRAME TO BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B)	8-98059-753-1	02	1	1008-1110
60	BRACKET; FRAME TO BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B)	8-98059-753-1	02	1	1111-1309
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-98245-530-0	01	1	1310-
60	BRACKET; FRAME TO BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B)	8-98245-530-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	0809-
60	BRACKET; FRAME TO BRKT (B)	8-98059-753-1	01	1	0809-1309
60	BRACKET; FRAME TO BRKT (C)	8-98090-167-0	01	1	0809-0809
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION<NT2> (C)	8-98090-167-0	01	1	0810-1007
60	BRACKET; FRAME TO BRKT SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (C)	8-98090-167-0	01	1	1008-1110
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION<NT2> (C)	8-98090-167-0	01	1	1008-1110
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION<NT2> (C)	8-98090-167-0	01	1	1111-
60	BRACKET; FRAME TO BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (C)	8-98090-167-0	01	1	1111-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	1310-
62	TUBE; DIST,BRKT (B) L=22	1-22159-392-0	01	1	0809-0809
62	TUBE; DIST,BRKT EURO2 SPECIFICATION<NT2> (B) L=22	1-22159-392-0	01	1	0810-0906
62	TUBE; DIST,BRKT EURO2 SPECIFICATION<NT2> (B) L=22	9-22159-024-0	01	1	0907-1007
62	TUBE; DIST,BRKT SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (B) L=22	9-22159-024-0	01	1	1008-1110
62	TUBE; DIST,BRKT EURO2 SPECIFICATION<NT2> (B) L=22	9-22159-024-0	01	1	1008-1110
62	TUBE; DIST,BRKT EURO2 SPECIFICATION<NT2> (B) L=22	9-22159-024-0	01	1	1111-
62	TUBE; DIST,BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (B) L=22	9-22159-024-0	01	1	1111-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	0809-0809
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	0810-1007
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	0810-1007
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	1008-1011
62	TUBE; DIST,BRKT 4HK1-TCS ENG(RJS) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	1008-1011
62	TUBE; DIST,BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	1012-1110
62	TUBE; DIST,BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	1012-1110
62	TUBE; DIST,BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	1111-1309
62	TUBE; DIST,BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	02	1	1111-1309
62	TUBE; DIST,BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) L=39	8-98060-852-0	01	1	1310-
64	U-BOLT; EXH PIPE,RR EURO3 SPECIFICATION<NT3>	1-22113-101-0	01	1	0810-1007
64	U-BOLT; EXH PIPE,RR CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3>	1-22113-101-0	01	1	1008-1110
64	U-BOLT; EXH PIPE,RR PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3>	1-22113-101-0	01	1	1111-
68	NUT; U BOLT EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	01	1	0810-0811
68	NUT; U BOLT EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	02	1	0812-1007
68	NUT; U BOLT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	02	1	1008-1110
68	NUT; U BOLT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	02	1	1111-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1310-
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	0809-0809
70	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M10X50 FLANGE	0-28051-050-0	01	1	0810-1007
70	BOLT; BRKT SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> (B) M10X50 FLANGE	0-28051-050-0	01	1	1008-1110
70	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M10X50 FLANGE	0-28051-050-0	01	1	1008-1110
70	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M10X50 FLANGE	0-28051-050-0	01	1	1111-
70	BOLT; BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (B) M10X50 FLANGE	0-28051-050-0	01	1	1111-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	0809-0809
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	0810-1007
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	0810-1007
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	1008-1011
70	BOLT; BRKT 4HK1-TCS ENG(RJS) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	1008-1011
70	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	1012-1110
70	BOLT; BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	1012-1110
70	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	1111-1309
70	BOLT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	02	1	1111-1309
70	BOLT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) M10X70 FLANGE	0-28051-070-0	01	1	1310-
70	BOLT; BRKT EURO3 SPECIFICATION<NT3> (A) M10X35 FLANGE	0-28651-035-0	03	1	0810-1007
70	BOLT; BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) M10X35 FLANGE	0-28651-035-0	03	1	1008-1110
70	BOLT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A) M10X35 FLANGE	0-28651-035-0	03	1	1111-
81	NUT; BRKT EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	05	1	0810-1007
81	NUT; BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	05	1	1008-1110
81	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	1111-
81	NUT; BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	01	1	1111-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0809
81	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	0810-1007
81	NUT; BRKT SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	01	1	1008-1110
81	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	1008-1110
81	NUT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	05	1	1111-1309
81	NUT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	04	1	1310-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-1007
81	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	0809-1007
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-1007
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1008-1110
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1008-1110
81	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1008-1110
81	NUT; BRKT SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	02	1	1008-1110
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1111-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1111-
81	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1111-
81	NUT; BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	02	1	1111-
81	NUT; BRKT EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	02	1	0810-1007
81	NUT; BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	02	1	1008-1110
81	NUT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	02	1	1111-
94	BOLT; CLAMP EURO3 SPECIFICATION<NT3> M10X40 FLANGE	0-28651-040-0	06	1	0810-1007
94	BOLT; CLAMP CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10X40 FLANGE	0-28651-040-0	06	1	1008-1110
94	BOLT; CLAMP EURO2 SPECIFICATION<NT2> M10X40 FLANGE	0-28651-040-0	02	1	1111-
94	BOLT; CLAMP EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) M10X40 FLANGE	0-28651-040-0	02	1	1111-
94	BOLT; CLAMP EURO2 SPECIFICATION<NT2> M10X40 FLANGE	0-28651-040-0	02	1	0809-1007
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0809-1007
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	1008-1110
94	BOLT; CLAMP SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> M10X40 FLANGE	0-28651-040-0	02	1	1008-1110
94	BOLT; CLAMP EURO2 SPECIFICATION<NT2> M10X40 FLANGE	0-28651-040-0	02	1	1008-1110
94	BOLT; CLAMP PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10X40 FLANGE	0-28651-040-0	06	1	1111-1309
94	BOLT; CLAMP PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10X40 FLANGE	0-28651-040-0	04	1	1310-
105	NUT; CLAMP EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	06	1	0810-1007
105	NUT; CLAMP CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	06	1	1008-1110
105	NUT; CLAMP EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1111-
105	NUT; CLAMP EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) M10 FLANGE	0-91180-210-0	02	1	1111-
105	NUT; CLAMP EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	0809-1007
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0809-1007
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	1008-1110
105	NUT; CLAMP SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	02	1	1008-1110
105	NUT; CLAMP EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1008-1110
105	NUT; CLAMP PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	06	1	1111-1309
105	NUT; CLAMP PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M10 FLANGE	0-91180-210-0	04	1	1310-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-1007
107	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0809-1007
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-1007
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1008-1110
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1008-1110
107	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	1008-1110
107	BOLT; BRKT SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> M10X35 FLANGE	0-28651-035-0	02	1	1008-1110
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1111-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1111-
107	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	1111-
107	BOLT; BRKT EURO3 SPECIFICATION<NT3> EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) M10X35 FLANGE	0-28651-035-0	02	1	1111-
107	BOLT; BRKT EURO3 SPECIFICATION<NT3> M8X35 FLANGE	0-28650-835-0	02	1	0810-1007
107	BOLT; BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M8X35 FLANGE	0-28650-835-0	02	1	1008-1110
107	BOLT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M8X35 FLANGE	0-28650-835-0	02	1	1111-1112
107	BOLT; BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> M8X30 FLANGE	0-28650-830-0	02	1	1201-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3>	8-98056-460-0	01	1	1201-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	0809-
121	WASHER; PL,BRKT EURO3 SPECIFICATION<NT3> ID=11 OD=54	1-09503-154-2	01	1	0810-1007
121	WASHER; PL,BRKT CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> ID=11 OD=54	1-09503-154-2	01	1	1008-1110
121	WASHER; PL,BRKT PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> ID=11 OD=54	1-09503-154-2	01	1	1111-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	0809-
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1310-
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1310-
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	0809-0809
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	0810-1007
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	0810-1007
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	1008-1011
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	1008-1011
226	RUBBER; CUSHION EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	1012-1110
226	RUBBER; CUSHION CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	1012-1110
226	RUBBER; CUSHION EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	1111-1309
226	RUBBER; CUSHION PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	02	1	1111-1309
226	RUBBER; CUSHION PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (A)	8-94457-277-1	01	1	1310-
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	0809-0809
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	0810-1007
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	0810-1007
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	1008-1011
226	RUBBER; CUSHION 4HK1-TCS ENG(RJS) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	1008-1011
226	RUBBER; CUSHION EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	1012-1110
226	RUBBER; CUSHION CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	1012-1110
226	RUBBER; CUSHION EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	1111-1309
226	RUBBER; CUSHION PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	02	1	1111-1309
226	RUBBER; CUSHION PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> (B)	8-94457-278-1	01	1	1310-
236	BOLT; PIPE CLAMP TO BRKT M10X30 FLANGE	0-28651-030-0	02	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
