Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#38212) — 185 parça

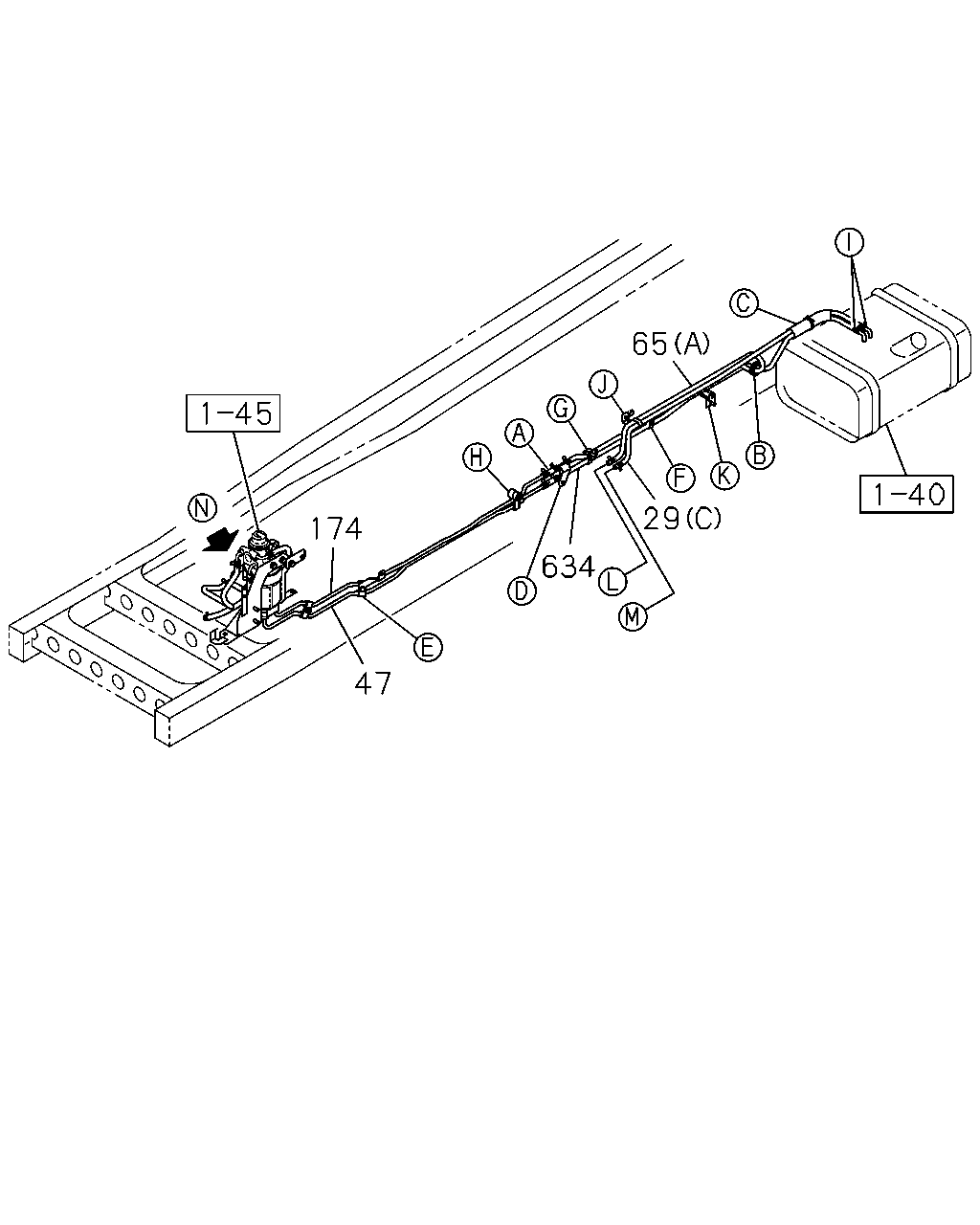

174 47 634 65 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
29	HOSE; FUEL (A)	8-98078-194-3	01	1	0809-
29	HOSE; FUEL (B)	8-98078-195-1	01	1	0809-
47	PIPE; FUEL,RETURN L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (A) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W) (A) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE (B) L=60 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
174	PIPE; FUEL,FEED,FRT L=1322	8-98100-140-0	01	1	0809-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	0809-
634	HOSE; RUBBER RETURN WHEEL BASE 4300MM(43W) L=1600 SERVICED BY L=3000	0-01558-300-0	01	1	0809-
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=2200 SERVICED BY L=3000	0-01558-300-0	01	1	0809-
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2400 SERVICED BY L=3000	0-01558-300-0	01	1	0809-

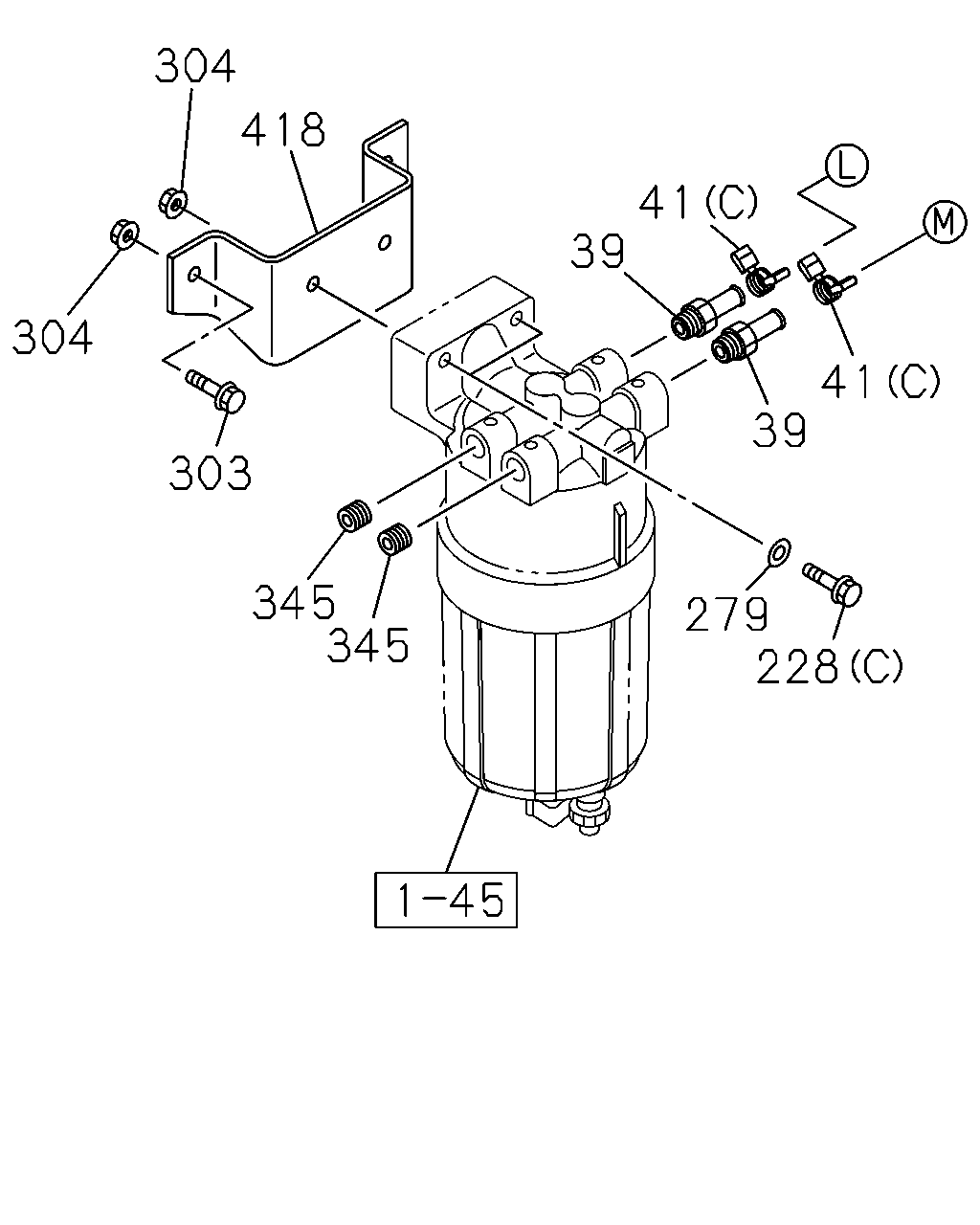

304 418 41 39 304 41 39 303 345 345 279 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL	8-97358-699-0	02	1	0809-0903
39	PIPE; FUEL NPTF3/8-18 OD=10	8-98122-953-0	02	1	0904-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	0809-0809
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=140	5-09707-031-1	03	1	0809-1003
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (E) L=140	5-09707-031-1	04	1	0809-1003
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	0809-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0809-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0809-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	0902-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0809-
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	0809-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0809-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	0809-
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0809-0809
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	01	1	0809-0809
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0809-
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	01	1	0809-
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-0809
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	01	1	0809-0809
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	01	1	0809-
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	01	1	0809-
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0809
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	0809-0809
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	0809-
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	0809-
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	0809-1003
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0809-1003
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1004-
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	1004-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	0809-
418	BRACKET; PRE FUEL FILTER	8-98114-787-0	01	1	0809-

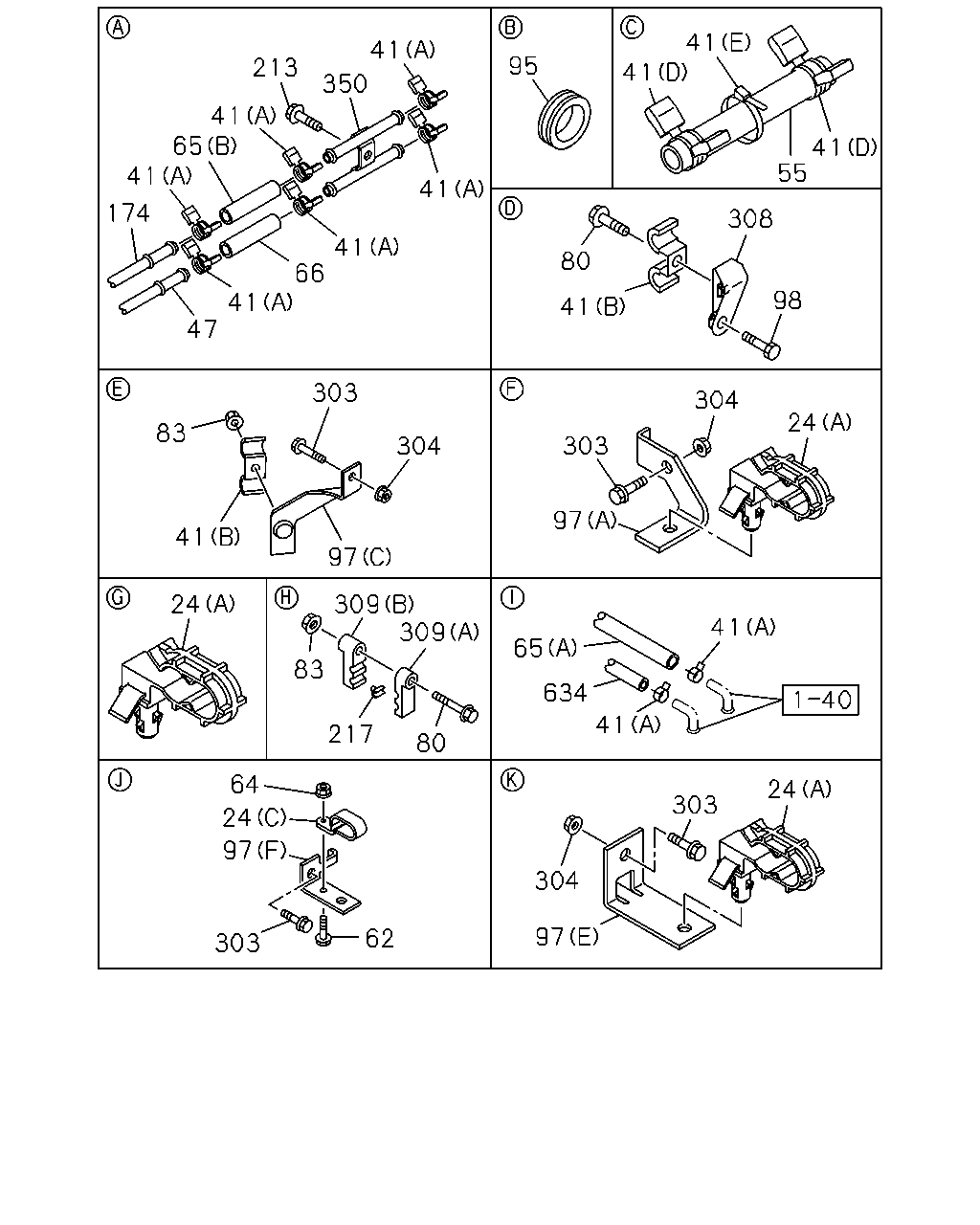

41 41 41 95 213 350 41 65 41 41 55 41 174 308 41 66 80 98 41 47 41 303 304 24 83 303 304 97 41 97 24 309 309 41 65 83 634 41 217 80 64 24 303 24 97 304 97 62 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	0809-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	0809-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	07	1	0809-
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0809-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	0809-0809
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=140	5-09707-031-1	03	1	0809-1003
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (E) L=140	5-09707-031-1	04	1	0809-1003
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	0809-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0809-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0809-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	0902-
47	PIPE; FUEL,RETURN L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	0809-
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0809-0809
55	COVER; PIPE,FUEL TANK WHEEL BASE 4600MM(46W) ID=32 OD=36 L=50	1-09337-023-0	01	1	0809-1003
55	COVER; PIPE,FUEL TANK ID=27 L=500	8-98119-327-0	01	1	0809-1003
55	COVER; PIPE,FUEL TANK L=800	1-09361-018-0	01	1	1004-
62	BOLT; CLIP FIX WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X20 FLANGE	0-28650-820-0	01	1	0809-
64	NUT; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (A) L=1200 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4300MM(43W) (A) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4600MM(46W) (A) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) L=2900 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
65	HOSE; FUEL,DELIVERY PIPE (B) L=60 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
66	HOSE; FUEL,RETURN PIPE L=60 SERVICED BY L=3000	0-01558-300-0	01	1	0809-
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	01	1	0809-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	0809-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	04	1	0809-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0809-
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	0809-0809
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	0809-0809
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E)	8-98109-768-0	01	1	0809-
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (F)	8-98100-216-1	01	1	0809-
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A)	8-98083-349-0	01	1	0809-
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0809-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	0809-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	0809-
98	BOLT; BRKT,FUEL PIPE M10X30 FLANGE	0-28651-030-0	01	1	0809-
174	PIPE; FUEL,FEED,FRT L=1322	8-98100-140-0	01	1	0809-
213	BOLT; FUEL PIPE FIX M8X20 FLANGE	0-28650-820-0	01	1	0809-
217	COLLAR; FUEL PIPE FIX ID=8	1-47459-011-0	01	1	0810-
217	COLLAR; FUEL PIPE FIX ID=8	1-47459-011-0	03	1	0809-0809
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0809-0809
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	01	1	0809-0809
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0809-
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	01	1	0809-
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-0809
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	01	1	0809-0809
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	01	1	0809-
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	01	1	0809-
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0809
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	0809-0809
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	0809-
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	0809-
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	0809-1003
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0809-1003
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1004-
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	1004-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-
308	BRACKET; FUEL PIPE	8-98117-691-0	01	1	0809-
309	CLIP; PIPE (A) ID=10 & 10	1-09709-241-0	01	1	0810-
309	CLIP; PIPE (B) ID=10 & 10	1-09709-243-0	01	1	0810-
309	CLIP; PIPE (A) ID=10 & 10	1-09709-241-0	03	1	0809-0809
309	CLIP; PIPE (B) ID=10 & 10	1-09709-243-0	03	1	0809-0809
350	PIPE; FUEL,DEL & RET	8-98084-131-0	01	1	0809-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=700 SERVICED BY L=3000	0-01558-300-0	01	1	0809-
634	HOSE; RUBBER RETURN WHEEL BASE 4300MM(43W) L=1600 SERVICED BY L=3000	0-01558-300-0	01	1	0809-
634	HOSE; RUBBER RETURN WHEEL BASE 4600MM(46W) L=2200 SERVICED BY L=3000	0-01558-300-0	01	1	0809-
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=2400 SERVICED BY L=3000	0-01558-300-0	01	1	0809-

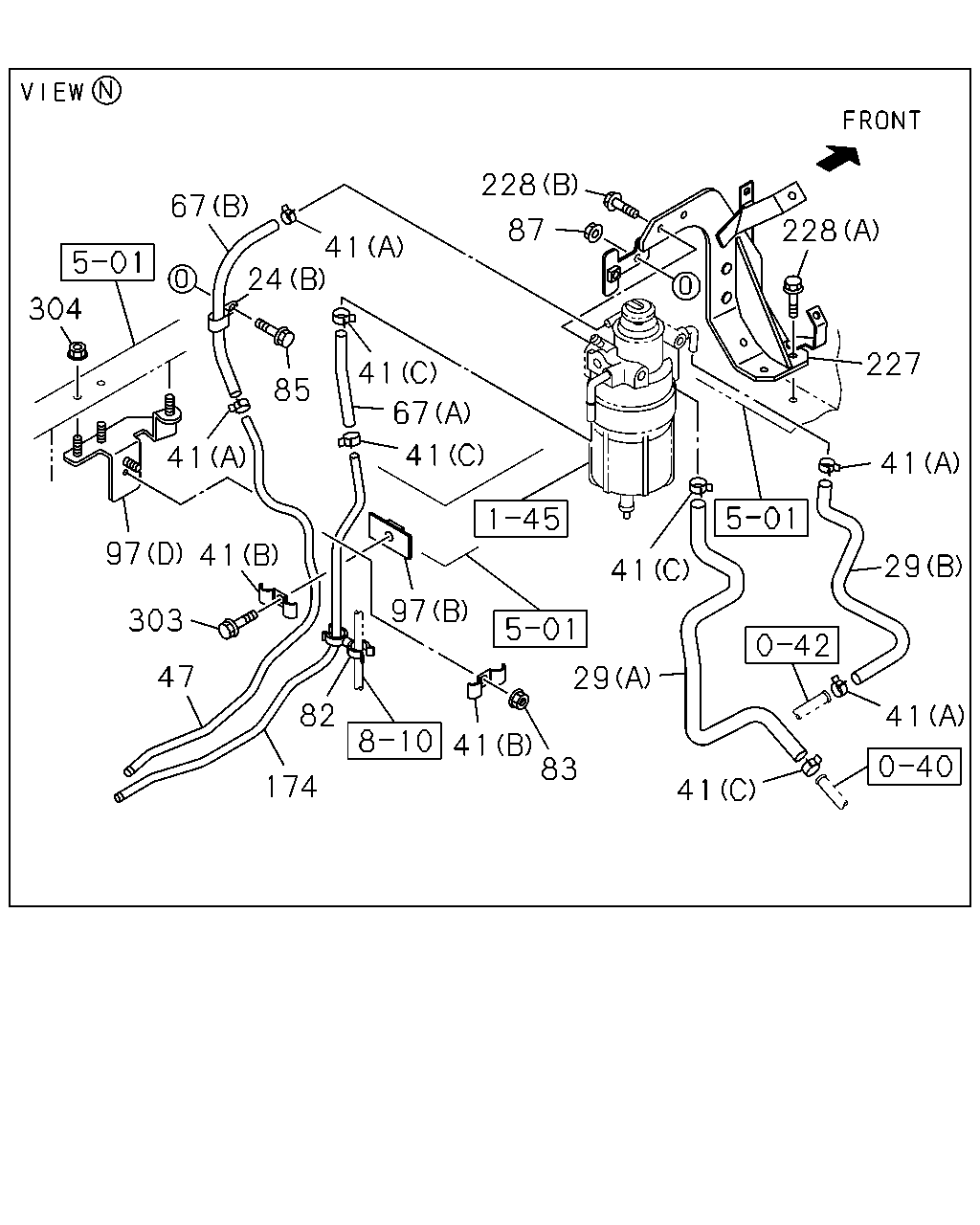

67 304 41 41 97 303 47 174 82 97 41 83 29 41 41 67 41 85 24 41 228 87 228 227 41 29 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W) (A) ID=14.5 & 14.5	1-09701-246-1	04	1	0809-
24	CLIP; FUEL HOSE WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0809-
24	CLIP; FUEL HOSE WHEEL BASE 4600MM(46W) (A) ID=14.5 & 14.5	1-09701-246-1	06	1	0809-
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=14.5 & 14.5	1-09701-246-1	07	1	0809-
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0809-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
29	HOSE; FUEL WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
29	HOSE; FUEL (A)	8-98078-194-3	01	1	0809-
29	HOSE; FUEL (B)	8-98078-195-1	01	1	0809-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	0809-0809
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W),WHEEL BASE 4300MM(43W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E) L=140	5-09707-031-1	03	1	0809-1003
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	03	1	1004-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4600MM(46W) (E) L=140	5-09707-031-1	04	1	0809-1003
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	06	1	0809-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0809-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0809-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	02	1	0902-
47	PIPE; FUEL,RETURN L=1496 SERVICED BY L=1550	1-47428-851-0	01	1	0809-
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000	0-01260-300-0	01	1	0809-
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	0809-
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	0809-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	04	1	0809-
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE	0-28650-820-0	01	1	0809-
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	01	1	0809-
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	0809-0809
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	0809-0809
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (E)	8-98109-768-0	01	1	0809-
97	BRACKET; CLIP WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (F)	8-98100-216-1	01	1	0809-
97	BRACKET; CLIP WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A)	8-98083-349-0	01	1	0809-
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0809-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	0809-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	0809-
174	PIPE; FUEL,FEED,FRT L=1322	8-98100-140-0	01	1	0809-
227	BRACKET; FUEL SEDIMENTER	8-98044-367-3	01	1	0809-0809
227	BRACKET; FUEL SEDIMENTER	8-98130-667-0	01	1	0809-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0809-
228	BOLT; BRKT,SEDIMENTER (C) M10X50 FLANGE	0-28051-050-0	02	1	0809-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0809-
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0809-0809
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	01	1	0809-0809
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0809-
303	BOLT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	01	1	0809-
303	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0809-0809
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	01	1	0809-0809
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	01	1	0809-
303	BOLT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	01	1	0809-
303	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0809-
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0809-0809
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	0809-0809
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	0809-
304	NUT; BRKT WHEEL BASE 4300MM(43W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	01	1	0809-
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	0809-1003
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0809-1003
304	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1004-
304	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	1004-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-
304	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
