1-31 — AIR DUCT (#38209) — 165 parça

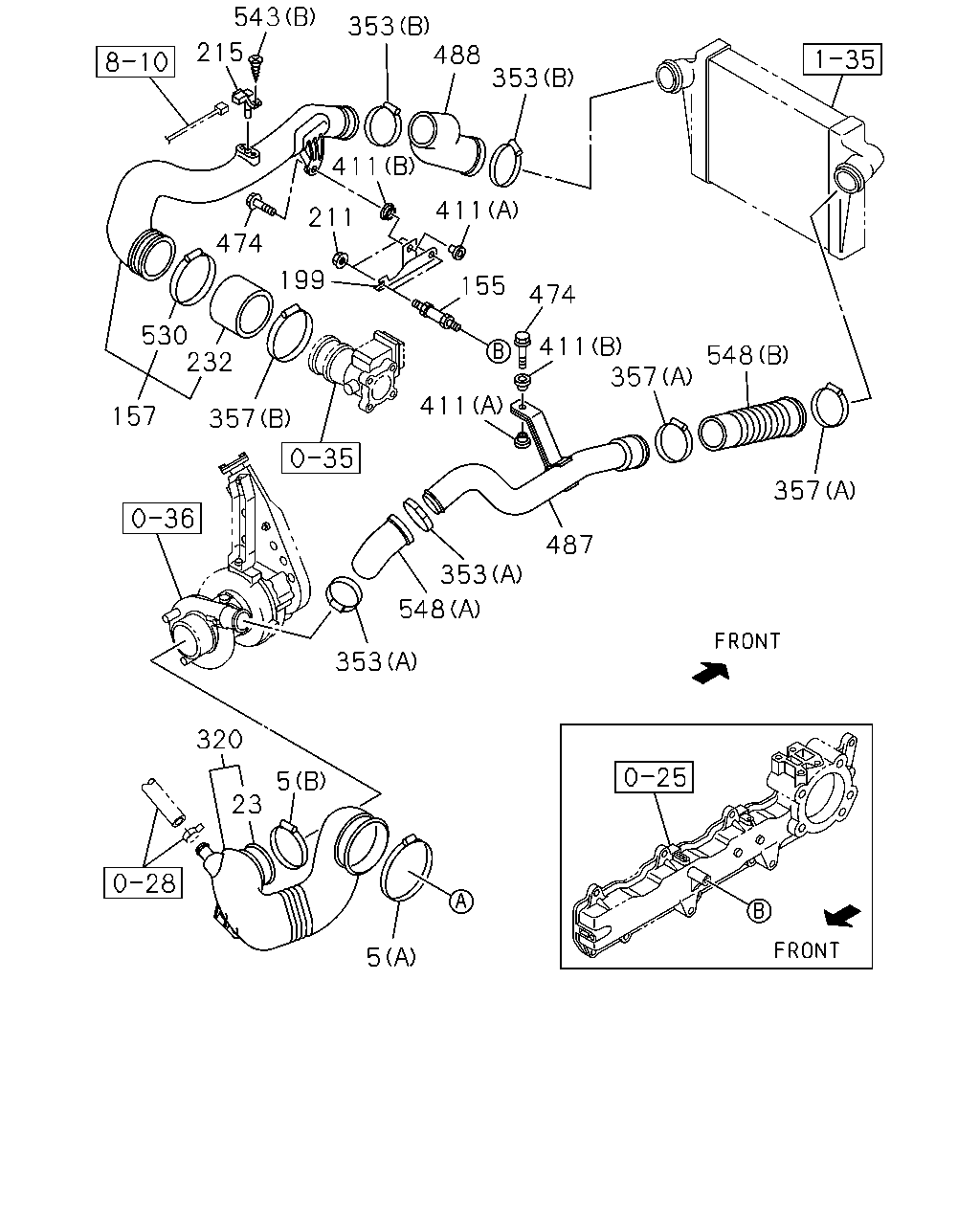

543 353 488 353 215 411 411 211 474 199 155 474 530 232 411 357 548 411 157 357 357 487 353 548 353 320 5 23 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79	1-09707-136-0	01	1	1002-1011	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79	1-09707-136-0	01	1	1012-1111	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (B) ID=75	8-98206-613-0	01	1	1112-	●	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1002-1011	●
5	CLIP; AIR DUCT EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1012-	●	●
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0809-0812	●
5	CLIP; AIR DUCT (A) ID=110-130	8-98133-359-0	01	1	0901-1001	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1002-1011	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1012-	●	●
5	CLIP; AIR DUCT (B) ID=58-76	1-09707-203-0	01	1	0809-0811	●
5	CLIP; AIR DUCT (B) ID=55-75	8-98133-349-0	01	1	0812-1001	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	01	1	1002-1011	●
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	01	1	1012-	●	●
23	CLIP; HOSE ID=87-116	1-09707-144-0	01	1	1102-	●	●
155	BOLT; BRKT M10X17,M10X30 L=105	8-97233-428-0	02	1	0809-1011	●
155	BOLT; BRKT M10X17,M10X30 L=105	8-97233-428-0	02	1	1012-	●	●
157	PIPE; AIR	8-98010-719-3	01	1	0809-1011	●
157	PIPE; AIR	8-98010-719-3	01	1	1012-	●	●
199	BRACKET; PIPE	8-97385-293-1	01	1	0809-1011	●
199	BRACKET; PIPE	8-97385-293-1	01	1	1012-	●	●
211	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0809-1011	●
211	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1012-	●	●
215	SENSOR; MAP	8-98009-418-0	01	1	0809-1011	●
215	SENSOR; MAP	8-98009-418-0	01	1	1012-	●	●
232	HOSE; CONN	8-98067-929-0	01	1	0809-1011	●
232	HOSE; CONN	8-98067-929-0	01	1	1012-	●	●
320	HOSE; CONN,ACL	8-98073-539-2	01	1	0809-0809	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>	8-98073-539-3	01	1	0810-1011	●
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>	8-98073-539-3	01	1	1012-	●	●
320	HOSE; CONN,ACL EURO3 SPECIFICATION<NT3>	8-98073-540-3	01	1	0810-1011	●
320	HOSE; CONN,ACL EURO3 SPECIFICATION<NT3>	8-98073-540-3	01	1	1012-	●	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79	1-09707-136-0	02	1	1002-1011	●
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79	1-09707-136-0	02	1	1012-	●	●
353	CLIP; RUBBER HOSE (B) ID=58-76	1-09707-203-0	02	1	0809-0811	●
353	CLIP; RUBBER HOSE (B) ID=55-75	8-98133-349-0	02	1	0812-1001	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	02	1	1002-1011	●
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	02	1	1012-	●	●
353	CLIP; RUBBER HOSE (A) ID=60-65	8-98096-418-0	02	1	0809-1011	●
353	CLIP; RUBBER HOSE (A) ID=60-65	8-98096-418-0	02	1	1012-	●	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (A) ID=58-79	1-09707-136-0	02	1	1002-1011	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (A) ID=58-79	1-09707-136-0	02	1	1012-	●	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1002-1011	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1012-	●	●
357	CLIP; RUBBER HOSE (B) ID=77-95	1-09707-198-0	01	1	0809-0810	●
357	CLIP; RUBBER HOSE (B) ID=75-95	8-98133-357-0	01	1	0811-1001	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1002-1011	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1012-	●	●
357	CLIP; RUBBER HOSE (A) ID=58-76	1-09707-203-0	02	1	0809-0811	●
357	CLIP; RUBBER HOSE (A) ID=55-75	8-98133-349-0	02	1	0812-1001	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (A) ID=55-75	8-98133-349-0	02	1	1002-1011	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (A) ID=55-75	8-98133-349-0	02	1	1012-	●	●
357	CLIP; RUBBER HOSE (C) ID=24	8-98025-921-0	02	1	0809-1011	●
357	CLIP; RUBBER HOSE (C) ID=24	8-98025-921-0	02	1	1012-	●	●
411	RUBBER; CUSHION (A) OD=32	8-94395-766-0	02	1	0809-1011	●
411	RUBBER; CUSHION (A) OD=32	8-94395-766-0	02	1	1012-	●	●
411	RUBBER; CUSHION (B) OD=23	8-97105-689-6	02	1	0809-1011	●
411	RUBBER; CUSHION (B) OD=23	8-97105-689-6	02	1	1012-	●	●
474	BOLT; PIPE M8X40 FLANGE	0-28650-840-0	02	1	0809-1011	●
474	BOLT; PIPE M8X40 FLANGE	0-28650-840-0	02	1	1012-	●	●
487	PIPE; TURBO TO CHARGE AIR COOLER	8-98073-592-0	01	1	0809-1011	●
487	PIPE; TURBO TO CHARGE AIR COOLER	8-98073-592-0	01	1	1012-	●	●
488	HOSE; RUBBER,PIPE	8-98010-723-0	01	1	0809-1011	●
488	HOSE; RUBBER,PIPE	8-98010-723-0	01	1	1012-	●	●
530	CLAMP; AIR DUCT ID=77-95	1-09707-198-0	01	1	0809-0810	●
530	CLAMP; AIR DUCT ID=75-95	8-98133-357-0	01	1	0811-1011	●
530	CLAMP; AIR DUCT ID=75-95	8-98133-357-0	01	1	1012-	●	●
543	SCREW; SENSOR (A) M5X14 W/LK WASHER	0-36220-514-0	01	1	0809-1011	●
543	SCREW; SENSOR (A) M5X14 W/LK WASHER	0-36220-514-0	01	1	1012-	●	●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0809-1011	●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0809-1011	●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1012-	●	●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1012-	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (A)	8-98181-971-1	01	1	1102-	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (B)	8-98181-972-1	01	1	1102-	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE (A)	8-98061-809-1	01	1	0809-1011	●
548	HOSE; RUBBER,TURBO TO INL PIPE (A)	8-98061-809-1	01	1	1012-1101	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE EXC. EURO2 SPECIFICATION<NT2> (A)	8-98061-809-1	01	1	1102-	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE (B)	8-98061-810-0	01	1	0809-1011	●
548	HOSE; RUBBER,TURBO TO INL PIPE (B)	8-98061-810-0	01	1	1012-1101	●	●
548	HOSE; RUBBER,TURBO TO INL PIPE EXC. EURO2 SPECIFICATION<NT2> (B)	8-98061-810-0	01	1	1102-	●	●

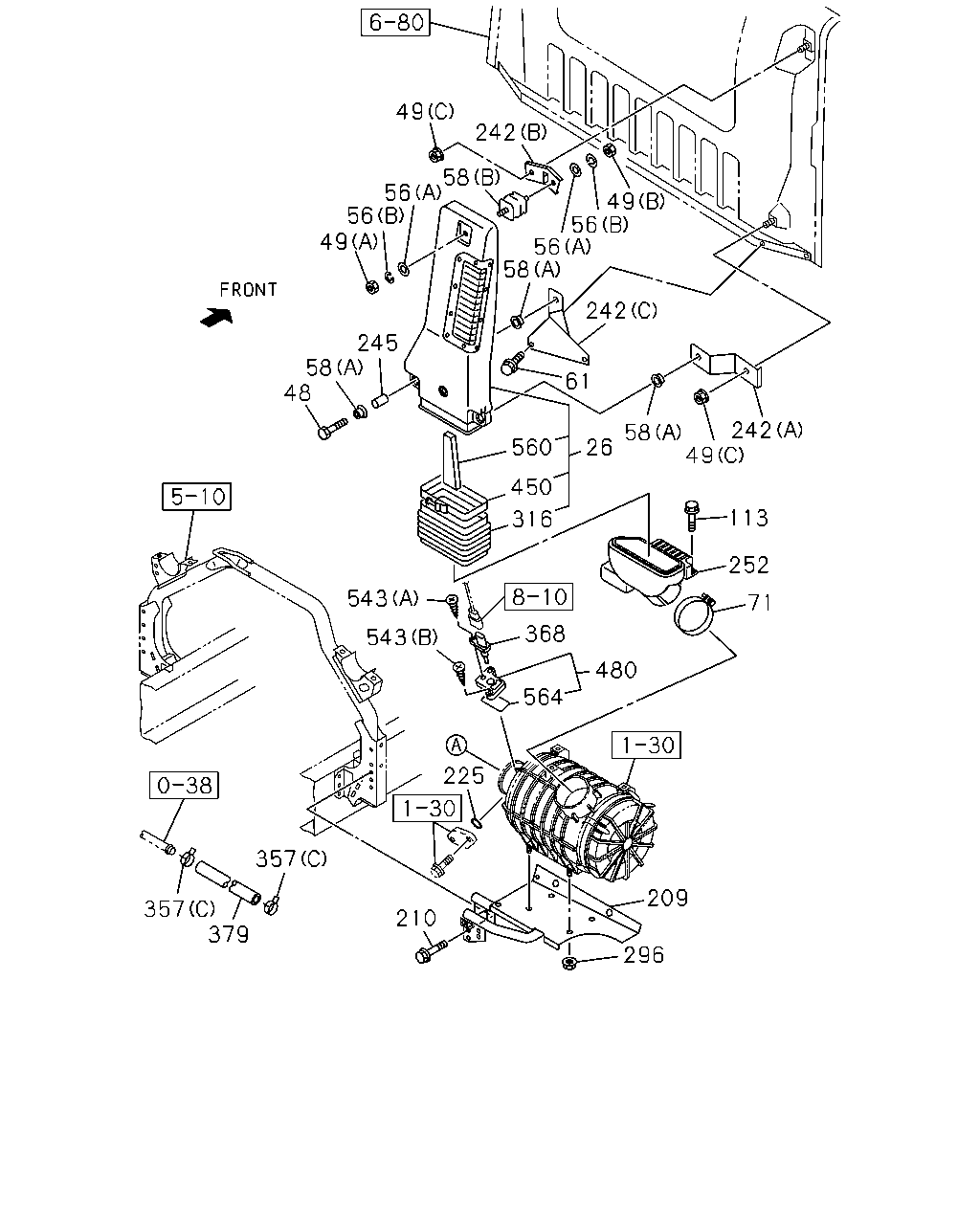

49 242 58 56 56 49 49 56 56 58 242 245 61 58 48 242 49 58 26 560 450 113 316 252 543 71 368 543 480 564 225 357 209 357 379 210 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	DUCT; AIR INT	8-98010-361-2	01	1	0809-1011	●
26	DUCT; AIR INT	8-98010-361-2	01	1	1012-	●	●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	0809-1011	●
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	1012-	●	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	0809-1011	●
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	1012-	●	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	0809-1011	●
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	1012-	●	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	0809-1011	●
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	1012-	●	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	0809-1011	●
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	1012-	●	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0809-1011	●
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	1012-	●	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0809-1011	●
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	1012-	●	●
58	SUPPORT; AIR INL DUCT (B)	1-14119-452-0	01	1	0809-0810	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	0811-1011	●
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	1012-	●	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0809-1011	●
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	1012-	●	●
71	CLIP; AIR DUCT ID=104-139	1-09707-200-0	01	1	0809-0812	●
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	0901-1011	●
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	1012-	●	●
113	BOLT; RESONATOR M6X16 W/PL WASHER	8-98094-071-0	03	1	0809-1011	●
113	BOLT; RESONATOR M6X16 W/PL WASHER	8-98094-071-0	03	1	1012-1012	●	●
113	BOLT; RESONATOR EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> M6X16 W/PL WASHER	8-98094-071-0	03	1	1012-	●	●
113	BOLT; RESONATOR EURO3 SPECIFICATION<NT3> M6X16 W/PL WASHER	8-98094-071-0	03	1	1012-	●	●
209	BRACKET; ACL	8-98010-343-4	01	1	0809-1011	●
209	BRACKET; ACL	8-98010-343-4	01	1	1012-	●	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	0809-1011	●
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	1012-	●	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	0809-1011	●
225	GASKET; AIR PIPE EURO2 SPECIFICATION<NT2> ID=24.4	1-09623-057-0	01	1	0809-1011	●
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	1012-	●	●
225	GASKET; AIR PIPE EURO2 SPECIFICATION<NT2> ID=24.4	1-09623-057-0	01	1	1012-	●	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0809-1011	●
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	1012-	●	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	0809-1011	●
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	1012-	●	●
242	BRACKET; AIR DUCT (A)	8-98019-303-1	01	1	0809-1011	●
242	BRACKET; AIR DUCT (A)	8-98019-303-1	01	1	1012-	●	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0809-1011	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	1012-	●	●
252	DUCT; AIR INT EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB>	8-98010-639-1	01	1	1012-	●	●
252	DUCT; AIR INT	8-98095-778-0	01	1	0809-1011	●
252	DUCT; AIR INT	8-98095-778-0	01	1	1012-1012	●	●
252	DUCT; AIR INT EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB>	8-98095-778-0	01	1	1012-	●	●
252	DUCT; AIR INT EURO3 SPECIFICATION<NT3>	8-98095-778-0	01	1	1012-	●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0809-1011	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	1012-	●	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	0908-1011	●
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	1012-	●	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (A) ID=58-79	1-09707-136-0	02	1	1002-1011	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (A) ID=58-79	1-09707-136-0	02	1	1012-	●	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1002-1011	●
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1012-	●	●
357	CLIP; RUBBER HOSE (B) ID=77-95	1-09707-198-0	01	1	0809-0810	●
357	CLIP; RUBBER HOSE (B) ID=75-95	8-98133-357-0	01	1	0811-1001	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1002-1011	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1012-	●	●
357	CLIP; RUBBER HOSE (A) ID=58-76	1-09707-203-0	02	1	0809-0811	●
357	CLIP; RUBBER HOSE (A) ID=55-75	8-98133-349-0	02	1	0812-1001	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (A) ID=55-75	8-98133-349-0	02	1	1002-1011	●
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (A) ID=55-75	8-98133-349-0	02	1	1012-	●	●
357	CLIP; RUBBER HOSE (C) ID=24	8-98025-921-0	02	1	0809-1011	●
357	CLIP; RUBBER HOSE (C) ID=24	8-98025-921-0	02	1	1012-	●	●
368	SENSOR; TEMP	8-98065-377-0	01	1	0809-1011	●
368	SENSOR; TEMP	8-98065-377-0	01	1	1012-	●	●
379	HOSE; RUBBER	8-98075-713-1	01	1	0809-1011	●
379	HOSE; RUBBER	8-98075-713-1	01	1	1012-	●	●
450	CLAMP; HOSE	9-09915-504-1	01	1	0809-1011	●
450	CLAMP; HOSE	9-09915-504-1	01	1	1012-	●	●
480	ADAPTER	8-98086-417-0	01	1	0809-1011	●
480	ADAPTER	8-98086-417-0	01	1	1012-	●	●
543	SCREW; SENSOR (A) M5X14 W/LK WASHER	0-36220-514-0	01	1	0809-1011	●
543	SCREW; SENSOR (A) M5X14 W/LK WASHER	0-36220-514-0	01	1	1012-	●	●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0809-1011	●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0809-1011	●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1012-	●	●
543	SCREW; SENSOR (B) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	1012-	●	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	0810-	●
560	FILTER; VERTICAL DUCT	8-98061-675-0	02	1	0809-0809	●
564	GASKET; ADAPTER	8-98071-416-0	01	1	0809-1011	●
564	GASKET; ADAPTER	8-98071-416-0	01	1	1012-	●	●
