◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11121 - FRR(LHD) SPACECAB ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#38206) — 94 parça

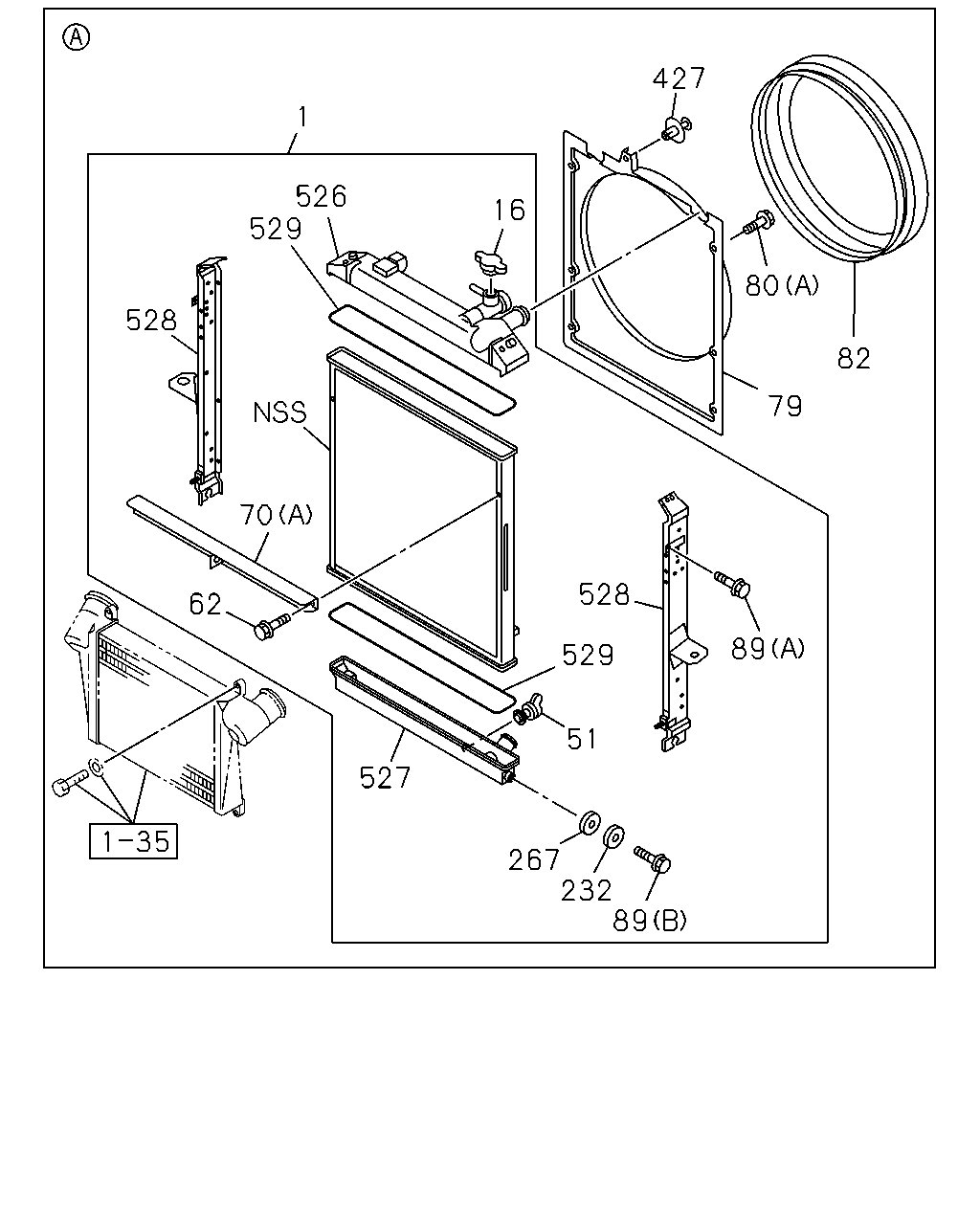

çizim 180892
1 427 80 82 79 16 526 529 528 70 62 528 529 89 51 527 267 232 89
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
SAUDI ARABIA EQUIPMENT(GH3) 		8-98139-306-0 01 1 1104- ●
1 RADIATOR ASM
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98139-321-0 01 1 0809-1011 ●
1 RADIATOR ASM
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98139-321-0 01 1 1012-1103 ● ●
1 RADIATOR ASM
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98139-321-0 01 1 1104- ● ●
1 RADIATOR ASM
SAUDI ARABIA EQUIPMENT(GH3) 		8-98139-321-0 01 1 1104- ●
1 RADIATOR ASM
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98139-320-0 01 1 0809-1011 ●
1 RADIATOR ASM
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98139-320-0 01 1 1012- ● ●
16 CAP; RAD
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98096-226-0 01 1 0809-1011 ●
16 CAP; RAD
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-98096-226-0 01 1 1012-1103 ● ●
16 CAP; RAD
CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-98096-226-0 01 1 1104- ● ●
16 CAP; RAD
SAUDI ARABIA EQUIPMENT(GH3) 		8-98096-226-0 01 1 1104- ● ●
16 CAP; RAD
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-97239-187-0 01 1 0809-1011 ●
16 CAP; RAD
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		8-97239-187-0 01 1 1012- ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0809-1011 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1012- ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28050-812-0 02 1 0809-1011 ●
62 BOLT; STAY
M8X12 FLANGE 		0-28050-812-0 02 1 1012- ● ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 0809-1011 ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1012- ● ●
70 STAY; RAD
(A) 		8-98018-941-0 01 1 0809-1011 ●
70 STAY; RAD
(A) 		8-98018-941-0 01 1 1012- ● ●
79 GUIDE; FAN,RAD 8-98010-297-0 01 1 0809-1011 ●
79 GUIDE; FAN,RAD 8-98010-297-0 01 1 1012- ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0809-1011 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1012- ● ●
80 BOLT; FAN GUIDE
(A) M6X16 		1-21559-481-0 04 1 0809-1011 ●
80 BOLT; FAN GUIDE
(A) M6X16 		1-21559-481-0 04 1 1012- ● ●
82 COVER; FAN,RAD 8-98006-478-0 01 1 0809-1011 ●
82 COVER; FAN,RAD 8-98006-478-0 01 1 1012- ● ●
89 BOLT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0809-1011 ●
89 BOLT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1012- ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 0809-1011 ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1012- ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 0809-1011 ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1012- ● ●
267 RUBBER; CUSHION 1-21467-023-0 02 1 0809-1011 ●
267 RUBBER; CUSHION 1-21467-023-0 02 1 1012- ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 0809-1011 ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1012- ● ●
526 TANK; UPR,RADIATOR CORE 8-98010-271-2 01 1 0810-1011 ●
526 TANK; UPR,RADIATOR CORE 8-98010-271-2 01 1 1012- ● ●
527 TANK; LWR,RADIATOR CORE 8-98032-433-1 01 1 0810-1011 ●
527 TANK; LWR,RADIATOR CORE 8-98032-433-1 01 1 1012- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-290-1 01 1 0810-1011 ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-290-1 01 1 1012- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-291-1 01 1 0810-1011 ●
528 PLATE; SIDE,RADIATOR CORE 8-98010-291-1 01 1 1012- ● ●
529 GASKET; CORE,RADIATOR 8-98032-435-0 02 1 0810-1011 ●
529 GASKET; CORE,RADIATOR 8-98032-435-0 02 1 1012- ● ●

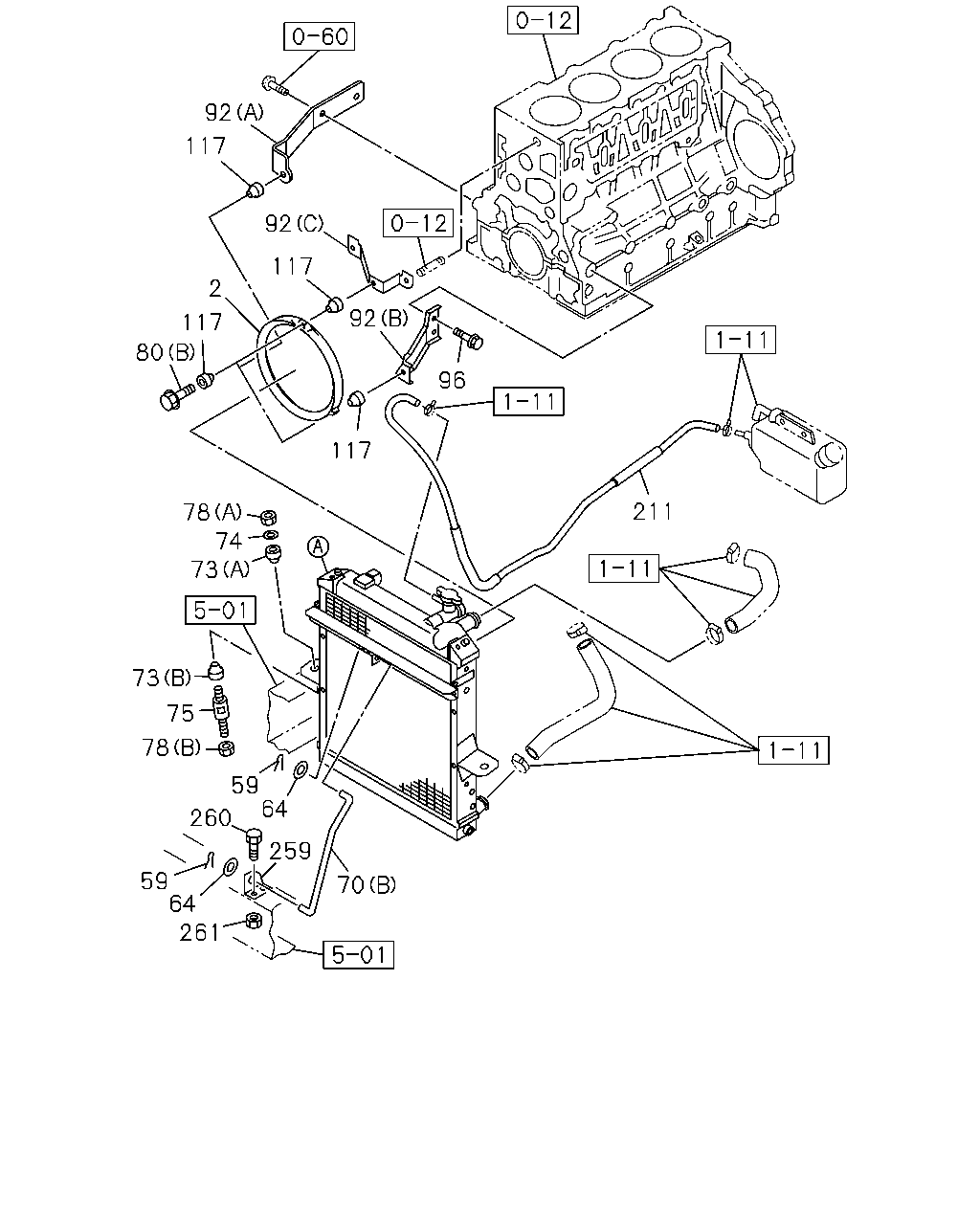

çizim 180894
92 117 92 117 2 92 117 80 96 117 211 78 74 73 73 75 78 59 64 260 259 59 64 261 70
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN 8-97350-995-0 01 1 0809-1011 ●
2 GUIDE; FAN 8-97350-995-0 01 1 1012- ● ●
59 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 02 1 0809-1011 ●
59 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 02 1 1012- ● ●
64 WASHER; STAY TO RAD
ID=10.5 		0-91610-510-0 02 1 0809-1011 ●
64 WASHER; STAY TO RAD
ID=10.5 		0-91610-510-0 02 1 1012- ● ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 0809-1011 ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1012- ● ●
70 STAY; RAD
(A) 		8-98018-941-0 01 1 0809-1011 ●
70 STAY; RAD
(A) 		8-98018-941-0 01 1 1012- ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0809-1011 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1012- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0809-1011 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1012- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0809-1011 ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1012- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0809-1011 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1012- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0809-1011 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1012- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0809-1011 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1012- ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0809-1011 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1012- ● ●
80 BOLT; FAN GUIDE
(A) M6X16 		1-21559-481-0 04 1 0809-1011 ●
80 BOLT; FAN GUIDE
(A) M6X16 		1-21559-481-0 04 1 1012- ● ●
92 BRACKET; FAN GUIDE
(C) 		8-97382-827-2 01 1 0809-1011 ●
92 BRACKET; FAN GUIDE
(C) 		8-97382-827-2 01 1 1012- ● ●
92 BRACKET; FAN GUIDE
(A) 		8-97350-997-0 01 1 0809-1011 ●
92 BRACKET; FAN GUIDE
(A) 		8-97350-997-0 01 1 1012- ● ●
92 BRACKET; FAN GUIDE
(B) 		8-97386-233-0 01 1 0809-1011 ●
92 BRACKET; FAN GUIDE
(B) 		8-97386-233-0 01 1 1012- ● ●
96 BOLT; STAY FIX
M10X75 FLANGE 		8-94399-669-1 02 1 1110- ● ●
96 BOLT; STAY FIX
M10X20 FLANGE 		0-28151-020-0 02 1 0809-1011 ●
96 BOLT; STAY FIX
M10X20 FLANGE 		0-28151-020-0 02 1 1012- ● ●
117 RUBBER; MTG,FAN GUIDE 1-09337-027-0 06 1 0809-1011 ●
117 RUBBER; MTG,FAN GUIDE 1-09337-027-0 06 1 1012- ● ●
211 HOSE; RAD TO PIPE 8-98046-972-2 01 1 0809-1011 ●
211 HOSE; RAD TO PIPE 8-98046-972-2 01 1 1012- ● ●
259 BRACKET; RAD STAY 8-98063-603-0 01 1 0809-1011 ●
259 BRACKET; RAD STAY 8-98063-603-0 01 1 1012- ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0809-1011 ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1012- ● ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0809-1011 ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
