Sayfa 4-36 - Isuzu EPC

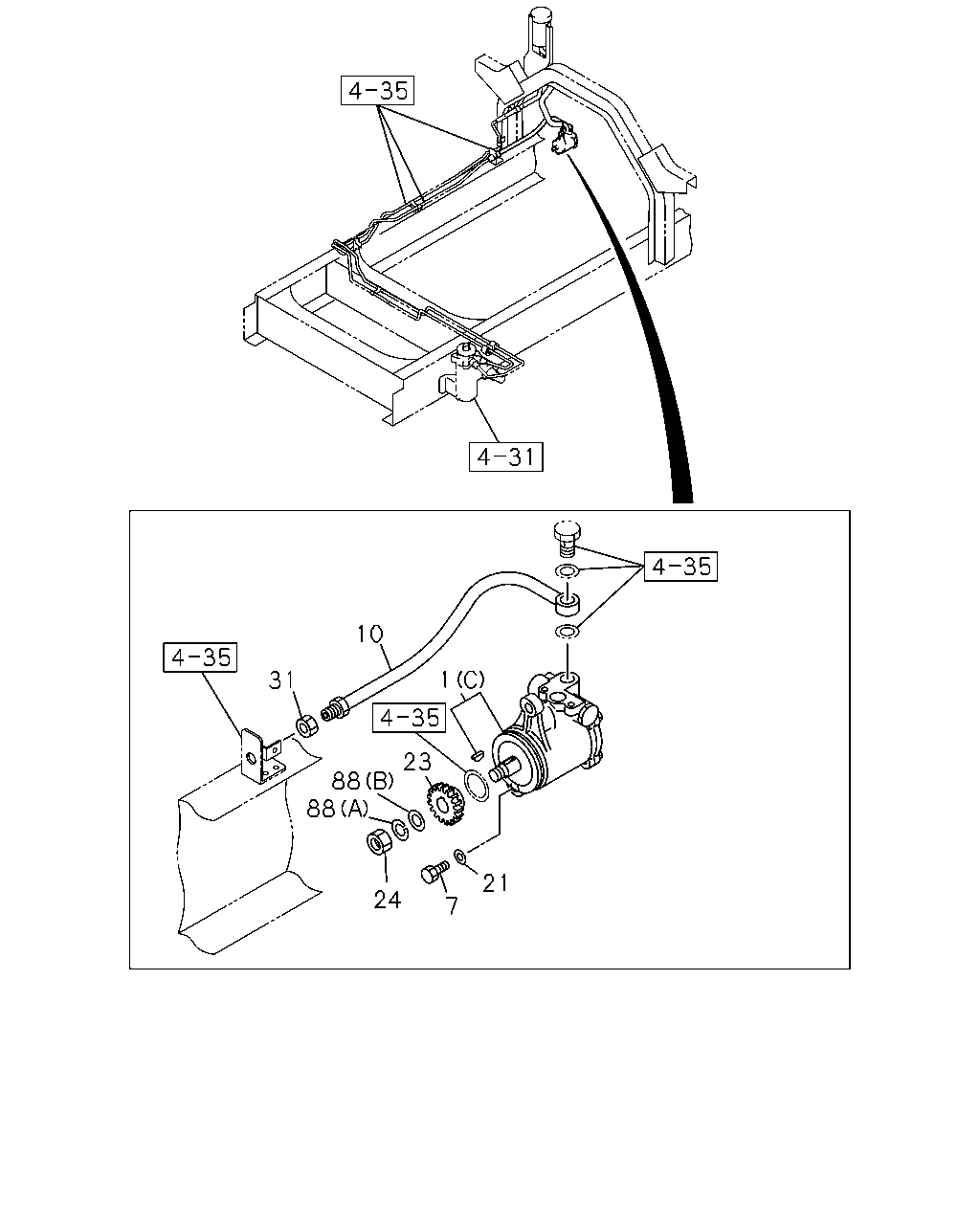

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#3820) — 216 parça

24 23 1 24 23 7 1 28 14 15 15 10 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (A)	1-19500-466-0	01	1	9710-9710	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD ENG(65L) (A)	1-19500-466-0	01	1	9710-9710	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> (A)	1-19500-466-0	01	1	9710-9710		●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A)	1-19500-466-0	01	1	9711-9803	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) INJ PUMP Q SET SPECIAL -20%Q(T1J) EXC. EURO2 SPECIFICATION<THN> (A)	1-19500-465-0	01	1	9804-0202	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) INJ PUMP Q SET SPECIAL -20%Q(T1J) EXC. EURO2 SPECIFICATION<THN> (A)	1-19500-589-1	01	1	0203-1112	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) INJ PUMP Q SET SPECIAL -20%Q(T1J) EXC. EURO2 SPECIFICATION<THN> (A)	8-98202-666-0	01	1	1201-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EURO2 SPECIFICATION<THN> (B)	1-19500-548-0	01	1	9804-9805	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B)	1-19500-548-0	01	1	9804-9805	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD ENG(65L) (B)	1-19500-548-0	01	1	9804-9805	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) (B)	1-19500-548-0	01	1	9806-9806	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B)	1-19500-548-0	01	1	9806-9806	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD ENG(65L) (B)	1-19500-548-0	01	1	9806-9806	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) (B)	1-19500-548-0	01	1	9807-0004	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B)	1-19500-548-0	01	1	9807-0004	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (B)	1-19500-548-0	01	1	9807-0004	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) (B)	1-19500-548-0	01	1	0005-0607	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B)	1-19500-548-0	01	1	0005-0607	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD ENG(65L) (B)	1-19500-548-0	01	1	0005-0607	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) (B)	1-19500-548-1	01	1	0608-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B)	1-19500-548-1	01	1	0608-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD ENG(65L) (B)	1-19500-548-1	01	1	0608-	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) (B)	1-19500-548-1	01	1	0608-		●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A)	1-19500-466-0	01	1	9601-9709	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A)	1-19500-465-0	01	1	9710-9710	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (A)	1-19500-465-0	01	1	9710-9710		●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (C)	1-19500-504-2	01	1	9601-	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-94399-863-1	01	1	9804-9805	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-94399-863-1	01	1	9804-9805	●	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) M10X55 FLANGE	8-94399-863-1	01	1	9804-9805	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) M10X55 FLANGE	8-94399-863-1	01	1	9806-9806	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-94399-863-1	01	1	9806-9806	●	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) M10X55 FLANGE	8-94399-863-1	01	1	9806-9806	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) M10X55 FLANGE	8-94399-863-1	01	1	9807-0004	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-94399-863-1	01	1	9807-0004	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M10X55 FLANGE	8-94399-863-1	01	1	9807-0004	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) M10X55 FLANGE	8-94399-863-1	01	1	0005-0607	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-94399-863-1	01	1	0005-0607	●	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) M10X55 FLANGE	8-94399-863-1	01	1	0005-0607	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) M10X55 FLANGE	8-94399-863-1	01	1	0608-0805	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-94399-863-1	01	1	0608-0805	●	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) M10X55 FLANGE	8-94399-863-1	01	1	0608-0805	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M10X55 FLANGE	8-94399-863-1	01	1	0608-0805		●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) M10X55 FLANGE	8-97365-449-0	01	1	0806-	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-97365-449-0	01	1	0806-	●	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) M10X55 FLANGE	8-97365-449-0	01	1	0806-	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M10X55 FLANGE	8-97365-449-0	01	1	0806-		●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EURO2 SPECIFICATION<THN> M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9805-9805	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9805-9805	●	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9805-9805	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9806-9806	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9806-9806	●	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9806-9806	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9807-0004	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9807-0004	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9807-0004	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	0005-0607	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	0005-0607	●	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	0005-0607	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	0608-	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	0608-	●	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	0608-	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	0608-		●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X55 FLANGE	8-94399-863-1	02	1	9601-9803	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) INJ PUMP Q SET SPECIAL -20%Q(T1J) EXC. EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-94399-863-1	02	1	9804-0805	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) INJ PUMP Q SET SPECIAL -20%Q(T1J) EXC. EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-97365-449-0	02	1	0806-	●	●
7	BOLT; OIL PUMP,P/S 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X75	9-01666-275-0	02	1	9601-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HK1 TCC ENG(81L) L=900	1-09365-251-0	01	1	0608-		●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN>	1-09364-971-0	01	1	9710-9803	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN>	1-09364-984-1	01	1	9804-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=875	1-09364-894-0	01	1	9601-9706	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=875	1-09364-980-0	01	1	9707-9709	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> L=875	1-09364-980-0	01	1	9710-9803	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HH1 STD ENG(65L) L=875	1-09364-980-0	01	1	9710-9803	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>	1-09364-983-1	01	1	9804-9806	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HH1 STD ENG(65L)	1-09364-983-1	01	1	9804-9806	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HE1 TC ENG(57L),6HE1 TCN ENG(58L) EXC. EURO2 SPECIFICATION<THN>	1-09364-983-1	01	1	9807-0004	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HH1 STD ENG(65L)	1-09364-983-1	01	1	9807-0004	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HH1 STD ENG(65L)	1-09364-983-1	01	1	0005-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>	1-09364-983-1	01	1	0005-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	0-09539-520-0	01	1	9601-0606	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	0-89539-520-0	01	1	0607-	●	●
14	UNION; FLEX HOSE,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-47470-394-2	01	1	9601-9806	●	●
14	UNION; FLEX HOSE,P/S 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L)	1-47470-394-3	01	1	9807-0004	●	●
14	UNION; FLEX HOSE,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-47470-394-3	01	1	0005-0607	●	●
14	UNION; FLEX HOSE,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-47470-394-3	01	1	0608-	●
14	UNION; FLEX HOSE,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L)	1-47470-394-3	01	1	0608-		●
15	CLIP; OIL PIPE SUCTION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=32	1-09704-085-0	02	1	9601-9807	●	●
15	CLIP; OIL PIPE SUCTION 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) ID=32	1-09704-085-0	02	1	9808-0004	●	●
15	CLIP; OIL PIPE SUCTION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=32	1-09704-085-0	02	1	0005-0607	●	●
15	CLIP; OIL PIPE SUCTION 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) ID=32	1-09704-085-0	02	1	0608-	●	●
23	GEAR; OIL PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) Z=30	8-94396-957-3	01	1	9601-9806	●	●
23	GEAR; OIL PUMP 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) Z=30	8-94396-957-3	01	1	9807-0004	●	●
23	GEAR; OIL PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) Z=30	8-94396-957-3	01	1	0005-0607	●	●
23	GEAR; OIL PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) Z=30	8-94396-957-3	01	1	0608-	●	●
23	GEAR; OIL PUMP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) Z=17	1-19581-030-0	01	1	9601-	●	●
24	NUT; GEAR,P/S PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M14 FLANGE	0-91150-114-0	01	1	9601-9806	●	●
24	NUT; GEAR,P/S PUMP 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M14 FLANGE	0-91150-114-0	01	1	9807-0004	●	●
24	NUT; GEAR,P/S PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M14 FLANGE	0-91150-114-0	01	1	0005-0607	●	●
24	NUT; GEAR,P/S PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M14 FLANGE	0-91150-114-0	01	1	0608-0712	●	●
24	NUT; GEAR,P/S PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M14 FLANGE	0-91180-114-0	01	1	0801-	●	●
24	NUT; GEAR,P/S PUMP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M16	9-19519-112-0	01	1	9601-	●	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9801	●	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) M8X20 FLANGE	0-28680-820-0	02	1	9802-9806	●	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (A) M8X20 FLANGE	0-28680-820-0	02	1	9807-0004	●	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-0607	●	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) M8X20 FLANGE	0-28650-820-0	02	1	0608-	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) (A) M8X20 FLANGE	0-28650-820-0	02	1	0608-		●
28	BOLT; BRKT,FLEX HOSE,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9601-9709	●	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9710-9806	●	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HH1 STD ENG(65L) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9710-9806	●	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HE1 TC ENG(57L),6HE1 TCN ENG(58L) EXC. EURO2 SPECIFICATION<THN> (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9807-0004	●	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HH1 STD ENG(65L) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9807-0004	●	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HH1 STD ENG(65L) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0005-	●	●
28	BOLT; BRKT,FLEX HOSE,P/S 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0005-	●	●

10 1 31 23 88 88 21 24 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> (A)	1-19500-466-0	01	1	9710-9710	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD ENG(65L) (A)	1-19500-466-0	01	1	9710-9710	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> ANTI NOISE EQUIPMENT VAR2<TAK> (A)	1-19500-466-0	01	1	9710-9710		●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A)	1-19500-466-0	01	1	9711-9803	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) INJ PUMP Q SET SPECIAL -20%Q(T1J) EXC. EURO2 SPECIFICATION<THN> (A)	1-19500-465-0	01	1	9804-0202	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) INJ PUMP Q SET SPECIAL -20%Q(T1J) EXC. EURO2 SPECIFICATION<THN> (A)	1-19500-589-1	01	1	0203-1112	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) INJ PUMP Q SET SPECIAL -20%Q(T1J) EXC. EURO2 SPECIFICATION<THN> (A)	8-98202-666-0	01	1	1201-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EURO2 SPECIFICATION<THN> (B)	1-19500-548-0	01	1	9804-9805	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B)	1-19500-548-0	01	1	9804-9805	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD ENG(65L) (B)	1-19500-548-0	01	1	9804-9805	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) (B)	1-19500-548-0	01	1	9806-9806	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B)	1-19500-548-0	01	1	9806-9806	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD ENG(65L) (B)	1-19500-548-0	01	1	9806-9806	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) (B)	1-19500-548-0	01	1	9807-0004	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B)	1-19500-548-0	01	1	9807-0004	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (B)	1-19500-548-0	01	1	9807-0004	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) (B)	1-19500-548-0	01	1	0005-0607	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B)	1-19500-548-0	01	1	0005-0607	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD ENG(65L) (B)	1-19500-548-0	01	1	0005-0607	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) (B)	1-19500-548-1	01	1	0608-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (B)	1-19500-548-1	01	1	0608-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD ENG(65L) (B)	1-19500-548-1	01	1	0608-	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) (B)	1-19500-548-1	01	1	0608-		●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A)	1-19500-466-0	01	1	9601-9709	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> (A)	1-19500-465-0	01	1	9710-9710	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT VAR2<TAK> (A)	1-19500-465-0	01	1	9710-9710		●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (C)	1-19500-504-2	01	1	9601-	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-94399-863-1	01	1	9804-9805	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-94399-863-1	01	1	9804-9805	●	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) M10X55 FLANGE	8-94399-863-1	01	1	9804-9805	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) M10X55 FLANGE	8-94399-863-1	01	1	9806-9806	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-94399-863-1	01	1	9806-9806	●	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) M10X55 FLANGE	8-94399-863-1	01	1	9806-9806	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) M10X55 FLANGE	8-94399-863-1	01	1	9807-0004	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-94399-863-1	01	1	9807-0004	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M10X55 FLANGE	8-94399-863-1	01	1	9807-0004	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) M10X55 FLANGE	8-94399-863-1	01	1	0005-0607	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-94399-863-1	01	1	0005-0607	●	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) M10X55 FLANGE	8-94399-863-1	01	1	0005-0607	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) M10X55 FLANGE	8-94399-863-1	01	1	0608-0805	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-94399-863-1	01	1	0608-0805	●	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) M10X55 FLANGE	8-94399-863-1	01	1	0608-0805	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M10X55 FLANGE	8-94399-863-1	01	1	0608-0805		●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) M10X55 FLANGE	8-97365-449-0	01	1	0806-	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-97365-449-0	01	1	0806-	●	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) M10X55 FLANGE	8-97365-449-0	01	1	0806-	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M10X55 FLANGE	8-97365-449-0	01	1	0806-		●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EURO2 SPECIFICATION<THN> M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9805-9805	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9805-9805	●	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9805-9805	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9806-9806	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9806-9806	●	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9806-9806	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9807-0004	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9807-0004	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9807-0004	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	0005-0607	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	0005-0607	●	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	0005-0607	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>,INJ PUMP Q SET SPECIAL -20%Q(T1J) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	0608-	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	0608-	●	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	0608-	●
7	BOLT; OIL PUMP,P/S 6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	0608-		●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X55 FLANGE	8-94399-863-1	02	1	9601-9803	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) INJ PUMP Q SET SPECIAL -20%Q(T1J) EXC. EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-94399-863-1	02	1	9804-0805	●	●
7	BOLT; OIL PUMP,P/S 6HE1 TC ENG(57L) INJ PUMP Q SET SPECIAL -20%Q(T1J) EXC. EURO2 SPECIFICATION<THN> M10X55 FLANGE	8-97365-449-0	02	1	0806-	●	●
7	BOLT; OIL PUMP,P/S 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M12X75	9-01666-275-0	02	1	9601-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HK1 TCC ENG(81L) L=900	1-09365-251-0	01	1	0608-		●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN>	1-09364-971-0	01	1	9710-9803	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN>	1-09364-984-1	01	1	9804-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=875	1-09364-894-0	01	1	9601-9706	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=875	1-09364-980-0	01	1	9707-9709	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> L=875	1-09364-980-0	01	1	9710-9803	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HH1 STD ENG(65L) L=875	1-09364-980-0	01	1	9710-9803	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>	1-09364-983-1	01	1	9804-9806	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HH1 STD ENG(65L)	1-09364-983-1	01	1	9804-9806	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HE1 TC ENG(57L),6HE1 TCN ENG(58L) EXC. EURO2 SPECIFICATION<THN>	1-09364-983-1	01	1	9807-0004	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HH1 STD ENG(65L)	1-09364-983-1	01	1	9807-0004	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HH1 STD ENG(65L)	1-09364-983-1	01	1	0005-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN>	1-09364-983-1	01	1	0005-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	0-09539-520-0	01	1	9601-0606	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	0-89539-520-0	01	1	0607-	●	●
21	WASHER; PL,P/S OIL PUMP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.5	9-09160-512-0	02	1	9601-0605	●	●
21	WASHER; PL,P/S OIL PUMP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=12.5 OD=22	0-91610-512-0	02	1	0606-	●	●
23	GEAR; OIL PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) Z=30	8-94396-957-3	01	1	9601-9806	●	●
23	GEAR; OIL PUMP 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) Z=30	8-94396-957-3	01	1	9807-0004	●	●
23	GEAR; OIL PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) Z=30	8-94396-957-3	01	1	0005-0607	●	●
23	GEAR; OIL PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) Z=30	8-94396-957-3	01	1	0608-	●	●
23	GEAR; OIL PUMP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) Z=17	1-19581-030-0	01	1	9601-	●	●
24	NUT; GEAR,P/S PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M14 FLANGE	0-91150-114-0	01	1	9601-9806	●	●
24	NUT; GEAR,P/S PUMP 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M14 FLANGE	0-91150-114-0	01	1	9807-0004	●	●
24	NUT; GEAR,P/S PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M14 FLANGE	0-91150-114-0	01	1	0005-0607	●	●
24	NUT; GEAR,P/S PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M14 FLANGE	0-91150-114-0	01	1	0608-0712	●	●
24	NUT; GEAR,P/S PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M14 FLANGE	0-91180-114-0	01	1	0801-	●	●
24	NUT; GEAR,P/S PUMP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M16	9-19519-112-0	01	1	9601-	●	●
31	NUT; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M20	9-99111-420-0	01	1	9601-0512	●	●
31	NUT; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M20	0-91111-520-0	01	1	0601-	●	●
88	WASHER; GEAR,P/S PUMP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A)	1-19519-293-0	01	1	9601-	●	●
88	WASHER; GEAR,P/S PUMP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B)	9-09150-016-0	01	1	9601-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
