0-60 — ENGINE ELECTRICAL CONTROL PARTS (#38199) — 63 parça

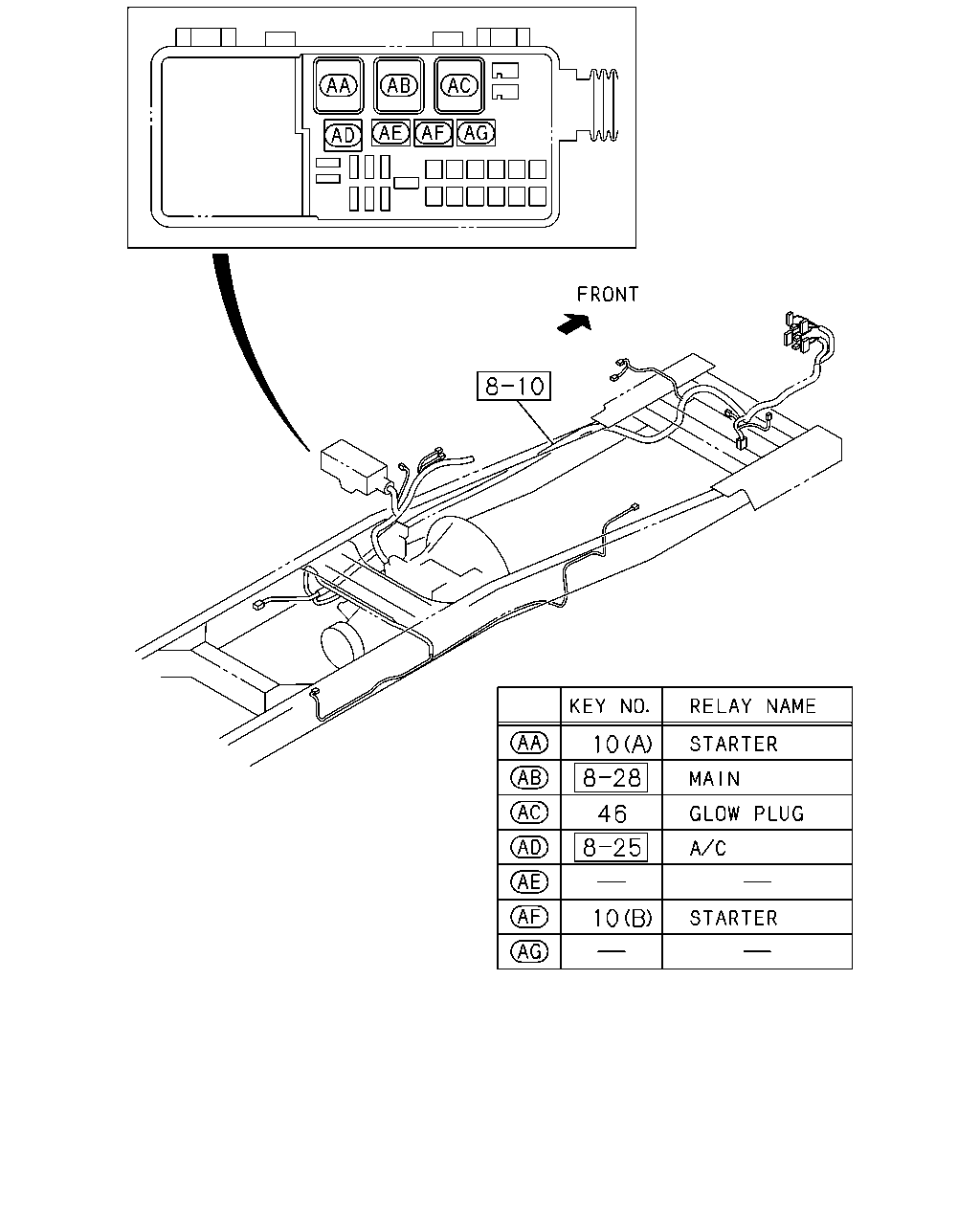

10 46 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	RELAY; STARTER (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0809-1005
10	RELAY; STARTER (B) 24V 10A PANASONIC	8-98167-173-0	01	1	1006-
10	RELAY; STARTER (A) 24V 50A	8-97264-947-0	01	1	0809-
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	0809-1311
46	RELAY; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> 24V 50A	8-97173-947-0	01	1	1312-

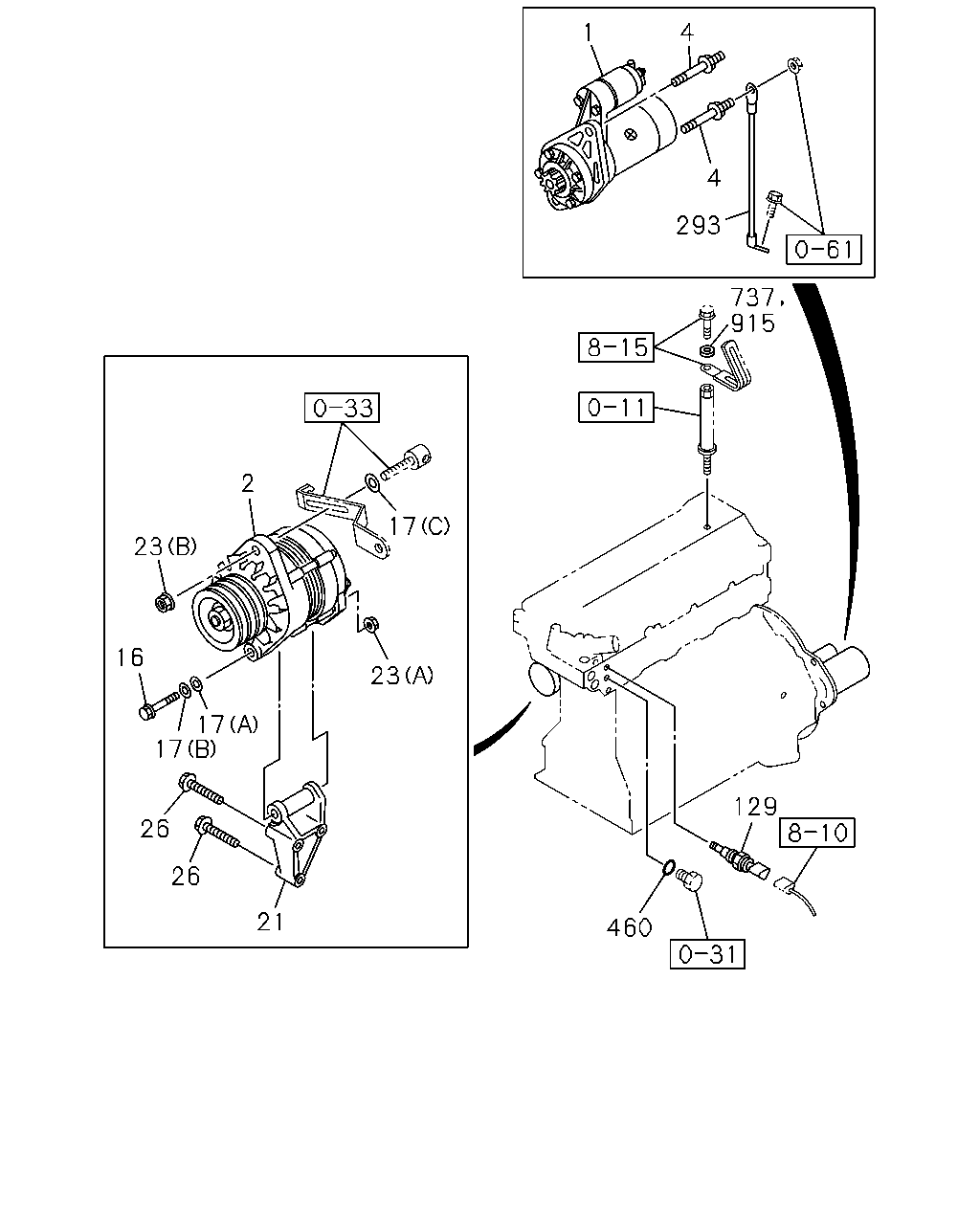

1 4 4 293 2 23 16 17 17 26 26 21 23 17 737 915 129 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-98009-043-2	01	1	0809-1207
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-98222-023-0	01	1	1208-1311
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-98245-260-1	01	1	1312-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-455-4	01	1	0810-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-456-4	01	1	0809-
4	BOLT; STARTER M10X15,M14X82 L=110	8-98029-095-0	02	1	0809-
16	BOLT; GEN M14X135	1-09000-133-1	01	1	0809-
17	WASHER; PL,GEN (B) ID=14.2	0-91510-514-0	01	1	0809-
17	WASHER; PL,GEN (A) ID=15	0-91610-514-0	01	1	0809-
17	WASHER; PL,GEN (C) ID=12.5 OD=32	9-09160-712-0	01	1	0809-
21	BRACKET; GEN	8-97381-404-0	01	1	0809-
23	NUT; GEN (A) M14	0-91110-514-0	01	1	0809-
23	NUT; GEN (B) M12 FLANGE	0-91180-112-0	01	1	0809-
26	BOLT; GEN BRKT M10X50 FLANGE	0-28151-050-0	01	1	0809-
26	BOLT; GEN BRKT M10X70 FLANGE	0-28151-070-0	02	1	0809-
129	SENSOR; GLOW PLUG,THERMO MITSUBISHI	8-98023-883-0	01	1	0809-1503
129	SENSOR; GLOW PLUG,THERMO NISHIDA	8-98260-257-0	01	1	1504-
293	CABLE; STARTER EARTH L=410	8-97620-375-0	01	1	0809-
460	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2	1-09630-086-0	01	1	0809-
737	WASHER; PL 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> ID=9 OD=18 T=5	9-14149-173-0	01	1	1404-
737	WASHER; PL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> ID=9 OD=18 T=5	9-14149-173-0	01	1	1404-
737	WASHER; PL 4HK1-TCC ENG(RDV) SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> ID=6.4 OD=18	0-91610-706-0	02	1	1401-
737	WASHER; PL 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> ID=6.4 OD=18	0-91610-706-0	02	1	1401-
915	SPACER; HARNESS 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> ID=8.4 OD=19	5-11779-001-0	01	1	1012-1109
915	SPACER; HARNESS 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) ID=8.4 OD=19	5-11779-001-0	01	1	1110-1301
915	SPACER; HARNESS 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) ID=9 OD=18 T=5	9-14149-173-0	01	1	1302-
915	SPACER; HARNESS ID=8.4 OD=19	5-11779-001-0	01	1	0809-0809
915	SPACER; HARNESS EURO2 SPECIFICATION<NT2> ID=8.4 OD=19	5-11779-001-0	01	1	0810-1007

732 748 613 748 749 593 954 748 606

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
593	NUT; BRKT M6 FLANGE	0-91180-106-0	04	1	0809-
593	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0809-
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	0809-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK>	8-98257-202-0	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-203-0	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK>	8-98257-198-0	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98257-199-0	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> HIGHLAND ZONE PACKAGE<W02> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98226-855-0	01	1	1208-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98210-869-0	01	1	1201-1207
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) PERU EQUIPMENT(E07) EURO3 SPECIFICATION<NT3> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONEPACKAGE<W02>	8-98210-869-0	01	1	1208-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98190-668-0	01	1	1104-1110
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) PERU EQUIPMENT(E07),SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98190-668-0	01	1	1111-1112
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) SAUDI ARABIA EQUIPMENT(GH3) EURO3 SPECIFICATION<NT3> INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98190-668-0	01	1	1201-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98172-459-0	01	1	1012-1311
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. GLOW SYSTEM DELETE<7RK>	8-98172-459-0	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98172-460-0	01	1	1012-1311
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98172-460-0	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCC ENG(RDV) EURO3 SPECIFICATION<NT3> INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98172-461-0	01	1	1012-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98081-130-4	01	1	0809-0809
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98081-130-4	01	1	0810-1311
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. GLOW SYSTEM DELETE<7RK>	8-98081-130-4	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98081-129-4	01	1	0809-0809
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98081-129-4	01	1	0810-1311
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION<NT2> EXC. INJ PUMP Q SET SPECIAL +5%Q(T1A),GLOW SYSTEM DELETE<7RK>	8-98081-129-4	01	1	1312-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) CHILE EQUIPMENT(KE1) EURO3 SPECIFICATION<NT3> INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-98114-763-1	01	1	0810-
732	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0809-
748	BOLT; CONT UNIT M6X12 FLANGE	0-28050-612-0	03	1	0809-
748	BOLT; CONT UNIT M6X16 FLANGE	0-28650-616-0	02	1	0809-
749	STAY; CONT UNIT	8-98056-967-0	01	1	0809-
954	NUT; RESISTOR M6 FLANGE	0-91180-106-0	02	1	0809-1006
