0-57 — EMISSION PIPING (#38198) — 97 parça

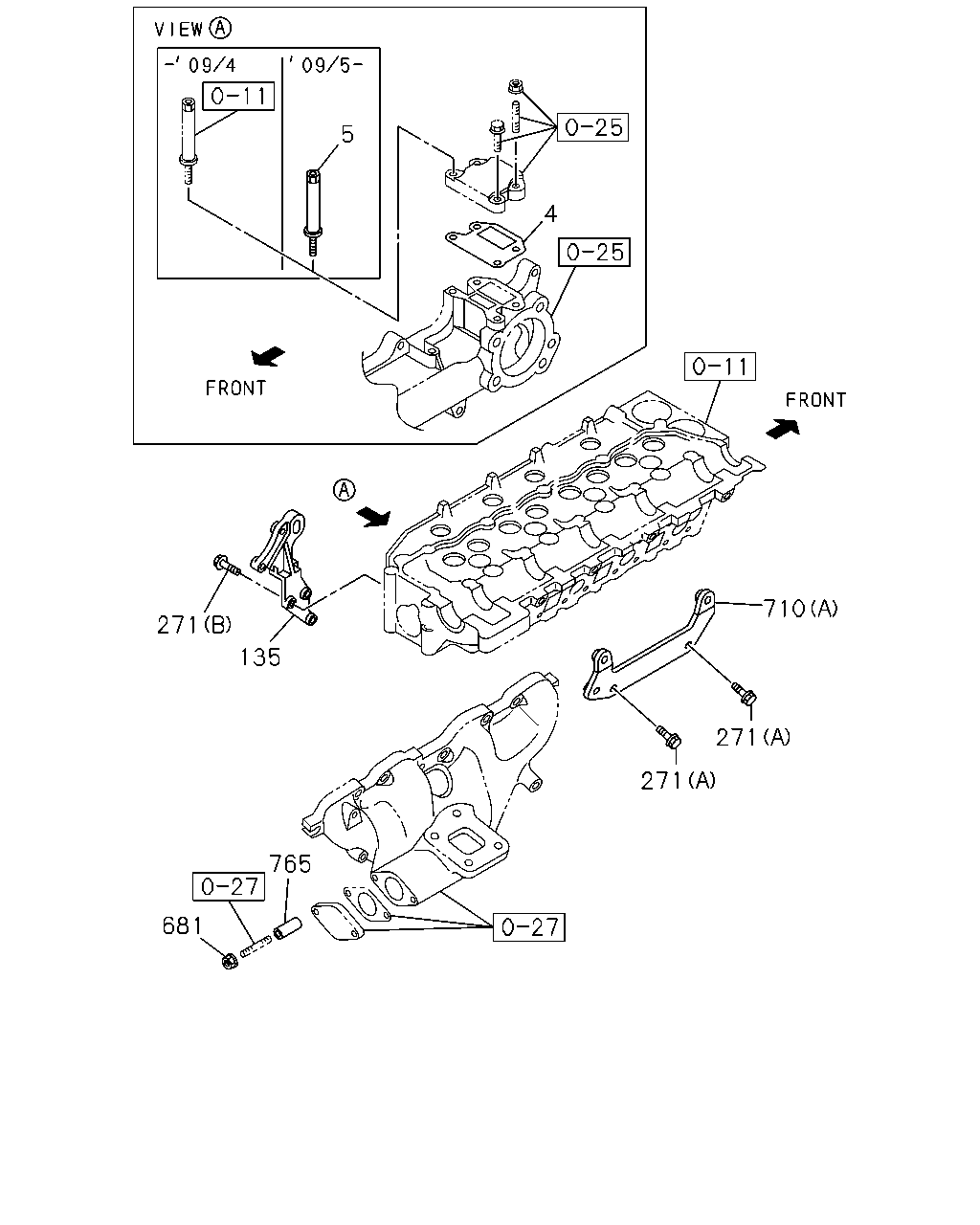

4 710 271 135 271 271 765 681 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0809-1011	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	1012-	●	●
5	ADAPTER ASM	8-97377-804-0	01	1	0905-1007	●
5	ADAPTER ASM EURO3 SPECIFICATION<NT3>	8-97377-804-0	01	1	1008-1011	●
5	ADAPTER ASM EURO3 SPECIFICATION<NT3>	8-97377-804-0	01	1	1012-1109	●
5	ADAPTER ASM	8-97377-804-0	01	1	1012-1109		●
5	ADAPTER ASM EURO3 SPECIFICATION<NT3> CHILE EQUIPMENT(KE1)	8-97377-804-0	01	1	1110-1112	●
5	ADAPTER ASM EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-97377-804-0	01	1	1110-1112		●
5	ADAPTER ASM EURO3 SPECIFICATION<NT3>	8-97377-804-0	01	1	1201-	●	●
5	ADAPTER ASM EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-97377-804-0	01	1	1201-		●
135	BRACKET; EGR	8-97310-498-2	01	1	0809-0809	●
135	BRACKET; EGR EURO2 SPECIFICATION<NT2>	8-97310-498-2	01	1	0810-1011	●
135	BRACKET; EGR EURO2 SPECIFICATION<NT2>	8-97310-498-2	01	1	1012-	●	●
271	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	0809-1011	●
271	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	1012-	●	●
271	BOLT; BRKT (B) M12X30 FLANGE	0-28151-230-0	03	1	0809-0809	●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M12X30 FLANGE	0-28151-230-0	03	1	0810-1011	●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M12X30 FLANGE	0-28151-230-0	03	1	1012-	●	●
271	BOLT; BRKT EURO3 SPECIFICATION<NT3> (C) M12X50 FLANGE	0-28151-250-0	03	1	0810-1011	●
271	BOLT; BRKT EURO3 SPECIFICATION<NT3> (C) M12X50 FLANGE	0-28151-250-0	03	1	1012-	●	●
271	BOLT; BRKT EURO3 SPECIFICATION<NT3> (D) M8X25 FLANGE	0-28650-825-0	02	1	0810-1011	●
271	BOLT; BRKT EURO3 SPECIFICATION<NT3> (D) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
681	NUT; EGR PIPE M8 FLANGE	0-91180-208-0	02	1	0809-1011	●
681	NUT; EGR PIPE M8 FLANGE	0-91180-208-0	02	1	1012-	●	●
710	BRACKET; EGR COOLER (A)	8-98079-255-0	01	1	0809-0809	●
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (A)	8-98079-255-0	01	1	0810-1011	●
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (A)	8-98079-255-1	01	1	1012-	●	●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> (B)	8-98092-887-0	01	1	0810-1011	●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> (B)	8-98092-887-0	01	1	1012-	●	●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> (C)	8-98092-888-0	01	1	0810-1011	●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> (C)	8-98092-888-0	01	1	1012-	●	●
765	SPACER; EGR PIPE	8-94225-562-0	02	1	0809-1011	●
765	SPACER; EGR PIPE	8-94225-562-0	02	1	1012-	●	●

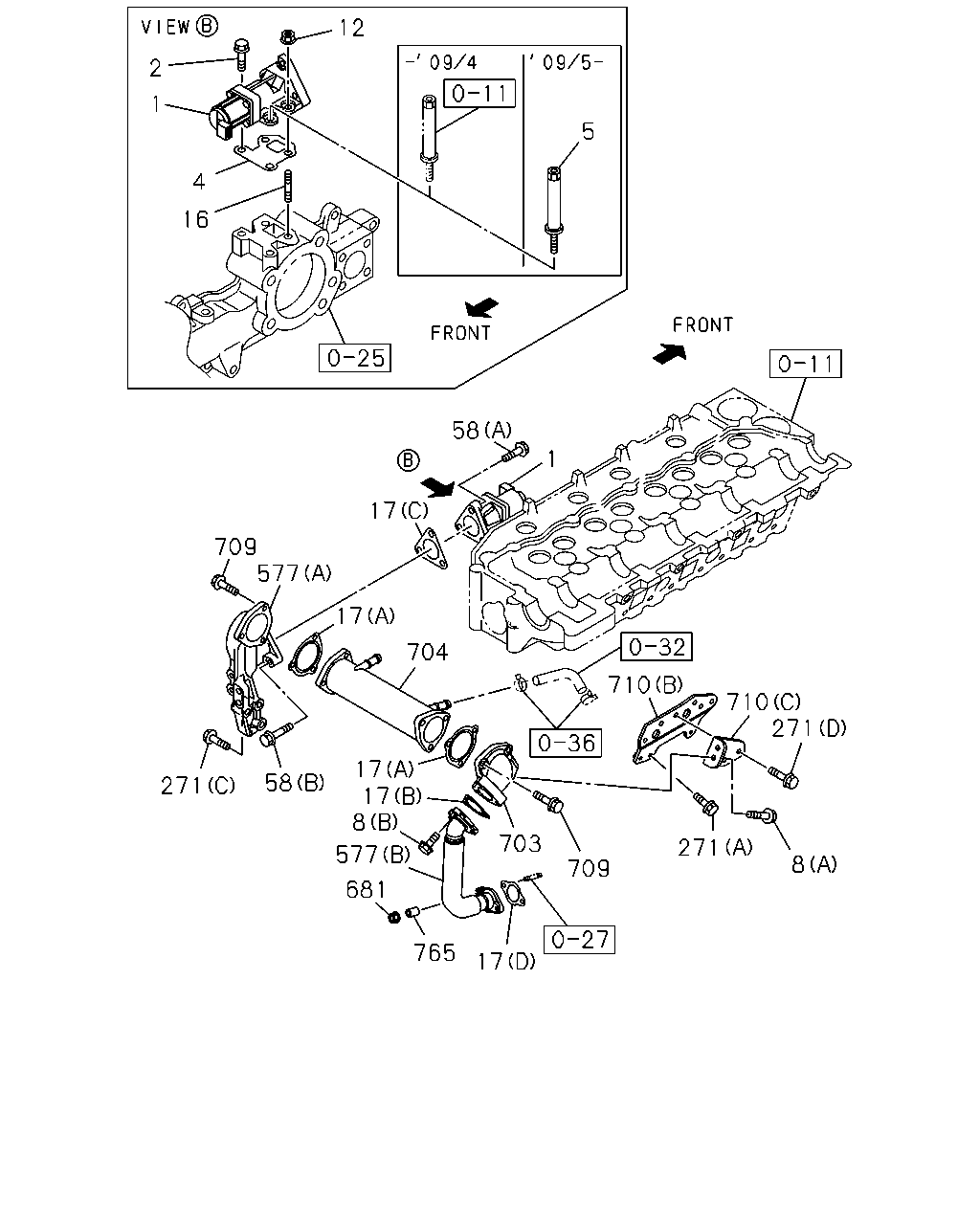

12 2 1 5 4 16 58 1 17 709 577 17 704 710 710 271 17 17 8 58 271 703 271 577 8 709 681 765 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR EURO3 SPECIFICATION<NT3>	8-97377-509-6	01	1	0810-1011	●
1	VALVE; EGR EURO3 SPECIFICATION<NT3>	8-97377-509-8	01	1	1012-	●	●
2	BOLT; EGR VLV EURO3 SPECIFICATION<NT3> M8X25 FLANGE	0-28650-825-0	01	1	0810-1011	●
2	BOLT; EGR VLV EURO3 SPECIFICATION<NT3> M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0809-1011	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	1012-	●	●
5	ADAPTER ASM	8-97377-804-0	01	1	0905-1007	●
5	ADAPTER ASM EURO3 SPECIFICATION<NT3>	8-97377-804-0	01	1	1008-1011	●
5	ADAPTER ASM EURO3 SPECIFICATION<NT3>	8-97377-804-0	01	1	1012-1109	●
5	ADAPTER ASM	8-97377-804-0	01	1	1012-1109		●
5	ADAPTER ASM EURO3 SPECIFICATION<NT3> CHILE EQUIPMENT(KE1)	8-97377-804-0	01	1	1110-1112	●
5	ADAPTER ASM EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-97377-804-0	01	1	1110-1112		●
5	ADAPTER ASM EURO3 SPECIFICATION<NT3>	8-97377-804-0	01	1	1201-	●	●
5	ADAPTER ASM EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-97377-804-0	01	1	1201-		●
8	BOLT; EGR ADAPTER EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE	0-28050-816-0	02	1	0810-1011	●
8	BOLT; EGR ADAPTER EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE	0-28050-816-0	02	1	1012-	●	●
8	BOLT; EGR ADAPTER EURO3 SPECIFICATION<NT3> (B) M8X28 FLANGE	8-98043-528-0	03	1	0810-1011	●
8	BOLT; EGR ADAPTER EURO3 SPECIFICATION<NT3> (B) M8X28 FLANGE	8-98043-528-0	03	1	1012-	●	●
12	NUT; EGR VLV EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	02	1	0810-1011	●
12	NUT; EGR VLV EURO3 SPECIFICATION<NT3> M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
16	STUD; EGR VLV EURO3 SPECIFICATION<NT3> M8X20 L=32	0-41010-820-0	02	1	0810-1011	●
16	STUD; EGR VLV EURO3 SPECIFICATION<NT3> M8X20 L=32	0-41010-820-0	02	1	1012-	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (B)	8-97367-918-0	01	1	0810-1011	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (B)	8-97367-918-0	01	1	1012-	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (D)	8-97375-980-1	01	1	0810-1011	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (D)	8-97375-980-1	01	1	1012-	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A)	8-97388-919-0	02	1	0810-1011	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (A)	8-97388-919-0	02	1	1012-	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (C)	8-98036-507-0	01	1	0810-1011	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (C)	8-98036-507-0	01	1	1012-	●	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (B) M8X45 FLANGE	0-28050-845-0	02	1	0810-1011	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (B) M8X45 FLANGE	0-28050-845-0	02	1	1012-	●	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE	0-28650-830-0	02	1	0810-1011	●
58	BOLT; PIPE EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE	0-28650-830-0	02	1	1012-	●	●
271	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	0809-1011	●
271	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	1012-	●	●
271	BOLT; BRKT (B) M12X30 FLANGE	0-28151-230-0	03	1	0809-0809	●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M12X30 FLANGE	0-28151-230-0	03	1	0810-1011	●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (B) M12X30 FLANGE	0-28151-230-0	03	1	1012-	●	●
271	BOLT; BRKT EURO3 SPECIFICATION<NT3> (C) M12X50 FLANGE	0-28151-250-0	03	1	0810-1011	●
271	BOLT; BRKT EURO3 SPECIFICATION<NT3> (C) M12X50 FLANGE	0-28151-250-0	03	1	1012-	●	●
271	BOLT; BRKT EURO3 SPECIFICATION<NT3> (D) M8X25 FLANGE	0-28650-825-0	02	1	0810-1011	●
271	BOLT; BRKT EURO3 SPECIFICATION<NT3> (D) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> (A)	8-98055-858-2	01	1	0810-1011	●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> (A)	8-98055-858-2	01	1	1012-	●	●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> (B)	8-98063-655-1	01	1	0810-1011	●
577	PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> (B)	8-98063-655-2	01	1	1012-	●	●
681	NUT; EGR PIPE M8 FLANGE	0-91180-208-0	02	1	0809-1011	●
681	NUT; EGR PIPE M8 FLANGE	0-91180-208-0	02	1	1012-	●	●
703	DUCT; EGR EURO3 SPECIFICATION<NT3>	8-98061-100-2	01	1	0810-1011	●
703	DUCT; EGR EURO3 SPECIFICATION<NT3>	8-98061-100-2	01	1	1012-	●	●
704	COOLER ASM; EGR EURO3 SPECIFICATION<NT3>	8-98061-104-0	01	1	0810-1011	●
704	COOLER ASM; EGR EURO3 SPECIFICATION<NT3>	8-98061-104-0	01	1	1012-	●	●
709	BOLT; EGR COOLER EURO3 SPECIFICATION<NT3> M10X35 FLANGE	0-28751-035-0	06	1	0810-1011	●
709	BOLT; EGR COOLER EURO3 SPECIFICATION<NT3> M10X35 FLANGE	0-28751-035-0	06	1	1012-	●	●
710	BRACKET; EGR COOLER (A)	8-98079-255-0	01	1	0809-0809	●
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (A)	8-98079-255-0	01	1	0810-1011	●
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (A)	8-98079-255-1	01	1	1012-	●	●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> (B)	8-98092-887-0	01	1	0810-1011	●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> (B)	8-98092-887-0	01	1	1012-	●	●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> (C)	8-98092-888-0	01	1	0810-1011	●
710	BRACKET; EGR COOLER EURO3 SPECIFICATION<NT3> (C)	8-98092-888-0	01	1	1012-	●	●
765	SPACER; EGR PIPE	8-94225-562-0	02	1	0809-1011	●
765	SPACER; EGR PIPE	8-94225-562-0	02	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
