Isuzu WW
▶
TRUCKS
▶
FRR
▶
11121 - FRR(LHD) SPACECAB
▶
0 - Engine, Emission, Engine Electrical
▶
0-52 - OIL AND VACUUM PIPING; ENGINE
▶

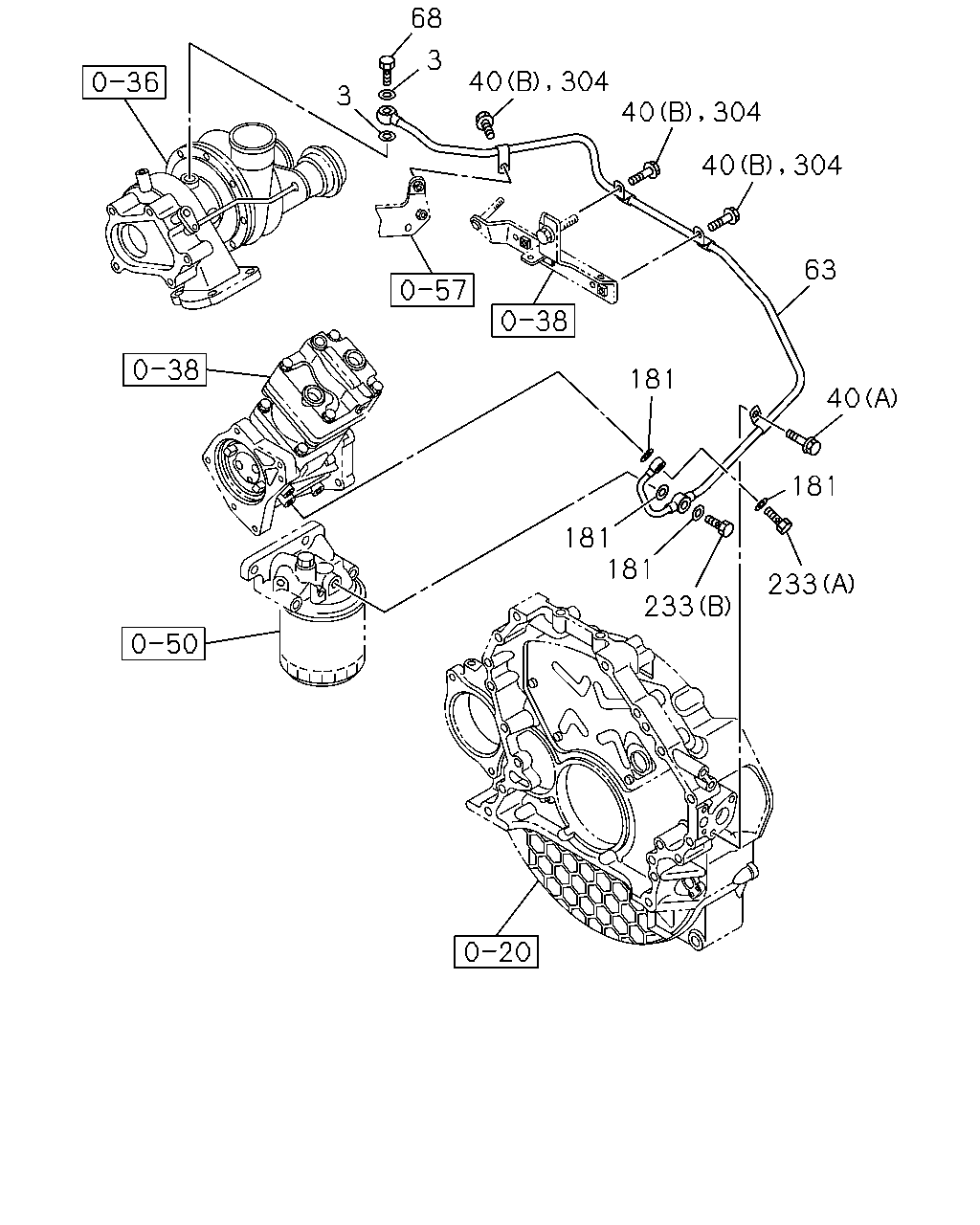

0-52 — OIL AND VACUUM PIPING; ENGINE
(#38197) — 18 parça
Tümü
A - 4HK1-TCS ENG
B - 4HK1-TCC ENG
3
3
68
40
40
304
40
304
304
63
40
181
233
233
181
181
181
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0
9-09571-410-0
02
1
0809-1011
●
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0
9-09571-410-0
02
1
1012-
●
●
40
BOLT; OIL PIPE
(A) M8X12 FLANGE
0-28050-812-0
01
1
0809-1011
●
40
BOLT; OIL PIPE
(A) M8X12 FLANGE
0-28050-812-0
01
1
1012-
●
●
40
BOLT; OIL PIPE
(B) M8X20 FLANGE
0-28050-820-0
03
1
0809-1011
●
40
BOLT; OIL PIPE
(B) M8X20 FLANGE
0-28050-820-0
03
1
1012-
●
●
63
PIPE; OIL,TURBOCHARGER FEED
8-98069-427-0
01
1
0809-1011
●
63
PIPE; OIL,TURBOCHARGER FEED
8-98069-427-0
01
1
1012-
●
●
68
BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE
M10X26
8-98037-825-0
01
1
0809-1011
●
68
BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE
M10X26
8-98037-825-0
01
1
1012-
●
●
181
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2
1-09630-083-0
04
1
0809-1011
●
181
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2
1-09630-083-0
04
1
1012-
●
●
233
BOLT; EYE
(A) M10X22
1-09675-028-0
01
1
0809-1011
●
233
BOLT; EYE
(A) M10X22
1-09675-028-0
01
1
1012-
●
●
233
BOLT; EYE
(B) M10X28
8-98037-823-0
01
1
0809-1011
●
233
BOLT; EYE
(B) M10X28
8-98037-823-0
01
1
1012-
●
●
304
BOLT; BRKT,OIL PIPE
M8X20 FLANGE
0-28650-820-0
04
1
0809-1011
●
304
BOLT; BRKT,OIL PIPE
M8X20 FLANGE
0-28650-820-0
04
1
1012-
●
●
