◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11121 - FRR(LHD) SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#38196) — 25 parça

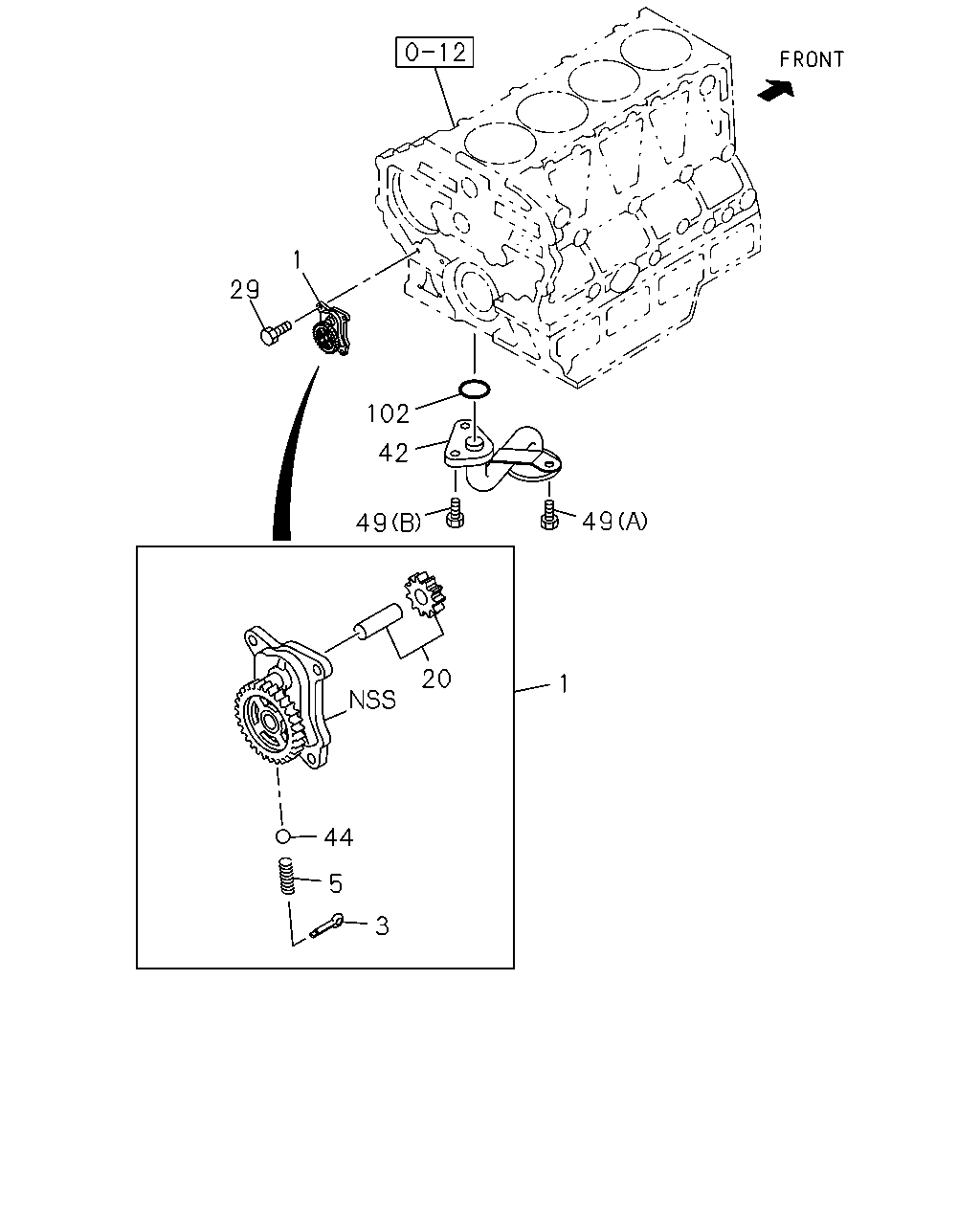

çizim 180876
1 29 102 42 49 49 20 1 44 5 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL 8-98017-585-1 01 1 0809-1011 ●
1 PUMP ASM; OIL 8-98017-585-1 01 1 1012- ● ●
3 PIN; SPLIT
OD=3.7 L=30 		9-08114-030-0 01 1 0809-0906 ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 0907-1011 ●
3 PIN; SPLIT
L=30 		9-08104-030-0 01 1 1012- ● ●
5 SPRING; COIL 5-09580-098-0 01 1 0809-1011 ●
5 SPRING; COIL 5-09580-098-0 01 1 1012- ● ●
20 GEAR; DRIVE,OIL PUMP 8-98059-192-0 01 1 0809-1011 ●
20 GEAR; DRIVE,OIL PUMP 8-98059-192-0 01 1 1012- ● ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28060-825-0 02 1 0809-1011 ●
29 BOLT; OIL PUMP
M8X25 FLANGE 		0-28060-825-0 02 1 1012- ● ●
29 BOLT; OIL PUMP
M8X30 FLANGE 		0-28060-830-0 02 1 0809-1011 ●
29 BOLT; OIL PUMP
M8X30 FLANGE 		0-28060-830-0 02 1 1012- ● ●
42 STRAINER; OIL,OIL PUMP 8-97373-119-0 01 1 0809-1011 ●
42 STRAINER; OIL,OIL PUMP 8-97373-119-0 01 1 1012-1107 ● ●
42 STRAINER; OIL,OIL PUMP 8-97230-894-0 01 1 1108-1203 ● ●
42 STRAINER; OIL,OIL PUMP 8-98213-867-0 01 1 1204- ● ●
44 BALL; RELIEF VLV 5-09843-003-0 01 1 0809-1011 ●
44 BALL; RELIEF VLV 5-09843-003-0 01 1 1012- ● ●
49 BOLT; STRAINER,OIL PUMP
(B) M8X16 FLANGE 		0-28060-816-0 02 1 0809-1011 ●
49 BOLT; STRAINER,OIL PUMP
(B) M8X16 FLANGE 		0-28060-816-0 02 1 1012- ● ●
49 BOLT; STRAINER,OIL PUMP
(A) M10X80 		8-97071-956-0 01 1 0809-1011 ●
49 BOLT; STRAINER,OIL PUMP
(A) M10X80 		8-97071-956-0 01 1 1012- ● ●
102 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 0809-1011 ●
102 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 1012- ● ●
