0-39 — AIR COMPRESSOR; BRAKE (#38192) — 46 parça

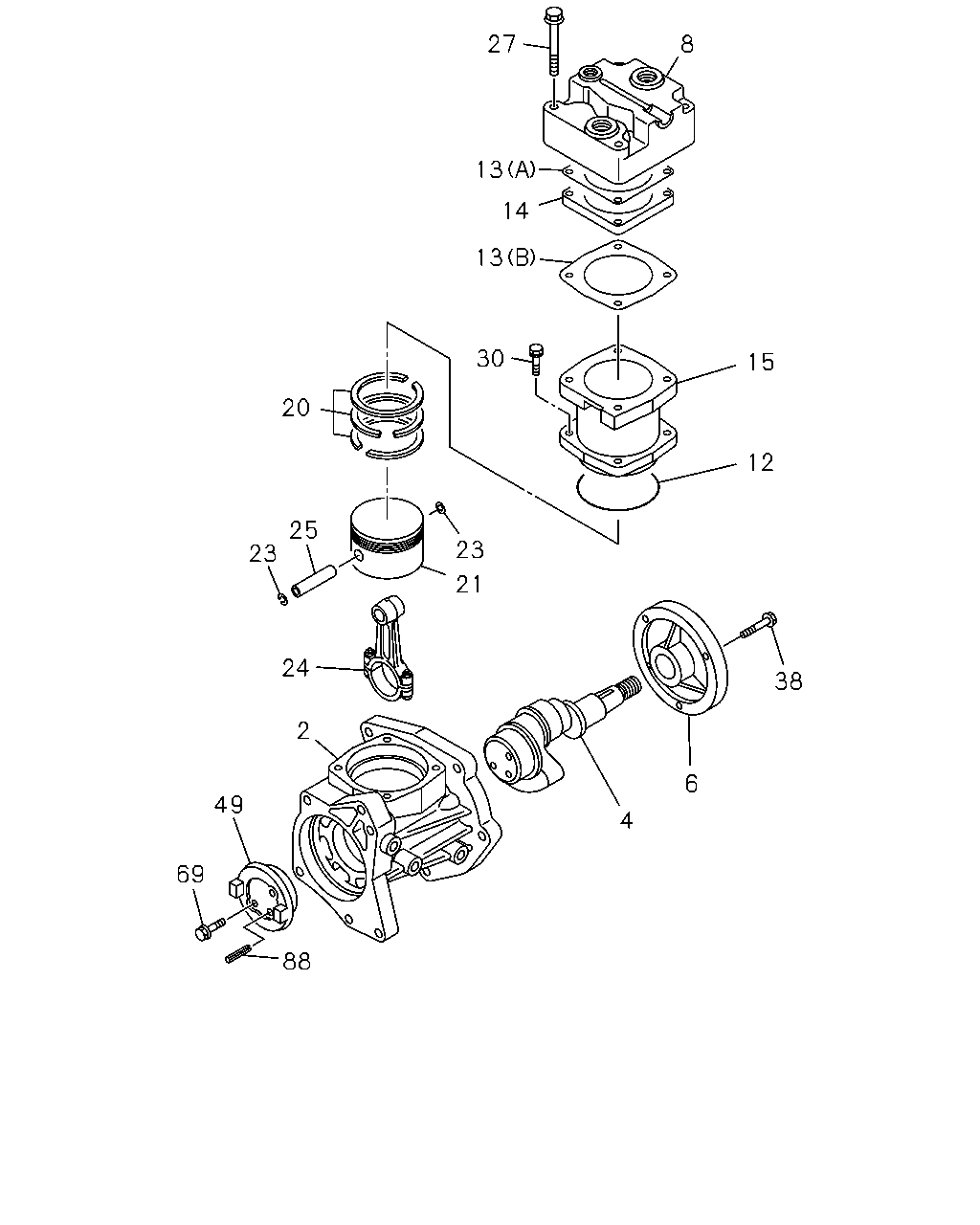

çizim 180871
88 69 49 2 24 23 25 20 23 21 4 6 38 12 15 30 13 14 13 27 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 CRANKCASE; AIR CMPR 1-19151-303-0 01 1 0809-1011 ●
2 CRANKCASE; AIR CMPR 1-19151-303-0 01 1 1012- ● ●
4 CRANKSHAFT; AIR CMPR 1-19171-090-1 01 1 0809-1011 ●
4 CRANKSHAFT; AIR CMPR 1-19171-090-1 01 1 1012- ● ●
6 COVER ASM; BRG,AIR CMPR 1-19156-086-1 01 1 0809-1011 ●
6 COVER ASM; BRG,AIR CMPR 1-19156-086-1 01 1 1012- ● ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-075-0 01 1 0809-1011 ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-075-0 01 1 1012- ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0809-1011 ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 1012-1109 ● ●
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1110- ● ●
13 GASKET; AIR CMPR
(A) 		1-19115-015-0 01 1 0809-1011 ●
13 GASKET; AIR CMPR
(A) 		1-19115-015-0 01 1 1012- ● ●
13 GASKET; AIR CMPR
(B) 		1-19115-016-0 01 1 0809-1011 ●
13 GASKET; AIR CMPR
(B) 		1-19115-016-0 01 1 1012- ● ●
14 PLATE; AIR CMPR 1-19130-010-1 01 1 0809-1011 ●
14 PLATE; AIR CMPR 1-19130-010-1 01 1 1012-1405 ● ●
14 PLATE; AIR CMPR 8-98271-713-0 01 1 1406- ● ●
15 CYLINDER; AIR CMPR 1-19163-068-1 01 1 0809-1011 ●
15 CYLINDER; AIR CMPR 1-19163-068-1 01 1 1012- ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-069-0 01 1 0809-1011 ●
20 RING KIT; PISTON,AIR CMPR 1-19163-069-0 01 1 1012-1103 ● ●
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 1104- ● ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0809-1011 ●
21 PISTON; AIR CMPR 1-19161-027-0 01 1 1012- ● ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-003-0 02 1 0809-0909 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0910-1011 ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 1012- ● ●
24 ROD ASM; CONN,AIR CMPR 1-19173-023-0 01 1 0809-1011 ●
24 ROD ASM; CONN,AIR CMPR 1-19173-023-0 01 1 1012- ● ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0809-0909 ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0910-1011 ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 1012- ● ●
27 BOLT; HD 1-19119-039-0 04 1 0809-1011 ●
27 BOLT; HD 1-19119-039-0 04 1 1012-1103 ● ●
27 BOLT; HD 8-98188-172-0 04 1 1104- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0809-1011 ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 1012- ● ●
38 BOLT; COVER FIX 1-19159-023-0 03 1 0809-1011 ●
38 BOLT; COVER FIX 1-19159-023-0 03 1 1012- ● ●
49 COUPLING ASM 1-19179-032-0 01 1 0809-1011 ●
49 COUPLING ASM 1-19179-032-0 01 1 1012- ● ●
69 BOLT ASM; AIR COMP 1-19179-033-0 02 1 0809-1011 ●
69 BOLT ASM; AIR COMP 1-19179-033-0 02 1 1012- ● ●
88 PIN; SPRING 1-19179-034-0 01 1 0809-1011 ●
88 PIN; SPRING 1-19179-034-0 01 1 1012- ● ●
