0-32 — WATER PIPING; ENGINE (#38186) — 53 parça

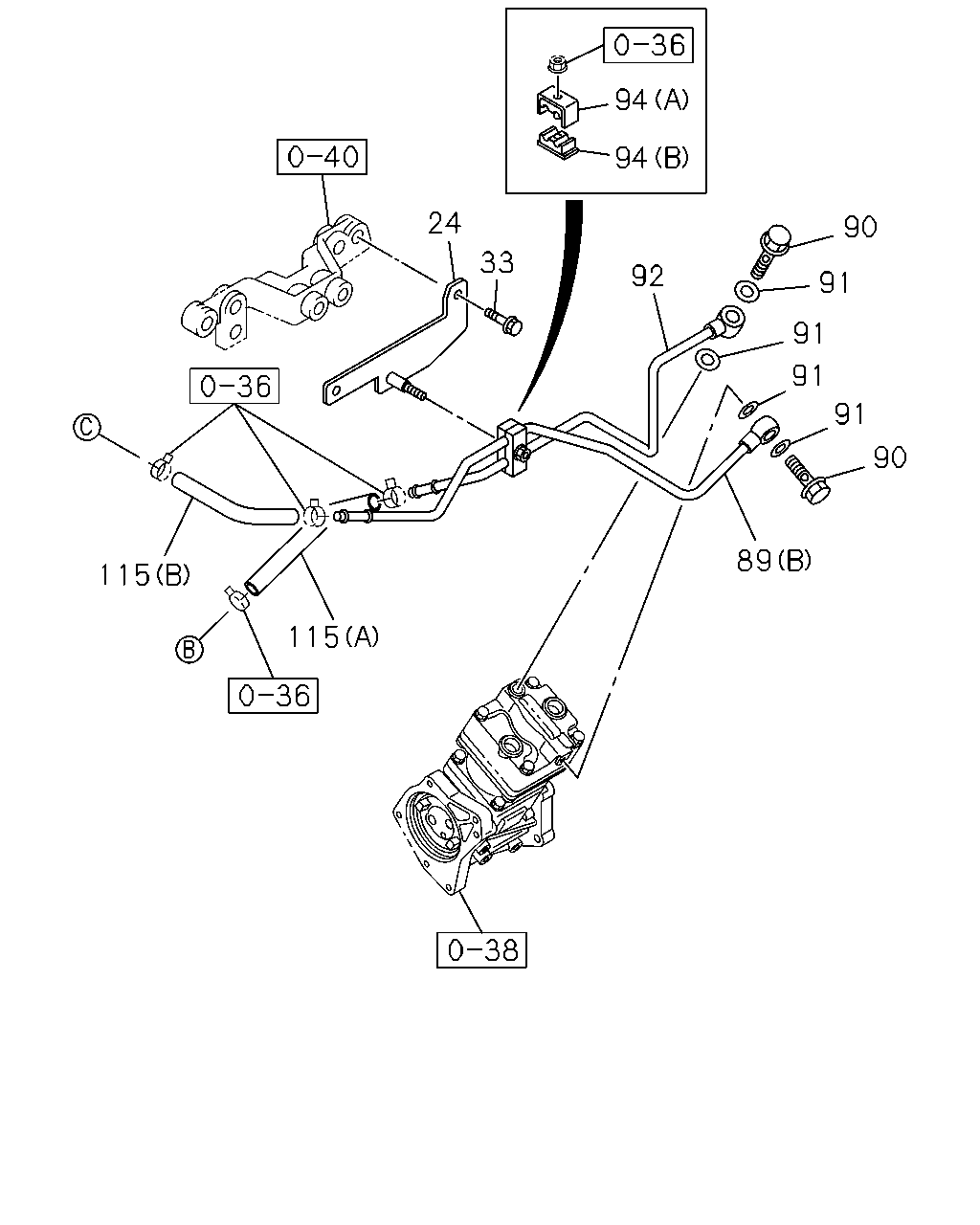

çizim 180855
24 33 92 94 94 90 91 91 91 91 90 89 115 115
BalonParca AdiParca NoAdetTipApplied Date A B
24 BRACKET; WATER PIPE 8-97379-140-0 01 1 0809-1011 ●
24 BRACKET; WATER PIPE 8-97379-140-0 01 1 1012- ● ●
33 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 02 1 0809-1011 ●
33 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 02 1 1012- ● ●
89 PIPE; WATER,AIR CMPR,IN
(A) 		8-97358-699-0 01 1 0809-1011 ●
89 PIPE; WATER,AIR CMPR,IN
(A) 		8-97358-699-0 01 1 1012- ● ●
89 PIPE; WATER,AIR CMPR,IN
(B) 		8-97376-783-1 01 1 0809-1011 ●
89 PIPE; WATER,AIR CMPR,IN
(B) 		8-97376-783-1 01 1 1012- ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT 		1-09675-193-0 02 1 0809-1011 ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT 		1-09675-193-0 02 1 1012- ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 04 1 0809-1011 ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 04 1 1012-1312 ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		8-98251-345-0 04 1 1401- ● ●
92 PIPE; WATER,AIR CMPR,OUT 8-97376-784-0 01 1 0809-1011 ●
92 PIPE; WATER,AIR CMPR,OUT 8-97376-784-0 01 1 1012- ● ●
94 CLIP; WATER PIPE
(B) ID=9 & 9 L=25 		1-09701-180-0 01 1 0809-1011 ●
94 CLIP; WATER PIPE
(B) ID=9 & 9 L=25 		1-09701-180-0 01 1 1012- ● ●
94 CLIP; WATER PIPE
(A) ID=9 & 9 L=25 		8-94393-280-3 01 1 0809-1011 ●
94 CLIP; WATER PIPE
(A) ID=9 & 9 L=25 		8-94393-280-3 01 1 1012- ● ●
115 HOSE; RUBBER
(A) L=130 SERVICED BY L=3000 		0-03559-300-0 01 1 0809-1010 ●
115 HOSE; RUBBER
(A) L=130 		8-98136-884-0 01 1 1011-1011 ●
115 HOSE; RUBBER
(A) L=130 		8-98136-884-0 01 1 1012- ● ●
115 HOSE; RUBBER
(B) 		8-98009-361-0 01 1 0809-1011 ●
115 HOSE; RUBBER
(B) 		8-98009-361-0 01 1 1012- ● ●

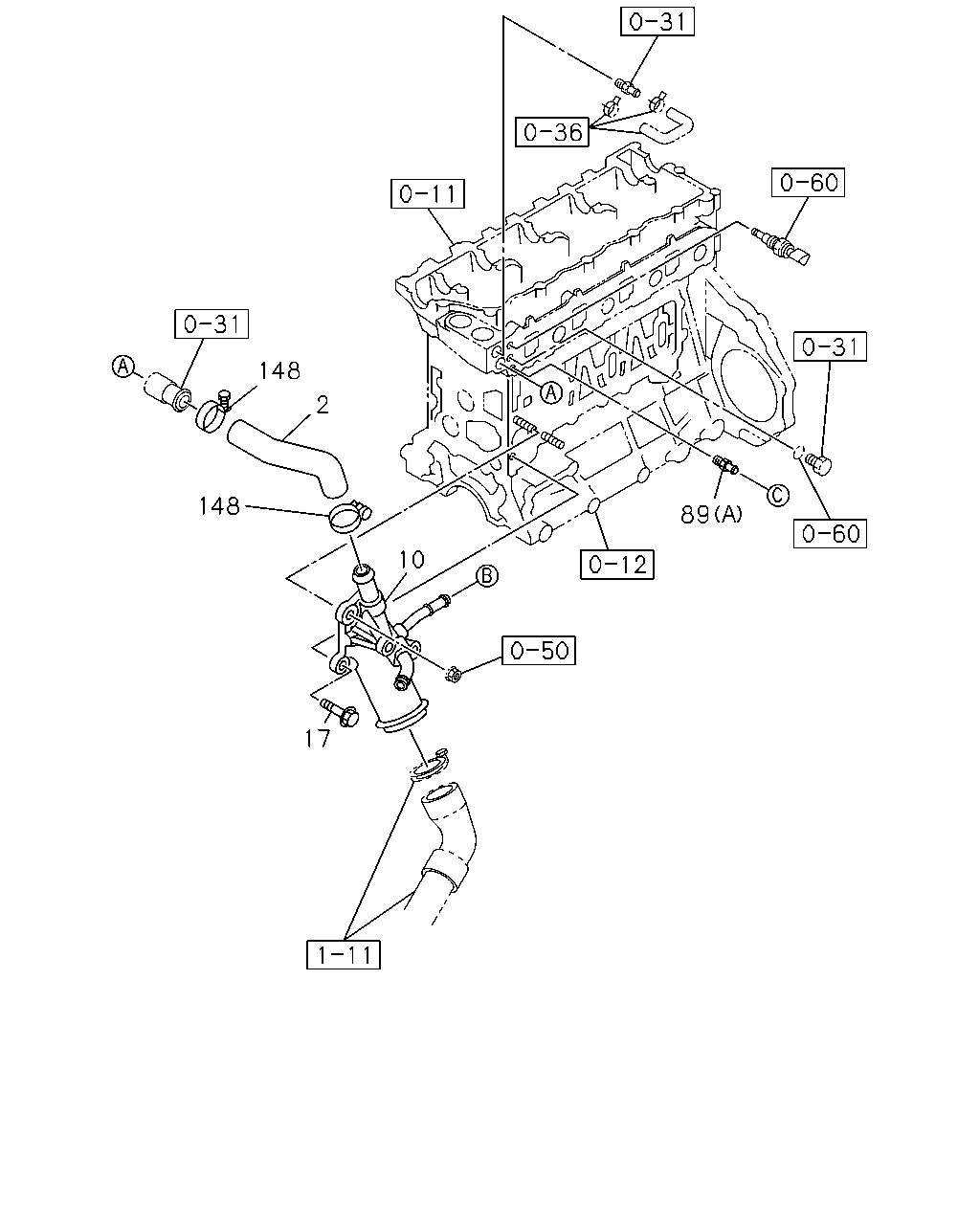

çizim 180863
148 2 148 89 10 17
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; WATER,BY-PASS 8-97379-228-1 01 1 0809-1011 ●
2 HOSE; WATER,BY-PASS 8-97379-228-1 01 1 1012- ● ●
10 PIPE; SUCTION 8-98084-562-0 01 1 0809-1010 ●
10 PIPE; SUCTION 8-98166-995-0 01 1 1011-1011 ●
10 PIPE; SUCTION 8-98166-995-0 01 1 1012- ● ●
17 BOLT; SUCTION PIPE
M8X48 FLANGE 		8-94458-473-1 01 1 0809-1011 ●
17 BOLT; SUCTION PIPE
M8X48 FLANGE 		8-94458-473-1 01 1 1012- ● ●
89 PIPE; WATER,AIR CMPR,IN
(A) 		8-97358-699-0 01 1 0809-1011 ●
89 PIPE; WATER,AIR CMPR,IN
(A) 		8-97358-699-0 01 1 1012- ● ●
89 PIPE; WATER,AIR CMPR,IN
(B) 		8-97376-783-1 01 1 0809-1011 ●
89 PIPE; WATER,AIR CMPR,IN
(B) 		8-97376-783-1 01 1 1012- ● ●
148 CLIP; BYPASS HOSE
ID=30 		9-09915-315-1 02 1 0809-1011 ●
148 CLIP; BYPASS HOSE
ID=30 		9-09915-315-1 02 1 1012- ● ●

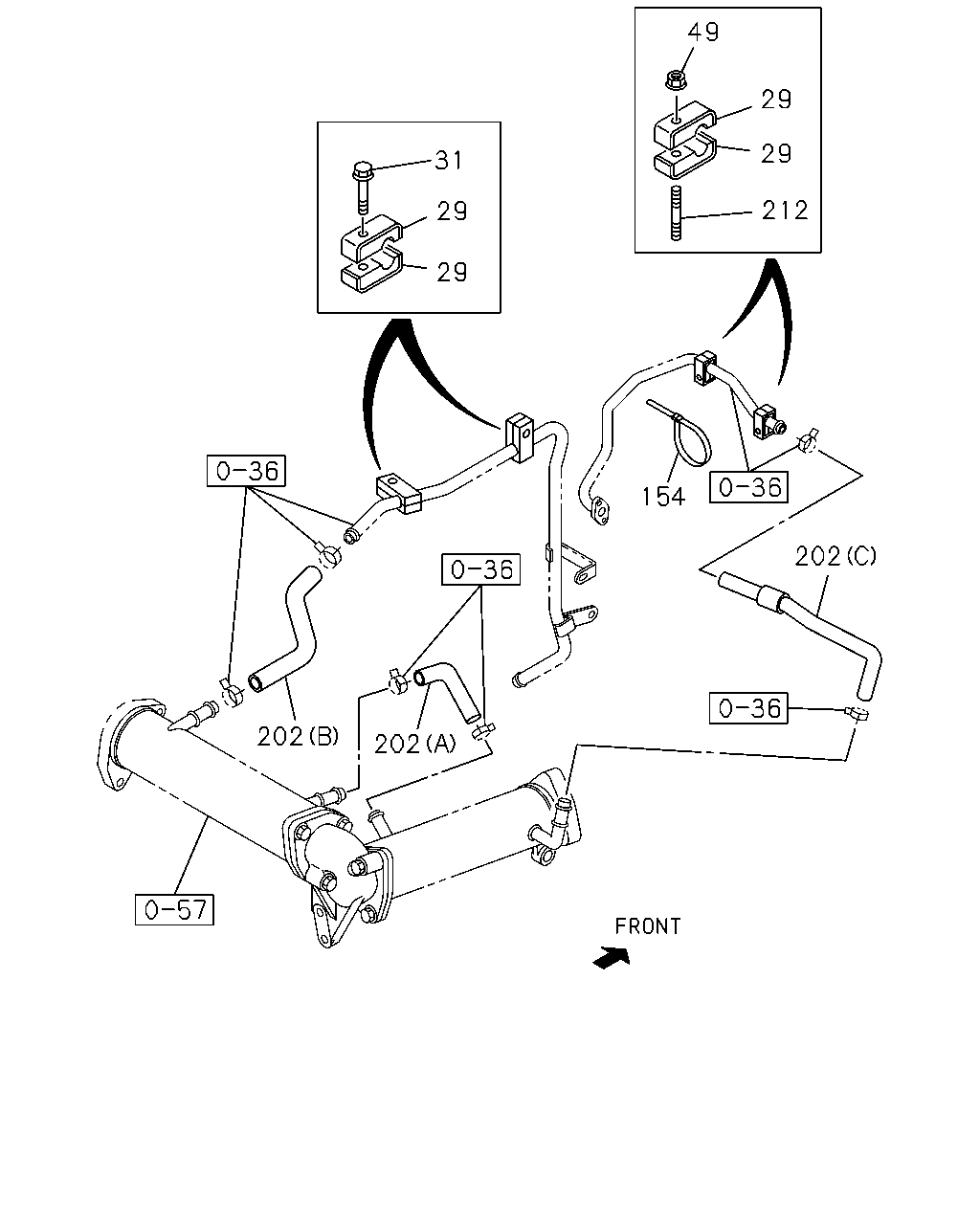

çizim 180866
49 29 29 31 212 29 29 154 202 202 202
BalonParca AdiParca NoAdetTipApplied Date A B
29 CLIP; PIPE
EURO3 SPECIFICATION<NT3> ID=17 L=17 		1-09701-284-0 08 1 0810-1011 ●
29 CLIP; PIPE
EURO3 SPECIFICATION<NT3> ID=17 L=17 		1-09701-284-0 08 1 1012- ● ●
31 BOLT; CLIP
EURO3 SPECIFICATION<NT3> M8X40 FLANGE 		0-28050-840-0 02 1 0810-1011 ●
31 BOLT; CLIP
EURO3 SPECIFICATION<NT3> M8X40 FLANGE 		0-28050-840-0 02 1 1012- ● ●
49 NUT; WATER PIPE
M8 FLANGE 		0-91180-108-0 02 1 0809-1011 ●
49 NUT; WATER PIPE
M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
154 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> L=170.3 		1-09987-182-0 01 1 0810-1011 ●
154 CLIP; WATER HOSE
EURO3 SPECIFICATION<NT3> L=170.3 		1-09987-182-0 01 1 1012- ● ●
202 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION<NT3> (B) 		8-97386-586-1 01 1 0810-1011 ●
202 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION<NT3> (B) 		8-97386-586-1 01 1 1012- ● ●
202 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION<NT3> (A) 		8-98092-382-0 01 1 0810-1011 ●
202 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION<NT3> (A) 		8-98092-382-0 01 1 1012- ● ●
202 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION<NT3> (C) 		8-98097-605-0 01 1 0810-1011 ●
202 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION<NT3> (C) 		8-98097-605-1 01 1 1012- ● ●
212 STUD; PIPE
M8X45 L=55 		8-94217-227-0 02 1 0809-1011 ●
212 STUD; PIPE
M8X45 L=55 		8-94217-227-0 02 1 1012- ● ●
