◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11121 - FRR(LHD) SPACECAB ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#38184) — 12 parça

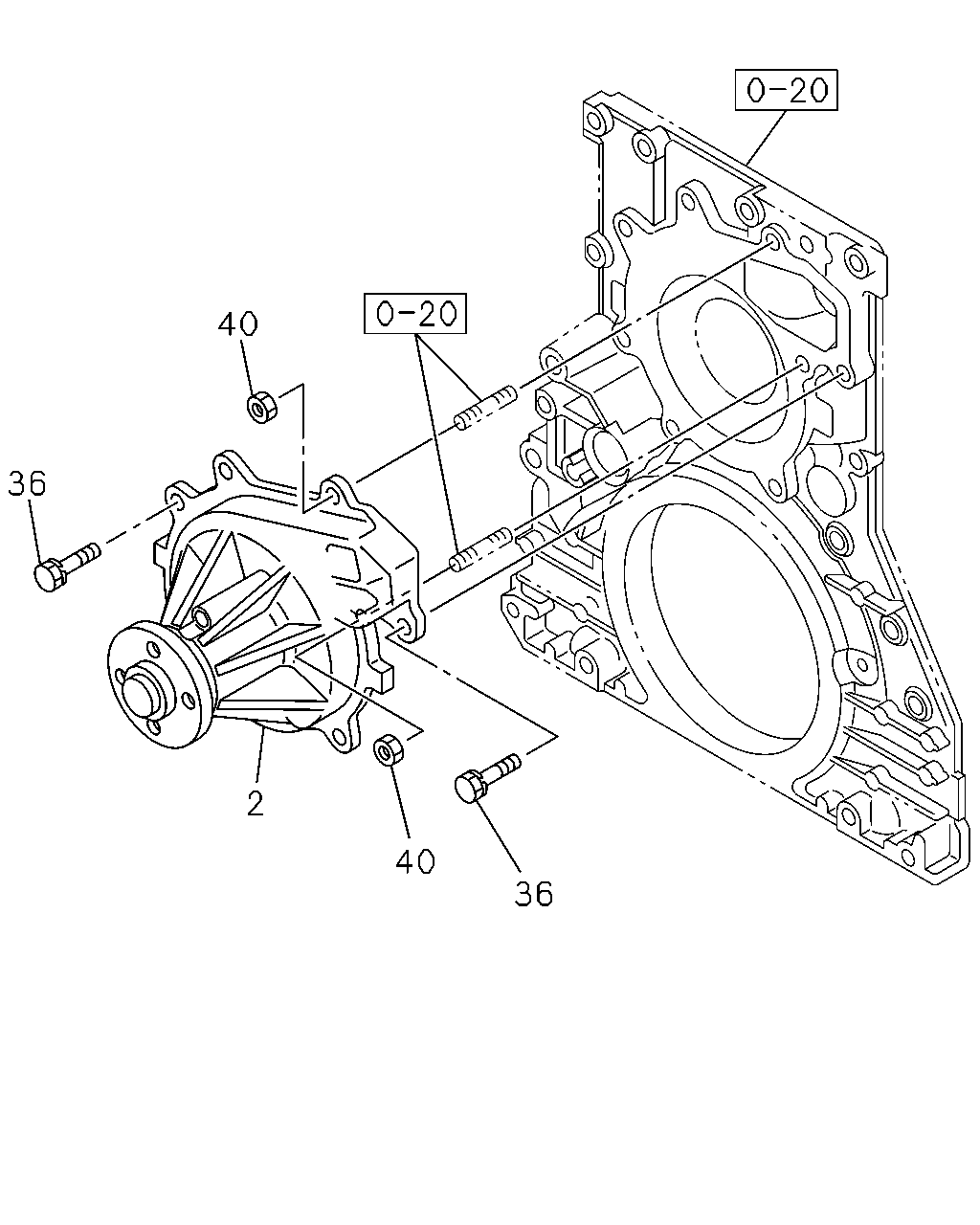

çizim 180868
40 36 2 40 36
BalonParca AdiParca NoAdetTipApplied Date A B
2 PUMP ASM; WATER
EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) BEST VALUE PARTS 		5-87610-089-0 01 1 0810-1011 ●
2 PUMP ASM; WATER
EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) BEST VALUE PARTS 		5-87610-089-0 01 1 1012- ● ●
2 PUMP ASM; WATER
EURO2 SPECIFICATION<NT2> SAUDI ARABIA EQUIPMENT(GH3) 		8-98078-831-0 01 1 0809-1011 ●
2 PUMP ASM; WATER
EURO3 SPECIFICATION<NT3> 		8-98078-831-0 01 1 0809-1011 ●
2 PUMP ASM; WATER
EURO2 SPECIFICATION<NT2> SAUDI ARABIA EQUIPMENT(GH3) 		8-98078-831-2 01 1 1012- ● ●
2 PUMP ASM; WATER
EURO3 SPECIFICATION<NT3> 		8-98078-831-2 01 1 1012- ● ●
2 PUMP ASM; WATER
EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97363-478-0 01 1 0809-1011 ●
2 PUMP ASM; WATER
EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) 		8-97363-478-0 01 1 1012- ● ●
36 BOLT; WATER PUMP TO C/BL
M8X40 FLANGE 		0-28650-840-0 06 1 0809-1011 ●
36 BOLT; WATER PUMP TO C/BL
M8X40 FLANGE 		0-28650-840-0 06 1 1012- ● ●
40 NUT; WATER PUMP
M8 FLANGE 		0-91180-108-0 02 1 0809-1011 ●
40 NUT; WATER PUMP
M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
