0-11 — CYLINDER HEAD (#38174) — 87 parça

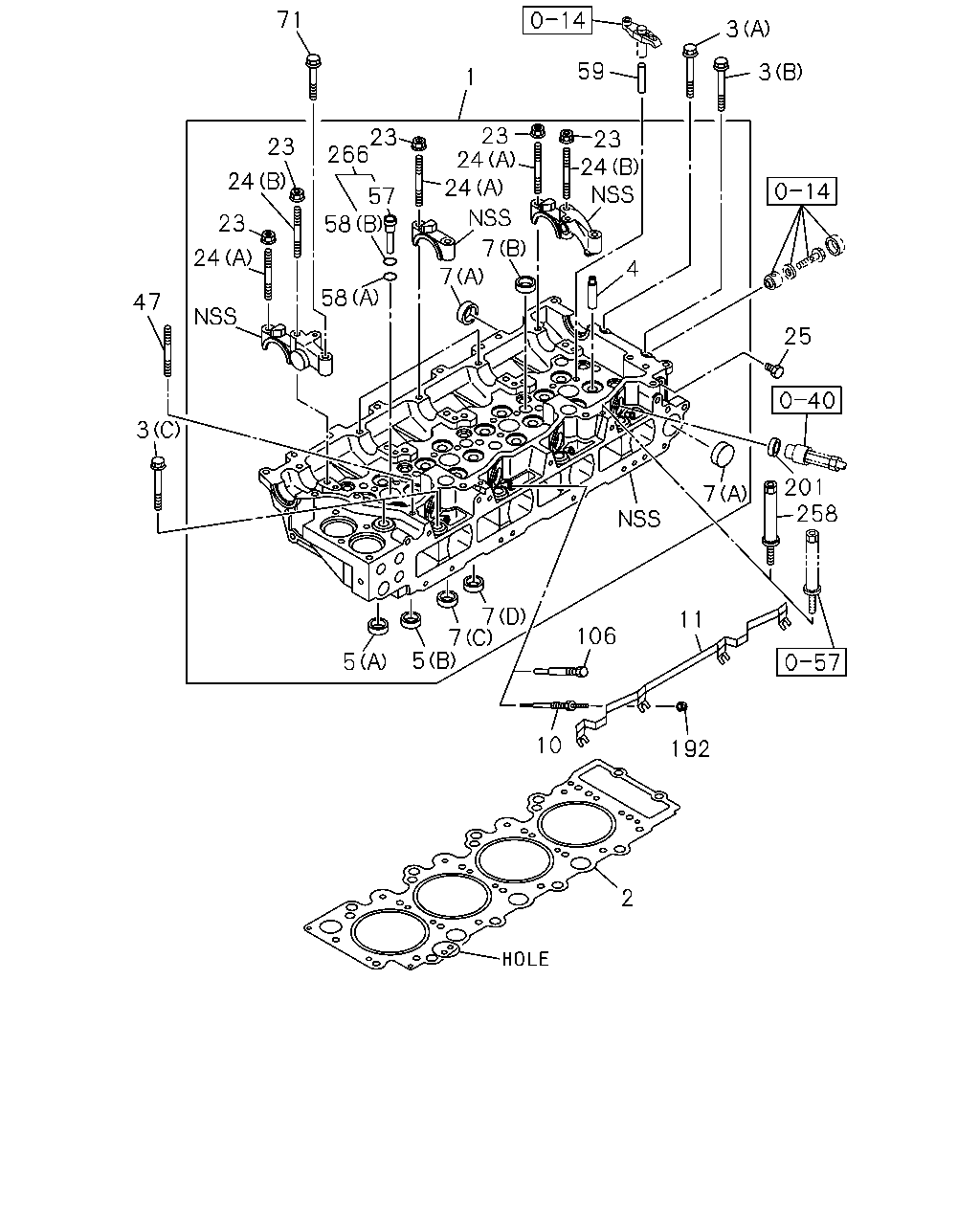

çizim 180841
2 192 10 106 11 258 201 7 25 3 3 59 23 24 4 7 7 5 5 3 47 24 23 24 23 71 1 23 266 57 58 58 7 7 24 24 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-98170-619-0 01 1 1012- ●
1 HEAD ASM; CYL 8-98045-019-3 01 1 0809-1005 ●
1 HEAD ASM; CYL 8-98170-620-0 01 1 1006- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-98055-540-0 01 1 0809-1011 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-98055-540-0 01 1 1012-1505 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-98288-501-0 01 1 1506- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-98055-541-0 01 1 0809-1011 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-98055-541-0 01 1 1012-1505 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-98288-502-0 01 1 1506- ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-98055-542-0 01 1 0809-1011 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-98055-542-0 01 1 1012-1505 ● ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-98288-503-0 01 1 1506- ● ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0809-1011 ●
3 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 1012- ● ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0809-1011 ●
3 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 1012- ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0809-1011 ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 1012-1503 ● ●
3 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 18 1 1504- ● ●
4 GUIDE; VLV
L=57 		8-97376-719-2 16 1 0809-1011 ●
4 GUIDE; VLV
L=57 		8-97376-719-2 16 1 1012- ● ●
5 SEAT; VLV INSERT
(A) INLET ID=32 OD=38 		8-98028-874-0 08 1 0809-1011 ●
5 SEAT; VLV INSERT
(A) INLET ID=32 OD=38 		8-98028-874-0 08 1 1012- ● ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 		8-98028-875-0 08 1 0809-1011 ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 		8-98028-875-0 08 1 1012- ● ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 04 1 0809-1011 ●
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 04 1 1012- ● ●
7 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 05 1 0809-1011 ●
7 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 05 1 1012- ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 05 1 0809-1011 ●
7 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 05 1 1012- ● ●
7 CUP; SEALING,CYL HEAD
(D) OD=20 		9-11129-128-0 07 1 0809-1011 ●
7 CUP; SEALING,CYL HEAD
(D) OD=20 		9-11129-128-0 07 1 1012- ● ●
10 PLUG; GLOW
NGK 		8-94390-777-6 04 1 0809-1011 ●
10 PLUG; GLOW
NGK 		8-94390-777-6 04 1 1012-1311 ● ●
10 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> NGK 		8-94390-777-6 04 1 1312- ● ●
11 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 0809-1011 ●
11 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 1012-1311 ● ●
11 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 		8-97332-358-2 01 1 1312- ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 10 1 0809-1011 ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91180-208-0 10 1 1012- ● ●
24 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0809-1011 ●
24 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 1012- ● ●
24 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0809-1011 ●
24 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 1012- ● ●
25 PLUG; CYL HD
M8X10 		8-98003-416-0 01 1 0809-1011 ●
25 PLUG; CYL HD
M8X10 		8-98003-416-0 01 1 1012- ● ●
47 STUD; CYL HD
M8X60 L=72 		0-49140-860-0 02 1 0809-1011 ●
47 STUD; CYL HD
M8X60 L=72 		0-49140-860-0 02 1 1012- ● ●
57 SLEEVE; NOZZLE HOLDER 8-97606-661-0 04 1 0809-0809 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=26.4 		8-97604-916-0 04 1 0809-1011 ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=26.4 		8-97604-916-0 04 1 1012- ● ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=26.2 		8-98004-187-0 04 1 0809-0809 ●
59 GUIDE; BRIDGE 8-97381-603-1 08 1 0809-1011 ●
59 GUIDE; BRIDGE 8-97381-603-1 08 1 1012- ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 0809-1011 ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28050-835-0 02 1 1012- ● ●
106 PLUG; GLOW PLUG HOLE
GLOW SYSTEM DELETE<7RK> 		8-94392-236-0 04 1 1312- ● ●
192 NUT; GLOW PLUG
M4 FLANGE 		8-97368-853-0 04 1 0809-1011 ●
192 NUT; GLOW PLUG
M4 FLANGE 		8-97368-853-0 04 1 1012-1311 ● ●
192 NUT; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> M4 FLANGE 		8-97368-853-0 04 1 1312- ● ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 04 1 0809-1011 ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 04 1 1012- ● ●
258 ADAPTER; CLIP 8-97377-804-0 01 1 0809-0904 ●
266 SLEEVE ASM; NOZZLE HOLDER 8-98018-462-0 04 1 0810-1011 ●
266 SLEEVE ASM; NOZZLE HOLDER 8-98018-462-0 04 1 1012- ● ●

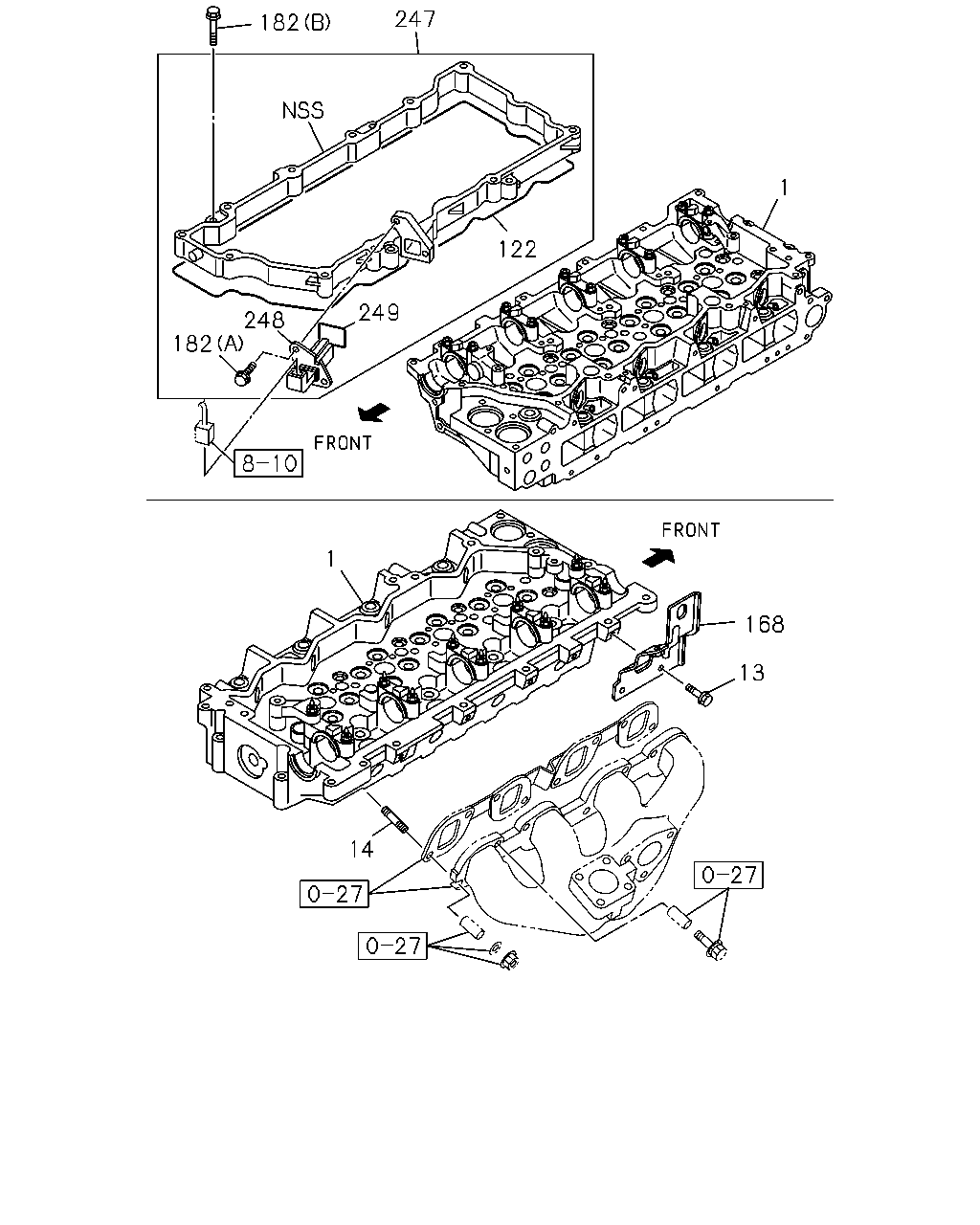

çizim 180856
247 182 1 122 249 248 182 1 168 13 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-98170-619-0 01 1 1012- ●
1 HEAD ASM; CYL 8-98045-019-3 01 1 0809-1005 ●
1 HEAD ASM; CYL 8-98170-620-0 01 1 1006- ●
13 BOLT; HANGER
M10X20 FLANGE 		0-28151-020-0 02 1 0809-1011 ●
13 BOLT; HANGER
M10X20 FLANGE 		0-28151-020-0 02 1 1012- ● ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0809-1011 ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 1012- ● ●
122 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97331-360-1 01 1 0809-1011 ●
122 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97331-360-1 01 1 1012- ● ●
168 HANGER; ENG,FRT 8-97383-001-1 01 1 0809-1011 ●
168 HANGER; ENG,FRT 8-97383-001-1 01 1 1012- ● ●
182 BOLT; CASE
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0809-1011 ●
182 BOLT; CASE
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1012- ● ●
182 BOLT; CASE
(B) M8X45 FLANGE 		0-28050-845-0 04 1 0809-1011 ●
182 BOLT; CASE
(B) M8X45 FLANGE 		0-28050-845-0 04 1 1012- ● ●
247 CASE; CYL HEAD,C/H COVER 8-97331-362-1 01 1 0809-1011 ●
247 CASE; CYL HEAD,C/H COVER 8-97331-362-1 01 1 1012- ● ●
248 CONNECTOR 8-94390-858-1 01 1 0809-1011 ●
248 CONNECTOR 8-94390-858-1 01 1 1012- ● ●
249 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 01 1 0809-1011 ●
249 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 01 1 1012- ● ●
