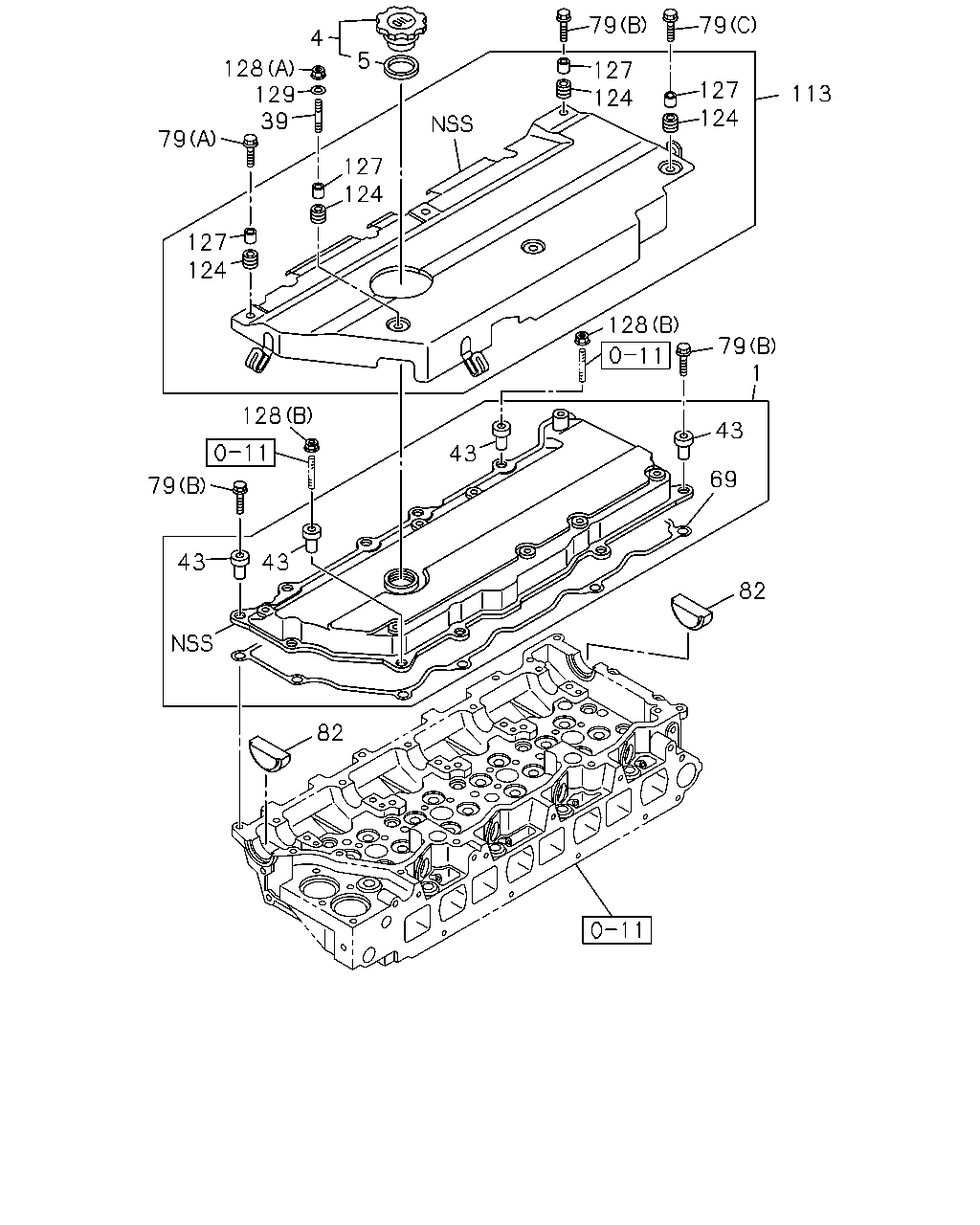

0-10 — CYLINDER HEAD COVER (#38173) — 87 parça

79 79 4 5 128 129 39 127 124 127 124 113 79 127 124 127 124 128 79 1 128 43 43 69 79 43 43 82 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COVER; CYL HD	8-97331-361-2	01	1	0809-1011	●
1	COVER; CYL HD	8-97331-361-2	01	1	1012-	●	●
4	CAP; OIL FILLER	8-94133-207-5	01	1	0809-1011	●
4	CAP; OIL FILLER	8-94133-207-5	01	1	1012-	●	●
5	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-94123-623-1	01	1	0809-1011	●
5	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=32 OD=40	8-94123-623-1	01	1	1012-	●	●
39	STUD; COVER,HD EURO3 SPECIFICATION<NT3> M6X25 L=34	0-41010-625-0	02	1	1008-1011	●
39	STUD; COVER,HD EURO3 SPECIFICATION<NT3> M6X25 L=34	0-41010-625-0	02	1	1012-1109	●
39	STUD; COVER,HD M6X25 L=34	0-41010-625-0	02	1	1012-1109		●
39	STUD; COVER,HD EURO3 SPECIFICATION<NT3> CHILE EQUIPMENT(KE1) M6X25 L=34	0-41010-625-0	02	1	1110-1112	●
39	STUD; COVER,HD EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) M6X25 L=34	0-41010-625-0	02	1	1110-1112		●
39	STUD; COVER,HD EURO3 SPECIFICATION<NT3> M6X25 L=34	0-41010-625-0	02	1	1201-	●	●
39	STUD; COVER,HD EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) M6X25 L=34	0-41010-625-0	02	1	1201-		●
39	STUD; COVER,HD EURO2 SPECIFICATION<NT2> M6X20 L=28	0-41010-620-0	02	1	1008-1109	●
39	STUD; COVER,HD EURO2 SPECIFICATION<NT2> M6X20 L=28	0-41010-620-0	02	1	1110-1112	●
39	STUD; COVER,HD EURO3 SPECIFICATION<NT3> PERU EQUIPMENT(E07),SAUDI ARABIA EQUIPMENT(GH3) M6X20 L=28	0-41010-620-0	02	1	1110-1112	●
39	STUD; COVER,HD EURO2 SPECIFICATION<NT2> SAUDI ARABIA EQUIPMENT(GH3) M6X20 L=28	0-41010-620-0	02	1	1110-1112		●
39	STUD; COVER,HD EURO3 SPECIFICATION<NT3> M6X20 L=28	0-41010-620-0	02	1	1110-1112		●
39	STUD; COVER,HD EURO2 SPECIFICATION<NT2> M6X20 L=28	0-41010-620-0	02	1	1201-1312	●
39	STUD; COVER,HD SAUDI ARABIA EQUIPMENT(GH3) EURO2 SPECIFICATION<NT2> M6X20 L=28	0-41010-620-0	02	1	1201-1312		●
39	STUD; COVER,HD M6X25 L=34	0-41010-625-0	02	1	0809-1007	●
39	STUD; COVER,HD EURO2 SPECIFICATION<NT2> M6X25 L=34	0-41010-625-0	01	1	1008-1109	●
39	STUD; COVER,HD EURO2 SPECIFICATION<NT2> M6X25 L=34	0-41010-625-0	01	1	1110-1111	●
39	STUD; COVER,HD EURO3 SPECIFICATION<NT3> PERU EQUIPMENT(E07),SAUDI ARABIA EQUIPMENT(GH3) M6X25 L=34	0-41010-625-0	01	1	1110-1111	●
39	STUD; COVER,HD EURO2 SPECIFICATION<NT2> SAUDI ARABIA EQUIPMENT(GH3) M6X25 L=34	0-41010-625-0	01	1	1110-1111		●
39	STUD; COVER,HD EURO3 SPECIFICATION<NT3> M6X25 L=34	0-41010-625-0	01	1	1110-1111		●
43	RUBBER; MTG,HD COVER,OUTER OD=22	8-94395-684-0	11	1	0809-1011	●
43	RUBBER; MTG,HD COVER,OUTER OD=22	8-94395-684-0	11	1	1012-	●	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97331-359-1	01	1	0809-1011	●
69	GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97331-359-1	01	1	1012-	●	●
79	BOLT; COVER (A) M8X35 FLANGE	0-28650-835-0	02	1	0809-1011	●
79	BOLT; COVER (A) M8X35 FLANGE	0-28650-835-0	02	1	1012-	●	●
79	BOLT; COVER (B) M8X65 FLANGE	1-09044-072-1	07	1	0809-1011	●
79	BOLT; COVER (B) M8X65 FLANGE	1-09044-072-1	07	1	1012-	●	●
79	BOLT; COVER (C) M6X20	8-97127-607-0	04	1	0809-1007	●
79	BOLT; COVER EURO3 SPECIFICATION<NT3> (C) M6X20	8-97127-607-0	04	1	1008-1011	●
79	BOLT; COVER EURO3 SPECIFICATION<NT3> (C) M6X20	8-97127-607-0	04	1	1012-1109	●
79	BOLT; COVER (C) M6X20	8-97127-607-0	04	1	1012-1109		●
79	BOLT; COVER EURO3 SPECIFICATION<NT3> CHILE EQUIPMENT(KE1) (C) M6X20	8-97127-607-0	04	1	1110-1112	●
79	BOLT; COVER EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (C) M6X20	8-97127-607-0	04	1	1110-1112		●
79	BOLT; COVER EURO3 SPECIFICATION<NT3> (C) M6X20	8-97127-607-0	04	1	1201-	●	●
79	BOLT; COVER EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (C) M6X20	8-97127-607-0	04	1	1201-		●
82	PLUG; CYL HD COVER	8-94399-605-0	02	1	0809-1005	●
82	PLUG; CYL HD COVER	8-98163-813-0	02	1	1006-1011	●
82	PLUG; CYL HD COVER	8-98163-813-0	02	1	1012-	●	●
113	COVER; CYL HEAD COVER	8-97354-803-3	01	1	0809-1007	●
113	COVER; CYL HEAD COVER EURO3 SPECIFICATION<NT3>	8-97354-803-3	01	1	1008-1011	●
113	COVER; CYL HEAD COVER EURO3 SPECIFICATION<NT3>	8-97354-803-3	01	1	1012-1109	●
113	COVER; CYL HEAD COVER	8-97354-803-3	01	1	1012-1109		●
113	COVER; CYL HEAD COVER EURO3 SPECIFICATION<NT3> CHILE EQUIPMENT(KE1)	8-97354-803-3	01	1	1110-1112	●
113	COVER; CYL HEAD COVER EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-97354-803-3	01	1	1110-1112		●
113	COVER; CYL HEAD COVER EURO3 SPECIFICATION<NT3>	8-97354-803-3	01	1	1201-	●	●
113	COVER; CYL HEAD COVER EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-97354-803-3	01	1	1201-		●
124	RUBBER; MTG,COVER	8-97226-908-0	06	1	0809-1007	●
124	RUBBER; MTG,COVER EURO3 SPECIFICATION<NT3>	8-97226-908-0	06	1	1008-1011	●
124	RUBBER; MTG,COVER EURO3 SPECIFICATION<NT3>	8-97226-908-0	06	1	1012-1109	●
124	RUBBER; MTG,COVER	8-97226-908-0	06	1	1012-1109		●
124	RUBBER; MTG,COVER EURO3 SPECIFICATION<NT3> CHILE EQUIPMENT(KE1)	8-97226-908-0	06	1	1110-1112	●
124	RUBBER; MTG,COVER EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-97226-908-0	06	1	1110-1112		●
124	RUBBER; MTG,COVER EURO3 SPECIFICATION<NT3>	8-97226-908-0	06	1	1201-	●	●
124	RUBBER; MTG,COVER EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-97226-908-0	06	1	1201-		●
127	RETAINER; COVER	8-97092-314-0	06	1	0809-1007	●
127	RETAINER; COVER EURO3 SPECIFICATION<NT3>	8-97092-314-0	06	1	1008-1011	●
127	RETAINER; COVER EURO3 SPECIFICATION<NT3>	8-97092-314-0	06	1	1012-1109	●
127	RETAINER; COVER	8-97092-314-0	06	1	1012-1109		●
127	RETAINER; COVER EURO3 SPECIFICATION<NT3> CHILE EQUIPMENT(KE1)	8-97092-314-0	06	1	1110-1112	●
127	RETAINER; COVER EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-97092-314-0	06	1	1110-1112		●
127	RETAINER; COVER EURO3 SPECIFICATION<NT3>	8-97092-314-0	06	1	1201-	●	●
127	RETAINER; COVER EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-97092-314-0	06	1	1201-		●
128	NUT; COVER,CYL HEAD COVER (A) M6 FLANGE	0-91180-106-0	02	1	0809-1007	●
128	NUT; COVER,CYL HEAD COVER EURO3 SPECIFICATION<NT3> (A) M6 FLANGE	0-91180-106-0	02	1	1008-1011	●
128	NUT; COVER,CYL HEAD COVER EURO3 SPECIFICATION<NT3> (A) M6 FLANGE	0-91180-106-0	02	1	1012-1109	●
128	NUT; COVER,CYL HEAD COVER (A) M6 FLANGE	0-91180-106-0	02	1	1012-1109		●
128	NUT; COVER,CYL HEAD COVER EURO3 SPECIFICATION<NT3> CHILE EQUIPMENT(KE1) (A) M6 FLANGE	0-91180-106-0	02	1	1110-1112	●
128	NUT; COVER,CYL HEAD COVER EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) M6 FLANGE	0-91180-106-0	02	1	1110-1112		●
128	NUT; COVER,CYL HEAD COVER EURO3 SPECIFICATION<NT3> (A) M6 FLANGE	0-91180-106-0	02	1	1201-	●	●
128	NUT; COVER,CYL HEAD COVER EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) (A) M6 FLANGE	0-91180-106-0	02	1	1201-		●
128	NUT; COVER,CYL HEAD COVER (B) M8 FLANGE	0-91180-108-0	02	1	0809-1011	●
128	NUT; COVER,CYL HEAD COVER (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
129	WASHER; COVER,CYL HEAD COVER ID=6.4 OD=18	0-91610-706-0	01	1	0809-1007	●
129	WASHER; COVER,CYL HEAD COVER EURO3 SPECIFICATION<NT3> ID=6.4 OD=18	0-91610-706-0	01	1	1008-1011	●
129	WASHER; COVER,CYL HEAD COVER EURO3 SPECIFICATION<NT3> ID=6.4 OD=18	0-91610-706-0	01	1	1012-1109	●
129	WASHER; COVER,CYL HEAD COVER ID=6.4 OD=18	0-91610-706-0	01	1	1012-1109		●
129	WASHER; COVER,CYL HEAD COVER EURO3 SPECIFICATION<NT3> CHILE EQUIPMENT(KE1) ID=6.4 OD=18	0-91610-706-0	01	1	1110-1112	●
129	WASHER; COVER,CYL HEAD COVER EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) ID=6.4 OD=18	0-91610-706-0	01	1	1110-1112		●
129	WASHER; COVER,CYL HEAD COVER EURO3 SPECIFICATION<NT3> ID=6.4 OD=18	0-91610-706-0	01	1	1201-	●	●
129	WASHER; COVER,CYL HEAD COVER EURO2 SPECIFICATION<NT2> EXC. SAUDI ARABIA EQUIPMENT(GH3) ID=6.4 OD=18	0-91610-706-0	01	1	1201-		●
