◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11116 - EXY AUST JNLT05 EXC.HYDRAULIC RETARDER ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#38170) — 66 parça
çizim 180804
12 141 43 128 146 108 129 115 130 124 135
BalonParca AdiParca NoAdetTipApplied Date
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 0710-1501
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1502-
43 BAR; EXTENSION,SOCKET WRENCH
(B) OD=25 L=480 		8-98257-407-0 01 1 1502-
43 BAR; EXTENSION,SOCKET WRENCH
(A) 		1-85000-501-0 01 1 0710-
108 WRENCH; SOCKET 9-85113-132-0 01 1 0710-
115 PLIER 5-85171-002-0 01 1 0710-1410
115 PLIER 8-98282-845-0 01 1 1411-
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 0710-
128 PULLER ASM; STRG WHEEL 1-85210-078-0 01 1 0710-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0710-
130 WRENCH; BOX
B=63 		9-85111-368-0 01 1 0710-
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 0710-
141 HANDLE; WRENCH
OD=25 L=480 		1-85116-011-0 01 1 0710-1006
141 HANDLE; WRENCH
OD=16 L=200 		9-85111-934-0 01 1 0710-
146 REPLACER KIT; LEAF SPR 9-85231-556-0 01 1 0710-

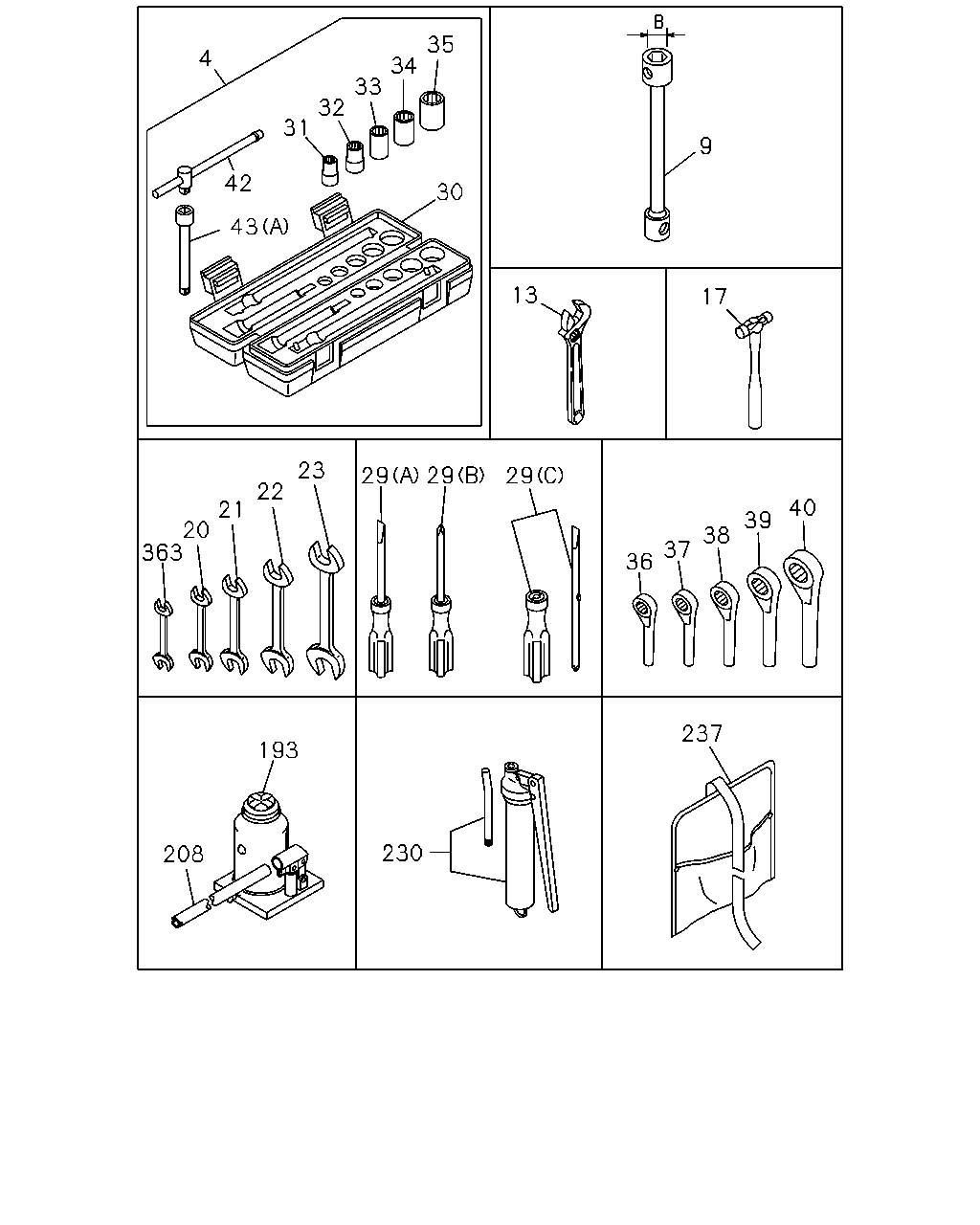

çizim 180809
4 42 43 31 33 34 35 30 9 13 17 23 22 21 20 363 208 193 29 29 29 230 36 39 38 37 40 237 32
BalonParca AdiParca NoAdetTipApplied Date
4 WRENCH KIT; SOCKET 1-85000-491-0 01 1 0710-
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 0710-
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 0710-0907
13 WRENCH; MONKEY
L=247 		1-85117-006-0 01 1 0908-1407
13 WRENCH; MONKEY
L=255 		8-98270-303-0 01 1 1408-
17 HAMMER 9-85121-406-0 01 1 0710-
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 0710-
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 0710-
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 0710-
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 0710-
29 DRIVER; SCREW
(A) <-> L=285 		1-85151-004-0 01 1 0710-
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 0710-
29 DRIVER; SCREW
(B) <+> L=275 		9-09595-023-0 01 1 0710-
30 BOX; SOCKET WRENCH 1-85000-492-0 01 1 0710-
31 WRENCH; 12 1-85000-495-0 01 1 0710-
32 WRENCH; 14 1-85000-496-0 01 1 0710-
33 WRENCH; 17 1-85000-497-0 01 1 0710-
34 WRENCH; 19 1-85000-498-0 01 1 0710-
35 WRENCH; 22 1-85000-499-0 01 1 0710-
36 WRENCH; 24 9-85111-377-0 01 1 0710-
37 WRENCH; 27 9-85111-375-0 01 1 0710-
38 WRENCH; 32 9-85111-358-0 01 1 0710-
39 WRENCH; 36 9-85111-374-0 01 1 0710-
40 WRENCH; 41 9-85111-356-0 01 1 0710-
42 HANDLE; SLIDING 1-85000-500-0 01 1 0710-
43 BAR; EXTENSION,SOCKET WRENCH
(B) OD=25 L=480 		8-98257-407-0 01 1 1502-
43 BAR; EXTENSION,SOCKET WRENCH
(A) 		1-85000-501-0 01 1 0710-
193 JACK ASM
15TON 		1-85510-019-2 01 1 0710-
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0710-1107
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1108-
230 PUMP; GREASE 1-85556-007-5 01 1 0710-
237 BAG; TOOL 8-97130-902-1 01 1 0710-
363 WRENCH; OPEN END 8X10
8X10 		0-95902-508-0 01 1 0710-
çizim 180822
169 171 182 172 192 189 227 388 388 245 246 247 248 249 250
BalonParca AdiParca NoAdetTipApplied Date
169 BRACKET; SPLINE YOKE 1-85221-317-0 01 1 0710-
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 0710-
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 0710-
182 REMOVER ASM 1-85239-008-0 01 1 0710-
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 0710-
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0710-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0710-
245 CHAIN; TIRE,SINGLE
9.00-20 SINGLE TYPE 		9-85591-254-0 AR 1 0710-
246 CHAIN; TIRE,1000-20,SINGLE
10.00-20 SINGLE TYPE 		9-85591-239-0 AR 1 0710-
246 CHAIN; TIRE,1000-20,SINGLE
11.00-20 SINGLE TYPE 		9-85591-259-0 AR 1 0710-
247 CHAIN; TIRE,750-20,DOUBLE
9.00-20 DOUBLE TYPE 		9-85591-255-0 AR 1 0710-
248 CHAIN; TIRE,1000-20,DOUBLE
10.00-20 DOUBLE TYPE 		9-85591-240-0 AR 1 0710-
248 CHAIN; TIRE,1000-20,DOUBLE
11.00-20 DOUBLE TYPE 		9-85591-260-0 AR 1 0710-
249 CHAIN; TIRE,TRIPLE
9.00-20 TRIPLE TYPE 		9-85591-256-0 AR 1 0710-
250 CHAIN; TIRE,1000-20,TRIPLE
10.00-20 TRIPLE TYPE 		9-85591-241-0 AR 1 0710-
250 CHAIN; TIRE,1000-20,TRIPLE
11.00-20 TRIPLE TYPE 		9-85591-261-0 AR 1 0710-
388 WRENCH; U-BOLT
(A) 		9-85111-954-0 01 1 0710-
388 WRENCH; U-BOLT
(B) 		9-85111-955-0 01 1 0710-
