4-31 — STEERING COLUMN AND SHAFT (#3817) — 114 parça

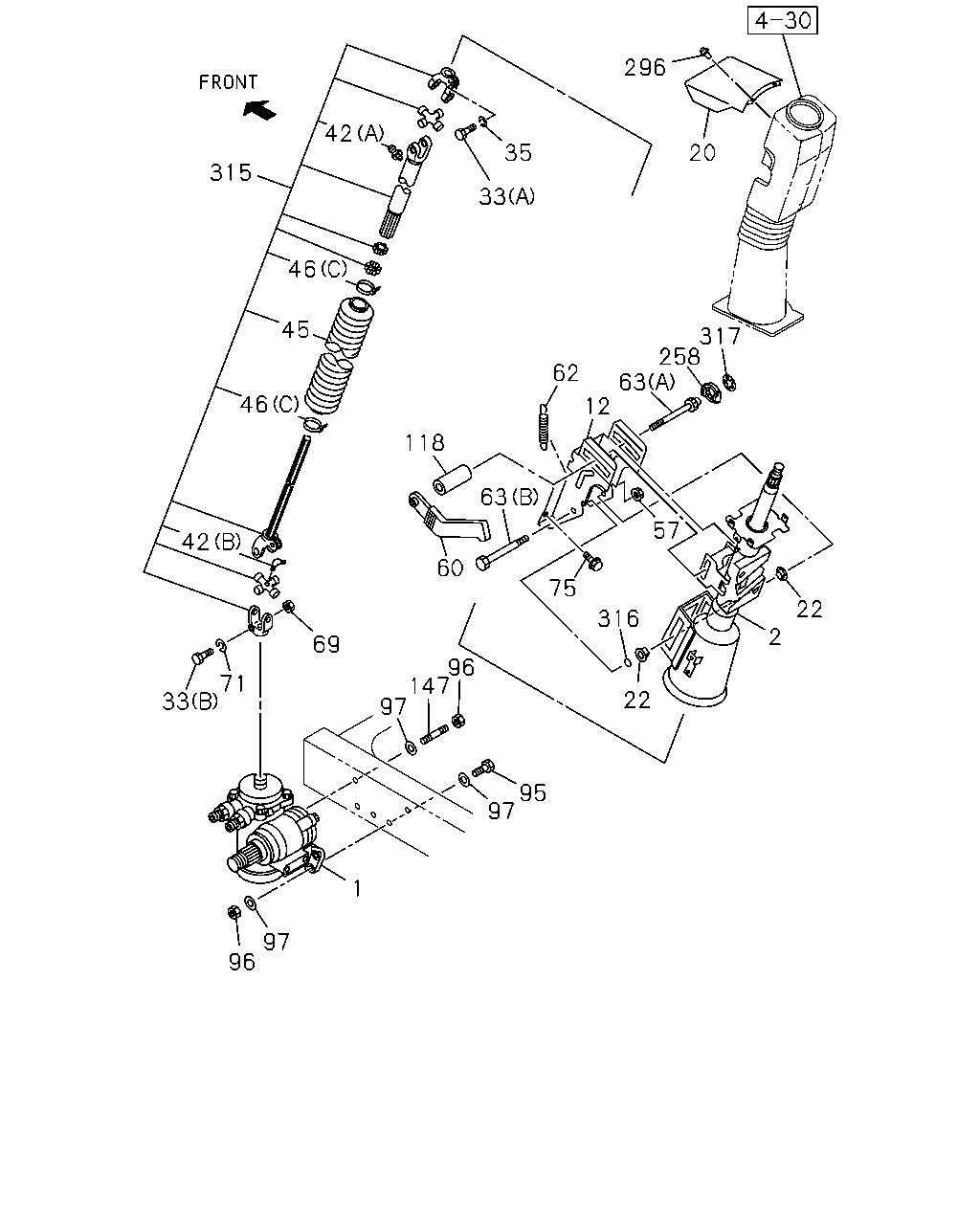

çizim 5340
296 42 35 20 315 33 46 317 258 63 12 45 62 46 118 63 57 42 60 75 22 316 2 69 96 147 97 71 33 22 95 97 1 97 96
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-843-5 01 1 9601- ● ●
2 SHAFT ASM; STRG 1-44130-556-1 01 1 9601-9804 ● ●
2 SHAFT ASM; STRG 1-44130-690-0 01 1 9805-9806 ● ●
2 SHAFT ASM; STRG 1-44130-689-1 01 1 9807- ● ●
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 9805-0811 ● ●
12 BRACKET; LWR,STRG COLUMN 1-44227-167-0 01 1 0812- ● ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9601- ● ●
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 9805- ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 9601-0707 ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-786-0 01 1 0708- ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-141-0 01 1 9601-9804 ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 9805- ● ●
35 WASHER; LK,STRG SHAFT 1-44139-142-0 01 1 9601-9804 ● ●
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 9805- ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) STRAIGHT 		1-44135-375-0 01 1 9805- ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) ELBOW 		1-44135-376-0 01 1 9805- ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) M6 STRAIGHT 		9-09031-006-0 01 1 9601-9804 ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) PT1/8 ELBOW 		9-09031-210-0 01 1 9601-9804 ● ●
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 9601-9804 ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9805- ● ●
46 CLIP; BOOT
(A) 		1-44139-139-0 01 1 9601-9804 ● ●
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9805- ● ●
46 CLIP; BOOT
(B) 		1-44139-140-0 01 1 9601-9804 ● ●
57 NUT; ADJ BOLT 1-44227-129-1 01 1 9601-9804 ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9805- ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-125-1 01 1 9601-9804 ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9805- ● ●
62 SPRING; LK,LEVER 1-44227-130-0 01 1 9601-9804 ● ●
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9805-0111 ● ●
62 SPRING; LK,LEVER 1-44227-153-0 01 1 0112- ● ●
63 BOLT; ADJ LEVER,TILT STRG
(C) 		1-44227-126-0 01 1 9601-9804 ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 9805- ● ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 9805- ● ●
69 NUT; TILT CENTER
M10 		9-09110-510-0 01 1 9601-0512 ● ●
69 NUT; TILT CENTER
M10 		0-91110-510-0 01 1 0601- ● ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 9601-0603 ● ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 0604- ● ●
75 BOLT; STRG COLUMN
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9601-9610 ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9611-0512 ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
95 BOLT; STRG UNIT
M14X55 		9-92061-455-0 05 1 9601- ● ●
96 NUT; STRG UNIT
M14 		9-99110-514-0 06 1 9601-0512 ● ●
96 NUT; STRG UNIT
M14 		0-91110-514-0 06 1 0601- ● ●
97 WASHER; PL,STRG UNIT
ID=15 		9-09651-069-0 11 1 9601-1201 ● ●
97 WASHER; PL,STRG UNIT
ID=15 		8-98010-627-1 11 1 1202- ● ●
118 NUT; LEVER,TILT BOLT 1-44227-146-0 01 1 9805-0506 ● ●
118 NUT; LEVER,TILT BOLT 1-44227-163-0 01 1 0507- ● ●
147 STUD; STRG UNIT
M14X37 L=66 		1-09300-095-1 01 1 9601- ● ●
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 9805- ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9601- ● ●
315 JOINT; SPLINE 1-44135-342-0 01 1 9805-0506 ● ●
315 JOINT; SPLINE 1-44135-377-0 01 1 0507- ● ●
316 RING 1-44227-152-0 01 1 9805- ● ●
317 NUT; PUSH 1-44227-148-0 01 1 9805- ● ●

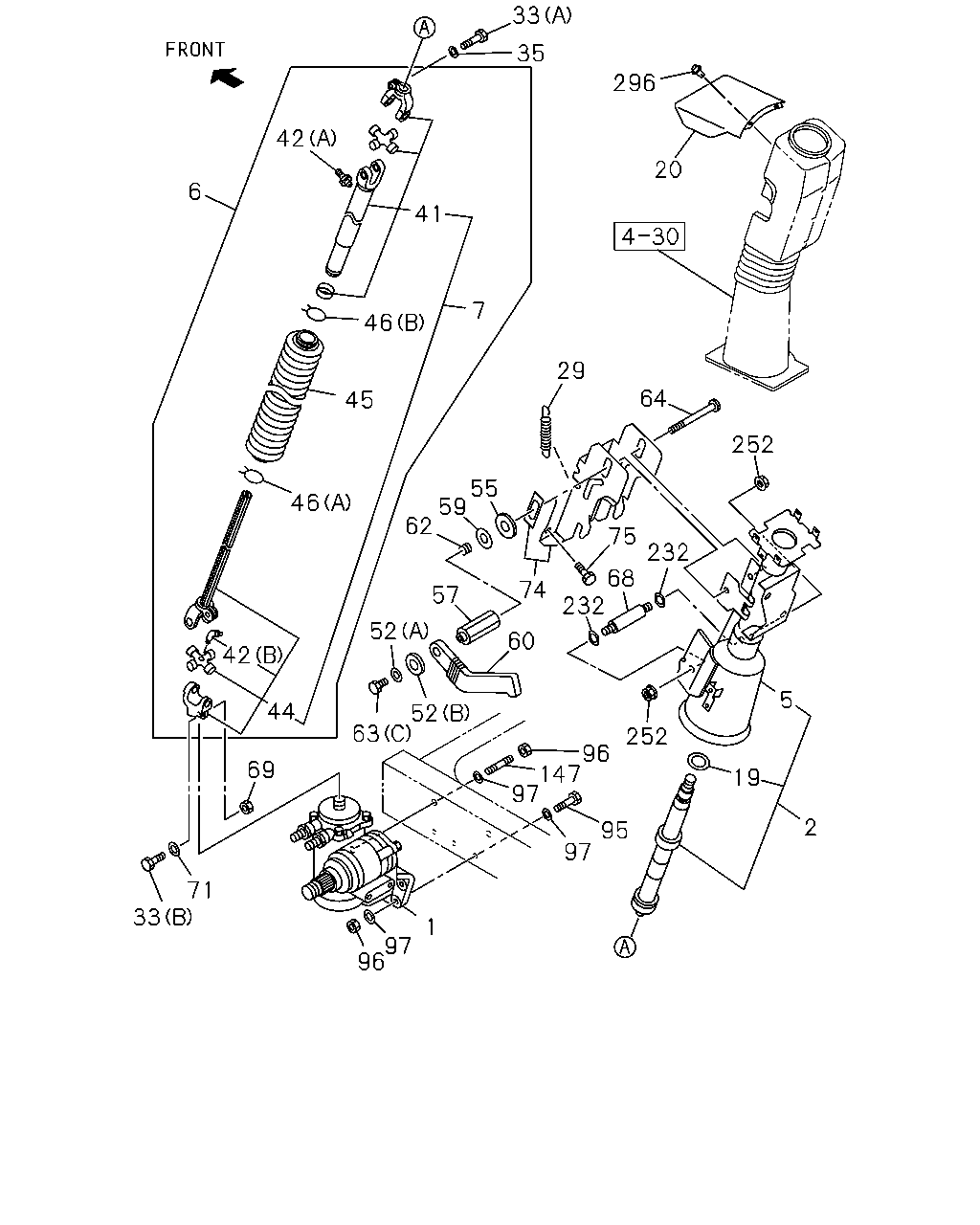

çizim 7652
42 33 35 20 296 41 7 46 45 6 46 55 59 62 57 52 42 44 69 71 33 97 96 1 63 52 60 74 75 232 68 232 252 96 147 97 97 95 19 2 5 252 64 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-843-5 01 1 9601- ● ●
2 SHAFT ASM; STRG 1-44130-556-1 01 1 9601-9804 ● ●
2 SHAFT ASM; STRG 1-44130-690-0 01 1 9805-9806 ● ●
2 SHAFT ASM; STRG 1-44130-689-1 01 1 9807- ● ●
5 COLUMN; STRG 1-44130-645-0 01 1 9601-9804 ● ●
6 SHAFT; STRG LWR 1-44135-313-0 01 1 9601-9804 ● ●
7 SHAFT; STRG 1-44135-327-0 01 1 9601-9804 ● ●
19 RING; SNAP,STRG SHAFT 1-44227-139-0 01 1 9601-9804 ● ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9601- ● ●
29 SPRING; COLUMN 1-44227-136-0 02 1 9601-9804 ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 9601-0707 ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-786-0 01 1 0708- ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-141-0 01 1 9601-9804 ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 9805- ● ●
35 WASHER; LK,STRG SHAFT 1-44139-142-0 01 1 9601-9804 ● ●
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 9805- ● ●
41 YOKE; SLEEVE,STRG 1-44135-314-0 01 1 9601-9804 ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) STRAIGHT 		1-44135-375-0 01 1 9805- ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) ELBOW 		1-44135-376-0 01 1 9805- ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) M6 STRAIGHT 		9-09031-006-0 01 1 9601-9804 ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) PT1/8 ELBOW 		9-09031-210-0 01 1 9601-9804 ● ●
44 SHAFT; SPLINE,STRG 1-44135-300-0 01 1 9601-9804 ● ●
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 9601-9804 ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9805- ● ●
46 CLIP; BOOT
(A) 		1-44139-139-0 01 1 9601-9804 ● ●
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9805- ● ●
46 CLIP; BOOT
(B) 		1-44139-140-0 01 1 9601-9804 ● ●
52 WASHER; PL,ADJ LEVER
(A) 		1-44227-127-0 01 1 9601-9804 ● ●
52 WASHER; PL,ADJ LEVER
(B) 		1-44227-137-0 01 1 9601-9804 ● ●
55 PLATE; GUIDE 1-44227-132-0 01 1 9601-9804 ● ●
57 NUT; ADJ BOLT 1-44227-129-1 01 1 9601-9804 ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9805- ● ●
59 COLLAR; DIST,ADJ BOLT 1-44227-131-0 01 1 9601-9804 ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-125-1 01 1 9601-9804 ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9805- ● ●
62 SPRING; LK,LEVER 1-44227-130-0 01 1 9601-9804 ● ●
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9805-0111 ● ●
62 SPRING; LK,LEVER 1-44227-153-0 01 1 0112- ● ●
63 BOLT; ADJ LEVER,TILT STRG
(C) 		1-44227-126-0 01 1 9601-9804 ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 9805- ● ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 9805- ● ●
64 BOLT; ADJ,PROTECTOR 1-44227-128-0 01 1 9601-9804 ● ●
68 PIN; TILT CENTER 1-44227-133-1 01 1 9601-9804 ● ●
69 NUT; TILT CENTER
M10 		9-09110-510-0 01 1 9601-0512 ● ●
69 NUT; TILT CENTER
M10 		0-91110-510-0 01 1 0601- ● ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 9601-0603 ● ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 0604- ● ●
74 BRACKET; SUPPORT,STRG 1-44221-075-1 01 1 9601-9804 ● ●
75 BOLT; STRG COLUMN
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9601-9610 ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9611-0512 ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
95 BOLT; STRG UNIT
M14X55 		9-92061-455-0 05 1 9601- ● ●
96 NUT; STRG UNIT
M14 		9-99110-514-0 06 1 9601-0512 ● ●
96 NUT; STRG UNIT
M14 		0-91110-514-0 06 1 0601- ● ●
97 WASHER; PL,STRG UNIT
ID=15 		9-09651-069-0 11 1 9601-1201 ● ●
97 WASHER; PL,STRG UNIT
ID=15 		8-98010-627-1 11 1 1202- ● ●
147 STUD; STRG UNIT
M14X37 L=66 		1-09300-095-1 01 1 9601- ● ●
232 SPACER; STRG SHAFT 1-44227-134-0 02 1 9601-9804 ● ●
252 NUT; TILT CENTER BOLT 1-44227-135-0 02 1 9601-9804 ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9601- ● ●
