Sayfa 8-73 - Isuzu EPC

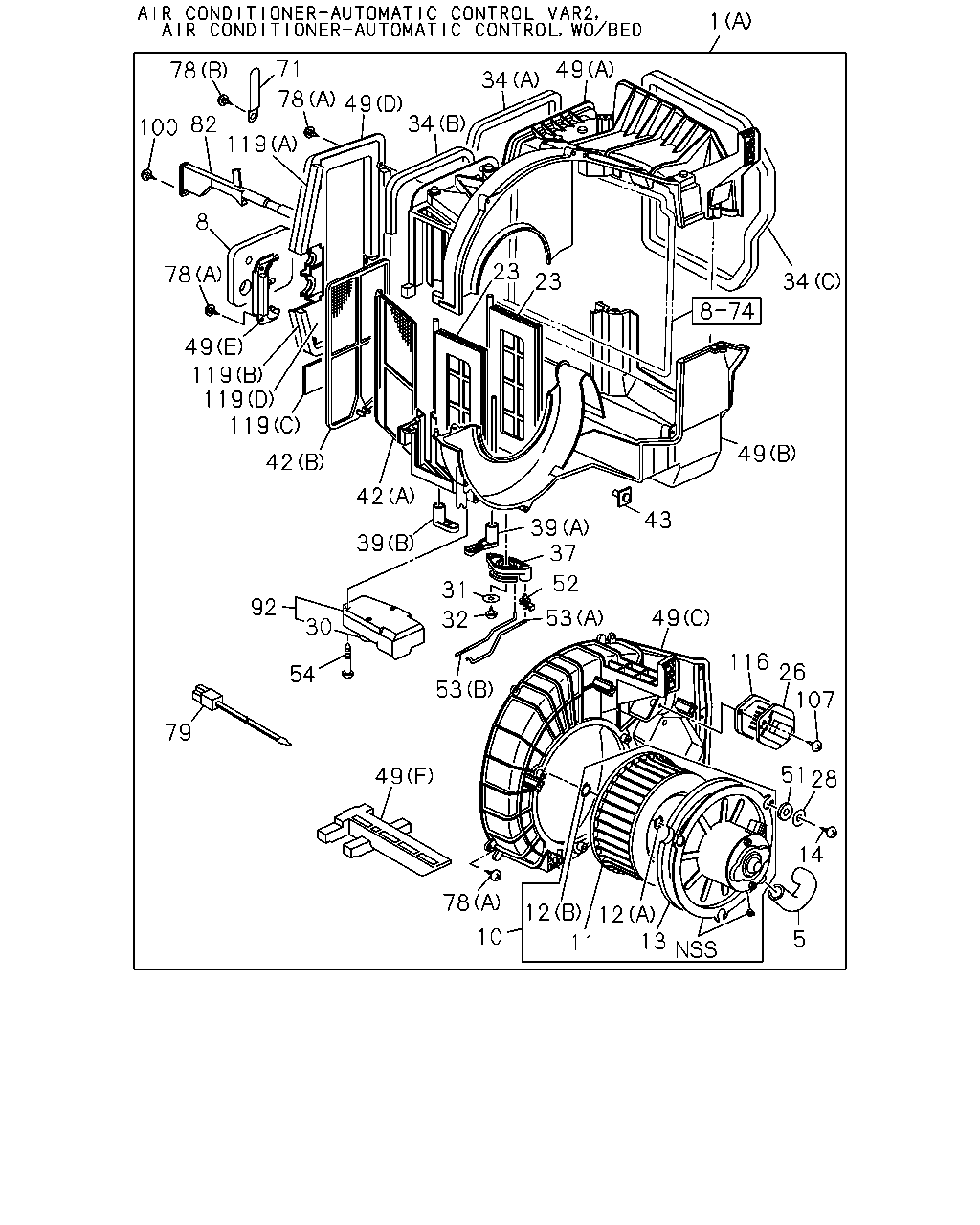

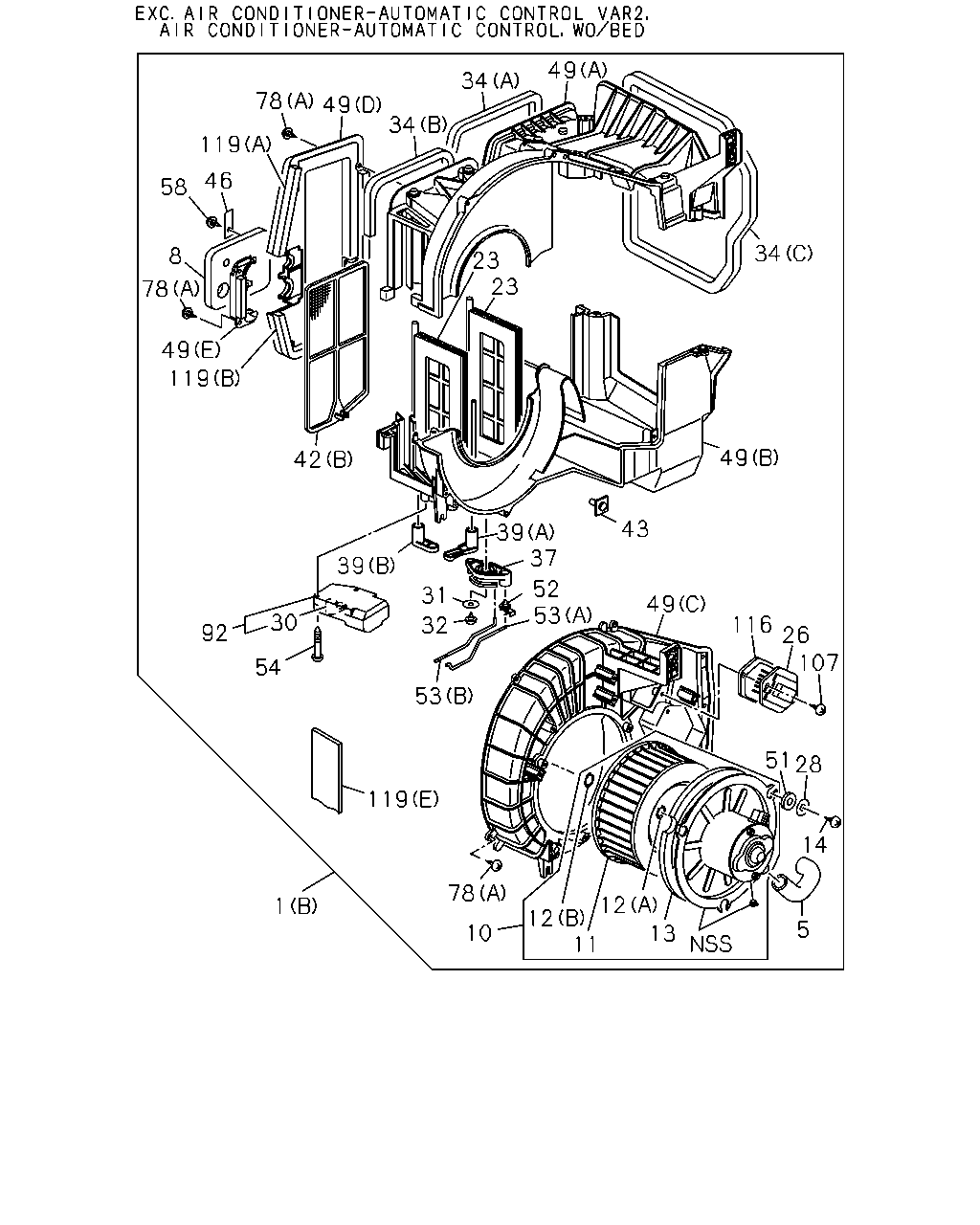

8-73 — BLOWER UNIT (#38165) — 172 parça

49 34 34 49 78 119 46 58 8 78 49 119 42 39 30 92 54 119 1 53 32 31 39 37 52 53 43 49 49 23 23 34 116 26 107 51 28 14 5 13 12 11 12 10 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOWER ASM EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83561-160-5	01	1	0710-0907
1	BLOWER ASM AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83561-154-5	01	1	0710-
5	HOSE; AIR	1-83563-140-0	01	1	0710-0907
5	HOSE; AIR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83563-140-0	01	1	0908-
8	SEAL; BLOWER UNIT EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-801-1	01	1	0710-0907
8	SEAL; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83539-261-1	01	1	0710-
10	MOTOR ASM; FAN,BLOWER UNIT	1-83561-161-0	01	1	0710-0907
10	MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83561-161-0	01	1	0908-
11	IMPELLER; FAN MOTOR	1-83579-635-0	01	1	0710-0907
11	IMPELLER; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-635-0	01	1	0908-
12	RING; SNAP,FAN MOTOR (A)	5-83569-088-0	01	1	0710-0907
12	RING; SNAP,FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	5-83569-088-0	01	1	0908-
12	RING; SNAP,FAN MOTOR (B)	8-94243-962-0	01	1	0710-0907
12	RING; SNAP,FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	8-94243-962-0	01	1	0908-
13	LINING; BLOWER UNIT	1-83579-636-0	01	1	0710-0907
13	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-636-0	01	1	0908-
14	SCREW; COVER TO CASE M5X20	9-09829-324-1	03	1	0710-0907
14	SCREW; COVER TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	03	1	0908-
23	SHUTTER; BLOWER UNIT	1-83579-637-0	02	1	0710-0907
23	SHUTTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-637-0	02	1	0908-
26	TRANSISTOR; BLOWER UNIT	1-83579-654-0	01	1	0710-0907
26	TRANSISTOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-654-0	01	1	0908-
28	WASHER; PL,FAN MOTOR	1-83579-170-0	03	1	0710-0907
28	WASHER; PL,FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-170-0	03	1	0908-
30	LEVER; ACTUATOR	1-83564-345-1	01	1	0710-0907
30	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-345-1	01	1	0908-
31	WASHER; LEVER	1-83579-095-0	01	1	0710-0907
31	WASHER; LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-095-0	01	1	0908-
32	SCREW; LEVER M5X20	9-09829-324-1	01	1	0710-0907
32	SCREW; LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	01	1	0908-
34	LINING; BLOWER UNIT (A)	1-83579-633-2	01	1	0710-0907
34	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-633-2	01	1	0908-
34	LINING; BLOWER UNIT (B)	1-83579-634-2	01	1	0710-0907
34	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-634-2	01	1	0908-
34	LINING; BLOWER UNIT (C)	1-83579-644-0	01	1	0710-0907
34	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-644-0	01	1	0908-
37	LEVER; MODE LEVER	1-83564-344-0	01	1	0710-0907
37	LEVER; MODE LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-344-0	01	1	0908-
39	LEVER; SHUTTER,BLOWER UNIT (A)	1-83564-342-0	01	1	0710-0907
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-342-0	01	1	0908-
39	LEVER; SHUTTER,BLOWER UNIT (B)	1-83564-343-0	01	1	0710-0907
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-343-0	01	1	0908-
42	FILTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-993-0	02	1	0710-
42	FILTER; BLOWER UNIT (B)	1-83579-643-3	01	1	0710-0907
42	FILTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-643-3	01	1	0908-
43	BOLT; CASE	1-83579-657-2	04	1	0710-0907
43	BOLT; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-657-2	04	1	0908-
46	PLATE; BLOWER UNIT EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83571-870-1	01	1	0710-0907
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (F)	1-83564-340-1	01	1	0710-
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-406-1	01	1	0710-
49	CASE; BLOWER UNIT (C)	1-83564-337-4	01	1	0710-0907
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83564-337-4	01	1	0908-
49	CASE; BLOWER UNIT (E)	1-83564-339-1	01	1	0710-0907
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E)	1-83564-339-1	01	1	0908-
49	CASE; BLOWER UNIT (A)	1-83564-351-1	01	1	0710-0907
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-351-1	01	1	0908-
49	CASE; BLOWER UNIT (D)	1-83564-353-1	01	1	0710-0907
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-83564-353-1	01	1	0908-
49	CASE; BLOWER UNIT EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-352-5	01	1	0710-0907
51	ISOLATOR; BLOWER UNIT	1-83579-496-0	03	1	0710-0907
51	ISOLATOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-496-0	03	1	0908-
52	CLIP; LEVER TO CASE	8-94248-794-0	02	1	0710-0907
52	CLIP; LEVER TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94248-794-0	02	1	0908-
53	ROD; ACTUATOR,BLOWER UNIT (A)	1-83579-638-0	01	1	0710-0907
53	ROD; ACTUATOR,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-638-0	01	1	0908-
53	ROD; ACTUATOR,BLOWER UNIT (B)	1-83579-639-0	01	1	0710-0907
53	ROD; ACTUATOR,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-639-0	01	1	0908-
54	SCREW; ACTUATOR TO CASE	8-94348-809-0	02	1	0710-0907
54	SCREW; ACTUATOR TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94348-809-0	02	1	0908-
58	SCREW; PLATE TO CASE EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M4X16	8-94324-850-0	01	1	0710-0907
78	SCREW; CASE TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X10 TAPPING W/PL WASHER	0-74300-510-0	01	1	0710-
78	SCREW; CASE TO CASE (A) M4X16	8-94324-850-0	17	1	0710-0907
78	SCREW; CASE TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M4X16	8-94324-850-0	17	1	0908-
92	ACTUATOR; BLOWER UNIT	1-83579-640-1	01	1	0710-0907
92	ACTUATOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-640-1	01	1	0908-
107	SCREW; TRANSISTOR M4X16	8-94324-850-0	02	1	0710-0907
107	SCREW; TRANSISTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M4X16	8-94324-850-0	02	1	0908-
116	SEAL; TRANSISTOR	1-83579-656-0	01	1	0710-0907
116	SEAL; TRANSISTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-656-0	01	1	0908-
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-83578-032-0	01	1	0710-
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-961-0	01	1	0710-
119	LINING; CASE (A)	1-83579-670-1	01	1	0710-0907
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-670-1	01	1	0908-
119	LINING; CASE (B)	1-83579-671-1	01	1	0710-0907
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-671-1	01	1	0908-
119	LINING; CASE EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E)	1-83579-839-0	02	1	0710-0907

1 49 34 34 49 78 71 78 100 82 119 8 78 49 119 119 119 42 42 39 92 30 54 79 49 53 32 31 39 37 52 53 43 49 34 23 23 49 116 26 107 28 5 14 5 13 12 11 12 10 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOWER ASM EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83561-160-5	01	1	0710-0907
1	BLOWER ASM AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83561-154-5	01	1	0710-
5	HOSE; AIR	1-83563-140-0	01	1	0710-0907
5	HOSE; AIR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83563-140-0	01	1	0908-
8	SEAL; BLOWER UNIT EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-801-1	01	1	0710-0907
8	SEAL; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83539-261-1	01	1	0710-
10	MOTOR ASM; FAN,BLOWER UNIT	1-83561-161-0	01	1	0710-0907
10	MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83561-161-0	01	1	0908-
11	IMPELLER; FAN MOTOR	1-83579-635-0	01	1	0710-0907
11	IMPELLER; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-635-0	01	1	0908-
12	RING; SNAP,FAN MOTOR (A)	5-83569-088-0	01	1	0710-0907
12	RING; SNAP,FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	5-83569-088-0	01	1	0908-
12	RING; SNAP,FAN MOTOR (B)	8-94243-962-0	01	1	0710-0907
12	RING; SNAP,FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	8-94243-962-0	01	1	0908-
13	LINING; BLOWER UNIT	1-83579-636-0	01	1	0710-0907
13	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-636-0	01	1	0908-
14	SCREW; COVER TO CASE M5X20	9-09829-324-1	03	1	0710-0907
14	SCREW; COVER TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	03	1	0908-
23	SHUTTER; BLOWER UNIT	1-83579-637-0	02	1	0710-0907
23	SHUTTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-637-0	02	1	0908-
26	TRANSISTOR; BLOWER UNIT	1-83579-654-0	01	1	0710-0907
26	TRANSISTOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-654-0	01	1	0908-
28	WASHER; PL,FAN MOTOR	1-83579-170-0	03	1	0710-0907
28	WASHER; PL,FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-170-0	03	1	0908-
30	LEVER; ACTUATOR	1-83564-345-1	01	1	0710-0907
30	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-345-1	01	1	0908-
31	WASHER; LEVER	1-83579-095-0	01	1	0710-0907
31	WASHER; LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-095-0	01	1	0908-
32	SCREW; LEVER M5X20	9-09829-324-1	01	1	0710-0907
32	SCREW; LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	01	1	0908-
34	LINING; BLOWER UNIT (A)	1-83579-633-2	01	1	0710-0907
34	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-633-2	01	1	0908-
34	LINING; BLOWER UNIT (B)	1-83579-634-2	01	1	0710-0907
34	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-634-2	01	1	0908-
34	LINING; BLOWER UNIT (C)	1-83579-644-0	01	1	0710-0907
34	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-644-0	01	1	0908-
37	LEVER; MODE LEVER	1-83564-344-0	01	1	0710-0907
37	LEVER; MODE LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-344-0	01	1	0908-
39	LEVER; SHUTTER,BLOWER UNIT (A)	1-83564-342-0	01	1	0710-0907
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-342-0	01	1	0908-
39	LEVER; SHUTTER,BLOWER UNIT (B)	1-83564-343-0	01	1	0710-0907
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-343-0	01	1	0908-
42	FILTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-993-0	02	1	0710-
42	FILTER; BLOWER UNIT (B)	1-83579-643-3	01	1	0710-0907
42	FILTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-643-3	01	1	0908-
43	BOLT; CASE	1-83579-657-2	04	1	0710-0907
43	BOLT; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-657-2	04	1	0908-
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (F)	1-83564-340-1	01	1	0710-
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-406-1	01	1	0710-
49	CASE; BLOWER UNIT (C)	1-83564-337-4	01	1	0710-0907
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83564-337-4	01	1	0908-
49	CASE; BLOWER UNIT (E)	1-83564-339-1	01	1	0710-0907
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E)	1-83564-339-1	01	1	0908-
49	CASE; BLOWER UNIT (A)	1-83564-351-1	01	1	0710-0907
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-351-1	01	1	0908-
49	CASE; BLOWER UNIT (D)	1-83564-353-1	01	1	0710-0907
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-83564-353-1	01	1	0908-
49	CASE; BLOWER UNIT EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-352-5	01	1	0710-0907
52	CLIP; LEVER TO CASE	8-94248-794-0	02	1	0710-0907
52	CLIP; LEVER TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94248-794-0	02	1	0908-
53	ROD; ACTUATOR,BLOWER UNIT (A)	1-83579-638-0	01	1	0710-0907
53	ROD; ACTUATOR,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-638-0	01	1	0908-
53	ROD; ACTUATOR,BLOWER UNIT (B)	1-83579-639-0	01	1	0710-0907
53	ROD; ACTUATOR,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-639-0	01	1	0908-
54	SCREW; ACTUATOR TO CASE	8-94348-809-0	02	1	0710-0907
54	SCREW; ACTUATOR TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94348-809-0	02	1	0908-
71	CLIP; HARNESS AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-080-0	01	1	0710-
78	SCREW; CASE TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X10 TAPPING W/PL WASHER	0-74300-510-0	01	1	0710-
78	SCREW; CASE TO CASE (A) M4X16	8-94324-850-0	17	1	0710-0907
78	SCREW; CASE TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M4X16	8-94324-850-0	17	1	0908-
79	SENSOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83544-037-0	01	1	0710-
82	BRACKET; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83571-871-1	01	1	0710-
92	ACTUATOR; BLOWER UNIT	1-83579-640-1	01	1	0710-0907
92	ACTUATOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-640-1	01	1	0908-
100	SCREW; BRKT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M4X16	8-94324-850-0	01	1	0710-
107	SCREW; TRANSISTOR M4X16	8-94324-850-0	02	1	0710-0907
107	SCREW; TRANSISTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M4X16	8-94324-850-0	02	1	0908-
116	SEAL; TRANSISTOR	1-83579-656-0	01	1	0710-0907
116	SEAL; TRANSISTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-656-0	01	1	0908-
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-83578-032-0	01	1	0710-
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-961-0	01	1	0710-
119	LINING; CASE (A)	1-83579-670-1	01	1	0710-0907
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-670-1	01	1	0908-
119	LINING; CASE (B)	1-83579-671-1	01	1	0710-0907
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-671-1	01	1	0908-
119	LINING; CASE EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E)	1-83579-839-0	02	1	0710-0907

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
