Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#38161) — 275 parça

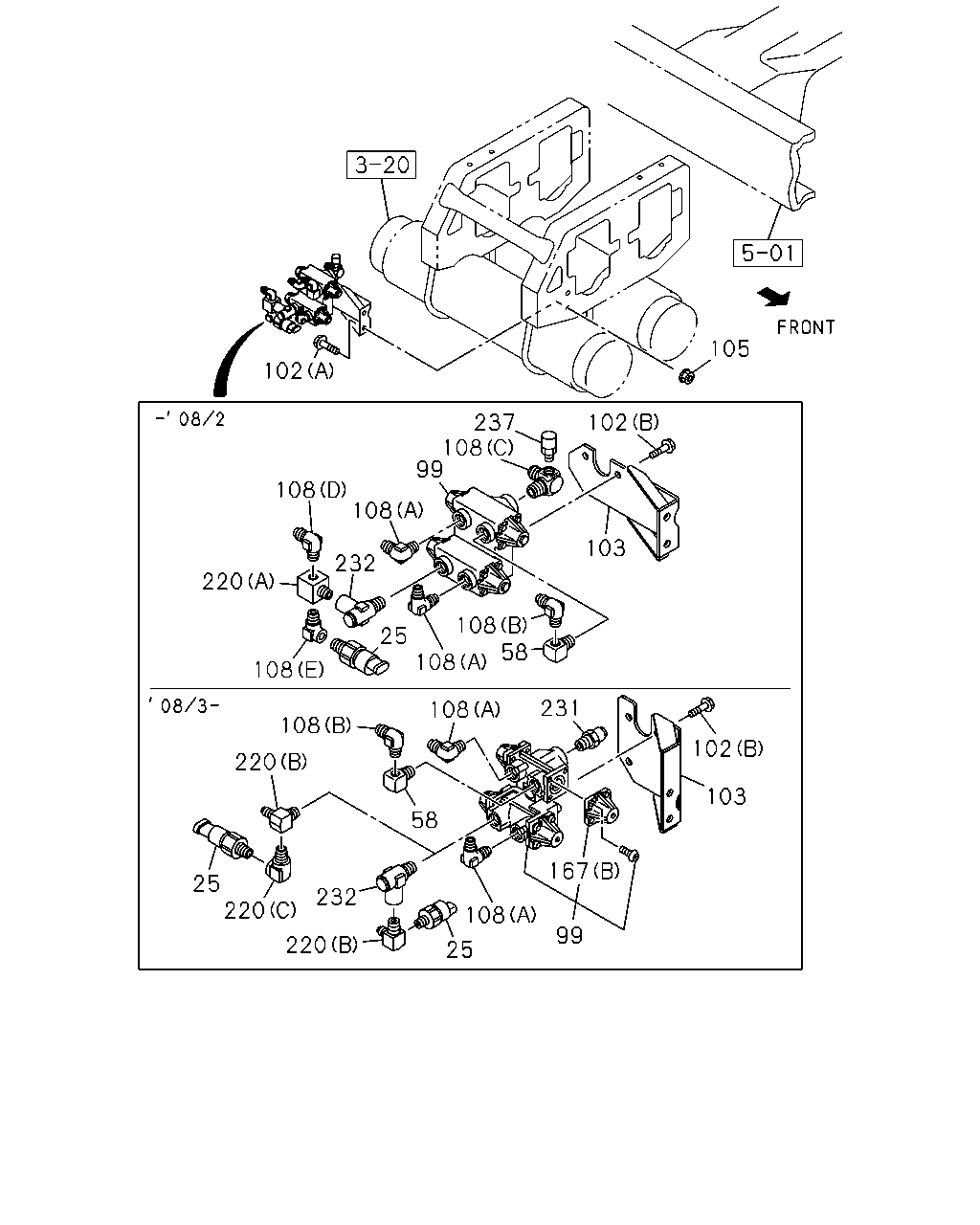

102 105 102 103 237 108 99 108 58 108 25 232 108 108 220 108 108 220 25 220 220 232 25 99 108 58 108 231 102 103 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	SWITCH; PRESSURE STAMP 5.5	8-97609-249-0	01	1	0712-0811	●	●
25	SWITCH; PRESSURE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> STAMP 5.5	8-97609-249-0	01	1	0812-1003	●
25	SWITCH; PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	01	1	0812-1003	●
25	SWITCH; PRESSURE STAMP 5.5	8-97609-249-0	01	1	0812-1003		●
25	SWITCH; PRESSURE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> STAMP 5.5	8-97609-249-0	01	1	1004-	●
25	SWITCH; PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	01	1	1004-	●
25	SWITCH; PRESSURE STAMP 5.5	8-97609-249-0	01	1	1004-		●	●
58	ADAPTER PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0712-0811	●	●
58	ADAPTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0812-1003	●
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0812-1003	●
58	ADAPTER PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0812-1003		●
58	ADAPTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1004-	●
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1004-	●
58	ADAPTER PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1004-		●	●
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU>	1-48110-288-0	01	1	0812-1003	●
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU>	1-48110-288-3	01	1	1004-	●
99	VALVE; PROTECTION TRAILER BRAKE CONTROL<J91>	1-48110-288-3	01	1	1004-			●
99	VALVE; PROTECTION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU>	1-48110-287-0	01	1	0812-1003	●
99	VALVE; PROTECTION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU>	1-48110-287-3	01	1	1004-	●
99	VALVE; PROTECTION EXC. TRAILER BRAKE CONTROL<J91>	1-48110-287-3	01	1	1004-			●
99	VALVE; PROTECTION	1-48110-294-0	01	1	0712-0811	●	●
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR<TDU>	1-48110-294-3	01	1	0812-	●
99	VALVE; PROTECTION	1-48110-294-3	01	1	0812-		●
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	0712-0811	●	●
102	BOLT; PROTECTION VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (B) M8X16 FLANGE	0-28050-816-0	02	1	0812-1003	●
102	BOLT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE	0-28050-816-0	02	1	0812-1003	●
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	0812-1003		●
102	BOLT; PROTECTION VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (B) M8X16 FLANGE	0-28050-816-0	02	1	1004-	●
102	BOLT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE	0-28050-816-0	02	1	1004-	●
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	1004-		●	●
102	BOLT; PROTECTION VALVE (A) M10X25 FLANGE	0-28651-025-0	02	1	0712-1003	●	●
102	BOLT; PROTECTION VALVE (A) M10X25 FLANGE	0-28651-025-0	02	1	1004-	●	●	●
103	BRACKET; PROTECTION VALVE ANTI LOCK BRAKE<JE5>	8-97622-131-0	01	1	1004-			●
103	BRACKET; PROTECTION VALVE	8-98098-183-0	01	1	0712-0802		●
103	BRACKET; PROTECTION VALVE	8-97615-744-0	01	1	0712-0802	●
103	BRACKET; PROTECTION VALVE	8-98111-527-1	01	1	0803-0811	●	●
103	BRACKET; PROTECTION VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU>	8-98111-527-1	01	1	0812-1003	●
103	BRACKET; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98111-527-1	01	1	0812-1003	●
103	BRACKET; PROTECTION VALVE	8-98111-527-1	01	1	0812-1003		●
103	BRACKET; PROTECTION VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU>	8-98111-527-1	01	1	1004-	●
103	BRACKET; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98111-527-1	01	1	1004-	●
103	BRACKET; PROTECTION VALVE	8-98111-527-1	01	1	1004-		●
103	BRACKET; PROTECTION VALVE EXC. ANTI LOCK BRAKE<JE5>	8-98111-527-1	01	1	1004-			●
105	NUT; BRKT,VALVE ANTI LOCK BRAKE<JE5> M10 FLANGE	0-91180-210-0	02	1	1004-			●
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	02	1	0712-0803	●	●
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (A) M16 & PT3/8 ELBOW	1-09650-438-0	05	1	1004-			●
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (F)	1-09650-516-0	01	1	1004-			●
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> TRAILER BRAKE CONTROL<J91> (G)	8-98148-475-0	01	1	1004-			●
108	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0812-1003	●
108	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1004-	●
108	CONNECTOR; ELBOW EXC. TRAILER BRAKE CONTROL<J91> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1004-			●
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	0712-0811	●	●
108	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	0812-1003	●
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	0812-1003	●
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	0812-1003		●
108	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1004-	●
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1004-	●
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1004-		●	●
108	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0712-0802	●
108	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0712-0811	●	●
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0812-1003	●
108	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0812-1003		●
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1004-	●
108	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1004-		●
108	CONNECTOR; ELBOW TRAILER BRAKE CONTROL<J91> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1004-			●
108	CONNECTOR; ELBOW (C) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	0712-0802	●	●
108	CONNECTOR; ELBOW (E) PT1/4 2WAY	1-09660-693-0	01	1	0712-0802	●	●
167	COVER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48119-625-0	04	1	0907-1003	●
167	COVER; VALVE (B)	1-48119-625-0	04	1	0907-1003		●
167	COVER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48119-625-0	04	1	1004-1506	●
167	COVER; VALVE (B)	1-48119-625-0	04	1	1004-1506		●
167	COVER; VALVE TRAILER BRAKE CONTROL<J91> (B)	1-48119-625-0	04	1	1004-1506			●
167	COVER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48119-625-0	04	1	1507-	●
167	COVER; VALVE (B)	1-48119-625-0	04	1	1507-		●
167	COVER; VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (B)	1-48119-625-0	03	1	0907-1003	●
167	COVER; VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (B)	1-48119-625-0	03	1	1004-1506	●
167	COVER; VALVE EXC. TRAILER BRAKE CONTROL<J91> (B)	1-48119-625-0	03	1	1004-1506			●
167	COVER; VALVE ANTI LOCK BRAKE<JE5> (A)	1-48219-070-0	02	1	1004-			●
220	CONNECTOR; 3WAY ANTI LOCK BRAKE<JE5> EXC. TRAILER BRAKE CONTROL<J91> (D)	8-98131-540-0	01	1	1004-			●
220	CONNECTOR; 3WAY EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (C) PT1/4 2WAY	1-09660-693-0	01	1	0812-1003	●
220	CONNECTOR; 3WAY EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (C) PT1/4 2WAY	1-09660-693-0	01	1	1004-	●
220	CONNECTOR; 3WAY EXC. ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91> (C) PT1/4 2WAY	1-09660-693-0	01	1	1004-			●
220	CONNECTOR; 3WAY (A)	1-09656-734-0	01	1	0712-0802		●
220	CONNECTOR; 3WAY (A)	1-09656-708-0	01	1	0712-0802	●
220	CONNECTOR; 3WAY (B)	1-09656-698-0	01	1	0803-0811	●	●
220	CONNECTOR; 3WAY EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (B)	1-09656-698-0	01	1	0812-1003	●
220	CONNECTOR; 3WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09656-698-0	01	1	0812-1003	●
220	CONNECTOR; 3WAY (B)	1-09656-698-0	01	1	0812-1003		●
220	CONNECTOR; 3WAY EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (B)	1-09656-698-0	01	1	1004-	●
220	CONNECTOR; 3WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09656-698-0	01	1	1004-	●
220	CONNECTOR; 3WAY (B)	1-09656-698-0	01	1	1004-		●
220	CONNECTOR; 3WAY EXC. ANTI LOCK BRAKE<JE5> (B)	1-09656-698-0	01	1	1004-			●
231	CONNECTOR; NYLON TUBE M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	0803-0811	●	●
231	CONNECTOR; NYLON TUBE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	0812-1003	●
231	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	0812-1003	●
231	CONNECTOR; NYLON TUBE M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	0812-1003		●
231	CONNECTOR; NYLON TUBE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	1004-	●
231	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	1004-	●
231	CONNECTOR; NYLON TUBE M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	1004-		●
231	CONNECTOR; NYLON TUBE EXC. ANTI LOCK BRAKE<JE5> M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	1004-			●
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0712-0811	●	●
232	VALVE; CHECK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0812-1003	●
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0812-1003		●
232	VALVE; CHECK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1004-	●
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1004-		●
232	VALVE; CHECK TRAILER BRAKE CONTROL<J91> DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1004-			●
237	VALVE; SAFETY	1-48320-012-2	01	1	0712-1003	●	●
237	VALVE; SAFETY	1-48320-012-2	01	1	1004-	●	●	●

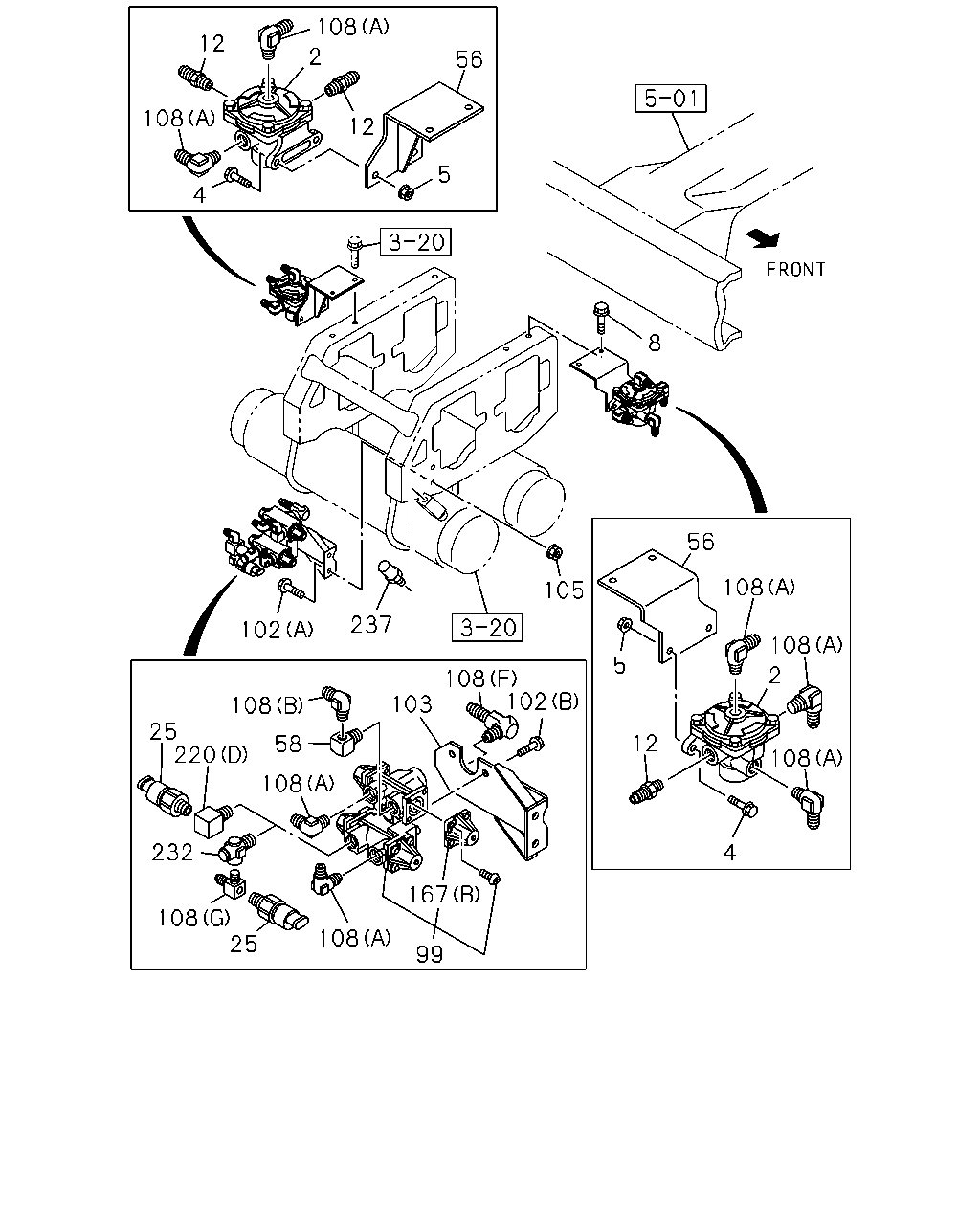

108 108 56 12 2 108 4 5 105 8 56 5 12 2 108 12 108 4 102 237 108 102 103 108 58 108 167 108 99 25 108 25 220 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	VALVE; RELAY ANTI LOCK BRAKE<JE5>	1-48210-875-0	02	1	1004-			●
4	BOLT; RELAY VLV TO BRKT ANTI LOCK BRAKE<JE5> M10X30 FLANGE	0-28651-030-0	04	1	1004-			●
5	NUT ANTI LOCK BRAKE<JE5> M10 FLANGE	0-91180-210-0	04	1	1004-			●
8	BOLT; BRKT ANTI LOCK BRAKE<JE5> M10X25 FLANGE	0-28651-025-0	02	1	1004-			●
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> M16 & PT3/8 STRAIGHT	1-09650-179-1	03	1	1004-			●
25	SWITCH; PRESSURE STAMP 5.5	8-97609-249-0	01	1	0712-0811	●	●
25	SWITCH; PRESSURE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> STAMP 5.5	8-97609-249-0	01	1	0812-1003	●
25	SWITCH; PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	01	1	0812-1003	●
25	SWITCH; PRESSURE STAMP 5.5	8-97609-249-0	01	1	0812-1003		●
25	SWITCH; PRESSURE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> STAMP 5.5	8-97609-249-0	01	1	1004-	●
25	SWITCH; PRESSURE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	01	1	1004-	●
25	SWITCH; PRESSURE STAMP 5.5	8-97609-249-0	01	1	1004-		●	●
56	BRACKET; RELAY VLV ANTI LOCK BRAKE<JE5>	8-97615-197-0	02	1	1004-			●
58	ADAPTER PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0712-0811	●	●
58	ADAPTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0812-1003	●
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0812-1003	●
58	ADAPTER PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0812-1003		●
58	ADAPTER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1004-	●
58	ADAPTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1004-	●
58	ADAPTER PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1004-		●	●
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU>	1-48110-288-0	01	1	0812-1003	●
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU>	1-48110-288-3	01	1	1004-	●
99	VALVE; PROTECTION TRAILER BRAKE CONTROL<J91>	1-48110-288-3	01	1	1004-			●
99	VALVE; PROTECTION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU>	1-48110-287-0	01	1	0812-1003	●
99	VALVE; PROTECTION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU>	1-48110-287-3	01	1	1004-	●
99	VALVE; PROTECTION EXC. TRAILER BRAKE CONTROL<J91>	1-48110-287-3	01	1	1004-			●
99	VALVE; PROTECTION	1-48110-294-0	01	1	0712-0811	●	●
99	VALVE; PROTECTION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR<TDU>	1-48110-294-3	01	1	0812-	●
99	VALVE; PROTECTION	1-48110-294-3	01	1	0812-		●
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	0712-0811	●	●
102	BOLT; PROTECTION VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (B) M8X16 FLANGE	0-28050-816-0	02	1	0812-1003	●
102	BOLT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE	0-28050-816-0	02	1	0812-1003	●
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	0812-1003		●
102	BOLT; PROTECTION VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (B) M8X16 FLANGE	0-28050-816-0	02	1	1004-	●
102	BOLT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE	0-28050-816-0	02	1	1004-	●
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	1004-		●	●
102	BOLT; PROTECTION VALVE (A) M10X25 FLANGE	0-28651-025-0	02	1	0712-1003	●	●
102	BOLT; PROTECTION VALVE (A) M10X25 FLANGE	0-28651-025-0	02	1	1004-	●	●	●
103	BRACKET; PROTECTION VALVE ANTI LOCK BRAKE<JE5>	8-97622-131-0	01	1	1004-			●
103	BRACKET; PROTECTION VALVE	8-98098-183-0	01	1	0712-0802		●
103	BRACKET; PROTECTION VALVE	8-97615-744-0	01	1	0712-0802	●
103	BRACKET; PROTECTION VALVE	8-98111-527-1	01	1	0803-0811	●	●
103	BRACKET; PROTECTION VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU>	8-98111-527-1	01	1	0812-1003	●
103	BRACKET; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98111-527-1	01	1	0812-1003	●
103	BRACKET; PROTECTION VALVE	8-98111-527-1	01	1	0812-1003		●
103	BRACKET; PROTECTION VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU>	8-98111-527-1	01	1	1004-	●
103	BRACKET; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98111-527-1	01	1	1004-	●
103	BRACKET; PROTECTION VALVE	8-98111-527-1	01	1	1004-		●
103	BRACKET; PROTECTION VALVE EXC. ANTI LOCK BRAKE<JE5>	8-98111-527-1	01	1	1004-			●
105	NUT; BRKT,VALVE ANTI LOCK BRAKE<JE5> M10 FLANGE	0-91180-210-0	02	1	1004-			●
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	02	1	0712-0803	●	●
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (A) M16 & PT3/8 ELBOW	1-09650-438-0	05	1	1004-			●
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (F)	1-09650-516-0	01	1	1004-			●
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> TRAILER BRAKE CONTROL<J91> (G)	8-98148-475-0	01	1	1004-			●
108	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0812-1003	●
108	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1004-	●
108	CONNECTOR; ELBOW EXC. TRAILER BRAKE CONTROL<J91> (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1004-			●
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	0712-0811	●	●
108	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	0812-1003	●
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	0812-1003	●
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	0812-1003		●
108	CONNECTOR; ELBOW EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1004-	●
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1004-	●
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1004-		●	●
108	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0712-0802	●
108	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0712-0811	●	●
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0812-1003	●
108	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0812-1003		●
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1004-	●
108	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1004-		●
108	CONNECTOR; ELBOW TRAILER BRAKE CONTROL<J91> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1004-			●
108	CONNECTOR; ELBOW (C) M20 & PT1/2 ELBOW	1-09650-443-0	01	1	0712-0802	●	●
108	CONNECTOR; ELBOW (E) PT1/4 2WAY	1-09660-693-0	01	1	0712-0802	●	●
167	COVER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48119-625-0	04	1	0907-1003	●
167	COVER; VALVE (B)	1-48119-625-0	04	1	0907-1003		●
167	COVER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48119-625-0	04	1	1004-1506	●
167	COVER; VALVE (B)	1-48119-625-0	04	1	1004-1506		●
167	COVER; VALVE TRAILER BRAKE CONTROL<J91> (B)	1-48119-625-0	04	1	1004-1506			●
167	COVER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48119-625-0	04	1	1507-	●
167	COVER; VALVE (B)	1-48119-625-0	04	1	1507-		●
167	COVER; VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (B)	1-48119-625-0	03	1	0907-1003	●
167	COVER; VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (B)	1-48119-625-0	03	1	1004-1506	●
167	COVER; VALVE EXC. TRAILER BRAKE CONTROL<J91> (B)	1-48119-625-0	03	1	1004-1506			●
167	COVER; VALVE ANTI LOCK BRAKE<JE5> (A)	1-48219-070-0	02	1	1004-			●
220	CONNECTOR; 3WAY ANTI LOCK BRAKE<JE5> EXC. TRAILER BRAKE CONTROL<J91> (D)	8-98131-540-0	01	1	1004-			●
220	CONNECTOR; 3WAY EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (C) PT1/4 2WAY	1-09660-693-0	01	1	0812-1003	●
220	CONNECTOR; 3WAY EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (C) PT1/4 2WAY	1-09660-693-0	01	1	1004-	●
220	CONNECTOR; 3WAY EXC. ANTI LOCK BRAKE<JE5>,TRAILER BRAKE CONTROL<J91> (C) PT1/4 2WAY	1-09660-693-0	01	1	1004-			●
220	CONNECTOR; 3WAY (A)	1-09656-734-0	01	1	0712-0802		●
220	CONNECTOR; 3WAY (A)	1-09656-708-0	01	1	0712-0802	●
220	CONNECTOR; 3WAY (B)	1-09656-698-0	01	1	0803-0811	●	●
220	CONNECTOR; 3WAY EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (B)	1-09656-698-0	01	1	0812-1003	●
220	CONNECTOR; 3WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09656-698-0	01	1	0812-1003	●
220	CONNECTOR; 3WAY (B)	1-09656-698-0	01	1	0812-1003		●
220	CONNECTOR; 3WAY EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (B)	1-09656-698-0	01	1	1004-	●
220	CONNECTOR; 3WAY REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09656-698-0	01	1	1004-	●
220	CONNECTOR; 3WAY (B)	1-09656-698-0	01	1	1004-		●
220	CONNECTOR; 3WAY EXC. ANTI LOCK BRAKE<JE5> (B)	1-09656-698-0	01	1	1004-			●
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0712-0811	●	●
232	VALVE; CHECK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0812-1003	●
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0812-1003		●
232	VALVE; CHECK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1004-	●
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1004-		●
232	VALVE; CHECK TRAILER BRAKE CONTROL<J91> DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1004-			●
237	VALVE; SAFETY	1-48320-012-2	01	1	0712-1003	●	●
237	VALVE; SAFETY	1-48320-012-2	01	1	1004-	●	●	●

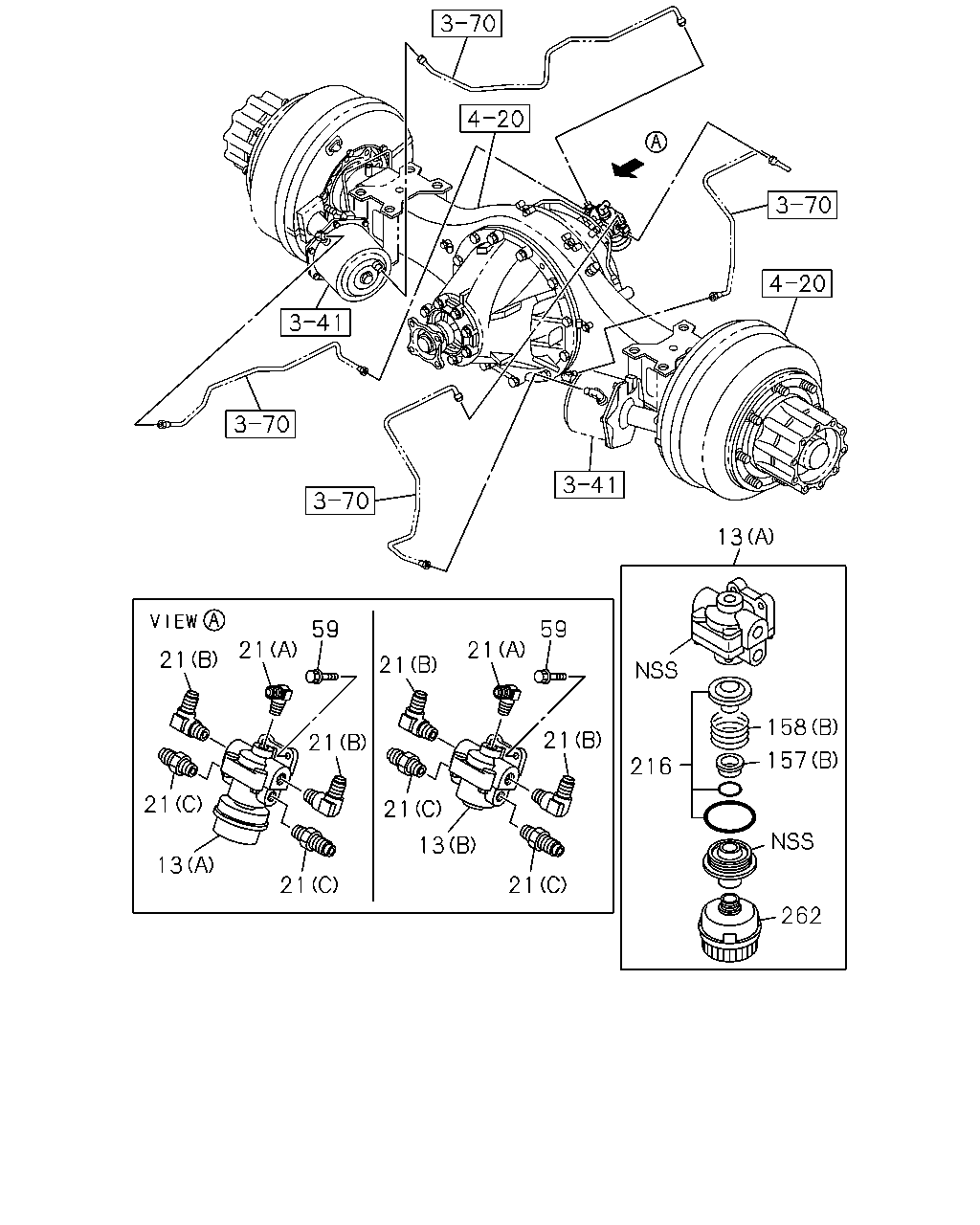

13 158 157 262 216 21 21 21 59 21 13 21 21 59 21 21 21 13 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE REGULATION ADR<TDU> (B)	1-48410-783-0	01	1	0812-	●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-781-1	01	1	0712-0811	●	●
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR<TDU> (A)	1-48410-781-2	01	1	0812-	●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-781-2	01	1	0812-		●
21	CONNECTOR; QUICK RELEASE VLV (C) M14 & PT1/4 STRAIGHT	1-09650-332-1	02	1	0712-0811	●	●
21	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14 & PT1/4 STRAIGHT	1-09650-332-1	02	1	0812-	●
21	CONNECTOR; QUICK RELEASE VLV (C) M14 & PT1/4 STRAIGHT	1-09650-332-1	02	1	0812-		●
21	CONNECTOR; QUICK RELEASE VLV (B) M14 & PT3/8 ELBOW	1-09650-437-0	02	1	0712-0811	●	●
21	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & PT3/8 ELBOW	1-09650-437-0	02	1	0812-	●
21	CONNECTOR; QUICK RELEASE VLV (B) M14 & PT3/8 ELBOW	1-09650-437-0	02	1	0812-		●
21	CONNECTOR; QUICK RELEASE VLV (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0712-0811	●	●
21	CONNECTOR; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0812-	●
21	CONNECTOR; QUICK RELEASE VLV (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0812-		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28650-825-0	02	1	0712-0811	●	●
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0812-0906	●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28650-825-0	02	1	0812-0906		●
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28050-820-0	02	1	0907-	●
59	BOLT; RELEASE VALVE FIX M8X20 FLANGE	0-28050-820-0	02	1	0907-		●
157	RETAINER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR<TDU> (A)	1-48419-036-0	01	1	0907-	●
157	RETAINER; VALVE (A)	1-48419-036-0	01	1	0907-		●
157	RETAINER; VALVE ANTI LOCK BRAKE<JE5> (B)	1-48213-002-0	02	1	1004-			●
158	SPRING; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR<TDU> (A)	9-48419-003-0	01	1	0907-	●
158	SPRING; VALVE (A)	9-48419-003-0	01	1	0907-		●
158	SPRING; VALVE ANTI LOCK BRAKE<JE5> (B)	1-47819-089-0	02	1	1004-			●
216	REPAIR KIT; QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR<TDU>	1-85579-062-0	01	1	0907-	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85579-062-0	01	1	0907-		●
262	SILENCER; RELAY VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR<TDU>	1-48219-149-0	01	1	0907-	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0907-		●

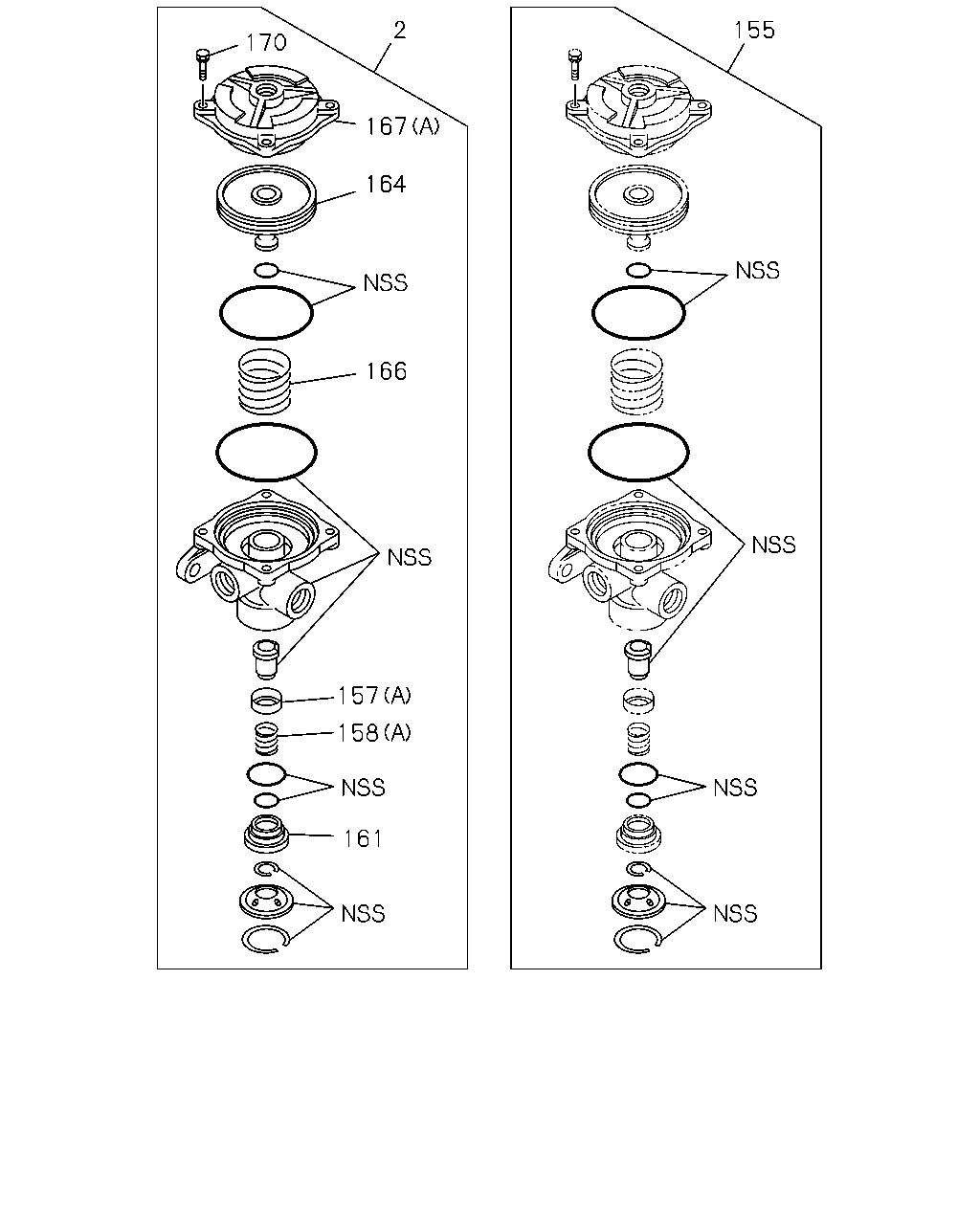

170 2 155 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	VALVE; RELAY ANTI LOCK BRAKE<JE5>	1-48210-875-0	02	1	1004-			●
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5>	1-85576-033-0	02	1	1004-			●
157	RETAINER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR<TDU> (A)	1-48419-036-0	01	1	0907-	●
157	RETAINER; VALVE (A)	1-48419-036-0	01	1	0907-		●
157	RETAINER; VALVE ANTI LOCK BRAKE<JE5> (B)	1-48213-002-0	02	1	1004-			●
158	SPRING; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE REGULATION ADR<TDU> (A)	9-48419-003-0	01	1	0907-	●
158	SPRING; VALVE (A)	9-48419-003-0	01	1	0907-		●
158	SPRING; VALVE ANTI LOCK BRAKE<JE5> (B)	1-47819-089-0	02	1	1004-			●
161	GUIDE; VALVE ANTI LOCK BRAKE<JE5>	1-48129-014-0	02	1	1004-			●
164	PISTON; RELAY VALVE ANTI LOCK BRAKE<JE5>	1-48219-071-0	02	1	1004-			●
166	SPRING; PISTON ANTI LOCK BRAKE<JE5>	1-47819-090-0	02	1	1004-			●
167	COVER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48119-625-0	04	1	0907-1003	●
167	COVER; VALVE (B)	1-48119-625-0	04	1	0907-1003		●
167	COVER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48119-625-0	04	1	1004-1506	●
167	COVER; VALVE (B)	1-48119-625-0	04	1	1004-1506		●
167	COVER; VALVE TRAILER BRAKE CONTROL<J91> (B)	1-48119-625-0	04	1	1004-1506			●
167	COVER; VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48119-625-0	04	1	1507-	●
167	COVER; VALVE (B)	1-48119-625-0	04	1	1507-		●
167	COVER; VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (B)	1-48119-625-0	03	1	0907-1003	●
167	COVER; VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU> (B)	1-48119-625-0	03	1	1004-1506	●
167	COVER; VALVE EXC. TRAILER BRAKE CONTROL<J91> (B)	1-48119-625-0	03	1	1004-1506			●
167	COVER; VALVE ANTI LOCK BRAKE<JE5> (A)	1-48219-070-0	02	1	1004-			●
170	SCREW; COVER TO BODY ANTI LOCK BRAKE<JE5>	1-48219-039-0	08	1	1004-			●

241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
241	REPAIR KIT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-451-1	01	1	0907-1003	●
241	REPAIR KIT; PROTECTION VALVE	1-85576-451-1	01	1	0907-1003		●
241	REPAIR KIT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-451-1	01	1	1004-1506	●
241	REPAIR KIT; PROTECTION VALVE	1-85576-451-1	01	1	1004-1506		●
241	REPAIR KIT; PROTECTION VALVE TRAILER BRAKE CONTROL<J91>	1-85576-451-1	01	1	1004-1506			●
241	REPAIR KIT; PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-451-2	01	1	1507-	●
241	REPAIR KIT; PROTECTION VALVE	1-85576-451-2	01	1	1507-		●
241	REPAIR KIT; PROTECTION VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU>	1-85576-452-1	01	1	0907-1003	●
241	REPAIR KIT; PROTECTION VALVE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE REGULATION ADR<TDU>	1-85576-452-1	01	1	1004-1506	●
241	REPAIR KIT; PROTECTION VALVE EXC. TRAILER BRAKE CONTROL<J91>	1-85576-452-1	01	1	1004-1506			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
