Sayfa 3-20 - Isuzu EPC

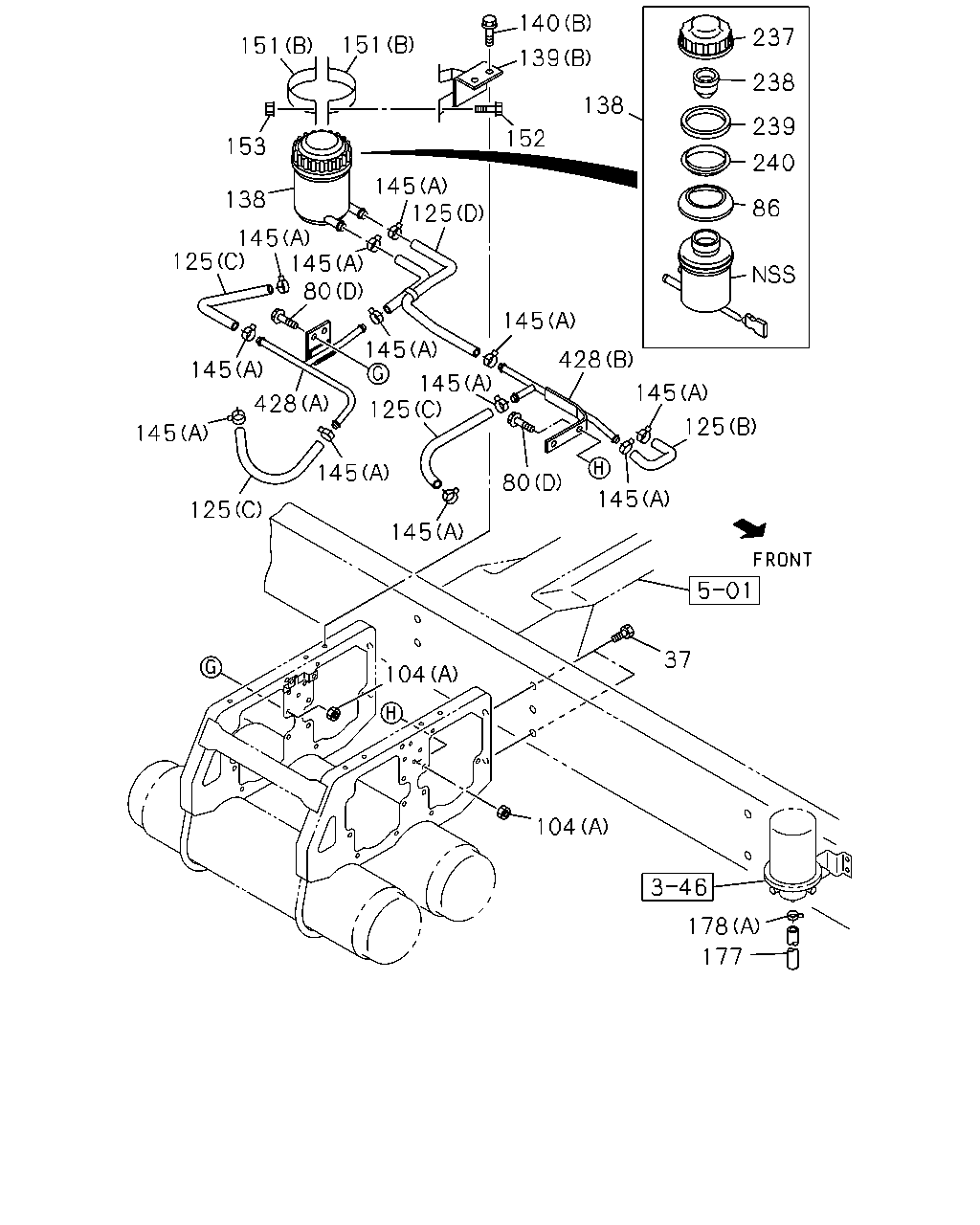

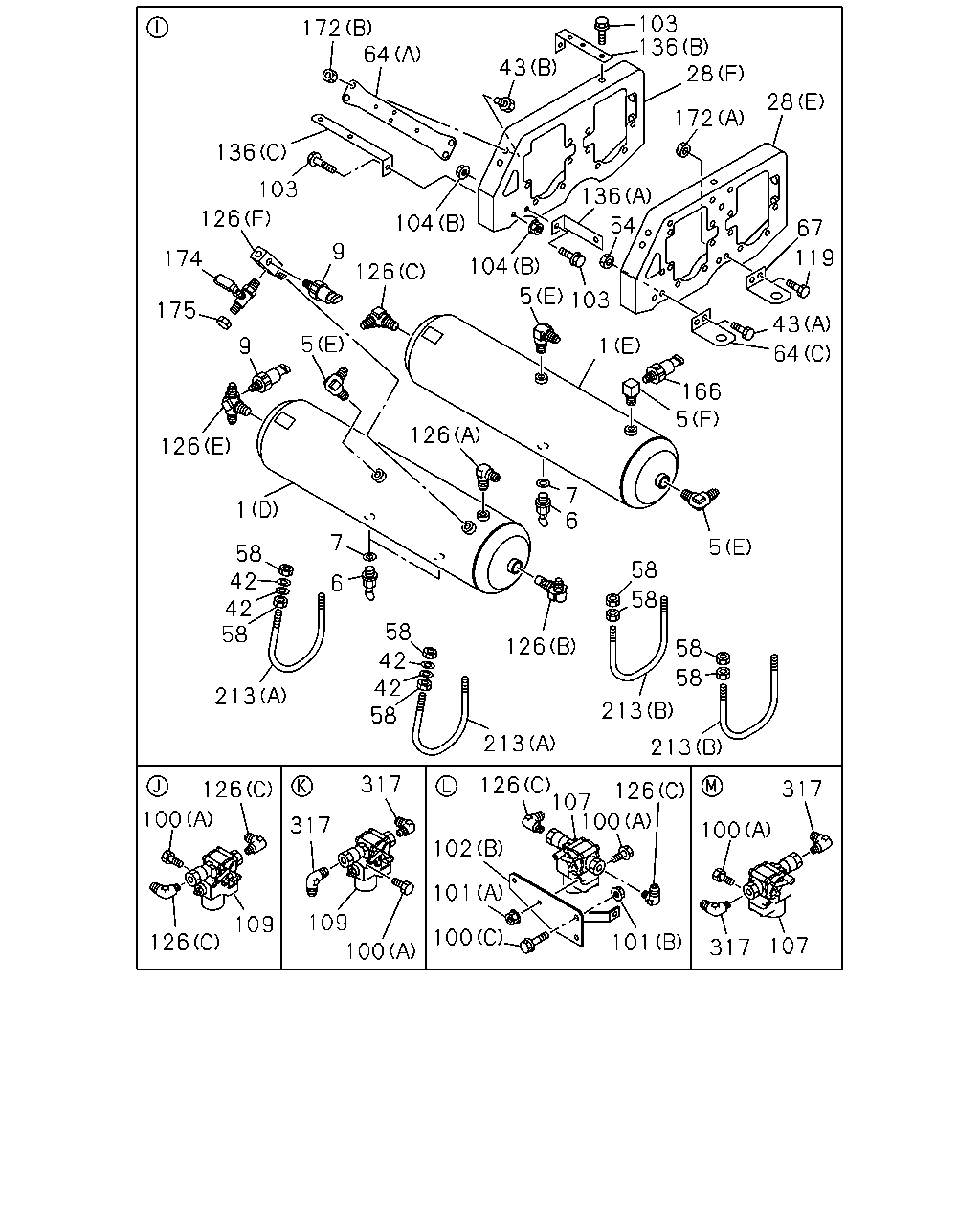

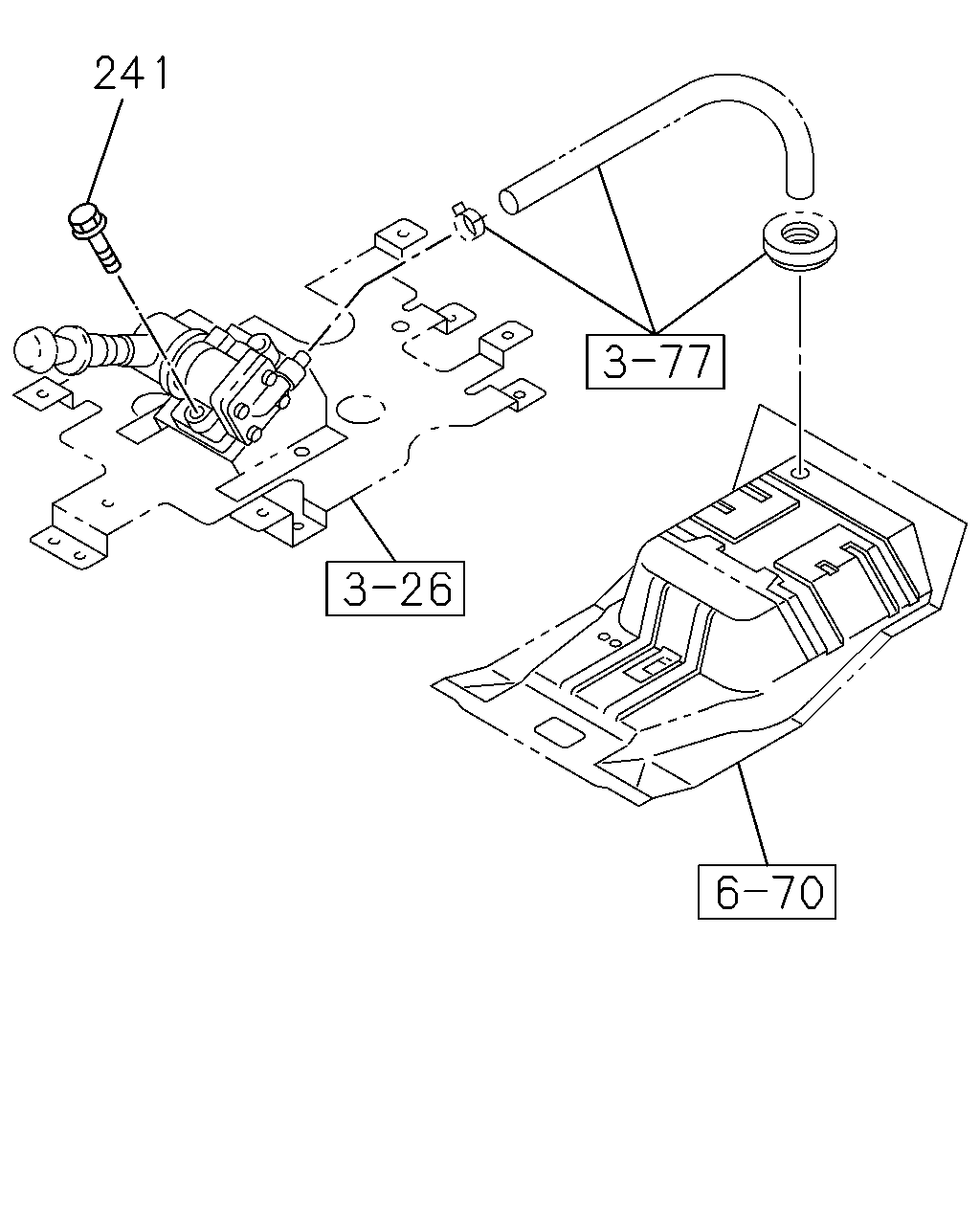

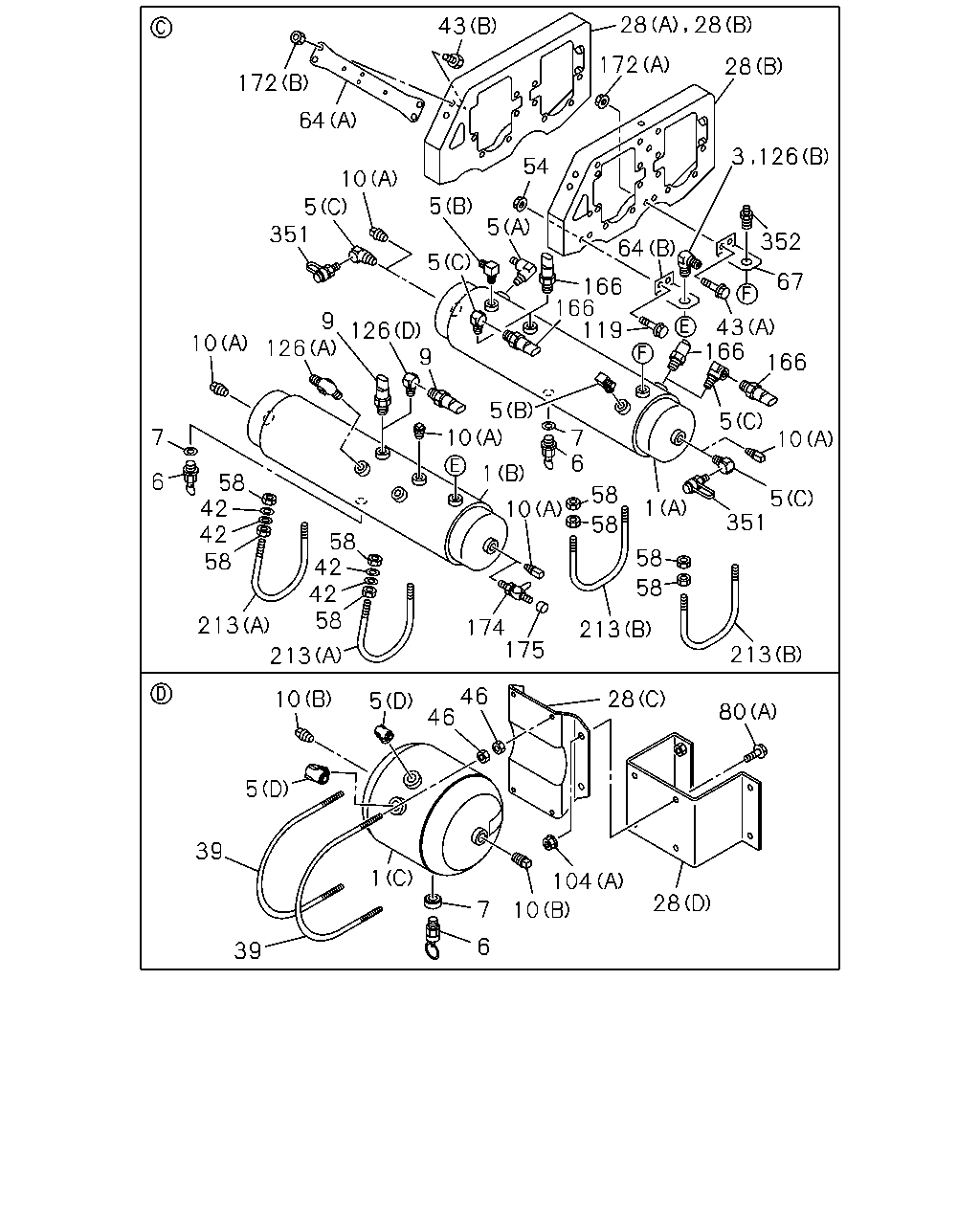

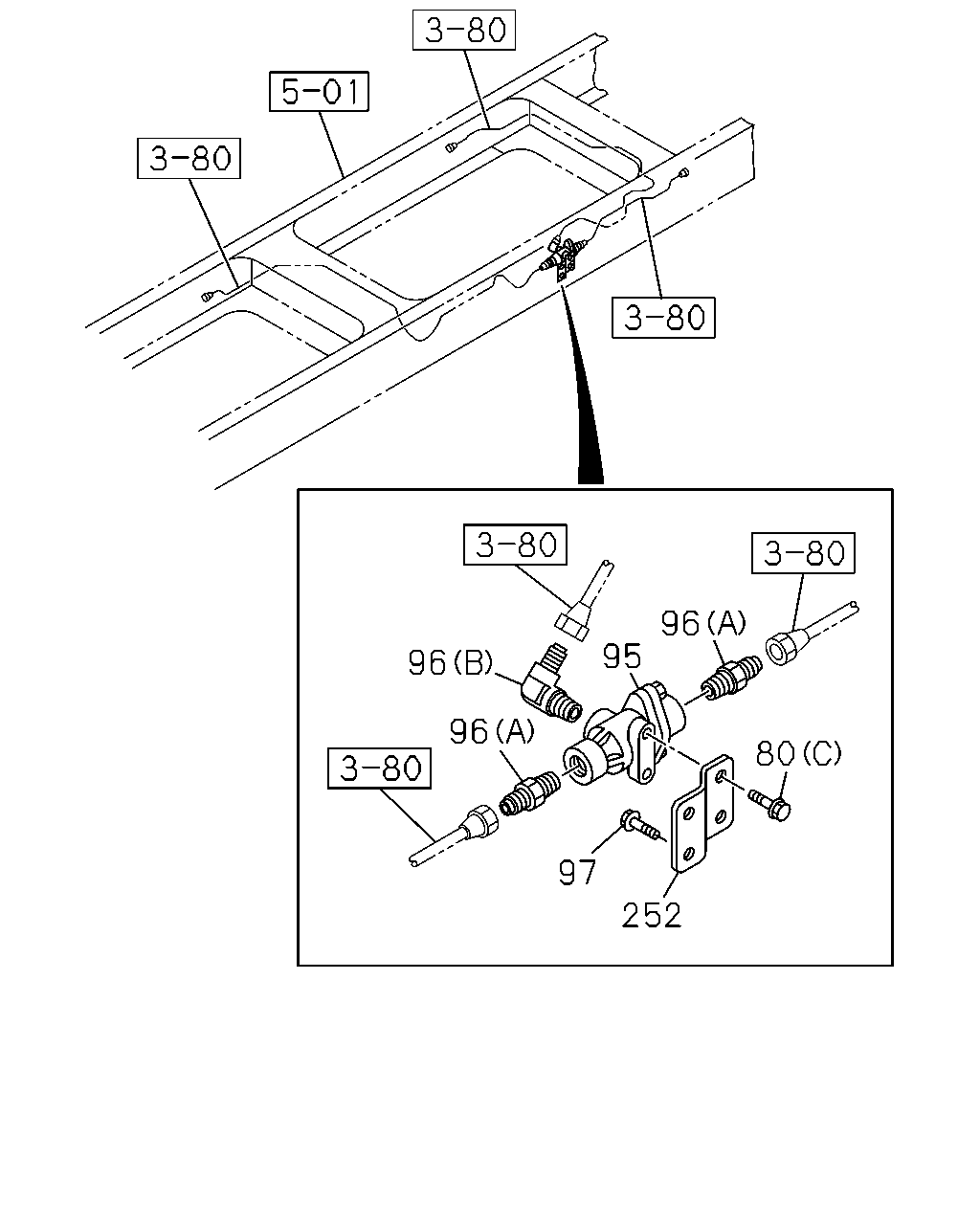

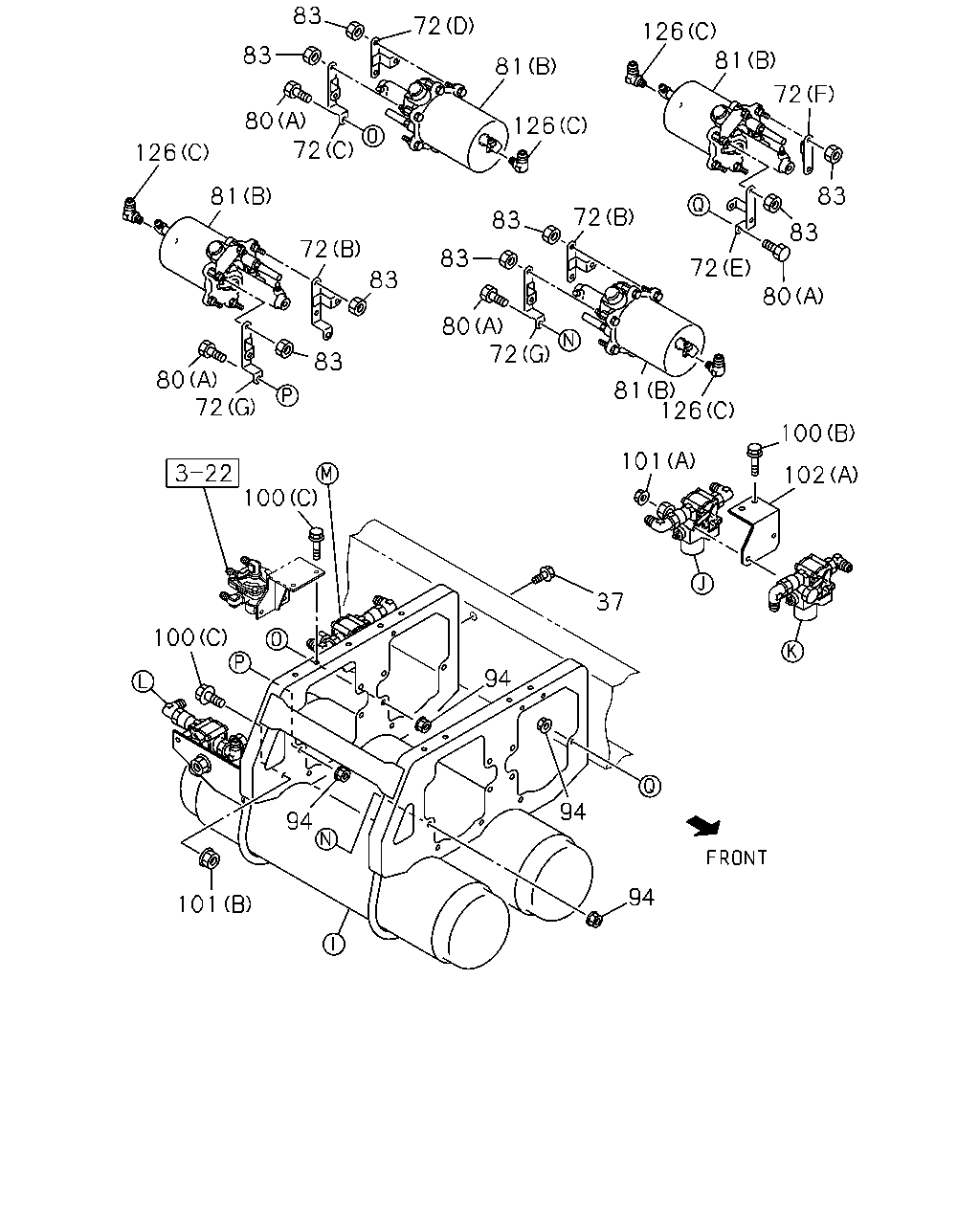

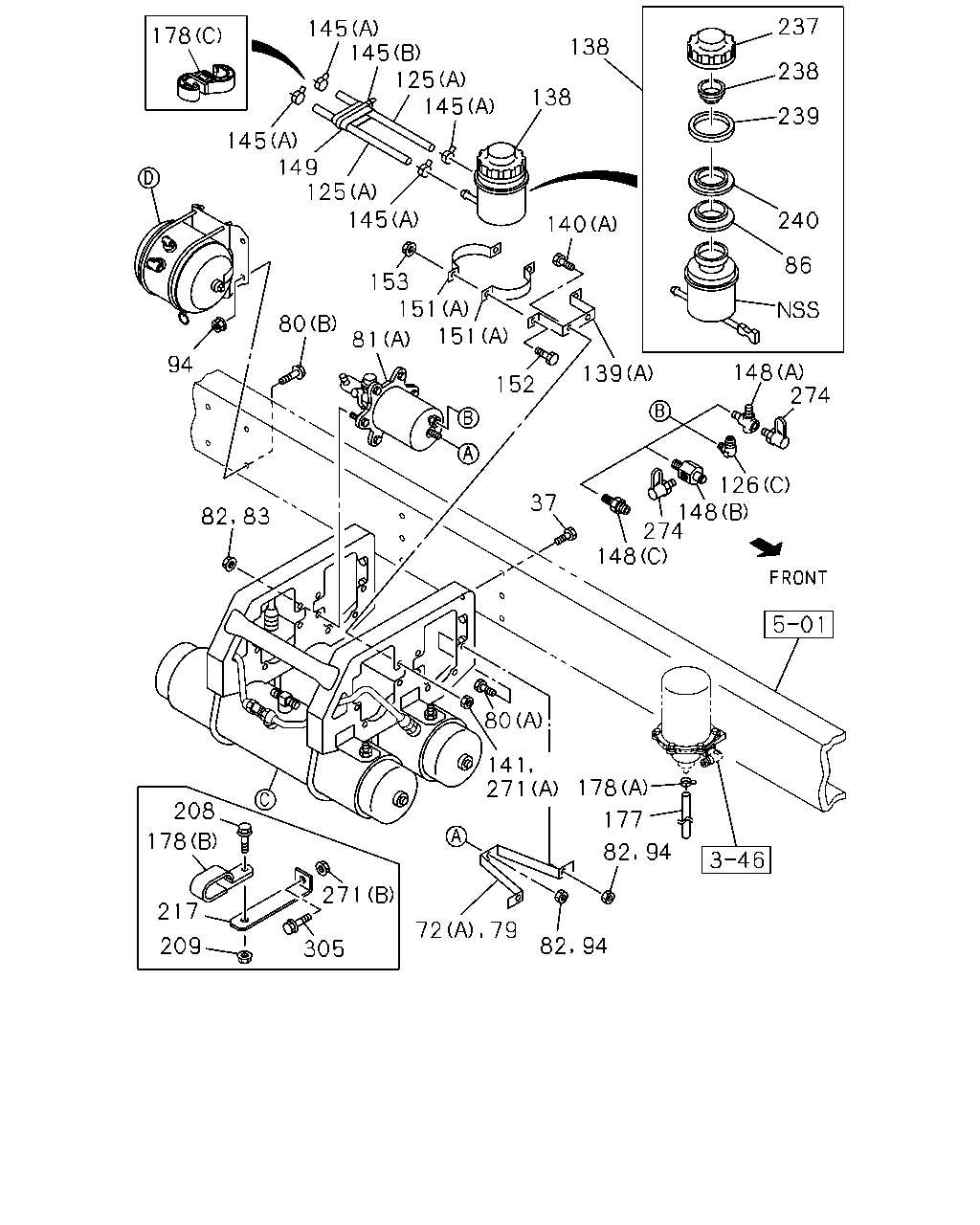

3-20 — AIR TANK (#38160) — 702 parça

237 145 145 125 145 178 138 238 138 239 145 149 125 145 240 140 86 153 151 151 80 81 94 148 274 139 152 126 148 274 148 37 80 141 271 178 208 177 178 271 217 72 79 209 305 82 94 82 94 82 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0712-1003	●	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	1004-	●	●	●
72	BRACKET; AIR MASTER ANTI LOCK BRAKE<JE5> (G)	1-47537-136-1	02	1	1004-			●
72	BRACKET; AIR MASTER ANTI LOCK BRAKE<JE5> (B)	1-47537-137-1	02	1	1004-			●
72	BRACKET; AIR MASTER ANTI LOCK BRAKE<JE5> (C)	8-97624-033-0	01	1	1004-			●
72	BRACKET; AIR MASTER ANTI LOCK BRAKE<JE5> (D)	8-97624-035-0	01	1	1004-			●
72	BRACKET; AIR MASTER ANTI LOCK BRAKE<JE5> (E)	8-97624-061-0	01	1	1004-			●
72	BRACKET; AIR MASTER ANTI LOCK BRAKE<JE5> (F)	8-98094-200-0	01	1	1004-			●
72	BRACKET; AIR MASTER (A)	1-53318-347-0	02	1	0803-0805	●	●
72	BRACKET; AIR MASTER (A)	8-98120-254-0	02	1	0806-1003	●	●
72	BRACKET; AIR MASTER (A)	8-98120-254-0	02	1	1004-	●	●
72	BRACKET; AIR MASTER EXC. ANTI LOCK BRAKE<JE5> (A)	8-98120-254-0	02	1	1004-			●
79	STAY; AIR MASTER TO BRKT	1-53318-347-0	02	1	0712-0802	●	●
80	BOLT; BRKT BRAKE REGULATION ADR<TDU> (A) M10X25 FLANGE	0-28651-025-0	04	1	1004-	●
80	BOLT; BRKT ANTI LOCK BRAKE<JE5> (D) M10X20 FLANGE	0-28651-020-0	04	1	1004-			●
80	BOLT; BRKT ANTI LOCK BRAKE<JE5> (A) M10X30 FLANGE	0-28651-030-0	14	1	1004-			●
80	BOLT; BRKT TRAILER BRAKE CONTROL<J91> (C) M8X16 FLANGE	0-28050-816-0	02	1	1004-			●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0806-		●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0712-0802		●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0803-0805	●	●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	03	1	0806-0811	●
80	BOLT; BRKT BRAKE REGULATION ADR<TDU> (B) M10X35 FLANGE	0-28651-035-0	03	1	0812-	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0712-0712	●	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0801-0811	●	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0801-0811	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0812-1003	●	●
80	BOLT; BRKT BRAKE REGULATION ADR<TDU> (A) M10X30 FLANGE	0-28651-030-0	04	1	0812-1003	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1004-	●	●
80	BOLT; BRKT EXC. ANTI LOCK BRAKE<JE5> (A) M10X30 FLANGE	0-28651-030-0	04	1	1004-			●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. ANTI LOCK BRAKE<JE5> (B)	1-47800-826-0	04	1	1004-			●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. BRAKE REGULATION ADR<TDU> (A)	1-47800-663-1	02	1	0812-1003	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. BRAKE REGULATION ADR<TDU> (A)	1-47800-663-1	02	1	1004-	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. ANTI LOCK BRAKE<JE5> (A)	1-47800-663-1	02	1	1004-			●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. (A)	1-47800-665-1	02	1	0712-0811	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE REGULATION ADR<TDU> (A)	1-47800-665-1	02	1	0812-	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. (A)	1-47800-665-1	02	1	0812-		●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91180-210-0	12	1	0712-0802		●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91180-210-0	10	1	0712-0802	●
83	NUT; AIR MASTER ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	16	1	1004-			●
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	08	1	0803-1003	●	●
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	08	1	1004-	●	●
83	NUT; AIR MASTER EXC. ANTI LOCK BRAKE<JE5> M10 FLANGE	0-91180-210-0	08	1	1004-			●
86	SEAL; DUST	1-47529-019-0	01	1	0712-1003	●	●
86	SEAL; DUST	1-47529-019-0	01	1	1004-	●	●	●
94	NUT; BRKT FIX ANTI LOCK BRAKE<JE5> M10 FLANGE	0-91180-210-0	14	1	1004-			●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	02	1	0803-0805	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	01	1	0806-0811	●
94	NUT; BRKT FIX BRAKE REGULATION ADR<TDU> M10 FLANGE	0-91180-210-0	01	1	0812-	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	10	1	0803-0811	●	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	06	1	0812-1003	●	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	06	1	1004-	●	●
94	NUT; BRKT FIX EXC. ANTI LOCK BRAKE<JE5> M10 FLANGE	0-91180-210-0	06	1	1004-			●
94	NUT; BRKT FIX M10	0-91111-510-0	04	1	0712-0802		●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	0803-		●
125	HOSE; OIL TANK TO AIR MASTER ANTI LOCK BRAKE<JE5> (B)	1-09360-950-0	01	1	1004-			●
125	HOSE; OIL TANK TO AIR MASTER ANTI LOCK BRAKE<JE5> (C) L=240 SERVICED BY L=1800	1-09360-320-0	03	1	1004-			●
125	HOSE; OIL TANK TO AIR MASTER ANTI LOCK BRAKE<JE5> (D)	8-97629-692-0	01	1	1004-			●
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98098-558-0	01	1	0712-0802		●
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98098-558-0	01	1	0803-1003	●	●
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98098-558-0	01	1	1004-	●	●
125	HOSE; OIL TANK TO AIR MASTER EXC. ANTI LOCK BRAKE<JE5> (A)	8-98098-558-0	01	1	1004-			●
125	HOSE; OIL TANK TO AIR MASTER (A) L=445 SERVICED BY L=1800	1-09360-320-0	01	1	0712-0802	●
125	HOSE; OIL TANK TO AIR MASTER (A) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	0712-0802	●	●
125	HOSE; OIL TANK TO AIR MASTER (A) L=445 SERVICED BY L=1800	1-09360-320-0	01	1	0803-0803	●	●
125	HOSE; OIL TANK TO AIR MASTER (A) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	0804-1003	●	●
125	HOSE; OIL TANK TO AIR MASTER (A) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	1004-	●	●
125	HOSE; OIL TANK TO AIR MASTER EXC. ANTI LOCK BRAKE<JE5> (A) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	1004-			●
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (E) M16X2 & PT3/8 3WAY	1-09656-718-0	01	1	1004-			●
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (F)	8-98148-518-0	01	1	1004-			●
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (C) M16 & PT3/8 ELBOW	1-09650-438-0	04	1	1004-			●
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (C) M16 & PT3/8 ELBOW	1-09650-438-0	04	1	1004-			●
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR<TDU> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0812-1003	●
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR<TDU> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1004-	●
126	CONNECTOR; ELBOW (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1004-			●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0712-0802		●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0803-0811	●	●
126	CONNECTOR; ELBOW EURO4 SPECIFICATION<NT4> (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0812-1003	●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0812-1003		●
126	CONNECTOR; ELBOW EURO4 SPECIFICATION<NT4> (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1004-1004	●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1004-1004		●
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1004-1004			●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1004-	●	●	●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0712-1003	●	●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1004-	●	●	●
126	CONNECTOR; ELBOW (B) M20 & PT3/4	1-09650-261-2	01	1	0712-0802	●
126	CONNECTOR; ELBOW (D) PT1/4 2WAY	1-09660-693-0	01	1	0803-1003	●	●
126	CONNECTOR; ELBOW (D) PT1/4 2WAY	1-09660-693-0	01	1	1004-	●	●
126	CONNECTOR; ELBOW EXC. ANTI LOCK BRAKE<JE5> (D) PT1/4 2WAY	1-09660-693-0	01	1	1004-			●
126	CONNECTOR; ELBOW (C) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0712-0802	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0712-1003	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	1004-	●	●	●
139	BRACKET; OIL TANK ANTI LOCK BRAKE<JE5> (B)	8-97622-132-0	01	1	1004-			●
139	BRACKET; OIL TANK (A)	1-47537-081-2	01	1	0712-1003	●	●
139	BRACKET; OIL TANK (A)	1-47537-081-2	01	1	1004-	●	●
139	BRACKET; OIL TANK EXC. ANTI LOCK BRAKE<JE5> (A)	1-47537-081-2	01	1	1004-			●
140	BOLT; OIL TANK TO BRKT ANTI LOCK BRAKE<JE5> (B) M8X20 FLANGE	0-28650-820-0	02	1	1004-			●
140	BOLT; OIL TANK TO BRKT (A) M10X20 FLANGE	0-28651-020-0	02	1	0712-1003	●	●
140	BOLT; OIL TANK TO BRKT (A) M10X20 FLANGE	0-28651-020-0	02	1	1004-	●	●
140	BOLT; OIL TANK TO BRKT EXC. ANTI LOCK BRAKE<JE5> (A) M10X20 FLANGE	0-28651-020-0	02	1	1004-			●
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91180-210-0	02	1	0712-0802	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ANTI LOCK BRAKE<JE5> (A) ID=14	1-09704-102-0	12	1	1004-			●
145	CLIP; OIL TANK TO AIR MASTER HOSE (A) ID=14	1-09704-102-0	04	1	0712-1003	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE (A) ID=14	1-09704-102-0	04	1	1004-	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE EXC. ANTI LOCK BRAKE<JE5> (A) ID=14	1-09704-102-0	04	1	1004-			●
145	CLIP; OIL TANK TO AIR MASTER HOSE (B) L=140	5-09707-031-1	01	1	0712-0802	●	●
148	CONNECTOR; AIR MASTER EXC. BRAKE REGULATION ADR<TDU> (C) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0812-1003	●
148	CONNECTOR; AIR MASTER EXC. BRAKE REGULATION ADR<TDU> (C) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1004-	●
148	CONNECTOR; AIR MASTER EXC. ANTI LOCK BRAKE<JE5> (C) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	1004-			●
148	CONNECTOR; AIR MASTER (B) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0803-0811	●	●
148	CONNECTOR; AIR MASTER BRAKE REGULATION ADR<TDU> (B) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0812-	●
148	CONNECTOR; AIR MASTER (B) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0812-		●
148	CONNECTOR; AIR MASTER (A)	1-09656-462-1	02	1	0712-0802		●
148	CONNECTOR; AIR MASTER (A)	1-09656-462-1	01	1	0803-0811	●	●
148	CONNECTOR; AIR MASTER BRAKE REGULATION ADR<TDU> (A)	1-09656-462-1	01	1	0812-	●
148	CONNECTOR; AIR MASTER (A)	1-09656-462-1	01	1	0812-		●
149	SLEEVE; RUBBER,HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	0712-0802	●	●
151	BAND; OIL TANK,AIR MASTER ANTI LOCK BRAKE<JE5> (B)	8-97620-570-0	02	1	1004-			●
151	BAND; OIL TANK,AIR MASTER (A)	1-47537-056-2	02	1	0712-1003	●	●
151	BAND; OIL TANK,AIR MASTER (A)	1-47537-056-2	02	1	1004-	●	●
151	BAND; OIL TANK,AIR MASTER EXC. ANTI LOCK BRAKE<JE5> (A)	1-47537-056-2	02	1	1004-			●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0712-1003	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	1004-	●	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0712-1003	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	1004-	●	●	●
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0803-1003	●
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1004-	●		●
177	HOSE; RUBBER,DRAIN L=55 SERVICED BY L=3000	0-03566-300-0	01	1	0712-0802	●	●
177	HOSE; RUBBER,DRAIN L=55 SERVICED BY L=3000	0-03566-300-0	01	1	0803-		●
178	CLIP; HOSE EURO4 SPECIFICATION<NT4> (A) ID=21	8-94242-034-0	02	1	0812-	●
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	0812-		●
178	CLIP; HOSE (C) ID=12 & 12	1-09709-280-1	01	1	0803-1003	●	●
178	CLIP; HOSE (C) ID=12 & 12	1-09709-280-1	01	1	1004-	●	●	●
178	CLIP; HOSE (B)	9-09917-171-0	01	1	0803-1003	●	●
178	CLIP; HOSE (B)	9-09917-171-0	01	1	1004-	●	●
178	CLIP; HOSE EXC. ANTI LOCK BRAKE<JE5> (B)	9-09917-171-0	01	1	1004-			●
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	0712-0811	●	●
178	CLIP; HOSE EURO2 SPECIFICATION<NT2> (A) ID=21	8-94242-034-0	01	1	0812-1003	●
178	CLIP; HOSE EURO2 SPECIFICATION<NT2> (A) ID=21	8-94242-034-0	01	1	1004-	●
178	CLIP; HOSE (A) ID=21	8-94242-034-0	01	1	1004-			●
208	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0803-1003	●	●
208	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1004-	●	●
208	BOLT; CLIP EXC. ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28650-820-0	01	1	1004-			●
209	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-1003	●	●
209	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1004-	●	●
209	NUT; CLIP EXC. ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	01	1	1004-			●
217	BRACKET; RUBBER HOSE L=112	1-47475-694-1	01	1	0803-1003	●	●
217	BRACKET; RUBBER HOSE L=112	1-47475-694-1	01	1	1004-	●	●
217	BRACKET; RUBBER HOSE EXC. ANTI LOCK BRAKE<JE5> L=112	1-47475-694-1	01	1	1004-			●
237	CAP; OIL TANK	1-47525-030-0	01	1	0712-1003	●	●
237	CAP; OIL TANK	1-47525-030-0	01	1	1004-	●	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	0712-1003	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	1004-	●	●	●
239	FILTER; DUST	1-47529-017-0	01	1	0712-1003	●	●
239	FILTER; DUST	1-47529-017-0	01	1	1004-	●	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	0712-1003	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	1004-	●	●	●
271	NUT; BRKT,HOSE (B) M8 FLANGE	0-91180-108-0	01	1	0803-1003	●	●
271	NUT; BRKT,HOSE (B) M8 FLANGE	0-91180-108-0	01	1	1004-	●	●
271	NUT; BRKT,HOSE EXC. ANTI LOCK BRAKE<JE5> (B) M8 FLANGE	0-91180-108-0	01	1	1004-			●
271	NUT; BRKT,HOSE (A) M10 FLANGE	0-91180-210-0	02	1	0803-1003	●	●
271	NUT; BRKT,HOSE (A) M10 FLANGE	0-91180-210-0	02	1	1004-	●	●
271	NUT; BRKT,HOSE EXC. ANTI LOCK BRAKE<JE5> (A) M10 FLANGE	0-91180-210-0	02	1	1004-			●
274	CONNECTOR; VLV R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	0712-0802		●
274	CONNECTOR; VLV R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	0803-0811	●	●
274	CONNECTOR; VLV BRAKE REGULATION ADR<TDU> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0812-	●
274	CONNECTOR; VLV R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0812-		●
305	BOLT; BRKT,HOSE M8X20 FLANGE	0-28650-820-0	01	1	0803-1003	●	●
305	BOLT; BRKT,HOSE M8X20 FLANGE	0-28650-820-0	01	1	1004-	●	●
305	BOLT; BRKT,HOSE EXC. ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28650-820-0	01	1	1004-			●

28 28 43 172 172 28 64 54 10 5 351 5 5 64 352 5 67 166 166 119 9 126 43 166 126 9 10 166 5 10 7 6 5 7 10 1 6 58 42 42 58 58 5 351 1 10 58 58 42 42 58 58 58 213 174 175 213 213 213 46 46 10 28 5 80 5 39 1 104 28 7 10 6 39 3 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; AIR ANTI LOCK BRAKE<JE5> (D)	1-48370-500-0	01	1	1004-			●
1	TANK ASM; AIR ANTI LOCK BRAKE<JE5> (E)	1-48370-501-0	01	1	1004-			●
1	TANK ASM; AIR (B)	1-48330-598-0	01	1	0712-1003	●	●
1	TANK ASM; AIR (B)	1-48330-598-0	01	1	1004-	●	●
1	TANK ASM; AIR EXC. ANTI LOCK BRAKE<JE5> (B)	1-48330-598-0	01	1	1004-			●
1	TANK ASM; AIR (C)	8-98090-803-1	01	1	0712-0712		●
1	TANK ASM; AIR (C)	8-98090-803-1	01	1	0801-0811	●	●
1	TANK ASM; AIR BRAKE REGULATION ADR<TDU> (C)	8-98090-803-1	01	1	0812-0906	●
1	TANK ASM; AIR (C)	8-98090-803-1	01	1	0812-0906		●
1	TANK ASM; AIR BRAKE REGULATION ADR<TDU> (C)	8-98081-870-1	01	1	0907-	●
1	TANK ASM; AIR (C)	8-98081-870-1	01	1	0907-		●
1	TANK ASM; AIR (A)	1-48370-541-0	01	1	0712-1003	●	●
1	TANK ASM; AIR (A)	1-48370-541-0	01	1	1004-	●	●
1	TANK ASM; AIR EXC. ANTI LOCK BRAKE<JE5> (A)	1-48370-541-0	01	1	1004-			●
3	VALVE; CHECK,AIR TANK EURO2 SPECIFICATION<NT2> M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0812-1003	●
3	VALVE; CHECK,AIR TANK EURO2 SPECIFICATION<NT2> M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1004-1004	●
3	VALVE; CHECK,AIR TANK EXC. ANTI LOCK BRAKE<JE5> M20 & PT3/4 ELBOW	1-48410-412-0	01	1	1004-1004			●
5	UNION; AIR TANK ANTI LOCK BRAKE<JE5> (E) M16 & PT3/8 ELBOW	1-09650-438-0	03	1	1004-			●
5	UNION; AIR TANK ANTI LOCK BRAKE<JE5> (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1004-			●
5	UNION; AIR TANK EURO2 SPECIFICATION<NT2> (C) PT1/4 2WAY	1-09660-693-0	02	1	0812-1003	●
5	UNION; AIR TANK EURO2 SPECIFICATION<NT2> (C) PT1/4 2WAY	1-09660-693-0	02	1	1004-	●
5	UNION; AIR TANK EXC. ANTI LOCK BRAKE<JE5> (C) PT1/4 2WAY	1-09660-693-0	02	1	1004-			●
5	UNION; AIR TANK (D) M12 & PT3/8 ELBOW	1-09650-436-0	02	1	0712-0712		●
5	UNION; AIR TANK (D) M12 & PT3/8 ELBOW	1-09650-436-0	02	1	0801-0811	●	●
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (D) M12 & PT3/8 ELBOW	1-09650-436-0	02	1	0812-	●
5	UNION; AIR TANK (D) M12 & PT3/8 ELBOW	1-09650-436-0	02	1	0812-		●
5	UNION; AIR TANK (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0712-0802	●	●
5	UNION; AIR TANK (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0803-1003	●	●
5	UNION; AIR TANK (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1004-	●	●
5	UNION; AIR TANK EXC. ANTI LOCK BRAKE<JE5> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1004-			●
5	UNION; AIR TANK (B)	1-09650-449-1	02	1	0712-0802	●	●
5	UNION; AIR TANK (B)	8-98111-509-0	02	1	0803-1003	●	●
5	UNION; AIR TANK (B)	8-98111-509-0	02	1	1004-	●	●
5	UNION; AIR TANK EXC. ANTI LOCK BRAKE<JE5> (B)	8-98111-509-0	02	1	1004-			●
5	UNION; AIR TANK (C) PT1/4 2WAY	1-09660-693-0	02	1	0712-0802	●	●
5	UNION; AIR TANK (C) PT1/4 2WAY	1-09660-693-0	04	1	0803-0811	●	●
5	UNION; AIR TANK EURO4 SPECIFICATION<NT4> (C) PT1/4 2WAY	1-09660-693-0	04	1	0812-	●
5	UNION; AIR TANK (C) PT1/4 2WAY	1-09660-693-0	04	1	0812-		●
6	COCK; DRAIN,AIR TANK ANTI LOCK BRAKE<JE5>	1-48312-015-0	03	1	1004-			●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0712-0712		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0801-0811	●	●
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU>	1-48312-015-0	01	1	0812-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0812-		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0712-1003	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1004-	●	●
6	COCK; DRAIN,AIR TANK EXC. ANTI LOCK BRAKE<JE5>	1-48312-015-0	04	1	1004-			●
7	GASKET; DRAIN COCK ANTI LOCK BRAKE<JE5> ID=14	1-09630-145-0	03	1	1004-			●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0712-0712		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0801-0811	●	●
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	01	1	0812-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0812-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0712-1003	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1004-	●	●
7	GASKET; DRAIN COCK EXC. ANTI LOCK BRAKE<JE5> ID=14	1-09630-145-0	04	1	1004-			●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK ANTI LOCK BRAKE<JE5> STAMP 5.5	8-97609-249-0	02	1	1004-			●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EURO2 SPECIFICATION<NT2> STAMP 5.5	8-97609-249-0	01	1	0812-1003	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EURO2 SPECIFICATION<NT2> STAMP 5.5	8-97609-249-0	01	1	1004-	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. ANTI LOCK BRAKE<JE5> STAMP 5.5	8-97609-249-0	01	1	1004-			●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	8-97615-622-0	01	1	0712-0811	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EURO4 SPECIFICATION<NT4>	8-97615-622-0	01	1	0812-	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	8-97615-622-0	01	1	0812-		●
10	PLUG; AIR TANK EURO2 SPECIFICATION<NT2> EXC. TIRE INFLATOR DEVICE(SG4) (A) PT1/4	9-99204-513-0	05	1	1008-	●
10	PLUG; AIR TANK EURO4 SPECIFICATION<NT4> (A) PT1/4	9-99204-513-0	03	1	0812-	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	03	1	0812-		●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0712-0712		●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0801-0811	●	●
10	PLUG; AIR TANK BRAKE REGULATION ADR<TDU> (B) PT3/8	9-09204-517-0	02	1	0812-	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0812-		●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	03	1	0712-0811	●	●
10	PLUG; AIR TANK EURO2 SPECIFICATION<NT2> (A) PT1/4	9-99204-513-0	04	1	0812-1003	●
10	PLUG; AIR TANK EURO2 SPECIFICATION<NT2> (A) PT1/4	9-99204-513-0	04	1	1004-1007	●
10	PLUG; AIR TANK EXC. ANTI LOCK BRAKE<JE5> (A) PT1/4	9-99204-513-0	04	1	1004-1007			●
10	PLUG; AIR TANK EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE(SG4) (A) PT1/4	9-99204-513-0	04	1	1008-	●
10	PLUG; AIR TANK EXC. ANTI LOCK BRAKE<JE5> (A) PT1/4	9-99204-513-0	04	1	1008-			●
28	BRACKET; AIR TANK ANTI LOCK BRAKE<JE5> (E)	8-97622-813-1	01	1	1004-			●
28	BRACKET; AIR TANK ANTI LOCK BRAKE<JE5> (F)	8-97622-814-1	01	1	1004-			●
28	BRACKET; AIR TANK (D)	8-98111-673-1	01	1	0801-0811	●
28	BRACKET; AIR TANK BRAKE REGULATION ADR<TDU> (D)	8-98111-673-1	01	1	0812-	●
28	BRACKET; AIR TANK (B)	1-53318-338-6	02	1	0712-0802		●
28	BRACKET; AIR TANK (C)	8-98092-756-1	01	1	0712-0712		●
28	BRACKET; AIR TANK (C)	8-98092-756-1	01	1	0801-0811	●	●
28	BRACKET; AIR TANK BRAKE REGULATION ADR<TDU> (C)	8-98092-756-1	01	1	0812-	●
28	BRACKET; AIR TANK (C)	8-98092-756-1	01	1	0812-		●
28	BRACKET; AIR TANK (B)	1-53318-338-6	01	1	0712-0802	●
28	BRACKET; AIR TANK (B)	1-53318-338-6	02	1	0803-1003	●	●
28	BRACKET; AIR TANK (B)	1-53318-338-6	02	1	1004-	●	●
28	BRACKET; AIR TANK EXC. ANTI LOCK BRAKE<JE5> (B)	1-53318-338-6	02	1	1004-			●
28	BRACKET; AIR TANK (A)	1-53318-378-1	01	1	0712-0802	●
39	U-BOLT; AIR TANK L=210	1-48317-458-1	02	1	0712-0712		●
39	U-BOLT; AIR TANK L=210	1-48317-458-1	02	1	0801-0811	●	●
39	U-BOLT; AIR TANK BRAKE REGULATION ADR<TDU> L=210	1-48317-458-1	02	1	0812-	●
39	U-BOLT; AIR TANK L=210	1-48317-458-1	02	1	0812-		●
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	0712-1003	●	●
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	1004-	●	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-1003	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28650-820-0	02	1	1004-	●	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28651-025-0	04	1	0712-1003	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28651-025-0	04	1	1004-	●	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0712-0712		●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0801-0811	●	●
46	NUT; U-BOLT BRAKE REGULATION ADR<TDU> M8	0-91110-508-0	08	1	0812-	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0812-		●
54	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	0712-1003	●	●
54	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1004-	●	●	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	0712-1003	●	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	1004-	●	●	●
64	STAY; AIR TANK,MAIN ANTI LOCK BRAKE<JE5> (C)	1-48317-349-0	01	1	1004-			●
64	STAY; AIR TANK,MAIN (A)	1-53318-293-1	01	1	0712-1003	●	●
64	STAY; AIR TANK,MAIN (A)	1-53318-293-1	01	1	1004-	●	●	●
64	STAY; AIR TANK,MAIN (B)	8-94301-490-0	01	1	0712-1003	●	●
64	STAY; AIR TANK,MAIN (B)	8-94301-490-0	01	1	1004-	●	●
64	STAY; AIR TANK,MAIN EXC. ANTI LOCK BRAKE<JE5> (B)	8-94301-490-0	01	1	1004-			●
67	STAY; SUB TANK	1-48317-349-0	01	1	0712-0802	●	●
67	STAY; SUB TANK	8-97614-753-0	01	1	0803-1003	●	●
67	STAY; SUB TANK	8-97614-753-0	01	1	1004-	●	●	●
80	BOLT; BRKT BRAKE REGULATION ADR<TDU> (A) M10X25 FLANGE	0-28651-025-0	04	1	1004-	●
80	BOLT; BRKT ANTI LOCK BRAKE<JE5> (D) M10X20 FLANGE	0-28651-020-0	04	1	1004-			●
80	BOLT; BRKT ANTI LOCK BRAKE<JE5> (A) M10X30 FLANGE	0-28651-030-0	14	1	1004-			●
80	BOLT; BRKT TRAILER BRAKE CONTROL<J91> (C) M8X16 FLANGE	0-28050-816-0	02	1	1004-			●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0806-		●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0712-0802		●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0803-0805	●	●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	03	1	0806-0811	●
80	BOLT; BRKT BRAKE REGULATION ADR<TDU> (B) M10X35 FLANGE	0-28651-035-0	03	1	0812-	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0712-0712	●	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0801-0811	●	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0801-0811	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0812-1003	●	●
80	BOLT; BRKT BRAKE REGULATION ADR<TDU> (A) M10X30 FLANGE	0-28651-030-0	04	1	0812-1003	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1004-	●	●
80	BOLT; BRKT EXC. ANTI LOCK BRAKE<JE5> (A) M10X30 FLANGE	0-28651-030-0	04	1	1004-			●
104	NUT; BRKT ANTI LOCK BRAKE<JE5> (A) M10 FLANGE	0-91180-210-0	04	1	1004-			●
104	NUT; BRKT ANTI LOCK BRAKE<JE5> (B) M8 FLANGE	0-91180-108-0	02	1	1004-			●
104	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0801-0811	●
104	NUT; BRKT BRAKE REGULATION ADR<TDU> (A) M10 FLANGE	0-91180-210-0	04	1	0812-1003	●
104	NUT; BRKT BRAKE REGULATION ADR<TDU> (A) M10	0-91110-510-0	04	1	1004-	●
119	BOLT; STAY M8X20 FLANGE	0-28650-820-0	02	1	0712-1003	●	●
119	BOLT; STAY M8X20 FLANGE	0-28650-820-0	02	1	1004-	●	●	●
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (E) M16X2 & PT3/8 3WAY	1-09656-718-0	01	1	1004-			●
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (F)	8-98148-518-0	01	1	1004-			●
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (C) M16 & PT3/8 ELBOW	1-09650-438-0	04	1	1004-			●
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (C) M16 & PT3/8 ELBOW	1-09650-438-0	04	1	1004-			●
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR<TDU> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0812-1003	●
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR<TDU> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1004-	●
126	CONNECTOR; ELBOW (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1004-			●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0712-0802		●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0803-0811	●	●
126	CONNECTOR; ELBOW EURO4 SPECIFICATION<NT4> (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0812-1003	●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0812-1003		●
126	CONNECTOR; ELBOW EURO4 SPECIFICATION<NT4> (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1004-1004	●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1004-1004		●
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1004-1004			●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1004-	●	●	●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0712-1003	●	●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1004-	●	●	●
126	CONNECTOR; ELBOW (B) M20 & PT3/4	1-09650-261-2	01	1	0712-0802	●
126	CONNECTOR; ELBOW (D) PT1/4 2WAY	1-09660-693-0	01	1	0803-1003	●	●
126	CONNECTOR; ELBOW (D) PT1/4 2WAY	1-09660-693-0	01	1	1004-	●	●
126	CONNECTOR; ELBOW EXC. ANTI LOCK BRAKE<JE5> (D) PT1/4 2WAY	1-09660-693-0	01	1	1004-			●
126	CONNECTOR; ELBOW (C) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0712-0802	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK ANTI LOCK BRAKE<JE5> STAMP 5.5	8-97609-249-0	01	1	1004-			●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EURO2 SPECIFICATION<NT2> STAMP 5.5	8-97609-249-0	02	1	0812-1003	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EURO2 SPECIFICATION<NT2> STAMP 5.5	8-97609-249-0	02	1	1004-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. ANTI LOCK BRAKE<JE5> STAMP 5.5	8-97609-249-0	02	1	1004-			●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	02	1	0712-0811	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EURO4 SPECIFICATION<NT4>	8-97615-622-0	02	1	0812-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	02	1	0812-		●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	0712-1003	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	1004-	●	●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	0712-1003	●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	1004-	●	●	●
174	COCK; AIR,INFLATOR EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE(SG4)	1-09680-099-0	01	1	0812-1003	●
174	COCK; AIR,INFLATOR EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE(SG4)	1-09680-099-0	01	1	1004-	●
174	COCK; AIR,INFLATOR	1-09680-099-0	01	1	1004-			●
175	CAP; AIR COCK EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE(SG4)	9-48319-102-0	01	1	0812-1003	●
175	CAP; AIR COCK EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE(SG4)	9-48319-102-0	01	1	1004-	●
175	CAP; AIR COCK	9-48319-102-0	01	1	1004-			●
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	0712-1003	●	●
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	1004-	●	●	●
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	0712-1003	●	●
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	1004-	●	●	●
351	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-0	02	1	0712-0811	●	●
351	CONNECTOR; TEST EURO4 SPECIFICATION<NT4> R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0812-	●
351	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0812-		●
352	CONNECTOR; STRAIGHT M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	0712-0802	●	●

140 237 151 151 139 238 138 239 152 153 240 145 125 138 86 145 125 145 80 145 145 428 145 145 125 145 428 125 145 145 80 145 125 145 104 37 104 178 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0712-1003	●	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	1004-	●	●	●
80	BOLT; BRKT BRAKE REGULATION ADR<TDU> (A) M10X25 FLANGE	0-28651-025-0	04	1	1004-	●
80	BOLT; BRKT ANTI LOCK BRAKE<JE5> (D) M10X20 FLANGE	0-28651-020-0	04	1	1004-			●
80	BOLT; BRKT ANTI LOCK BRAKE<JE5> (A) M10X30 FLANGE	0-28651-030-0	14	1	1004-			●
80	BOLT; BRKT TRAILER BRAKE CONTROL<J91> (C) M8X16 FLANGE	0-28050-816-0	02	1	1004-			●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0806-		●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0712-0802		●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0803-0805	●	●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	03	1	0806-0811	●
80	BOLT; BRKT BRAKE REGULATION ADR<TDU> (B) M10X35 FLANGE	0-28651-035-0	03	1	0812-	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0712-0712	●	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0801-0811	●	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0801-0811	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0812-1003	●	●
80	BOLT; BRKT BRAKE REGULATION ADR<TDU> (A) M10X30 FLANGE	0-28651-030-0	04	1	0812-1003	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1004-	●	●
80	BOLT; BRKT EXC. ANTI LOCK BRAKE<JE5> (A) M10X30 FLANGE	0-28651-030-0	04	1	1004-			●
86	SEAL; DUST	1-47529-019-0	01	1	0712-1003	●	●
86	SEAL; DUST	1-47529-019-0	01	1	1004-	●	●	●
104	NUT; BRKT ANTI LOCK BRAKE<JE5> (A) M10 FLANGE	0-91180-210-0	04	1	1004-			●
104	NUT; BRKT ANTI LOCK BRAKE<JE5> (B) M8 FLANGE	0-91180-108-0	02	1	1004-			●
104	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0801-0811	●
104	NUT; BRKT BRAKE REGULATION ADR<TDU> (A) M10 FLANGE	0-91180-210-0	04	1	0812-1003	●
104	NUT; BRKT BRAKE REGULATION ADR<TDU> (A) M10	0-91110-510-0	04	1	1004-	●
125	HOSE; OIL TANK TO AIR MASTER ANTI LOCK BRAKE<JE5> (B)	1-09360-950-0	01	1	1004-			●
125	HOSE; OIL TANK TO AIR MASTER ANTI LOCK BRAKE<JE5> (C) L=240 SERVICED BY L=1800	1-09360-320-0	03	1	1004-			●
125	HOSE; OIL TANK TO AIR MASTER ANTI LOCK BRAKE<JE5> (D)	8-97629-692-0	01	1	1004-			●
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98098-558-0	01	1	0712-0802		●
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98098-558-0	01	1	0803-1003	●	●
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98098-558-0	01	1	1004-	●	●
125	HOSE; OIL TANK TO AIR MASTER EXC. ANTI LOCK BRAKE<JE5> (A)	8-98098-558-0	01	1	1004-			●
125	HOSE; OIL TANK TO AIR MASTER (A) L=445 SERVICED BY L=1800	1-09360-320-0	01	1	0712-0802	●
125	HOSE; OIL TANK TO AIR MASTER (A) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	0712-0802	●	●
125	HOSE; OIL TANK TO AIR MASTER (A) L=445 SERVICED BY L=1800	1-09360-320-0	01	1	0803-0803	●	●
125	HOSE; OIL TANK TO AIR MASTER (A) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	0804-1003	●	●
125	HOSE; OIL TANK TO AIR MASTER (A) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	1004-	●	●
125	HOSE; OIL TANK TO AIR MASTER EXC. ANTI LOCK BRAKE<JE5> (A) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	1004-			●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0712-1003	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	1004-	●	●	●
139	BRACKET; OIL TANK ANTI LOCK BRAKE<JE5> (B)	8-97622-132-0	01	1	1004-			●
139	BRACKET; OIL TANK (A)	1-47537-081-2	01	1	0712-1003	●	●
139	BRACKET; OIL TANK (A)	1-47537-081-2	01	1	1004-	●	●
139	BRACKET; OIL TANK EXC. ANTI LOCK BRAKE<JE5> (A)	1-47537-081-2	01	1	1004-			●
140	BOLT; OIL TANK TO BRKT ANTI LOCK BRAKE<JE5> (B) M8X20 FLANGE	0-28650-820-0	02	1	1004-			●
140	BOLT; OIL TANK TO BRKT (A) M10X20 FLANGE	0-28651-020-0	02	1	0712-1003	●	●
140	BOLT; OIL TANK TO BRKT (A) M10X20 FLANGE	0-28651-020-0	02	1	1004-	●	●
140	BOLT; OIL TANK TO BRKT EXC. ANTI LOCK BRAKE<JE5> (A) M10X20 FLANGE	0-28651-020-0	02	1	1004-			●
145	CLIP; OIL TANK TO AIR MASTER HOSE ANTI LOCK BRAKE<JE5> (A) ID=14	1-09704-102-0	12	1	1004-			●
145	CLIP; OIL TANK TO AIR MASTER HOSE (A) ID=14	1-09704-102-0	04	1	0712-1003	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE (A) ID=14	1-09704-102-0	04	1	1004-	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE EXC. ANTI LOCK BRAKE<JE5> (A) ID=14	1-09704-102-0	04	1	1004-			●
145	CLIP; OIL TANK TO AIR MASTER HOSE (B) L=140	5-09707-031-1	01	1	0712-0802	●	●
151	BAND; OIL TANK,AIR MASTER ANTI LOCK BRAKE<JE5> (B)	8-97620-570-0	02	1	1004-			●
151	BAND; OIL TANK,AIR MASTER (A)	1-47537-056-2	02	1	0712-1003	●	●
151	BAND; OIL TANK,AIR MASTER (A)	1-47537-056-2	02	1	1004-	●	●
151	BAND; OIL TANK,AIR MASTER EXC. ANTI LOCK BRAKE<JE5> (A)	1-47537-056-2	02	1	1004-			●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0712-1003	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	1004-	●	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0712-1003	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	1004-	●	●	●
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0803-1003	●
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1004-	●		●
177	HOSE; RUBBER,DRAIN L=55 SERVICED BY L=3000	0-03566-300-0	01	1	0712-0802	●	●
177	HOSE; RUBBER,DRAIN L=55 SERVICED BY L=3000	0-03566-300-0	01	1	0803-		●
178	CLIP; HOSE EURO4 SPECIFICATION<NT4> (A) ID=21	8-94242-034-0	02	1	0812-	●
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	0812-		●
178	CLIP; HOSE (C) ID=12 & 12	1-09709-280-1	01	1	0803-1003	●	●
178	CLIP; HOSE (C) ID=12 & 12	1-09709-280-1	01	1	1004-	●	●	●
178	CLIP; HOSE (B)	9-09917-171-0	01	1	0803-1003	●	●
178	CLIP; HOSE (B)	9-09917-171-0	01	1	1004-	●	●
178	CLIP; HOSE EXC. ANTI LOCK BRAKE<JE5> (B)	9-09917-171-0	01	1	1004-			●
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	0712-0811	●	●
178	CLIP; HOSE EURO2 SPECIFICATION<NT2> (A) ID=21	8-94242-034-0	01	1	0812-1003	●
178	CLIP; HOSE EURO2 SPECIFICATION<NT2> (A) ID=21	8-94242-034-0	01	1	1004-	●
178	CLIP; HOSE (A) ID=21	8-94242-034-0	01	1	1004-			●
237	CAP; OIL TANK	1-47525-030-0	01	1	0712-1003	●	●
237	CAP; OIL TANK	1-47525-030-0	01	1	1004-	●	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	0712-1003	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	1004-	●	●	●
239	FILTER; DUST	1-47529-017-0	01	1	0712-1003	●	●
239	FILTER; DUST	1-47529-017-0	01	1	1004-	●	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	0712-1003	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	1004-	●	●	●
428	PIPE; OIL TANK TO AIR MASTER ANTI LOCK BRAKE<JE5> (B)	8-97622-771-0	01	1	1004-			●
428	PIPE; OIL TANK TO AIR MASTER ANTI LOCK BRAKE<JE5> (A)	8-97622-772-0	01	1	1004-			●

96 95 96 96 80 97 252

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
80	BOLT; BRKT BRAKE REGULATION ADR<TDU> (A) M10X25 FLANGE	0-28651-025-0	04	1	1004-	●
80	BOLT; BRKT ANTI LOCK BRAKE<JE5> (D) M10X20 FLANGE	0-28651-020-0	04	1	1004-			●
80	BOLT; BRKT ANTI LOCK BRAKE<JE5> (A) M10X30 FLANGE	0-28651-030-0	14	1	1004-			●
80	BOLT; BRKT TRAILER BRAKE CONTROL<J91> (C) M8X16 FLANGE	0-28050-816-0	02	1	1004-			●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0806-		●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0712-0802		●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0803-0805	●	●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	03	1	0806-0811	●
80	BOLT; BRKT BRAKE REGULATION ADR<TDU> (B) M10X35 FLANGE	0-28651-035-0	03	1	0812-	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0712-0712	●	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0801-0811	●	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0801-0811	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0812-1003	●	●
80	BOLT; BRKT BRAKE REGULATION ADR<TDU> (A) M10X30 FLANGE	0-28651-030-0	04	1	0812-1003	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1004-	●	●
80	BOLT; BRKT EXC. ANTI LOCK BRAKE<JE5> (A) M10X30 FLANGE	0-28651-030-0	04	1	1004-			●
95	VALVE; DOUBLE CHECK TRAILER BRAKE CONTROL<J91>	1-48410-531-1	01	1	1004-			●
96	CONNECTOR; DOUBLE CHECK VLV TRAILER BRAKE CONTROL<J91> (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	02	1	1004-			●
96	CONNECTOR; DOUBLE CHECK VLV TRAILER BRAKE CONTROL<J91> (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1004-			●
97	BOLT; BRKT,DBL CHECK VLV TRAILER BRAKE CONTROL<J91> M8X20 FLANGE	0-28050-820-0	02	1	1004-1004			●
97	BOLT; BRKT,DBL CHECK VLV TRAILER BRAKE CONTROL<J91> M8X25 FLANGE	0-28650-825-0	02	1	1005-			●
252	BRACKET; DOUBLE CHECK VLV TRAILER BRAKE CONTROL<J91>	8-98156-187-0	01	1	1004-			●

241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	0712-0811	●	●
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	0812-	●
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	0812-		●

103 136 28 172 64 43 28 172 136 103 136 126 104 54 67 9 119 174 104 126 5 103 175 43 5 1 9 64 166 5 126 126 7 6 1 7 5 58 42 42 58 58 6 58 58 126 58 42 42 58 58 213 213 213 213 317 126 107 100 317 126 126 100 317 100 102 101 109 109 100 126 101 107 317 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; AIR ANTI LOCK BRAKE<JE5> (D)	1-48370-500-0	01	1	1004-			●
1	TANK ASM; AIR ANTI LOCK BRAKE<JE5> (E)	1-48370-501-0	01	1	1004-			●
1	TANK ASM; AIR (B)	1-48330-598-0	01	1	0712-1003	●	●
1	TANK ASM; AIR (B)	1-48330-598-0	01	1	1004-	●	●
1	TANK ASM; AIR EXC. ANTI LOCK BRAKE<JE5> (B)	1-48330-598-0	01	1	1004-			●
1	TANK ASM; AIR (C)	8-98090-803-1	01	1	0712-0712		●
1	TANK ASM; AIR (C)	8-98090-803-1	01	1	0801-0811	●	●
1	TANK ASM; AIR BRAKE REGULATION ADR<TDU> (C)	8-98090-803-1	01	1	0812-0906	●
1	TANK ASM; AIR (C)	8-98090-803-1	01	1	0812-0906		●
1	TANK ASM; AIR BRAKE REGULATION ADR<TDU> (C)	8-98081-870-1	01	1	0907-	●
1	TANK ASM; AIR (C)	8-98081-870-1	01	1	0907-		●
1	TANK ASM; AIR (A)	1-48370-541-0	01	1	0712-1003	●	●
1	TANK ASM; AIR (A)	1-48370-541-0	01	1	1004-	●	●
1	TANK ASM; AIR EXC. ANTI LOCK BRAKE<JE5> (A)	1-48370-541-0	01	1	1004-			●
5	UNION; AIR TANK ANTI LOCK BRAKE<JE5> (E) M16 & PT3/8 ELBOW	1-09650-438-0	03	1	1004-			●
5	UNION; AIR TANK ANTI LOCK BRAKE<JE5> (F) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1004-			●
5	UNION; AIR TANK EURO2 SPECIFICATION<NT2> (C) PT1/4 2WAY	1-09660-693-0	02	1	0812-1003	●
5	UNION; AIR TANK EURO2 SPECIFICATION<NT2> (C) PT1/4 2WAY	1-09660-693-0	02	1	1004-	●
5	UNION; AIR TANK EXC. ANTI LOCK BRAKE<JE5> (C) PT1/4 2WAY	1-09660-693-0	02	1	1004-			●
5	UNION; AIR TANK (D) M12 & PT3/8 ELBOW	1-09650-436-0	02	1	0712-0712		●
5	UNION; AIR TANK (D) M12 & PT3/8 ELBOW	1-09650-436-0	02	1	0801-0811	●	●
5	UNION; AIR TANK BRAKE REGULATION ADR<TDU> (D) M12 & PT3/8 ELBOW	1-09650-436-0	02	1	0812-	●
5	UNION; AIR TANK (D) M12 & PT3/8 ELBOW	1-09650-436-0	02	1	0812-		●
5	UNION; AIR TANK (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0712-0802	●	●
5	UNION; AIR TANK (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0803-1003	●	●
5	UNION; AIR TANK (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1004-	●	●
5	UNION; AIR TANK EXC. ANTI LOCK BRAKE<JE5> (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1004-			●
5	UNION; AIR TANK (B)	1-09650-449-1	02	1	0712-0802	●	●
5	UNION; AIR TANK (B)	8-98111-509-0	02	1	0803-1003	●	●
5	UNION; AIR TANK (B)	8-98111-509-0	02	1	1004-	●	●
5	UNION; AIR TANK EXC. ANTI LOCK BRAKE<JE5> (B)	8-98111-509-0	02	1	1004-			●
5	UNION; AIR TANK (C) PT1/4 2WAY	1-09660-693-0	02	1	0712-0802	●	●
5	UNION; AIR TANK (C) PT1/4 2WAY	1-09660-693-0	04	1	0803-0811	●	●
5	UNION; AIR TANK EURO4 SPECIFICATION<NT4> (C) PT1/4 2WAY	1-09660-693-0	04	1	0812-	●
5	UNION; AIR TANK (C) PT1/4 2WAY	1-09660-693-0	04	1	0812-		●
6	COCK; DRAIN,AIR TANK ANTI LOCK BRAKE<JE5>	1-48312-015-0	03	1	1004-			●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0712-0712		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0801-0811	●	●
6	COCK; DRAIN,AIR TANK BRAKE REGULATION ADR<TDU>	1-48312-015-0	01	1	0812-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0812-		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0712-1003	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1004-	●	●
6	COCK; DRAIN,AIR TANK EXC. ANTI LOCK BRAKE<JE5>	1-48312-015-0	04	1	1004-			●
7	GASKET; DRAIN COCK ANTI LOCK BRAKE<JE5> ID=14	1-09630-145-0	03	1	1004-			●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0712-0712		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0801-0811	●	●
7	GASKET; DRAIN COCK BRAKE REGULATION ADR<TDU> ID=14	1-09630-145-0	01	1	0812-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0812-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0712-1003	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1004-	●	●
7	GASKET; DRAIN COCK EXC. ANTI LOCK BRAKE<JE5> ID=14	1-09630-145-0	04	1	1004-			●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK ANTI LOCK BRAKE<JE5> STAMP 5.5	8-97609-249-0	02	1	1004-			●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EURO2 SPECIFICATION<NT2> STAMP 5.5	8-97609-249-0	01	1	0812-1003	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EURO2 SPECIFICATION<NT2> STAMP 5.5	8-97609-249-0	01	1	1004-	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. ANTI LOCK BRAKE<JE5> STAMP 5.5	8-97609-249-0	01	1	1004-			●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	8-97615-622-0	01	1	0712-0811	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EURO4 SPECIFICATION<NT4>	8-97615-622-0	01	1	0812-	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	8-97615-622-0	01	1	0812-		●
28	BRACKET; AIR TANK ANTI LOCK BRAKE<JE5> (E)	8-97622-813-1	01	1	1004-			●
28	BRACKET; AIR TANK ANTI LOCK BRAKE<JE5> (F)	8-97622-814-1	01	1	1004-			●
28	BRACKET; AIR TANK (D)	8-98111-673-1	01	1	0801-0811	●
28	BRACKET; AIR TANK BRAKE REGULATION ADR<TDU> (D)	8-98111-673-1	01	1	0812-	●
28	BRACKET; AIR TANK (B)	1-53318-338-6	02	1	0712-0802		●
28	BRACKET; AIR TANK (C)	8-98092-756-1	01	1	0712-0712		●
28	BRACKET; AIR TANK (C)	8-98092-756-1	01	1	0801-0811	●	●
28	BRACKET; AIR TANK BRAKE REGULATION ADR<TDU> (C)	8-98092-756-1	01	1	0812-	●
28	BRACKET; AIR TANK (C)	8-98092-756-1	01	1	0812-		●
28	BRACKET; AIR TANK (B)	1-53318-338-6	01	1	0712-0802	●
28	BRACKET; AIR TANK (B)	1-53318-338-6	02	1	0803-1003	●	●
28	BRACKET; AIR TANK (B)	1-53318-338-6	02	1	1004-	●	●
28	BRACKET; AIR TANK EXC. ANTI LOCK BRAKE<JE5> (B)	1-53318-338-6	02	1	1004-			●
28	BRACKET; AIR TANK (A)	1-53318-378-1	01	1	0712-0802	●
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	0712-1003	●	●
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	1004-	●	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-1003	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28650-820-0	02	1	1004-	●	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28651-025-0	04	1	0712-1003	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28651-025-0	04	1	1004-	●	●	●
54	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	0712-1003	●	●
54	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1004-	●	●	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	0712-1003	●	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	1004-	●	●	●
64	STAY; AIR TANK,MAIN ANTI LOCK BRAKE<JE5> (C)	1-48317-349-0	01	1	1004-			●
64	STAY; AIR TANK,MAIN (A)	1-53318-293-1	01	1	0712-1003	●	●
64	STAY; AIR TANK,MAIN (A)	1-53318-293-1	01	1	1004-	●	●	●
64	STAY; AIR TANK,MAIN (B)	8-94301-490-0	01	1	0712-1003	●	●
64	STAY; AIR TANK,MAIN (B)	8-94301-490-0	01	1	1004-	●	●
64	STAY; AIR TANK,MAIN EXC. ANTI LOCK BRAKE<JE5> (B)	8-94301-490-0	01	1	1004-			●
67	STAY; SUB TANK	1-48317-349-0	01	1	0712-0802	●	●
67	STAY; SUB TANK	8-97614-753-0	01	1	0803-1003	●	●
67	STAY; SUB TANK	8-97614-753-0	01	1	1004-	●	●	●
100	BOLT; MODULATOR ANTI LOCK BRAKE<JE5> (C) M10X25 FLANGE	0-28651-025-0	03	1	1502-			●
100	BOLT; MODULATOR ANTI LOCK BRAKE<JE5> (A) M8X80 FLANGE	0-28050-880-0	08	1	1004-			●
100	BOLT; MODULATOR ANTI LOCK BRAKE<JE5> (B) M8X20 FLANGE	0-28650-820-0	02	1	1004-			●
100	BOLT; MODULATOR ANTI LOCK BRAKE<JE5> (C) M10X25 FLANGE	0-28651-025-0	05	1	1004-1501			●
100	BOLT; MODULATOR ANTI LOCK BRAKE<JE5> (C) M10X25 FLANGE	0-28651-025-0	02	1	1502-			●
101	NUT; MODULATOR ANTI LOCK BRAKE<JE5> (A) M8 FLANGE	0-91180-108-0	04	1	1004-			●
101	NUT; MODULATOR ANTI LOCK BRAKE<JE5> (B) M10 FLANGE	0-91180-210-0	03	1	1004-			●
102	BRACKET; MODULATOR ANTI LOCK BRAKE<JE5> (A)	8-97622-071-0	01	1	1004-			●
102	BRACKET; MODULATOR ANTI LOCK BRAKE<JE5> (B)	8-97623-022-1	01	1	1004-			●
103	BOLT; BRKT ANTI LOCK BRAKE<JE5> M8X20 FLANGE	0-28650-820-0	03	1	1004-			●
104	NUT; BRKT ANTI LOCK BRAKE<JE5> (A) M10 FLANGE	0-91180-210-0	04	1	1004-			●
104	NUT; BRKT ANTI LOCK BRAKE<JE5> (B) M8 FLANGE	0-91180-108-0	02	1	1004-			●
104	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	04	1	0801-0811	●
104	NUT; BRKT BRAKE REGULATION ADR<TDU> (A) M10 FLANGE	0-91180-210-0	04	1	0812-1003	●
104	NUT; BRKT BRAKE REGULATION ADR<TDU> (A) M10	0-91110-510-0	04	1	1004-	●
107	MODULATOR; RR ANTI LOCK BRAKE<JE5>	1-48240-262-0	02	1	1004-			●
109	MODULATOR; FRT ANTI LOCK BRAKE<JE5>	1-48240-262-0	02	1	1004-			●
119	BOLT; STAY M8X20 FLANGE	0-28650-820-0	02	1	0712-1003	●	●
119	BOLT; STAY M8X20 FLANGE	0-28650-820-0	02	1	1004-	●	●	●
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (E) M16X2 & PT3/8 3WAY	1-09656-718-0	01	1	1004-			●
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (F)	8-98148-518-0	01	1	1004-			●
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (C) M16 & PT3/8 ELBOW	1-09650-438-0	04	1	1004-			●
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (C) M16 & PT3/8 ELBOW	1-09650-438-0	04	1	1004-			●
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR<TDU> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0812-1003	●
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR<TDU> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1004-	●
126	CONNECTOR; ELBOW (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1004-			●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0712-0802		●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0803-0811	●	●
126	CONNECTOR; ELBOW EURO4 SPECIFICATION<NT4> (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0812-1003	●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0812-1003		●
126	CONNECTOR; ELBOW EURO4 SPECIFICATION<NT4> (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1004-1004	●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1004-1004		●
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1004-1004			●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1004-	●	●	●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0712-1003	●	●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1004-	●	●	●
126	CONNECTOR; ELBOW (B) M20 & PT3/4	1-09650-261-2	01	1	0712-0802	●
126	CONNECTOR; ELBOW (D) PT1/4 2WAY	1-09660-693-0	01	1	0803-1003	●	●
126	CONNECTOR; ELBOW (D) PT1/4 2WAY	1-09660-693-0	01	1	1004-	●	●
126	CONNECTOR; ELBOW EXC. ANTI LOCK BRAKE<JE5> (D) PT1/4 2WAY	1-09660-693-0	01	1	1004-			●
126	CONNECTOR; ELBOW (C) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0712-0802	●
136	BRACKET; CLIP ANTI LOCK BRAKE<JE5> (A) L=55	1-47475-304-0	01	1	1004-			●
136	BRACKET; CLIP ANTI LOCK BRAKE<JE5> (B)	1-47478-941-0	01	1	1004-			●
136	BRACKET; CLIP ANTI LOCK BRAKE<JE5> (C)	1-53458-901-0	01	1	1004-			●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK ANTI LOCK BRAKE<JE5> STAMP 5.5	8-97609-249-0	01	1	1004-			●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EURO2 SPECIFICATION<NT2> STAMP 5.5	8-97609-249-0	02	1	0812-1003	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EURO2 SPECIFICATION<NT2> STAMP 5.5	8-97609-249-0	02	1	1004-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EXC. ANTI LOCK BRAKE<JE5> STAMP 5.5	8-97609-249-0	02	1	1004-			●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	02	1	0712-0811	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK EURO4 SPECIFICATION<NT4>	8-97615-622-0	02	1	0812-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	02	1	0812-		●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	0712-1003	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	1004-	●	●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	0712-1003	●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	1004-	●	●	●
174	COCK; AIR,INFLATOR EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE(SG4)	1-09680-099-0	01	1	0812-1003	●
174	COCK; AIR,INFLATOR EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE(SG4)	1-09680-099-0	01	1	1004-	●
174	COCK; AIR,INFLATOR	1-09680-099-0	01	1	1004-			●
175	CAP; AIR COCK EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE(SG4)	9-48319-102-0	01	1	0812-1003	●
175	CAP; AIR COCK EURO2 SPECIFICATION<NT2> TIRE INFLATOR DEVICE(SG4)	9-48319-102-0	01	1	1004-	●
175	CAP; AIR COCK	9-48319-102-0	01	1	1004-			●
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	0712-1003	●	●
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	1004-	●	●	●
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	0712-1003	●	●
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	1004-	●	●	●
317	CONNECTOR; MODULATOR ANTI LOCK BRAKE<JE5> M16 & PT3/8 ELBOW	1-09650-438-0	04	1	1004-			●

83 72 126 81 83 81 72 80 72 126 126 83 81 72 83 83 72 83 72 83 80 80 72 80 72 83 81 126 100 101 102 100 37 100 94 94 94 94 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0712-1003	●	●
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	1004-	●	●	●
72	BRACKET; AIR MASTER ANTI LOCK BRAKE<JE5> (G)	1-47537-136-1	02	1	1004-			●
72	BRACKET; AIR MASTER ANTI LOCK BRAKE<JE5> (B)	1-47537-137-1	02	1	1004-			●
72	BRACKET; AIR MASTER ANTI LOCK BRAKE<JE5> (C)	8-97624-033-0	01	1	1004-			●
72	BRACKET; AIR MASTER ANTI LOCK BRAKE<JE5> (D)	8-97624-035-0	01	1	1004-			●
72	BRACKET; AIR MASTER ANTI LOCK BRAKE<JE5> (E)	8-97624-061-0	01	1	1004-			●
72	BRACKET; AIR MASTER ANTI LOCK BRAKE<JE5> (F)	8-98094-200-0	01	1	1004-			●
72	BRACKET; AIR MASTER (A)	1-53318-347-0	02	1	0803-0805	●	●
72	BRACKET; AIR MASTER (A)	8-98120-254-0	02	1	0806-1003	●	●
72	BRACKET; AIR MASTER (A)	8-98120-254-0	02	1	1004-	●	●
72	BRACKET; AIR MASTER EXC. ANTI LOCK BRAKE<JE5> (A)	8-98120-254-0	02	1	1004-			●
80	BOLT; BRKT BRAKE REGULATION ADR<TDU> (A) M10X25 FLANGE	0-28651-025-0	04	1	1004-	●
80	BOLT; BRKT ANTI LOCK BRAKE<JE5> (D) M10X20 FLANGE	0-28651-020-0	04	1	1004-			●
80	BOLT; BRKT ANTI LOCK BRAKE<JE5> (A) M10X30 FLANGE	0-28651-030-0	14	1	1004-			●
80	BOLT; BRKT TRAILER BRAKE CONTROL<J91> (C) M8X16 FLANGE	0-28050-816-0	02	1	1004-			●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0806-		●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0712-0802		●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0803-0805	●	●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	03	1	0806-0811	●
80	BOLT; BRKT BRAKE REGULATION ADR<TDU> (B) M10X35 FLANGE	0-28651-035-0	03	1	0812-	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0712-0712	●	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0801-0811	●	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0801-0811	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	0812-1003	●	●
80	BOLT; BRKT BRAKE REGULATION ADR<TDU> (A) M10X30 FLANGE	0-28651-030-0	04	1	0812-1003	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1004-	●	●
80	BOLT; BRKT EXC. ANTI LOCK BRAKE<JE5> (A) M10X30 FLANGE	0-28651-030-0	04	1	1004-			●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. ANTI LOCK BRAKE<JE5> (B)	1-47800-826-0	04	1	1004-			●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. BRAKE REGULATION ADR<TDU> (A)	1-47800-663-1	02	1	0812-1003	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. BRAKE REGULATION ADR<TDU> (A)	1-47800-663-1	02	1	1004-	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. ANTI LOCK BRAKE<JE5> (A)	1-47800-663-1	02	1	1004-			●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. (A)	1-47800-665-1	02	1	0712-0811	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE REGULATION ADR<TDU> (A)	1-47800-665-1	02	1	0812-	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. (A)	1-47800-665-1	02	1	0812-		●
83	NUT; AIR MASTER ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	16	1	1004-			●
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	08	1	0803-1003	●	●
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	08	1	1004-	●	●
83	NUT; AIR MASTER EXC. ANTI LOCK BRAKE<JE5> M10 FLANGE	0-91180-210-0	08	1	1004-			●
94	NUT; BRKT FIX ANTI LOCK BRAKE<JE5> M10 FLANGE	0-91180-210-0	14	1	1004-			●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	02	1	0803-0805	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	01	1	0806-0811	●
94	NUT; BRKT FIX BRAKE REGULATION ADR<TDU> M10 FLANGE	0-91180-210-0	01	1	0812-	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	10	1	0803-0811	●	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	06	1	0812-1003	●	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	06	1	1004-	●	●
94	NUT; BRKT FIX EXC. ANTI LOCK BRAKE<JE5> M10 FLANGE	0-91180-210-0	06	1	1004-			●
94	NUT; BRKT FIX M10	0-91111-510-0	04	1	0712-0802		●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	0803-		●
100	BOLT; MODULATOR ANTI LOCK BRAKE<JE5> (C) M10X25 FLANGE	0-28651-025-0	03	1	1502-			●
100	BOLT; MODULATOR ANTI LOCK BRAKE<JE5> (A) M8X80 FLANGE	0-28050-880-0	08	1	1004-			●
100	BOLT; MODULATOR ANTI LOCK BRAKE<JE5> (B) M8X20 FLANGE	0-28650-820-0	02	1	1004-			●
100	BOLT; MODULATOR ANTI LOCK BRAKE<JE5> (C) M10X25 FLANGE	0-28651-025-0	05	1	1004-1501			●
100	BOLT; MODULATOR ANTI LOCK BRAKE<JE5> (C) M10X25 FLANGE	0-28651-025-0	02	1	1502-			●
101	NUT; MODULATOR ANTI LOCK BRAKE<JE5> (A) M8 FLANGE	0-91180-108-0	04	1	1004-			●
101	NUT; MODULATOR ANTI LOCK BRAKE<JE5> (B) M10 FLANGE	0-91180-210-0	03	1	1004-			●
102	BRACKET; MODULATOR ANTI LOCK BRAKE<JE5> (A)	8-97622-071-0	01	1	1004-			●
102	BRACKET; MODULATOR ANTI LOCK BRAKE<JE5> (B)	8-97623-022-1	01	1	1004-			●
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (E) M16X2 & PT3/8 3WAY	1-09656-718-0	01	1	1004-			●
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (F)	8-98148-518-0	01	1	1004-			●
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (C) M16 & PT3/8 ELBOW	1-09650-438-0	04	1	1004-			●
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (C) M16 & PT3/8 ELBOW	1-09650-438-0	04	1	1004-			●
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR<TDU> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0812-1003	●
126	CONNECTOR; ELBOW EXC. BRAKE REGULATION ADR<TDU> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1004-	●
126	CONNECTOR; ELBOW (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1004-			●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0712-0802		●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0803-0811	●	●
126	CONNECTOR; ELBOW EURO4 SPECIFICATION<NT4> (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0812-1003	●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0812-1003		●
126	CONNECTOR; ELBOW EURO4 SPECIFICATION<NT4> (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1004-1004	●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1004-1004		●
126	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1004-1004			●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1004-	●	●	●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	0712-1003	●	●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1004-	●	●	●
126	CONNECTOR; ELBOW (B) M20 & PT3/4	1-09650-261-2	01	1	0712-0802	●
126	CONNECTOR; ELBOW (D) PT1/4 2WAY	1-09660-693-0	01	1	0803-1003	●	●
126	CONNECTOR; ELBOW (D) PT1/4 2WAY	1-09660-693-0	01	1	1004-	●	●
126	CONNECTOR; ELBOW EXC. ANTI LOCK BRAKE<JE5> (D) PT1/4 2WAY	1-09660-693-0	01	1	1004-			●
126	CONNECTOR; ELBOW (C) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0712-0802	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
