Sayfa 3-11 - Isuzu EPC

3-11 — PARKING BRAKE CONTROL (#38159) — 248 parça

97 336 236 235 228 336 336 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35	8-94122-971-0	01	1	0812-1003	●
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35	8-94122-971-0	01	1	1004-	●
97	GROMMET; PARKING BRK CABLE (B) OD=35	8-94122-971-0	01	1	1004-		●
97	GROMMET; PARKING BRK CABLE (A)	8-98029-219-1	01	1	0712-0811	●		●
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	0812-	●
97	GROMMET; PARKING BRK CABLE (A)	8-98029-219-1	01	1	0812-			●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE	0-28650-825-0	03	1	0812-1003	●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE	0-28650-825-0	03	1	1004-	●
228	BOLT; CLIP RAD MTG (A) M8X25 FLANGE	0-28650-825-0	03	1	1004-		●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (C) M8X16 FLANGE	0-28050-816-0	01	1	0812-1003	●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (C) M8X16 FLANGE	0-28050-816-0	01	1	1004-	●
228	BOLT; CLIP RAD MTG (C) M8X16 FLANGE	0-28050-816-0	01	1	1004-		●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (A) M8X25 FLANGE	0-28650-825-0	01	1	0812-1003	●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (A) M8X25 FLANGE	0-28650-825-0	01	1	1004-	●
228	BOLT; CLIP RAD MTG (A) M8X25 FLANGE	0-28650-825-0	01	1	1004-		●
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-0811	●		●
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) (A) M8X25 FLANGE	0-28650-825-0	02	1	0812-	●		●
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE	0-28650-825-0	02	1	0812-	●
228	BOLT; CLIP RAD MTG (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0712-1003	●		●
228	BOLT; CLIP RAD MTG (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1004-	●	●	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-34656-009-0	01	1	0812-1003	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-34656-009-0	01	1	1004-	●
235	BRACKET; CONT CABLE TO FRAME (A)	1-34656-009-0	01	1	1004-		●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-97623-989-0	01	1	0812-1003	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-97623-989-0	01	1	1004-	●
235	BRACKET; CONT CABLE TO FRAME (C)	8-97623-989-0	01	1	1004-		●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98077-903-2	01	1	0812-1003	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98077-903-2	01	1	1004-	●
235	BRACKET; CONT CABLE TO FRAME (D)	8-98077-903-2	01	1	1004-		●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	8-98100-153-0	01	1	0812-1003	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	8-98100-153-0	01	1	1004-	●
235	BRACKET; CONT CABLE TO FRAME (E)	8-98100-153-0	01	1	1004-		●
235	BRACKET; CONT CABLE TO FRAME (B)	8-98044-674-0	01	1	0712-0808	●		●
235	BRACKET; CONT CABLE TO FRAME (B)	8-98126-426-0	01	1	0809-1003	●		●
235	BRACKET; CONT CABLE TO FRAME (B)	8-98126-426-0	01	1	1004-	●	●	●
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	0812-1003	●
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	1004-	●
236	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28650-825-0	03	1	1004-		●
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	01	1	0812-1003	●
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	01	1	1004-1504	●
236	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28651-030-0	01	1	1004-1504		●
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28051-030-0	01	1	1505-	●
236	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28051-030-0	01	1	1505-		●
236	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28650-825-0	01	1	0712-1003	●		●
236	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28650-825-0	01	1	1004-	●	●	●
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (C)	8-98080-965-0	01	1	0712-0802	●		●
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (C)	8-98109-874-0	01	1	0803-1309	●		●
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (C)	8-98251-873-0	01	1	1310-	●		●
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (B)	8-98081-003-1	01	1	0712-0901	●		●
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (B)	8-98139-517-0	01	1	0902-	●		●
336	BRACKET; RADIATOR EXC. GENERATOR 24V90A(K44) (A)	8-98065-276-0	01	1	0712-1003	●		●
336	BRACKET; RADIATOR EXC. GENERATOR 24V90A(K44) (A)	8-98065-276-0	01	1	1004-	●		●
336	BRACKET; RADIATOR (A)	8-98065-276-0	01	1	1004-		●

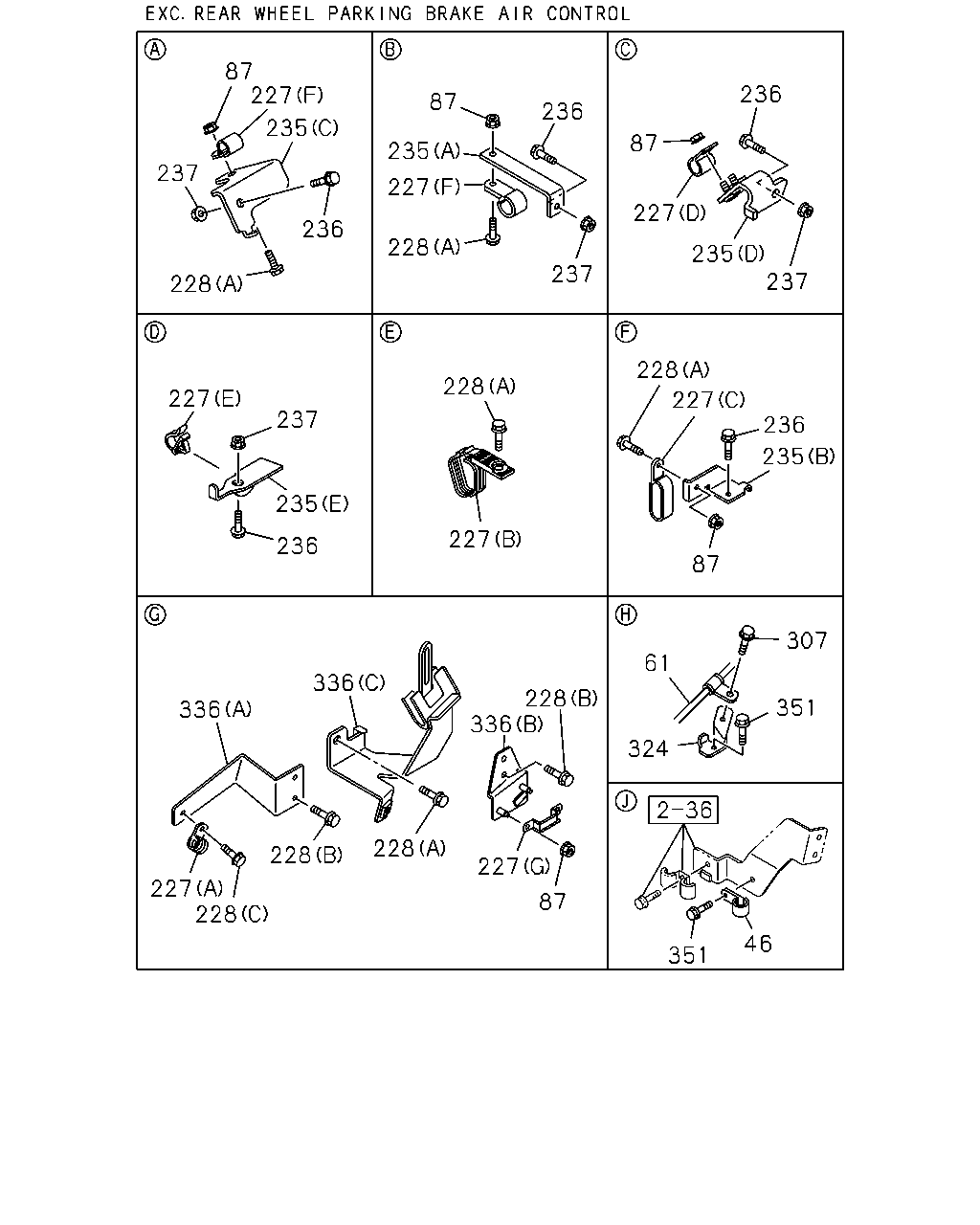

87 227 237 228 236 227 237 235 236 336 227 228 228 336 228 227 87 336 228 227 228 228 227 235 87 236 237 87 236 227 235 237 228 227 236 235 87 61 307 351 324 46 351

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20	0-95235-535-0	01	1	0812-1003	●
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20	0-95235-535-0	01	1	1004-	●
46	CLIP; FRT CABLE TO FLOOR ID=16 L=20	0-95235-535-0	01	1	1004-		●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=5029	8-98102-317-3	01	1	0812-1003	●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=5029	8-98102-317-3	01	1	1004-	●
61	CABLE; PARKING BRK L=5029	8-98102-317-3	01	1	1004-		●
87	NUT GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0812-	●
87	NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	04	1	0812-1003	●
87	NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	04	1	1004-	●
87	NUT M8 FLANGE	0-91180-108-0	04	1	1004-		●
227	CLIP; RAD GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=13 & 13 L=32	8-97389-264-0	02	1	0812-	●
227	CLIP; RAD GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G)	8-98080-966-0	01	1	0812-	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) ID=13 L=20	0-95235-235-0	02	1	0812-1003	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) ID=13 L=20	0-95235-235-0	02	1	1004-	●
227	CLIP; RAD (F) ID=13 L=20	0-95235-235-0	02	1	1004-		●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=16 L=20	0-95235-535-0	01	1	0812-1003	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=16 L=20	0-95235-535-0	01	1	1004-	●
227	CLIP; RAD (D) ID=16 L=20	0-95235-535-0	01	1	1004-		●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=9.5	5-09709-020-0	01	1	0812-1003	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=9.5	5-09709-020-0	01	1	1004-	●
227	CLIP; RAD (E) ID=9.5	5-09709-020-0	01	1	1004-		●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	0812-1003	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1004-1504	●
227	CLIP; RAD (B) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1004-1504		●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 & 10 & 10 L=43.5	8-98292-921-0	01	1	1505-	●
227	CLIP; RAD (B) ID=13 & 10 & 10 L=43.5	8-98292-921-0	01	1	1505-		●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (A) ID=26 L=26	1-09701-236-0	01	1	0812-1003	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (A) ID=26 L=26	1-09701-236-0	01	1	1004-	●
227	CLIP; RAD (A) ID=26 L=26	1-09701-236-0	01	1	1004-		●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (C) ID=13 & 13 L=32	8-97389-264-0	01	1	0812-1003	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (C) ID=13 & 13 L=32	8-97389-264-0	01	1	1004-	●
227	CLIP; RAD (C) ID=13 & 13 L=32	8-97389-264-0	01	1	1004-		●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE	0-28650-825-0	03	1	0812-1003	●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE	0-28650-825-0	03	1	1004-	●
228	BOLT; CLIP RAD MTG (A) M8X25 FLANGE	0-28650-825-0	03	1	1004-		●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (C) M8X16 FLANGE	0-28050-816-0	01	1	0812-1003	●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (C) M8X16 FLANGE	0-28050-816-0	01	1	1004-	●
228	BOLT; CLIP RAD MTG (C) M8X16 FLANGE	0-28050-816-0	01	1	1004-		●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (A) M8X25 FLANGE	0-28650-825-0	01	1	0812-1003	●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), GENERATOR 24V90A(K44) (A) M8X25 FLANGE	0-28650-825-0	01	1	1004-	●
228	BOLT; CLIP RAD MTG (A) M8X25 FLANGE	0-28650-825-0	01	1	1004-		●
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-0811	●		●
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) (A) M8X25 FLANGE	0-28650-825-0	02	1	0812-	●		●
228	BOLT; CLIP RAD MTG GENERATOR 24V90A(K44) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE	0-28650-825-0	02	1	0812-	●
228	BOLT; CLIP RAD MTG (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0712-1003	●		●
228	BOLT; CLIP RAD MTG (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1004-	●	●	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-34656-009-0	01	1	0812-1003	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-34656-009-0	01	1	1004-	●
235	BRACKET; CONT CABLE TO FRAME (A)	1-34656-009-0	01	1	1004-		●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-97623-989-0	01	1	0812-1003	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-97623-989-0	01	1	1004-	●
235	BRACKET; CONT CABLE TO FRAME (C)	8-97623-989-0	01	1	1004-		●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98077-903-2	01	1	0812-1003	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98077-903-2	01	1	1004-	●
235	BRACKET; CONT CABLE TO FRAME (D)	8-98077-903-2	01	1	1004-		●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	8-98100-153-0	01	1	0812-1003	●
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	8-98100-153-0	01	1	1004-	●
235	BRACKET; CONT CABLE TO FRAME (E)	8-98100-153-0	01	1	1004-		●
235	BRACKET; CONT CABLE TO FRAME (B)	8-98044-674-0	01	1	0712-0808	●		●
235	BRACKET; CONT CABLE TO FRAME (B)	8-98126-426-0	01	1	0809-1003	●		●
235	BRACKET; CONT CABLE TO FRAME (B)	8-98126-426-0	01	1	1004-	●	●	●
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	0812-1003	●
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	03	1	1004-	●
236	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28650-825-0	03	1	1004-		●
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	01	1	0812-1003	●
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	01	1	1004-1504	●
236	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28651-030-0	01	1	1004-1504		●
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28051-030-0	01	1	1505-	●
236	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28051-030-0	01	1	1505-		●
236	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28650-825-0	01	1	0712-1003	●		●
236	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28650-825-0	01	1	1004-	●	●	●
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	03	1	0812-1003	●
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	03	1	1004-	●
237	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	03	1	1004-		●
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	01	1	0812-1003	●
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	01	1	1004-	●
237	NUT; BRKT TO FRAME M10 FLANGE	0-91180-210-0	01	1	1004-		●
307	BOLT; BRKT,PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER	0-51640-825-0	01	1	0812-1003	●
307	BOLT; BRKT,PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER	0-51640-825-0	01	1	1004-	●
307	BOLT; BRKT,PARKING BRK CABLE M8X25 W/WASHER	0-51640-825-0	01	1	1004-		●
324	BRACKET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-482-1	01	1	0812-1003	●
324	BRACKET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-482-1	01	1	1004-	●
324	BRACKET	8-98067-482-1	01	1	1004-		●
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (C)	8-98080-965-0	01	1	0712-0802	●		●
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (C)	8-98109-874-0	01	1	0803-1309	●		●
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (C)	8-98251-873-0	01	1	1310-	●		●
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (B)	8-98081-003-1	01	1	0712-0901	●		●
336	BRACKET; RADIATOR GENERATOR 24V90A(K44) (B)	8-98139-517-0	01	1	0902-	●		●
336	BRACKET; RADIATOR EXC. GENERATOR 24V90A(K44) (A)	8-98065-276-0	01	1	0712-1003	●		●
336	BRACKET; RADIATOR EXC. GENERATOR 24V90A(K44) (A)	8-98065-276-0	01	1	1004-	●		●
336	BRACKET; RADIATOR (A)	8-98065-276-0	01	1	1004-		●
351	BOLT; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER	0-51640-825-0	03	1	0812-1003	●
351	BOLT; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER	0-51640-825-0	03	1	1004-	●
351	BOLT; CLIP M8X25 W/WASHER	0-51640-825-0	03	1	1004-		●

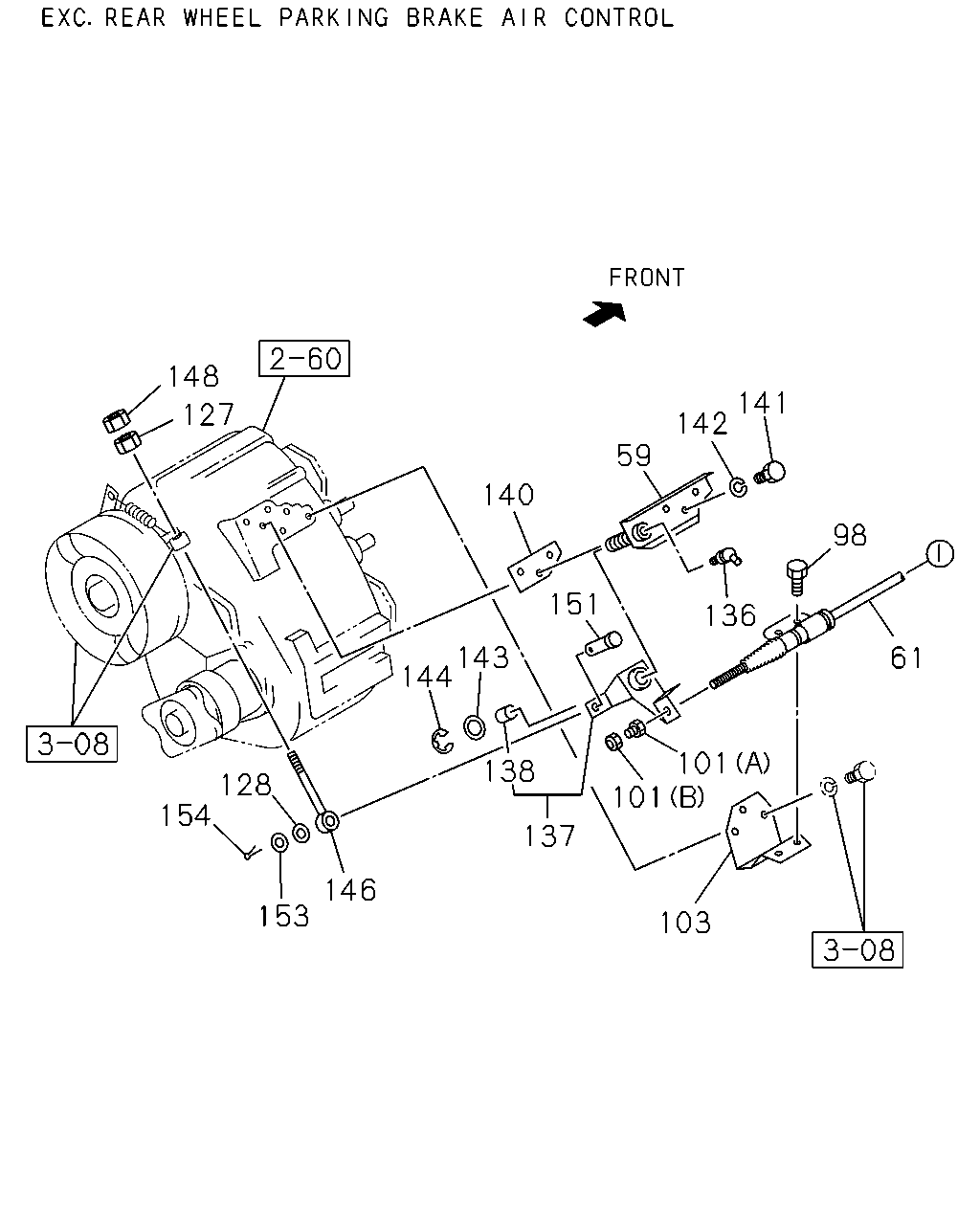

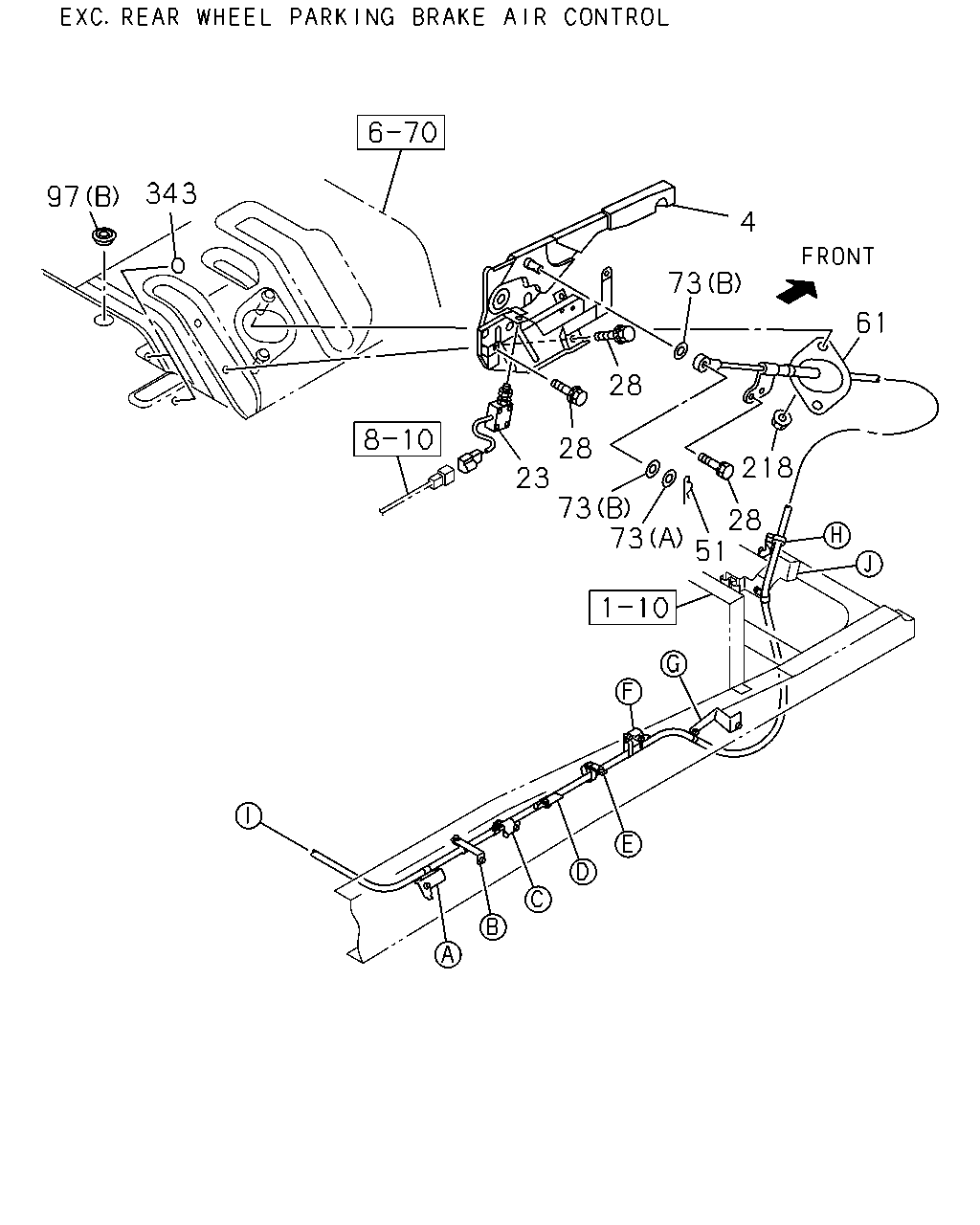

97 343 4 73 28 28 218 28 23 73 73 51 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	STEM; PARKING BRK	1-79996-549-0	01	1	1004-		●
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-548-0	01	1	0812-0906	●
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-548-0	01	1	0907-	●
23	SWITCH; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82440-100-0	01	1	0812-0906	●
23	SWITCH; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82440-100-0	01	1	0907-1003	●
23	SWITCH; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82440-100-0	01	1	1004-	●
23	SWITCH; PARKING BRK	1-82440-100-0	01	1	1004-		●
28	BOLT; HAND BRK LEVER M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1004-		●
28	BOLT; HAND BRK LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0812-0904	●
28	BOLT; HAND BRK LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-	●
51	PIN; JOINT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09987-243-1	01	1	0812-1003	●
51	PIN; JOINT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09987-243-1	01	1	1004-	●
51	PIN; JOINT,RELAY LEVER	1-09987-243-1	01	1	1004-		●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=5029	8-98102-317-3	01	1	0812-1003	●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=5029	8-98102-317-3	01	1	1004-	●
61	CABLE; PARKING BRK L=5029	8-98102-317-3	01	1	1004-		●
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30	0-91610-516-0	01	1	0812-1003	●
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30	0-91610-516-0	01	1	1004-	●
73	WASHER; PL,CABLE (A) ID=17 OD=30	0-91610-516-0	01	1	1004-		●
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19	8-94206-429-1	02	1	0812-1003	●
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19	8-94206-429-1	02	1	1004-	●
73	WASHER; PL,CABLE (B) ID=19	8-94206-429-1	02	1	1004-		●
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35	8-94122-971-0	01	1	0812-1003	●
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35	8-94122-971-0	01	1	1004-	●
97	GROMMET; PARKING BRK CABLE (B) OD=35	8-94122-971-0	01	1	1004-		●
97	GROMMET; PARKING BRK CABLE (A)	8-98029-219-1	01	1	0712-0811	●		●
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	0812-	●
97	GROMMET; PARKING BRK CABLE (A)	8-98029-219-1	01	1	0812-			●
218	NUT; BRKT,PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0812-1003	●
218	NUT; BRKT,PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1004-	●
218	NUT; BRKT,PARKING BRK CABLE M8 FLANGE	0-91180-108-0	02	1	1004-		●
343	SEAL OD=25 BLACK	1-76798-019-0	04	1	1105-		●
343	SEAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	05	1	0812-1003	●
343	SEAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	05	1	1004-1104	●
343	SEAL OD=25 BLACK	1-76798-019-0	05	1	1004-1104		●
343	SEAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	05	1	1105-	●

148 141 142 127 59 140 98 151 136 143 144 61 101 101 138 128 154 137 146 153 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
59	BRACKET; RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C>	1-46276-030-1	01	1	0812-1003	●
59	BRACKET; RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C>	1-46276-030-1	01	1	1004-	●
59	BRACKET; RELAY LEVER	1-46276-030-1	01	1	1004-		●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=5029	8-98102-317-3	01	1	0812-1003	●
61	CABLE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=5029	8-98102-317-3	01	1	1004-	●
61	CABLE; PARKING BRK L=5029	8-98102-317-3	01	1	1004-		●
98	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	0812-1003	●
98	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	1004-	●
98	BOLT; RR COVER M10X30 FLANGE	0-28651-030-0	02	1	1004-		●
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE	0-91180-108-0	01	1	0812-1003	●
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE	0-91180-108-0	01	1	1004-	●
101	NUT; CABLE TO LEVER (B) M8 FLANGE	0-91180-108-0	01	1	1004-		●
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-46259-007-0	01	1	0812-1003	●
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-46259-007-0	01	1	1004-	●
101	NUT; CABLE TO LEVER (A)	1-46259-007-0	01	1	1004-		●
103	BRACKET; PARKING BRK CONT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C>	1-46147-052-1	01	1	0812-1003	●
103	BRACKET; PARKING BRK CONT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C>	1-46147-052-1	01	1	1004-	●
103	BRACKET; PARKING BRK CONT	1-46147-052-1	01	1	1004-		●
127	NUT; LINK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C>	1-09445-001-0	01	1	0812-1003	●
127	NUT; LINK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C>	1-09445-001-0	01	1	1004-	●
127	NUT; LINK	1-09445-001-0	01	1	1004-		●
128	WASHER; PL,LINK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> ID=10.5	0-91610-510-0	01	1	0812-1003	●
128	WASHER; PL,LINK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> ID=10.5	0-91610-510-0	01	1	1004-	●
128	WASHER; PL,LINK ID=10.5	0-91610-510-0	01	1	1004-		●
136	NIPPLE; GREASE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0812-1003	●
136	NIPPLE; GREASE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1004-	●
136	NIPPLE; GREASE PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1004-		●
137	LEVER ASM; W/BUSHING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C>	1-46140-098-1	01	1	0812-1001	●
137	LEVER ASM; W/BUSHING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C>	1-46140-119-0	01	1	1002-1003	●
137	LEVER ASM; W/BUSHING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C>	1-46140-119-0	01	1	1004-	●
137	LEVER ASM; W/BUSHING	1-46140-119-0	01	1	1004-		●
138	BUSHING; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C>	1-46149-003-0	01	1	0812-1001	●
138	BUSHING; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C>	1-46149-031-0	01	1	1002-1003	●
138	BUSHING; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C>	1-46149-031-0	01	1	1004-	●
138	BUSHING; LEVER	1-46149-031-0	01	1	1004-		●
140	PLATE; DIST PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C>	1-46149-016-0	01	1	0812-1003	●
140	PLATE; DIST PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C>	1-46149-016-0	01	1	1004-	●
140	PLATE; DIST PARKING BRK	1-46149-016-0	01	1	1004-		●
141	BOLT; BRKT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> M12X38	0-23801-238-0	03	1	0812-1003	●
141	BOLT; BRKT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> M12X38	0-23801-238-0	03	1	1004-	●
141	BOLT; BRKT,RELAY LEVER M12X38	0-23801-238-0	03	1	1004-		●
142	WASHER; LK,BRKT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> ID=12.2	0-91510-512-0	03	1	0812-1003	●
142	WASHER; LK,BRKT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> ID=12.2	0-91510-512-0	03	1	1004-	●
142	WASHER; LK,BRKT,RELAY LEVER ID=12.2	0-91510-512-0	03	1	1004-		●
143	WASHER; PL,BRKT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> ID=19	9-09160-518-0	01	1	0812-1003	●
143	WASHER; PL,BRKT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> ID=19	9-09160-518-0	01	1	1004-	●
143	WASHER; PL,BRKT,RELAY LEVER ID=19	9-09160-518-0	01	1	1004-		●
144	RING; SNAP,E TYPE,BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> ID=15	9-09185-015-0	01	1	0812-1003	●
144	RING; SNAP,E TYPE,BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> ID=15	9-09185-015-0	01	1	1004-	●
144	RING; SNAP,E TYPE,BRKT ID=15	9-09185-015-0	01	1	1004-		●
146	ROD; LINK,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C>	1-46142-048-0	01	1	0812-1003	●
146	ROD; LINK,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C>	1-46142-048-0	01	1	1004-	●
146	ROD; LINK,PARKING BRK	1-46142-048-0	01	1	1004-		●
148	NUT; LK,LINK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> M10	0-91110-510-0	01	1	0812-1003	●
148	NUT; LK,LINK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> M10	0-91110-510-0	01	1	1004-	●
148	NUT; LK,LINK M10	0-91110-510-0	01	1	1004-		●
151	PIN; LINK TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> OD=10 L=31	9-08234-031-0	01	1	0812-1003	●
151	PIN; LINK TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> OD=10 L=31	9-08234-031-0	01	1	1004-	●
151	PIN; LINK TO LEVER OD=10 L=31	9-08234-031-0	01	1	1004-		●
153	WASHER; WAVE,LINK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C>	9-09855-192-0	01	1	0812-1003	●
153	WASHER; WAVE,LINK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C>	9-09855-192-0	01	1	1004-	●
153	WASHER; WAVE,LINK	9-09855-192-0	01	1	1004-		●
154	PIN; SPLIT,LINK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> OD=2.8 L=18	0-81123-018-0	01	1	0812-1003	●
154	PIN; SPLIT,LINK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> OD=2.8 L=18	0-81123-018-0	01	1	1004-	●
154	PIN; SPLIT,LINK OD=2.8 L=18	0-81123-018-0	01	1	1004-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
