3-10 — BRAKE PEDAL AND CONTROL (#38158) — 67 parça

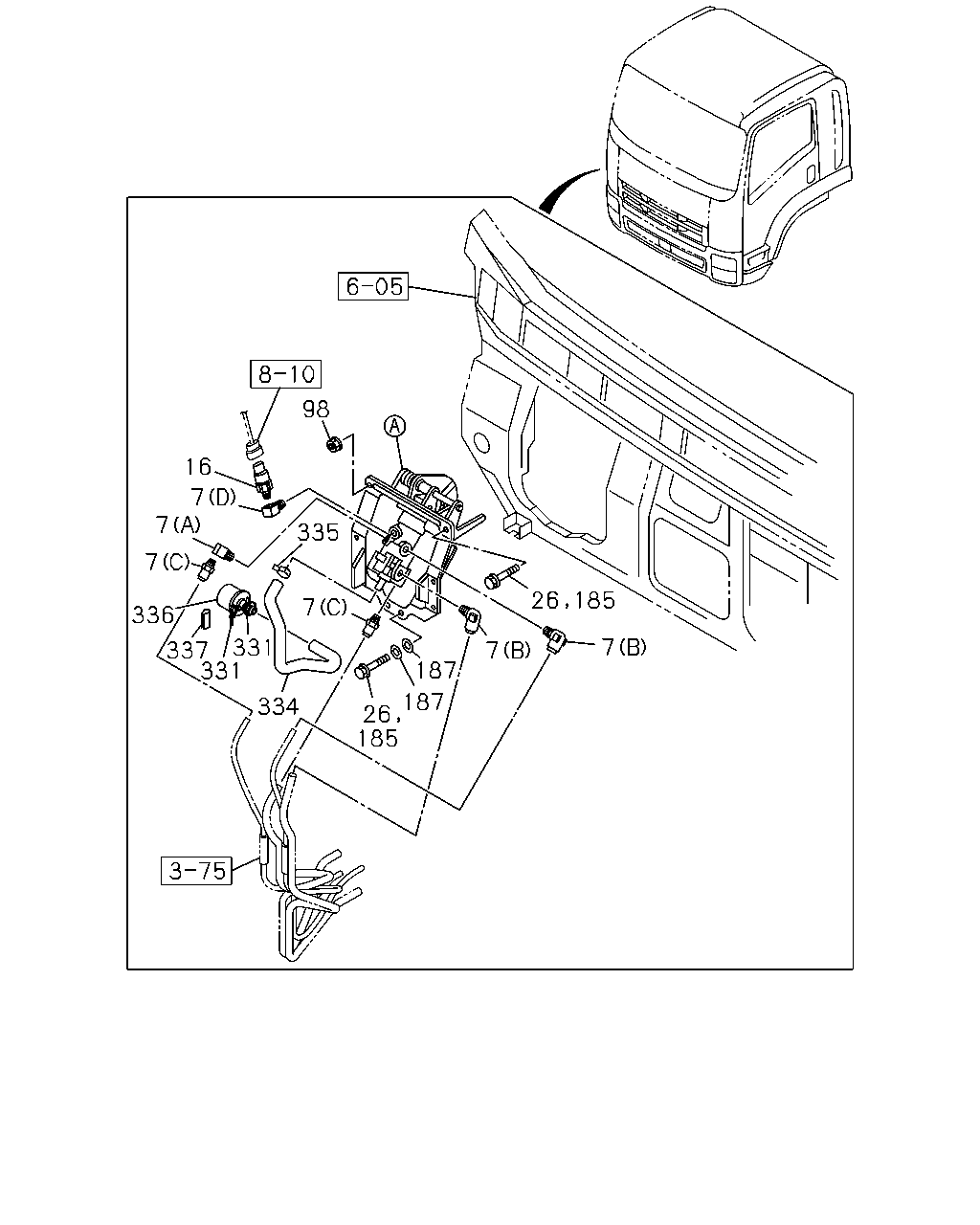

98 16 7 335 7 7 7 336 7 337 331 331 187 7 187 26 185 334 26 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	CONNECTOR; BRK VALVE (D) PT1/4 2WAY	1-09660-693-0	01	1	0712-1003	●	●
7	CONNECTOR; BRK VALVE (D) PT1/4 2WAY	1-09660-693-0	01	1	1004-	●	●	●
7	CONNECTOR; BRK VALVE (A) PT3/8 ELBOW	1-09660-696-0	01	1	0712-1003	●	●
7	CONNECTOR; BRK VALVE (A) PT3/8 ELBOW	1-09660-696-0	01	1	1004-	●	●	●
7	CONNECTOR; BRK VALVE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0712-1003	●	●
7	CONNECTOR; BRK VALVE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1004-	●	●	●
7	CONNECTOR; BRK VALVE (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0712-1003	●	●
7	CONNECTOR; BRK VALVE (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1004-	●	●	●
16	SWITCH; STOP LAMP STAMP 0.3	8-98010-857-0	01	1	0712-1003	●	●
16	SWITCH; STOP LAMP STAMP 0.3	8-98010-857-0	01	1	1004-	●	●	●
26	BOLT; PEDAL M8X25 FLANGE	8-98057-109-0	07	1	0712-0908	●	●
98	NUT; BRKT M8 FLANGE	0-91180-208-0	01	1	0712-1003	●	●
98	NUT; BRKT M8 FLANGE	0-91180-208-0	01	1	1004-	●	●	●
185	BOLT; BRKT M8X25 FLANGE	8-98057-109-0	07	1	0909-1003	●	●
185	BOLT; BRKT M8X25 FLANGE	8-98057-109-0	07	1	1004-1506	●	●	●
185	BOLT; BRKT M8X25 HEXALOBULAR	8-98316-699-0	07	1	1507-	●	●	●
187	WASHER; PL,BRKT ID=8.4 OD=26	0-91614-808-0	04	1	0712-1003	●	●
187	WASHER; PL,BRKT ID=8.4 OD=26	0-91614-808-0	04	1	1004-1506	●	●	●
187	WASHER; PL,BRKT ID=8.4 OD=26	8-98316-762-0	04	1	1507-	●	●	●
331	CLIP; BAND L=197	1-83574-032-0	02	1	0712-0811	●	●
331	CLIP; BAND AUSTRALIA EQUIPMENT(B13) L=197	1-83574-032-0	02	1	0812-	●
331	CLIP; BAND L=197	1-83574-032-0	02	1	0812-		●
334	HOSE; AIR,BRK EXC. AUSTRALIA EQUIPMENT(B13)	8-97611-145-3	01	1	0812-1003	●
334	HOSE; AIR,BRK EXC. AUSTRALIA EQUIPMENT(B13)	8-97611-145-3	01	1	1004-	●
334	HOSE; AIR,BRK	8-97611-145-3	01	1	1004-			●
334	HOSE; AIR,BRK	8-98017-118-4	01	1	0712-0811	●	●
334	HOSE; AIR,BRK AUSTRALIA EQUIPMENT(B13)	8-98017-118-4	01	1	0812-	●
334	HOSE; AIR,BRK	8-98017-118-4	01	1	0812-		●
335	CLAMP; HOSE ID=24	8-98025-921-0	01	1	0712-1003	●	●
335	CLAMP; HOSE ID=24	8-98025-921-0	01	1	1004-	●	●	●
336	SILENCER; AIR	1-48199-544-0	01	1	0712-0811	●	●
336	SILENCER; AIR BRAKE REGULATION ADR<TDU>	1-48199-544-0	01	1	0812-	●
336	SILENCER; AIR	1-48199-544-0	01	1	0812-		●
337	PROTECTOR; AIR BRK L=30	8-94273-221-0	01	1	0712-0811	●	●
337	PROTECTOR; AIR BRK AUSTRALIA EQUIPMENT(B13) L=30	8-94273-221-0	01	1	0812-0906	●
337	PROTECTOR; AIR BRK L=30	8-94273-221-0	01	1	0812-0906		●
337	PROTECTOR; AIR BRK AUSTRALIA EQUIPMENT(B13) L=30	8-94270-377-1	01	1	0907-	●
337	PROTECTOR; AIR BRK L=30	8-94270-377-1	01	1	0907-		●

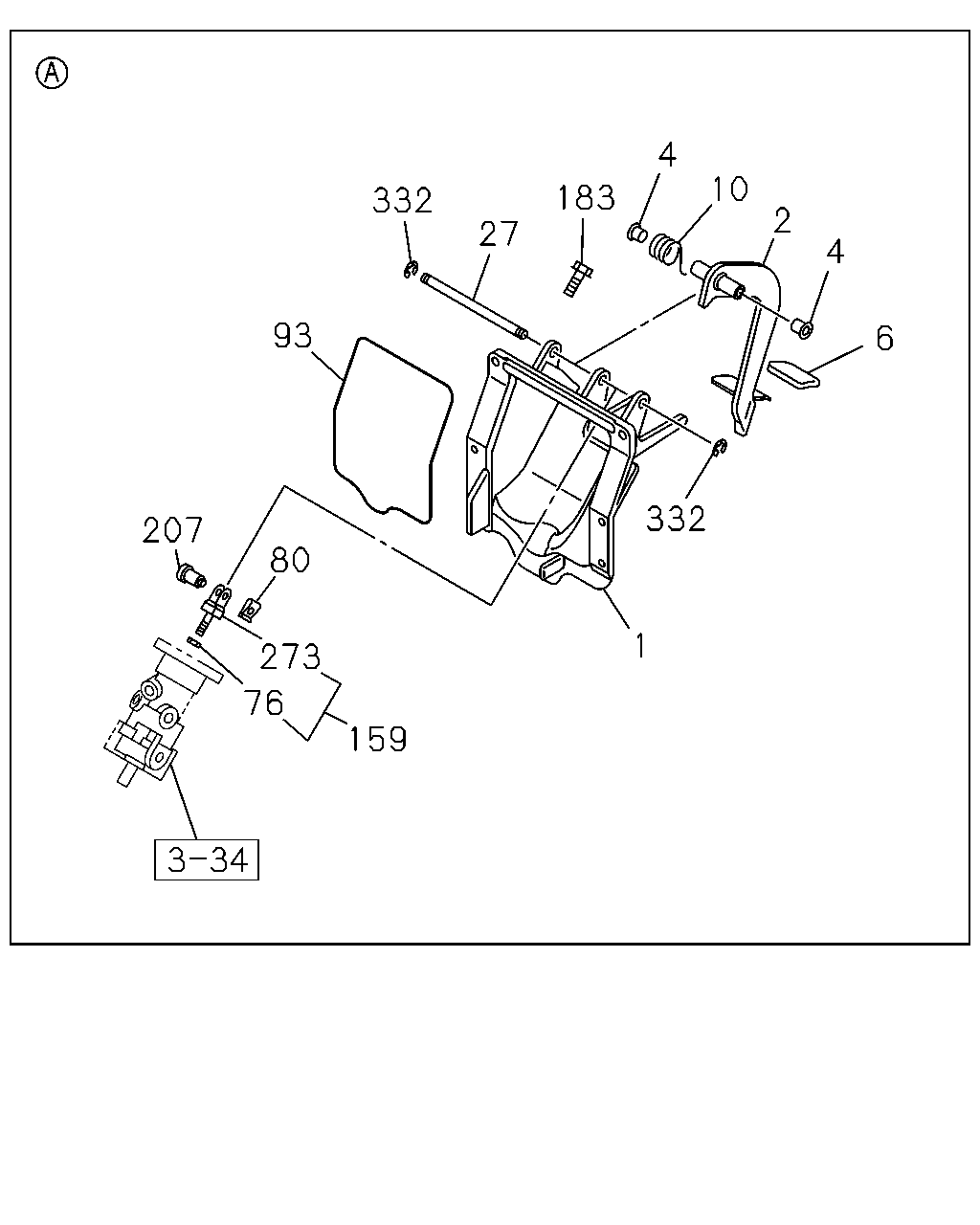

4 10 183 332 2 27 4 93 6 332 207 80 1 273 76 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BRACKET ASM; PEDAL	8-98071-972-1	01	1	0712-1003	●	●
1	BRACKET ASM; PEDAL	8-98071-972-1	01	1	1004-	●	●	●
2	PEDAL; BRK	8-98057-226-0	01	1	0712-1003	●	●
2	PEDAL; BRK	8-98057-226-0	01	1	1004-	●	●	●
4	BUSHING; BRK PEDAL	8-94238-596-0	02	1	0712-1003	●	●
4	BUSHING; BRK PEDAL	8-94238-596-0	02	1	1004-	●	●	●
6	COVER; BRK PEDAL	8-98056-865-0	01	1	0712-1003	●	●
6	COVER; BRK PEDAL	8-98056-865-0	01	1	1004-	●	●	●
10	SPRING; RETURN,BRK PEDAL	8-98057-232-1	01	1	0712-1003	●	●
10	SPRING; RETURN,BRK PEDAL	8-98057-232-1	01	1	1004-	●	●	●
27	SHAFT; BRK PEDAL	8-98057-231-0	01	1	0712-1003	●	●
27	SHAFT; BRK PEDAL	8-98057-231-0	01	1	1004-	●	●	●
76	NUT; PUSH ROD M8 FLANGE	0-91180-108-0	01	1	0712-1003	●	●
76	NUT; PUSH ROD M8 FLANGE	0-91180-108-0	01	1	1004-	●	●	●
80	PIN; SNAP,BRK PEDAL	8-98007-161-0	01	1	0712-1003	●	●
80	PIN; SNAP,BRK PEDAL	8-98007-161-0	01	1	1004-	●	●	●
93	SEAL; BRK PEDAL	1-48199-534-0	01	1	0712-1003	●	●
93	SEAL; BRK PEDAL	1-48199-534-0	01	1	1004-	●	●	●
159	ROD ASM; PUSH,BRK	8-98057-234-0	01	1	0712-1003	●	●
159	ROD ASM; PUSH,BRK	8-98057-234-0	01	1	1004-	●	●	●
183	BOLT; BRK VLV M8X30 FLANGE	0-28660-830-0	04	1	0712-1003	●	●
183	BOLT; BRK VLV M8X30 FLANGE	0-28660-830-0	04	1	1004-	●	●	●
207	PIN; JOINT,BRK PEDAL LINK	8-97387-230-0	01	1	0712-1003	●	●
207	PIN; JOINT,BRK PEDAL LINK	8-97387-230-0	01	1	1004-1007	●	●	●
207	PIN; JOINT,BRK PEDAL LINK	8-98147-657-0	01	1	1008-	●	●	●
273	ROD; PULL	8-98057-233-0	01	1	0712-1003	●	●
273	ROD; PULL	8-98057-233-0	01	1	1004-	●	●	●
332	RING; SNAP ID=12	0-91805-512-0	02	1	0712-1003	●	●
332	RING; SNAP ID=12	0-91805-512-0	02	1	1004-	●	●	●
