◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 3 - Brakes, Brake System ▶ 3-08 - PARKING BRAKE ▶
3-08 — PARKING BRAKE (#38157) — 46 parça

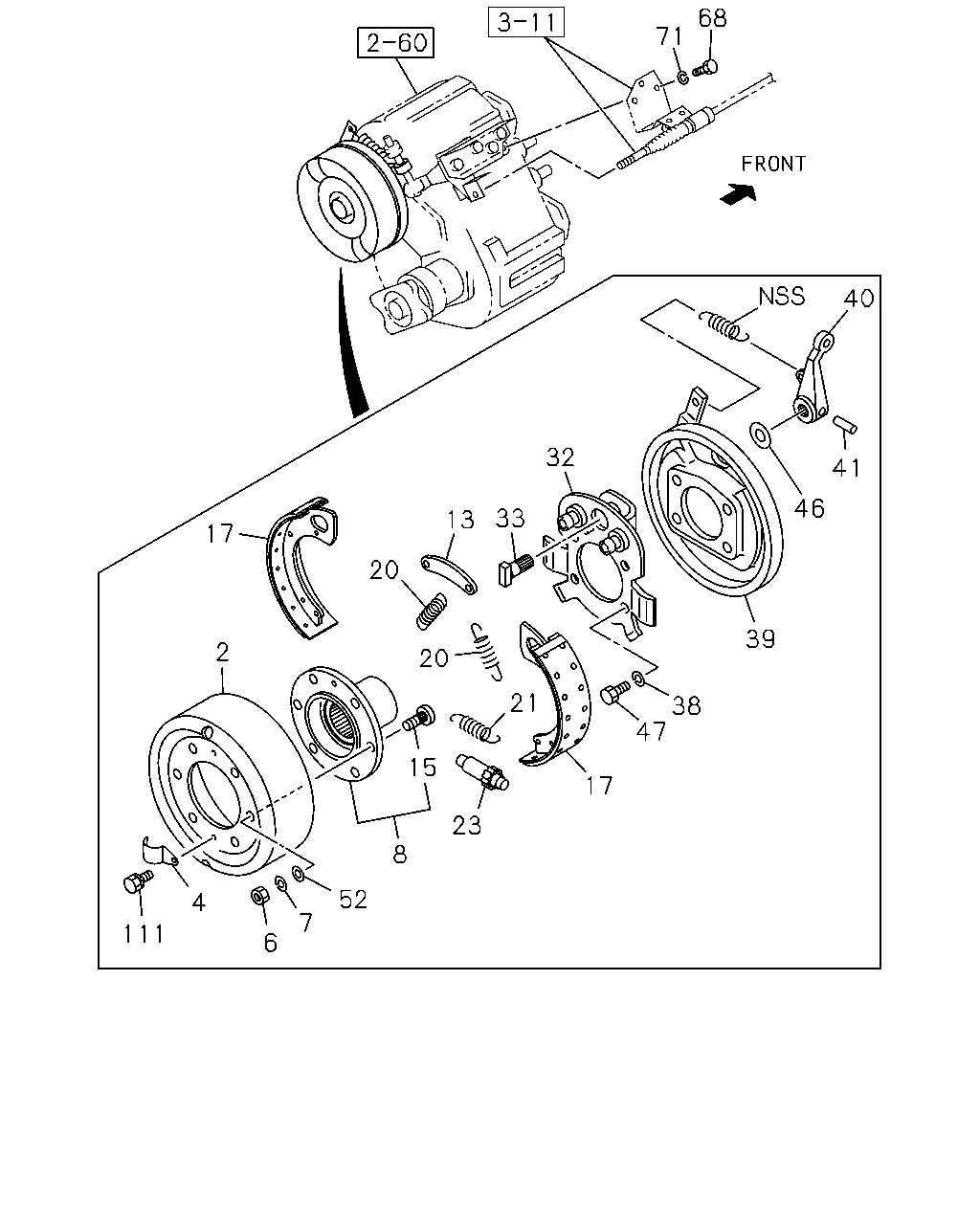

çizim 182041
68 71 40 32 41 46 33 13 17 20 39 2 20 21 38 47 15 17 23 8 52 4 7 111 6
BalonParca AdiParca NoAdetTipApplied Date A B C
2 DRUM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-46211-004-1 01 1 0812-0906 ● ●
2 DRUM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-46211-004-1 01 1 0907- ● ● ●
4 COVER; ADJ HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		9-46219-015-1 02 1 0812-0906 ● ●
4 COVER; ADJ HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		9-46219-015-1 02 1 0907- ● ● ●
6 NUT; FLANGE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> M12 		0-91110-512-0 04 1 0812-0906 ● ●
6 NUT; FLANGE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> M12 		0-91110-512-0 04 1 0907- ● ● ●
7 WASHER; LK,FLANGE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> ID=12.2 		0-91510-512-0 04 1 0812-0906 ● ●
7 WASHER; LK,FLANGE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> ID=12.2 		0-91510-512-0 04 1 0907- ● ● ●
8 FLANGE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-37240-049-1 01 1 0812-0906 ● ●
8 FLANGE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-37240-049-1 01 1 0907- ● ● ●
13 BRACE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		9-46239-003-0 01 1 0812-0906 ● ●
13 BRACE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		9-46239-003-0 01 1 0907- ● ● ●
15 BOLT; FLANGE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> M12X39 		8-97365-446-0 04 1 0812-0906 ● ●
15 BOLT; FLANGE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> M12X39 		8-97365-446-0 04 1 0907- ● ● ●
17 SHOE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-46220-029-0 02 1 0812-0906 ● ●
17 SHOE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-46220-029-0 02 1 0907- ● ● ●
20 SPRING; RETURN,SECONDARY,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		9-09942-567-1 02 1 0812-0906 ● ●
20 SPRING; RETURN,SECONDARY,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		9-09942-567-1 02 1 0907- ● ● ●
21 SPRING; RETURN,PARKING BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-09583-268-0 01 1 0812-0906 ● ●
21 SPRING; RETURN,PARKING BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-09583-268-0 01 1 0907- ● ● ●
23 SCREW; ADJ,PARKING BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		9-46240-008-0 01 1 0812-0906 ● ●
23 SCREW; ADJ,PARKING BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		9-46240-008-0 01 1 0907- ● ● ●
32 PLATE; SUPPORT,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-46213-023-0 01 1 0812-0906 ● ●
32 PLATE; SUPPORT,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-46213-023-0 01 1 0907- ● ● ●
33 SHAFT; CAM,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-46251-005-0 01 1 0812-0906 ● ●
33 SHAFT; CAM,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-46251-005-0 01 1 0907- ● ● ●
38 WASHER; LK,SUPPORT PLATE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> ID=14.2 		0-91510-514-0 04 1 0812-0906 ● ●
38 WASHER; LK,SUPPORT PLATE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> ID=14.2 		0-91510-514-0 04 1 0907- ● ● ●
39 COVER; DUST,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-46213-020-0 01 1 0812-0906 ● ●
39 COVER; DUST,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-46213-020-0 01 1 0907- ● ● ●
40 LEVER; CM/SHF,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-46252-003-0 01 1 0812-0906 ● ●
40 LEVER; CM/SHF,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-46252-003-0 01 1 0907- ● ● ●
41 PIN; KNOCK,LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		9-09878-594-0 01 1 0812-0906 ● ●
41 PIN; KNOCK,LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		9-09878-594-0 01 1 0907- ● ● ●
46 WASHER; LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		9-09855-367-0 01 1 0812-0906 ● ●
46 WASHER; LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		9-09855-367-0 01 1 0907- ● ● ●
47 BOLT; SUPPORT PLATE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> M14X32 		0-23801-432-0 04 1 0812-0906 ● ●
47 BOLT; SUPPORT PLATE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> M14X32 		0-23801-432-0 04 1 0907- ● ● ●
52 WASHER; PL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> ID=12.5 		9-09164-512-0 04 1 0812-0906 ● ●
52 WASHER; PL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> ID=12.5 		9-09164-512-0 04 1 0907- ● ● ●
68 BOLT; BRKT,PARKING BRK CONT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> M10X20 		0-23801-020-0 03 1 0812-0906 ● ●
68 BOLT; BRKT,PARKING BRK CONT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> M10X20 		0-23801-020-0 03 1 0907- ● ● ●
71 WASHER; LK,BRKT FIX,PARKING
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> ID=10.2 		0-91510-510-0 03 1 0812-0906 ● ●
71 WASHER; LK,BRKT FIX,PARKING
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> ID=10.2 		0-91510-510-0 03 1 0907- ● ● ●
111 BOLT; COVER,CHECK HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> M8X18 W/LK WASHER 		0-50040-818-0 02 1 0812-0906 ● ●
111 BOLT; COVER,CHECK HOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> M8X18 W/LK WASHER 		0-50540-818-0 02 1 0907- ● ● ●
