◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶

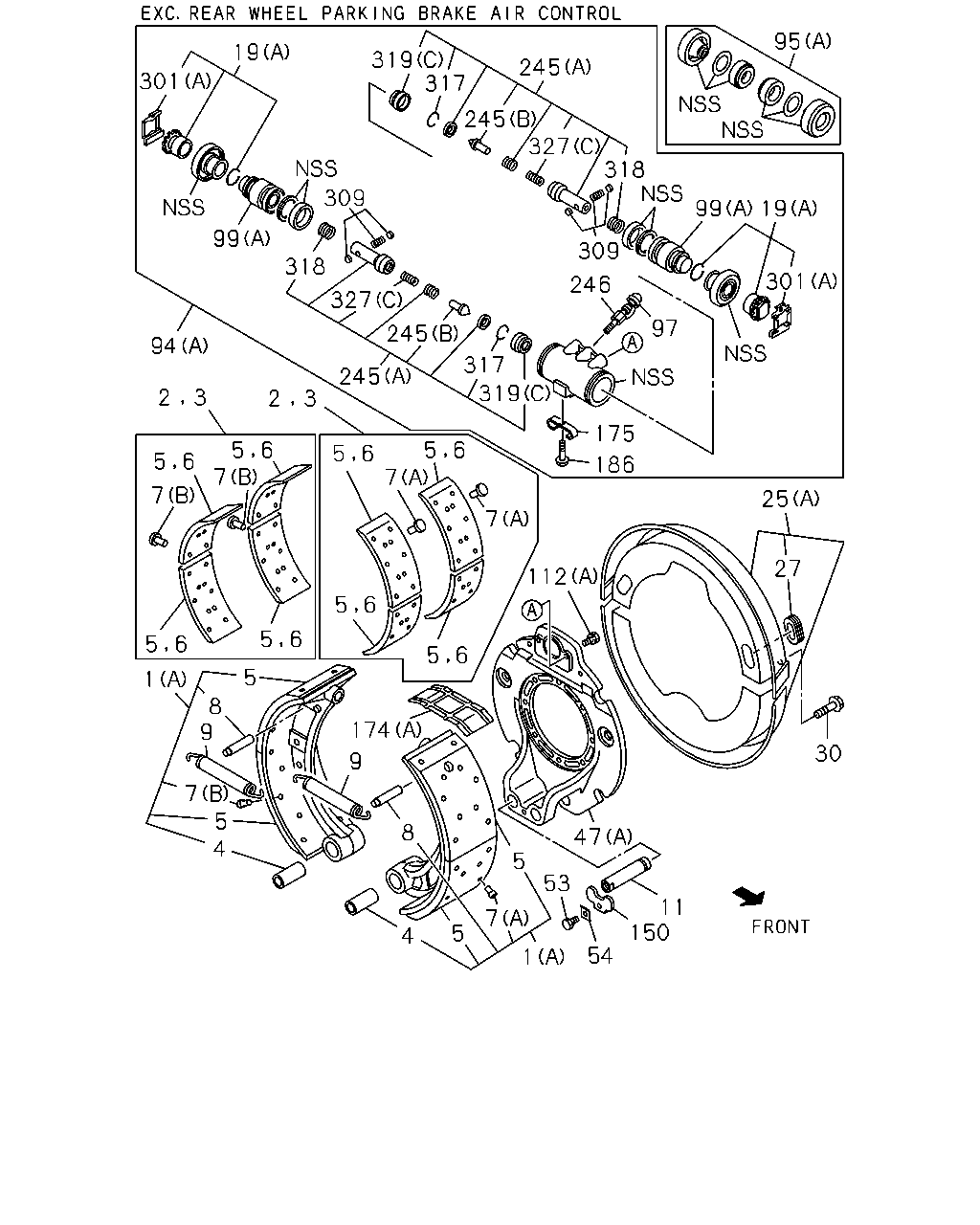

3-05 — REAR WHEEL BRAKE (#38156) — 400 parça

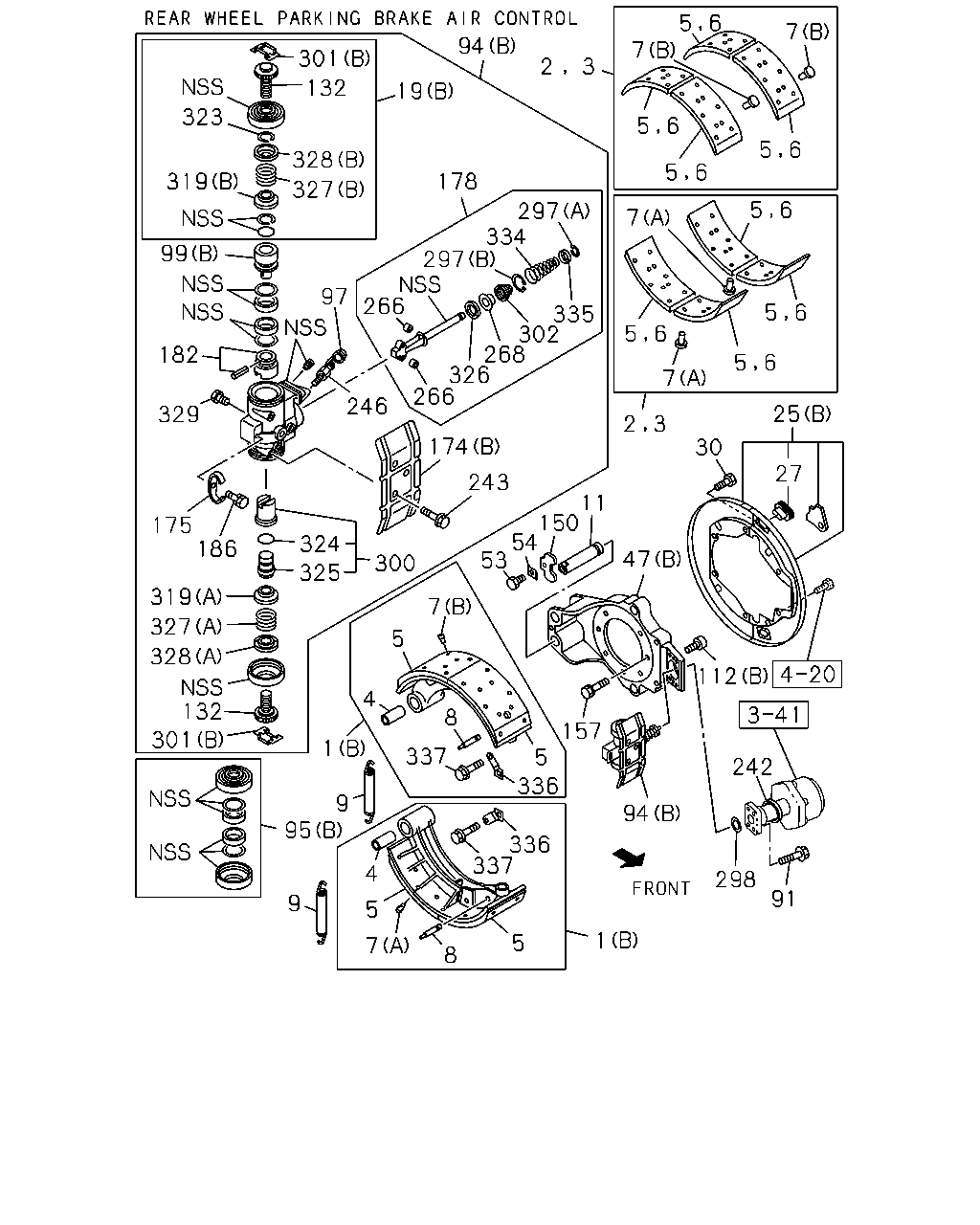

çizim 181755
7 7 94 301 2 3 132 19 323 328 178 319 327 297 334 297 266 99 97 335 302 268 326 266 182 7 246 25 329 174 30 27 243 11 150 54 53 175 186 324 47 300 325 319 7 327 5 328 112 132 4 8 157 301 1 337 5 242 336 9 95 94 336 337 4 298 91 9 5 1 5 7 8 5 6 5 6 5 6 5 6 5 6 5 6 5 6 5 6 2 3 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHOE; BRK,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LEADING 		1-47170-496-0 01 1 0812-1003 ●
1 SHOE; BRK,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LEADING 		1-47170-496-0 01 1 1004- ●
1 SHOE; BRK,RR
(A) LEADING 		1-47170-496-0 01 1 1004- ●
1 SHOE; BRK,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) TRAILING 		1-47170-497-0 01 1 0812-1003 ●
1 SHOE; BRK,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) TRAILING 		1-47170-497-0 01 1 1004- ●
1 SHOE; BRK,RR
(A) TRAILING 		1-47170-497-0 01 1 1004- ●
1 SHOE; BRK,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LEADING 		1-47170-498-0 01 1 0812-1003 ●
1 SHOE; BRK,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LEADING 		1-47170-498-0 01 1 1004- ●
1 SHOE; BRK,RR
(A) LEADING 		1-47170-498-0 01 1 1004- ●
1 SHOE; BRK,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) TRAILING 		1-47170-499-0 01 1 0812-1003 ●
1 SHOE; BRK,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) TRAILING 		1-47170-499-0 01 1 1004- ●
1 SHOE; BRK,RR
(A) TRAILING 		1-47170-499-0 01 1 1004- ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-500-0 01 1 0712-0811 ● ●
1 SHOE; BRK,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) LEADING 		1-47170-500-0 01 1 0812- ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-500-0 01 1 0812- ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-501-0 01 1 0712-0811 ● ●
1 SHOE; BRK,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) TRAILING 		1-47170-501-0 01 1 0812- ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-501-0 01 1 0812- ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-502-0 01 1 0712-0811 ● ●
1 SHOE; BRK,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) LEADING 		1-47170-502-0 01 1 0812- ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-502-0 01 1 0812- ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-503-0 01 1 0712-0811 ● ●
1 SHOE; BRK,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) TRAILING 		1-47170-503-0 01 1 0812- ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-503-0 01 1 0812- ●
2 LINING SET; RR BRK,STANDARD
LEADING 		1-88311-390-0 01 1 0712-1003 ● ●
2 LINING SET; RR BRK,STANDARD
LEADING 		1-88311-390-0 01 1 1004- ● ● ●
2 LINING SET; RR BRK,STANDARD
TRAILING 		1-88311-394-0 01 1 0712-1003 ● ●
2 LINING SET; RR BRK,STANDARD
TRAILING 		1-88311-394-0 01 1 1004- ● ● ●
3 LINING SET; RR BRK,OVER SIZE
LEADING 		1-88311-391-0 01 1 0712-1003 ● ●
3 LINING SET; RR BRK,OVER SIZE
LEADING 		1-88311-391-0 01 1 1004- ● ● ●
3 LINING SET; RR BRK,OVER SIZE
TRAILING 		1-88311-395-0 01 1 0712-1003 ● ●
3 LINING SET; RR BRK,OVER SIZE
TRAILING 		1-88311-395-0 01 1 1004- ● ● ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-011-0 04 1 0712-1003 ● ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-011-0 04 1 1004- ● ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-812-0 08 1 0712-1003 ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-812-0 08 1 1004- ● ● ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-813-0 08 1 0712-1003 ● ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-813-0 08 1 1004- ● ● ●
7 RIVET; LINING,RR BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) TRAILING L=18.5 		1-09732-034-0 40 1 0812-1003 ●
7 RIVET; LINING,RR BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) TRAILING L=18.5 		1-09732-034-0 40 1 1004- ●
7 RIVET; LINING,RR BRK
(B) TRAILING L=18.5 		1-09732-034-0 40 1 1004- ●
7 RIVET; LINING,RR BRK
(B) TRAILING L=18.5 		1-09732-034-0 40 1 0712-0811 ● ●
7 RIVET; LINING,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) TRAILING L=18.5 		1-09732-034-0 40 1 0812- ●
7 RIVET; LINING,RR BRK
(B) TRAILING L=18.5 		1-09732-034-0 40 1 0812- ●
7 RIVET; LINING,RR BRK
(A) LEADING L=15.5 		1-09732-053-0 40 1 0712-1003 ● ●
7 RIVET; LINING,RR BRK
(A) LEADING L=15.5 		1-09732-053-0 40 1 1004- ● ● ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-134-0 04 1 0712-1003 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-134-0 04 1 1004- ● ● ●
9 SPRING; RETURN,BRK SHOE 1-09583-359-0 04 1 0712-1003 ● ●
9 SPRING; RETURN,BRK SHOE 1-09583-359-0 04 1 1004- ● ● ●
11 PIN; ANCHOR,RR WHEEL BRK
L=106.5 		1-47131-038-0 04 1 0712-1003 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
L=106.5 		1-47131-038-0 04 1 1004- ● ● ●
19 ADJUSTER; RR BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47621-015-0 04 1 0812-1003 ●
19 ADJUSTER; RR BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47621-015-0 04 1 1004- ●
19 ADJUSTER; RR BRK
(A) 		1-47621-015-0 04 1 1004- ●
19 ADJUSTER; RR BRK
(B) 		1-47623-029-0 02 1 0712-0811 ● ●
19 ADJUSTER; RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47623-029-1 02 1 0812- ●
19 ADJUSTER; RR BRK
(B) 		1-47623-029-1 02 1 0812- ●
25 COVER SET; RR BRK DRUM
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47151-458-1 02 1 0812-1003 ●
25 COVER SET; RR BRK DRUM
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47151-458-1 02 1 1004- ●
25 COVER SET; RR BRK DRUM
(A) 		1-47151-458-1 02 1 1004- ●
25 COVER SET; RR BRK DRUM
(B) 		1-47151-805-0 01 1 0712-0811 ● ●
25 COVER SET; RR BRK DRUM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47151-805-0 01 1 0812- ●
25 COVER SET; RR BRK DRUM
(B) 		1-47151-805-0 01 1 0812- ●
25 COVER SET; RR BRK DRUM
(B) 		1-47151-848-0 01 1 0712-0811 ● ●
25 COVER SET; RR BRK DRUM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47151-848-0 01 1 0812- ●
25 COVER SET; RR BRK DRUM
(B) 		1-47151-848-0 01 1 0812- ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0712-1003 ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1004- ● ● ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0712-1003 ● ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1004- ● ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
ANTI LOCK BRAKE<JE5> (A) 		1-47137-571-0 01 1 1004- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
ANTI LOCK BRAKE<JE5> (A) 		1-47137-572-0 01 1 1004- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47137-577-0 02 1 0812-1003 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47137-577-0 02 1 1004- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
EXC. ANTI LOCK BRAKE<JE5> (A) 		1-47137-577-0 02 1 1004- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
(B) 		1-47137-357-0 01 1 0712-0811 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47137-357-0 01 1 0812- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
(B) 		1-47137-357-0 01 1 0812- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
(B) 		1-47137-358-0 01 1 0712-0811 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47137-358-0 01 1 0812- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
(B) 		1-47137-358-0 01 1 0812- ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0712-1003 ● ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 1004- ● ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0712-1003 ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 1004- ● ● ●
91 BOLT; CHAMBER
M10X45 W/LK WASHER 		0-50051-045-0 08 1 0712-0811 ● ●
91 BOLT; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X45 W/LK WASHER 		0-50051-045-0 08 1 0812-0906 ●
91 BOLT; CHAMBER
M10X45 W/LK WASHER 		0-50051-045-0 08 1 0812-0906 ●
91 BOLT; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X45 W/LK WASHER 		0-50551-045-0 08 1 0907- ●
91 BOLT; CHAMBER
M10X45 W/LK WASHER 		0-50551-045-0 08 1 0907- ●
94 CYLINDER; WHEEL,RR BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47601-046-1 02 1 0812-1003 ●
94 CYLINDER; WHEEL,RR BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98166-405-0 02 1 1004- ●
94 CYLINDER; WHEEL,RR BRK
(A) 		8-98166-405-0 02 1 1004- ●
94 CYLINDER; WHEEL,RR BRK
(B) 		1-47601-180-0 01 1 0712-0811 ● ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47601-180-0 01 1 0812- ●
94 CYLINDER; WHEEL,RR BRK
(B) 		1-47601-180-0 01 1 0812- ●
94 CYLINDER; WHEEL,RR BRK
(B) 		1-47601-181-0 01 1 0712-0811 ● ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47601-181-0 01 1 0812- ●
94 CYLINDER; WHEEL,RR BRK
(B) 		1-47601-181-0 01 1 0812- ●
95 CUP SET; RR WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-87830-922-0 02 1 0812-1003 ●
95 CUP SET; RR WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-87830-922-0 02 1 1004- ●
95 CUP SET; RR WHEEL CYL
(A) 		1-87830-922-0 02 1 1004- ●
95 CUP SET; RR WHEEL CYL
(B) 		1-87830-984-0 02 1 0712-0811 ● ●
95 CUP SET; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-87830-984-0 02 1 0812- ●
95 CUP SET; RR WHEEL CYL
(B) 		1-87830-984-0 02 1 0812- ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 0712-1003 ● ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 1004- ● ● ●
99 PISTON; RR WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47624-357-0 04 1 0812-1003 ●
99 PISTON; RR WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47624-357-0 04 1 1004- ●
99 PISTON; RR WHEEL CYL
(A) 		1-47624-357-0 04 1 1004- ●
99 PISTON; RR WHEEL CYL
(B) 		1-47624-388-0 02 1 0712-0811 ● ●
99 PISTON; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47624-388-0 02 1 0812- ●
99 PISTON; RR WHEEL CYL
(B) 		1-47624-388-0 02 1 0812- ●
112 BOLT; WHEEL CYL SETTING
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12X32 W/LK WASHER 		0-50051-232-0 04 1 0812-0906 ●
112 BOLT; WHEEL CYL SETTING
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12X32 W/LK WASHER 		0-50551-232-0 04 1 0907-1003 ●
112 BOLT; WHEEL CYL SETTING
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12X32 W/LK WASHER 		0-50551-232-0 04 1 1004- ●
112 BOLT; WHEEL CYL SETTING
(A) M12X32 W/LK WASHER 		0-50551-232-0 04 1 1004- ●
112 BOLT; WHEEL CYL SETTING
(B) M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 0712-0811 ● ●
112 BOLT; WHEEL CYL SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 0812- ●
112 BOLT; WHEEL CYL SETTING
(B) M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 0812- ●
132 SCREW; ADJ,RR BRK 1-47623-031-1 04 1 0712-0811 ● ●
132 SCREW; ADJ,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47623-031-2 04 1 0812- ●
132 SCREW; ADJ,RR BRK 1-47623-031-2 04 1 0812- ●
150 PLATE; LK,ANCHOR PIN 1-47133-005-0 02 1 0712-1003 ● ●
150 PLATE; LK,ANCHOR PIN 1-47133-005-0 02 1 1004- ● ● ●
157 BOLT; RR BRK SET
M14X50 		1-09040-066-0 02 1 0712-0811 ● ●
157 BOLT; RR BRK SET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X50 		1-09040-066-0 02 1 0812- ●
157 BOLT; RR BRK SET
M14X50 		1-09040-066-0 02 1 0812- ●
174 COVER; CYL,RR WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47159-197-0 02 1 0812-1003 ●
174 COVER; CYL,RR WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47159-197-0 02 1 1004- ●
174 COVER; CYL,RR WHEEL CYL
(A) 		1-47159-197-0 02 1 1004- ●
174 COVER; CYL,RR WHEEL CYL
(B) 		1-47619-152-0 02 1 0712-0811 ● ●
174 COVER; CYL,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47619-152-0 02 1 0812- ●
174 COVER; CYL,RR WHEEL CYL
(B) 		1-47619-152-0 02 1 0812- ●
175 HANGER; RR WHEEL BRK 1-47619-145-0 02 1 0712-1003 ● ●
175 HANGER; RR WHEEL BRK 1-47619-145-0 02 1 1004- ● ● ●
178 WEDGE; RR WHEEL CYL 1-47640-009-0 02 1 0712-0811 ● ●
178 WEDGE; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47640-009-0 02 1 0812- ●
178 WEDGE; RR WHEEL CYL 1-47640-009-0 02 1 0812- ●
182 TAPPET; RR WHEEL CYL 1-47629-264-0 02 1 0712-0811 ● ●
182 TAPPET; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47629-264-0 02 1 0812- ●
182 TAPPET; RR WHEEL CYL 1-47629-264-0 02 1 0812- ●
186 BOLT; HANGER
M8X16 W/LK WASHER 		0-50540-816-0 02 1 0712-1003 ● ●
186 BOLT; HANGER
M8X16 W/LK WASHER 		0-50540-816-0 02 1 1004- ● ● ●
242 SEAL 1-47159-186-0 04 1 0712-0811 ● ●
242 SEAL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47159-186-0 04 1 0812- ●
242 SEAL 1-47159-186-0 04 1 0812- ●
243 BOLT; WHEEL CYL COVER SETTING
M6X10 		9-01900-610-0 06 1 0712-0811 ● ●
243 BOLT; WHEEL CYL COVER SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X10 		9-01900-610-0 06 1 0812- ●
243 BOLT; WHEEL CYL COVER SETTING
M6X10 		9-01900-610-0 06 1 0812- ●
246 BLEEDER 1-47615-002-0 02 1 0712-1003 ● ●
246 BLEEDER 1-47615-002-0 02 1 1004- ● ● ●
266 ROLLER; WEDGE 1-47643-005-0 04 1 0712-0811 ● ●
266 ROLLER; WEDGE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47643-005-0 04 1 0812- ●
266 ROLLER; WEDGE 1-47643-005-0 04 1 0812- ●
268 RETAINER; WEDGE 1-47649-028-0 02 1 0712-0811 ● ●
268 RETAINER; WEDGE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47649-028-0 02 1 0812- ●
268 RETAINER; WEDGE 1-47649-028-0 02 1 0812- ●
297 RING; SNAP
(B) 		1-47649-031-0 02 1 0712-0811 ● ●
297 RING; SNAP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47649-031-0 02 1 0812- ●
297 RING; SNAP
(B) 		1-47649-031-0 02 1 0812- ●
297 RING; SNAP
(A) 		1-47649-034-1 02 1 0712-0811 ● ●
297 RING; SNAP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47649-034-1 02 1 0812- ●
297 RING; SNAP
(A) 		1-47649-034-1 02 1 0812- ●
298 GASKET 1-48259-231-0 02 1 0712-0811 ● ●
298 GASKET
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-48259-231-0 02 1 0812- ●
298 GASKET 1-48259-231-0 02 1 0812- ●
300 SLEEVE 1-47629-207-0 02 1 0712-0811 ● ●
300 SLEEVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47629-207-1 02 1 0812- ●
300 SLEEVE 1-47629-207-1 02 1 0812- ●
301 CLIP; ANTI LOTATION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47621-016-0 04 1 0812-1003 ●
301 CLIP; ANTI LOTATION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47621-016-0 04 1 1004- ●
301 CLIP; ANTI LOTATION
(A) 		1-47621-016-0 04 1 1004- ●
301 CLIP; ANTI LOTATION
(B) 		1-47621-017-0 04 1 0712-0811 ● ●
301 CLIP; ANTI LOTATION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47621-017-0 04 1 0812- ●
301 CLIP; ANTI LOTATION
(B) 		1-47621-017-0 04 1 0812- ●
302 BOOT; ROD 1-47649-022-0 02 1 0712-0811 ● ●
302 BOOT; ROD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47649-022-0 02 1 0812- ●
302 BOOT; ROD 1-47649-022-0 02 1 0812- ●
319 RING; DRIVE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-47629-120-0 04 1 0812-1003 ●
319 RING; DRIVE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-47629-120-0 04 1 1004- ●
319 RING; DRIVE
(C) 		1-47629-120-0 04 1 1004- ●
319 RING; DRIVE
(B) 		1-47629-199-0 02 1 0712-0811 ● ●
319 RING; DRIVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47629-199-0 02 1 0812- ●
319 RING; DRIVE
(B) 		1-47629-199-0 02 1 0812- ●
319 RING; DRIVE
(A) 		1-47629-200-0 02 1 0712-0811 ● ●
319 RING; DRIVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47629-200-0 02 1 0812- ●
319 RING; DRIVE
(A) 		1-47629-200-0 02 1 0812- ●
323 RING; SNAP,SLEEVE 1-47629-190-0 02 1 0712-0811 ● ●
323 RING; SNAP,SLEEVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47629-190-0 02 1 0812- ●
323 RING; SNAP,SLEEVE 1-47629-190-0 02 1 0812- ●
324 RING; RETAINER 1-47629-210-0 02 1 0712-0811 ● ●
324 RING; RETAINER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47629-210-0 02 1 0812- ●
324 RING; RETAINER 1-47629-210-0 02 1 0812- ●
325 SLEEVE; ADJ 1-47629-208-0 02 1 0712-0811 ● ●
325 SLEEVE; ADJ
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47629-208-1 02 1 0812- ●
325 SLEEVE; ADJ 1-47629-208-1 02 1 0812- ●
326 RETAINER; ROD 1-47649-026-0 02 1 0712-0811 ● ●
326 RETAINER; ROD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47649-026-0 02 1 0812- ●
326 RETAINER; ROD 1-47649-026-0 02 1 0812- ●
327 SPRING; ADJ
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-09580-543-0 04 1 0812-1003 ●
327 SPRING; ADJ
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-09580-543-0 04 1 1004- ●
327 SPRING; ADJ
(C) 		1-09580-543-0 04 1 1004- ●
327 SPRING; ADJ
(B) 		1-47629-195-0 02 1 0712-0811 ● ●
327 SPRING; ADJ
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47629-195-0 02 1 0812- ●
327 SPRING; ADJ
(B) 		1-47629-195-0 02 1 0812- ●
327 SPRING; ADJ
(A) 		1-47629-196-0 02 1 0712-0811 ● ●
327 SPRING; ADJ
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47629-196-0 02 1 0812- ●
327 SPRING; ADJ
(A) 		1-47629-196-0 02 1 0812- ●
328 CAGE; SPRING
(B) 		1-47629-191-0 02 1 0712-0811 ● ●
328 CAGE; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47629-191-0 02 1 0812- ●
328 CAGE; SPRING
(B) 		1-47629-191-0 02 1 0812- ●
328 CAGE; SPRING
(A) 		1-47629-192-0 02 1 0712-0811 ● ●
328 CAGE; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47629-192-0 02 1 0812- ●
328 CAGE; SPRING
(A) 		1-47629-192-0 02 1 0812- ●
329 SCREW; LOCATING 1-47619-149-1 04 1 0712-0811 ● ●
329 SCREW; LOCATING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47619-149-1 04 1 0812- ●
329 SCREW; LOCATING 1-47619-149-1 04 1 0812- ●
334 SPRING; ROD 1-47649-024-0 02 1 0712-0811 ● ●
334 SPRING; ROD
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47649-024-0 02 1 0812- ●
334 SPRING; ROD 1-47649-024-0 02 1 0812- ●
335 RETAINER; SPRING 1-47649-020-0 02 1 0712-0811 ● ●
335 RETAINER; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47649-020-0 02 1 0812- ●
335 RETAINER; SPRING 1-47649-020-0 02 1 0812- ●
336 PLATE; PIVOT 1-47119-132-0 04 1 0712-0811 ● ●
336 PLATE; PIVOT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47119-132-0 04 1 0812- ●
336 PLATE; PIVOT 1-47119-132-0 04 1 0812- ●
337 BOLT; PLATE
M8X12 W/LK WASHER 		0-50540-812-0 04 1 0712-0811 ● ●
337 BOLT; PLATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X12 W/LK WASHER 		0-50540-812-0 04 1 0812- ●
337 BOLT; PLATE
M8X12 W/LK WASHER 		0-50540-812-0 04 1 0812- ●
çizim 182054
95 19 319 317 245 301 245 327 318 309 99 19 309 99 318 327 301 246 97 245 94 317 245 319 2 3 2 3 175 7 186 7 7 25 7 27 112 5 1 8 9 174 30 9 7 5 4 8 47 5 53 11 150 7 5 4 54 1 5 6 5 6 5 6 5 6 5 6 5 6 5 6 5 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHOE; BRK,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LEADING 		1-47170-496-0 01 1 0812-1003 ●
1 SHOE; BRK,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LEADING 		1-47170-496-0 01 1 1004- ●
1 SHOE; BRK,RR
(A) LEADING 		1-47170-496-0 01 1 1004- ●
1 SHOE; BRK,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) TRAILING 		1-47170-497-0 01 1 0812-1003 ●
1 SHOE; BRK,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) TRAILING 		1-47170-497-0 01 1 1004- ●
1 SHOE; BRK,RR
(A) TRAILING 		1-47170-497-0 01 1 1004- ●
1 SHOE; BRK,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LEADING 		1-47170-498-0 01 1 0812-1003 ●
1 SHOE; BRK,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) LEADING 		1-47170-498-0 01 1 1004- ●
1 SHOE; BRK,RR
(A) LEADING 		1-47170-498-0 01 1 1004- ●
1 SHOE; BRK,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) TRAILING 		1-47170-499-0 01 1 0812-1003 ●
1 SHOE; BRK,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) TRAILING 		1-47170-499-0 01 1 1004- ●
1 SHOE; BRK,RR
(A) TRAILING 		1-47170-499-0 01 1 1004- ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-500-0 01 1 0712-0811 ● ●
1 SHOE; BRK,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) LEADING 		1-47170-500-0 01 1 0812- ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-500-0 01 1 0812- ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-501-0 01 1 0712-0811 ● ●
1 SHOE; BRK,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) TRAILING 		1-47170-501-0 01 1 0812- ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-501-0 01 1 0812- ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-502-0 01 1 0712-0811 ● ●
1 SHOE; BRK,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) LEADING 		1-47170-502-0 01 1 0812- ●
1 SHOE; BRK,RR
(B) LEADING 		1-47170-502-0 01 1 0812- ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-503-0 01 1 0712-0811 ● ●
1 SHOE; BRK,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) TRAILING 		1-47170-503-0 01 1 0812- ●
1 SHOE; BRK,RR
(B) TRAILING 		1-47170-503-0 01 1 0812- ●
2 LINING SET; RR BRK,STANDARD
LEADING 		1-88311-390-0 01 1 0712-1003 ● ●
2 LINING SET; RR BRK,STANDARD
LEADING 		1-88311-390-0 01 1 1004- ● ● ●
2 LINING SET; RR BRK,STANDARD
TRAILING 		1-88311-394-0 01 1 0712-1003 ● ●
2 LINING SET; RR BRK,STANDARD
TRAILING 		1-88311-394-0 01 1 1004- ● ● ●
3 LINING SET; RR BRK,OVER SIZE
LEADING 		1-88311-391-0 01 1 0712-1003 ● ●
3 LINING SET; RR BRK,OVER SIZE
LEADING 		1-88311-391-0 01 1 1004- ● ● ●
3 LINING SET; RR BRK,OVER SIZE
TRAILING 		1-88311-395-0 01 1 0712-1003 ● ●
3 LINING SET; RR BRK,OVER SIZE
TRAILING 		1-88311-395-0 01 1 1004- ● ● ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-011-0 04 1 0712-1003 ● ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-011-0 04 1 1004- ● ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-812-0 08 1 0712-1003 ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-812-0 08 1 1004- ● ● ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-813-0 08 1 0712-1003 ● ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-813-0 08 1 1004- ● ● ●
7 RIVET; LINING,RR BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) TRAILING L=18.5 		1-09732-034-0 40 1 0812-1003 ●
7 RIVET; LINING,RR BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) TRAILING L=18.5 		1-09732-034-0 40 1 1004- ●
7 RIVET; LINING,RR BRK
(B) TRAILING L=18.5 		1-09732-034-0 40 1 1004- ●
7 RIVET; LINING,RR BRK
(B) TRAILING L=18.5 		1-09732-034-0 40 1 0712-0811 ● ●
7 RIVET; LINING,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) TRAILING L=18.5 		1-09732-034-0 40 1 0812- ●
7 RIVET; LINING,RR BRK
(B) TRAILING L=18.5 		1-09732-034-0 40 1 0812- ●
7 RIVET; LINING,RR BRK
(A) LEADING L=15.5 		1-09732-053-0 40 1 0712-1003 ● ●
7 RIVET; LINING,RR BRK
(A) LEADING L=15.5 		1-09732-053-0 40 1 1004- ● ● ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-134-0 04 1 0712-1003 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-134-0 04 1 1004- ● ● ●
9 SPRING; RETURN,BRK SHOE 1-09583-359-0 04 1 0712-1003 ● ●
9 SPRING; RETURN,BRK SHOE 1-09583-359-0 04 1 1004- ● ● ●
11 PIN; ANCHOR,RR WHEEL BRK
L=106.5 		1-47131-038-0 04 1 0712-1003 ● ●
11 PIN; ANCHOR,RR WHEEL BRK
L=106.5 		1-47131-038-0 04 1 1004- ● ● ●
19 ADJUSTER; RR BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47621-015-0 04 1 0812-1003 ●
19 ADJUSTER; RR BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47621-015-0 04 1 1004- ●
19 ADJUSTER; RR BRK
(A) 		1-47621-015-0 04 1 1004- ●
19 ADJUSTER; RR BRK
(B) 		1-47623-029-0 02 1 0712-0811 ● ●
19 ADJUSTER; RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47623-029-1 02 1 0812- ●
19 ADJUSTER; RR BRK
(B) 		1-47623-029-1 02 1 0812- ●
25 COVER SET; RR BRK DRUM
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47151-458-1 02 1 0812-1003 ●
25 COVER SET; RR BRK DRUM
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47151-458-1 02 1 1004- ●
25 COVER SET; RR BRK DRUM
(A) 		1-47151-458-1 02 1 1004- ●
25 COVER SET; RR BRK DRUM
(B) 		1-47151-805-0 01 1 0712-0811 ● ●
25 COVER SET; RR BRK DRUM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47151-805-0 01 1 0812- ●
25 COVER SET; RR BRK DRUM
(B) 		1-47151-805-0 01 1 0812- ●
25 COVER SET; RR BRK DRUM
(B) 		1-47151-848-0 01 1 0712-0811 ● ●
25 COVER SET; RR BRK DRUM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47151-848-0 01 1 0812- ●
25 COVER SET; RR BRK DRUM
(B) 		1-47151-848-0 01 1 0812- ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0712-1003 ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1004- ● ● ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0712-1003 ● ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1004- ● ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
ANTI LOCK BRAKE<JE5> (A) 		1-47137-571-0 01 1 1004- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
ANTI LOCK BRAKE<JE5> (A) 		1-47137-572-0 01 1 1004- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47137-577-0 02 1 0812-1003 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47137-577-0 02 1 1004- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
EXC. ANTI LOCK BRAKE<JE5> (A) 		1-47137-577-0 02 1 1004- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
(B) 		1-47137-357-0 01 1 0712-0811 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47137-357-0 01 1 0812- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
(B) 		1-47137-357-0 01 1 0812- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
(B) 		1-47137-358-0 01 1 0712-0811 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47137-358-0 01 1 0812- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
(B) 		1-47137-358-0 01 1 0812- ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0712-1003 ● ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 1004- ● ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0712-1003 ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 1004- ● ● ●
94 CYLINDER; WHEEL,RR BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47601-046-1 02 1 0812-1003 ●
94 CYLINDER; WHEEL,RR BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98166-405-0 02 1 1004- ●
94 CYLINDER; WHEEL,RR BRK
(A) 		8-98166-405-0 02 1 1004- ●
94 CYLINDER; WHEEL,RR BRK
(B) 		1-47601-180-0 01 1 0712-0811 ● ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47601-180-0 01 1 0812- ●
94 CYLINDER; WHEEL,RR BRK
(B) 		1-47601-180-0 01 1 0812- ●
94 CYLINDER; WHEEL,RR BRK
(B) 		1-47601-181-0 01 1 0712-0811 ● ●
94 CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47601-181-0 01 1 0812- ●
94 CYLINDER; WHEEL,RR BRK
(B) 		1-47601-181-0 01 1 0812- ●
95 CUP SET; RR WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-87830-922-0 02 1 0812-1003 ●
95 CUP SET; RR WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-87830-922-0 02 1 1004- ●
95 CUP SET; RR WHEEL CYL
(A) 		1-87830-922-0 02 1 1004- ●
95 CUP SET; RR WHEEL CYL
(B) 		1-87830-984-0 02 1 0712-0811 ● ●
95 CUP SET; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-87830-984-0 02 1 0812- ●
95 CUP SET; RR WHEEL CYL
(B) 		1-87830-984-0 02 1 0812- ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 0712-1003 ● ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 1004- ● ● ●
99 PISTON; RR WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47624-357-0 04 1 0812-1003 ●
99 PISTON; RR WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47624-357-0 04 1 1004- ●
99 PISTON; RR WHEEL CYL
(A) 		1-47624-357-0 04 1 1004- ●
99 PISTON; RR WHEEL CYL
(B) 		1-47624-388-0 02 1 0712-0811 ● ●
99 PISTON; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47624-388-0 02 1 0812- ●
99 PISTON; RR WHEEL CYL
(B) 		1-47624-388-0 02 1 0812- ●
112 BOLT; WHEEL CYL SETTING
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12X32 W/LK WASHER 		0-50051-232-0 04 1 0812-0906 ●
112 BOLT; WHEEL CYL SETTING
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12X32 W/LK WASHER 		0-50551-232-0 04 1 0907-1003 ●
112 BOLT; WHEEL CYL SETTING
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M12X32 W/LK WASHER 		0-50551-232-0 04 1 1004- ●
112 BOLT; WHEEL CYL SETTING
(A) M12X32 W/LK WASHER 		0-50551-232-0 04 1 1004- ●
112 BOLT; WHEEL CYL SETTING
(B) M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 0712-0811 ● ●
112 BOLT; WHEEL CYL SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 0812- ●
112 BOLT; WHEEL CYL SETTING
(B) M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 0812- ●
150 PLATE; LK,ANCHOR PIN 1-47133-005-0 02 1 0712-1003 ● ●
150 PLATE; LK,ANCHOR PIN 1-47133-005-0 02 1 1004- ● ● ●
174 COVER; CYL,RR WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47159-197-0 02 1 0812-1003 ●
174 COVER; CYL,RR WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47159-197-0 02 1 1004- ●
174 COVER; CYL,RR WHEEL CYL
(A) 		1-47159-197-0 02 1 1004- ●
174 COVER; CYL,RR WHEEL CYL
(B) 		1-47619-152-0 02 1 0712-0811 ● ●
174 COVER; CYL,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47619-152-0 02 1 0812- ●
174 COVER; CYL,RR WHEEL CYL
(B) 		1-47619-152-0 02 1 0812- ●
175 HANGER; RR WHEEL BRK 1-47619-145-0 02 1 0712-1003 ● ●
175 HANGER; RR WHEEL BRK 1-47619-145-0 02 1 1004- ● ● ●
186 BOLT; HANGER
M8X16 W/LK WASHER 		0-50540-816-0 02 1 0712-1003 ● ●
186 BOLT; HANGER
M8X16 W/LK WASHER 		0-50540-816-0 02 1 1004- ● ● ●
245 SHAFT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47623-027-1 04 1 0812-1003 ●
245 SHAFT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47623-027-1 04 1 1004- ●
245 SHAFT
(A) 		1-47623-027-1 04 1 1004- ●
245 SHAFT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47629-121-0 04 1 0812-1003 ●
245 SHAFT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47629-121-0 04 1 1004- ●
245 SHAFT
(B) 		1-47629-121-0 04 1 1004- ●
246 BLEEDER 1-47615-002-0 02 1 0712-1003 ● ●
246 BLEEDER 1-47615-002-0 02 1 1004- ● ● ●
301 CLIP; ANTI LOTATION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47621-016-0 04 1 0812-1003 ●
301 CLIP; ANTI LOTATION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47621-016-0 04 1 1004- ●
301 CLIP; ANTI LOTATION
(A) 		1-47621-016-0 04 1 1004- ●
301 CLIP; ANTI LOTATION
(B) 		1-47621-017-0 04 1 0712-0811 ● ●
301 CLIP; ANTI LOTATION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47621-017-0 04 1 0812- ●
301 CLIP; ANTI LOTATION
(B) 		1-47621-017-0 04 1 0812- ●
309 SPRING; ADJUSTER SHAFT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09580-544-0 04 1 0812-1003 ●
309 SPRING; ADJUSTER SHAFT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09580-544-0 04 1 1004- ●
309 SPRING; ADJUSTER SHAFT 1-09580-544-0 04 1 1004- ●
317 RING; RETAINER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47629-119-0 04 1 0812-1003 ●
317 RING; RETAINER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-47629-119-0 04 1 1004- ●
317 RING; RETAINER 1-47629-119-0 04 1 1004- ●
318 SPRING; ADJ
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09580-542-0 04 1 0812-1003 ●
318 SPRING; ADJ
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09580-542-0 04 1 1004- ●
318 SPRING; ADJ 1-09580-542-0 04 1 1004- ●
319 RING; DRIVE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-47629-120-0 04 1 0812-1003 ●
319 RING; DRIVE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-47629-120-0 04 1 1004- ●
319 RING; DRIVE
(C) 		1-47629-120-0 04 1 1004- ●
319 RING; DRIVE
(B) 		1-47629-199-0 02 1 0712-0811 ● ●
319 RING; DRIVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47629-199-0 02 1 0812- ●
319 RING; DRIVE
(B) 		1-47629-199-0 02 1 0812- ●
319 RING; DRIVE
(A) 		1-47629-200-0 02 1 0712-0811 ● ●
319 RING; DRIVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47629-200-0 02 1 0812- ●
319 RING; DRIVE
(A) 		1-47629-200-0 02 1 0812- ●
327 SPRING; ADJ
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-09580-543-0 04 1 0812-1003 ●
327 SPRING; ADJ
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-09580-543-0 04 1 1004- ●
327 SPRING; ADJ
(C) 		1-09580-543-0 04 1 1004- ●
327 SPRING; ADJ
(B) 		1-47629-195-0 02 1 0712-0811 ● ●
327 SPRING; ADJ
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		1-47629-195-0 02 1 0812- ●
327 SPRING; ADJ
(B) 		1-47629-195-0 02 1 0812- ●
327 SPRING; ADJ
(A) 		1-47629-196-0 02 1 0712-0811 ● ●
327 SPRING; ADJ
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		1-47629-196-0 02 1 0812- ●
327 SPRING; ADJ
(A) 		1-47629-196-0 02 1 0812- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
