◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#38155) — 74 parça

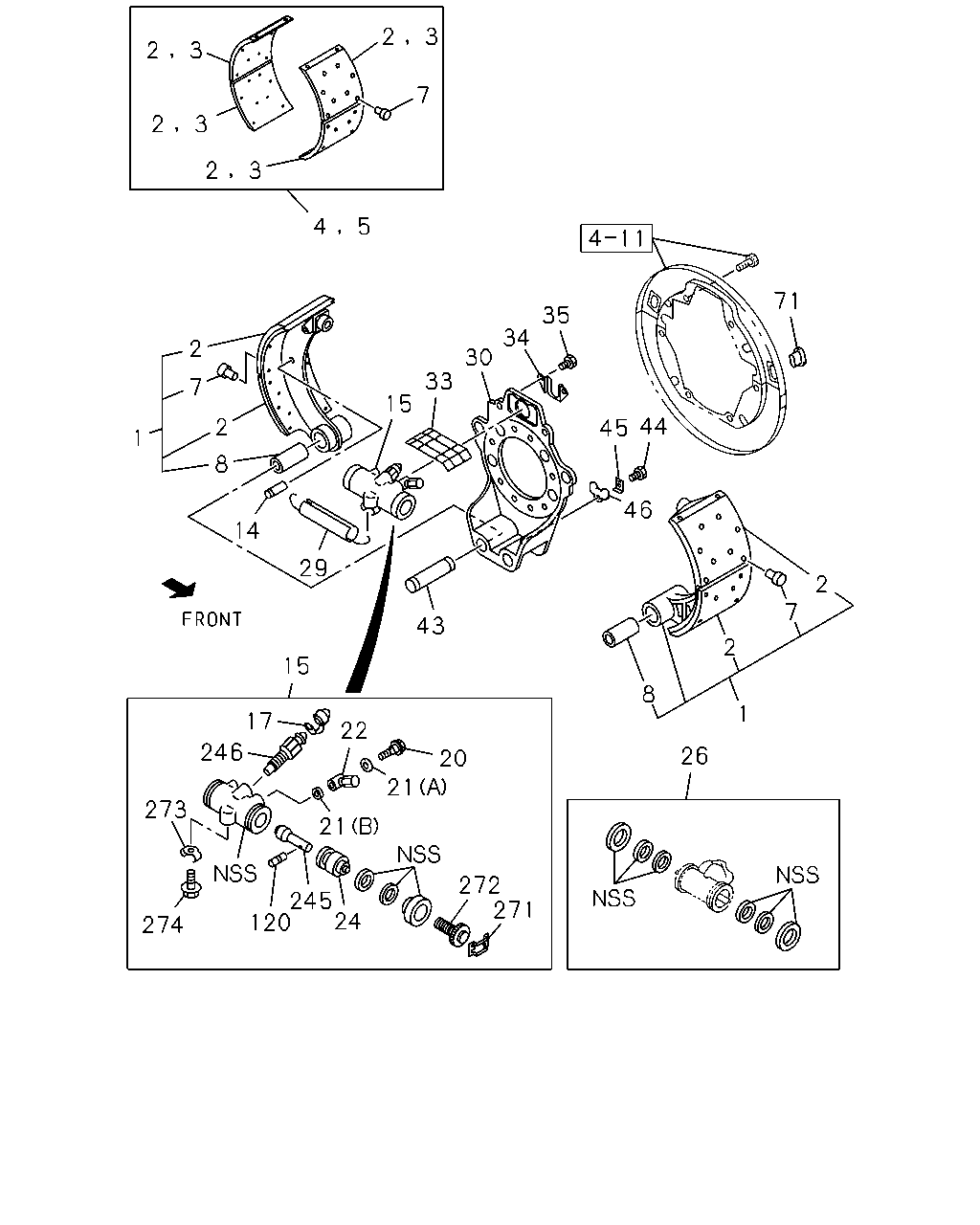

çizim 181744
2 3 2 3 7 2 3 2 3 5 4 71 35 34 2 30 33 7 15 44 2 45 1 8 46 14 29 2 7 43 2 15 8 1 17 22 246 26 20 21 273 21 272 271 245 120 24 274
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHOE; BRK,FRT
LEADING 		1-47170-518-0 02 1 0712-1003 ● ●
1 SHOE; BRK,FRT
LEADING 		1-47170-518-0 02 1 1004- ● ● ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-519-0 02 1 0712-1003 ● ●
1 SHOE; BRK,FRT
TRAILING 		1-47170-519-0 02 1 1004- ● ● ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-818-0 08 1 0712-1003 ● ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-818-0 08 1 1004- ● ● ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47126-819-0 08 1 0712-1003 ● ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47126-819-0 08 1 1004- ● ● ●
4 LINING SET; FRT BRK,STANDARD 1-88311-402-0 02 1 0712-1003 ● ●
4 LINING SET; FRT BRK,STANDARD 1-88311-402-0 02 1 1004- ● ● ●
5 LINING SET; FRT BRK,OVER SIZE 1-88311-403-0 02 1 0712-1003 ● ●
5 LINING SET; FRT BRK,OVER SIZE 1-88311-403-0 02 1 1004- ● ● ●
7 RIVET; LINING,FRT BRK
L=18.5 		1-09732-034-0 80 1 0712-1003 ● ●
7 RIVET; LINING,FRT BRK
L=18.5 		1-09732-034-0 80 1 1004- ● ● ●
8 BUSHING; BRK SHOE 1-47112-011-0 04 1 0712-1003 ● ●
8 BUSHING; BRK SHOE 1-47112-011-0 04 1 1004- ● ● ●
14 PIN; SHOE RETURN SPR 1-47119-134-0 04 1 0712-1003 ● ●
14 PIN; SHOE RETURN SPR 1-47119-134-0 04 1 1004- ● ● ●
15 CYLINDER; WHEEL,FRT BRK 1-47601-092-1 01 1 0712-1003 ● ●
15 CYLINDER; WHEEL,FRT BRK 1-47601-092-1 01 1 1004- ● ● ●
15 CYLINDER; WHEEL,FRT BRK 1-47601-093-1 01 1 0712-1003 ● ●
15 CYLINDER; WHEEL,FRT BRK 1-47601-093-1 01 1 1004- ● ● ●
17 CAP; BLEEDER,FRT WHEEL CYL
OD=12 		1-47619-011-0 02 1 0712-1003 ● ●
17 CAP; BLEEDER,FRT WHEEL CYL
OD=12 		1-47619-011-0 02 1 1004- ● ● ●
20 BOLT; JOINT
M12X40.5 EYE BOLT 		1-47634-006-0 02 1 0712-1003 ● ●
20 BOLT; JOINT
M12X40.5 EYE BOLT 		1-47634-006-0 02 1 1004- ● ● ●
21 GASKET; UNION BOLT
(A) ID=15.2 		1-09630-019-0 02 1 0712-1003 ● ●
21 GASKET; UNION BOLT
(A) ID=15.2 		1-09630-019-0 02 1 1004- ● ● ●
21 GASKET; UNION BOLT
(B) ID=12.2 		1-09630-020-0 02 1 0712-1003 ● ●
21 GASKET; UNION BOLT
(B) ID=12.2 		1-09630-020-0 02 1 1004- ● ● ●
22 JOINT; PIPE 1-47631-057-1 02 1 0712-1003 ● ●
22 JOINT; PIPE 1-47631-057-1 02 1 1004- ● ● ●
24 PISTON; FRT WHEEL CYL 1-47624-369-0 04 1 0712-1003 ● ●
24 PISTON; FRT WHEEL CYL 1-47624-369-0 04 1 1004- ● ● ●
26 CUP SET; FRT WHEEL CYL 1-87830-930-0 02 1 0712-1003 ● ●
26 CUP SET; FRT WHEEL CYL 1-87830-930-0 02 1 1004- ● ● ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-362-0 04 1 0712-1003 ● ●
29 SPRING; RETURN,FRT BRK SHOE 1-09583-362-0 04 1 1004- ● ● ●
30 BRACKET; ANCHOR,FRT
ANTI LOCK BRAKE<JE5> 		1-47137-569-0 01 1 1004- ●
30 BRACKET; ANCHOR,FRT
ANTI LOCK BRAKE<JE5> 		1-47137-570-0 01 1 1004- ●
30 BRACKET; ANCHOR,FRT 1-47137-513-0 02 1 0712-1003 ● ●
30 BRACKET; ANCHOR,FRT 1-47137-513-0 02 1 1004- ● ●
30 BRACKET; ANCHOR,FRT
EXC. ANTI LOCK BRAKE<JE5> 		1-47137-513-0 02 1 1004- ●
33 COVER; WHEEL CYL 1-47159-197-0 02 1 0712-1003 ● ●
33 COVER; WHEEL CYL 1-47159-197-0 02 1 1004- ● ● ●
34 PLATE; DIRECTION,FRT 1-47159-094-0 02 1 0712-1003 ● ●
34 PLATE; DIRECTION,FRT 1-47159-094-0 02 1 1004- ● ● ●
35 BOLT; FRT WHEEL CYL
M12X35 W/LK WASHER 		0-50051-235-0 04 1 0712-0906 ● ●
35 BOLT; FRT WHEEL CYL
M12X35 W/LK WASHER 		0-50551-235-0 04 1 0907-1003 ● ●
35 BOLT; FRT WHEEL CYL
M12X35 W/LK WASHER 		0-50551-235-0 04 1 1004- ● ● ●
43 PIN; ANCHOR
L=106.5 		1-47131-038-0 04 1 0712-1003 ● ●
43 PIN; ANCHOR
L=106.5 		1-47131-038-0 04 1 1004- ● ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20851-016-0 02 1 0712-1003 ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20851-016-0 02 1 1004- ● ● ●
45 WASHER; LK 1-47133-011-0 02 1 0712-1003 ● ●
45 WASHER; LK 1-47133-011-0 02 1 1004- ● ● ●
46 PLATE; LOCK 1-47133-005-0 02 1 0712-1003 ● ●
46 PLATE; LOCK 1-47133-005-0 02 1 1004- ● ● ●
71 GROMMET; CHECK HOLE 1-09333-151-0 04 1 0712-1003 ● ●
71 GROMMET; CHECK HOLE 1-09333-151-0 04 1 1004- ● ● ●
120 SPRING; LK,ADJ,FRT WHEEL CYL 1-09580-544-0 04 1 0712-1003 ● ●
120 SPRING; LK,ADJ,FRT WHEEL CYL 1-09580-544-0 04 1 1004- ● ● ●
245 SHAFT; ADJ 1-47623-027-1 04 1 0712-1003 ● ●
245 SHAFT; ADJ 1-47623-027-1 04 1 1004- ● ● ●
246 BLEEDER 1-47615-002-0 02 1 0712-1003 ● ●
246 BLEEDER 1-47615-002-0 02 1 1004- ● ● ●
271 CLIP; ADJ 1-47621-016-0 04 1 0712-1003 ● ●
271 CLIP; ADJ 1-47621-016-0 04 1 1004- ● ● ●
272 ADJUSTER; MANUAL 1-47621-015-0 04 1 0712-1003 ● ●
272 ADJUSTER; MANUAL 1-47621-015-0 04 1 1004- ● ● ●
273 HANGER 1-47619-145-0 02 1 0712-1003 ● ●
273 HANGER 1-47619-145-0 02 1 1004- ● ● ●
274 BOLT; HANGER
M8X16 W/LK WASHER 		0-50540-816-0 02 1 0712-1003 ● ●
274 BOLT; HANGER
M8X16 W/LK WASHER 		0-50540-816-0 02 1 1004- ● ● ●
