2-75 — TRANSFER CONTROL (#38151) — 154 parça
çizim 181734
206 148 207 206 225 225 207 147 167 207 207 205 205
BalonParca AdiParca NoAdetTipApplied Date A B C
147 BOLT; CLIP
M8X70 FLANGE 		0-28050-870-0 01 1 0712-0802 ●
148 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ● ●
148 NUT; CLIP 9-14149-158-0 01 1 0803-0804 ● ●
167 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0803-0804 ● ●
167 BOLT; CLIP,AIR PIPE
M8X70 FLANGE 		0-28050-870-0 01 1 0712-0802 ●
167 BOLT; CLIP,AIR PIPE
M8X70 FLANGE 		0-28050-870-0 01 1 0803-0804 ● ●
205 CLIP; UPR
ID=10 & 10 		1-09709-241-0 01 1 0712-0804 ● ●
206 CLIP; LWR
ID=10 & 10 		1-09709-241-0 01 1 0712-0804 ● ●
207 COLLAR
ID=6 		1-47459-010-0 04 1 0712-0802 ●
207 COLLAR
ID=6 		1-47459-010-0 04 1 0803-0804 ● ●
225 CLIP; CENTER
ID=10 		1-09709-242-0 01 1 0712-0804 ● ●
çizim 181735
142 165 165 165 142 165
BalonParca AdiParca NoAdetTipApplied Date A B C
142 PIPE; AIR,FLEX HOSE TO TRANSFER
(A) L=668 SERVICED BY L=700 		1-47428-811-0 01 1 0803- ● ●
142 PIPE; AIR,FLEX HOSE TO TRANSFER
(B) L=552 SERVICED BY L=600 		1-47428-809-0 01 1 0803- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(E) L=794 SERVICED BY L=800 		1-47428-812-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(E) L=759 SERVICED BY L=800 		1-47428-812-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(F) L=642 SERVICED BY L=650 		1-47428-810-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(G) L=1444 SERVICED BY L=1500 		1-47428-819-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=579 SERVICED BY L=600 		1-47428-809-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(D) L=747 SERVICED BY L=800 		1-47428-812-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(E) L=769 SERVICED BY L=800 		1-47428-812-0 01 1 0803-1003 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) L=769 SERVICED BY L=800 		1-47428-812-0 01 1 1004- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=931 		8-98054-515-0 01 1 0712-0802 ●
çizim 181741
142 165 165 142 165 173 145
BalonParca AdiParca NoAdetTipApplied Date A B C
142 PIPE; AIR,FLEX HOSE TO TRANSFER
(A) L=668 SERVICED BY L=700 		1-47428-811-0 01 1 0803- ● ●
142 PIPE; AIR,FLEX HOSE TO TRANSFER
(B) L=552 SERVICED BY L=600 		1-47428-809-0 01 1 0803- ● ●
145 CONNECTOR; TRANSFER
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(E) L=794 SERVICED BY L=800 		1-47428-812-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(E) L=759 SERVICED BY L=800 		1-47428-812-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(F) L=642 SERVICED BY L=650 		1-47428-810-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(G) L=1444 SERVICED BY L=1500 		1-47428-819-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=579 SERVICED BY L=600 		1-47428-809-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(D) L=747 SERVICED BY L=800 		1-47428-812-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(E) L=769 SERVICED BY L=800 		1-47428-812-0 01 1 0803-1003 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) L=769 SERVICED BY L=800 		1-47428-812-0 01 1 1004- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=931 		8-98054-515-0 01 1 0712-0802 ●
173 PIPE; AIR,MAG VALVE TO VALVE
L=1394 SERVICED BY L=1500 		1-47428-819-0 01 1 0712-0802 ●

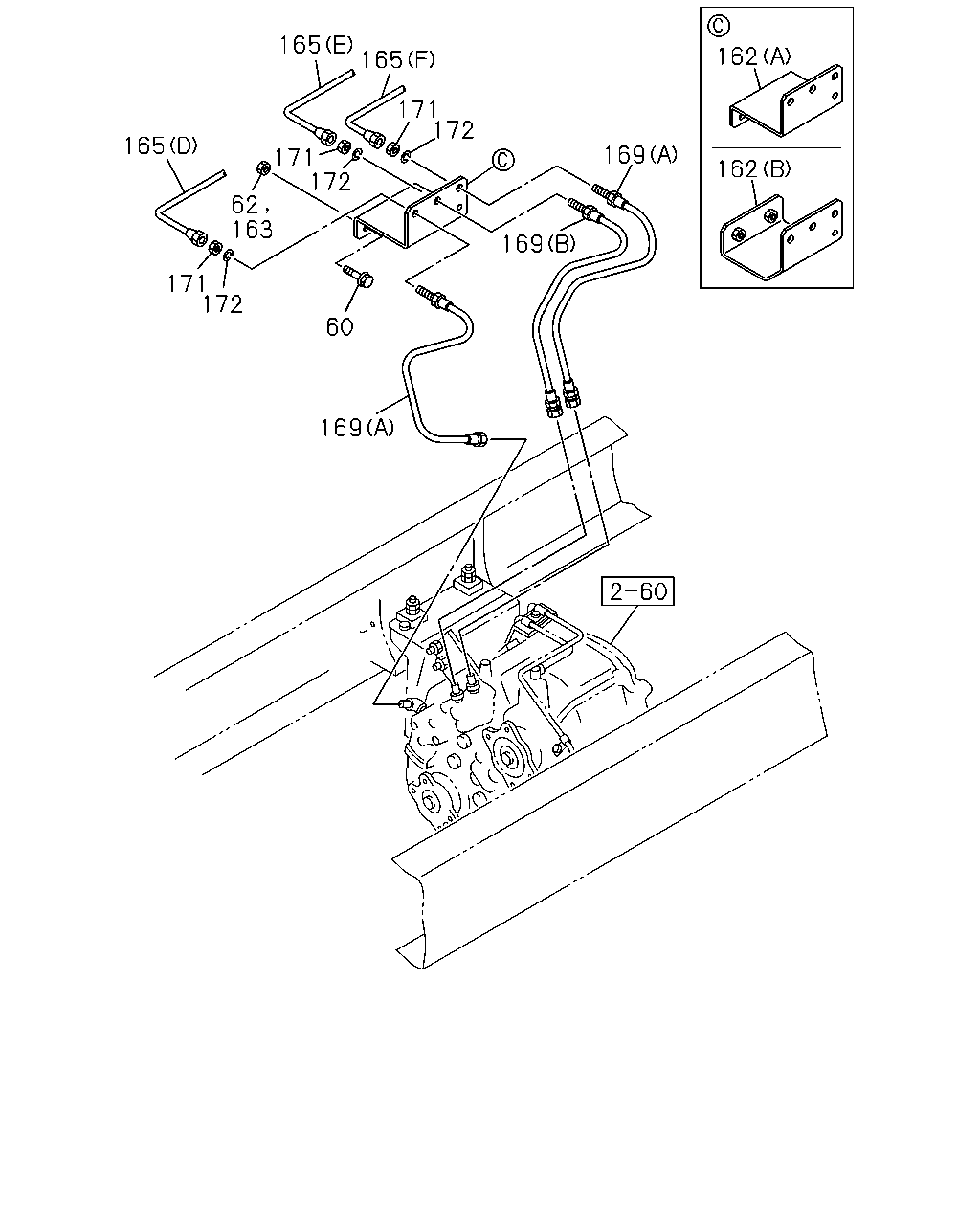

çizim 181742
165 165 162 171 172 165 169 171 172 162 62 163 169 171 172 60 169
BalonParca AdiParca NoAdetTipApplied Date A B C
60 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1004- ● ● ●
60 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
60 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0803-1003 ● ●
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
162 BRACKET; FLEX HOSE,TRANSFER
(B) 		8-98116-431-0 01 1 0803-0811 ● ●
162 BRACKET; FLEX HOSE,TRANSFER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (B) 		8-98116-431-0 01 1 0812- ●
162 BRACKET; FLEX HOSE,TRANSFER
(B) 		8-98116-431-0 01 1 0812- ●
162 BRACKET; FLEX HOSE,TRANSFER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		8-98132-421-0 01 1 0812- ●
162 BRACKET; FLEX HOSE,TRANSFER
(A) 		1-47479-525-0 01 1 0712-0802 ● ●
162 BRACKET; FLEX HOSE,TRANSFER
(A) 		1-47479-525-0 01 1 0712-0802 ●
162 BRACKET; FLEX HOSE,TRANSFER
(A) 		1-47479-525-0 01 1 0803-0806 ● ●
163 NUT; BRKT,FLEX HOSE
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
163 NUT; BRKT,FLEX HOSE
M8 FLANGE 		0-91180-108-0 02 1 0803-0811 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(E) L=794 SERVICED BY L=800 		1-47428-812-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(E) L=759 SERVICED BY L=800 		1-47428-812-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(F) L=642 SERVICED BY L=650 		1-47428-810-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(G) L=1444 SERVICED BY L=1500 		1-47428-819-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=579 SERVICED BY L=600 		1-47428-809-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(D) L=747 SERVICED BY L=800 		1-47428-812-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(E) L=769 SERVICED BY L=800 		1-47428-812-0 01 1 0803-1003 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) L=769 SERVICED BY L=800 		1-47428-812-0 01 1 1004- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=931 		8-98054-515-0 01 1 0712-0802 ●
169 HOSE; FLEX,TRANSFER CONT
(E) L=210 		1-09363-614-0 01 1 1004- ●
169 HOSE; FLEX,TRANSFER CONT
(F) L=220 		1-09363-645-0 02 1 1004- ●
169 HOSE; FLEX,TRANSFER CONT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=290 		1-09363-875-0 02 1 0812- ●
169 HOSE; FLEX,TRANSFER CONT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=380 		1-09363-919-0 01 1 0812- ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=340 		1-09363-622-0 02 1 0803-0811 ● ●
169 HOSE; FLEX,TRANSFER CONT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) L=340 		1-09363-622-0 02 1 0812- ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=340 		1-09363-622-0 02 1 0812- ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=490 		1-09363-632-0 01 1 0803-0811 ● ●
169 HOSE; FLEX,TRANSFER CONT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (B) L=490 		1-09363-632-0 01 1 0812- ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=490 		1-09363-632-0 01 1 0812- ●
169 HOSE; FLEX,TRANSFER CONT
(B) OD=12.7 L=450 		1-09363-631-0 01 1 0712-0802 ● ●
169 HOSE; FLEX,TRANSFER CONT
(B) OD=12.7 L=450 		1-09363-631-0 01 1 0712-0802 ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=320 		1-09363-656-0 02 1 0712-0802 ● ●
171 NUT; FLEX HOSE
M12 		9-09840-280-0 03 1 0712-0802 ● ●
171 NUT; FLEX HOSE
M12 		9-09840-280-0 03 1 0712-0802 ●
171 NUT; FLEX HOSE
M12 		9-09840-280-0 03 1 0803-0811 ● ●
171 NUT; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> M12 		9-09840-280-0 03 1 0812- ●
171 NUT; FLEX HOSE
M12 		9-09840-280-0 03 1 0812- ●
172 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 03 1 0712-0811 ● ●
172 WASHER; LK,FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> ID=12.2 		0-91510-512-0 03 1 0812- ●
172 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 03 1 0812- ●

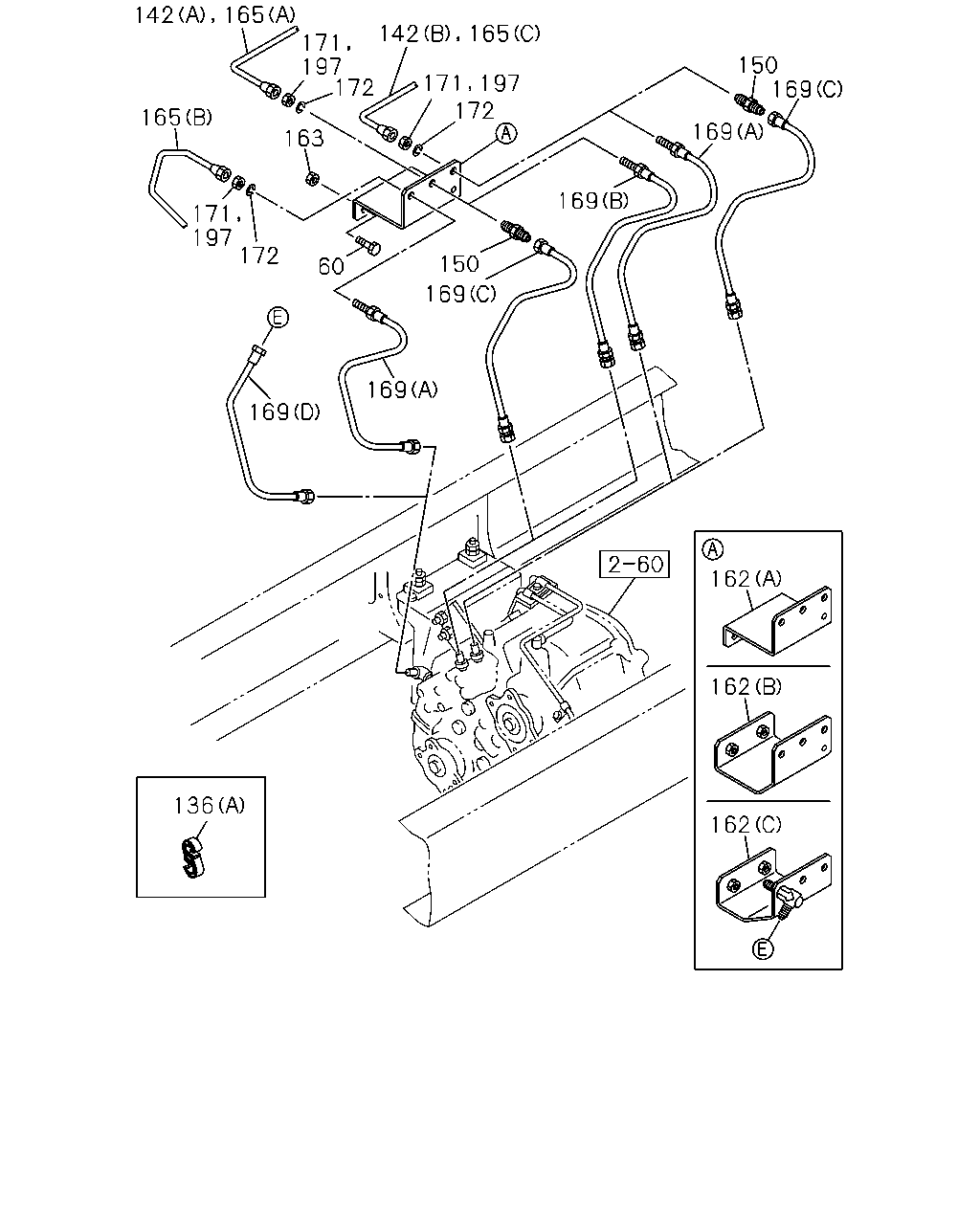

çizim 181754
142 165 171 197 172 142 165 150 169 171 197 172 165 169 163 169 171 197 172 150 60 169 169 169 162 162 136 162
BalonParca AdiParca NoAdetTipApplied Date A B C
60 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1004- ● ● ●
60 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0802 ●
60 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0803-1003 ● ●
136 CLIP; AIR PIPE
(A) ID=10 & 10 		1-09709-277-1 01 1 1004- ●
136 CLIP; AIR PIPE
(B) 		8-98012-254-1 01 1 1004- ●
136 CLIP; AIR PIPE
(A) ID=6.35 & 6.35 		1-09709-273-1 02 1 0805-1003 ● ●
136 CLIP; AIR PIPE
(A) ID=6.35 & 6.35 		1-09709-273-1 02 1 1004- ● ●
136 CLIP; AIR PIPE
(A) ID=10 & 10 		1-09709-277-1 01 1 0712-0802 ●
136 CLIP; AIR PIPE
(A) ID=10 & 10 		1-09709-277-1 02 1 0803-1003 ● ●
136 CLIP; AIR PIPE
(A) ID=10 & 10 		1-09709-277-1 02 1 1004- ● ●
142 PIPE; AIR,FLEX HOSE TO TRANSFER
(A) L=668 SERVICED BY L=700 		1-47428-811-0 01 1 0803- ● ●
142 PIPE; AIR,FLEX HOSE TO TRANSFER
(B) L=552 SERVICED BY L=600 		1-47428-809-0 01 1 0803- ● ●
150 UNION; AIR PIPE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12 L=56.5 		0-92113-106-0 02 1 0812- ●
162 BRACKET; FLEX HOSE,TRANSFER
(B) 		8-98116-431-0 01 1 0803-0811 ● ●
162 BRACKET; FLEX HOSE,TRANSFER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (B) 		8-98116-431-0 01 1 0812- ●
162 BRACKET; FLEX HOSE,TRANSFER
(B) 		8-98116-431-0 01 1 0812- ●
162 BRACKET; FLEX HOSE,TRANSFER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		8-98132-421-0 01 1 0812- ●
162 BRACKET; FLEX HOSE,TRANSFER
(A) 		1-47479-525-0 01 1 0712-0802 ● ●
162 BRACKET; FLEX HOSE,TRANSFER
(A) 		1-47479-525-0 01 1 0712-0802 ●
162 BRACKET; FLEX HOSE,TRANSFER
(A) 		1-47479-525-0 01 1 0803-0806 ● ●
163 NUT; BRKT,FLEX HOSE
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
163 NUT; BRKT,FLEX HOSE
M8 FLANGE 		0-91180-108-0 02 1 0803-0811 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(E) L=794 SERVICED BY L=800 		1-47428-812-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(E) L=759 SERVICED BY L=800 		1-47428-812-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(F) L=642 SERVICED BY L=650 		1-47428-810-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(G) L=1444 SERVICED BY L=1500 		1-47428-819-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=579 SERVICED BY L=600 		1-47428-809-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(D) L=747 SERVICED BY L=800 		1-47428-812-0 01 1 0712-0802 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(E) L=769 SERVICED BY L=800 		1-47428-812-0 01 1 0803-1003 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(B) L=769 SERVICED BY L=800 		1-47428-812-0 01 1 1004- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=931 		8-98054-515-0 01 1 0712-0802 ●
169 HOSE; FLEX,TRANSFER CONT
(E) L=210 		1-09363-614-0 01 1 1004- ●
169 HOSE; FLEX,TRANSFER CONT
(F) L=220 		1-09363-645-0 02 1 1004- ●
169 HOSE; FLEX,TRANSFER CONT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=290 		1-09363-875-0 02 1 0812- ●
169 HOSE; FLEX,TRANSFER CONT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=380 		1-09363-919-0 01 1 0812- ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=340 		1-09363-622-0 02 1 0803-0811 ● ●
169 HOSE; FLEX,TRANSFER CONT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) L=340 		1-09363-622-0 02 1 0812- ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=340 		1-09363-622-0 02 1 0812- ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=490 		1-09363-632-0 01 1 0803-0811 ● ●
169 HOSE; FLEX,TRANSFER CONT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (B) L=490 		1-09363-632-0 01 1 0812- ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=490 		1-09363-632-0 01 1 0812- ●
169 HOSE; FLEX,TRANSFER CONT
(B) OD=12.7 L=450 		1-09363-631-0 01 1 0712-0802 ● ●
169 HOSE; FLEX,TRANSFER CONT
(B) OD=12.7 L=450 		1-09363-631-0 01 1 0712-0802 ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=320 		1-09363-656-0 02 1 0712-0802 ● ●
171 NUT; FLEX HOSE
M12 		9-09840-280-0 03 1 0712-0802 ● ●
171 NUT; FLEX HOSE
M12 		9-09840-280-0 03 1 0712-0802 ●
171 NUT; FLEX HOSE
M12 		9-09840-280-0 03 1 0803-0811 ● ●
171 NUT; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> M12 		9-09840-280-0 03 1 0812- ●
171 NUT; FLEX HOSE
M12 		9-09840-280-0 03 1 0812- ●
172 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 03 1 0712-0811 ● ●
172 WASHER; LK,FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> ID=12.2 		0-91510-512-0 03 1 0812- ●
172 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 03 1 0812- ●
197 NUT; UNION
M12 		9-09840-280-0 03 1 0803-0811 ● ●
197 NUT; UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12 		9-09840-280-0 02 1 0812-1003 ●
197 NUT; UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12 		9-09840-280-0 02 1 1004- ●
197 NUT; UNION
M12 		9-09840-280-0 02 1 1004- ●

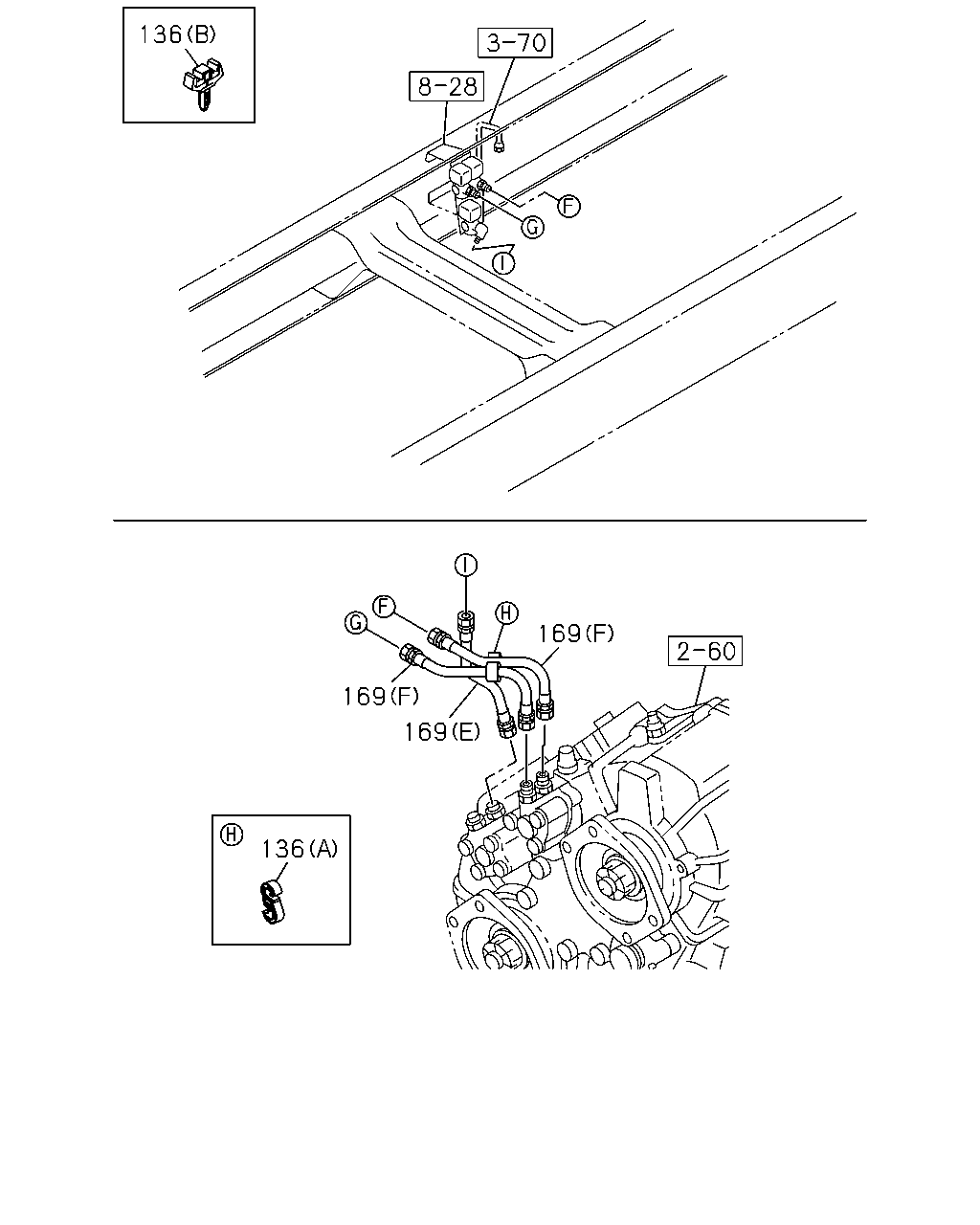

çizim 182059
136 169 169 169 136
BalonParca AdiParca NoAdetTipApplied Date A B C
136 CLIP; AIR PIPE
(A) ID=10 & 10 		1-09709-277-1 01 1 1004- ●
136 CLIP; AIR PIPE
(B) 		8-98012-254-1 01 1 1004- ●
136 CLIP; AIR PIPE
(A) ID=6.35 & 6.35 		1-09709-273-1 02 1 0805-1003 ● ●
136 CLIP; AIR PIPE
(A) ID=6.35 & 6.35 		1-09709-273-1 02 1 1004- ● ●
136 CLIP; AIR PIPE
(A) ID=10 & 10 		1-09709-277-1 01 1 0712-0802 ●
136 CLIP; AIR PIPE
(A) ID=10 & 10 		1-09709-277-1 02 1 0803-1003 ● ●
136 CLIP; AIR PIPE
(A) ID=10 & 10 		1-09709-277-1 02 1 1004- ● ●
169 HOSE; FLEX,TRANSFER CONT
(E) L=210 		1-09363-614-0 01 1 1004- ●
169 HOSE; FLEX,TRANSFER CONT
(F) L=220 		1-09363-645-0 02 1 1004- ●
169 HOSE; FLEX,TRANSFER CONT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=290 		1-09363-875-0 02 1 0812- ●
169 HOSE; FLEX,TRANSFER CONT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=380 		1-09363-919-0 01 1 0812- ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=340 		1-09363-622-0 02 1 0803-0811 ● ●
169 HOSE; FLEX,TRANSFER CONT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) L=340 		1-09363-622-0 02 1 0812- ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=340 		1-09363-622-0 02 1 0812- ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=490 		1-09363-632-0 01 1 0803-0811 ● ●
169 HOSE; FLEX,TRANSFER CONT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (B) L=490 		1-09363-632-0 01 1 0812- ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=490 		1-09363-632-0 01 1 0812- ●
169 HOSE; FLEX,TRANSFER CONT
(B) OD=12.7 L=450 		1-09363-631-0 01 1 0712-0802 ● ●
169 HOSE; FLEX,TRANSFER CONT
(B) OD=12.7 L=450 		1-09363-631-0 01 1 0712-0802 ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=320 		1-09363-656-0 02 1 0712-0802 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
