2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE (#38149) — 42 parça

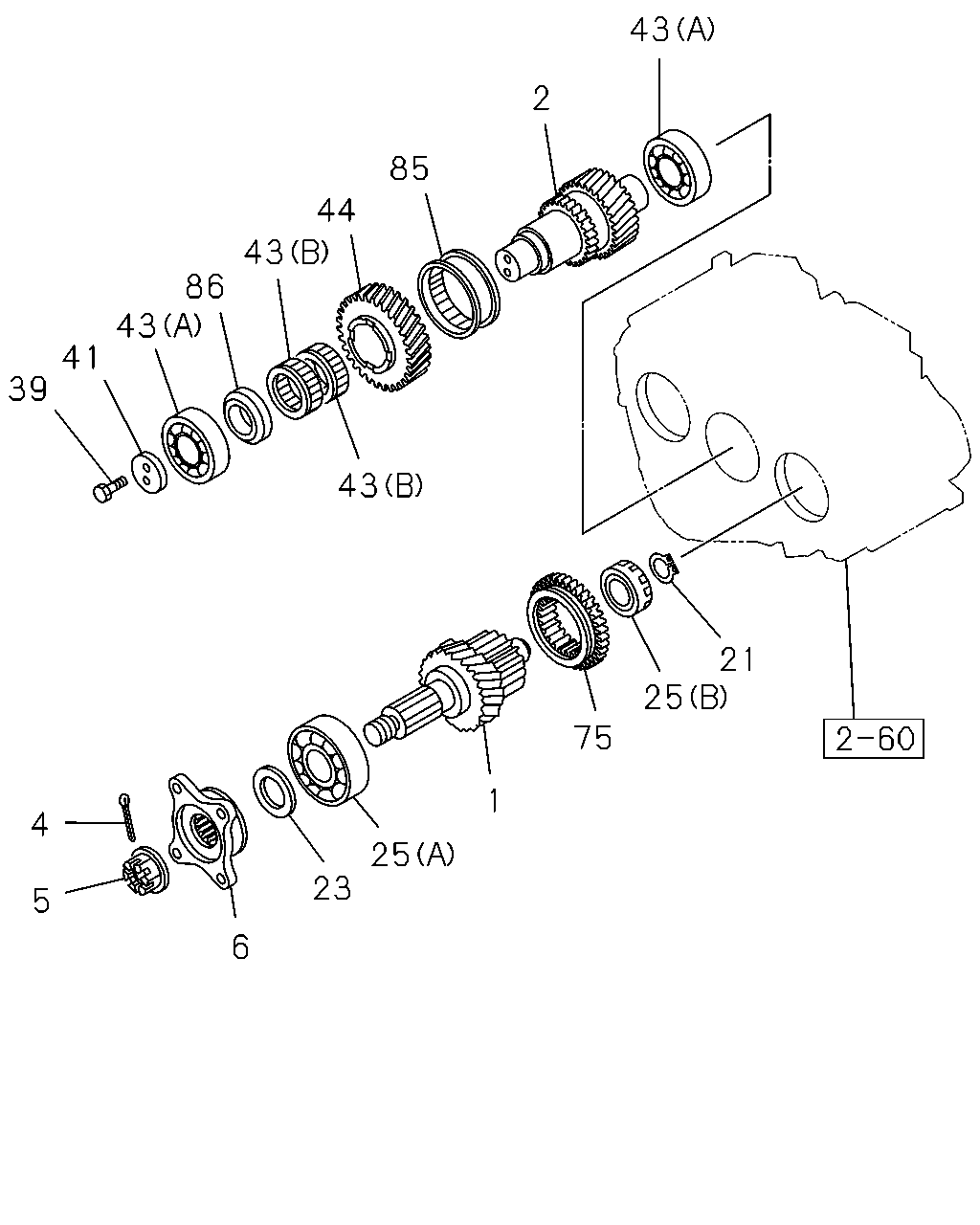

çizim 181733
43 2 85 44 43 86 43 41 39 43 21 25 75 1 4 25 23 5 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; GEAR,INPUT 1-36211-025-0 01 1 0712-1003 ● ●
1 SHAFT; GEAR,INPUT 1-36211-025-0 01 1 1004- ● ● ●
2 SHAFT; GEAR,IDLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-36251-022-0 01 1 0812-1003 ●
2 SHAFT; GEAR,IDLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-36251-022-0 01 1 1004- ●
2 SHAFT; GEAR,IDLE 1-36251-022-0 01 1 1004- ●
2 SHAFT; GEAR,IDLE 1-36251-023-0 01 1 0712-0811 ● ●
2 SHAFT; GEAR,IDLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> 		1-36251-023-0 01 1 0812- ●
2 SHAFT; GEAR,IDLE 1-36251-023-0 01 1 0812- ●
4 PIN; SPLIT 9-08116-045-0 01 1 0712-1003 ● ●
4 PIN; SPLIT 9-08116-045-0 01 1 1004- ● ● ●
5 NUT; YOKE,TRANSFER,INPUT
M30 		1-09440-018-0 01 1 0712-1003 ● ●
5 NUT; YOKE,TRANSFER,INPUT
M30 		1-09440-018-0 01 1 1004- ● ● ●
6 FLANGE; INPUT
W/COVER:DUST 		1-37240-079-1 01 1 0712-1003 ● ●
6 FLANGE; INPUT
W/COVER:DUST 		1-37240-079-1 01 1 1004- ● ● ●
21 RING; SNAP,PILOT BRG 1-09588-157-0 01 1 0712-1003 ● ●
21 RING; SNAP,PILOT BRG 1-09588-157-0 01 1 1004- ● ● ●
23 COLLAR; DIST,INPUT SHAFT 9-36215-006-1 01 1 0712-1003 ● ●
23 COLLAR; DIST,INPUT SHAFT 9-36215-006-1 01 1 1004- ● ● ●
25 BEARING; BALL,INPUT SHAFT
(A) NSK 		1-09800-055-0 01 1 0712-1003 ● ●
25 BEARING; BALL,INPUT SHAFT
(A) NSK 		1-09800-055-0 01 1 1004- ● ● ●
25 BEARING; BALL,INPUT SHAFT
(A) NTN 		1-09800-064-0 01 1 0712-1003 ● ●
25 BEARING; BALL,INPUT SHAFT
(A) NTN 		1-09800-064-0 01 1 1004- ● ● ●
25 BEARING; BALL,INPUT SHAFT
(B) NSK 		1-09810-087-0 01 1 0712-1003 ● ●
25 BEARING; BALL,INPUT SHAFT
(B) NSK 		1-09810-087-0 01 1 1004- ● ● ●
39 BOLT; LK PLATE
M8X20 		1-09050-005-1 02 1 0712-1003 ● ●
39 BOLT; LK PLATE
M8X20 		1-09050-005-1 02 1 1004- ● ● ●
41 PLATE; LK,IDLE SHAFT 1-33313-002-0 01 1 0712-1003 ● ●
41 PLATE; LK,IDLE SHAFT 1-33313-002-0 01 1 1004- ● ● ●
43 BEARING; ROLLER,IDLE SHAFT
(A) NSK 		1-09812-038-0 02 1 0712-1003 ● ●
43 BEARING; ROLLER,IDLE SHAFT
(A) NSK 		1-09812-038-0 02 1 1004- ● ● ●
43 BEARING; ROLLER,IDLE SHAFT
(A) NACHI 		1-09812-039-0 02 1 0712-1003 ● ●
43 BEARING; ROLLER,IDLE SHAFT
(A) NACHI 		1-09812-039-0 02 1 1004- ● ● ●
43 BEARING; ROLLER,IDLE SHAFT
(B) JTEKT 		9-00096-240-1 02 1 0712-1003 ● ●
43 BEARING; ROLLER,IDLE SHAFT
(B) JTEKT 		9-00096-240-1 02 1 1004- ● ● ●
44 GEAR; IDLE,LOW RANGE 1-36271-045-0 01 1 0712-1003 ● ●
44 GEAR; IDLE,LOW RANGE 1-36271-045-0 01 1 1004- ● ● ●
75 SLEEVE; HIGH,INPUT 1-36262-021-0 01 1 0712-1003 ● ●
75 SLEEVE; HIGH,INPUT 1-36262-021-0 01 1 1004- ● ● ●
85 SLEEVE; LOW,IDLE 1-36262-020-0 01 1 0712-1003 ● ●
85 SLEEVE; LOW,IDLE 1-36262-020-0 01 1 1004- ● ● ●
86 WASHER; THRUST,IDLE 1-36255-006-0 01 1 0712-1003 ● ●
86 WASHER; THRUST,IDLE 1-36255-006-0 01 1 1004- ● ● ●
