2-61 — TRANSFER CASE AND GEAR SHIFTER (#38148) — 235 parça

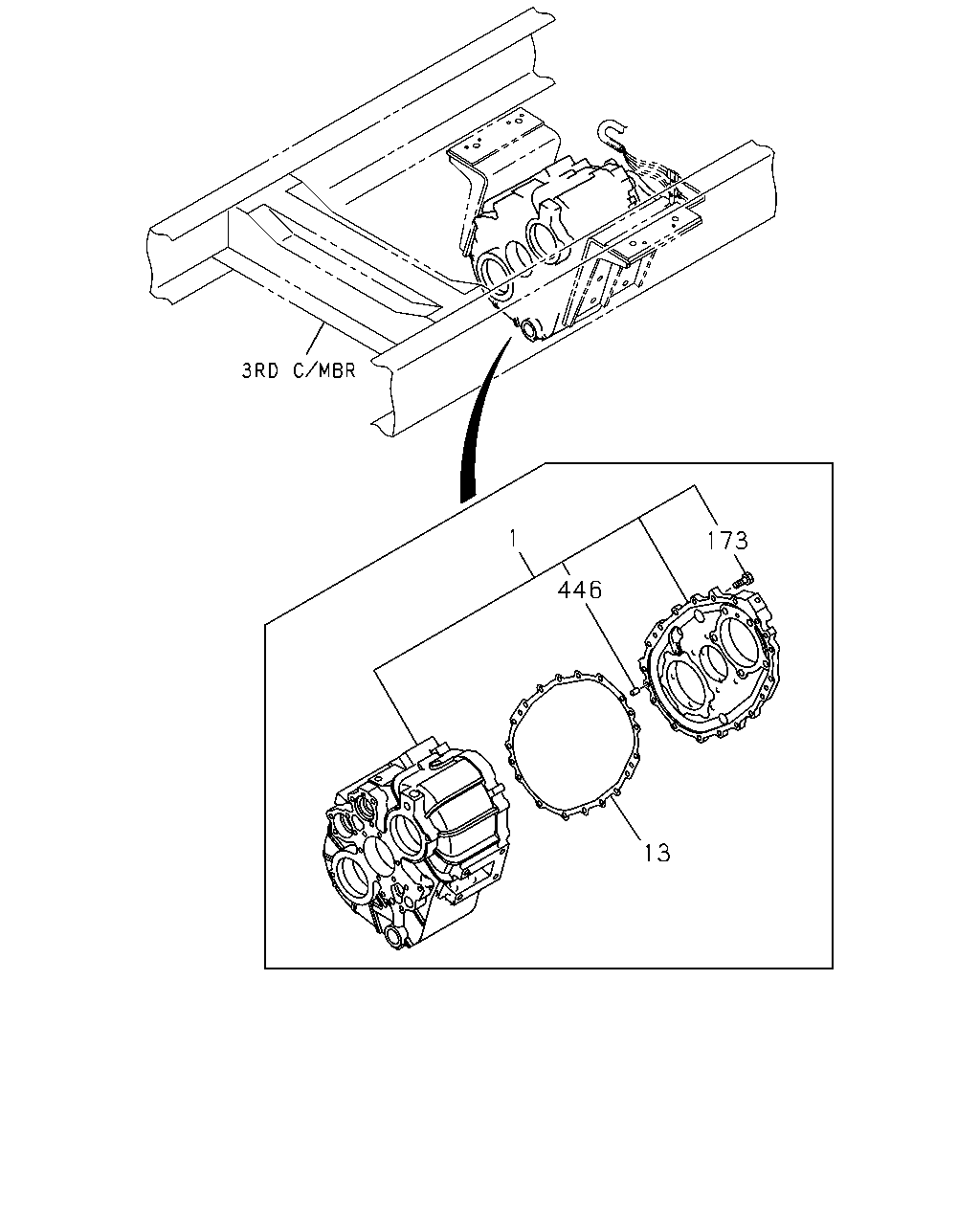

çizim 181736
1 173 446 13
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CASE; TRANSFER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-36110-050-0 01 1 0812-1003 ●
1 CASE; TRANSFER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-36110-050-0 01 1 1004- ●
1 CASE; TRANSFER 1-36110-050-0 01 1 1004- ●
1 CASE; TRANSFER 1-36110-051-0 01 1 0712-0811 ● ●
1 CASE; TRANSFER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> 		1-36110-051-0 01 1 0812- ●
1 CASE; TRANSFER 1-36110-051-0 01 1 0812- ●
13 GASKET; COVER TO TRANSFER CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36132-003-0 01 1 0712-1003 ● ●
13 GASKET; COVER TO TRANSFER CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36132-003-0 01 1 1004- ● ● ●
173 BOLT; COVER
M10X30 W/LK WASHER 		0-50051-030-0 14 1 0712-0906 ● ●
173 BOLT; COVER
M10X30 W/LK WASHER 		0-50551-030-0 14 1 0907-1003 ● ●
173 BOLT; COVER
M10X30 W/LK WASHER 		0-50551-030-0 14 1 1004- ● ● ●
446 PIN; STRAIGHT 9-08161-016-0 02 1 0712-1003 ● ●
446 PIN; STRAIGHT 9-08161-016-0 02 1 1004- ● ● ●

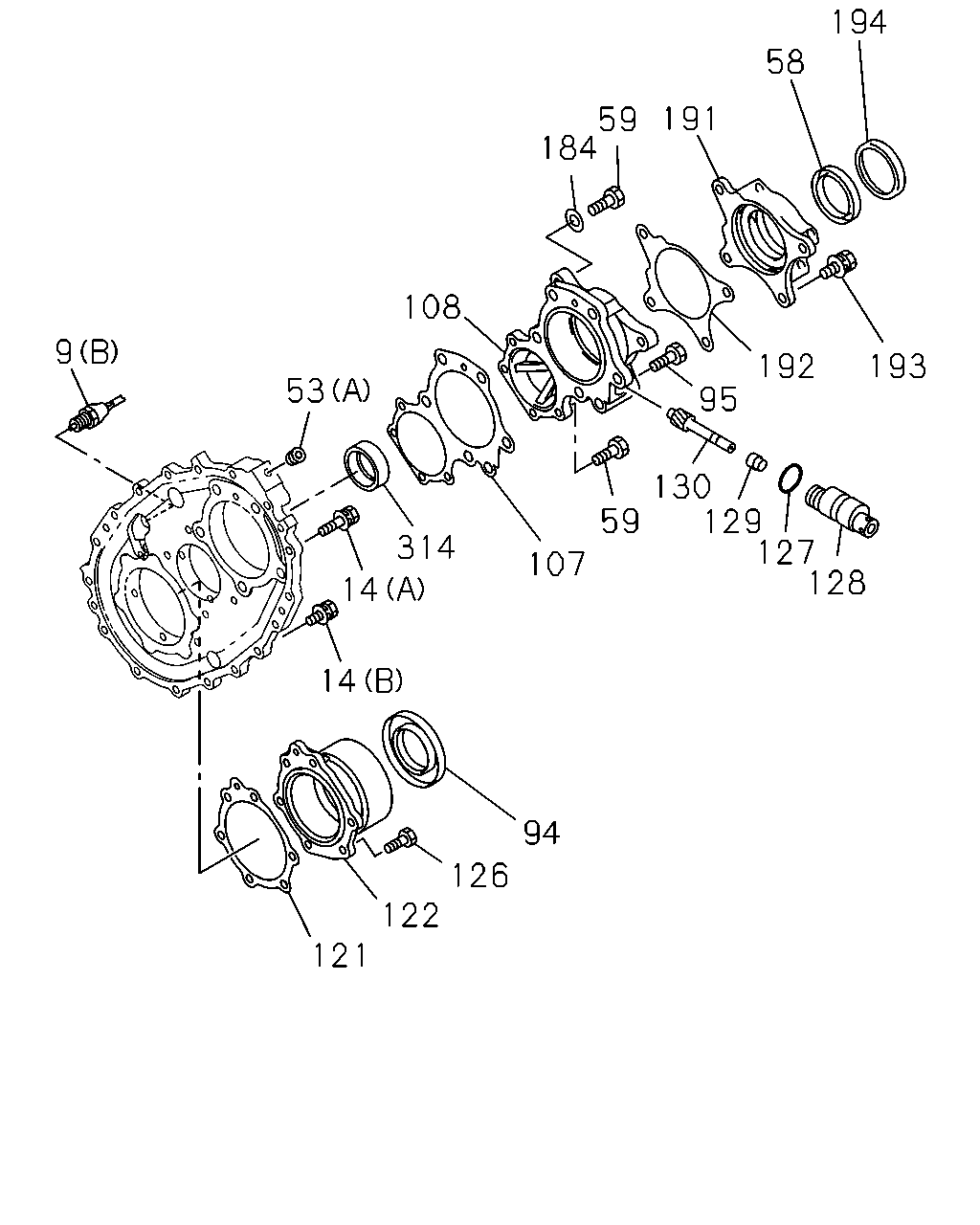

çizim 181737
194 58 191 59 184 108 9 192 193 53 95 130 129 127 128 59 314 107 14 14 94 126 122 121
BalonParca AdiParca NoAdetTipApplied Date A B C
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 0712-1003 ● ●
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 1004- ● ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 01 1 0712-1003 ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 01 1 1004- ● ● ●
14 BOLT; COVER TO TRANSFER CASE
(A) M10X30 W/LK WASHER 		0-50051-030-0 01 1 0712-0906 ● ●
14 BOLT; COVER TO TRANSFER CASE
(A) M10X30 W/LK WASHER 		0-50551-030-0 01 1 0907-1003 ● ●
14 BOLT; COVER TO TRANSFER CASE
(A) M10X30 W/LK WASHER 		0-50551-030-0 01 1 1004- ● ● ●
14 BOLT; COVER TO TRANSFER CASE
(B) M10X45 W/LK WASHER 		0-50051-045-0 02 1 0712-0906 ● ●
14 BOLT; COVER TO TRANSFER CASE
(B) M10X45 W/LK WASHER 		0-50551-045-0 02 1 0907-1003 ● ●
14 BOLT; COVER TO TRANSFER CASE
(B) M10X45 W/LK WASHER 		0-50551-045-0 02 1 1004- ● ● ●
53 PLUG; COVER
(B) M16X12 		0-92002-416-0 02 1 0712-0811 ● ●
53 PLUG; COVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (B) M16X12 		0-92002-416-0 02 1 0812- ●
53 PLUG; COVER
(B) M16X12 		0-92002-416-0 02 1 0812- ●
53 PLUG; COVER
(A) 		9-09205-510-0 01 1 0712-0811 ● ●
53 PLUG; COVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) 		9-09205-510-0 01 1 0812- ●
53 PLUG; COVER
(A) 		9-09205-510-0 01 1 0812- ●
58 SEAL; OIL,RR UPR
NOK 		1-09625-173-0 01 1 0712-1003 ● ●
58 SEAL; OIL,RR UPR
NOK 		1-09625-173-0 01 1 1004- ● ● ●
59 BOLT; UPR COVER
M14X65 		0-16806-465-0 01 1 0712-1003 ● ●
59 BOLT; UPR COVER
M14X65 		0-16806-465-0 01 1 1004- ● ● ●
59 BOLT; UPR COVER
M14X40 		0-23851-440-0 04 1 0712-1003 ● ●
59 BOLT; UPR COVER
M14X40 		0-23851-440-0 04 1 1004- ● ● ●
59 BOLT; UPR COVER
M10X30 W/LK WASHER 		0-50051-030-0 04 1 0712-0906 ● ●
59 BOLT; UPR COVER
M10X30 W/LK WASHER 		0-50551-030-0 04 1 0907-1003 ● ●
59 BOLT; UPR COVER
M10X30 W/LK WASHER 		0-50551-030-0 04 1 1004- ● ● ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-484-1 01 1 0712-1003 ● ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-484-1 01 1 1004- ● ● ●
95 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 0712-0805 ● ●
95 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 0806-1003 ● ●
95 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 1004- ● ● ●
107 GASKET; COVER TO CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36123-009-0 01 1 0712-1003 ● ●
107 GASKET; COVER TO CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36123-009-0 01 1 1004- ● ● ●
108 COVER; UPR,TRANSFER 1-36121-006-2 01 1 0712-1003 ● ●
108 COVER; UPR,TRANSFER 1-36121-006-2 01 1 1004- ● ● ●
121 GASKET; RR COVER,LWR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-006-0 01 1 0712-1003 ● ●
121 GASKET; RR COVER,LWR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-006-0 01 1 1004- ● ● ●
122 COVER; RR,OUTPUT 1-36121-005-0 01 1 0712-1003 ● ●
122 COVER; RR,OUTPUT 1-36121-005-0 01 1 1004- ● ● ●
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50051-025-0 06 1 0712-0906 ● ●
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50551-025-0 06 1 0907-1003 ● ●
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50551-025-0 06 1 1004- ● ● ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-370-0 01 1 0712-1003 ● ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-370-0 01 1 1004- ● ● ●
128 BUSHING; DRIVEN GEAR 1-33373-039-1 01 1 0712-1003 ● ●
128 BUSHING; DRIVEN GEAR 1-33373-039-1 01 1 1004- ● ● ●
129 SEAL; OIL,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-510-0 01 1 0712-1003 ● ●
129 SEAL; OIL,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-510-0 01 1 1004- ● ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
Z=12 		1-33372-074-5 01 1 0712-1003 ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
Z=12 		1-33372-074-5 01 1 1004- ● ● ●
184 WASHER; LK,UPR COVER
ID=14.2 		0-91510-514-0 05 1 0712-1003 ● ●
184 WASHER; LK,UPR COVER
ID=14.2 		0-91510-514-0 05 1 1004- ● ● ●
191 RETAINER; OIL SEAL,RR UPR 1-36155-007-0 01 1 0712-1003 ● ●
191 RETAINER; OIL SEAL,RR UPR 1-36155-007-0 01 1 1004- ● ● ●
192 GASKET; RET,RR UPR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-005-0 01 1 0712-1003 ● ●
192 GASKET; RET,RR UPR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-005-0 01 1 1004- ● ● ●
193 BOLT; RET
M12X28 		0-50051-228-0 04 1 0712-1003 ● ●
193 BOLT; RET
M12X28 		0-50051-228-0 04 1 1004- ● ● ●
194 COVER; OIL SEAL,RR UPR 1-33139-001-1 01 1 0712-1003 ● ●
194 COVER; OIL SEAL,RR UPR 1-33139-001-1 01 1 1004- ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.5 		1-36355-022-0 01 1 0712-1003 ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.5 		1-36355-022-0 01 1 1004- ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.7 		1-36355-023-0 01 1 0712-1003 ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.7 		1-36355-023-0 01 1 1004- ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.9 		1-36355-024-0 01 1 0712-1003 ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.9 		1-36355-024-0 01 1 1004- ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.1 		1-36355-025-0 01 1 0712-1003 ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.1 		1-36355-025-0 01 1 1004- ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.3 		1-36355-026-0 01 1 0712-1003 ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.3 		1-36355-026-0 01 1 1004- ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.5 		1-36355-027-0 01 1 0712-1003 ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.5 		1-36355-027-0 01 1 1004- ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.7 		1-36355-028-0 01 1 0712-1003 ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.7 		1-36355-028-0 01 1 1004- ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.9 		1-36355-029-0 01 1 0712-1003 ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.9 		1-36355-029-0 01 1 1004- ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=21.1 		1-36355-030-0 01 1 0712-1003 ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=21.1 		1-36355-030-0 01 1 1004- ● ● ●

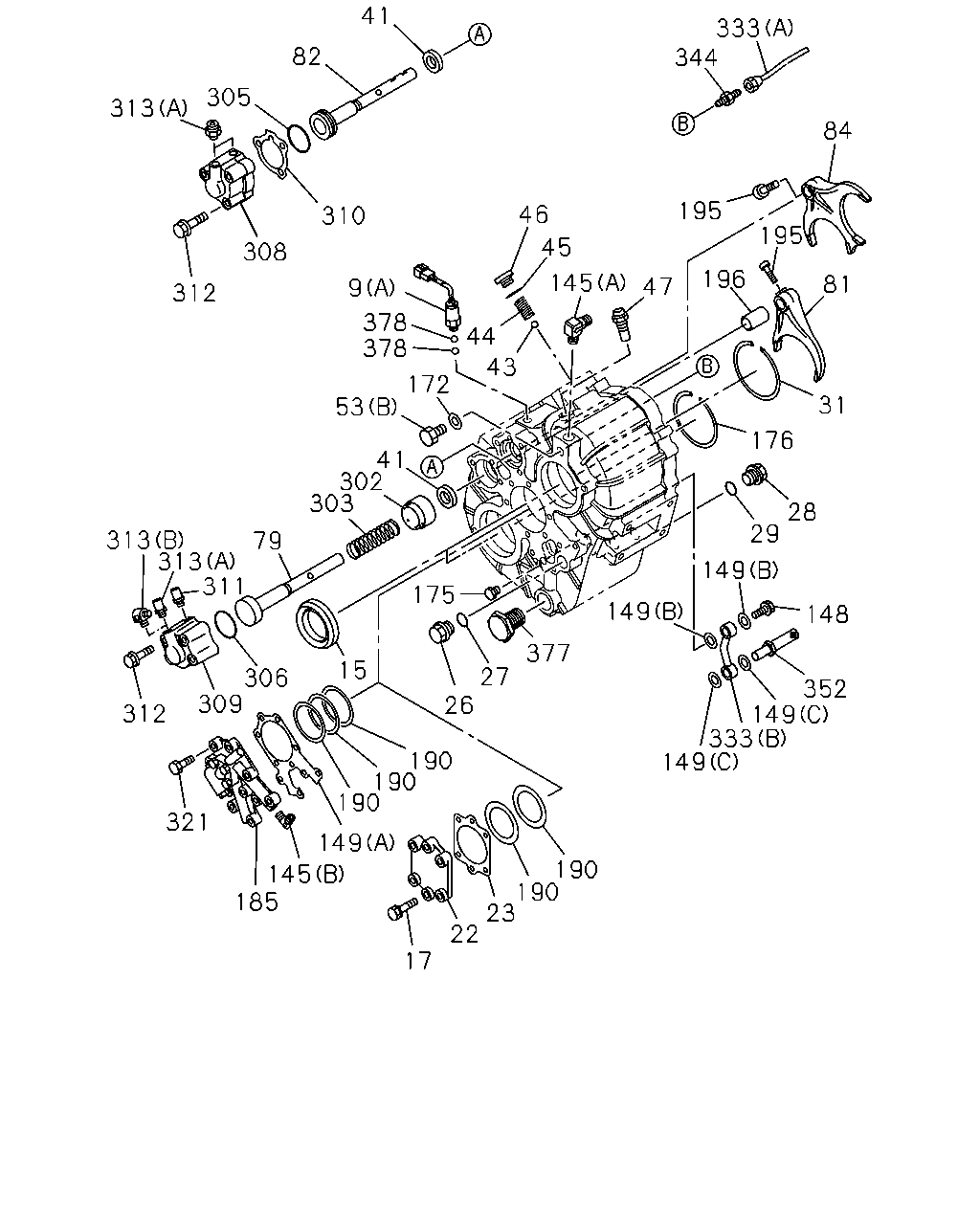

çizim 181740
41 333 344 82 305 313 84 195 46 310 195 45 196 145 81 47 9 312 378 378 44 43 172 31 53 176 41 302 303 28 29 313 313 311 79 149 175 149 148 377 15 27 26 306 309 352 149 333 149 312 190 190 190 321 149 190 190 23 22 145 185 17 308
BalonParca AdiParca NoAdetTipApplied Date A B C
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 0712-1003 ● ●
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 1004- ● ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 01 1 0712-1003 ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 01 1 1004- ● ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-202-1 02 1 0712-1003 ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-202-1 02 1 1004- ● ● ●
17 BOLT; BRG COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> M10X28 		0-50051-028-0 06 1 0812-0906 ●
17 BOLT; BRG COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> M10X28 		0-50551-028-0 06 1 0907-1003 ●
17 BOLT; BRG COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> M10X28 		0-50551-028-0 06 1 1004- ●
17 BOLT; BRG COVER
M10X28 		0-50551-028-0 06 1 1004- ●
22 COVER; BRG,IDLE SHAFT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-36151-006-1 01 1 0812-1003 ●
22 COVER; BRG,IDLE SHAFT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-36151-006-1 01 1 1004- ●
22 COVER; BRG,IDLE SHAFT 1-36151-006-1 01 1 1004- ●
23 GASKET; BRG COVER
ALSO INCLUDED IN REPAIR KIT(T/F). EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		9-36152-003-0 01 1 0812-1003 ●
23 GASKET; BRG COVER
ALSO INCLUDED IN REPAIR KIT(T/F). EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C>. 		9-36152-003-0 01 1 1004- ●
23 GASKET; BRG COVER
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36152-003-0 01 1 1004- ●
26 PLUG; FILLER,TRANSFER CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0712-1003 ● ●
26 PLUG; FILLER,TRANSFER CASE
M24X17 FLANGE 		1-09604-022-0 01 1 1004- ● ● ●
27 GASKET; FILLER PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 0712-1003 ● ●
27 GASKET; FILLER PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 1004- ● ● ●
28 PLUG; DRAIN,TRANSFER CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0712-1003 ● ●
28 PLUG; DRAIN,TRANSFER CASE
M24X17 FLANGE 		1-09604-023-0 01 1 1004- ● ● ●
29 GASKET; DRAIN PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 0712-1003 ● ●
29 GASKET; DRAIN PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 1004- ● ● ●
31 RING; SNAP,INPUT 9-09950-184-0 01 1 0712-1003 ● ●
31 RING; SNAP,INPUT 9-09950-184-0 01 1 1004- ● ● ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-377-0 02 1 0712-1003 ● ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-377-0 02 1 1004- ● ● ●
43 BALL; LK,SHIFT ROD 9-00097-013-0 01 1 0712-1003 ● ●
43 BALL; LK,SHIFT ROD 9-00097-013-0 01 1 1004- ● ● ●
44 SPRING; COIL,LK 9-09940-323-0 01 1 0712-1003 ● ●
44 SPRING; COIL,LK 9-09940-323-0 01 1 1004- ● ● ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=20.5 OD=28.0 		9-09571-420-0 01 1 0712-1003 ● ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=20.5 OD=28.0 		9-09571-420-0 01 1 1004- ● ● ●
46 SEAT; SPR 9-09862-175-0 01 1 0712-1003 ● ●
46 SEAT; SPR 9-09862-175-0 01 1 1004- ● ● ●
47 BREATHER; TRANSFER CASE 9-36122-015-1 01 1 0712-1003 ● ●
47 BREATHER; TRANSFER CASE 9-36122-015-1 01 1 1004- ● ● ●
53 PLUG; COVER
(B) M16X12 		0-92002-416-0 02 1 0712-0811 ● ●
53 PLUG; COVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (B) M16X12 		0-92002-416-0 02 1 0812- ●
53 PLUG; COVER
(B) M16X12 		0-92002-416-0 02 1 0812- ●
53 PLUG; COVER
(A) 		9-09205-510-0 01 1 0712-0811 ● ●
53 PLUG; COVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) 		9-09205-510-0 01 1 0812- ●
53 PLUG; COVER
(A) 		9-09205-510-0 01 1 0812- ●
79 ROD; SHIFT,NEUTRAL & FRT DRIVE 1-36564-027-0 01 1 0712-1003 ● ●
79 ROD; SHIFT,NEUTRAL & FRT DRIVE 1-36564-027-0 01 1 1004- ● ● ●
81 FORK; SHIFT,NEUTRAL & FRT DRIVE 1-36561-020-0 01 1 0712-1003 ● ●
81 FORK; SHIFT,NEUTRAL & FRT DRIVE 1-36561-020-0 01 1 1004- ● ● ●
82 ROD; SHIFT,LOW & HIGH 1-36564-026-0 01 1 0712-1003 ● ●
82 ROD; SHIFT,LOW & HIGH 1-36564-026-0 01 1 1004- ● ● ●
84 FORK; SHIFT,LOW & HIGH 1-36561-019-1 01 1 0712-1003 ● ●
84 FORK; SHIFT,LOW & HIGH 1-36561-019-1 01 1 1004- ● ● ●
145 CONNECTOR; OIL PIPE,TRANSFER
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0712-0811 ● ●
145 CONNECTOR; OIL PIPE,TRANSFER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0812- ●
145 CONNECTOR; OIL PIPE,TRANSFER
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0812- ●
145 CONNECTOR; OIL PIPE,TRANSFER
(A) 		1-09650-325-1 01 1 0712-0811 ● ●
145 CONNECTOR; OIL PIPE,TRANSFER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) 		1-09650-325-1 01 1 0812- ●
145 CONNECTOR; OIL PIPE,TRANSFER
(A) 		1-09650-325-1 01 1 0812- ●
148 BOLT; EYE,OIL PIPE
M12X27 FLANGE 		1-09675-085-0 01 1 0712-0811 ● ●
148 BOLT; EYE,OIL PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> M12X27 FLANGE 		1-09675-085-0 01 1 0812- ●
148 BOLT; EYE,OIL PIPE
M12X27 FLANGE 		1-09675-085-0 01 1 0812- ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). (A) 		1-36289-029-0 01 1 0712-0811 ● ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C>. (A) 		1-36289-029-0 01 1 0812- ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). (A) 		1-36289-029-0 01 1 0812- ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). (B) ID=12.2 		9-09572-012-0 02 1 0712-0811 ● ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C>. (B) ID=12.2 		9-09572-012-0 02 1 0812- ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). (B) ID=12.2 		9-09572-012-0 02 1 0812- ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). (C) 		9-09572-016-0 02 1 0712-0811 ● ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C>. (C) 		9-09572-016-0 02 1 0812- ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). (C) 		9-09572-016-0 02 1 0812- ●
172 GASKET; PLUG
ID=16.2 		9-09571-616-0 02 1 0712-0811 ● ●
172 GASKET; PLUG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> ID=16.2 		9-09571-616-0 02 1 0812- ●
172 GASKET; PLUG
ID=16.2 		9-09571-616-0 02 1 0812- ●
175 PLUG; LEVEL,TRANSFER CASE 9-09864-007-1 01 1 0712-1003 ● ●
175 PLUG; LEVEL,TRANSFER CASE 9-09864-007-1 01 1 1004- ● ● ●
176 RING; SNAP,FRT OUTPUT 9-09950-089-0 01 1 0712-1003 ● ●
176 RING; SNAP,FRT OUTPUT 9-09950-089-0 01 1 1004- ● ● ●
185 PUMP ASM; OIL,TRANSFER 1-13110-036-2 01 1 0712-0811 ● ●
185 PUMP ASM; OIL,TRANSFER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> 		1-13110-036-2 01 1 0812- ●
185 PUMP ASM; OIL,TRANSFER 1-13110-036-2 01 1 0812- ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.10 		9-36153-020-0 AR 1 0712-1003 ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.10 		9-36153-020-0 AR 1 1004- ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.12 		9-36153-021-0 AR 1 0712-1003 ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.12 		9-36153-021-0 AR 1 1004- ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.14 		9-36153-022-0 AR 1 0712-1003 ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.14 		9-36153-022-0 AR 1 1004- ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.16 		9-36153-023-0 AR 1 0712-1003 ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.16 		9-36153-023-0 AR 1 1004- ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.18 		9-36153-024-0 AR 1 0712-1003 ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.18 		9-36153-024-0 AR 1 1004- ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.20 		9-36153-025-0 AR 1 0712-1003 ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.20 		9-36153-025-0 AR 1 1004- ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.50 		9-36153-026-0 AR 1 0712-1003 ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.50 		9-36153-026-0 AR 1 1004- ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=1.00 		9-36153-027-0 AR 1 0712-1003 ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=1.00 		9-36153-027-0 AR 1 1004- ● ● ●
195 BOLT; SHIFT FORK
M12X20 		1-09052-039-0 02 1 0712-1003 ● ●
195 BOLT; SHIFT FORK
M12X20 		1-09052-039-0 02 1 1004- ● ● ●
196 COLLAR; DIST,SHIFT ROD 1-36577-004-0 01 1 0712-1003 ● ●
196 COLLAR; DIST,SHIFT ROD 1-36577-004-0 01 1 1004- ● ● ●
302 SEAT; SPRING 1-36572-002-1 01 1 0712-1003 ● ●
302 SEAT; SPRING 1-36572-002-1 01 1 1004- ● ● ●
303 SPRING; NEUTRAL-FRONT 1-09580-489-0 01 1 0712-1003 ● ●
303 SPRING; NEUTRAL-FRONT 1-09580-489-0 01 1 1004- ● ● ●
305 GASKET; PISTON,LOW-HIGH
ALSO INCLUDED IN REPAIR KIT(T/F). ID=43.7 		9-09561-344-0 01 1 0712-1003 ● ●
305 GASKET; PISTON,LOW-HIGH
ALSO INCLUDED IN REPAIR KIT(T/F). ID=43.7 		9-09561-344-0 01 1 1004- ● ● ●
306 GASKET; PISTON,NEUTRAL-FRONT
ID=43.7 		9-09561-344-0 01 1 0712-1003 ● ●
306 GASKET; PISTON,NEUTRAL-FRONT
ID=43.7 		9-09561-344-0 01 1 1004- ● ● ●
308 CYLINDER; AIR SHIFT,LOW-HIGH 1-36569-010-0 01 1 0712-1003 ● ●
308 CYLINDER; AIR SHIFT,LOW-HIGH 1-36569-010-0 01 1 1004- ● ● ●
309 CYLINDER; AIR SHIFT,NEUTRAL-FRONT 1-36569-009-0 01 1 0712-1003 ● ●
309 CYLINDER; AIR SHIFT,NEUTRAL-FRONT 1-36569-009-0 01 1 1004- ● ● ●
310 GASKET; AIR CYL 1-36579-001-0 01 1 0712-1003 ● ●
310 GASKET; AIR CYL 1-36579-001-0 01 1 1004- ● ● ●
311 BREATHER; AIR CYL 9-36122-013-0 01 1 0712-1003 ● ●
311 BREATHER; AIR CYL 9-36122-013-0 01 1 1004- ● ● ●
312 BOLT; AIR CYL
M10X65 FLANGE 		8-94344-540-1 07 1 0712-1003 ● ●
312 BOLT; AIR CYL
M10X65 FLANGE 		8-94344-540-1 07 1 1004- ● ● ●
313 CONNECTOR; AIR CYL
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0712-1003 ● ●
313 CONNECTOR; AIR CYL
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1004- ● ● ●
313 CONNECTOR; AIR CYL
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-1003 ● ●
313 CONNECTOR; AIR CYL
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1004- ● ● ●
321 BOLT; PUMP HSG
M10X35 FLANGE 		0-28151-035-0 08 1 0712-0811 ● ●
321 BOLT; PUMP HSG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> M10X35 FLANGE 		0-28151-035-0 08 1 0812- ●
321 BOLT; PUMP HSG
M10X35 FLANGE 		0-28151-035-0 08 1 0812- ●
321 BOLT; PUMP HSG
M10X50 FLANGE 		0-28151-050-0 02 1 0712-0811 ● ●
321 BOLT; PUMP HSG
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> M10X50 FLANGE 		0-28151-050-0 02 1 0812- ●
321 BOLT; PUMP HSG
M10X50 FLANGE 		0-28151-050-0 02 1 0812- ●
333 PIPE; OIL,TRANSFER
(A) 		1-36161-030-0 01 1 0712-0811 ● ●
333 PIPE; OIL,TRANSFER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) 		1-36161-030-0 01 1 0812- ●
333 PIPE; OIL,TRANSFER
(A) 		1-36161-030-0 01 1 0812- ●
333 PIPE; OIL,TRANSFER
(B) 		1-36161-033-0 01 1 0712-0811 ● ●
333 PIPE; OIL,TRANSFER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (B) 		1-36161-033-0 01 1 0812- ●
333 PIPE; OIL,TRANSFER
(B) 		1-36161-033-0 01 1 0812- ●
344 CONNECTOR 0-92111-808-0 01 1 0712-0811 ● ●
344 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> 		0-92111-808-0 01 1 0812- ●
344 CONNECTOR 0-92111-808-0 01 1 0812- ●
352 FILTER; OIL 1-36289-001-0 01 1 0712-0811 ● ●
352 FILTER; OIL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> 		1-36289-001-0 01 1 0812- ●
352 FILTER; OIL 1-36289-001-0 01 1 0812- ●
377 ADAPTER; OIL PIPE 1-09669-131-0 01 1 0712-0811 ● ●
377 ADAPTER; OIL PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> 		1-09669-131-0 01 1 0812- ●
377 ADAPTER; OIL PIPE 1-09669-131-0 01 1 0812- ●
378 BALL; CONT SWITCH 9-00097-013-0 02 1 0712-1003 ● ●
378 BALL; CONT SWITCH 9-00097-013-0 02 1 1004- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
