◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-60 - TRANSFER ▶
2-60 — TRANSFER (#38147) — 713 parça

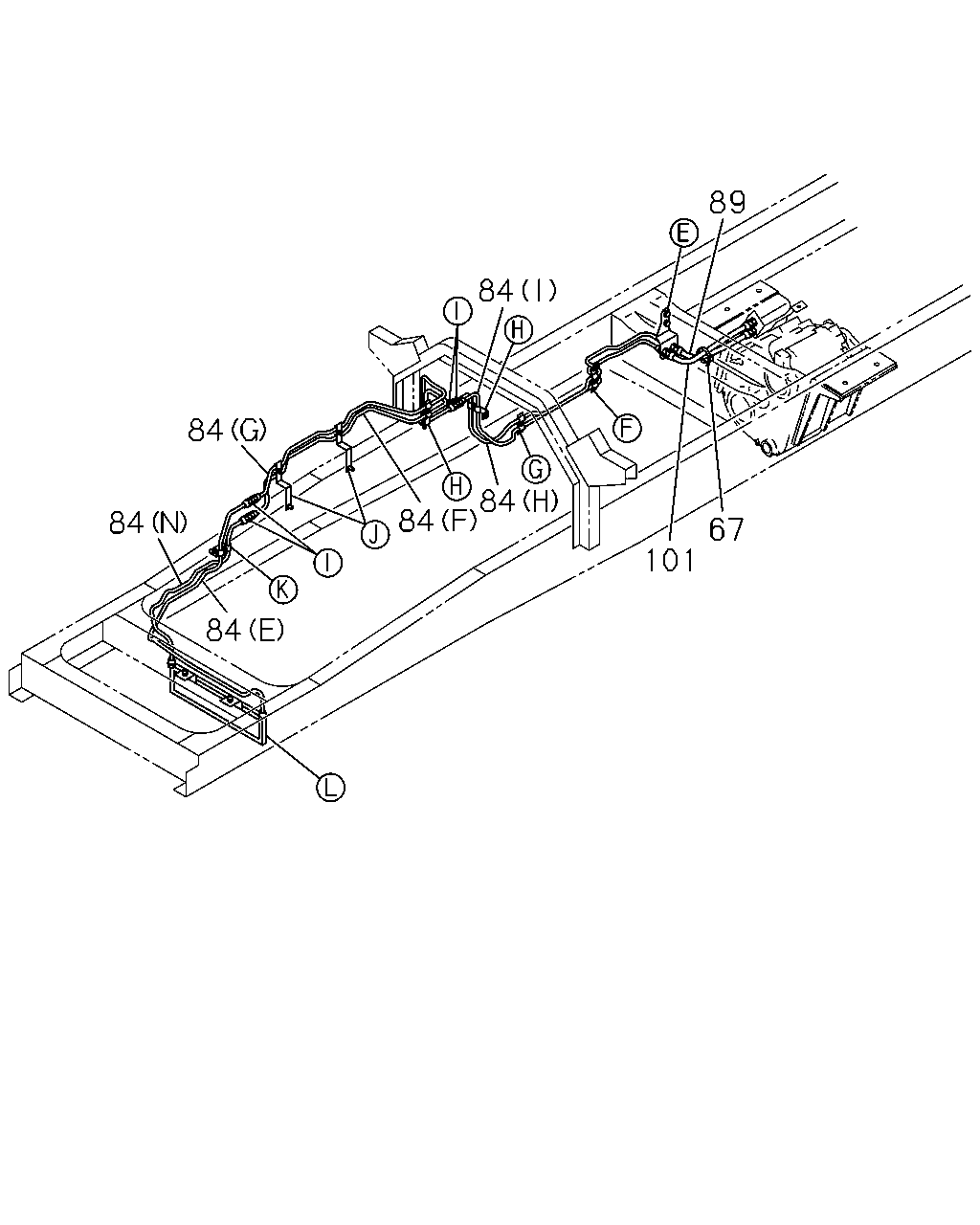

çizim 181727
89 84 84 84 84 84 67 101 84
BalonParca AdiParca NoAdetTipApplied Date A B C
67 CLIP; BAND
L=250 		5-09707-030-1 01 1 0712-0802 ●
67 CLIP; BAND
L=250 		5-09707-030-1 01 1 0803-0811 ● ●
67 CLIP; BAND
TRANSMISSION OIL COOLER<C2C> L=250 		5-09707-030-1 01 1 0812- ●
67 CLIP; BAND
L=250 		5-09707-030-1 01 1 0812- ●
84 PIPE; T/F,COOLER
(G) 		8-98116-123-0 01 1 0803-0811 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (G) 		8-98116-123-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(H) 		8-98116-124-1 01 1 0803-0811 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (H) 		8-98116-124-1 01 1 0812- ●
84 PIPE; T/F,COOLER
(E) 		8-98116-115-0 01 1 0803-0809 ● ●
84 PIPE; T/F,COOLER
(E) 		8-98119-817-0 01 1 0810-0811 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (E) 		8-98119-817-0 01 1 0812-1009 ●
84 PIPE; T/F,COOLER
(E) 		8-98119-817-0 01 1 0812-1009 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (E) 		8-98180-763-0 01 1 1010- ●
84 PIPE; T/F,COOLER
(E) 		8-98180-763-0 01 1 1010- ●
84 PIPE; T/F,COOLER
(N) 		8-98116-116-0 01 1 0803-0809 ● ●
84 PIPE; T/F,COOLER
(N) 		8-98119-819-0 01 1 0810-0811 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (N) 		8-98119-819-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(N) 		8-98119-819-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(L) 		8-98116-117-0 01 1 0803-0809 ●
84 PIPE; T/F,COOLER
(L) 		8-98119-820-0 01 1 0810-1003 ●
84 PIPE; T/F,COOLER
(L) 		8-98119-820-0 01 1 1004- ●
84 PIPE; T/F,COOLER
(J) 		8-98116-118-1 01 1 0803-1003 ●
84 PIPE; T/F,COOLER
(J) 		8-98116-118-1 01 1 1004- ●
84 PIPE; T/F,COOLER
(C) 		8-98099-053-0 01 1 0712-0802 ●
84 PIPE; T/F,COOLER
(K) 		8-98116-113-1 01 1 0803-1003 ●
84 PIPE; T/F,COOLER
(K) 		8-98116-113-1 01 1 1004- ●
84 PIPE; T/F,COOLER
(D) 		8-98099-054-0 01 1 0712-0802 ●
84 PIPE; T/F,COOLER
(M) 		8-98116-114-0 01 1 0803-0809 ●
84 PIPE; T/F,COOLER
(M) 		8-98119-818-0 01 1 0810-1003 ●
84 PIPE; T/F,COOLER
(M) 		8-98119-818-0 01 1 1004- ●
84 PIPE; T/F,COOLER
(B) 		1-36161-032-1 01 1 0712-0811 ● ●
84 PIPE; T/F,COOLER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (B) 		1-36161-032-1 01 1 0812- ●
84 PIPE; T/F,COOLER
(B) 		1-36161-032-1 01 1 0812- ●
84 PIPE; T/F,COOLER
(A) 		1-36161-041-0 01 1 0712-0811 ● ●
84 PIPE; T/F,COOLER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) 		1-36161-041-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(A) 		1-36161-041-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(C) 		8-98054-513-0 01 1 0712-0802 ●
84 PIPE; T/F,COOLER
(I) 		8-98116-119-1 01 1 0803-0811 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (I) 		8-98116-119-1 01 1 0812- ●
84 PIPE; T/F,COOLER
(D) 		8-98054-514-0 01 1 0712-0802 ●
84 PIPE; T/F,COOLER
(F) 		8-98116-120-0 01 1 0803-0811 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (F) 		8-98116-120-0 01 1 0812- ●
89 HOSE
L=405 		1-09364-800-0 01 1 0804-0906 ●
89 HOSE
L=405 		1-09364-800-0 01 1 0907- ●
89 HOSE
L=360 		1-09364-839-0 01 1 0803-0803 ● ●
89 HOSE
L=360 		1-09364-839-0 01 1 0804-0811 ●
89 HOSE
TRANSMISSION OIL COOLER<C2C> L=360 		1-09364-839-0 01 1 0812- ●
101 HOSE; FLEX
L=465 		1-09365-146-0 01 1 0804-1003 ●
101 HOSE; FLEX
L=465 		1-09365-146-0 01 1 1004- ●
101 HOSE; FLEX
L=430 		1-09364-872-0 02 1 0712-0802 ●
101 HOSE; FLEX
L=430 		1-09364-872-0 01 1 0803-0803 ● ●
101 HOSE; FLEX
L=430 		1-09364-872-0 01 1 0804-0811 ●
101 HOSE; FLEX
TRANSMISSION OIL COOLER<C2C> L=430 		1-09364-872-0 01 1 0812- ●
101 HOSE; FLEX
L=360 		1-09364-839-0 02 1 0712-0802 ●

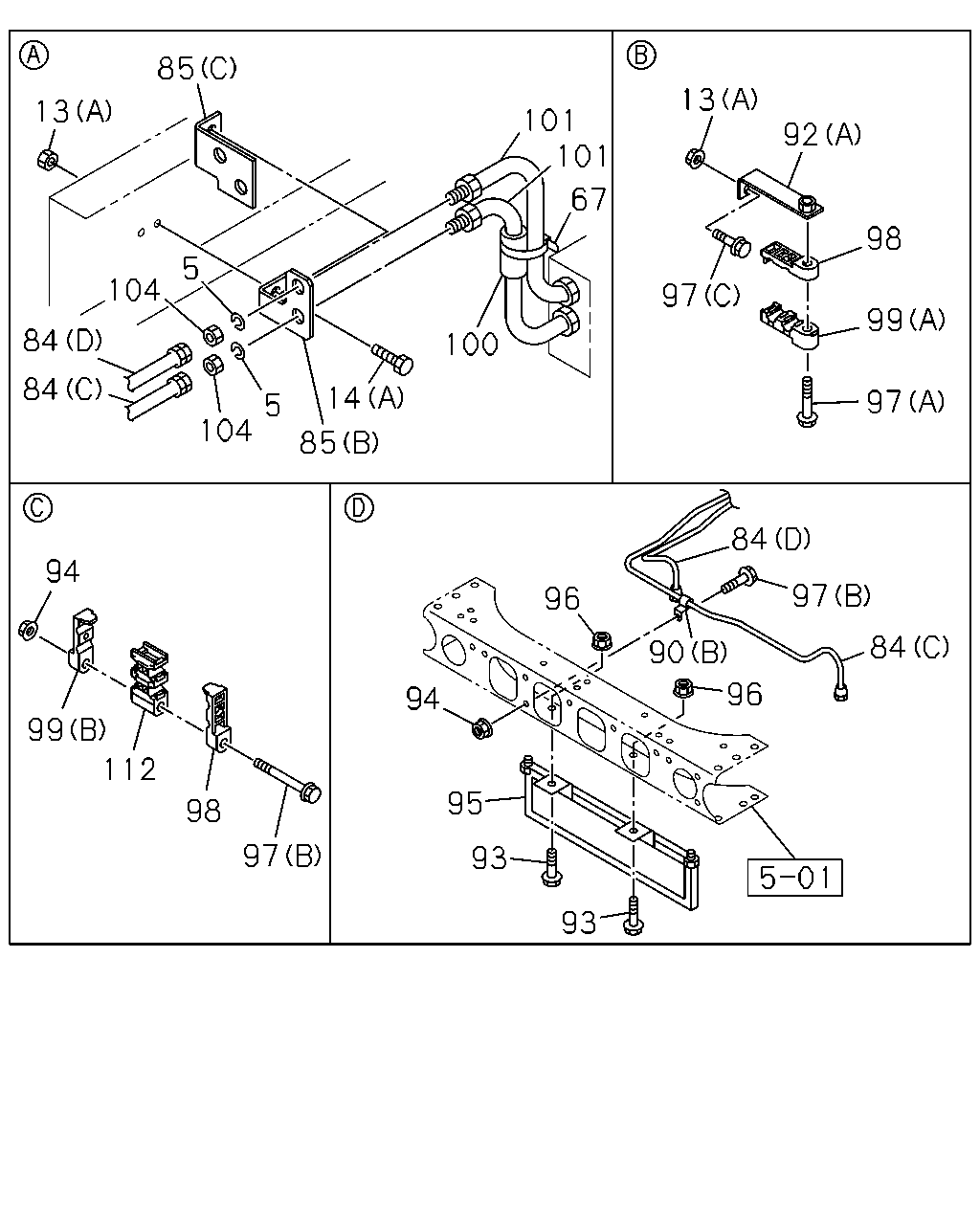

çizim 181732
85 13 13 101 101 92 67 98 5 104 97 99 84 100 84 14 97 5 104 85 84 94 97 96 90 84 96 94 99 112 95 98 97 93 93
BalonParca AdiParca NoAdetTipApplied Date A B C
5 WASHER; LK
ID=16.2 		0-91510-516-0 02 1 0712-0802 ● ●
13 NUT; BRKT
EURO2 SPECIFICATION<NT2> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M14 		0-91110-514-0 11 1 0911- ●
13 NUT; BRKT
EURO2 SPECIFICATION<NT2> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) M10 FLANGE 		0-91180-110-0 01 1 0911- ●
13 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0803-0811 ●
13 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> (B) M8 FLANGE 		0-91180-108-0 02 1 0812- ●
13 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 0712-0802 ● ●
13 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0803-0811 ● ●
13 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M10 FLANGE 		0-91180-210-0 02 1 0812- ●
13 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0812- ●
14 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0803-0811 ●
14 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M8X25 FLANGE 		0-28650-825-0 03 1 0812- ●
14 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M14X40 		0-20851-440-0 11 1 0712-0910 ●
14 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (B) M14X40 		0-20851-440-0 11 1 0911-1003 ●
14 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M14X40 		0-20851-440-0 11 1 0911-1003 ●
14 BOLT; BRKT
(B) M14X40 		0-20851-440-0 11 1 1004- ● ●
14 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0712-0802 ● ●
14 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0803-0811 ● ●
14 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M10X30 FLANGE 		0-28651-030-0 02 1 0812-0910 ●
14 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0812-0910 ●
14 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M10X30 FLANGE 		0-28651-030-0 02 1 0911- ●
14 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE 		0-28651-030-0 02 1 0911- ●
14 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0911- ●
67 CLIP; BAND
L=250 		5-09707-030-1 01 1 0712-0802 ●
67 CLIP; BAND
L=250 		5-09707-030-1 01 1 0803-0811 ● ●
67 CLIP; BAND
TRANSMISSION OIL COOLER<C2C> L=250 		5-09707-030-1 01 1 0812- ●
67 CLIP; BAND
L=250 		5-09707-030-1 01 1 0812- ●
84 PIPE; T/F,COOLER
(G) 		8-98116-123-0 01 1 0803-0811 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (G) 		8-98116-123-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(H) 		8-98116-124-1 01 1 0803-0811 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (H) 		8-98116-124-1 01 1 0812- ●
84 PIPE; T/F,COOLER
(E) 		8-98116-115-0 01 1 0803-0809 ● ●
84 PIPE; T/F,COOLER
(E) 		8-98119-817-0 01 1 0810-0811 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (E) 		8-98119-817-0 01 1 0812-1009 ●
84 PIPE; T/F,COOLER
(E) 		8-98119-817-0 01 1 0812-1009 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (E) 		8-98180-763-0 01 1 1010- ●
84 PIPE; T/F,COOLER
(E) 		8-98180-763-0 01 1 1010- ●
84 PIPE; T/F,COOLER
(N) 		8-98116-116-0 01 1 0803-0809 ● ●
84 PIPE; T/F,COOLER
(N) 		8-98119-819-0 01 1 0810-0811 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (N) 		8-98119-819-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(N) 		8-98119-819-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(L) 		8-98116-117-0 01 1 0803-0809 ●
84 PIPE; T/F,COOLER
(L) 		8-98119-820-0 01 1 0810-1003 ●
84 PIPE; T/F,COOLER
(L) 		8-98119-820-0 01 1 1004- ●
84 PIPE; T/F,COOLER
(J) 		8-98116-118-1 01 1 0803-1003 ●
84 PIPE; T/F,COOLER
(J) 		8-98116-118-1 01 1 1004- ●
84 PIPE; T/F,COOLER
(C) 		8-98099-053-0 01 1 0712-0802 ●
84 PIPE; T/F,COOLER
(K) 		8-98116-113-1 01 1 0803-1003 ●
84 PIPE; T/F,COOLER
(K) 		8-98116-113-1 01 1 1004- ●
84 PIPE; T/F,COOLER
(D) 		8-98099-054-0 01 1 0712-0802 ●
84 PIPE; T/F,COOLER
(M) 		8-98116-114-0 01 1 0803-0809 ●
84 PIPE; T/F,COOLER
(M) 		8-98119-818-0 01 1 0810-1003 ●
84 PIPE; T/F,COOLER
(M) 		8-98119-818-0 01 1 1004- ●
84 PIPE; T/F,COOLER
(B) 		1-36161-032-1 01 1 0712-0811 ● ●
84 PIPE; T/F,COOLER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (B) 		1-36161-032-1 01 1 0812- ●
84 PIPE; T/F,COOLER
(B) 		1-36161-032-1 01 1 0812- ●
84 PIPE; T/F,COOLER
(A) 		1-36161-041-0 01 1 0712-0811 ● ●
84 PIPE; T/F,COOLER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) 		1-36161-041-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(A) 		1-36161-041-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(C) 		8-98054-513-0 01 1 0712-0802 ●
84 PIPE; T/F,COOLER
(I) 		8-98116-119-1 01 1 0803-0811 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (I) 		8-98116-119-1 01 1 0812- ●
84 PIPE; T/F,COOLER
(D) 		8-98054-514-0 01 1 0712-0802 ●
84 PIPE; T/F,COOLER
(F) 		8-98116-120-0 01 1 0803-0811 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (F) 		8-98116-120-0 01 1 0812- ●
85 BRACKET; FLEX HOSE
(C) 		8-98099-643-0 01 1 0712-0802 ●
85 BRACKET; FLEX HOSE
(A) 		1-36183-222-0 01 1 0712-0811 ● ●
85 BRACKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-222-0 01 1 0812- ●
85 BRACKET; FLEX HOSE
(A) 		1-36183-222-0 01 1 0812- ●
85 BRACKET; FLEX HOSE
(B) 		1-47479-673-0 01 1 0712-0802 ●
85 BRACKET; FLEX HOSE
(D) 		8-98116-064-0 01 1 0803-0811 ● ●
85 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (D) 		8-98116-064-0 01 1 0812- ●
85 BRACKET; FLEX HOSE
(D) 		8-98116-064-0 01 1 0812- ●
90 CLIP
(D) ID=6.35 & 10.0 		1-09709-274-1 02 1 0712-0802 ●
90 CLIP
(D) ID=10 & 10 		1-09709-277-1 05 1 0712-0802 ●
90 CLIP
(C) 		1-09700-695-2 01 1 0712-0811 ● ●
90 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (C) 		1-09700-695-2 01 1 0812- ●
90 CLIP
(C) 		1-09700-695-2 01 1 0812- ●
90 CLIP
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0712-0811 ● ●
90 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0812- ●
90 CLIP
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0812- ●
90 CLIP
(D) ID=6.35 & 10.0 		1-09709-274-1 01 1 0712-0802 ●
90 CLIP
(E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 0803-0811 ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 0812- ●
90 CLIP
(E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 0812- ●
90 CLIP
(D) ID=10 & 10 		1-09709-277-1 01 1 0712-0802 ●
90 CLIP
(E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 0803-0811 ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 0812- ●
90 CLIP
(E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 0812- ●
90 CLIP
(B) ID=11 H=20 L=20 		8-98033-780-0 01 1 0712-0802 ●
92 BRACKET
(E) L=68.5 		1-47475-591-0 02 1 0803-0811 ●
92 BRACKET
TRANSMISSION OIL COOLER<C2C> (E) L=68.5 		1-47475-591-0 02 1 0812- ●
92 BRACKET
(F) L=50 		1-47475-299-2 02 1 0803-0811 ● ●
92 BRACKET
TRANSMISSION OIL COOLER<C2C> (F) L=50 		1-47475-299-2 02 1 0812- ●
92 BRACKET
(F) L=50 		1-47475-299-2 02 1 0812- ●
92 BRACKET
(C) 		8-98116-125-0 01 1 0803-0811 ● ●
92 BRACKET
TRANSMISSION OIL COOLER<C2C> (C) 		8-98116-125-0 01 1 0812- ●
92 BRACKET
(C) 		8-98116-125-0 01 1 0812- ●
92 BRACKET
(D) 		8-98116-126-0 02 1 0803-0811 ● ●
92 BRACKET
TRANSMISSION OIL COOLER<C2C> (D) 		8-98116-126-0 02 1 0812- ●
92 BRACKET
(D) 		8-98116-126-0 02 1 0812- ●
92 BRACKET
(A) 		1-23335-352-0 01 1 0712-0802 ●
92 BRACKET
(G) 		1-47475-427-1 03 1 0803-1003 ●
92 BRACKET
(G) 		1-47475-427-1 03 1 1004- ●
92 BRACKET
(A) 		1-23335-352-0 02 1 0712-0802 ●
92 BRACKET
(B) 		1-47471-163-0 02 1 0803-0809 ●
92 BRACKET
(B) 		1-47477-261-0 02 1 0810-0811 ●
92 BRACKET
TRANSMISSION OIL COOLER<C2C> (B) 		1-47477-261-0 02 1 0812- ●
93 BOLT
M10X25 FLANGE 		0-28651-025-0 02 1 0803-0811 ● ●
93 BOLT
TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE 		0-28651-025-0 02 1 0812- ●
93 BOLT
M10X25 FLANGE 		0-28651-025-0 02 1 0812- ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0811 ● ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0811 ●
93 BOLT
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
93 BOLT
M10X25 FLANGE 		0-28651-025-0 02 1 0712-0802 ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 03 1 0803-0811 ●
93 BOLT
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28650-825-0 03 1 0812- ●
94 NUT
M8 FLANGE 		0-91180-108-0 02 1 0803-0811 ● ●
94 NUT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91180-108-0 02 1 0812- ●
94 NUT
M8 FLANGE 		0-91180-108-0 02 1 0812- ●
94 NUT
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
94 NUT
M8 FLANGE 		0-91180-108-0 04 1 0803-0811 ●
94 NUT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91180-108-0 04 1 0812- ●
95 COOLER 1-21700-394-0 01 1 0712-0811 ● ●
95 COOLER
TRANSMISSION OIL COOLER<C2C> 		1-21700-394-0 01 1 0812-1405 ●
95 COOLER 1-21700-394-0 01 1 0812-1405 ●
95 COOLER
TRANSMISSION OIL COOLER<C2C> 		8-98269-766-0 01 1 1406- ●
95 COOLER 8-98269-766-0 01 1 1406- ●
96 NUT
M10 FLANGE 		0-91180-210-0 02 1 0803-0811 ● ●
96 NUT
TRANSMISSION OIL COOLER<C2C> M10 FLANGE 		0-91180-210-0 02 1 0812- ●
96 NUT
M10 FLANGE 		0-91180-210-0 02 1 0812- ●
96 NUT
M8 FLANGE 		0-91180-108-0 04 1 0803-1003 ●
96 NUT
M8 FLANGE 		0-91180-108-0 04 1 1004- ●
96 NUT
M10 FLANGE 		0-91180-210-0 02 1 0712-0802 ●
96 NUT
M8 FLANGE 		0-91180-108-0 06 1 0803-0811 ●
96 NUT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91180-108-0 06 1 0812- ●
97 BOLT
(A) M8X45 FLANGE 		0-28050-845-0 01 1 0712-0802 ● ●
97 BOLT
(A) M8X45 FLANGE 		0-28050-845-0 03 1 0803-1003 ●
97 BOLT
(A) M8X45 FLANGE 		0-28050-845-0 03 1 1004- ●
97 BOLT
(B) M8X70 FLANGE 		0-28050-870-0 01 1 0712-0802 ●
97 BOLT
(C) M8X20 FLANGE 		0-28650-820-0 03 1 0803-1003 ●
97 BOLT
(C) M8X20 FLANGE 		0-28650-820-0 03 1 1004- ●
97 BOLT
(C) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0802 ●
97 BOLT
(C) M8X20 FLANGE 		0-28650-820-0 06 1 0803-0811 ●
97 BOLT
TRANSMISSION OIL COOLER<C2C> (C) M8X20 FLANGE 		0-28650-820-0 06 1 0812- ●
98 CLIP; UPR
ID=10 & 10 		1-09709-241-0 01 1 0712-0802 ● ●
98 CLIP; UPR
ID=10 & 10 		1-09709-241-0 01 1 0712-0802 ●
99 CLIP; LWR
(A) ID=10 & 10 		1-09709-241-0 01 1 0712-0802 ●
99 CLIP; LWR
(B) ID=10 & 10 		1-09709-243-0 01 1 0712-0802 ● ●
100 SLEEVE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 0712-0802 ●
100 SLEEVE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 0803-0811 ● ●
100 SLEEVE
TRANSMISSION OIL COOLER<C2C> ID=32 OD=36 L=50 		1-09337-023-0 01 1 0812- ●
100 SLEEVE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 0812- ●
101 HOSE; FLEX
L=465 		1-09365-146-0 01 1 0804-1003 ●
101 HOSE; FLEX
L=465 		1-09365-146-0 01 1 1004- ●
101 HOSE; FLEX
L=430 		1-09364-872-0 02 1 0712-0802 ●
101 HOSE; FLEX
L=430 		1-09364-872-0 01 1 0803-0803 ● ●
101 HOSE; FLEX
L=430 		1-09364-872-0 01 1 0804-0811 ●
101 HOSE; FLEX
TRANSMISSION OIL COOLER<C2C> L=430 		1-09364-872-0 01 1 0812- ●
101 HOSE; FLEX
L=360 		1-09364-839-0 02 1 0712-0802 ●
104 NUT; FLEX HOSE
M16 		0-91111-516-0 02 1 0712-0811 ● ●
104 NUT; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> M16 		0-91111-516-0 02 1 0812- ●
104 NUT; FLEX HOSE
M16 		0-91111-516-0 02 1 0812- ●
112 CLIP; CENTER
ID=10 		1-09709-242-0 01 1 0712-0802 ●

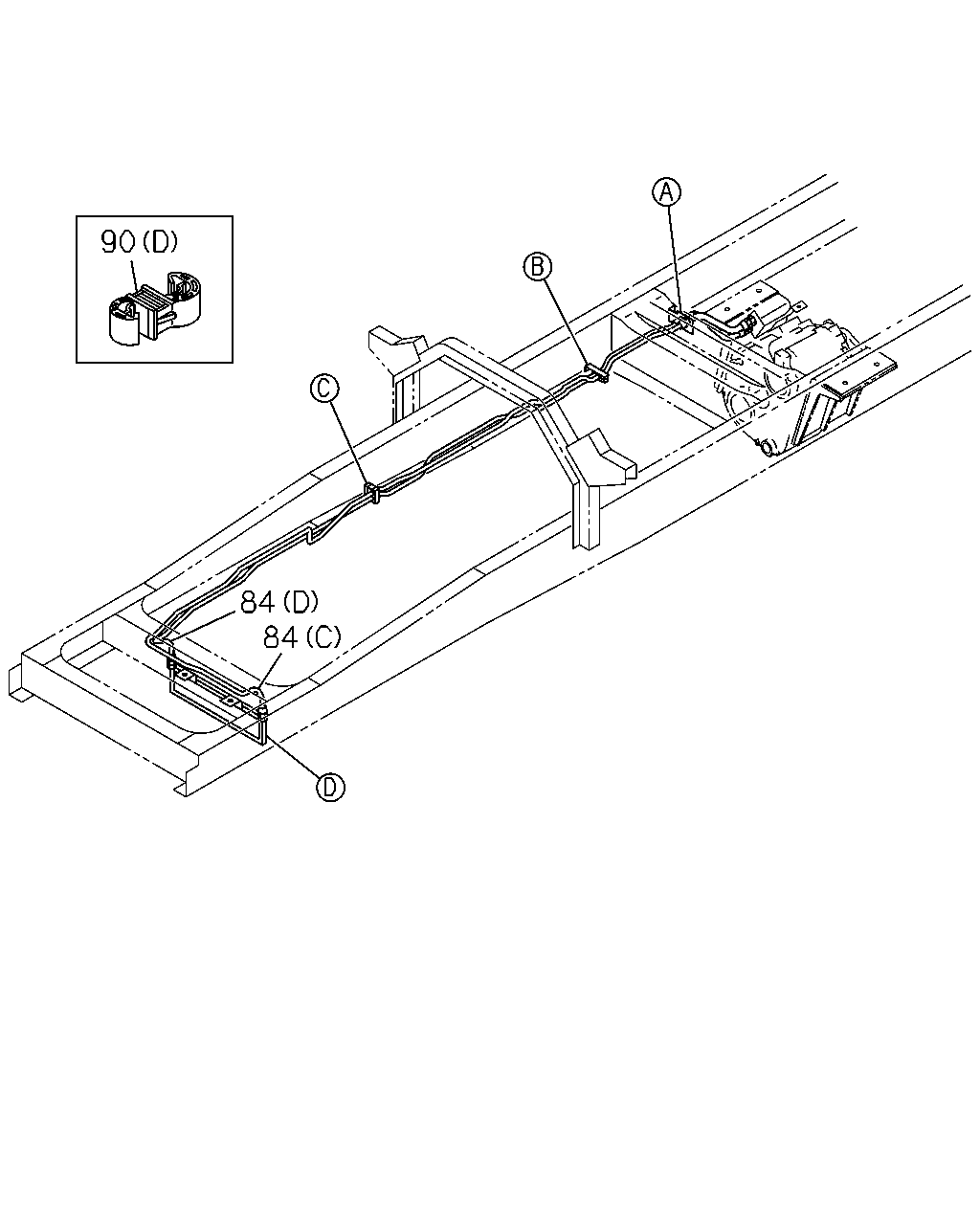

çizim 181739
90 84 84
BalonParca AdiParca NoAdetTipApplied Date A B C
84 PIPE; T/F,COOLER
(G) 		8-98116-123-0 01 1 0803-0811 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (G) 		8-98116-123-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(H) 		8-98116-124-1 01 1 0803-0811 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (H) 		8-98116-124-1 01 1 0812- ●
84 PIPE; T/F,COOLER
(E) 		8-98116-115-0 01 1 0803-0809 ● ●
84 PIPE; T/F,COOLER
(E) 		8-98119-817-0 01 1 0810-0811 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (E) 		8-98119-817-0 01 1 0812-1009 ●
84 PIPE; T/F,COOLER
(E) 		8-98119-817-0 01 1 0812-1009 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (E) 		8-98180-763-0 01 1 1010- ●
84 PIPE; T/F,COOLER
(E) 		8-98180-763-0 01 1 1010- ●
84 PIPE; T/F,COOLER
(N) 		8-98116-116-0 01 1 0803-0809 ● ●
84 PIPE; T/F,COOLER
(N) 		8-98119-819-0 01 1 0810-0811 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (N) 		8-98119-819-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(N) 		8-98119-819-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(L) 		8-98116-117-0 01 1 0803-0809 ●
84 PIPE; T/F,COOLER
(L) 		8-98119-820-0 01 1 0810-1003 ●
84 PIPE; T/F,COOLER
(L) 		8-98119-820-0 01 1 1004- ●
84 PIPE; T/F,COOLER
(J) 		8-98116-118-1 01 1 0803-1003 ●
84 PIPE; T/F,COOLER
(J) 		8-98116-118-1 01 1 1004- ●
84 PIPE; T/F,COOLER
(C) 		8-98099-053-0 01 1 0712-0802 ●
84 PIPE; T/F,COOLER
(K) 		8-98116-113-1 01 1 0803-1003 ●
84 PIPE; T/F,COOLER
(K) 		8-98116-113-1 01 1 1004- ●
84 PIPE; T/F,COOLER
(D) 		8-98099-054-0 01 1 0712-0802 ●
84 PIPE; T/F,COOLER
(M) 		8-98116-114-0 01 1 0803-0809 ●
84 PIPE; T/F,COOLER
(M) 		8-98119-818-0 01 1 0810-1003 ●
84 PIPE; T/F,COOLER
(M) 		8-98119-818-0 01 1 1004- ●
84 PIPE; T/F,COOLER
(B) 		1-36161-032-1 01 1 0712-0811 ● ●
84 PIPE; T/F,COOLER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (B) 		1-36161-032-1 01 1 0812- ●
84 PIPE; T/F,COOLER
(B) 		1-36161-032-1 01 1 0812- ●
84 PIPE; T/F,COOLER
(A) 		1-36161-041-0 01 1 0712-0811 ● ●
84 PIPE; T/F,COOLER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) 		1-36161-041-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(A) 		1-36161-041-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(C) 		8-98054-513-0 01 1 0712-0802 ●
84 PIPE; T/F,COOLER
(I) 		8-98116-119-1 01 1 0803-0811 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (I) 		8-98116-119-1 01 1 0812- ●
84 PIPE; T/F,COOLER
(D) 		8-98054-514-0 01 1 0712-0802 ●
84 PIPE; T/F,COOLER
(F) 		8-98116-120-0 01 1 0803-0811 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (F) 		8-98116-120-0 01 1 0812- ●
90 CLIP
(D) ID=6.35 & 10.0 		1-09709-274-1 02 1 0712-0802 ●
90 CLIP
(D) ID=10 & 10 		1-09709-277-1 05 1 0712-0802 ●
90 CLIP
(C) 		1-09700-695-2 01 1 0712-0811 ● ●
90 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (C) 		1-09700-695-2 01 1 0812- ●
90 CLIP
(C) 		1-09700-695-2 01 1 0812- ●
90 CLIP
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0712-0811 ● ●
90 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0812- ●
90 CLIP
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0812- ●
90 CLIP
(D) ID=6.35 & 10.0 		1-09709-274-1 01 1 0712-0802 ●
90 CLIP
(E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 0803-0811 ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 0812- ●
90 CLIP
(E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 0812- ●
90 CLIP
(D) ID=10 & 10 		1-09709-277-1 01 1 0712-0802 ●
90 CLIP
(E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 0803-0811 ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 0812- ●
90 CLIP
(E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 0812- ●
90 CLIP
(B) ID=11 H=20 L=20 		8-98033-780-0 01 1 0712-0802 ●

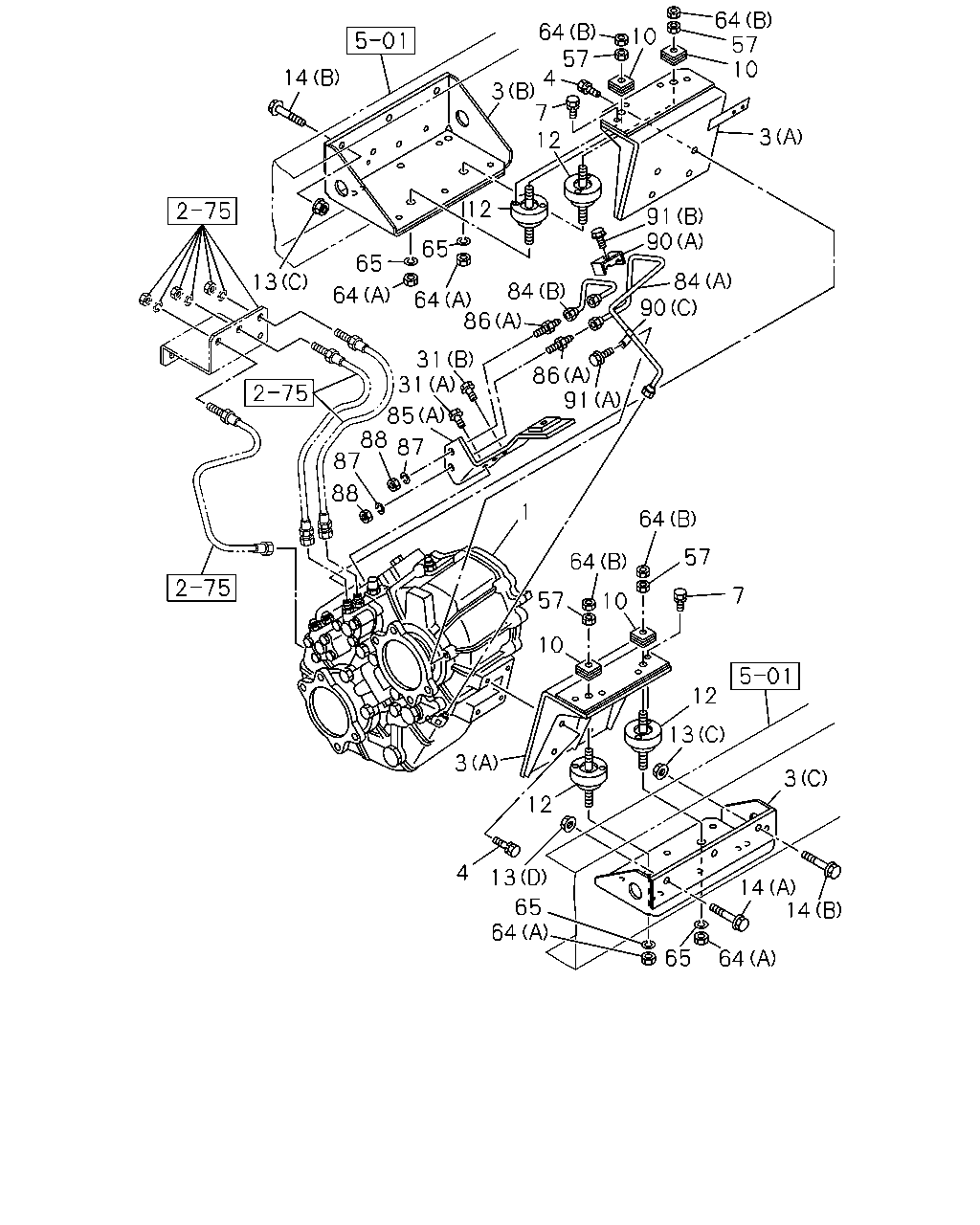

çizim 181743
64 57 10 64 57 4 3 7 12 10 14 3 65 91 90 65 84 90 13 64 84 64 86 31 31 86 91 85 88 87 87 88 1 64 57 64 10 7 57 10 12 13 3 3 12 4 13 14 14 65 64 65 64
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TRANSFER ASM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> 		1-36000-738-0 01 1 0907- ●
1 TRANSFER ASM 1-36000-738-0 01 1 0907- ●
1 TRANSFER ASM
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-36000-732-0 01 1 0812-1003 ●
1 TRANSFER ASM
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-36000-732-0 01 1 1004- ●
1 TRANSFER ASM 1-36000-732-0 01 1 1004- ●
1 TRANSFER ASM 1-36000-704-0 01 1 0712-0806 ● ●
1 TRANSFER ASM 1-36000-738-0 01 1 0807-0811 ● ●
1 TRANSFER ASM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> 		1-36000-738-0 01 1 0812-0906 ●
1 TRANSFER ASM 1-36000-738-0 01 1 0812-0906 ●
3 BRACKET; TRANSFER
(A) 		8-98093-613-0 01 1 0712-1003 ● ●
3 BRACKET; TRANSFER
(A) 		8-98093-613-0 01 1 1004- ● ● ●
3 BRACKET; TRANSFER
(A) 		8-98093-614-0 01 1 0712-1003 ● ●
3 BRACKET; TRANSFER
(A) 		8-98093-614-0 01 1 1004- ● ● ●
3 BRACKET; TRANSFER
(B) 		8-97613-315-0 01 1 0712-1003 ● ●
3 BRACKET; TRANSFER
(B) 		8-97613-315-1 01 1 1004- ● ● ●
3 BRACKET; TRANSFER
(C) 		8-97614-324-0 01 1 0712-1003 ● ●
3 BRACKET; TRANSFER
(C) 		8-97614-324-1 01 1 1004- ● ● ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28051-230-0 AR 1 0712-0906 ● ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28051-230-0 AR 1 0907-1003 ● ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28051-230-0 AR 1 1004- ● ● ●
4 BOLT; BRKT TO TRANSFER
M12X25 FLANGE 		0-28151-225-0 08 1 0712-1003 ● ●
4 BOLT; BRKT TO TRANSFER
M12X25 FLANGE 		0-28151-225-0 08 1 1004- ● ● ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28051-025-0 08 1 0712-1003 ● ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28051-025-0 08 1 1004- ● ● ●
10 RUBBER; CUSHION,UPR,TRANSFER 1-36189-027-0 04 1 0712-1003 ● ●
10 RUBBER; CUSHION,UPR,TRANSFER 1-36189-027-0 04 1 1004- ● ● ●
12 RUBBER; CUSHION,LWR,TRANSFER 1-36189-026-2 04 1 0712-1003 ● ●
12 RUBBER; CUSHION,LWR,TRANSFER 1-36189-026-2 04 1 1004- ● ● ●
13 NUT; BRKT
EURO2 SPECIFICATION<NT2> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M14 		0-91110-514-0 11 1 0911- ●
13 NUT; BRKT
EURO2 SPECIFICATION<NT2> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) M10 FLANGE 		0-91180-110-0 01 1 0911- ●
13 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0803-0811 ●
13 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> (B) M8 FLANGE 		0-91180-108-0 02 1 0812- ●
13 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 0712-0802 ● ●
13 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0803-0811 ● ●
13 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M10 FLANGE 		0-91180-210-0 02 1 0812- ●
13 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0812- ●
14 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0803-0811 ●
14 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M8X25 FLANGE 		0-28650-825-0 03 1 0812- ●
14 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M14X40 		0-20851-440-0 11 1 0712-0910 ●
14 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (B) M14X40 		0-20851-440-0 11 1 0911-1003 ●
14 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M14X40 		0-20851-440-0 11 1 0911-1003 ●
14 BOLT; BRKT
(B) M14X40 		0-20851-440-0 11 1 1004- ● ●
14 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0712-0802 ● ●
14 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0803-0811 ● ●
14 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M10X30 FLANGE 		0-28651-030-0 02 1 0812-0910 ●
14 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0812-0910 ●
14 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M10X30 FLANGE 		0-28651-030-0 02 1 0911- ●
14 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE 		0-28651-030-0 02 1 0911- ●
14 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0911- ●
31 BOLT; BRKT
(A) M10X16 FLANGE 		0-28151-016-0 01 1 0712-0811 ● ●
31 BOLT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) M10X16 FLANGE 		0-28151-016-0 01 1 0812- ●
31 BOLT; BRKT
(A) M10X16 FLANGE 		0-28151-016-0 01 1 0812- ●
31 BOLT; BRKT
(B) M12X20 FLANGE 		0-28151-220-0 02 1 0712-0811 ● ●
31 BOLT; BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (B) M12X20 FLANGE 		0-28151-220-0 02 1 0812- ●
31 BOLT; BRKT
(B) M12X20 FLANGE 		0-28151-220-0 02 1 0812- ●
57 NUT; CUSHION RUBBER,UPR
M12 		0-91110-512-0 04 1 0712-1003 ● ●
57 NUT; CUSHION RUBBER,UPR
M12 		0-91110-512-0 04 1 1004- ● ● ●
64 NUT; CUSHION RUBBER,LWR
(A) M14 		0-91110-514-0 04 1 0712-1003 ● ●
64 NUT; CUSHION RUBBER,LWR
(A) M14 		0-91110-514-0 04 1 1004- ● ● ●
64 NUT; CUSHION RUBBER,LWR
(B) M12 		0-91111-512-0 04 1 0712-1003 ● ●
64 NUT; CUSHION RUBBER,LWR
(B) M12 		0-91111-512-0 04 1 1004- ● ● ●
65 WASHER; LK,CUSHION RUBBER,LWR
ID=14.2 		0-91510-514-0 04 1 0712-1003 ● ●
65 WASHER; LK,CUSHION RUBBER,LWR
ID=14.2 		0-91510-514-0 04 1 1004- ● ● ●
84 PIPE; T/F,COOLER
(G) 		8-98116-123-0 01 1 0803-0811 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (G) 		8-98116-123-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(H) 		8-98116-124-1 01 1 0803-0811 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (H) 		8-98116-124-1 01 1 0812- ●
84 PIPE; T/F,COOLER
(E) 		8-98116-115-0 01 1 0803-0809 ● ●
84 PIPE; T/F,COOLER
(E) 		8-98119-817-0 01 1 0810-0811 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (E) 		8-98119-817-0 01 1 0812-1009 ●
84 PIPE; T/F,COOLER
(E) 		8-98119-817-0 01 1 0812-1009 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (E) 		8-98180-763-0 01 1 1010- ●
84 PIPE; T/F,COOLER
(E) 		8-98180-763-0 01 1 1010- ●
84 PIPE; T/F,COOLER
(N) 		8-98116-116-0 01 1 0803-0809 ● ●
84 PIPE; T/F,COOLER
(N) 		8-98119-819-0 01 1 0810-0811 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (N) 		8-98119-819-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(N) 		8-98119-819-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(L) 		8-98116-117-0 01 1 0803-0809 ●
84 PIPE; T/F,COOLER
(L) 		8-98119-820-0 01 1 0810-1003 ●
84 PIPE; T/F,COOLER
(L) 		8-98119-820-0 01 1 1004- ●
84 PIPE; T/F,COOLER
(J) 		8-98116-118-1 01 1 0803-1003 ●
84 PIPE; T/F,COOLER
(J) 		8-98116-118-1 01 1 1004- ●
84 PIPE; T/F,COOLER
(C) 		8-98099-053-0 01 1 0712-0802 ●
84 PIPE; T/F,COOLER
(K) 		8-98116-113-1 01 1 0803-1003 ●
84 PIPE; T/F,COOLER
(K) 		8-98116-113-1 01 1 1004- ●
84 PIPE; T/F,COOLER
(D) 		8-98099-054-0 01 1 0712-0802 ●
84 PIPE; T/F,COOLER
(M) 		8-98116-114-0 01 1 0803-0809 ●
84 PIPE; T/F,COOLER
(M) 		8-98119-818-0 01 1 0810-1003 ●
84 PIPE; T/F,COOLER
(M) 		8-98119-818-0 01 1 1004- ●
84 PIPE; T/F,COOLER
(B) 		1-36161-032-1 01 1 0712-0811 ● ●
84 PIPE; T/F,COOLER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (B) 		1-36161-032-1 01 1 0812- ●
84 PIPE; T/F,COOLER
(B) 		1-36161-032-1 01 1 0812- ●
84 PIPE; T/F,COOLER
(A) 		1-36161-041-0 01 1 0712-0811 ● ●
84 PIPE; T/F,COOLER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) 		1-36161-041-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(A) 		1-36161-041-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(C) 		8-98054-513-0 01 1 0712-0802 ●
84 PIPE; T/F,COOLER
(I) 		8-98116-119-1 01 1 0803-0811 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (I) 		8-98116-119-1 01 1 0812- ●
84 PIPE; T/F,COOLER
(D) 		8-98054-514-0 01 1 0712-0802 ●
84 PIPE; T/F,COOLER
(F) 		8-98116-120-0 01 1 0803-0811 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (F) 		8-98116-120-0 01 1 0812- ●
85 BRACKET; FLEX HOSE
(C) 		8-98099-643-0 01 1 0712-0802 ●
85 BRACKET; FLEX HOSE
(A) 		1-36183-222-0 01 1 0712-0811 ● ●
85 BRACKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-222-0 01 1 0812- ●
85 BRACKET; FLEX HOSE
(A) 		1-36183-222-0 01 1 0812- ●
85 BRACKET; FLEX HOSE
(B) 		1-47479-673-0 01 1 0712-0802 ●
85 BRACKET; FLEX HOSE
(D) 		8-98116-064-0 01 1 0803-0811 ● ●
85 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (D) 		8-98116-064-0 01 1 0812- ●
85 BRACKET; FLEX HOSE
(D) 		8-98116-064-0 01 1 0812- ●
86 UNION
(B) M16 L=42 		0-92123-010-0 04 1 0803-0811 ● ●
86 UNION
TRANSMISSION OIL COOLER<C2C> (B) M16 L=42 		0-92123-010-0 04 1 0812- ●
86 UNION
(B) M16 L=42 		0-92123-010-0 04 1 0812- ●
86 UNION
(A) M16X2 STRAIGHT 		1-09654-274-1 02 1 0712-0811 ● ●
86 UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) M16X2 STRAIGHT 		1-09654-274-1 02 1 0812- ●
86 UNION
(A) M16X2 STRAIGHT 		1-09654-274-1 02 1 0812- ●
87 WASHER
ID=16.2 		0-91510-516-0 02 1 0712-0811 ● ●
87 WASHER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> ID=16.2 		0-91510-516-0 02 1 0812- ●
87 WASHER
ID=16.2 		0-91510-516-0 02 1 0812- ●
88 NUT
M16 		0-91110-516-0 02 1 0712-0811 ● ●
88 NUT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> M16 		0-91110-516-0 02 1 0812- ●
88 NUT
M16 		0-91110-516-0 02 1 0812- ●
90 CLIP
(D) ID=6.35 & 10.0 		1-09709-274-1 02 1 0712-0802 ●
90 CLIP
(D) ID=10 & 10 		1-09709-277-1 05 1 0712-0802 ●
90 CLIP
(C) 		1-09700-695-2 01 1 0712-0811 ● ●
90 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (C) 		1-09700-695-2 01 1 0812- ●
90 CLIP
(C) 		1-09700-695-2 01 1 0812- ●
90 CLIP
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0712-0811 ● ●
90 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0812- ●
90 CLIP
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0812- ●
90 CLIP
(D) ID=6.35 & 10.0 		1-09709-274-1 01 1 0712-0802 ●
90 CLIP
(E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 0803-0811 ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 0812- ●
90 CLIP
(E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 0812- ●
90 CLIP
(D) ID=10 & 10 		1-09709-277-1 01 1 0712-0802 ●
90 CLIP
(E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 0803-0811 ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 0812- ●
90 CLIP
(E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 0812- ●
90 CLIP
(B) ID=11 H=20 L=20 		8-98033-780-0 01 1 0712-0802 ●
91 BOLT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 0803-0811 ● ●
91 BOLT
TRANSMISSION OIL COOLER<C2C> (C) M8X20 FLANGE 		0-28050-820-0 02 1 0812- ●
91 BOLT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 0812- ●
91 BOLT
(B) M10X16 FLANGE 		0-28151-016-0 01 1 0712-0811 ● ●
91 BOLT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (B) M10X16 FLANGE 		0-28151-016-0 01 1 0812- ●
91 BOLT
(B) M10X16 FLANGE 		0-28151-016-0 01 1 0812- ●
91 BOLT
(A) M6X35 FLANGE 		0-28650-635-0 01 1 0712-0811 ● ●
91 BOLT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) M6X35 FLANGE 		0-28650-635-0 01 1 0812- ●
91 BOLT
(A) M6X35 FLANGE 		0-28650-635-0 01 1 0812- ●

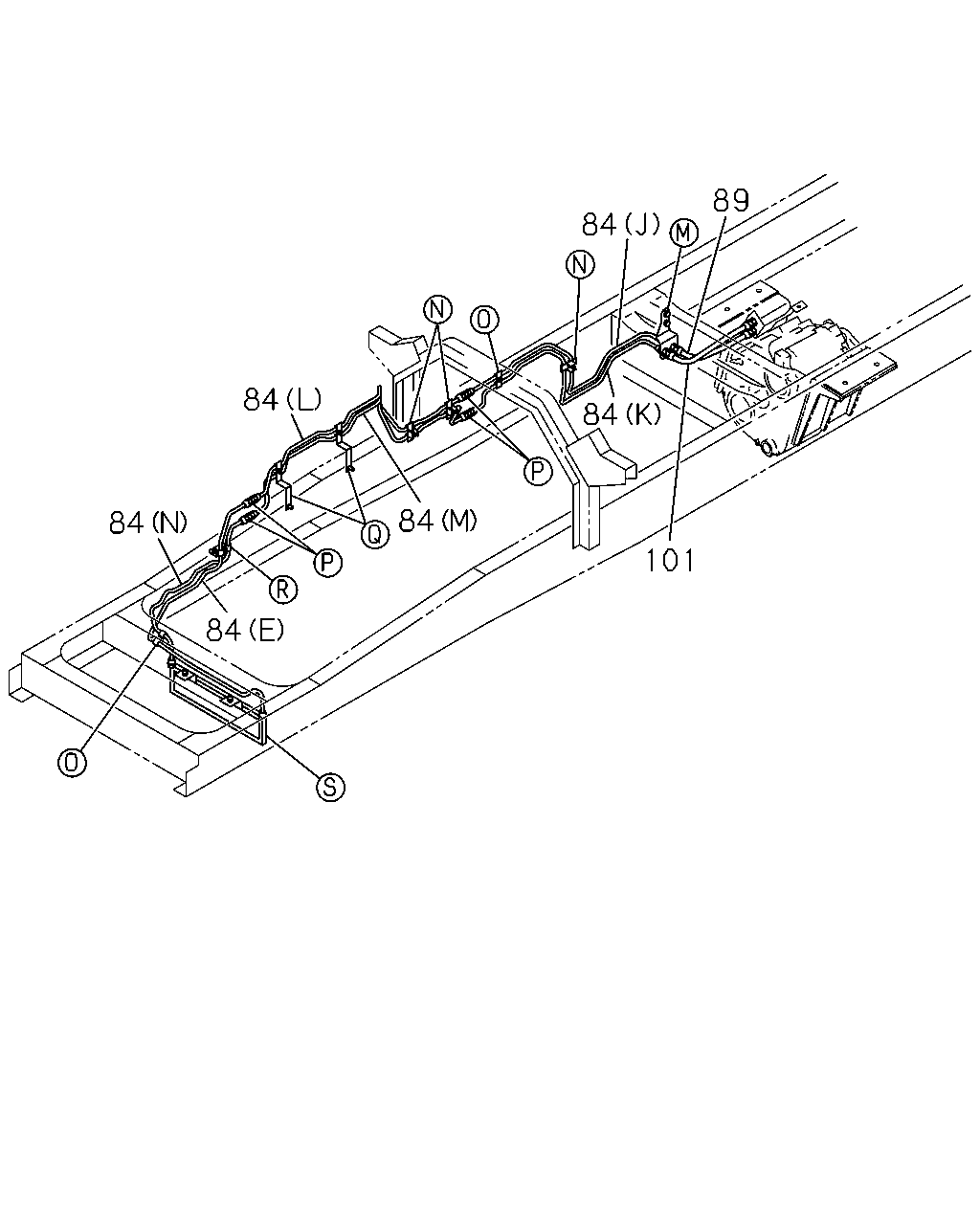

çizim 181926
89 84 84 84 84 84 101 84
BalonParca AdiParca NoAdetTipApplied Date A B C
84 PIPE; T/F,COOLER
(G) 		8-98116-123-0 01 1 0803-0811 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (G) 		8-98116-123-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(H) 		8-98116-124-1 01 1 0803-0811 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (H) 		8-98116-124-1 01 1 0812- ●
84 PIPE; T/F,COOLER
(E) 		8-98116-115-0 01 1 0803-0809 ● ●
84 PIPE; T/F,COOLER
(E) 		8-98119-817-0 01 1 0810-0811 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (E) 		8-98119-817-0 01 1 0812-1009 ●
84 PIPE; T/F,COOLER
(E) 		8-98119-817-0 01 1 0812-1009 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (E) 		8-98180-763-0 01 1 1010- ●
84 PIPE; T/F,COOLER
(E) 		8-98180-763-0 01 1 1010- ●
84 PIPE; T/F,COOLER
(N) 		8-98116-116-0 01 1 0803-0809 ● ●
84 PIPE; T/F,COOLER
(N) 		8-98119-819-0 01 1 0810-0811 ● ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (N) 		8-98119-819-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(N) 		8-98119-819-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(L) 		8-98116-117-0 01 1 0803-0809 ●
84 PIPE; T/F,COOLER
(L) 		8-98119-820-0 01 1 0810-1003 ●
84 PIPE; T/F,COOLER
(L) 		8-98119-820-0 01 1 1004- ●
84 PIPE; T/F,COOLER
(J) 		8-98116-118-1 01 1 0803-1003 ●
84 PIPE; T/F,COOLER
(J) 		8-98116-118-1 01 1 1004- ●
84 PIPE; T/F,COOLER
(C) 		8-98099-053-0 01 1 0712-0802 ●
84 PIPE; T/F,COOLER
(K) 		8-98116-113-1 01 1 0803-1003 ●
84 PIPE; T/F,COOLER
(K) 		8-98116-113-1 01 1 1004- ●
84 PIPE; T/F,COOLER
(D) 		8-98099-054-0 01 1 0712-0802 ●
84 PIPE; T/F,COOLER
(M) 		8-98116-114-0 01 1 0803-0809 ●
84 PIPE; T/F,COOLER
(M) 		8-98119-818-0 01 1 0810-1003 ●
84 PIPE; T/F,COOLER
(M) 		8-98119-818-0 01 1 1004- ●
84 PIPE; T/F,COOLER
(B) 		1-36161-032-1 01 1 0712-0811 ● ●
84 PIPE; T/F,COOLER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (B) 		1-36161-032-1 01 1 0812- ●
84 PIPE; T/F,COOLER
(B) 		1-36161-032-1 01 1 0812- ●
84 PIPE; T/F,COOLER
(A) 		1-36161-041-0 01 1 0712-0811 ● ●
84 PIPE; T/F,COOLER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) 		1-36161-041-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(A) 		1-36161-041-0 01 1 0812- ●
84 PIPE; T/F,COOLER
(C) 		8-98054-513-0 01 1 0712-0802 ●
84 PIPE; T/F,COOLER
(I) 		8-98116-119-1 01 1 0803-0811 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (I) 		8-98116-119-1 01 1 0812- ●
84 PIPE; T/F,COOLER
(D) 		8-98054-514-0 01 1 0712-0802 ●
84 PIPE; T/F,COOLER
(F) 		8-98116-120-0 01 1 0803-0811 ●
84 PIPE; T/F,COOLER
TRANSMISSION OIL COOLER<C2C> (F) 		8-98116-120-0 01 1 0812- ●
89 HOSE
L=405 		1-09364-800-0 01 1 0804-0906 ●
89 HOSE
L=405 		1-09364-800-0 01 1 0907- ●
89 HOSE
L=360 		1-09364-839-0 01 1 0803-0803 ● ●
89 HOSE
L=360 		1-09364-839-0 01 1 0804-0811 ●
89 HOSE
TRANSMISSION OIL COOLER<C2C> L=360 		1-09364-839-0 01 1 0812- ●
101 HOSE; FLEX
L=465 		1-09365-146-0 01 1 0804-1003 ●
101 HOSE; FLEX
L=465 		1-09365-146-0 01 1 1004- ●
101 HOSE; FLEX
L=430 		1-09364-872-0 02 1 0712-0802 ●
101 HOSE; FLEX
L=430 		1-09364-872-0 01 1 0803-0803 ● ●
101 HOSE; FLEX
L=430 		1-09364-872-0 01 1 0804-0811 ●
101 HOSE; FLEX
TRANSMISSION OIL COOLER<C2C> L=430 		1-09364-872-0 01 1 0812- ●
101 HOSE; FLEX
L=360 		1-09364-839-0 02 1 0712-0802 ●

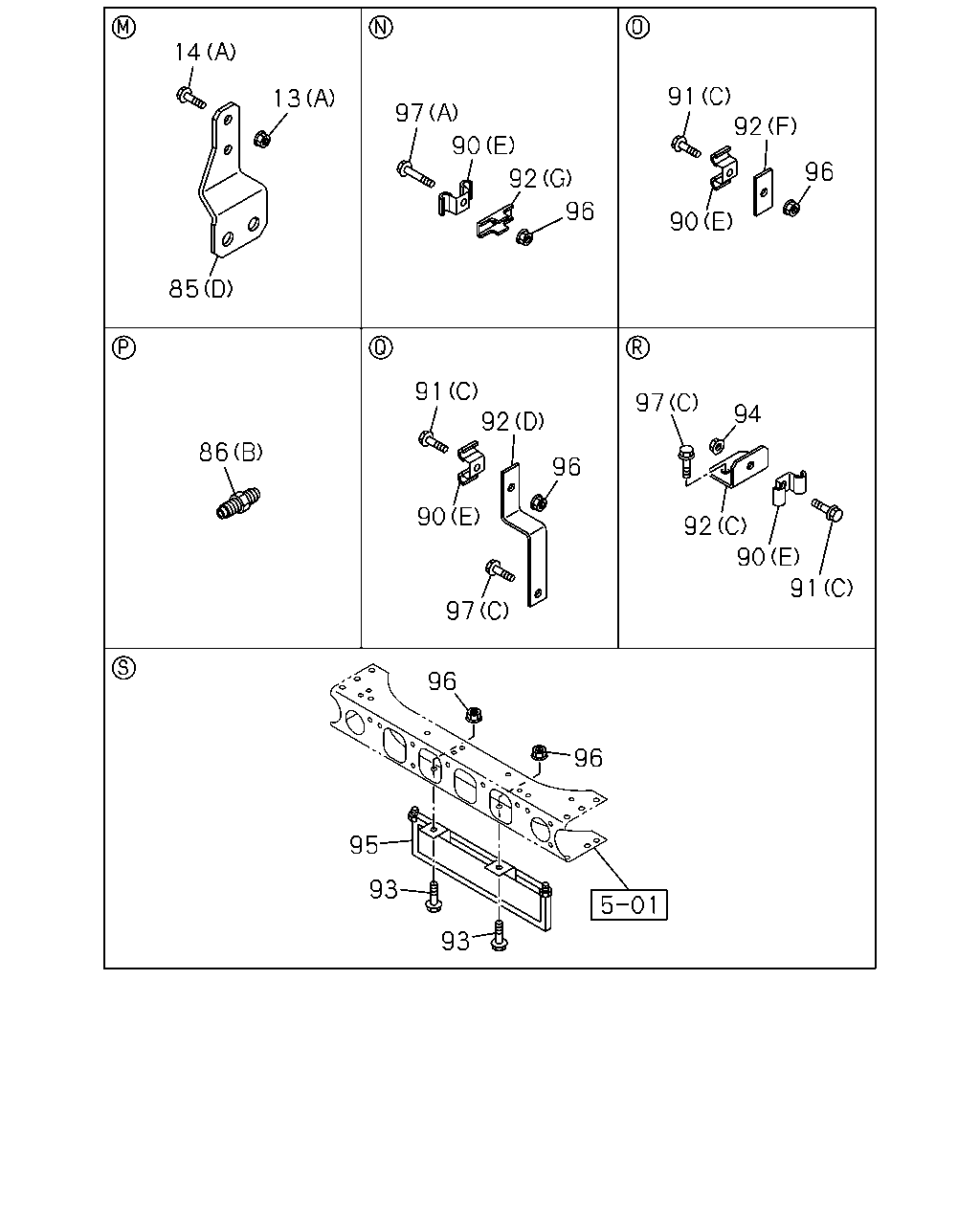

çizim 181927
14 91 92 13 97 90 96 92 96 90 85 91 92 97 94 86 96 90 92 90 91 97 96 96 95 93 93
BalonParca AdiParca NoAdetTipApplied Date A B C
13 NUT; BRKT
EURO2 SPECIFICATION<NT2> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M14 		0-91110-514-0 11 1 0911- ●
13 NUT; BRKT
EURO2 SPECIFICATION<NT2> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) M10 FLANGE 		0-91180-110-0 01 1 0911- ●
13 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0803-0811 ●
13 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> (B) M8 FLANGE 		0-91180-108-0 02 1 0812- ●
13 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 0712-0802 ● ●
13 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0803-0811 ● ●
13 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M10 FLANGE 		0-91180-210-0 02 1 0812- ●
13 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0812- ●
14 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0803-0811 ●
14 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M8X25 FLANGE 		0-28650-825-0 03 1 0812- ●
14 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M14X40 		0-20851-440-0 11 1 0712-0910 ●
14 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (B) M14X40 		0-20851-440-0 11 1 0911-1003 ●
14 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M14X40 		0-20851-440-0 11 1 0911-1003 ●
14 BOLT; BRKT
(B) M14X40 		0-20851-440-0 11 1 1004- ● ●
14 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0712-0802 ● ●
14 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0803-0811 ● ●
14 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M10X30 FLANGE 		0-28651-030-0 02 1 0812-0910 ●
14 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0812-0910 ●
14 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M10X30 FLANGE 		0-28651-030-0 02 1 0911- ●
14 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE 		0-28651-030-0 02 1 0911- ●
14 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0911- ●
85 BRACKET; FLEX HOSE
(C) 		8-98099-643-0 01 1 0712-0802 ●
85 BRACKET; FLEX HOSE
(A) 		1-36183-222-0 01 1 0712-0811 ● ●
85 BRACKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-222-0 01 1 0812- ●
85 BRACKET; FLEX HOSE
(A) 		1-36183-222-0 01 1 0812- ●
85 BRACKET; FLEX HOSE
(B) 		1-47479-673-0 01 1 0712-0802 ●
85 BRACKET; FLEX HOSE
(D) 		8-98116-064-0 01 1 0803-0811 ● ●
85 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (D) 		8-98116-064-0 01 1 0812- ●
85 BRACKET; FLEX HOSE
(D) 		8-98116-064-0 01 1 0812- ●
86 UNION
(B) M16 L=42 		0-92123-010-0 04 1 0803-0811 ● ●
86 UNION
TRANSMISSION OIL COOLER<C2C> (B) M16 L=42 		0-92123-010-0 04 1 0812- ●
86 UNION
(B) M16 L=42 		0-92123-010-0 04 1 0812- ●
86 UNION
(A) M16X2 STRAIGHT 		1-09654-274-1 02 1 0712-0811 ● ●
86 UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) M16X2 STRAIGHT 		1-09654-274-1 02 1 0812- ●
86 UNION
(A) M16X2 STRAIGHT 		1-09654-274-1 02 1 0812- ●
90 CLIP
(D) ID=6.35 & 10.0 		1-09709-274-1 02 1 0712-0802 ●
90 CLIP
(D) ID=10 & 10 		1-09709-277-1 05 1 0712-0802 ●
90 CLIP
(C) 		1-09700-695-2 01 1 0712-0811 ● ●
90 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (C) 		1-09700-695-2 01 1 0812- ●
90 CLIP
(C) 		1-09700-695-2 01 1 0812- ●
90 CLIP
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0712-0811 ● ●
90 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0812- ●
90 CLIP
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0812- ●
90 CLIP
(D) ID=6.35 & 10.0 		1-09709-274-1 01 1 0712-0802 ●
90 CLIP
(E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 0803-0811 ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 0812- ●
90 CLIP
(E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 0812- ●
90 CLIP
(D) ID=10 & 10 		1-09709-277-1 01 1 0712-0802 ●
90 CLIP
(E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 0803-0811 ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 0812- ●
90 CLIP
(E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 0812- ●
90 CLIP
(B) ID=11 H=20 L=20 		8-98033-780-0 01 1 0712-0802 ●
91 BOLT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 0803-0811 ● ●
91 BOLT
TRANSMISSION OIL COOLER<C2C> (C) M8X20 FLANGE 		0-28050-820-0 02 1 0812- ●
91 BOLT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 0812- ●
91 BOLT
(B) M10X16 FLANGE 		0-28151-016-0 01 1 0712-0811 ● ●
91 BOLT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (B) M10X16 FLANGE 		0-28151-016-0 01 1 0812- ●
91 BOLT
(B) M10X16 FLANGE 		0-28151-016-0 01 1 0812- ●
91 BOLT
(A) M6X35 FLANGE 		0-28650-635-0 01 1 0712-0811 ● ●
91 BOLT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) M6X35 FLANGE 		0-28650-635-0 01 1 0812- ●
91 BOLT
(A) M6X35 FLANGE 		0-28650-635-0 01 1 0812- ●
92 BRACKET
(E) L=68.5 		1-47475-591-0 02 1 0803-0811 ●
92 BRACKET
TRANSMISSION OIL COOLER<C2C> (E) L=68.5 		1-47475-591-0 02 1 0812- ●
92 BRACKET
(F) L=50 		1-47475-299-2 02 1 0803-0811 ● ●
92 BRACKET
TRANSMISSION OIL COOLER<C2C> (F) L=50 		1-47475-299-2 02 1 0812- ●
92 BRACKET
(F) L=50 		1-47475-299-2 02 1 0812- ●
92 BRACKET
(C) 		8-98116-125-0 01 1 0803-0811 ● ●
92 BRACKET
TRANSMISSION OIL COOLER<C2C> (C) 		8-98116-125-0 01 1 0812- ●
92 BRACKET
(C) 		8-98116-125-0 01 1 0812- ●
92 BRACKET
(D) 		8-98116-126-0 02 1 0803-0811 ● ●
92 BRACKET
TRANSMISSION OIL COOLER<C2C> (D) 		8-98116-126-0 02 1 0812- ●
92 BRACKET
(D) 		8-98116-126-0 02 1 0812- ●
92 BRACKET
(A) 		1-23335-352-0 01 1 0712-0802 ●
92 BRACKET
(G) 		1-47475-427-1 03 1 0803-1003 ●
92 BRACKET
(G) 		1-47475-427-1 03 1 1004- ●
92 BRACKET
(A) 		1-23335-352-0 02 1 0712-0802 ●
92 BRACKET
(B) 		1-47471-163-0 02 1 0803-0809 ●
92 BRACKET
(B) 		1-47477-261-0 02 1 0810-0811 ●
92 BRACKET
TRANSMISSION OIL COOLER<C2C> (B) 		1-47477-261-0 02 1 0812- ●
93 BOLT
M10X25 FLANGE 		0-28651-025-0 02 1 0803-0811 ● ●
93 BOLT
TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE 		0-28651-025-0 02 1 0812- ●
93 BOLT
M10X25 FLANGE 		0-28651-025-0 02 1 0812- ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0811 ● ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0811 ●
93 BOLT
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
93 BOLT
M10X25 FLANGE 		0-28651-025-0 02 1 0712-0802 ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 03 1 0803-0811 ●
93 BOLT
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28650-825-0 03 1 0812- ●
94 NUT
M8 FLANGE 		0-91180-108-0 02 1 0803-0811 ● ●
94 NUT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91180-108-0 02 1 0812- ●
94 NUT
M8 FLANGE 		0-91180-108-0 02 1 0812- ●
94 NUT
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
94 NUT
M8 FLANGE 		0-91180-108-0 04 1 0803-0811 ●
94 NUT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91180-108-0 04 1 0812- ●
95 COOLER 1-21700-394-0 01 1 0712-0811 ● ●
95 COOLER
TRANSMISSION OIL COOLER<C2C> 		1-21700-394-0 01 1 0812-1405 ●
95 COOLER 1-21700-394-0 01 1 0812-1405 ●
95 COOLER
TRANSMISSION OIL COOLER<C2C> 		8-98269-766-0 01 1 1406- ●
95 COOLER 8-98269-766-0 01 1 1406- ●
96 NUT
M10 FLANGE 		0-91180-210-0 02 1 0803-0811 ● ●
96 NUT
TRANSMISSION OIL COOLER<C2C> M10 FLANGE 		0-91180-210-0 02 1 0812- ●
96 NUT
M10 FLANGE 		0-91180-210-0 02 1 0812- ●
96 NUT
M8 FLANGE 		0-91180-108-0 04 1 0803-1003 ●
96 NUT
M8 FLANGE 		0-91180-108-0 04 1 1004- ●
96 NUT
M10 FLANGE 		0-91180-210-0 02 1 0712-0802 ●
96 NUT
M8 FLANGE 		0-91180-108-0 06 1 0803-0811 ●
96 NUT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91180-108-0 06 1 0812- ●
97 BOLT
(A) M8X45 FLANGE 		0-28050-845-0 01 1 0712-0802 ● ●
97 BOLT
(A) M8X45 FLANGE 		0-28050-845-0 03 1 0803-1003 ●
97 BOLT
(A) M8X45 FLANGE 		0-28050-845-0 03 1 1004- ●
97 BOLT
(B) M8X70 FLANGE 		0-28050-870-0 01 1 0712-0802 ●
97 BOLT
(C) M8X20 FLANGE 		0-28650-820-0 03 1 0803-1003 ●
97 BOLT
(C) M8X20 FLANGE 		0-28650-820-0 03 1 1004- ●
97 BOLT
(C) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0802 ●
97 BOLT
(C) M8X20 FLANGE 		0-28650-820-0 06 1 0803-0811 ●
97 BOLT
TRANSMISSION OIL COOLER<C2C> (C) M8X20 FLANGE 		0-28650-820-0 06 1 0812- ●

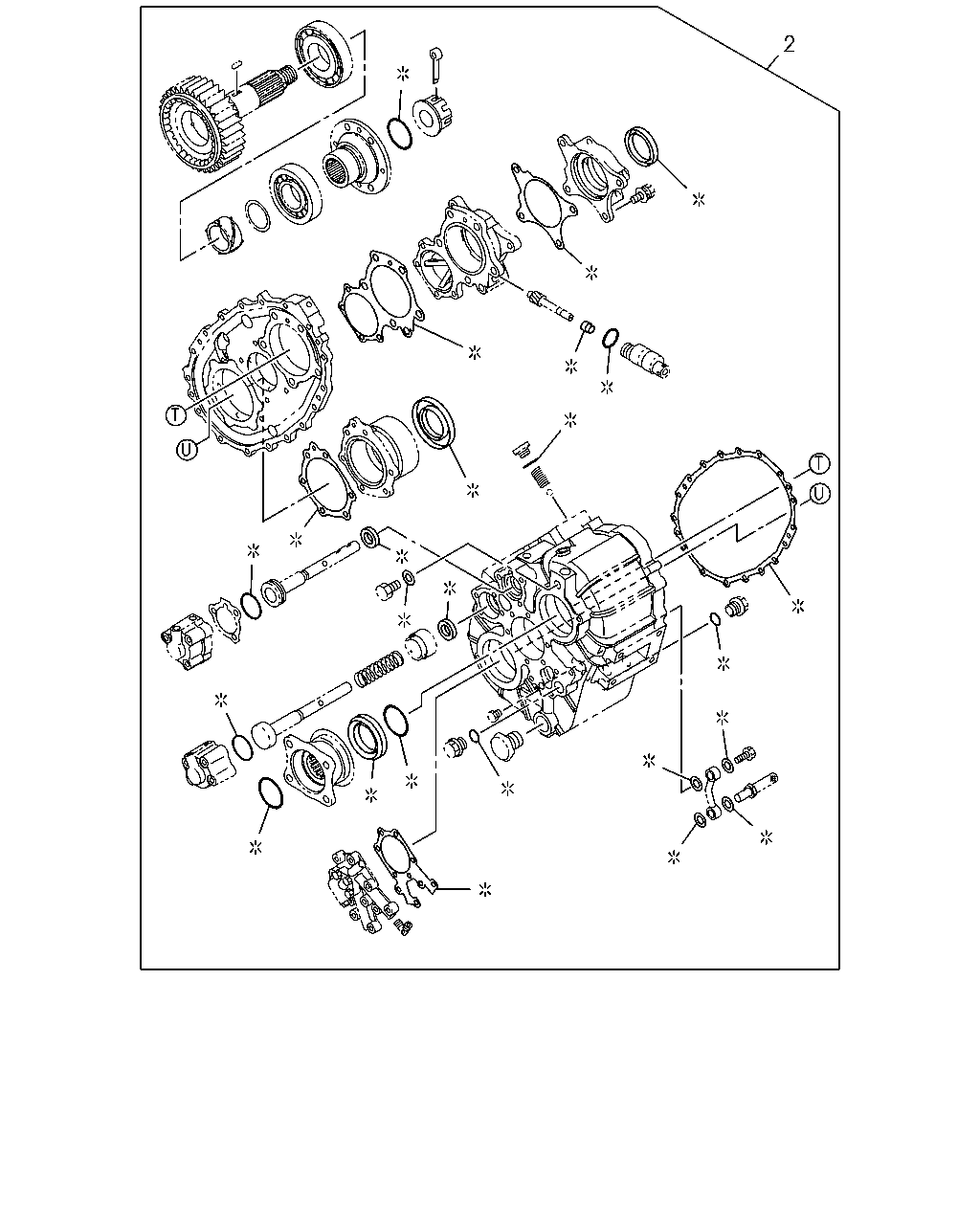

çizim 181936
2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 REPAIR KIT; TRANSFER OVERHAUL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-87831-338-0 01 1 0812-1003 ●
2 REPAIR KIT; TRANSFER OVERHAUL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION OIL COOLER<C2C> 		1-87831-338-0 01 1 1004- ●
2 REPAIR KIT; TRANSFER OVERHAUL 1-87831-338-0 01 1 1004- ●
2 REPAIR KIT; TRANSFER OVERHAUL 1-87831-357-0 01 1 0712-0811 ● ●
2 REPAIR KIT; TRANSFER OVERHAUL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> 		1-87831-357-0 01 1 0812- ●
2 REPAIR KIT; TRANSFER OVERHAUL 1-87831-357-0 01 1 0812- ●

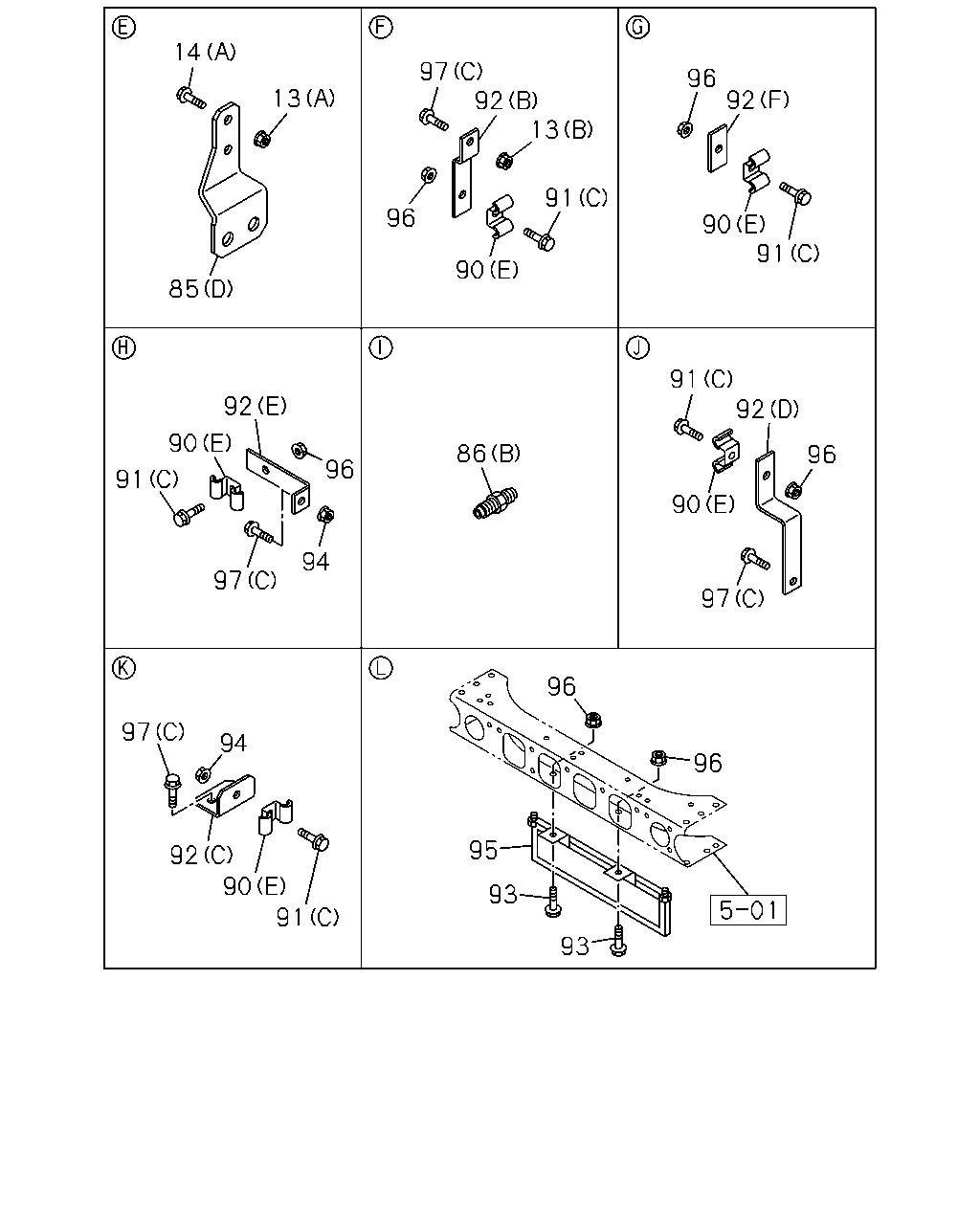

çizim 182055
14 97 92 13 96 92 13 91 96 90 91 90 85 91 92 92 90 86 96 96 91 90 94 97 97 96 97 94 96 95 92 90 91 93 93
BalonParca AdiParca NoAdetTipApplied Date A B C
13 NUT; BRKT
EURO2 SPECIFICATION<NT2> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M14 		0-91110-514-0 11 1 0911- ●
13 NUT; BRKT
EURO2 SPECIFICATION<NT2> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) M10 FLANGE 		0-91180-110-0 01 1 0911- ●
13 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0803-0811 ●
13 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> (B) M8 FLANGE 		0-91180-108-0 02 1 0812- ●
13 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 0712-0802 ● ●
13 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0803-0811 ● ●
13 NUT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M10 FLANGE 		0-91180-210-0 02 1 0812- ●
13 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0812- ●
14 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0803-0811 ●
14 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M8X25 FLANGE 		0-28650-825-0 03 1 0812- ●
14 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M14X40 		0-20851-440-0 11 1 0712-0910 ●
14 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (B) M14X40 		0-20851-440-0 11 1 0911-1003 ●
14 BOLT; BRKT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M14X40 		0-20851-440-0 11 1 0911-1003 ●
14 BOLT; BRKT
(B) M14X40 		0-20851-440-0 11 1 1004- ● ●
14 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0712-0802 ● ●
14 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0803-0811 ● ●
14 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M10X30 FLANGE 		0-28651-030-0 02 1 0812-0910 ●
14 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0812-0910 ●
14 BOLT; BRKT
TRANSMISSION OIL COOLER<C2C> (A) M10X30 FLANGE 		0-28651-030-0 02 1 0911- ●
14 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (A) M10X30 FLANGE 		0-28651-030-0 02 1 0911- ●
14 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0911- ●
85 BRACKET; FLEX HOSE
(C) 		8-98099-643-0 01 1 0712-0802 ●
85 BRACKET; FLEX HOSE
(A) 		1-36183-222-0 01 1 0712-0811 ● ●
85 BRACKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) 		1-36183-222-0 01 1 0812- ●
85 BRACKET; FLEX HOSE
(A) 		1-36183-222-0 01 1 0812- ●
85 BRACKET; FLEX HOSE
(B) 		1-47479-673-0 01 1 0712-0802 ●
85 BRACKET; FLEX HOSE
(D) 		8-98116-064-0 01 1 0803-0811 ● ●
85 BRACKET; FLEX HOSE
TRANSMISSION OIL COOLER<C2C> (D) 		8-98116-064-0 01 1 0812- ●
85 BRACKET; FLEX HOSE
(D) 		8-98116-064-0 01 1 0812- ●
86 UNION
(B) M16 L=42 		0-92123-010-0 04 1 0803-0811 ● ●
86 UNION
TRANSMISSION OIL COOLER<C2C> (B) M16 L=42 		0-92123-010-0 04 1 0812- ●
86 UNION
(B) M16 L=42 		0-92123-010-0 04 1 0812- ●
86 UNION
(A) M16X2 STRAIGHT 		1-09654-274-1 02 1 0712-0811 ● ●
86 UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) M16X2 STRAIGHT 		1-09654-274-1 02 1 0812- ●
86 UNION
(A) M16X2 STRAIGHT 		1-09654-274-1 02 1 0812- ●
90 CLIP
(D) ID=6.35 & 10.0 		1-09709-274-1 02 1 0712-0802 ●
90 CLIP
(D) ID=10 & 10 		1-09709-277-1 05 1 0712-0802 ●
90 CLIP
(C) 		1-09700-695-2 01 1 0712-0811 ● ●
90 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (C) 		1-09700-695-2 01 1 0812- ●
90 CLIP
(C) 		1-09700-695-2 01 1 0812- ●
90 CLIP
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0712-0811 ● ●
90 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0812- ●
90 CLIP
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 0812- ●
90 CLIP
(D) ID=6.35 & 10.0 		1-09709-274-1 01 1 0712-0802 ●
90 CLIP
(E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 0803-0811 ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 0812- ●
90 CLIP
(E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 0812- ●
90 CLIP
(D) ID=10 & 10 		1-09709-277-1 01 1 0712-0802 ●
90 CLIP
(E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 0803-0811 ● ●
90 CLIP
TRANSMISSION OIL COOLER<C2C> (E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 0812- ●
90 CLIP
(E) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 0812- ●
90 CLIP
(B) ID=11 H=20 L=20 		8-98033-780-0 01 1 0712-0802 ●
91 BOLT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 0803-0811 ● ●
91 BOLT
TRANSMISSION OIL COOLER<C2C> (C) M8X20 FLANGE 		0-28050-820-0 02 1 0812- ●
91 BOLT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 0812- ●
91 BOLT
(B) M10X16 FLANGE 		0-28151-016-0 01 1 0712-0811 ● ●
91 BOLT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (B) M10X16 FLANGE 		0-28151-016-0 01 1 0812- ●
91 BOLT
(B) M10X16 FLANGE 		0-28151-016-0 01 1 0812- ●
91 BOLT
(A) M6X35 FLANGE 		0-28650-635-0 01 1 0712-0811 ● ●
91 BOLT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION OIL COOLER<C2C> (A) M6X35 FLANGE 		0-28650-635-0 01 1 0812- ●
91 BOLT
(A) M6X35 FLANGE 		0-28650-635-0 01 1 0812- ●
92 BRACKET
(E) L=68.5 		1-47475-591-0 02 1 0803-0811 ●
92 BRACKET
TRANSMISSION OIL COOLER<C2C> (E) L=68.5 		1-47475-591-0 02 1 0812- ●
92 BRACKET
(F) L=50 		1-47475-299-2 02 1 0803-0811 ● ●
92 BRACKET
TRANSMISSION OIL COOLER<C2C> (F) L=50 		1-47475-299-2 02 1 0812- ●
92 BRACKET
(F) L=50 		1-47475-299-2 02 1 0812- ●
92 BRACKET
(C) 		8-98116-125-0 01 1 0803-0811 ● ●
92 BRACKET
TRANSMISSION OIL COOLER<C2C> (C) 		8-98116-125-0 01 1 0812- ●
92 BRACKET
(C) 		8-98116-125-0 01 1 0812- ●
92 BRACKET
(D) 		8-98116-126-0 02 1 0803-0811 ● ●
92 BRACKET
TRANSMISSION OIL COOLER<C2C> (D) 		8-98116-126-0 02 1 0812- ●
92 BRACKET
(D) 		8-98116-126-0 02 1 0812- ●
92 BRACKET
(A) 		1-23335-352-0 01 1 0712-0802 ●
92 BRACKET
(G) 		1-47475-427-1 03 1 0803-1003 ●
92 BRACKET
(G) 		1-47475-427-1 03 1 1004- ●
92 BRACKET
(A) 		1-23335-352-0 02 1 0712-0802 ●
92 BRACKET
(B) 		1-47471-163-0 02 1 0803-0809 ●
92 BRACKET
(B) 		1-47477-261-0 02 1 0810-0811 ●
92 BRACKET
TRANSMISSION OIL COOLER<C2C> (B) 		1-47477-261-0 02 1 0812- ●
93 BOLT
M10X25 FLANGE 		0-28651-025-0 02 1 0803-0811 ● ●
93 BOLT
TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE 		0-28651-025-0 02 1 0812- ●
93 BOLT
M10X25 FLANGE 		0-28651-025-0 02 1 0812- ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0811 ● ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 0803-0811 ●
93 BOLT
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 0812- ●
93 BOLT
M10X25 FLANGE 		0-28651-025-0 02 1 0712-0802 ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 03 1 0803-0811 ●
93 BOLT
TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE 		0-28650-825-0 03 1 0812- ●
94 NUT
M8 FLANGE 		0-91180-108-0 02 1 0803-0811 ● ●
94 NUT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91180-108-0 02 1 0812- ●
94 NUT
M8 FLANGE 		0-91180-108-0 02 1 0812- ●
94 NUT
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
94 NUT
M8 FLANGE 		0-91180-108-0 04 1 0803-0811 ●
94 NUT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91180-108-0 04 1 0812- ●
95 COOLER 1-21700-394-0 01 1 0712-0811 ● ●
95 COOLER
TRANSMISSION OIL COOLER<C2C> 		1-21700-394-0 01 1 0812-1405 ●
95 COOLER 1-21700-394-0 01 1 0812-1405 ●
95 COOLER
TRANSMISSION OIL COOLER<C2C> 		8-98269-766-0 01 1 1406- ●
95 COOLER 8-98269-766-0 01 1 1406- ●
96 NUT
M10 FLANGE 		0-91180-210-0 02 1 0803-0811 ● ●
96 NUT
TRANSMISSION OIL COOLER<C2C> M10 FLANGE 		0-91180-210-0 02 1 0812- ●
96 NUT
M10 FLANGE 		0-91180-210-0 02 1 0812- ●
96 NUT
M8 FLANGE 		0-91180-108-0 04 1 0803-1003 ●
96 NUT
M8 FLANGE 		0-91180-108-0 04 1 1004- ●
96 NUT
M10 FLANGE 		0-91180-210-0 02 1 0712-0802 ●
96 NUT
M8 FLANGE 		0-91180-108-0 06 1 0803-0811 ●
96 NUT
TRANSMISSION OIL COOLER<C2C> M8 FLANGE 		0-91180-108-0 06 1 0812- ●
97 BOLT
(A) M8X45 FLANGE 		0-28050-845-0 01 1 0712-0802 ● ●
97 BOLT
(A) M8X45 FLANGE 		0-28050-845-0 03 1 0803-1003 ●
97 BOLT
(A) M8X45 FLANGE 		0-28050-845-0 03 1 1004- ●
97 BOLT
(B) M8X70 FLANGE 		0-28050-870-0 01 1 0712-0802 ●
97 BOLT
(C) M8X20 FLANGE 		0-28650-820-0 03 1 0803-1003 ●
97 BOLT
(C) M8X20 FLANGE 		0-28650-820-0 03 1 1004- ●
97 BOLT
(C) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0802 ●
97 BOLT
(C) M8X20 FLANGE 		0-28650-820-0 06 1 0803-0811 ●
97 BOLT
TRANSMISSION OIL COOLER<C2C> (C) M8X20 FLANGE 		0-28650-820-0 06 1 0812- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
