2-39 — POWER ASSISTOR (#38146) — 109 parça
çizim 181729
4 4 2 34 34 4 56
BalonParca AdiParca NoAdetTipApplied Date A B C
2 REPAIR KIT; POWER SHIFTER 8-97388-035-0 01 1 0712-0805 ●
2 REPAIR KIT; POWER SHIFTER 8-97388-035-0 01 1 0806-0811 ● ●
2 REPAIR KIT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		8-97388-035-0 01 1 0812-0906 ● ●
2 REPAIR KIT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		8-97388-035-0 01 1 0907- ● ● ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 0712-0805 ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 0806-0811 ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-843-0 01 1 0812-0906 ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-843-0 01 1 0907- ● ● ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 0712-0805 ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 0806-0811 ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-844-0 01 1 0812-0906 ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-844-0 01 1 0907- ● ● ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 0712-0805 ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 0806-0811 ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33739-847-0 01 1 0812-0906 ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33739-847-0 01 1 0907- ● ● ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 0712-0805 ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 0806-0811 ● ●
34 PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-885-0 01 1 0812-0906 ● ●
34 PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-885-0 01 1 0907- ● ● ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 0712-0805 ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 0806-0811 ● ●
34 PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-974-0 01 1 0812-0906 ● ●
34 PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-974-0 01 1 0907- ● ● ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 0712-0805 ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 0806-0811 ● ●
56 HOSE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-848-0 01 1 0812-0906 ● ●
56 HOSE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-848-0 01 1 0907- ● ● ●

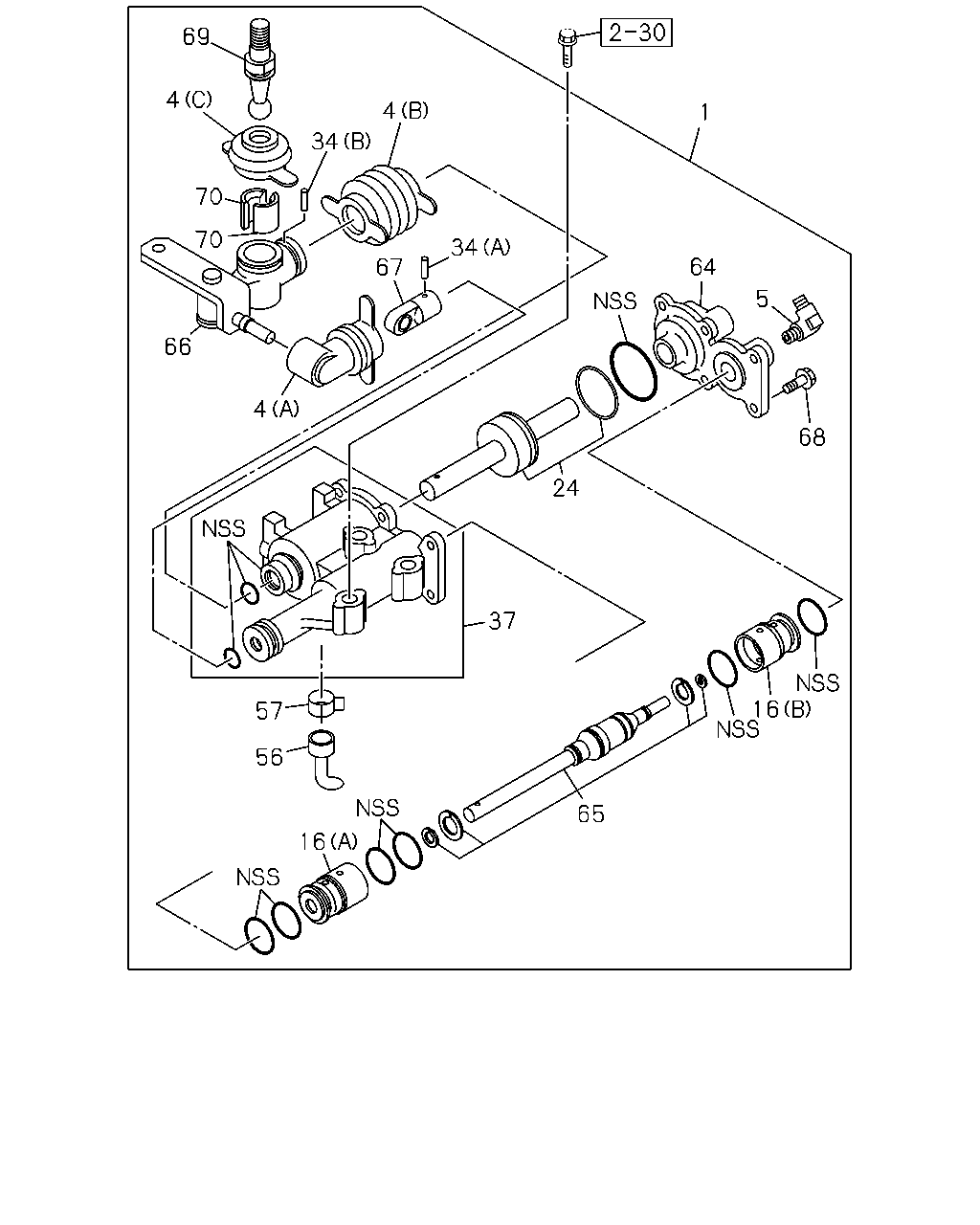

çizim 181730
69 4 4 1 34 70 70 34 64 67 5 66 4 68 24 37 16 57 56 65 16
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ASSISTOR ASM; POWER,SHIFT 8-98059-702-0 01 1 0806-0811 ●
1 ASSISTOR ASM; POWER,SHIFT
ASSISTOR SHIFT CONTROL<WX8> 		8-98059-702-0 01 1 0812- ●
1 ASSISTOR ASM; POWER,SHIFT 8-98022-853-1 01 1 0712-0811 ●
1 ASSISTOR ASM; POWER,SHIFT
ASSISTOR SHIFT CONTROL<WX8> 		8-98022-853-1 01 1 0812-0906 ●
1 ASSISTOR ASM; POWER,SHIFT
ASSISTOR SHIFT CONTROL<WX8> 		8-98022-853-1 01 1 0907- ● ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 0712-0805 ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 0806-0811 ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-843-0 01 1 0812-0906 ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-843-0 01 1 0907- ● ● ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 0712-0805 ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 0806-0811 ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-844-0 01 1 0812-0906 ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-844-0 01 1 0907- ● ● ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 0712-0805 ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 0806-0811 ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33739-847-0 01 1 0812-0906 ● ●
4 BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (C) 		1-33739-847-0 01 1 0907- ● ● ●
5 CONNECTOR; CYL
M12 & PT1/8 		0-92124-306-0 01 1 0712-0805 ●
5 CONNECTOR; CYL
M12 & PT1/8 		0-92124-306-0 01 1 0806-0811 ● ●
5 CONNECTOR; CYL
ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8 		0-92124-306-0 01 1 0812-0906 ● ●
5 CONNECTOR; CYL
ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8 		0-92124-306-0 01 1 0907- ● ● ●
16 SEAT; VALVE
(A) 		8-97388-032-0 01 1 0712-0805 ●
16 SEAT; VALVE
(A) 		8-97388-032-0 01 1 0806-0811 ● ●
16 SEAT; VALVE
ASSISTOR SHIFT CONTROL<WX8> (A) 		8-97388-032-0 01 1 0812-0906 ● ●
16 SEAT; VALVE
ASSISTOR SHIFT CONTROL<WX8> (A) 		8-97388-032-0 01 1 0907- ● ● ●
16 SEAT; VALVE
(B) 		8-97388-033-0 01 1 0712-0805 ●
16 SEAT; VALVE
(B) 		8-97388-033-0 01 1 0806-0811 ● ●
16 SEAT; VALVE
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-97388-033-0 01 1 0812-0906 ● ●
16 SEAT; VALVE
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-97388-033-0 01 1 0907- ● ● ●
24 PISTON 8-98065-242-0 01 1 0712-0805 ●
24 PISTON 8-98065-242-0 01 1 0806-0811 ● ●
24 PISTON
ASSISTOR SHIFT CONTROL<WX8> 		8-98065-242-0 01 1 0812-0906 ● ●
24 PISTON
ASSISTOR SHIFT CONTROL<WX8> 		8-98065-242-0 01 1 0907- ● ● ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 0712-0805 ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 0806-0811 ● ●
34 PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-885-0 01 1 0812-0906 ● ●
34 PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33739-885-0 01 1 0907- ● ● ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 0712-0805 ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 0806-0811 ● ●
34 PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-974-0 01 1 0812-0906 ● ●
34 PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33739-974-0 01 1 0907- ● ● ●
37 HOUSING; POWER SHIFTER 8-97388-027-0 01 1 0712-0805 ●
37 HOUSING; POWER SHIFTER 8-97388-027-0 01 1 0806-0811 ● ●
37 HOUSING; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		8-97388-027-0 01 1 0812-0906 ● ●
37 HOUSING; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		8-97388-027-0 01 1 0907- ● ● ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 0712-0805 ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 0806-0811 ● ●
56 HOSE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-848-0 01 1 0812-0906 ● ●
56 HOSE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-848-0 01 1 0907- ● ● ●
57 CLAMP; HOSE 1-33739-849-0 01 1 0712-0805 ●
57 CLAMP; HOSE 1-33739-849-0 01 1 0806-0811 ● ●
57 CLAMP; HOSE
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-849-0 01 1 0812-0906 ● ●
57 CLAMP; HOSE
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-849-0 01 1 0907- ● ● ●
64 COVER; HOUSING 8-98025-483-0 01 1 0712-0805 ●
64 COVER; HOUSING 8-98025-483-0 01 1 0806-0811 ● ●
64 COVER; HOUSING
ASSISTOR SHIFT CONTROL<WX8> 		8-98025-483-0 01 1 0812-0906 ● ●
64 COVER; HOUSING
ASSISTOR SHIFT CONTROL<WX8> 		8-98025-483-0 01 1 0907- ● ● ●
65 VALVE; POWER SHIFTER 8-97388-029-0 01 1 0712-0805 ●
65 VALVE; POWER SHIFTER 8-97388-029-0 01 1 0806-0811 ● ●
65 VALVE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		8-97388-029-0 01 1 0812-0906 ● ●
65 VALVE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		8-97388-029-0 01 1 0907- ● ● ●
66 JOINT ASM; POWER SHIFTER 8-97388-137-0 01 1 0712-0805 ●
66 JOINT ASM; POWER SHIFTER 8-97388-137-0 01 1 0806-0811 ● ●
66 JOINT ASM; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		8-97388-137-0 01 1 0812-0906 ● ●
66 JOINT ASM; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		8-97388-137-0 01 1 0907- ● ● ●
67 JOINT; BALL,POWER SHIFTER 1-33739-973-0 01 1 0712-0805 ●
67 JOINT; BALL,POWER SHIFTER 1-33739-973-0 01 1 0806-0811 ● ●
67 JOINT; BALL,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-973-0 01 1 0812-0906 ● ●
67 JOINT; BALL,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-973-0 01 1 0907- ● ● ●
68 BOLT; COVER
M6X12 FLANGE 		1-33739-842-0 06 1 0712-0805 ●
68 BOLT; COVER
M6X12 FLANGE 		1-33739-842-0 06 1 0806-0811 ● ●
68 BOLT; COVER
ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE 		1-33739-842-0 06 1 0812-0906 ● ●
68 BOLT; COVER
ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE 		1-33739-842-0 06 1 0907- ● ● ●
69 STUD; BALL,POWER SHIFTER 1-33739-846-0 01 1 0712-0805 ●
69 STUD; BALL,POWER SHIFTER 1-33739-846-0 01 1 0806-0811 ● ●
69 STUD; BALL,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-846-0 01 1 0812-0906 ● ●
69 STUD; BALL,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> 		1-33739-846-0 01 1 0907- ● ● ●
70 SEAT; BALL STUD 1-33659-118-0 02 1 0712-0805 ●
70 SEAT; BALL STUD 1-33659-118-0 02 1 0806-0811 ● ●
70 SEAT; BALL STUD
ASSISTOR SHIFT CONTROL<WX8> 		1-33659-118-0 02 1 0812-0906 ● ●
70 SEAT; BALL STUD
ASSISTOR SHIFT CONTROL<WX8> 		1-33659-118-0 02 1 0907- ● ● ●
