◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#38145) — 71 parça

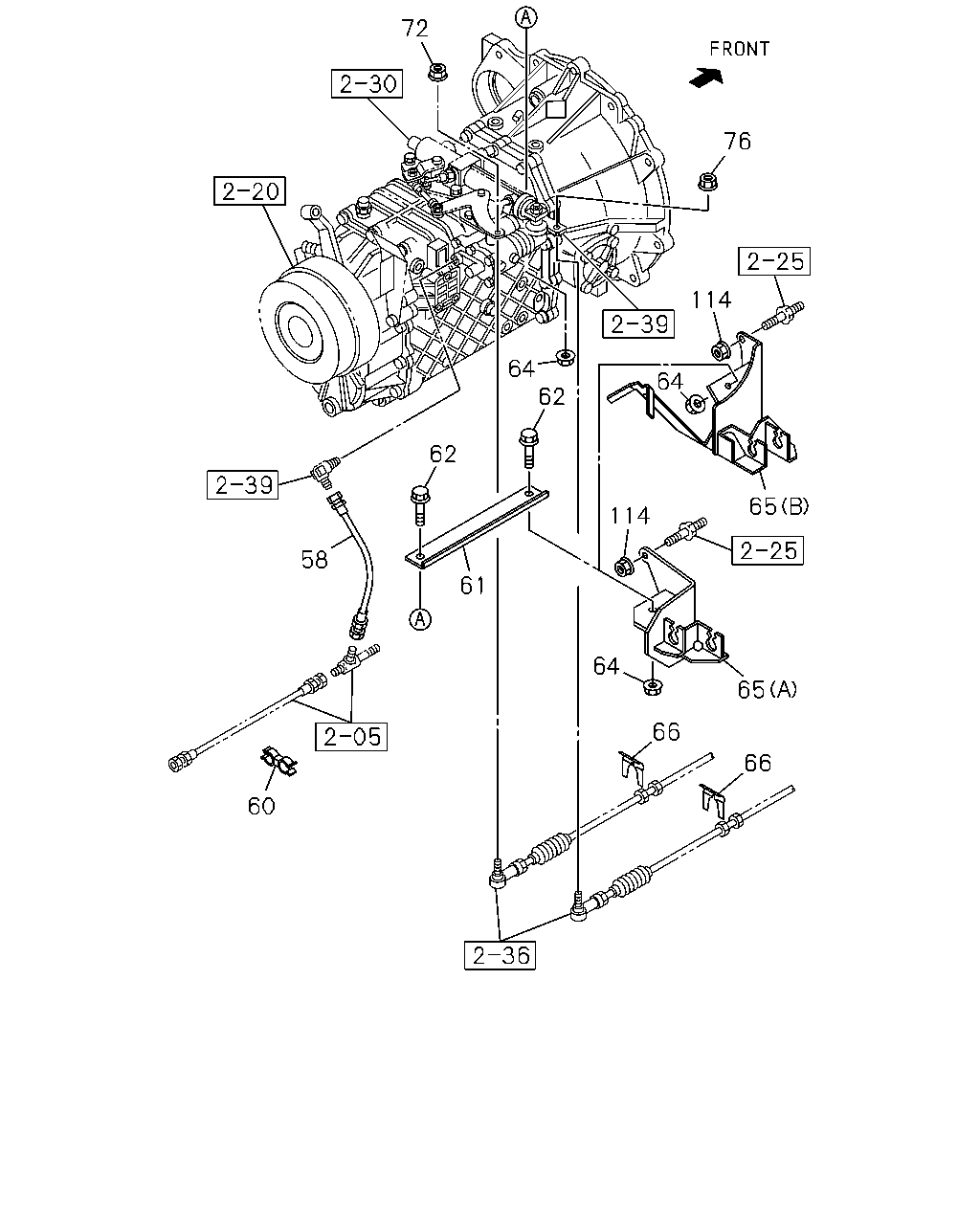

çizim 181725
72 76 114 64 62 64 62 65 114 58 61 64 65 66 66 60
BalonParca AdiParca NoAdetTipApplied Date A B C
58 HOSE; FLEX,POWER ASSISTOR
MLD6Q M/T(X5J) L=310 		1-09363-713-0 01 1 0806-0811 ● ●
58 HOSE; FLEX,POWER ASSISTOR
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> L=310 		1-09363-713-0 01 1 0812-1003 ● ●
58 HOSE; FLEX,POWER ASSISTOR
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> L=310 		1-09363-713-0 01 1 1004- ● ●
58 HOSE; FLEX,POWER ASSISTOR
MLD6Q M/T(X5J) L=310 		1-09363-713-0 01 1 1004- ●
58 HOSE; FLEX,POWER ASSISTOR
MZX6P M/T(RSW) L=290 		1-09363-875-0 01 1 0712-0811 ● ●
58 HOSE; FLEX,POWER ASSISTOR
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=290 		1-09363-875-0 01 1 0812-0906 ● ●
58 HOSE; FLEX,POWER ASSISTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=290 		1-09363-875-0 01 1 0907-1003 ● ●
58 HOSE; FLEX,POWER ASSISTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=290 		1-09363-875-0 01 1 1004- ● ●
58 HOSE; FLEX,POWER ASSISTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=290 		1-09363-875-0 01 1 1004- ●
60 CLIP; FLEX HOSE
ID=11.8 & 7.5 		1-09709-182-0 01 1 0712-0811 ● ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> ID=11.8 & 7.5 		1-09709-182-0 01 1 0812-1003 ● ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> ID=11.8 & 7.5 		1-09709-182-0 01 1 1004- ● ●
60 CLIP; FLEX HOSE
ID=11.8 & 7.5 		1-09709-182-0 01 1 1004- ●
61 STAY; BRKT,TRANS CONT
MLD6Q M/T(X5J) 		1-33657-349-0 01 1 0806-0811 ●
61 STAY; BRKT,TRANS CONT
MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 0812-1003 ●
61 STAY; BRKT,TRANS CONT
MLD6Q M/T(X5J) 		1-33657-349-0 01 1 0812-1003 ●
61 STAY; BRKT,TRANS CONT
MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 1004- ● ●
61 STAY; BRKT,TRANS CONT
MLD6Q M/T(X5J) 		1-33657-349-0 01 1 1004- ●
61 STAY; BRKT,TRANS CONT 1-33657-402-0 01 1 0712-0811 ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW) 		1-33657-402-0 01 1 0812-0906 ●
61 STAY; BRKT,TRANS CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-402-0 01 1 0812-0906 ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		1-33657-402-0 01 1 0907-1003 ●
61 STAY; BRKT,TRANS CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-402-0 01 1 0907-1003 ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		1-33657-402-0 01 1 1004-1004 ● ●
61 STAY; BRKT,TRANS CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-402-0 01 1 1004-1004 ● ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98165-370-0 01 1 1004-1309 ● ●
61 STAY; BRKT,TRANS CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> 		8-98165-370-0 01 1 1004-1309 ● ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-98251-404-0 01 1 1310- ● ●
61 STAY; BRKT,TRANS CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> 		8-98251-404-0 01 1 1310- ● ●
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 0712-0805 ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW) 		1-33657-267-0 01 1 0806-0906 ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		1-33657-267-0 01 1 0907- ●
62 BOLT; STAY
MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 01 1 0812-1003 ●
62 BOLT; STAY
MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 01 1 1004- ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 02 1 0712-0811 ● ●
62 BOLT; STAY
MZX6P M/T(RSW) M10X30 FLANGE 		0-28651-030-0 02 1 0812-0906 ●
62 BOLT; STAY
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 02 1 0812-0906 ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 02 1 0812-0906 ●
62 BOLT; STAY
MZX6P M/T(RSW),MZW6P M/T(RSZ) M10X30 FLANGE 		0-28651-030-0 02 1 0907-1003 ●
62 BOLT; STAY
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 02 1 0907-1003 ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 02 1 0907-1003 ●
62 BOLT; STAY
MZX6P M/T(RSW),MZW6P M/T(RSZ) M10X30 FLANGE 		0-28651-030-0 02 1 1004- ● ●
62 BOLT; STAY
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 02 1 1004- ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 02 1 1004- ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 02 1 0712-1003 ● ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 02 1 1004- ● ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98050-563-1 01 1 0812-0906 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98050-563-1 01 1 0907-1003 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98050-563-1 01 1 1004- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98121-278-0 01 1 0812-1003 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98121-278-0 01 1 1004- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J) (A) 		8-98114-255-1 01 1 0806-0811 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98114-255-1 01 1 0812-1003 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98114-255-1 01 1 1004- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J) (B) 		8-98114-752-1 01 1 0806- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(A) 		8-98010-158-1 01 1 0712-0805 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) (A) 		8-98010-158-1 01 1 0806-0811 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98010-158-1 01 1 0812-0906 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98010-158-1 01 1 0907-1003 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98010-158-1 01 1 1004- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
(B) 		8-98090-822-0 01 1 0712-0805 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) (B) 		8-98090-822-0 01 1 0806-0906 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-98090-822-0 01 1 0907- ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0712-1003 ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 1004- ● ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 0712-1003 ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 1004- ● ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0712-1003 ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 1004- ● ● ●
114 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712-1001 ● ●
114 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1002- ● ● ●
