Sayfa 4-25A - Isuzu EPC

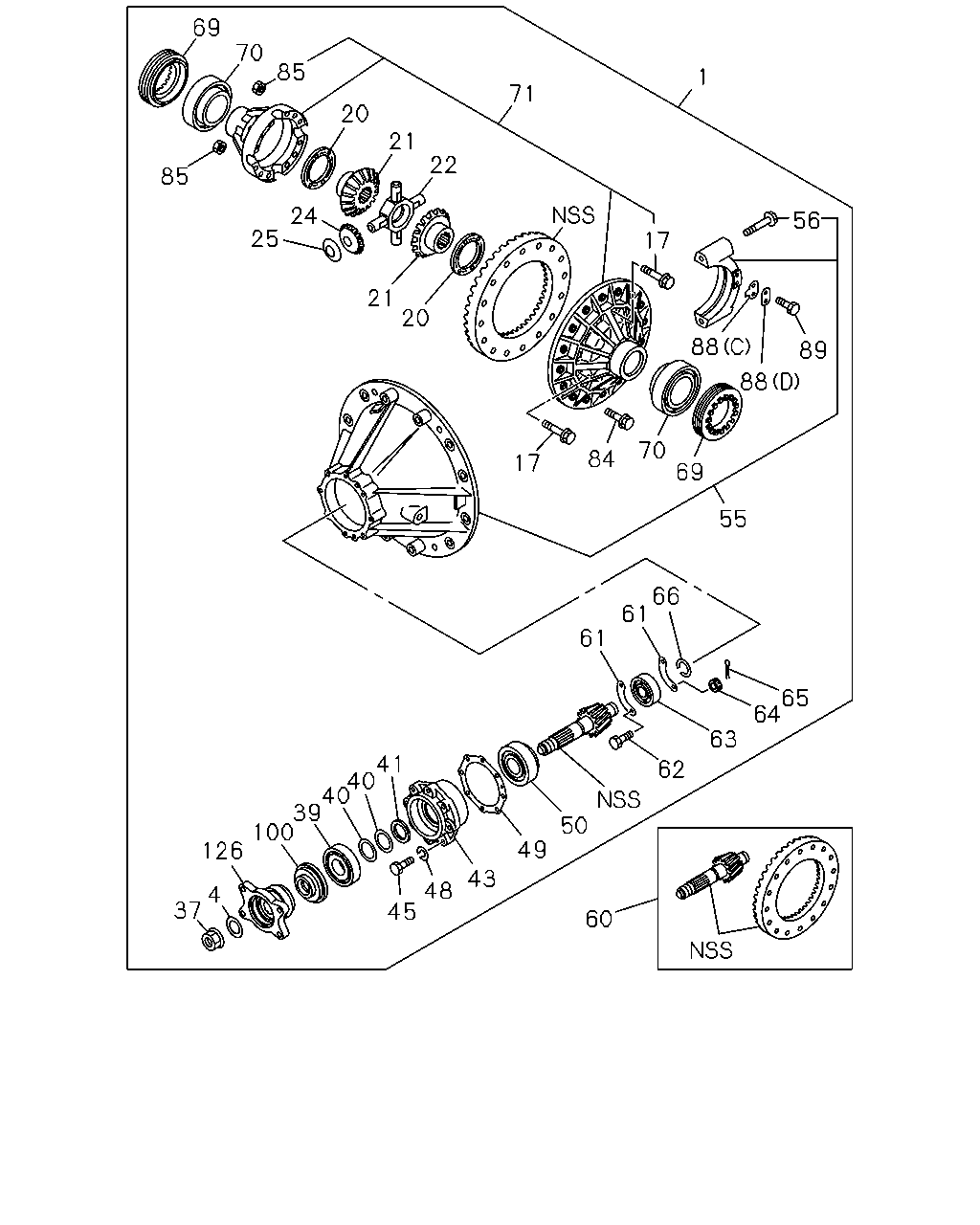

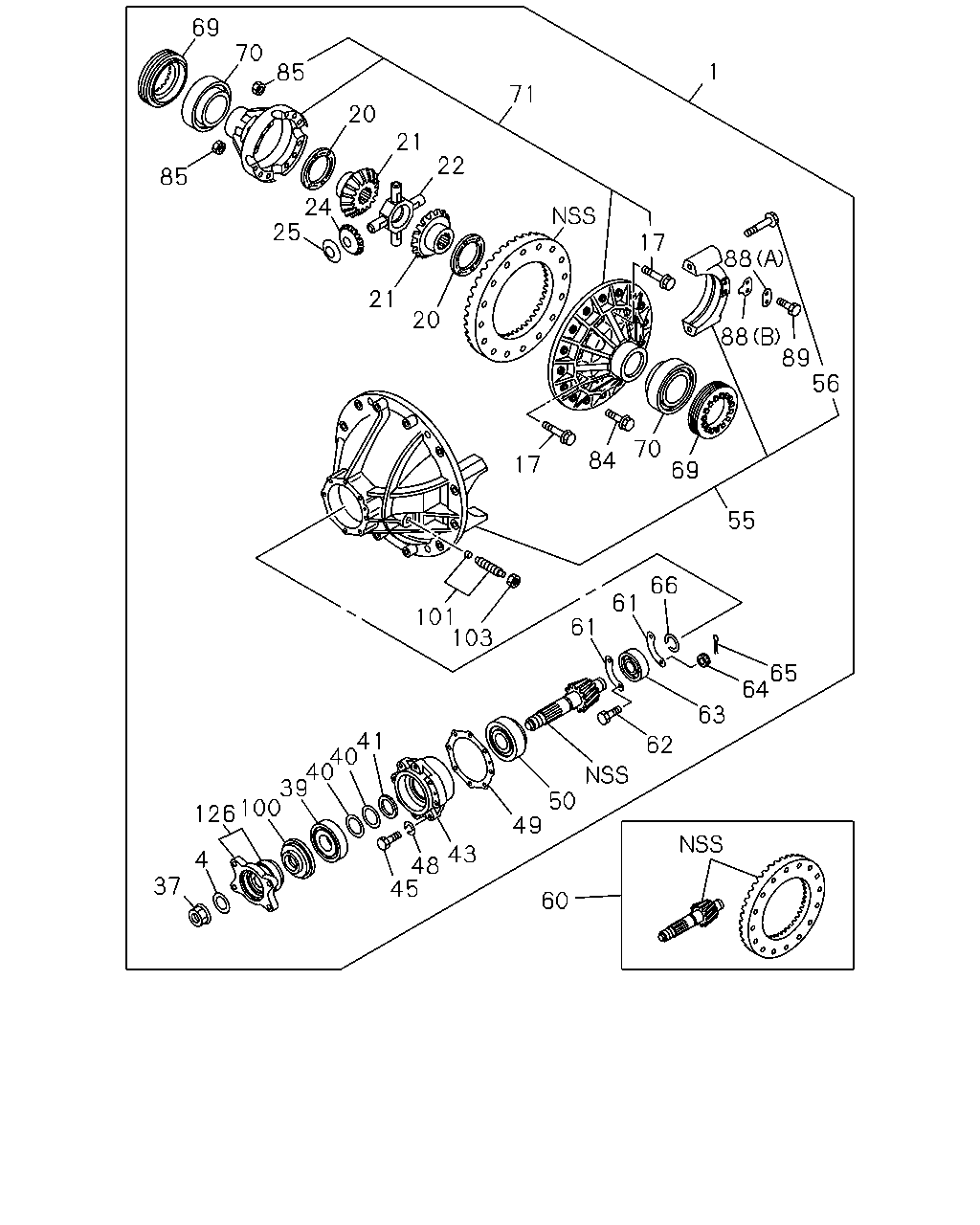

4-25A — REAR FINAL DRIVE (#3814) — 704 parça

69 70 1 85 71 20 21 22 85 24 25 17 88 21 20 88 89 56 70 84 17 69 55 66 61 101 103 61 65 64 63 41 40 40 39 100 126 62 50 49 43 48 45 4 37 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DRIVE ASM; FINAL,RR 43/7	1-41001-136-0	01	1	9601-0004	●
1	DRIVE ASM; FINAL,RR 39/6	1-41000-380-0	01	1	9712-9803		●
1	DRIVE ASM; FINAL,RR 39/6	1-41000-380-0	01	1	9806-0004		●
1	DRIVE ASM; FINAL,RR 45/7	1-41001-381-0	01	1	0212-			●
1	DRIVE ASM; FINAL,RR 43/7	1-41001-382-0	01	1	0212-				●
1	DRIVE ASM; FINAL,RR 39/7	1-41001-383-0	01	1	0212-					●
1	DRIVE ASM; FINAL,RR 41/8	1-41001-384-0	01	1	0212-						●
1	DRIVE ASM; FINAL,RR 41/6	1-41001-398-0	01	1	0212-							●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9601-9711	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9712-9803	●	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9804-9805	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9806-0004	●	●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0212-			●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	08	1	9601-9711	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	08	1	9712-9803	●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	08	1	9804-9805	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	08	1	9806-0004	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9601-9711	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9712-9803	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9804-9805	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9806-0004	●	●
17	BOLT; DIFF CAGE SETTING M16X125	1-09070-007-0	04	1	0212-			●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X113	1-09070-018-0	08	1	0212-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-169-0	02	1	9601-0004	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-170-0	02	1	9601-0004	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-171-0	02	1	9601-0004	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-172-0	02	1	9601-0004	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-173-0	02	1	9601-0004	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-174-0	02	1	9601-0004	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-175-0	02	1	9601-0004	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-169-0	AR	1	9712-9803		●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-170-0	AR	1	9712-9803		●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-171-0	AR	1	9712-9803		●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-172-0	AR	1	9712-9803		●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-173-0	AR	1	9712-9803		●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-174-0	AR	1	9712-9803		●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-175-0	AR	1	9712-9803		●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-169-0	AR	1	9806-0004		●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-170-0	AR	1	9806-0004		●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-171-0	AR	1	9806-0004		●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-172-0	AR	1	9806-0004		●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-173-0	AR	1	9806-0004		●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-174-0	AR	1	9806-0004		●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-175-0	AR	1	9806-0004		●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	AR	1	0212-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	AR	1	0212-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	AR	1	0212-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	AR	1	0212-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	AR	1	0212-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	AR	1	0212-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	AR	1	0212-			●	●	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-076-0	02	1	9601-9711	●
21	GEAR; SIDE,DIFF Z=16	1-41561-076-0	02	1	9712-9803	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-076-0	02	1	9804-9805	●
21	GEAR; SIDE,DIFF Z=16	1-41561-076-0	02	1	9806-0004	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-086-0	02	1	0212-0409			●	●	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-139-0	02	1	0410-0905			●	●	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-151-0	02	1	0906-			●	●	●	●	●
22	SPIDER; DIFF PINION OD=32	1-41521-002-0	01	1	9601-9711	●
22	SPIDER; DIFF PINION OD=32	1-41521-002-0	01	1	9712-9803	●	●
22	SPIDER; DIFF PINION OD=32	1-41521-002-0	01	1	9804-9805	●
22	SPIDER; DIFF PINION OD=32	1-41521-002-1	01	1	9806-0004	●	●
22	SPIDER; DIFF PINION OD=35	1-41521-037-2	01	1	0212-			●	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-022-0	04	1	9601-9711	●
24	GEAR; PINION,DIFF Z=10	1-41551-022-0	04	1	9712-9803	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-022-0	04	1	9804-9805	●
24	GEAR; PINION,DIFF Z=10	1-41551-022-0	04	1	9806-0004	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-025-0	04	1	0212-0409			●	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-044-0	04	1	0410-0905			●	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-053-0	04	1	0906-			●	●	●	●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-001-0	04	1	9601-9711	●
25	WASHER; THRUST,PINION T=1.6	1-41552-001-0	04	1	9712-9803	●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-001-0	04	1	9804-9805	●
25	WASHER; THRUST,PINION T=1.6	1-41552-001-0	04	1	9806-0004	●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-017-0	04	1	0212-			●	●	●	●	●
37	NUT; DRIVING PINION M39 FLANGE	1-09449-056-2	01	1	9601-9711	●
37	NUT; DRIVING PINION M39 FLANGE	1-09449-056-2	01	1	9712-9803	●	●
37	NUT; DRIVING PINION M39 FLANGE	1-09449-056-2	01	1	9804-9805	●
37	NUT; DRIVING PINION M39 FLANGE	1-09449-056-2	01	1	9806-0004	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0212-			●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-086-0	01	1	9601-9711	●
39	BEARING; FINAL PINION NSK	1-09812-086-0	01	1	9712-9803	●	●
39	BEARING; FINAL PINION NSK	1-09812-086-0	01	1	9804-9805	●
39	BEARING; FINAL PINION NSK	1-09812-086-0	01	1	9806-0004	●	●
39	BEARING; FINAL PINION NTN	9-00093-072-1	01	1	9601-9711	●
39	BEARING; FINAL PINION NTN	9-00093-072-1	01	1	9712-9803	●	●
39	BEARING; FINAL PINION NTN	9-00093-072-1	01	1	9804-9805	●
39	BEARING; FINAL PINION NTN	9-00093-072-1	01	1	9806-0004	●	●
39	BEARING; FINAL PINION JTEKT	9-00093-206-1	01	1	9601-9711	●
39	BEARING; FINAL PINION JTEKT	9-00093-206-2	01	1	9712-9803	●	●
39	BEARING; FINAL PINION JTEKT	9-00093-206-2	01	1	9804-9805	●
39	BEARING; FINAL PINION JTEKT	9-00093-206-2	01	1	9806-0004	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0212-			●	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	0212-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	9601-9711	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	9712-9803	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	9804-9805	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	9806-0004	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	9601-9711	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	9712-9803	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	9804-9805	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	9806-0004	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	9601-9711	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	9712-9803	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	9804-9805	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	9806-0004	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	9601-9711	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	9712-9803	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	9804-9805	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	9806-0004	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	9601-9711	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	9712-9803	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	9804-9805	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	9806-0004	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	9601-9711	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	9712-9803	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	9804-9805	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	9806-0004	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	9601-9711	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	9712-9803	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	9804-9805	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	9806-0004	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	9601-9711	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	9712-9803	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	9804-9805	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	9806-0004	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	9601-9711	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	9712-9803	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	9804-9805	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	9806-0004	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	9601-9711	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	9712-9803	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	9804-9805	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	9806-0004	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	9601-9711	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	9712-9803	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	9804-9805	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	9806-0004	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0212-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0212-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0212-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0212-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0212-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0212-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0212-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0212-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0212-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0212-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0212-			●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	9601-9711	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	9712-9803	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	9804-9805	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	9806-0004	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	9601-9711	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	9712-9803	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	9804-9805	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	9806-0004	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	9601-9711	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	9712-9803	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	9804-9805	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	9806-0004	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	9601-9711	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	9712-9803	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	9804-9805	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	9806-0004	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	9601-9711	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	9712-9803	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	9804-9805	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	9806-0004	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0212-			●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0212-			●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0212-			●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0212-			●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0212-			●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0212-			●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0212-			●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0212-			●	●	●	●	●
43	CAGE; FINAL PINION T=75	1-41151-005-0	01	1	9601-9711	●
43	CAGE; FINAL PINION T=75	1-41151-005-0	01	1	9712-9803	●	●
43	CAGE; FINAL PINION T=75	1-41151-005-0	01	1	9804-9805	●
43	CAGE; FINAL PINION T=75	1-41151-005-0	01	1	9806-0004	●	●
43	CAGE; FINAL PINION T=81	1-41151-030-0	01	1	0212-			●	●	●	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9601-9711	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9712-9803	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9804-9805	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9806-0004	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0212-			●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9601-9711	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9712-9803	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9804-9805	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9806-0004	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0212-0603			●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	0604-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-009-0	AR	1	9601-9711	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-009-0	AR	1	9712-9803	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-009-0	AR	1	9804-9805	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-009-0	AR	1	9806-0004	●	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-010-0	AR	1	9601-9711	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-010-0	AR	1	9712-9803	●	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-010-0	AR	1	9804-9805	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-010-0	AR	1	9806-0004	●	●
49	SHIM; FINAL PINION CAGE T=0.200	1-41154-011-0	AR	1	9601-9711	●
49	SHIM; FINAL PINION CAGE T=0.200	1-41154-011-0	AR	1	9712-9803	●	●
49	SHIM; FINAL PINION CAGE T=0.200	1-41154-011-0	AR	1	9804-9805	●
49	SHIM; FINAL PINION CAGE T=0.200	1-41154-011-0	AR	1	9806-9903	●	●
49	SHIM; FINAL PINION CAGE T=0.300	1-41154-104-0	AR	1	9904-0004	●	●
49	SHIM; FINAL PINION CAGE T=0.150	1-41154-012-0	AR	1	9601-9711	●
49	SHIM; FINAL PINION CAGE T=0.150	1-41154-012-0	AR	1	9712-9803	●	●
49	SHIM; FINAL PINION CAGE T=0.150	1-41154-012-0	AR	1	9804-9805	●
49	SHIM; FINAL PINION CAGE T=0.150	1-41154-012-0	AR	1	9806-9903	●	●
49	SHIM; FINAL PINION CAGE T=0.400	1-41154-105-0	AR	1	9904-0004	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-024-0	AR	1	0212-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-025-0	AR	1	0212-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-057-0	AR	1	0212-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-058-0	AR	1	0212-			●	●	●	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	9601-9711	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	9712-9803	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	9804-9805	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	9806-0004	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-0	01	1	9601-9711	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	9712-9803	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	9804-9805	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	9806-0004	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0212-			●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-3	01	1	0212-			●	●	●	●	●
55	CARRIER; DIFF	1-41110-070-0	01	1	9601-9711	●
55	CARRIER; DIFF	1-41110-070-0	01	1	9712-9803	●	●
55	CARRIER; DIFF	1-41110-070-0	01	1	9804-9805	●
55	CARRIER; DIFF	1-41110-070-0	01	1	9806-9902	●	●
55	CARRIER; DIFF	1-41110-120-1	01	1	9903-0004	●	●
55	CARRIER; DIFF	1-41110-109-0	01	1	0212-			●	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	9601-9711	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	9712-9803	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	9804-9805	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	9806-0004	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0212-			●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-379-2	01	1	9601-9608	●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-549-0	01	1	9609-0004	●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-371-2	01	1	9712-9803		●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-371-2	01	1	9806-0004		●
60	GEAR SET; FINAL DRIVE,RR 45/7	1-41210-602-0	01	1	0212-			●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-603-0	01	1	0212-				●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-604-0	01	1	0212-					●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-605-0	01	1	0212-						●
60	GEAR SET; FINAL DRIVE,RR 41/6	1-41210-601-0	01	1	0212-							●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9601-9702	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	9703-9711	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	9712-9803	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	9804-9805	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	9806-0004	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	0212-			●	●	●	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9601-9702	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	9703-9711	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	9712-9803	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	9804-9805	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	9806-0004	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	0212-			●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	9601-9711	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	9712-9803	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	9804-9805	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	9806-0004	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9601-9711	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9712-9803	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9804-9805	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9806-0004	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	0212-			●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	0212-			●	●	●	●	●
64	NUT; RET M8	9-09117-408-0	02	1	9601-9707	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9708-9711	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9712-9803	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9804-9805	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9806-0004	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0212-0512			●	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-			●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9601-9711	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9712-9803	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9804-9805	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9806-0004	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0212-0805			●	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-			●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9601-9711	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9712-9803	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9804-9805	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9806-0004	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-2	01	1	0212-			●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	9601-9711	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	9712-9803	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	9804-9805	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	9806-0004	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	9601-9711	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	9712-9803	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	9804-9805	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	9806-0004	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0212-			●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0212-			●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=92 OD=152 T=39.7	1-09812-156-0	02	1	9601-9702	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=39.7	1-09812-158-0	02	1	9601-9702	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	9703-9711	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	9712-9803	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	9804-9805	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	9806-0004	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0212-			●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	0601-			●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-046-0	01	1	9601-9711	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-046-0	01	1	9712-9803	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-046-0	01	1	9804-9805	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-046-0	01	1	9806-9902	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-270-0	01	1	9903-0004	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	0212-0509			●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9601-9711	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9712-9803	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9804-9804	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	9805-9805	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	9806-0004	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	0212-			●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	9-99110-514-0	12	1	9601-9711	●
85	NUT; DIFF CAGE SETTING M14	9-99110-514-0	12	1	9712-9803	●	●
85	NUT; DIFF CAGE SETTING M14	9-99110-514-0	12	1	9804-9805	●
85	NUT; DIFF CAGE SETTING M14	9-99110-514-0	12	1	9806-9901	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	9902-0004	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0212-0512			●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0601-			●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=3.2	1-41124-006-0	02	1	9601-9711	●
88	PLATE; LK,ADJ NUT (B) T=3.2	1-41124-006-0	02	1	9712-9803	●	●
88	PLATE; LK,ADJ NUT (B) T=3.2	1-41124-006-0	02	1	9804-9805	●
88	PLATE; LK,ADJ NUT (B) T=3.2	1-41124-006-0	02	1	9806-0004	●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	9601-9711	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	9712-9803	●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	9804-9805	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	9806-0004	●	●
88	PLATE; LK,ADJ NUT (C) T=3.2	1-41124-006-0	02	1	0212-			●	●	●	●	●
88	PLATE; LK,ADJ NUT (D) T=1.0	9-41124-005-0	02	1	0212-			●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9601-9711	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9712-9803	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9804-9805	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9806-0004	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0212-0512			●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-			●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9601-9711	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9712-9803	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9804-9805	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9806-0004	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0212-			●	●	●	●	●
101	BOLT; ADJ,DRIVEN GEAR THRUST M24X104	9-41127-006-0	01	1	9601-9711	●
101	BOLT; ADJ,DRIVEN GEAR THRUST M24X104	9-41127-006-0	01	1	9712-9803	●	●
101	BOLT; ADJ,DRIVEN GEAR THRUST M24X104	9-41127-006-0	01	1	9804-9805	●
101	BOLT; ADJ,DRIVEN GEAR THRUST M24X104	9-41127-006-0	01	1	9806-9902	●	●
103	NUT; ADJ BOLT M28	9-09842-003-0	01	1	9601-9711	●
103	NUT; ADJ BOLT M28	9-09842-003-0	01	1	9712-9803	●	●
103	NUT; ADJ BOLT M28	9-09842-003-0	01	1	9804-9805	●
103	NUT; ADJ BOLT M28	9-09842-003-0	01	1	9806-9902	●	●
126	COUPLING; DRIVING PINION	1-37245-023-3	01	1	9601-9711	●
126	COUPLING; DRIVING PINION	1-37245-023-3	01	1	9712-9803	●	●
126	COUPLING; DRIVING PINION	1-37245-023-3	01	1	9804-9805	●
126	COUPLING; DRIVING PINION	1-37245-023-4	01	1	9806-0004	●	●
126	COUPLING; DRIVING PINION	1-37245-265-2	01	1	0212-			●	●	●	●	●

69 70 85 1 71 20 21 22 85 24 56 25 17 21 20 88 89 88 70 84 17 69 55 66 61 61 65 64 63 41 40 40 39 100 62 50 49 126 43 48 45 4 37 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DRIVE ASM; FINAL,RR 43/7	1-41001-136-0	01	1	9601-0004	●
1	DRIVE ASM; FINAL,RR 39/6	1-41000-380-0	01	1	9712-9803		●
1	DRIVE ASM; FINAL,RR 39/6	1-41000-380-0	01	1	9806-0004		●
1	DRIVE ASM; FINAL,RR 45/7	1-41001-381-0	01	1	0212-			●
1	DRIVE ASM; FINAL,RR 43/7	1-41001-382-0	01	1	0212-				●
1	DRIVE ASM; FINAL,RR 39/7	1-41001-383-0	01	1	0212-					●
1	DRIVE ASM; FINAL,RR 41/8	1-41001-384-0	01	1	0212-						●
1	DRIVE ASM; FINAL,RR 41/6	1-41001-398-0	01	1	0212-							●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9601-9711	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9712-9803	●	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9804-9805	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9806-0004	●	●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0212-			●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	08	1	9601-9711	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	08	1	9712-9803	●	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	08	1	9804-9805	●
17	BOLT; DIFF CAGE SETTING M14X121 FLANGE	1-09044-006-0	08	1	9806-0004	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9601-9711	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9712-9803	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9804-9805	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	04	1	9806-0004	●	●
17	BOLT; DIFF CAGE SETTING M16X125	1-09070-007-0	04	1	0212-			●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X113	1-09070-018-0	08	1	0212-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-169-0	02	1	9601-0004	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-170-0	02	1	9601-0004	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-171-0	02	1	9601-0004	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-172-0	02	1	9601-0004	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-173-0	02	1	9601-0004	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-174-0	02	1	9601-0004	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-175-0	02	1	9601-0004	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-169-0	AR	1	9712-9803		●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-170-0	AR	1	9712-9803		●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-171-0	AR	1	9712-9803		●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-172-0	AR	1	9712-9803		●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-173-0	AR	1	9712-9803		●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-174-0	AR	1	9712-9803		●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-175-0	AR	1	9712-9803		●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-169-0	AR	1	9806-0004		●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-170-0	AR	1	9806-0004		●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-171-0	AR	1	9806-0004		●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-172-0	AR	1	9806-0004		●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-173-0	AR	1	9806-0004		●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-174-0	AR	1	9806-0004		●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-175-0	AR	1	9806-0004		●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	AR	1	0212-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	AR	1	0212-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	AR	1	0212-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	AR	1	0212-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	AR	1	0212-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	AR	1	0212-			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	AR	1	0212-			●	●	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-076-0	02	1	9601-9711	●
21	GEAR; SIDE,DIFF Z=16	1-41561-076-0	02	1	9712-9803	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-076-0	02	1	9804-9805	●
21	GEAR; SIDE,DIFF Z=16	1-41561-076-0	02	1	9806-0004	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-086-0	02	1	0212-0409			●	●	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-139-0	02	1	0410-0905			●	●	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-151-0	02	1	0906-			●	●	●	●	●
22	SPIDER; DIFF PINION OD=32	1-41521-002-0	01	1	9601-9711	●
22	SPIDER; DIFF PINION OD=32	1-41521-002-0	01	1	9712-9803	●	●
22	SPIDER; DIFF PINION OD=32	1-41521-002-0	01	1	9804-9805	●
22	SPIDER; DIFF PINION OD=32	1-41521-002-1	01	1	9806-0004	●	●
22	SPIDER; DIFF PINION OD=35	1-41521-037-2	01	1	0212-			●	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-022-0	04	1	9601-9711	●
24	GEAR; PINION,DIFF Z=10	1-41551-022-0	04	1	9712-9803	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-022-0	04	1	9804-9805	●
24	GEAR; PINION,DIFF Z=10	1-41551-022-0	04	1	9806-0004	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-025-0	04	1	0212-0409			●	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-044-0	04	1	0410-0905			●	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-053-0	04	1	0906-			●	●	●	●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-001-0	04	1	9601-9711	●
25	WASHER; THRUST,PINION T=1.6	1-41552-001-0	04	1	9712-9803	●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-001-0	04	1	9804-9805	●
25	WASHER; THRUST,PINION T=1.6	1-41552-001-0	04	1	9806-0004	●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-017-0	04	1	0212-			●	●	●	●	●
37	NUT; DRIVING PINION M39 FLANGE	1-09449-056-2	01	1	9601-9711	●
37	NUT; DRIVING PINION M39 FLANGE	1-09449-056-2	01	1	9712-9803	●	●
37	NUT; DRIVING PINION M39 FLANGE	1-09449-056-2	01	1	9804-9805	●
37	NUT; DRIVING PINION M39 FLANGE	1-09449-056-2	01	1	9806-0004	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0212-			●	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-086-0	01	1	9601-9711	●
39	BEARING; FINAL PINION NSK	1-09812-086-0	01	1	9712-9803	●	●
39	BEARING; FINAL PINION NSK	1-09812-086-0	01	1	9804-9805	●
39	BEARING; FINAL PINION NSK	1-09812-086-0	01	1	9806-0004	●	●
39	BEARING; FINAL PINION NTN	9-00093-072-1	01	1	9601-9711	●
39	BEARING; FINAL PINION NTN	9-00093-072-1	01	1	9712-9803	●	●
39	BEARING; FINAL PINION NTN	9-00093-072-1	01	1	9804-9805	●
39	BEARING; FINAL PINION NTN	9-00093-072-1	01	1	9806-0004	●	●
39	BEARING; FINAL PINION JTEKT	9-00093-206-1	01	1	9601-9711	●
39	BEARING; FINAL PINION JTEKT	9-00093-206-2	01	1	9712-9803	●	●
39	BEARING; FINAL PINION JTEKT	9-00093-206-2	01	1	9804-9805	●
39	BEARING; FINAL PINION JTEKT	9-00093-206-2	01	1	9806-0004	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0212-			●	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	0212-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	9601-9711	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	9712-9803	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	9804-9805	●
40	SHIM; FINAL PINION T=3.50	1-41229-106-0	AR	1	9806-0004	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	9601-9711	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	9712-9803	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	9804-9805	●
40	SHIM; FINAL PINION T=3.51	1-41229-107-0	AR	1	9806-0004	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	9601-9711	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	9712-9803	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	9804-9805	●
40	SHIM; FINAL PINION T=3.52	1-41229-108-0	AR	1	9806-0004	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	9601-9711	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	9712-9803	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	9804-9805	●
40	SHIM; FINAL PINION T=3.53	1-41229-109-0	AR	1	9806-0004	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	9601-9711	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	9712-9803	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	9804-9805	●
40	SHIM; FINAL PINION T=3.54	1-41229-110-0	AR	1	9806-0004	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	9601-9711	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	9712-9803	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	9804-9805	●
40	SHIM; FINAL PINION T=3.55	1-41229-111-0	AR	1	9806-0004	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	9601-9711	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	9712-9803	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	9804-9805	●
40	SHIM; FINAL PINION T=3.56	1-41229-112-0	AR	1	9806-0004	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	9601-9711	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	9712-9803	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	9804-9805	●
40	SHIM; FINAL PINION T=3.57	1-41229-113-0	AR	1	9806-0004	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	9601-9711	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	9712-9803	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	9804-9805	●
40	SHIM; FINAL PINION T=3.58	1-41229-114-0	AR	1	9806-0004	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	9601-9711	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	9712-9803	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	9804-9805	●
40	SHIM; FINAL PINION T=3.59	1-41229-115-0	AR	1	9806-0004	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	9601-9711	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	9712-9803	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	9804-9805	●
40	SHIM; FINAL PINION T=3.60	1-41229-116-0	AR	1	9806-0004	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0212-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0212-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0212-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0212-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0212-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0212-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0212-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0212-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0212-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0212-			●	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0212-			●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	9601-9711	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	9712-9803	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	9804-9805	●
41	SPACER; FINAL DRIVE PINION BRG T=7.600	1-41229-101-0	AR	1	9806-0004	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	9601-9711	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	9712-9803	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	9804-9805	●
41	SPACER; FINAL DRIVE PINION BRG T=7.800	1-41229-102-0	AR	1	9806-0004	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	9601-9711	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	9712-9803	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	9804-9805	●
41	SPACER; FINAL DRIVE PINION BRG T=8.000	1-41229-103-0	AR	1	9806-0004	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	9601-9711	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	9712-9803	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	9804-9805	●
41	SPACER; FINAL DRIVE PINION BRG T=8.200	1-41229-104-0	AR	1	9806-0004	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	9601-9711	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	9712-9803	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	9804-9805	●
41	SPACER; FINAL DRIVE PINION BRG T=8.400	1-41229-105-0	AR	1	9806-0004	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0212-			●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0212-			●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0212-			●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0212-			●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0212-			●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0212-			●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0212-			●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0212-			●	●	●	●	●
43	CAGE; FINAL PINION T=75	1-41151-005-0	01	1	9601-9711	●
43	CAGE; FINAL PINION T=75	1-41151-005-0	01	1	9712-9803	●	●
43	CAGE; FINAL PINION T=75	1-41151-005-0	01	1	9804-9805	●
43	CAGE; FINAL PINION T=75	1-41151-005-0	01	1	9806-0004	●	●
43	CAGE; FINAL PINION T=81	1-41151-030-0	01	1	0212-			●	●	●	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9601-9711	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9712-9803	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9804-9805	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9806-0004	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0212-			●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9601-9711	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9712-9803	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9804-9805	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9806-0004	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0212-0603			●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	0604-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-009-0	AR	1	9601-9711	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-009-0	AR	1	9712-9803	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-009-0	AR	1	9804-9805	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-009-0	AR	1	9806-0004	●	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-010-0	AR	1	9601-9711	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-010-0	AR	1	9712-9803	●	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-010-0	AR	1	9804-9805	●
49	SHIM; FINAL PINION CAGE T=0.500	1-41154-010-0	AR	1	9806-0004	●	●
49	SHIM; FINAL PINION CAGE T=0.200	1-41154-011-0	AR	1	9601-9711	●
49	SHIM; FINAL PINION CAGE T=0.200	1-41154-011-0	AR	1	9712-9803	●	●
49	SHIM; FINAL PINION CAGE T=0.200	1-41154-011-0	AR	1	9804-9805	●
49	SHIM; FINAL PINION CAGE T=0.200	1-41154-011-0	AR	1	9806-9903	●	●
49	SHIM; FINAL PINION CAGE T=0.300	1-41154-104-0	AR	1	9904-0004	●	●
49	SHIM; FINAL PINION CAGE T=0.150	1-41154-012-0	AR	1	9601-9711	●
49	SHIM; FINAL PINION CAGE T=0.150	1-41154-012-0	AR	1	9712-9803	●	●
49	SHIM; FINAL PINION CAGE T=0.150	1-41154-012-0	AR	1	9804-9805	●
49	SHIM; FINAL PINION CAGE T=0.150	1-41154-012-0	AR	1	9806-9903	●	●
49	SHIM; FINAL PINION CAGE T=0.400	1-41154-105-0	AR	1	9904-0004	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-024-0	AR	1	0212-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	1-41154-025-0	AR	1	0212-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-057-0	AR	1	0212-			●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-058-0	AR	1	0212-			●	●	●	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	9601-9711	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	9712-9803	●	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	9804-9805	●
50	BEARING; FINAL PINION NTN	1-09812-013-0	01	1	9806-0004	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-0	01	1	9601-9711	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	9712-9803	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	9804-9805	●
50	BEARING; FINAL PINION JTEKT	1-09812-070-1	01	1	9806-0004	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0212-			●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-3	01	1	0212-			●	●	●	●	●
55	CARRIER; DIFF	1-41110-070-0	01	1	9601-9711	●
55	CARRIER; DIFF	1-41110-070-0	01	1	9712-9803	●	●
55	CARRIER; DIFF	1-41110-070-0	01	1	9804-9805	●
55	CARRIER; DIFF	1-41110-070-0	01	1	9806-9902	●	●
55	CARRIER; DIFF	1-41110-120-1	01	1	9903-0004	●	●
55	CARRIER; DIFF	1-41110-109-0	01	1	0212-			●	●	●	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	9601-9711	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	9712-9803	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	9804-9805	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	9806-0004	●	●
56	BOLT; BRG CAP M20X112	1-09070-042-0	04	1	0212-			●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-379-2	01	1	9601-9608	●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-549-0	01	1	9609-0004	●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-371-2	01	1	9712-9803		●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-371-2	01	1	9806-0004		●
60	GEAR SET; FINAL DRIVE,RR 45/7	1-41210-602-0	01	1	0212-			●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-603-0	01	1	0212-				●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-604-0	01	1	0212-					●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-605-0	01	1	0212-						●
60	GEAR SET; FINAL DRIVE,RR 41/6	1-41210-601-0	01	1	0212-							●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9601-9702	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	9703-9711	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	9712-9803	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	9804-9805	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-015-0	02	1	9806-0004	●	●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	02	1	0212-			●	●	●	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9601-9702	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	9703-9711	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	9712-9803	●	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	9804-9805	●
62	BOLT; RET M8X38 W/PIN HOLE	1-09042-036-0	02	1	9806-0004	●	●
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	02	1	0212-			●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	9601-9711	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	9712-9803	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	9804-9805	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	9806-0004	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9601-9711	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9712-9803	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9804-9805	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9806-0004	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	01	1	0212-			●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-183-0	01	1	0212-			●	●	●	●	●
64	NUT; RET M8	9-09117-408-0	02	1	9601-9707	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9708-9711	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9712-9803	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9804-9805	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9806-0004	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0212-0512			●	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-			●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9601-9711	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9712-9803	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9804-9805	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9806-0004	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0212-0805			●	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-			●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9601-9711	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9712-9803	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9804-9805	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9806-0004	●	●
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-2	01	1	0212-			●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	9601-9711	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	9712-9803	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	9804-9805	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	9806-0004	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	9601-9711	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	9712-9803	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	9804-9805	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	9806-0004	●	●
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	01	1	0212-			●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	01	1	0212-			●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=92 OD=152 T=39.7	1-09812-156-0	02	1	9601-9702	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=39.7	1-09812-158-0	02	1	9601-9702	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	9703-9711	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	9712-9803	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	9804-9805	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	9806-0004	●	●
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	02	1	0212-			●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	0601-			●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-046-0	01	1	9601-9711	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-046-0	01	1	9712-9803	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-046-0	01	1	9804-9805	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-046-0	01	1	9806-9902	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-270-0	01	1	9903-0004	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	01	1	0212-0509			●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9601-9711	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9712-9803	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9804-9804	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	9805-9805	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	9806-0004	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	16	1	0212-			●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	9-99110-514-0	12	1	9601-9711	●
85	NUT; DIFF CAGE SETTING M14	9-99110-514-0	12	1	9712-9803	●	●
85	NUT; DIFF CAGE SETTING M14	9-99110-514-0	12	1	9804-9805	●
85	NUT; DIFF CAGE SETTING M14	9-99110-514-0	12	1	9806-9901	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	9902-0004	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0212-0512			●	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0601-			●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=3.2	1-41124-006-0	02	1	9601-9711	●
88	PLATE; LK,ADJ NUT (B) T=3.2	1-41124-006-0	02	1	9712-9803	●	●
88	PLATE; LK,ADJ NUT (B) T=3.2	1-41124-006-0	02	1	9804-9805	●
88	PLATE; LK,ADJ NUT (B) T=3.2	1-41124-006-0	02	1	9806-0004	●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	9601-9711	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	9712-9803	●	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	9804-9805	●
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	9806-0004	●	●
88	PLATE; LK,ADJ NUT (C) T=3.2	1-41124-006-0	02	1	0212-			●	●	●	●	●
88	PLATE; LK,ADJ NUT (D) T=1.0	9-41124-005-0	02	1	0212-			●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9601-9711	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9712-9803	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9804-9805	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9806-0004	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0212-0512			●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-			●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9601-9711	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9712-9803	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9804-9805	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9806-0004	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0212-			●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-023-3	01	1	9601-9711	●
126	COUPLING; DRIVING PINION	1-37245-023-3	01	1	9712-9803	●	●
126	COUPLING; DRIVING PINION	1-37245-023-3	01	1	9804-9805	●
126	COUPLING; DRIVING PINION	1-37245-023-4	01	1	9806-0004	●	●
126	COUPLING; DRIVING PINION	1-37245-265-2	01	1	0212-			●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
