◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#38137) — 16 parça

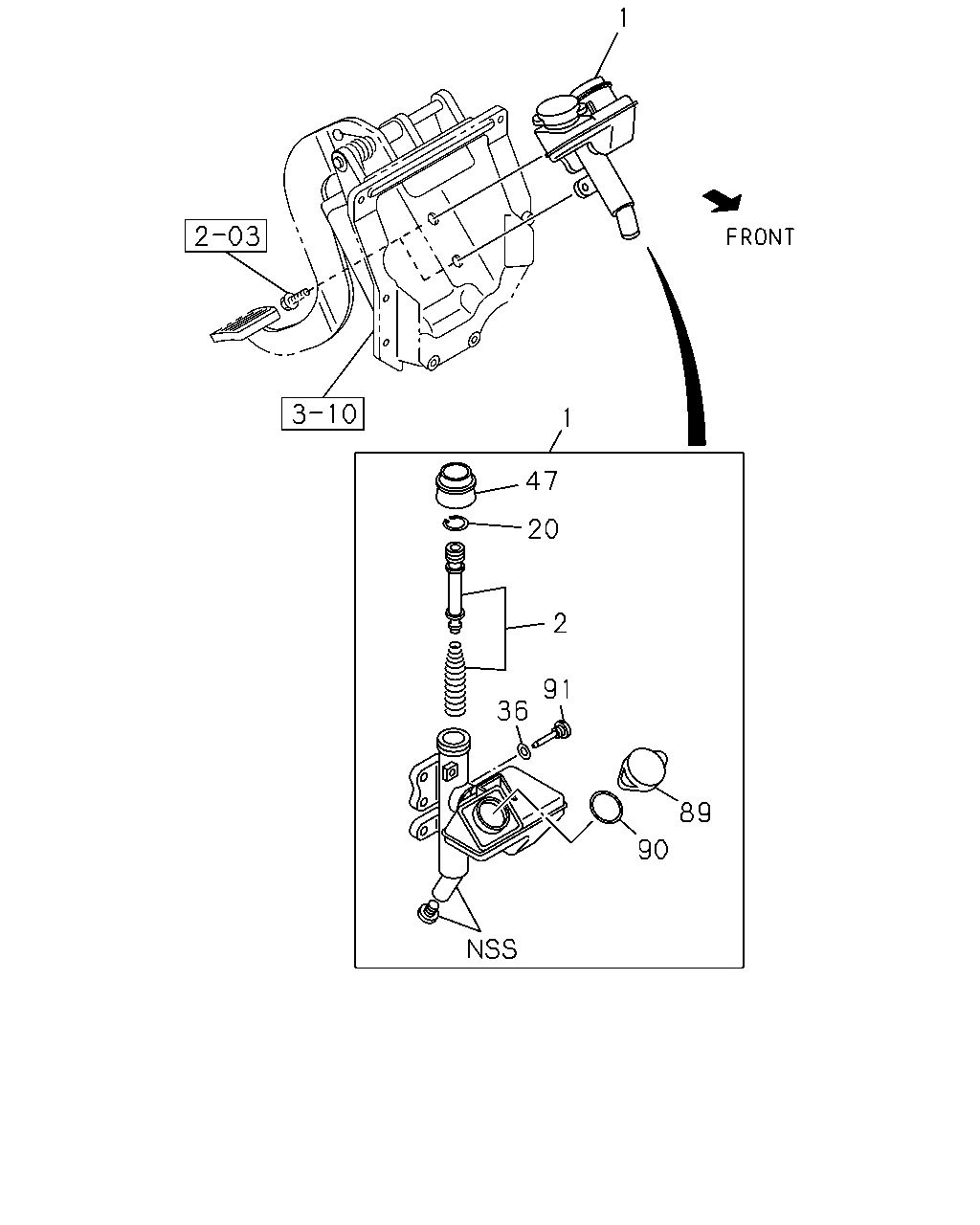

çizim 181704
1 1 47 20 2 91 36 89 90
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CYLINDER ASM; CLUTCH MASTER 1-47500-250-2 01 1 0712-1003 ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-250-2 01 1 1004- ● ● ●
2 REPAIR KIT; CLU M/CYL 1-85576-461-0 01 1 0712-1003 ● ●
2 REPAIR KIT; CLU M/CYL 1-85576-461-0 01 1 1004- ● ● ●
20 RING; SNAP,BODY 1-47519-013-0 01 1 0712-1003 ● ●
20 RING; SNAP,BODY 1-47519-013-0 01 1 1004- ● ● ●
36 GASKET; CLU M/CYL 1-47519-014-0 01 1 0712-1003 ● ●
36 GASKET; CLU M/CYL 1-47519-014-0 01 1 1004- ● ● ●
47 COVER; DUST,PUSH ROD 1-47519-018-0 01 1 0712-1003 ● ●
47 COVER; DUST,PUSH ROD 1-47519-018-0 01 1 1004- ● ● ●
89 CAP; OIL FILLER,CLU M/CYL 1-47519-017-0 01 1 0712-1003 ● ●
89 CAP; OIL FILLER,CLU M/CYL 1-47519-017-0 01 1 1004- ● ● ●
90 GASKET; OIL FILLER,CLU M/CYL 1-47519-016-0 01 1 0712-1003 ● ●
90 GASKET; OIL FILLER,CLU M/CYL 1-47519-016-0 01 1 1004- ● ● ●
91 BOLT; STOPPER 1-47519-015-0 01 1 0712-1003 ● ●
91 BOLT; STOPPER 1-47519-015-0 01 1 1004- ● ● ●
