◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#38135) — 214 parça

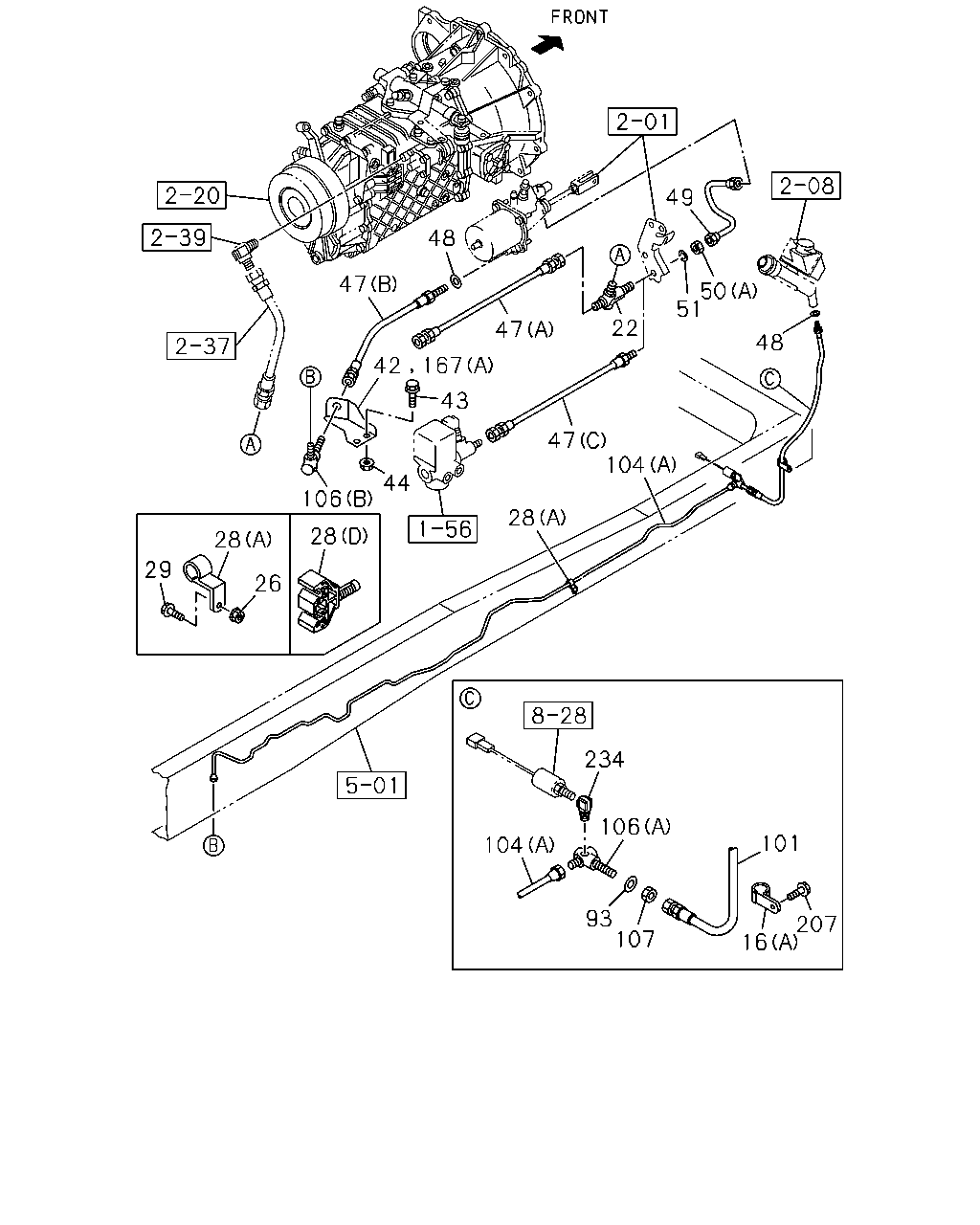

çizim 181714
49 48 47 50 51 22 47 167 48 42 43 47 104 44 106 28 28 28 29 26 234 106 101 104 93 107 207 16
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; FLEX HOSE
(C) ID=15 L=22 H=30 		1-09701-215-1 01 1 0712-0802 ●
16 CLIP; FLEX HOSE
(C) ID=15 L=22 H=30 		1-09701-215-1 01 1 0803-1003 ● ●
16 CLIP; FLEX HOSE
(C) ID=15 L=22 H=30 		1-09701-215-1 01 1 1004- ● ● ●
16 CLIP; FLEX HOSE
(B) ID=10 & 12 		1-09709-278-1 01 1 0712-0802 ●
16 CLIP; FLEX HOSE
(B) ID=10 & 12 		1-09709-278-1 01 1 0803-1003 ● ●
16 CLIP; FLEX HOSE
(B) ID=10 & 12 		1-09709-278-1 01 1 1004- ● ● ●
16 CLIP; FLEX HOSE
(A) ID=16 L=28 		1-09700-872-0 01 1 0712-0802 ●
22 UNION; CLU PIPE
M12 3WAY 		0-92138-706-0 01 1 0712-0811 ● ●
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 0812-1003 ●
22 UNION; CLU PIPE
M12 3WAY 		0-92138-706-0 01 1 0812-1003 ●
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1004- ● ●
22 UNION; CLU PIPE
M12 3WAY 		0-92138-706-0 01 1 1004- ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
28 CLIP; OIL PIPE
(C) ID=6.35 		1-09701-247-1 01 1 0712-0802 ●
28 CLIP; OIL PIPE
(B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0712-0802 ●
28 CLIP; OIL PIPE
(B) ID=6.35 & 10.0 		1-09709-274-1 03 1 0803-1003 ● ●
28 CLIP; OIL PIPE
(B) ID=6.35 & 10.0 		1-09709-274-1 03 1 1004- ● ● ●
28 CLIP; OIL PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0712-0802 ●
28 CLIP; OIL PIPE
(D) 		8-98012-254-1 01 1 0803-1003 ● ●
28 CLIP; OIL PIPE
(D) 		8-98012-254-1 01 1 1004- ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0802 ●
42 BRACKET; FLEX HOSE,CLU CONT 8-97615-747-0 01 1 0712-0802 ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 0712-0802 ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=560 		1-09363-914-0 01 1 0810-0811 ● ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=560 		1-09363-914-0 01 1 0812-0906 ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=560 		1-09363-914-0 01 1 0812-0906 ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=560 		1-09363-914-0 01 1 0907- ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=560 		1-09363-914-0 01 1 0907- ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=700 		1-09363-718-0 01 1 0812-0906 ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=700 		1-09363-718-0 01 1 0907-1003 ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=700 		1-09363-718-0 01 1 1004- ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=700 		1-09363-718-0 01 1 1004- ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=680 		1-09363-647-0 01 1 0812-1003 ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=680 		1-09363-647-0 01 1 1004- ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=680 		1-09363-647-0 01 1 1004- ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=540 		1-09363-612-1 01 1 0806-0811 ● ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=540 		1-09363-612-1 01 1 0812- ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=540 		1-09363-612-1 01 1 0812- ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=600 		1-09363-639-0 01 1 0806-0811 ● ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=600 		1-09363-639-0 01 1 0812-1003 ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=600 		1-09363-639-0 01 1 0812-1003 ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=600 		1-09363-639-0 01 1 1004- ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=600 		1-09363-639-0 01 1 1004- ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> (A) L=600 		1-09363-639-0 01 1 1004- ●
47 HOSE; FLEX,CLU CONT
(A) L=580 		1-09363-613-1 01 1 0712-0802 ●
47 HOSE; FLEX,CLU CONT
(B) L=390 		8-98080-980-0 01 1 0712-0802 ●
47 HOSE; FLEX,CLU CONT
(B) L=390 		8-98080-980-0 01 1 0803-1003 ● ●
47 HOSE; FLEX,CLU CONT
(B) L=390 		8-98080-980-0 01 1 1004- ● ● ●
47 HOSE; FLEX,CLU CONT
(A) L=500 		1-09363-733-0 01 1 0712-0802 ●
47 HOSE; FLEX,CLU CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=620 		1-09363-705-0 01 1 0803-0804 ● ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=620 		1-09363-705-0 01 1 0805-0811 ● ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=620 		1-09363-705-0 01 1 0812-0906 ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=620 		1-09363-705-0 01 1 0812-0906 ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=620 		1-09363-705-0 01 1 0907-1003 ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=620 		1-09363-705-0 01 1 0907-1003 ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=620 		1-09363-705-0 01 1 1004- ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=620 		1-09363-705-0 01 1 1004- ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) L=620 		1-09363-705-0 01 1 1004- ●
47 HOSE; FLEX,CLU CONT
(B) L=440 		8-98072-346-0 01 1 0712-0802 ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 0712-0802 ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 0712-0802 ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 0803-1003 ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1004- ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=204 		1-49117-400-0 01 1 0712-1003 ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=204 		1-49117-400-0 01 1 1004- ● ● ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0712-0802 ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0803-1003 ● ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1004- ● ● ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0712-1003 ● ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0712-1003 ● ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1004- ● ● ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1004- ● ● ●
51 WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8> D=12 		8-94333-466-0 01 1 0812-0908 ●
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 0712-0811 ● ●
51 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 0812-0908 ●
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 0812-0908 ●
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 0909-1003 ● ●
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 1004- ● ● ●
93 WASHER; LK,UNION,OIL PIPE
ID=12.2 		0-91510-812-0 01 1 0712-0802 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 0712-0802 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 0803-1003 ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 1004- ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(C) L=336 		8-98067-058-0 01 1 0712-0802 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(C) L=336 		8-98067-058-0 01 1 0803-1003 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(C) L=336 		8-98067-058-0 01 1 1004- ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=1956 SERVICED BY L=2000 		1-47428-739-0 01 1 0712-0802 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2520 		8-97615-758-0 01 1 0712-0802 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(D) L=2040 		8-98111-702-0 01 1 0803-0904 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(D) L=2048 		8-98147-536-0 01 1 0905-1003 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(D) L=2048 		8-98147-536-0 01 1 1004- ● ● ●
106 UNION; OIL PIPE
(C) M12 3WAY 		8-98051-113-0 01 1 0712-0802 ●
106 UNION; OIL PIPE
(C) M12 3WAY 		8-98051-113-0 01 1 0803-0910 ● ●
106 UNION; OIL PIPE
(A) 		1-09656-751-0 01 1 0712-0802 ●
106 UNION; OIL PIPE
(B) M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
107 NUT; UNION,OIL PIPE
M12 		0-91111-512-0 01 1 0712-0802 ● ●
167 BRACKET; UNION
(A) 		8-98116-756-1 01 1 0803-0808 ●
167 BRACKET; UNION
(B) 		8-98099-366-0 01 1 0712-0802 ●
167 BRACKET; UNION
(B) 		8-98115-978-1 01 1 0803-0808 ●
167 BRACKET; UNION
(B) 		8-98115-978-1 01 1 0809-1003 ● ●
167 BRACKET; UNION
(B) 		8-98115-978-1 01 1 1004- ● ● ●
207 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0712-1003 ● ●
207 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1004- ● ● ●
234 CONNECTOR; ELBOW
PT1/8 ELBOW 		8-94338-418-1 01 1 0712-0802 ●

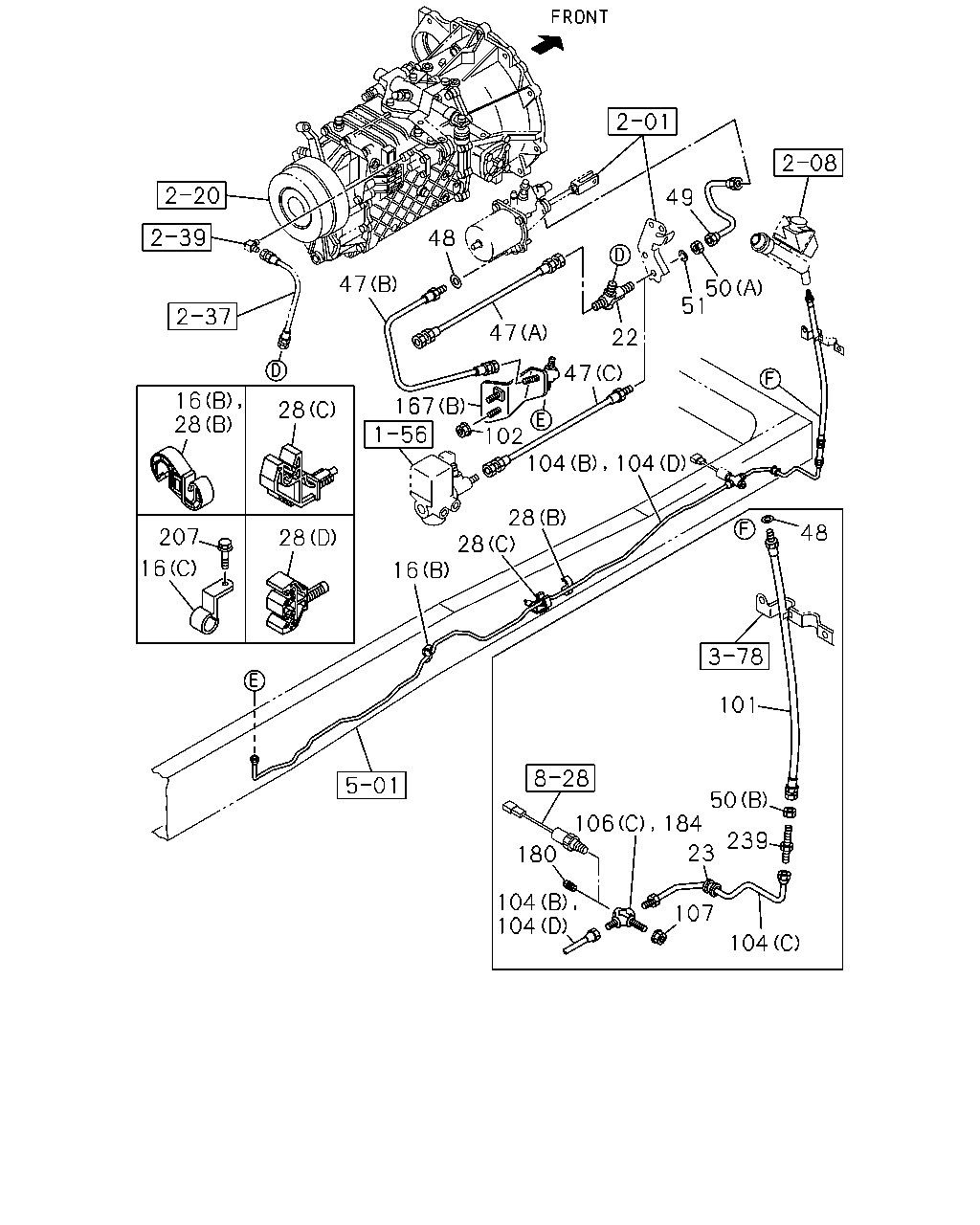

çizim 181716
49 48 47 50 51 47 22 47 16 28 167 28 102 104 104 28 28 16 48 207 28 16 101 50 184 106 239 23 180 104 104 107 104
BalonParca AdiParca NoAdetTipApplied Date A B C
16 CLIP; FLEX HOSE
(C) ID=15 L=22 H=30 		1-09701-215-1 01 1 0712-0802 ●
16 CLIP; FLEX HOSE
(C) ID=15 L=22 H=30 		1-09701-215-1 01 1 0803-1003 ● ●
16 CLIP; FLEX HOSE
(C) ID=15 L=22 H=30 		1-09701-215-1 01 1 1004- ● ● ●
16 CLIP; FLEX HOSE
(B) ID=10 & 12 		1-09709-278-1 01 1 0712-0802 ●
16 CLIP; FLEX HOSE
(B) ID=10 & 12 		1-09709-278-1 01 1 0803-1003 ● ●
16 CLIP; FLEX HOSE
(B) ID=10 & 12 		1-09709-278-1 01 1 1004- ● ● ●
16 CLIP; FLEX HOSE
(A) ID=16 L=28 		1-09700-872-0 01 1 0712-0802 ●
22 UNION; CLU PIPE
M12 3WAY 		0-92138-706-0 01 1 0712-0811 ● ●
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 0812-1003 ●
22 UNION; CLU PIPE
M12 3WAY 		0-92138-706-0 01 1 0812-1003 ●
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1004- ● ●
22 UNION; CLU PIPE
M12 3WAY 		0-92138-706-0 01 1 1004- ●
23 GROMMET; CLU PIPE
ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0712-0802 ●
23 GROMMET; CLU PIPE
ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0803-1003 ● ●
23 GROMMET; CLU PIPE
ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1004- ● ● ●
28 CLIP; OIL PIPE
(C) ID=6.35 		1-09701-247-1 01 1 0712-0802 ●
28 CLIP; OIL PIPE
(B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0712-0802 ●
28 CLIP; OIL PIPE
(B) ID=6.35 & 10.0 		1-09709-274-1 03 1 0803-1003 ● ●
28 CLIP; OIL PIPE
(B) ID=6.35 & 10.0 		1-09709-274-1 03 1 1004- ● ● ●
28 CLIP; OIL PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0712-0802 ●
28 CLIP; OIL PIPE
(D) 		8-98012-254-1 01 1 0803-1003 ● ●
28 CLIP; OIL PIPE
(D) 		8-98012-254-1 01 1 1004- ● ● ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=560 		1-09363-914-0 01 1 0810-0811 ● ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=560 		1-09363-914-0 01 1 0812-0906 ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=560 		1-09363-914-0 01 1 0812-0906 ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=560 		1-09363-914-0 01 1 0907- ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=560 		1-09363-914-0 01 1 0907- ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=700 		1-09363-718-0 01 1 0812-0906 ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=700 		1-09363-718-0 01 1 0907-1003 ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=700 		1-09363-718-0 01 1 1004- ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=700 		1-09363-718-0 01 1 1004- ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=680 		1-09363-647-0 01 1 0812-1003 ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8>,POWER TAKE OFF-FLYWHEEL(6SZ) (C) L=680 		1-09363-647-0 01 1 1004- ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=680 		1-09363-647-0 01 1 1004- ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=540 		1-09363-612-1 01 1 0806-0811 ● ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=540 		1-09363-612-1 01 1 0812- ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=540 		1-09363-612-1 01 1 0812- ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=600 		1-09363-639-0 01 1 0806-0811 ● ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=600 		1-09363-639-0 01 1 0812-1003 ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=600 		1-09363-639-0 01 1 0812-1003 ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=600 		1-09363-639-0 01 1 1004- ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=600 		1-09363-639-0 01 1 1004- ●
47 HOSE; FLEX,CLU CONT
MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> (A) L=600 		1-09363-639-0 01 1 1004- ●
47 HOSE; FLEX,CLU CONT
(A) L=580 		1-09363-613-1 01 1 0712-0802 ●
47 HOSE; FLEX,CLU CONT
(B) L=390 		8-98080-980-0 01 1 0712-0802 ●
47 HOSE; FLEX,CLU CONT
(B) L=390 		8-98080-980-0 01 1 0803-1003 ● ●
47 HOSE; FLEX,CLU CONT
(B) L=390 		8-98080-980-0 01 1 1004- ● ● ●
47 HOSE; FLEX,CLU CONT
(A) L=500 		1-09363-733-0 01 1 0712-0802 ●
47 HOSE; FLEX,CLU CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=620 		1-09363-705-0 01 1 0803-0804 ● ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=620 		1-09363-705-0 01 1 0805-0811 ● ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=620 		1-09363-705-0 01 1 0812-0906 ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=620 		1-09363-705-0 01 1 0812-0906 ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=620 		1-09363-705-0 01 1 0907-1003 ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=620 		1-09363-705-0 01 1 0907-1003 ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=620 		1-09363-705-0 01 1 1004- ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=620 		1-09363-705-0 01 1 1004- ●
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> (A) L=620 		1-09363-705-0 01 1 1004- ●
47 HOSE; FLEX,CLU CONT
(B) L=440 		8-98072-346-0 01 1 0712-0802 ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 0712-0802 ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 0712-0802 ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 0803-1003 ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1004- ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=204 		1-49117-400-0 01 1 0712-1003 ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=204 		1-49117-400-0 01 1 1004- ● ● ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0712-0802 ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0803-1003 ● ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1004- ● ● ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0712-1003 ● ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0712-1003 ● ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1004- ● ● ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1004- ● ● ●
51 WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8> D=12 		8-94333-466-0 01 1 0812-0908 ●
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 0712-0811 ● ●
51 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 0812-0908 ●
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 0812-0908 ●
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 0909-1003 ● ●
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 1004- ● ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 0712-0802 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 0803-1003 ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 1004- ● ● ●
102 NUT; FLEX HOSE,CLU CONT
M10 FLANGE 		0-91180-210-0 02 1 0712-0802 ●
102 NUT; FLEX HOSE,CLU CONT
M10 FLANGE 		0-91180-210-0 02 1 0803-1003 ● ●
102 NUT; FLEX HOSE,CLU CONT
M10 FLANGE 		0-91180-210-0 02 1 1004- ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(C) L=336 		8-98067-058-0 01 1 0712-0802 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(C) L=336 		8-98067-058-0 01 1 0803-1003 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(C) L=336 		8-98067-058-0 01 1 1004- ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=1956 SERVICED BY L=2000 		1-47428-739-0 01 1 0712-0802 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2520 		8-97615-758-0 01 1 0712-0802 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(D) L=2040 		8-98111-702-0 01 1 0803-0904 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(D) L=2048 		8-98147-536-0 01 1 0905-1003 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(D) L=2048 		8-98147-536-0 01 1 1004- ● ● ●
106 UNION; OIL PIPE
(C) M12 3WAY 		8-98051-113-0 01 1 0712-0802 ●
106 UNION; OIL PIPE
(C) M12 3WAY 		8-98051-113-0 01 1 0803-0910 ● ●
106 UNION; OIL PIPE
(A) 		1-09656-751-0 01 1 0712-0802 ●
106 UNION; OIL PIPE
(B) M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
107 NUT; UNION,OIL PIPE
M12 		0-91111-512-0 01 1 0712-0802 ● ●
167 BRACKET; UNION
(A) 		8-98116-756-1 01 1 0803-0808 ●
167 BRACKET; UNION
(B) 		8-98099-366-0 01 1 0712-0802 ●
167 BRACKET; UNION
(B) 		8-98115-978-1 01 1 0803-0808 ●
167 BRACKET; UNION
(B) 		8-98115-978-1 01 1 0809-1003 ● ●
167 BRACKET; UNION
(B) 		8-98115-978-1 01 1 1004- ● ● ●
180 PLUG; PIPE 9-09204-510-0 01 1 0712-0802 ●
180 PLUG; PIPE 9-09204-510-0 01 1 0803-0910 ● ●
184 UNION; FLEX HOSE 8-98150-865-0 01 1 0911-1003 ● ●
184 UNION; FLEX HOSE 8-98150-865-0 01 1 1004- ● ● ●
207 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0712-1003 ● ●
207 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1004- ● ● ●
239 UNION; CLU HOSE
M12 L=66.5 		0-92113-306-0 01 1 0712-0802 ●
239 UNION; CLU HOSE
M12 L=66.5 		0-92113-306-0 01 1 0803-1003 ● ●
239 UNION; CLU HOSE
M12 L=66.5 		0-92113-306-0 01 1 1004- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
