2-03 — CLUTCH PEDAL AND CONTROL (#38134) — 33 parça

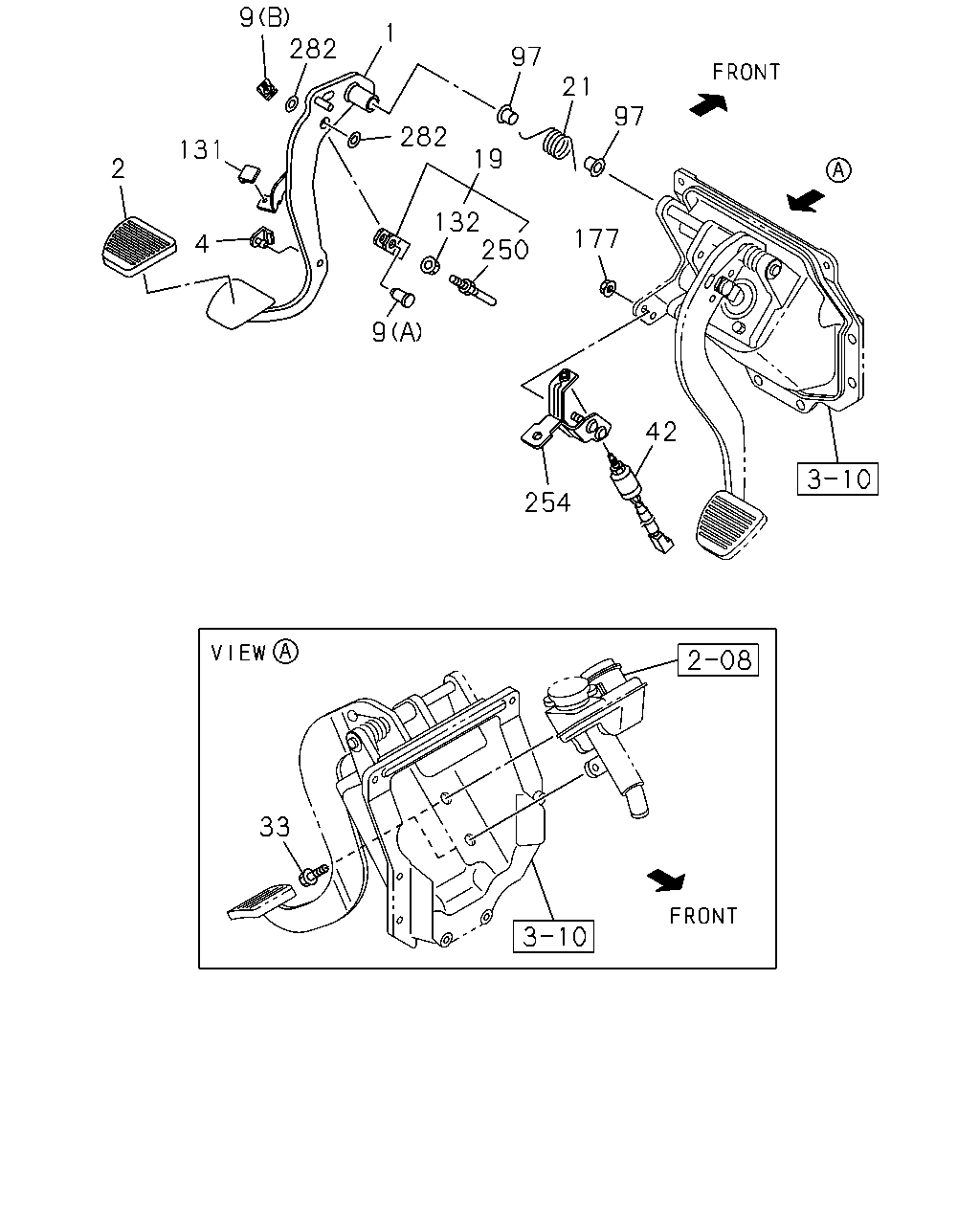

çizim 181713
9 282 1 97 21 97 282 131 19 2 132 250 177 4 9 42 254 33
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PEDAL; CLU 8-98057-123-0 01 1 0712-1003 ● ●
1 PEDAL; CLU 8-98057-123-0 01 1 1004- ● ● ●
2 COVER; CLU PEDAL 8-98056-865-0 01 1 0712-1003 ● ●
2 COVER; CLU PEDAL 8-98056-865-0 01 1 1004- ● ● ●
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 0712-1003 ● ●
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 1004- ● ● ●
9 PIN; CLU PEDAL
(A) 		8-97387-230-0 01 1 0712-1003 ● ●
9 PIN; CLU PEDAL
(A) 		8-97387-230-0 01 1 1004-1007 ● ● ●
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1008- ● ● ●
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 0712-1003 ● ●
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 1004- ● ● ●
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 0712-1003 ● ●
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 1004- ● ● ●
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 0712-1003 ● ●
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 1004- ● ● ●
33 BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE 		0-28051-220-0 02 1 0712-1003 ● ●
33 BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE 		0-28051-220-0 02 1 1004- ● ● ●
42 SWITCH; CLU 8-97620-841-0 01 1 0712-1003 ● ●
42 SWITCH; CLU 8-97620-841-0 01 1 1004- ● ● ●
97 BUSHING; CLU PEDAL SHAFT 8-94238-596-0 02 1 0712-1003 ● ●
97 BUSHING; CLU PEDAL SHAFT 8-94238-596-0 02 1 1004- ● ● ●
131 STOPPER; CLU SW 8-97302-305-0 02 1 0712-1003 ● ●
131 STOPPER; CLU SW 8-97302-305-0 02 1 1004- ● ● ●
132 NUT; LK,PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 0712-1003 ● ●
132 NUT; LK,PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 1004- ● ● ●
177 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0712-1003 ● ●
177 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1004- ● ● ●
250 ROD; PUSH,CLU 8-97615-589-0 01 1 0712-1003 ● ●
250 ROD; PUSH,CLU 8-97615-589-0 01 1 1004- ● ● ●
254 BRACKET; CLU SENSOR 8-98057-131-1 01 1 0712-1003 ● ●
254 BRACKET; CLU SENSOR 8-98057-131-1 01 1 1004- ● ● ●
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 0712-1003 ● ●
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 1004- ● ● ●
