1-56 — EXHAUST BRAKE SYSTEM (#38132) — 23 parça

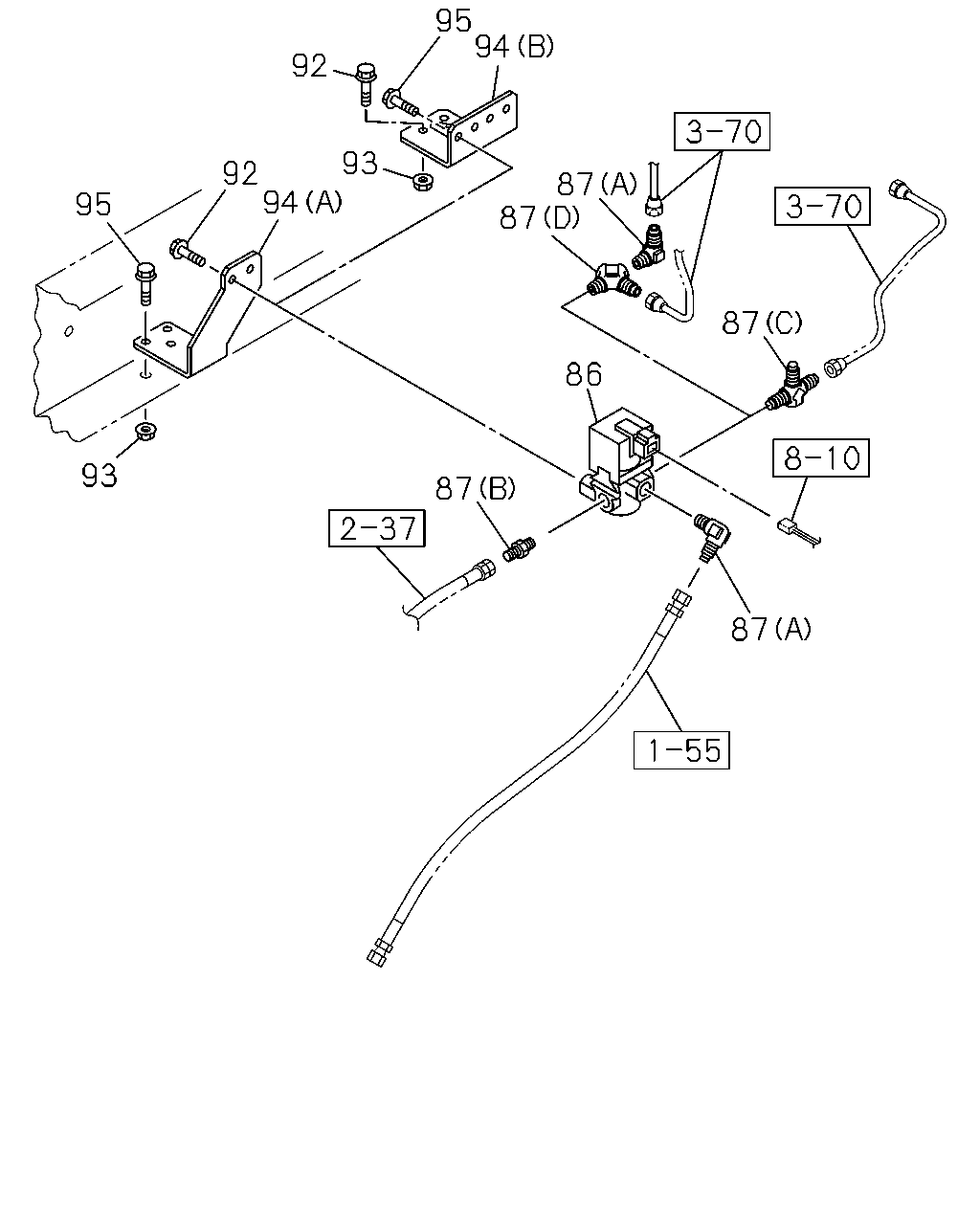

çizim 181707
95 94 92 93 92 94 87 87 95 87 86 93 87 87
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0712-
87 CONNECTOR
FSS STD DBL CAB(FC**W*) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0712-0802
87 CONNECTOR
(D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0803-0906
87 CONNECTOR
FSS STD SGL CAB(FC**M*) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0907-1003
87 CONNECTOR
FSS STD DBL CAB(FC**W*) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0907-1003
87 CONNECTOR
FSS STD SGL CAB(FC**M*) PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0907-1003
87 CONNECTOR
FSS STD SGL CAB(FC**M*) CATALYSIS CONTROL WITH DPD<8JM> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0907-1003
87 CONNECTOR
FSS STD SGL CAB(FC**M*) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, CATALYSIS CONTROL WITH DPD<8JM> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1004-
87 CONNECTOR
FSS STD DBL CAB(FC**W*) (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1004-
87 CONNECTOR
FSS WIDE CAB(FG****) DIFF LOCK<C3N> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1004-
87 CONNECTOR
FSS STD SGL CAB(FC**M*) PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1004-
87 CONNECTOR
FSS WIDE CAB(FG****) PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1004-
87 CONNECTOR
FSS STD SGL CAB(FC**M*) CATALYSIS CONTROL WITH DPD<8JM> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1004-
87 CONNECTOR
(B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0712-
87 CONNECTOR
FSS STD SGL CAB(FC**M*) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0802
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0803-
87 CONNECTOR
FSS STD SGL CAB(FC**M*) (C) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0712-0802
92 BOLT; MAG VLV
M8X30 FLANGE 		0-28650-830-0 02 1 0712-
93 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0712-
94 BRACKET; MAG VLV,EXH BRAKE
FSS STD SGL CAB(FC**M*) (A) 		8-98021-181-0 01 1 0712-0802
94 BRACKET; MAG VLV,EXH BRAKE
(B) 		1-47479-799-0 01 1 0803-
94 BRACKET; MAG VLV,EXH BRAKE
FSS STD DBL CAB(FC**W*) (A) 		1-47471-374-0 01 1 0712-0802
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0712-
