Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#38127) — 418 parça

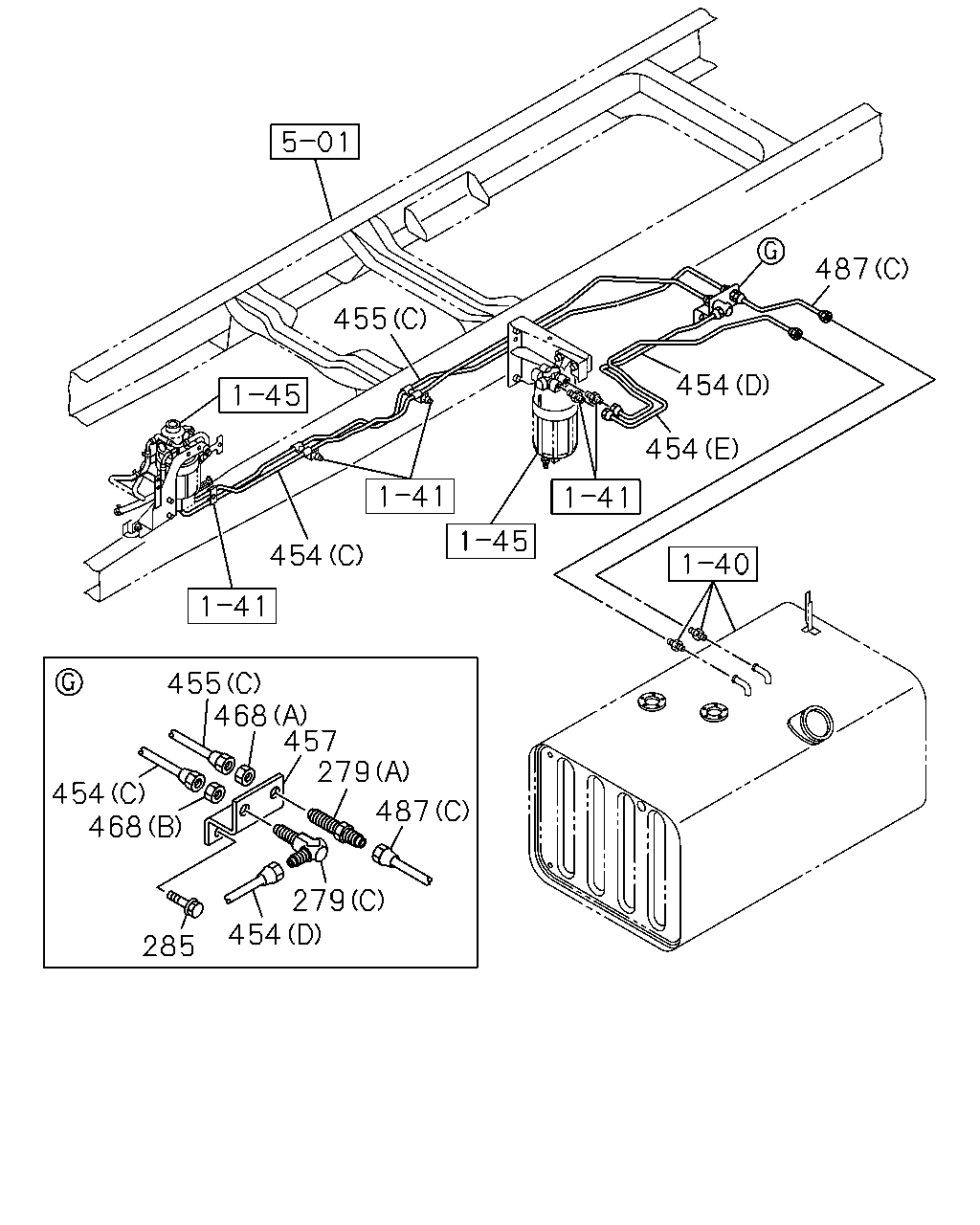

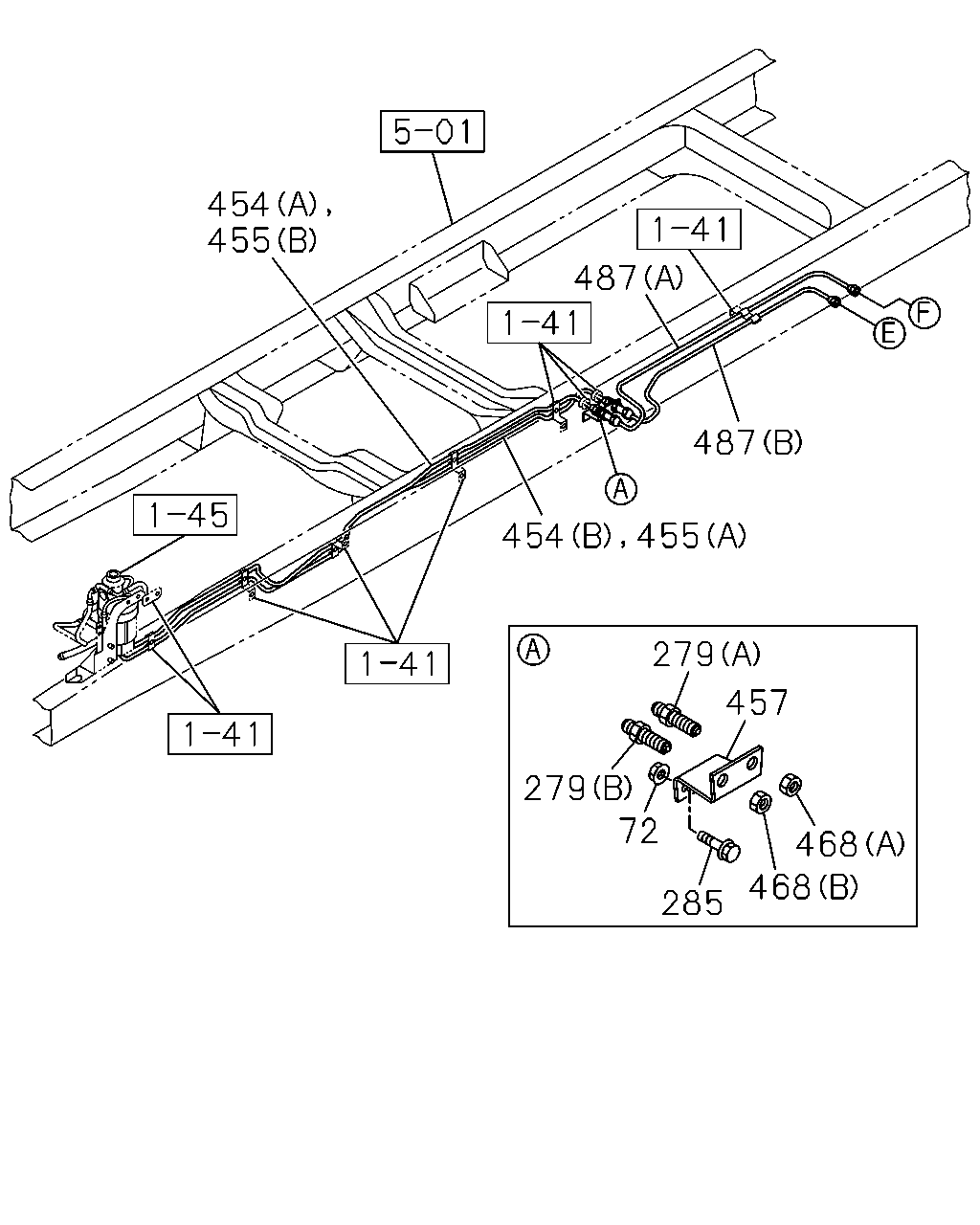

454 455 487 487 279 457 279 72 468 468 285 454 455

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
72	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
279	UNION; FUEL PIPE FUEL PIPE STEEL<E2N> (A) M14	0-92113-308-0	01	1	1004-		●
279	UNION; FUEL PIPE FUEL PIPE STEEL<E2N> (C) M16 ELBOW	0-92135-010-0	01	1	1004-		●
279	UNION; FUEL PIPE (C) M14 ELBOW	0-92125-208-0	01	1	0803-0811	●		●
279	UNION; FUEL PIPE FUEL PIPE STEEL<E2N> (C) M14 ELBOW	0-92125-208-0	01	1	0812-	●		●
279	UNION; FUEL PIPE (A) M14	0-92113-308-0	01	1	0712-0802	●
279	UNION; FUEL PIPE (D) M16 ELBOW	0-92135-210-0	01	1	0803-0811			●
279	UNION; FUEL PIPE FUEL PIPE STEEL<E2N> (D) M16 ELBOW	0-92135-210-0	01	1	0812-			●
279	UNION; FUEL PIPE (B) M16 L=74	0-92123-310-0	01	1	0712-0906	●
279	UNION; FUEL PIPE (B) M16 L=74	0-92123-310-0	01	1	0907-	●
285	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	1004-		●
285	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●
454	PIPE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (F) L=1348	8-98204-240-0	01	1	1201-		●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (E) L=1055 SERVICED BY L=1100	1-47428-875-0	01	1	1004-		●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (D) L=621 SERVICED BY L=660	1-47428-869-0	01	1	1004-		●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (C) L=1413	8-98140-402-0	01	1	1004-		●
454	PIPE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (A) L=1377	8-98131-424-0	01	1	0811-			●
454	PIPE; FUEL,DELIVERY (A) L=1461 SERVICED BY L=1550	1-47428-879-0	01	1	0803-0811			●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (A) L=1461 SERVICED BY L=1550	1-47428-879-0	01	1	0812-			●
454	PIPE; FUEL,DELIVERY (A)	8-98099-058-0	01	1	0712-0802	●
454	PIPE; FUEL,DELIVERY (A) L=1443 SERVICED BY L=1550	1-47428-879-0	01	1	0803-0906	●
454	PIPE; FUEL,DELIVERY (A) L=1443 SERVICED BY L=1550	1-47428-879-0	01	1	0907-	●
454	PIPE; FUEL,DELIVERY (B)	8-98099-060-0	01	1	0712-0802	●
454	PIPE; FUEL,DELIVERY (B) L=551 SERVICED BY L=600	1-47428-868-0	01	1	0803-0906	●
454	PIPE; FUEL,DELIVERY (B) L=551 SERVICED BY L=600	1-47428-868-0	01	1	0907-	●
455	PIPE; FUEL,RETURN EXC. FUEL PIPE STEEL<E2N> (D) L=1535	8-98204-241-0	01	1	1201-		●
455	PIPE; FUEL,RETURN FUEL PIPE STEEL<E2N> (C) L=1641	8-98165-428-0	01	1	1004-		●
455	PIPE; FUEL,RETURN EXC. FUEL PIPE STEEL<E2N> (A) L=1553	8-98131-425-0	01	1	0811-			●
455	PIPE; FUEL,RETURN (A) L=1578 SERVICED BY L=1700	1-47428-852-0	01	1	0803-0811			●
455	PIPE; FUEL,RETURN FUEL PIPE STEEL<E2N> (A) L=1578 SERVICED BY L=1700	1-47428-852-0	01	1	0812-			●
455	PIPE; FUEL,RETURN (A)	8-98099-057-0	01	1	0712-0802	●
455	PIPE; FUEL,RETURN (A) L=1532 SERVICED BY L=1550	1-47428-851-0	01	1	0803-0906	●
455	PIPE; FUEL,RETURN (A) L=1532 SERVICED BY L=1550	1-47428-851-0	01	1	0907-	●
455	PIPE; FUEL,RETURN (B)	8-98099-059-0	01	1	0712-0802	●
455	PIPE; FUEL,RETURN (B) L=531 SERVICED BY L=550	1-47428-838-0	01	1	0803-0805	●
455	PIPE; FUEL,RETURN (B) L=531 SERVICED BY L=550	1-47428-838-0	01	1	0806-0906	●
455	PIPE; FUEL,RETURN (B) L=531 SERVICED BY L=550	1-47428-838-0	01	1	0907-	●
457	BRACKET; UNION,FUEL PIPE FUEL PIPE STEEL<E2N>	8-98091-974-0	01	1	1004-		●
457	BRACKET; UNION,FUEL PIPE	8-98099-367-0	01	1	0712-0802	●
468	NUT (A) M14	0-91111-514-0	01	1	0712-0802	●
468	NUT (A) M14	0-91111-514-0	01	1	0803-0811	●		●
468	NUT FUEL PIPE STEEL<E2N> (A) M14	0-91111-514-0	01	1	0812-1003	●		●
468	NUT FUEL PIPE STEEL<E2N> (A) M14	0-91111-514-0	01	1	1004-	●	●	●
468	NUT (B) M16	0-91111-516-0	01	1	0712-0802	●
468	NUT (B) M16	0-91111-516-0	01	1	0803-0811	●		●
468	NUT FUEL PIPE STEEL<E2N> (B) M16	0-91111-516-0	01	1	0812-1003	●		●
468	NUT FUEL PIPE STEEL<E2N> (B) M16	0-91111-516-0	01	1	1004-	●	●	●
487	PIPE; FUEL HOSE FUEL PIPE STEEL<E2N> (C) L=308	8-98147-038-0	01	1	1004-		●
487	PIPE; FUEL HOSE (A)	8-98108-523-0	01	1	0803-0811			●
487	PIPE; FUEL HOSE FUEL PIPE STEEL<E2N> EURO4 SPECIFICATION<NT4> (A)	8-98108-523-0	01	1	0812-			●
487	PIPE; FUEL HOSE (B) L=1050 SERVICED BY L=1100	1-47428-848-0	01	1	0803-0811			●
487	PIPE; FUEL HOSE FUEL PIPE STEEL<E2N> EURO4 SPECIFICATION<NT4> (B) L=1050 SERVICED BY L=1100	1-47428-848-0	01	1	0812-			●
487	PIPE; FUEL HOSE (A)	8-98115-169-0	01	1	0803-0804	●
487	PIPE; FUEL HOSE (A)	8-98120-534-0	01	1	0805-1003	●
487	PIPE; FUEL HOSE (A)	8-98120-534-0	01	1	1004-	●
487	PIPE; FUEL HOSE (B) L=1190 SERVICED BY L=1250	1-47428-849-0	01	1	0803-0804	●
487	PIPE; FUEL HOSE (B) L=1191 SERVICED BY L=1250	1-47428-849-0	01	1	0805-0906	●
487	PIPE; FUEL HOSE (B) L=1191 SERVICED BY L=1250	1-47428-849-0	01	1	0907-	●

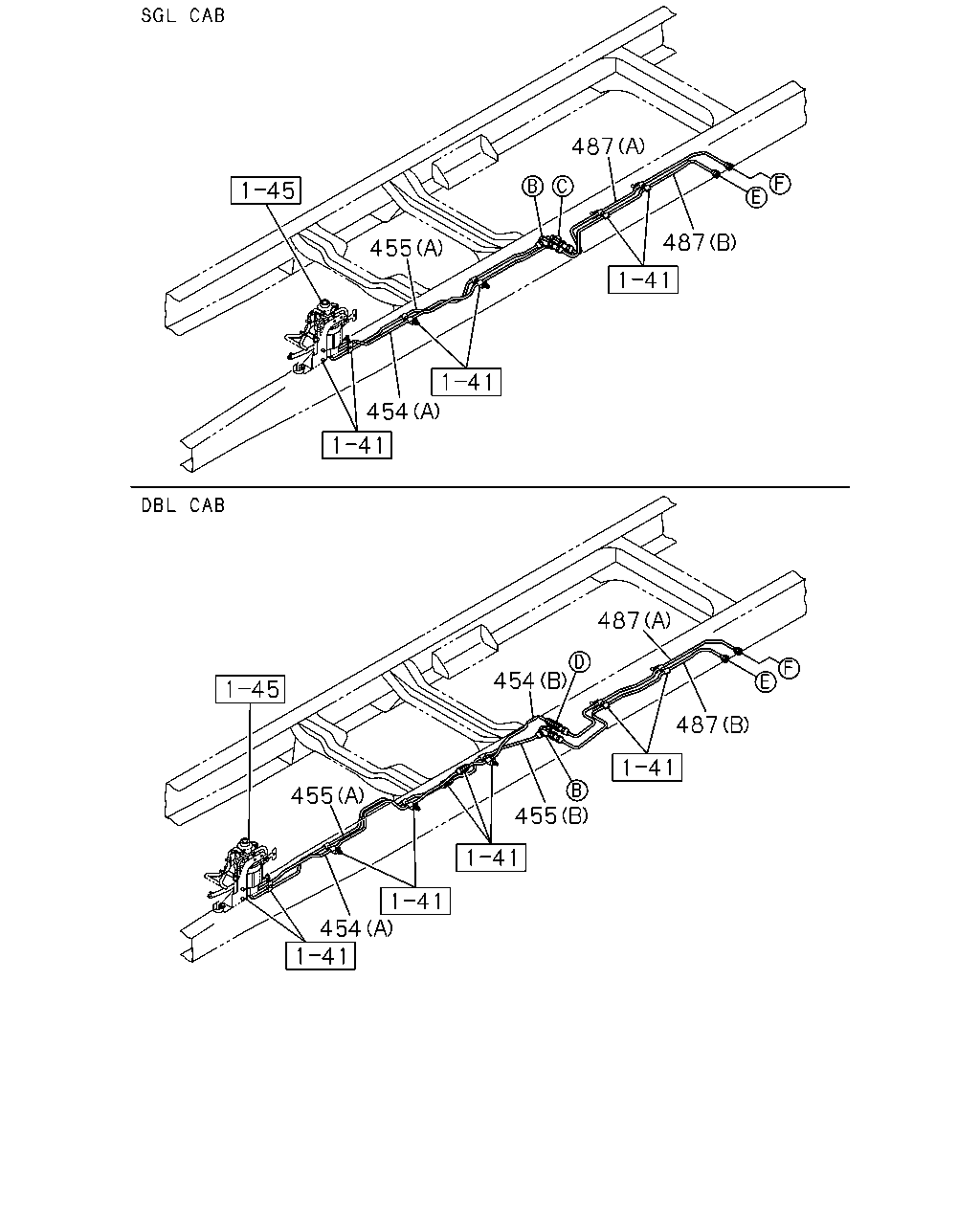

487 487 455 454 487 454 487 455 455 454

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
454	PIPE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (F) L=1348	8-98204-240-0	01	1	1201-		●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (E) L=1055 SERVICED BY L=1100	1-47428-875-0	01	1	1004-		●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (D) L=621 SERVICED BY L=660	1-47428-869-0	01	1	1004-		●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (C) L=1413	8-98140-402-0	01	1	1004-		●
454	PIPE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (A) L=1377	8-98131-424-0	01	1	0811-			●
454	PIPE; FUEL,DELIVERY (A) L=1461 SERVICED BY L=1550	1-47428-879-0	01	1	0803-0811			●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (A) L=1461 SERVICED BY L=1550	1-47428-879-0	01	1	0812-			●
454	PIPE; FUEL,DELIVERY (A)	8-98099-058-0	01	1	0712-0802	●
454	PIPE; FUEL,DELIVERY (A) L=1443 SERVICED BY L=1550	1-47428-879-0	01	1	0803-0906	●
454	PIPE; FUEL,DELIVERY (A) L=1443 SERVICED BY L=1550	1-47428-879-0	01	1	0907-	●
454	PIPE; FUEL,DELIVERY (B)	8-98099-060-0	01	1	0712-0802	●
454	PIPE; FUEL,DELIVERY (B) L=551 SERVICED BY L=600	1-47428-868-0	01	1	0803-0906	●
454	PIPE; FUEL,DELIVERY (B) L=551 SERVICED BY L=600	1-47428-868-0	01	1	0907-	●
455	PIPE; FUEL,RETURN EXC. FUEL PIPE STEEL<E2N> (D) L=1535	8-98204-241-0	01	1	1201-		●
455	PIPE; FUEL,RETURN FUEL PIPE STEEL<E2N> (C) L=1641	8-98165-428-0	01	1	1004-		●
455	PIPE; FUEL,RETURN EXC. FUEL PIPE STEEL<E2N> (A) L=1553	8-98131-425-0	01	1	0811-			●
455	PIPE; FUEL,RETURN (A) L=1578 SERVICED BY L=1700	1-47428-852-0	01	1	0803-0811			●
455	PIPE; FUEL,RETURN FUEL PIPE STEEL<E2N> (A) L=1578 SERVICED BY L=1700	1-47428-852-0	01	1	0812-			●
455	PIPE; FUEL,RETURN (A)	8-98099-057-0	01	1	0712-0802	●
455	PIPE; FUEL,RETURN (A) L=1532 SERVICED BY L=1550	1-47428-851-0	01	1	0803-0906	●
455	PIPE; FUEL,RETURN (A) L=1532 SERVICED BY L=1550	1-47428-851-0	01	1	0907-	●
455	PIPE; FUEL,RETURN (B)	8-98099-059-0	01	1	0712-0802	●
455	PIPE; FUEL,RETURN (B) L=531 SERVICED BY L=550	1-47428-838-0	01	1	0803-0805	●
455	PIPE; FUEL,RETURN (B) L=531 SERVICED BY L=550	1-47428-838-0	01	1	0806-0906	●
455	PIPE; FUEL,RETURN (B) L=531 SERVICED BY L=550	1-47428-838-0	01	1	0907-	●
487	PIPE; FUEL HOSE FUEL PIPE STEEL<E2N> (C) L=308	8-98147-038-0	01	1	1004-		●
487	PIPE; FUEL HOSE (A)	8-98108-523-0	01	1	0803-0811			●
487	PIPE; FUEL HOSE FUEL PIPE STEEL<E2N> EURO4 SPECIFICATION<NT4> (A)	8-98108-523-0	01	1	0812-			●
487	PIPE; FUEL HOSE (B) L=1050 SERVICED BY L=1100	1-47428-848-0	01	1	0803-0811			●
487	PIPE; FUEL HOSE FUEL PIPE STEEL<E2N> EURO4 SPECIFICATION<NT4> (B) L=1050 SERVICED BY L=1100	1-47428-848-0	01	1	0812-			●
487	PIPE; FUEL HOSE (A)	8-98115-169-0	01	1	0803-0804	●
487	PIPE; FUEL HOSE (A)	8-98120-534-0	01	1	0805-1003	●
487	PIPE; FUEL HOSE (A)	8-98120-534-0	01	1	1004-	●
487	PIPE; FUEL HOSE (B) L=1190 SERVICED BY L=1250	1-47428-849-0	01	1	0803-0804	●
487	PIPE; FUEL HOSE (B) L=1191 SERVICED BY L=1250	1-47428-849-0	01	1	0805-0906	●
487	PIPE; FUEL HOSE (B) L=1191 SERVICED BY L=1250	1-47428-849-0	01	1	0907-	●

279 468 279 468 279 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
279	UNION; FUEL PIPE FUEL PIPE STEEL<E2N> (A) M14	0-92113-308-0	01	1	1004-		●
279	UNION; FUEL PIPE FUEL PIPE STEEL<E2N> (C) M16 ELBOW	0-92135-010-0	01	1	1004-		●
279	UNION; FUEL PIPE (C) M14 ELBOW	0-92125-208-0	01	1	0803-0811	●		●
279	UNION; FUEL PIPE FUEL PIPE STEEL<E2N> (C) M14 ELBOW	0-92125-208-0	01	1	0812-	●		●
279	UNION; FUEL PIPE (A) M14	0-92113-308-0	01	1	0712-0802	●
279	UNION; FUEL PIPE (D) M16 ELBOW	0-92135-210-0	01	1	0803-0811			●
279	UNION; FUEL PIPE FUEL PIPE STEEL<E2N> (D) M16 ELBOW	0-92135-210-0	01	1	0812-			●
279	UNION; FUEL PIPE (B) M16 L=74	0-92123-310-0	01	1	0712-0906	●
279	UNION; FUEL PIPE (B) M16 L=74	0-92123-310-0	01	1	0907-	●
468	NUT (A) M14	0-91111-514-0	01	1	0712-0802	●
468	NUT (A) M14	0-91111-514-0	01	1	0803-0811	●		●
468	NUT FUEL PIPE STEEL<E2N> (A) M14	0-91111-514-0	01	1	0812-1003	●		●
468	NUT FUEL PIPE STEEL<E2N> (A) M14	0-91111-514-0	01	1	1004-	●	●	●
468	NUT (B) M16	0-91111-516-0	01	1	0712-0802	●
468	NUT (B) M16	0-91111-516-0	01	1	0803-0811	●		●
468	NUT FUEL PIPE STEEL<E2N> (B) M16	0-91111-516-0	01	1	0812-1003	●		●
468	NUT FUEL PIPE STEEL<E2N> (B) M16	0-91111-516-0	01	1	1004-	●	●	●

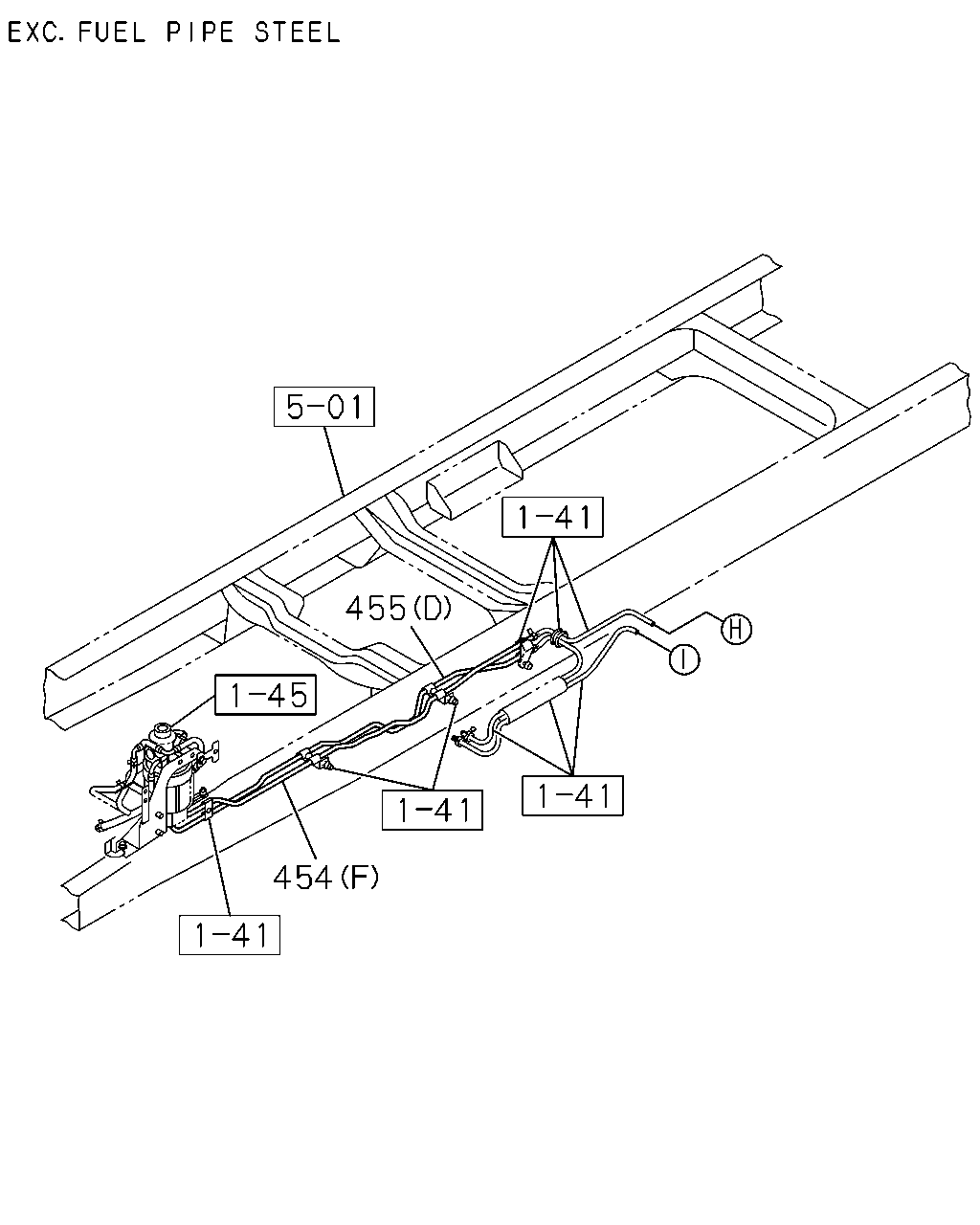

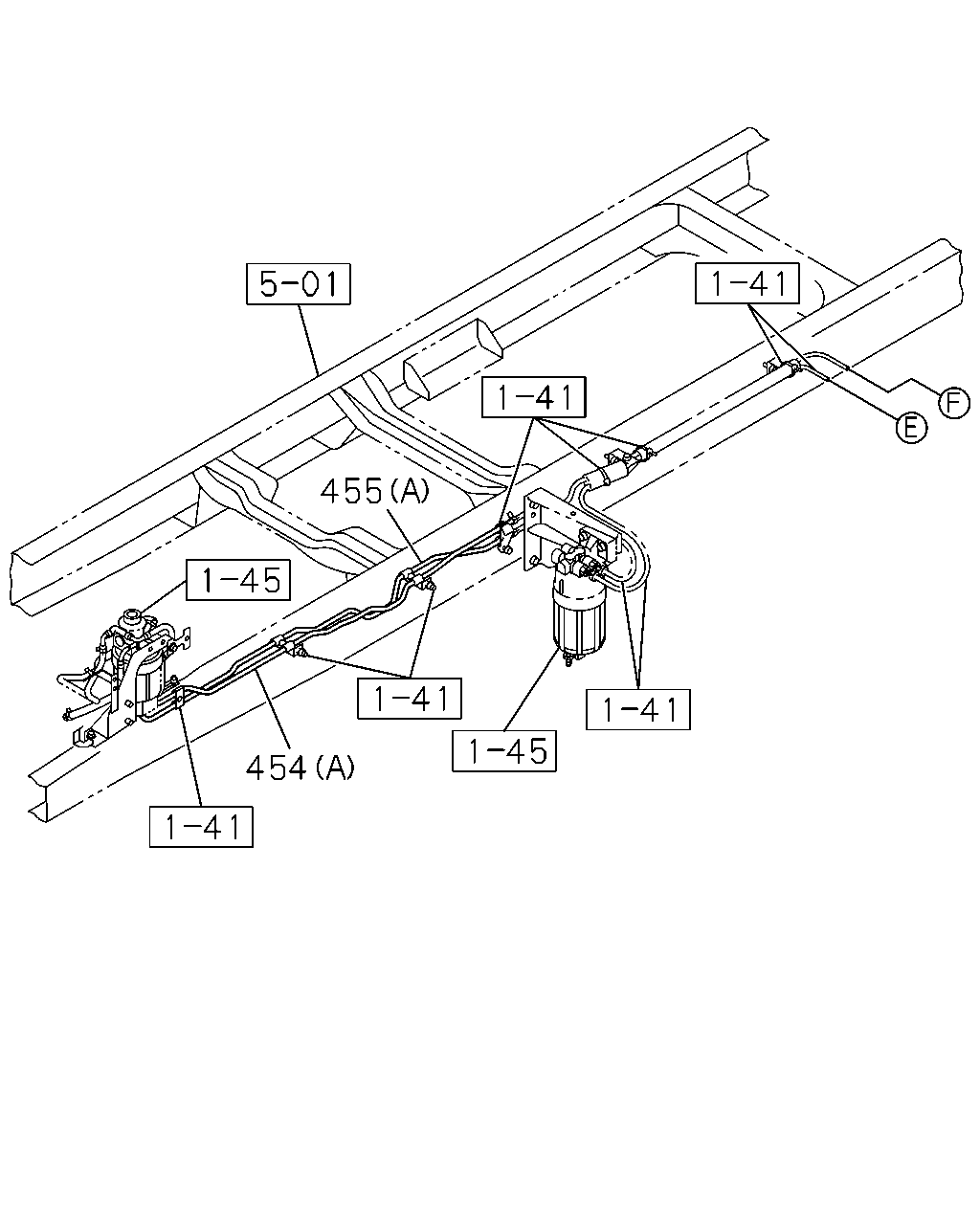

455 454

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
454	PIPE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (F) L=1348	8-98204-240-0	01	1	1201-		●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (E) L=1055 SERVICED BY L=1100	1-47428-875-0	01	1	1004-		●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (D) L=621 SERVICED BY L=660	1-47428-869-0	01	1	1004-		●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (C) L=1413	8-98140-402-0	01	1	1004-		●
454	PIPE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (A) L=1377	8-98131-424-0	01	1	0811-			●
454	PIPE; FUEL,DELIVERY (A) L=1461 SERVICED BY L=1550	1-47428-879-0	01	1	0803-0811			●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (A) L=1461 SERVICED BY L=1550	1-47428-879-0	01	1	0812-			●
454	PIPE; FUEL,DELIVERY (A)	8-98099-058-0	01	1	0712-0802	●
454	PIPE; FUEL,DELIVERY (A) L=1443 SERVICED BY L=1550	1-47428-879-0	01	1	0803-0906	●
454	PIPE; FUEL,DELIVERY (A) L=1443 SERVICED BY L=1550	1-47428-879-0	01	1	0907-	●
454	PIPE; FUEL,DELIVERY (B)	8-98099-060-0	01	1	0712-0802	●
454	PIPE; FUEL,DELIVERY (B) L=551 SERVICED BY L=600	1-47428-868-0	01	1	0803-0906	●
454	PIPE; FUEL,DELIVERY (B) L=551 SERVICED BY L=600	1-47428-868-0	01	1	0907-	●
455	PIPE; FUEL,RETURN EXC. FUEL PIPE STEEL<E2N> (D) L=1535	8-98204-241-0	01	1	1201-		●
455	PIPE; FUEL,RETURN FUEL PIPE STEEL<E2N> (C) L=1641	8-98165-428-0	01	1	1004-		●
455	PIPE; FUEL,RETURN EXC. FUEL PIPE STEEL<E2N> (A) L=1553	8-98131-425-0	01	1	0811-			●
455	PIPE; FUEL,RETURN (A) L=1578 SERVICED BY L=1700	1-47428-852-0	01	1	0803-0811			●
455	PIPE; FUEL,RETURN FUEL PIPE STEEL<E2N> (A) L=1578 SERVICED BY L=1700	1-47428-852-0	01	1	0812-			●
455	PIPE; FUEL,RETURN (A)	8-98099-057-0	01	1	0712-0802	●
455	PIPE; FUEL,RETURN (A) L=1532 SERVICED BY L=1550	1-47428-851-0	01	1	0803-0906	●
455	PIPE; FUEL,RETURN (A) L=1532 SERVICED BY L=1550	1-47428-851-0	01	1	0907-	●
455	PIPE; FUEL,RETURN (B)	8-98099-059-0	01	1	0712-0802	●
455	PIPE; FUEL,RETURN (B) L=531 SERVICED BY L=550	1-47428-838-0	01	1	0803-0805	●
455	PIPE; FUEL,RETURN (B) L=531 SERVICED BY L=550	1-47428-838-0	01	1	0806-0906	●
455	PIPE; FUEL,RETURN (B) L=531 SERVICED BY L=550	1-47428-838-0	01	1	0907-	●

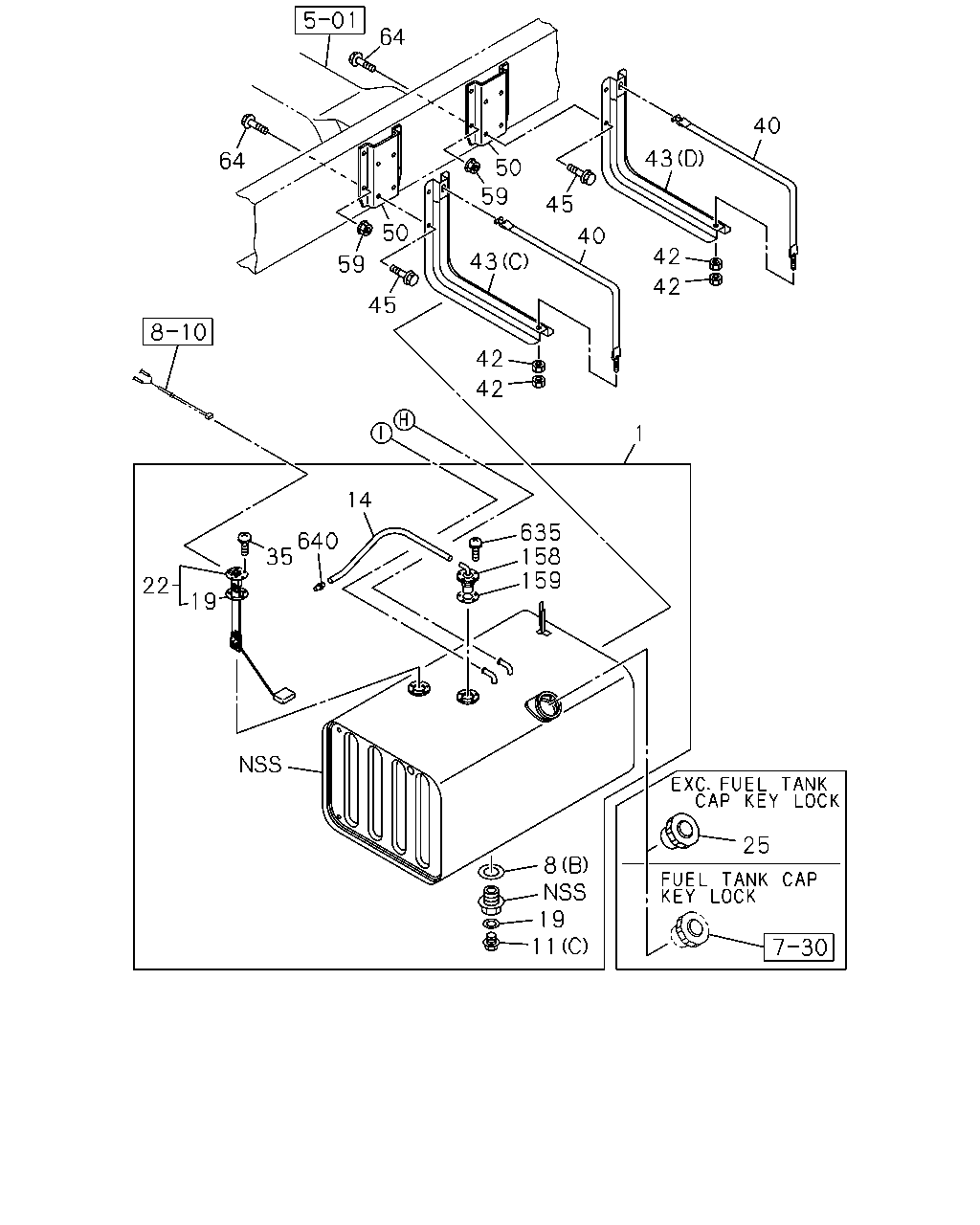

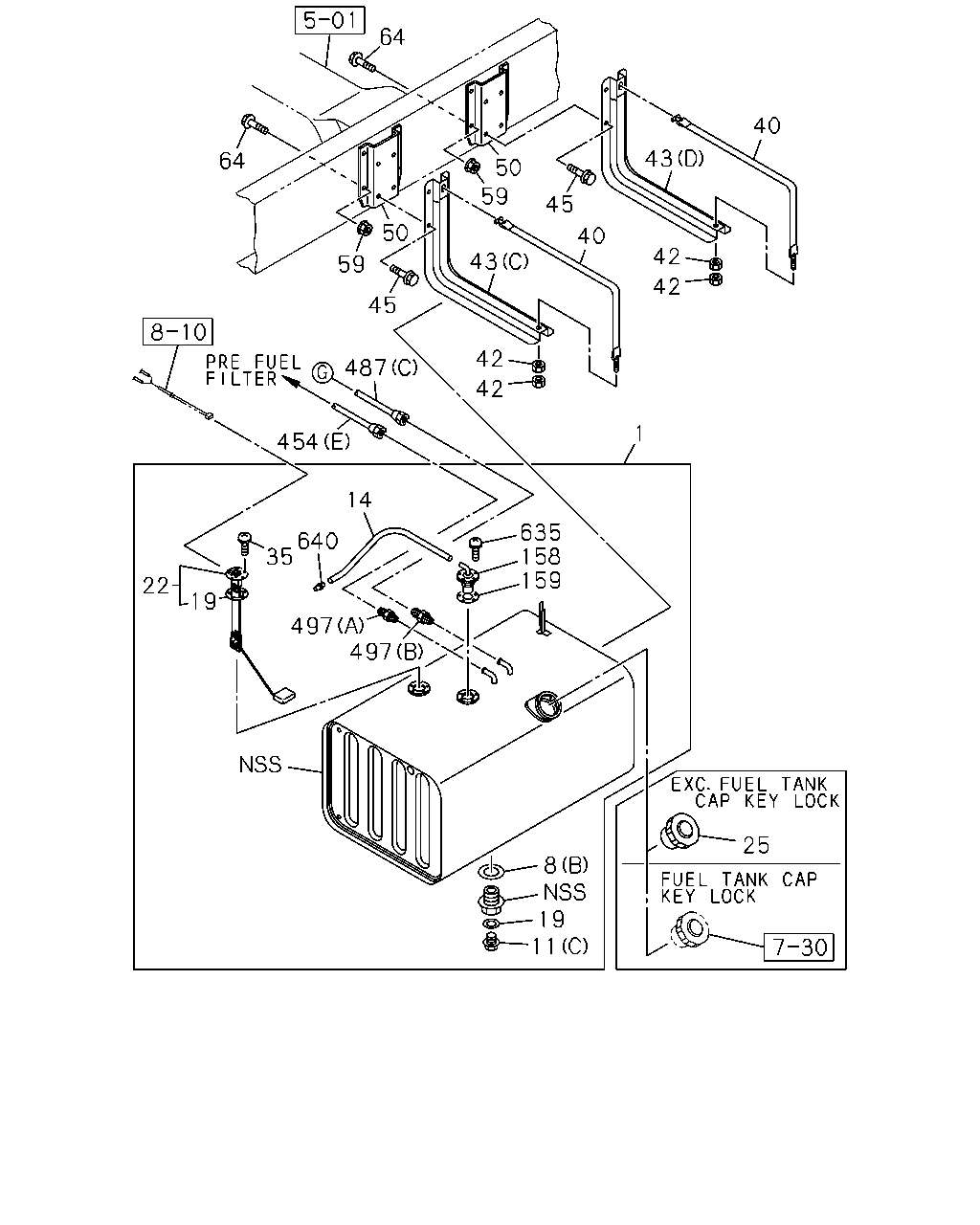

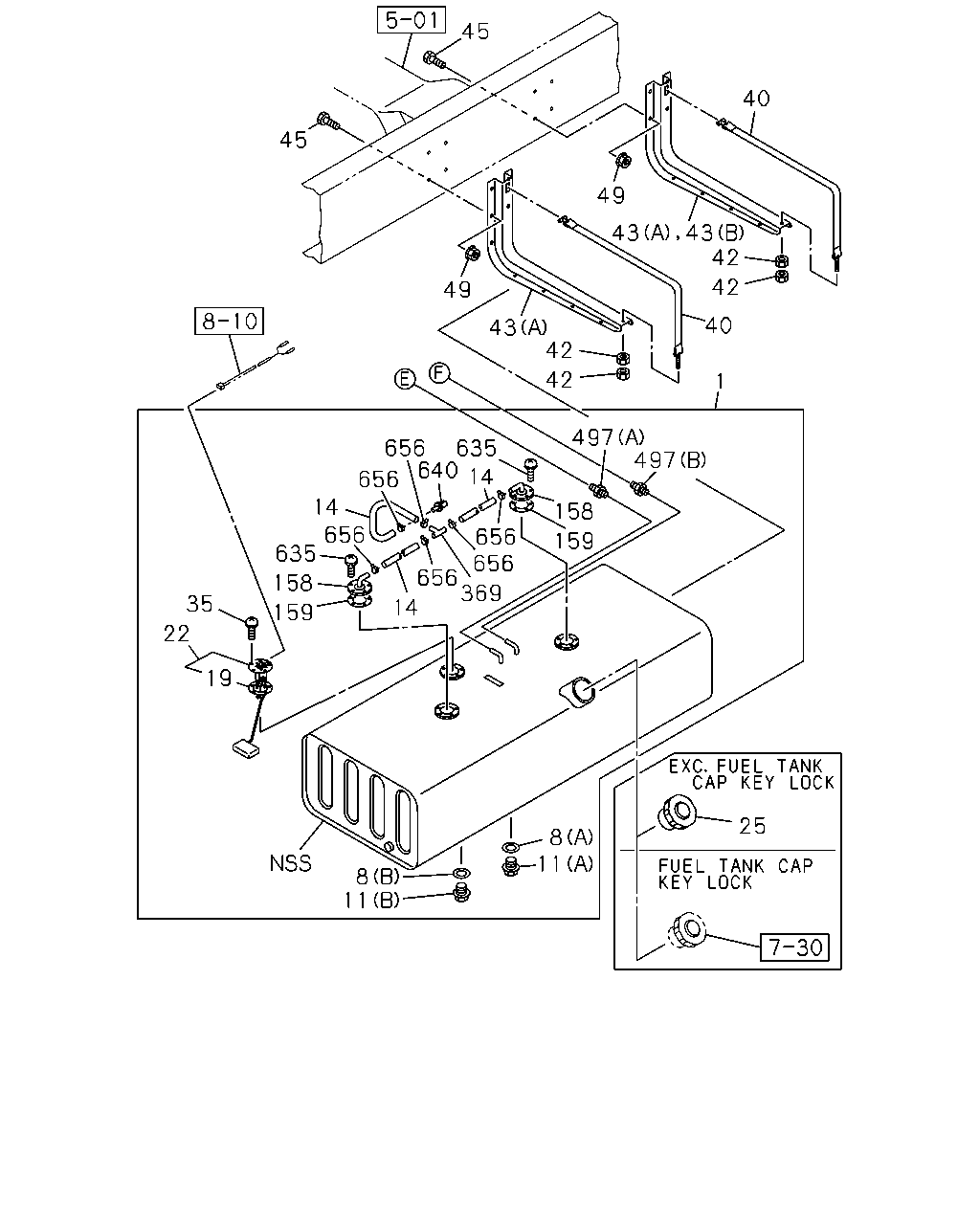

45 45 49 43 42 42 40 42 42 43 43 49 40 1 497 497 158 159 369 656 656 656 14 159 158 635 656 14 656 656 635 8 11 8 11 25 19 22 35 640 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL FUEL PIPE STEEL<E2N> 820X500X400 140L	8-98067-087-3	01	1	1004-		●
1	TANK; FUEL EXC. FUEL PIPE STEEL<E2N> 820X500X400 140L	8-98099-831-2	01	1	1004-		●
1	TANK; FUEL FUEL PIPE STEEL<E2N> 1345X532X322 200L	8-98053-881-1	01	1	0712-0809	●		●
1	TANK; FUEL FUEL PIPE STEEL<E2N> 1345X532X322 200L	8-98122-993-3	01	1	0810-	●		●
1	TANK; FUEL EXC. FUEL PIPE STEEL<E2N> 1345X532X322 200L	8-98099-832-0	01	1	0712-0809	●		●
1	TANK; FUEL EXC. FUEL PIPE STEEL<E2N> 1345X532X322 200L	8-98122-992-3	01	1	0810-	●		●
8	GASKET; DRAIN PLUG,FUEL TANK (B) ID=30	8-98067-041-0	01	1	0712-1003	●		●
8	GASKET; DRAIN PLUG,FUEL TANK (B) ID=30	8-98067-041-0	01	1	1004-	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	0712-0912	●		●
8	GASKET; DRAIN PLUG,FUEL TANK (A) ID=18.2 OD=26.0	9-09571-418-0	01	1	1001-	●		●
11	PLUG; DRAIN,FUEL TANK (C) M18	8-98068-006-0	01	1	1004-1504		●
11	PLUG; DRAIN,FUEL TANK (C) M18	8-98068-006-0	01	1	1505-	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M30	8-98067-038-0	01	1	0712-	●		●
11	PLUG; DRAIN,FUEL TANK (A) M14X14	9-09862-156-0	01	1	0712-0912	●		●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	0-92002-418-0	01	1	1001-1504	●		●
14	HOSE; BREATHER,OUTLET L=460	8-98082-184-1	01	1	1004-		●
14	HOSE; BREATHER,OUTLET L=450 SERVICED BY L=3000	0-01256-300-0	01	1	0810-1504	●		●
14	HOSE; BREATHER,OUTLET L=90	8-98304-415-0	01	1	1505-	●		●
14	HOSE; BREATHER,OUTLET L=270 SERVICED BY L=3000	0-01256-300-0	02	1	0712-0809	●		●
14	HOSE; BREATHER,OUTLET L=90 SERVICED BY L=3000	0-01256-300-0	01	1	0810-1504	●		●
14	HOSE; BREATHER,OUTLET L=430	8-98131-037-0	01	1	1505-	●		●
14	HOSE; BREATHER,OUTLET L=600 SERVICED BY L=3000	0-01256-300-0	01	1	0712-0809	●		●
14	HOSE; BREATHER,OUTLET L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0810-1504	●		●
14	HOSE; BREATHER,OUTLET L=460	8-98304-414-0	01	1	1505-	●		●
19	GASKET; FUEL TANK UNIT DRAIN PLUG SIDE ID=14.2 OD=23.0	9-09572-014-0	01	1	1004-1211		●
19	GASKET; FUEL TANK UNIT FUEL TANK UNIT SIDE ID=42 OD=71	5-83148-001-0	01	1	0712-1003	●		●
19	GASKET; FUEL TANK UNIT FUEL TANK UNIT SIDE ID=42 OD=71	5-83148-001-0	01	1	1004-	●	●	●
22	UNIT; FUEL TANK	8-98099-319-0	01	1	1004-		●
22	UNIT; FUEL TANK	8-98099-320-0	01	1	0712-	●		●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP KEY LOCK<N05>	8-97387-179-0	01	1	0812-1003			●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP KEY LOCK<N05>	8-97387-179-0	01	1	1004-		●	●
35	SCREW; FUEL TANK UNIT M5X12 W/LK WASHER	0-36220-512-0	05	1	0712-1003	●		●
35	SCREW; FUEL TANK UNIT M5X12 W/LK WASHER	0-36220-512-0	05	1	1004-	●	●	●
40	BELT; SUPPORT,FUEL TANK L=925	8-98049-769-1	02	1	1004-		●
40	BELT; SUPPORT,FUEL TANK L=880	8-98042-715-1	02	1	0712-	●		●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	1004-		●
42	NUT; SUPPORT BELT M12	0-91110-512-0	04	1	0712-	●		●
43	BRACKET; FUEL TANK (D)	8-98049-768-1	01	1	1004-		●
43	BRACKET; FUEL TANK (C)	8-98083-790-0	01	1	1004-1312		●
43	BRACKET; FUEL TANK (C)	8-98127-229-0	01	1	1401-		●
43	BRACKET; FUEL TANK (B)	8-98122-883-0	01	1	0810-	●		●
43	BRACKET; FUEL TANK (A)	8-98088-123-0	02	1	0712-0809	●		●
43	BRACKET; FUEL TANK (A)	8-98088-123-0	01	1	0810-	●		●
45	BOLT; BRKT,FUEL TANK M10X35 FLANGE	0-28651-035-0	08	1	1004-		●
45	BOLT; BRKT,FUEL TANK M10X35 FLANGE	0-28651-035-0	12	1	0712-	●		●
49	NUT; BRKT M10 FLANGE	0-91180-210-0	12	1	0712-	●		●
158	VALVE; ROLL OVER & FLOAT	8-98095-223-0	01	1	1004-		●
158	VALVE; ROLL OVER & FLOAT	8-98067-039-0	02	1	0712-	●		●
159	SEAL; ROLL OVER & FLOAT VALVE ID=45 OD=67	1-83149-003-0	01	1	1004-		●
159	SEAL; ROLL OVER & FLOAT VALVE ID=45 OD=67	1-83149-003-0	02	1	0712-	●		●
369	JOINT; HOSE	8-98067-080-0	01	1	0712-	●		●
497	NIPPLE; FUEL PIPE FUEL PIPE STEEL<E2N> (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	0712-1003	●		●
497	NIPPLE; FUEL PIPE FUEL PIPE STEEL<E2N> (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	1004-	●	●	●
497	NIPPLE; FUEL PIPE FUEL PIPE STEEL<E2N> (B) M16 & NPTF3/8 STRAIGHT	1-09650-405-1	01	1	0712-1003	●		●
497	NIPPLE; FUEL PIPE FUEL PIPE STEEL<E2N> (B) M16 & NPTF3/8 STRAIGHT	1-09650-405-1	01	1	1004-	●	●	●
635	SCREW; ROLL OVER & FLOAT VALVE M5X10 W/LK WASHER	0-36220-510-0	05	1	1004-		●
635	SCREW; ROLL OVER & FLOAT VALVE M5X12 W/LK WASHER	0-36220-512-0	10	1	0712-	●		●
640	VENTILATOR; HOSE,BREATHER	8-98092-398-0	01	1	0810-1003	●		●
640	VENTILATOR; HOSE,BREATHER	8-98092-398-0	01	1	1004-	●	●	●
656	CLAMP; FUEL TANK	8-98304-416-0	06	1	1505-	●		●

487 455 454 454 454 455 468 457 279 454 468 487 279 454 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
279	UNION; FUEL PIPE FUEL PIPE STEEL<E2N> (A) M14	0-92113-308-0	01	1	1004-		●
279	UNION; FUEL PIPE FUEL PIPE STEEL<E2N> (C) M16 ELBOW	0-92135-010-0	01	1	1004-		●
279	UNION; FUEL PIPE (C) M14 ELBOW	0-92125-208-0	01	1	0803-0811	●		●
279	UNION; FUEL PIPE FUEL PIPE STEEL<E2N> (C) M14 ELBOW	0-92125-208-0	01	1	0812-	●		●
279	UNION; FUEL PIPE (A) M14	0-92113-308-0	01	1	0712-0802	●
279	UNION; FUEL PIPE (D) M16 ELBOW	0-92135-210-0	01	1	0803-0811			●
279	UNION; FUEL PIPE FUEL PIPE STEEL<E2N> (D) M16 ELBOW	0-92135-210-0	01	1	0812-			●
279	UNION; FUEL PIPE (B) M16 L=74	0-92123-310-0	01	1	0712-0906	●
279	UNION; FUEL PIPE (B) M16 L=74	0-92123-310-0	01	1	0907-	●
285	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	1004-		●
285	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●
454	PIPE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (F) L=1348	8-98204-240-0	01	1	1201-		●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (E) L=1055 SERVICED BY L=1100	1-47428-875-0	01	1	1004-		●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (D) L=621 SERVICED BY L=660	1-47428-869-0	01	1	1004-		●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (C) L=1413	8-98140-402-0	01	1	1004-		●
454	PIPE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (A) L=1377	8-98131-424-0	01	1	0811-			●
454	PIPE; FUEL,DELIVERY (A) L=1461 SERVICED BY L=1550	1-47428-879-0	01	1	0803-0811			●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (A) L=1461 SERVICED BY L=1550	1-47428-879-0	01	1	0812-			●
454	PIPE; FUEL,DELIVERY (A)	8-98099-058-0	01	1	0712-0802	●
454	PIPE; FUEL,DELIVERY (A) L=1443 SERVICED BY L=1550	1-47428-879-0	01	1	0803-0906	●
454	PIPE; FUEL,DELIVERY (A) L=1443 SERVICED BY L=1550	1-47428-879-0	01	1	0907-	●
454	PIPE; FUEL,DELIVERY (B)	8-98099-060-0	01	1	0712-0802	●
454	PIPE; FUEL,DELIVERY (B) L=551 SERVICED BY L=600	1-47428-868-0	01	1	0803-0906	●
454	PIPE; FUEL,DELIVERY (B) L=551 SERVICED BY L=600	1-47428-868-0	01	1	0907-	●
455	PIPE; FUEL,RETURN EXC. FUEL PIPE STEEL<E2N> (D) L=1535	8-98204-241-0	01	1	1201-		●
455	PIPE; FUEL,RETURN FUEL PIPE STEEL<E2N> (C) L=1641	8-98165-428-0	01	1	1004-		●
455	PIPE; FUEL,RETURN EXC. FUEL PIPE STEEL<E2N> (A) L=1553	8-98131-425-0	01	1	0811-			●
455	PIPE; FUEL,RETURN (A) L=1578 SERVICED BY L=1700	1-47428-852-0	01	1	0803-0811			●
455	PIPE; FUEL,RETURN FUEL PIPE STEEL<E2N> (A) L=1578 SERVICED BY L=1700	1-47428-852-0	01	1	0812-			●
455	PIPE; FUEL,RETURN (A)	8-98099-057-0	01	1	0712-0802	●
455	PIPE; FUEL,RETURN (A) L=1532 SERVICED BY L=1550	1-47428-851-0	01	1	0803-0906	●
455	PIPE; FUEL,RETURN (A) L=1532 SERVICED BY L=1550	1-47428-851-0	01	1	0907-	●
455	PIPE; FUEL,RETURN (B)	8-98099-059-0	01	1	0712-0802	●
455	PIPE; FUEL,RETURN (B) L=531 SERVICED BY L=550	1-47428-838-0	01	1	0803-0805	●
455	PIPE; FUEL,RETURN (B) L=531 SERVICED BY L=550	1-47428-838-0	01	1	0806-0906	●
455	PIPE; FUEL,RETURN (B) L=531 SERVICED BY L=550	1-47428-838-0	01	1	0907-	●
457	BRACKET; UNION,FUEL PIPE FUEL PIPE STEEL<E2N>	8-98091-974-0	01	1	1004-		●
457	BRACKET; UNION,FUEL PIPE	8-98099-367-0	01	1	0712-0802	●
468	NUT (A) M14	0-91111-514-0	01	1	0712-0802	●
468	NUT (A) M14	0-91111-514-0	01	1	0803-0811	●		●
468	NUT FUEL PIPE STEEL<E2N> (A) M14	0-91111-514-0	01	1	0812-1003	●		●
468	NUT FUEL PIPE STEEL<E2N> (A) M14	0-91111-514-0	01	1	1004-	●	●	●
468	NUT (B) M16	0-91111-516-0	01	1	0712-0802	●
468	NUT (B) M16	0-91111-516-0	01	1	0803-0811	●		●
468	NUT FUEL PIPE STEEL<E2N> (B) M16	0-91111-516-0	01	1	0812-1003	●		●
468	NUT FUEL PIPE STEEL<E2N> (B) M16	0-91111-516-0	01	1	1004-	●	●	●
487	PIPE; FUEL HOSE FUEL PIPE STEEL<E2N> (C) L=308	8-98147-038-0	01	1	1004-		●
487	PIPE; FUEL HOSE (A)	8-98108-523-0	01	1	0803-0811			●
487	PIPE; FUEL HOSE FUEL PIPE STEEL<E2N> EURO4 SPECIFICATION<NT4> (A)	8-98108-523-0	01	1	0812-			●
487	PIPE; FUEL HOSE (B) L=1050 SERVICED BY L=1100	1-47428-848-0	01	1	0803-0811			●
487	PIPE; FUEL HOSE FUEL PIPE STEEL<E2N> EURO4 SPECIFICATION<NT4> (B) L=1050 SERVICED BY L=1100	1-47428-848-0	01	1	0812-			●
487	PIPE; FUEL HOSE (A)	8-98115-169-0	01	1	0803-0804	●
487	PIPE; FUEL HOSE (A)	8-98120-534-0	01	1	0805-1003	●
487	PIPE; FUEL HOSE (A)	8-98120-534-0	01	1	1004-	●
487	PIPE; FUEL HOSE (B) L=1190 SERVICED BY L=1250	1-47428-849-0	01	1	0803-0804	●
487	PIPE; FUEL HOSE (B) L=1191 SERVICED BY L=1250	1-47428-849-0	01	1	0805-0906	●
487	PIPE; FUEL HOSE (B) L=1191 SERVICED BY L=1250	1-47428-849-0	01	1	0907-	●

64 40 43 64 50 59 45 50 40 42 43 59 42 45 42 487 42 1 454 14 635 158 159 640 35 22 19 497 497 25 8 19 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL FUEL PIPE STEEL<E2N> 820X500X400 140L	8-98067-087-3	01	1	1004-		●
1	TANK; FUEL EXC. FUEL PIPE STEEL<E2N> 820X500X400 140L	8-98099-831-2	01	1	1004-		●
1	TANK; FUEL FUEL PIPE STEEL<E2N> 1345X532X322 200L	8-98053-881-1	01	1	0712-0809	●		●
1	TANK; FUEL FUEL PIPE STEEL<E2N> 1345X532X322 200L	8-98122-993-3	01	1	0810-	●		●
1	TANK; FUEL EXC. FUEL PIPE STEEL<E2N> 1345X532X322 200L	8-98099-832-0	01	1	0712-0809	●		●
1	TANK; FUEL EXC. FUEL PIPE STEEL<E2N> 1345X532X322 200L	8-98122-992-3	01	1	0810-	●		●
8	GASKET; DRAIN PLUG,FUEL TANK (B) ID=30	8-98067-041-0	01	1	0712-1003	●		●
8	GASKET; DRAIN PLUG,FUEL TANK (B) ID=30	8-98067-041-0	01	1	1004-	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	0712-0912	●		●
8	GASKET; DRAIN PLUG,FUEL TANK (A) ID=18.2 OD=26.0	9-09571-418-0	01	1	1001-	●		●
11	PLUG; DRAIN,FUEL TANK (C) M18	8-98068-006-0	01	1	1004-1504		●
11	PLUG; DRAIN,FUEL TANK (C) M18	8-98068-006-0	01	1	1505-	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M30	8-98067-038-0	01	1	0712-	●		●
11	PLUG; DRAIN,FUEL TANK (A) M14X14	9-09862-156-0	01	1	0712-0912	●		●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	0-92002-418-0	01	1	1001-1504	●		●
14	HOSE; BREATHER,OUTLET L=460	8-98082-184-1	01	1	1004-		●
14	HOSE; BREATHER,OUTLET L=450 SERVICED BY L=3000	0-01256-300-0	01	1	0810-1504	●		●
14	HOSE; BREATHER,OUTLET L=90	8-98304-415-0	01	1	1505-	●		●
14	HOSE; BREATHER,OUTLET L=270 SERVICED BY L=3000	0-01256-300-0	02	1	0712-0809	●		●
14	HOSE; BREATHER,OUTLET L=90 SERVICED BY L=3000	0-01256-300-0	01	1	0810-1504	●		●
14	HOSE; BREATHER,OUTLET L=430	8-98131-037-0	01	1	1505-	●		●
14	HOSE; BREATHER,OUTLET L=600 SERVICED BY L=3000	0-01256-300-0	01	1	0712-0809	●		●
14	HOSE; BREATHER,OUTLET L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0810-1504	●		●
14	HOSE; BREATHER,OUTLET L=460	8-98304-414-0	01	1	1505-	●		●
19	GASKET; FUEL TANK UNIT DRAIN PLUG SIDE ID=14.2 OD=23.0	9-09572-014-0	01	1	1004-1211		●
19	GASKET; FUEL TANK UNIT FUEL TANK UNIT SIDE ID=42 OD=71	5-83148-001-0	01	1	0712-1003	●		●
19	GASKET; FUEL TANK UNIT FUEL TANK UNIT SIDE ID=42 OD=71	5-83148-001-0	01	1	1004-	●	●	●
22	UNIT; FUEL TANK	8-98099-319-0	01	1	1004-		●
22	UNIT; FUEL TANK	8-98099-320-0	01	1	0712-	●		●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP KEY LOCK<N05>	8-97387-179-0	01	1	0812-1003			●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP KEY LOCK<N05>	8-97387-179-0	01	1	1004-		●	●
35	SCREW; FUEL TANK UNIT M5X12 W/LK WASHER	0-36220-512-0	05	1	0712-1003	●		●
35	SCREW; FUEL TANK UNIT M5X12 W/LK WASHER	0-36220-512-0	05	1	1004-	●	●	●
40	BELT; SUPPORT,FUEL TANK L=925	8-98049-769-1	02	1	1004-		●
40	BELT; SUPPORT,FUEL TANK L=880	8-98042-715-1	02	1	0712-	●		●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	1004-		●
42	NUT; SUPPORT BELT M12	0-91110-512-0	04	1	0712-	●		●
43	BRACKET; FUEL TANK (D)	8-98049-768-1	01	1	1004-		●
43	BRACKET; FUEL TANK (C)	8-98083-790-0	01	1	1004-1312		●
43	BRACKET; FUEL TANK (C)	8-98127-229-0	01	1	1401-		●
43	BRACKET; FUEL TANK (B)	8-98122-883-0	01	1	0810-	●		●
43	BRACKET; FUEL TANK (A)	8-98088-123-0	02	1	0712-0809	●		●
43	BRACKET; FUEL TANK (A)	8-98088-123-0	01	1	0810-	●		●
45	BOLT; BRKT,FUEL TANK M10X35 FLANGE	0-28651-035-0	08	1	1004-		●
45	BOLT; BRKT,FUEL TANK M10X35 FLANGE	0-28651-035-0	12	1	0712-	●		●
50	BRACKET; SUPPORT,FUEL BRKT	8-98097-206-0	02	1	1004-		●
59	NUT; FUEL TANK M10 FLANGE	0-91180-210-0	08	1	1004-		●
64	BOLT; FUEL TANK M10X35 FLANGE	0-28651-035-0	08	1	1004-		●
158	VALVE; ROLL OVER & FLOAT	8-98095-223-0	01	1	1004-		●
158	VALVE; ROLL OVER & FLOAT	8-98067-039-0	02	1	0712-	●		●
159	SEAL; ROLL OVER & FLOAT VALVE ID=45 OD=67	1-83149-003-0	01	1	1004-		●
159	SEAL; ROLL OVER & FLOAT VALVE ID=45 OD=67	1-83149-003-0	02	1	0712-	●		●
454	PIPE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (F) L=1348	8-98204-240-0	01	1	1201-		●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (E) L=1055 SERVICED BY L=1100	1-47428-875-0	01	1	1004-		●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (D) L=621 SERVICED BY L=660	1-47428-869-0	01	1	1004-		●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (C) L=1413	8-98140-402-0	01	1	1004-		●
454	PIPE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (A) L=1377	8-98131-424-0	01	1	0811-			●
454	PIPE; FUEL,DELIVERY (A) L=1461 SERVICED BY L=1550	1-47428-879-0	01	1	0803-0811			●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (A) L=1461 SERVICED BY L=1550	1-47428-879-0	01	1	0812-			●
454	PIPE; FUEL,DELIVERY (A)	8-98099-058-0	01	1	0712-0802	●
454	PIPE; FUEL,DELIVERY (A) L=1443 SERVICED BY L=1550	1-47428-879-0	01	1	0803-0906	●
454	PIPE; FUEL,DELIVERY (A) L=1443 SERVICED BY L=1550	1-47428-879-0	01	1	0907-	●
454	PIPE; FUEL,DELIVERY (B)	8-98099-060-0	01	1	0712-0802	●
454	PIPE; FUEL,DELIVERY (B) L=551 SERVICED BY L=600	1-47428-868-0	01	1	0803-0906	●
454	PIPE; FUEL,DELIVERY (B) L=551 SERVICED BY L=600	1-47428-868-0	01	1	0907-	●
487	PIPE; FUEL HOSE FUEL PIPE STEEL<E2N> (C) L=308	8-98147-038-0	01	1	1004-		●
487	PIPE; FUEL HOSE (A)	8-98108-523-0	01	1	0803-0811			●
487	PIPE; FUEL HOSE FUEL PIPE STEEL<E2N> EURO4 SPECIFICATION<NT4> (A)	8-98108-523-0	01	1	0812-			●
487	PIPE; FUEL HOSE (B) L=1050 SERVICED BY L=1100	1-47428-848-0	01	1	0803-0811			●
487	PIPE; FUEL HOSE FUEL PIPE STEEL<E2N> EURO4 SPECIFICATION<NT4> (B) L=1050 SERVICED BY L=1100	1-47428-848-0	01	1	0812-			●
487	PIPE; FUEL HOSE (A)	8-98115-169-0	01	1	0803-0804	●
487	PIPE; FUEL HOSE (A)	8-98120-534-0	01	1	0805-1003	●
487	PIPE; FUEL HOSE (A)	8-98120-534-0	01	1	1004-	●
487	PIPE; FUEL HOSE (B) L=1190 SERVICED BY L=1250	1-47428-849-0	01	1	0803-0804	●
487	PIPE; FUEL HOSE (B) L=1191 SERVICED BY L=1250	1-47428-849-0	01	1	0805-0906	●
487	PIPE; FUEL HOSE (B) L=1191 SERVICED BY L=1250	1-47428-849-0	01	1	0907-	●
497	NIPPLE; FUEL PIPE FUEL PIPE STEEL<E2N> (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	0712-1003	●		●
497	NIPPLE; FUEL PIPE FUEL PIPE STEEL<E2N> (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	1004-	●	●	●
497	NIPPLE; FUEL PIPE FUEL PIPE STEEL<E2N> (B) M16 & NPTF3/8 STRAIGHT	1-09650-405-1	01	1	0712-1003	●		●
497	NIPPLE; FUEL PIPE FUEL PIPE STEEL<E2N> (B) M16 & NPTF3/8 STRAIGHT	1-09650-405-1	01	1	1004-	●	●	●
635	SCREW; ROLL OVER & FLOAT VALVE M5X10 W/LK WASHER	0-36220-510-0	05	1	1004-		●
635	SCREW; ROLL OVER & FLOAT VALVE M5X12 W/LK WASHER	0-36220-512-0	10	1	0712-	●		●
640	VENTILATOR; HOSE,BREATHER	8-98092-398-0	01	1	0810-1003	●		●
640	VENTILATOR; HOSE,BREATHER	8-98092-398-0	01	1	1004-	●	●	●

64 40 43 64 50 59 45 50 40 42 43 59 42 45 42 42 1 14 635 158 159 640 35 22 19 25 8 19 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL FUEL PIPE STEEL<E2N> 820X500X400 140L	8-98067-087-3	01	1	1004-		●
1	TANK; FUEL EXC. FUEL PIPE STEEL<E2N> 820X500X400 140L	8-98099-831-2	01	1	1004-		●
1	TANK; FUEL FUEL PIPE STEEL<E2N> 1345X532X322 200L	8-98053-881-1	01	1	0712-0809	●		●
1	TANK; FUEL FUEL PIPE STEEL<E2N> 1345X532X322 200L	8-98122-993-3	01	1	0810-	●		●
1	TANK; FUEL EXC. FUEL PIPE STEEL<E2N> 1345X532X322 200L	8-98099-832-0	01	1	0712-0809	●		●
1	TANK; FUEL EXC. FUEL PIPE STEEL<E2N> 1345X532X322 200L	8-98122-992-3	01	1	0810-	●		●
8	GASKET; DRAIN PLUG,FUEL TANK (B) ID=30	8-98067-041-0	01	1	0712-1003	●		●
8	GASKET; DRAIN PLUG,FUEL TANK (B) ID=30	8-98067-041-0	01	1	1004-	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	0712-0912	●		●
8	GASKET; DRAIN PLUG,FUEL TANK (A) ID=18.2 OD=26.0	9-09571-418-0	01	1	1001-	●		●
11	PLUG; DRAIN,FUEL TANK (C) M18	8-98068-006-0	01	1	1004-1504		●
11	PLUG; DRAIN,FUEL TANK (C) M18	8-98068-006-0	01	1	1505-	●	●	●
11	PLUG; DRAIN,FUEL TANK (B) M30	8-98067-038-0	01	1	0712-	●		●
11	PLUG; DRAIN,FUEL TANK (A) M14X14	9-09862-156-0	01	1	0712-0912	●		●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	0-92002-418-0	01	1	1001-1504	●		●
14	HOSE; BREATHER,OUTLET L=460	8-98082-184-1	01	1	1004-		●
14	HOSE; BREATHER,OUTLET L=450 SERVICED BY L=3000	0-01256-300-0	01	1	0810-1504	●		●
14	HOSE; BREATHER,OUTLET L=90	8-98304-415-0	01	1	1505-	●		●
14	HOSE; BREATHER,OUTLET L=270 SERVICED BY L=3000	0-01256-300-0	02	1	0712-0809	●		●
14	HOSE; BREATHER,OUTLET L=90 SERVICED BY L=3000	0-01256-300-0	01	1	0810-1504	●		●
14	HOSE; BREATHER,OUTLET L=430	8-98131-037-0	01	1	1505-	●		●
14	HOSE; BREATHER,OUTLET L=600 SERVICED BY L=3000	0-01256-300-0	01	1	0712-0809	●		●
14	HOSE; BREATHER,OUTLET L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0810-1504	●		●
14	HOSE; BREATHER,OUTLET L=460	8-98304-414-0	01	1	1505-	●		●
19	GASKET; FUEL TANK UNIT DRAIN PLUG SIDE ID=14.2 OD=23.0	9-09572-014-0	01	1	1004-1211		●
19	GASKET; FUEL TANK UNIT FUEL TANK UNIT SIDE ID=42 OD=71	5-83148-001-0	01	1	0712-1003	●		●
19	GASKET; FUEL TANK UNIT FUEL TANK UNIT SIDE ID=42 OD=71	5-83148-001-0	01	1	1004-	●	●	●
22	UNIT; FUEL TANK	8-98099-319-0	01	1	1004-		●
22	UNIT; FUEL TANK	8-98099-320-0	01	1	0712-	●		●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP KEY LOCK<N05>	8-97387-179-0	01	1	0812-1003			●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP KEY LOCK<N05>	8-97387-179-0	01	1	1004-		●	●
35	SCREW; FUEL TANK UNIT M5X12 W/LK WASHER	0-36220-512-0	05	1	0712-1003	●		●
35	SCREW; FUEL TANK UNIT M5X12 W/LK WASHER	0-36220-512-0	05	1	1004-	●	●	●
40	BELT; SUPPORT,FUEL TANK L=925	8-98049-769-1	02	1	1004-		●
40	BELT; SUPPORT,FUEL TANK L=880	8-98042-715-1	02	1	0712-	●		●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	1004-		●
42	NUT; SUPPORT BELT M12	0-91110-512-0	04	1	0712-	●		●
43	BRACKET; FUEL TANK (D)	8-98049-768-1	01	1	1004-		●
43	BRACKET; FUEL TANK (C)	8-98083-790-0	01	1	1004-1312		●
43	BRACKET; FUEL TANK (C)	8-98127-229-0	01	1	1401-		●
43	BRACKET; FUEL TANK (B)	8-98122-883-0	01	1	0810-	●		●
43	BRACKET; FUEL TANK (A)	8-98088-123-0	02	1	0712-0809	●		●
43	BRACKET; FUEL TANK (A)	8-98088-123-0	01	1	0810-	●		●
45	BOLT; BRKT,FUEL TANK M10X35 FLANGE	0-28651-035-0	08	1	1004-		●
45	BOLT; BRKT,FUEL TANK M10X35 FLANGE	0-28651-035-0	12	1	0712-	●		●
50	BRACKET; SUPPORT,FUEL BRKT	8-98097-206-0	02	1	1004-		●
59	NUT; FUEL TANK M10 FLANGE	0-91180-210-0	08	1	1004-		●
64	BOLT; FUEL TANK M10X35 FLANGE	0-28651-035-0	08	1	1004-		●
158	VALVE; ROLL OVER & FLOAT	8-98095-223-0	01	1	1004-		●
158	VALVE; ROLL OVER & FLOAT	8-98067-039-0	02	1	0712-	●		●
159	SEAL; ROLL OVER & FLOAT VALVE ID=45 OD=67	1-83149-003-0	01	1	1004-		●
159	SEAL; ROLL OVER & FLOAT VALVE ID=45 OD=67	1-83149-003-0	02	1	0712-	●		●
635	SCREW; ROLL OVER & FLOAT VALVE M5X10 W/LK WASHER	0-36220-510-0	05	1	1004-		●
635	SCREW; ROLL OVER & FLOAT VALVE M5X12 W/LK WASHER	0-36220-512-0	10	1	0712-	●		●
640	VENTILATOR; HOSE,BREATHER	8-98092-398-0	01	1	0810-1003	●		●
640	VENTILATOR; HOSE,BREATHER	8-98092-398-0	01	1	1004-	●	●	●

455 454

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
454	PIPE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (F) L=1348	8-98204-240-0	01	1	1201-		●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (E) L=1055 SERVICED BY L=1100	1-47428-875-0	01	1	1004-		●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (D) L=621 SERVICED BY L=660	1-47428-869-0	01	1	1004-		●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (C) L=1413	8-98140-402-0	01	1	1004-		●
454	PIPE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (A) L=1377	8-98131-424-0	01	1	0811-			●
454	PIPE; FUEL,DELIVERY (A) L=1461 SERVICED BY L=1550	1-47428-879-0	01	1	0803-0811			●
454	PIPE; FUEL,DELIVERY FUEL PIPE STEEL<E2N> (A) L=1461 SERVICED BY L=1550	1-47428-879-0	01	1	0812-			●
454	PIPE; FUEL,DELIVERY (A)	8-98099-058-0	01	1	0712-0802	●
454	PIPE; FUEL,DELIVERY (A) L=1443 SERVICED BY L=1550	1-47428-879-0	01	1	0803-0906	●
454	PIPE; FUEL,DELIVERY (A) L=1443 SERVICED BY L=1550	1-47428-879-0	01	1	0907-	●
454	PIPE; FUEL,DELIVERY (B)	8-98099-060-0	01	1	0712-0802	●
454	PIPE; FUEL,DELIVERY (B) L=551 SERVICED BY L=600	1-47428-868-0	01	1	0803-0906	●
454	PIPE; FUEL,DELIVERY (B) L=551 SERVICED BY L=600	1-47428-868-0	01	1	0907-	●
455	PIPE; FUEL,RETURN EXC. FUEL PIPE STEEL<E2N> (D) L=1535	8-98204-241-0	01	1	1201-		●
455	PIPE; FUEL,RETURN FUEL PIPE STEEL<E2N> (C) L=1641	8-98165-428-0	01	1	1004-		●
455	PIPE; FUEL,RETURN EXC. FUEL PIPE STEEL<E2N> (A) L=1553	8-98131-425-0	01	1	0811-			●
455	PIPE; FUEL,RETURN (A) L=1578 SERVICED BY L=1700	1-47428-852-0	01	1	0803-0811			●
455	PIPE; FUEL,RETURN FUEL PIPE STEEL<E2N> (A) L=1578 SERVICED BY L=1700	1-47428-852-0	01	1	0812-			●
455	PIPE; FUEL,RETURN (A)	8-98099-057-0	01	1	0712-0802	●
455	PIPE; FUEL,RETURN (A) L=1532 SERVICED BY L=1550	1-47428-851-0	01	1	0803-0906	●
455	PIPE; FUEL,RETURN (A) L=1532 SERVICED BY L=1550	1-47428-851-0	01	1	0907-	●
455	PIPE; FUEL,RETURN (B)	8-98099-059-0	01	1	0712-0802	●
455	PIPE; FUEL,RETURN (B) L=531 SERVICED BY L=550	1-47428-838-0	01	1	0803-0805	●
455	PIPE; FUEL,RETURN (B) L=531 SERVICED BY L=550	1-47428-838-0	01	1	0806-0906	●
455	PIPE; FUEL,RETURN (B) L=531 SERVICED BY L=550	1-47428-838-0	01	1	0907-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
