Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#38125) — 363 parça

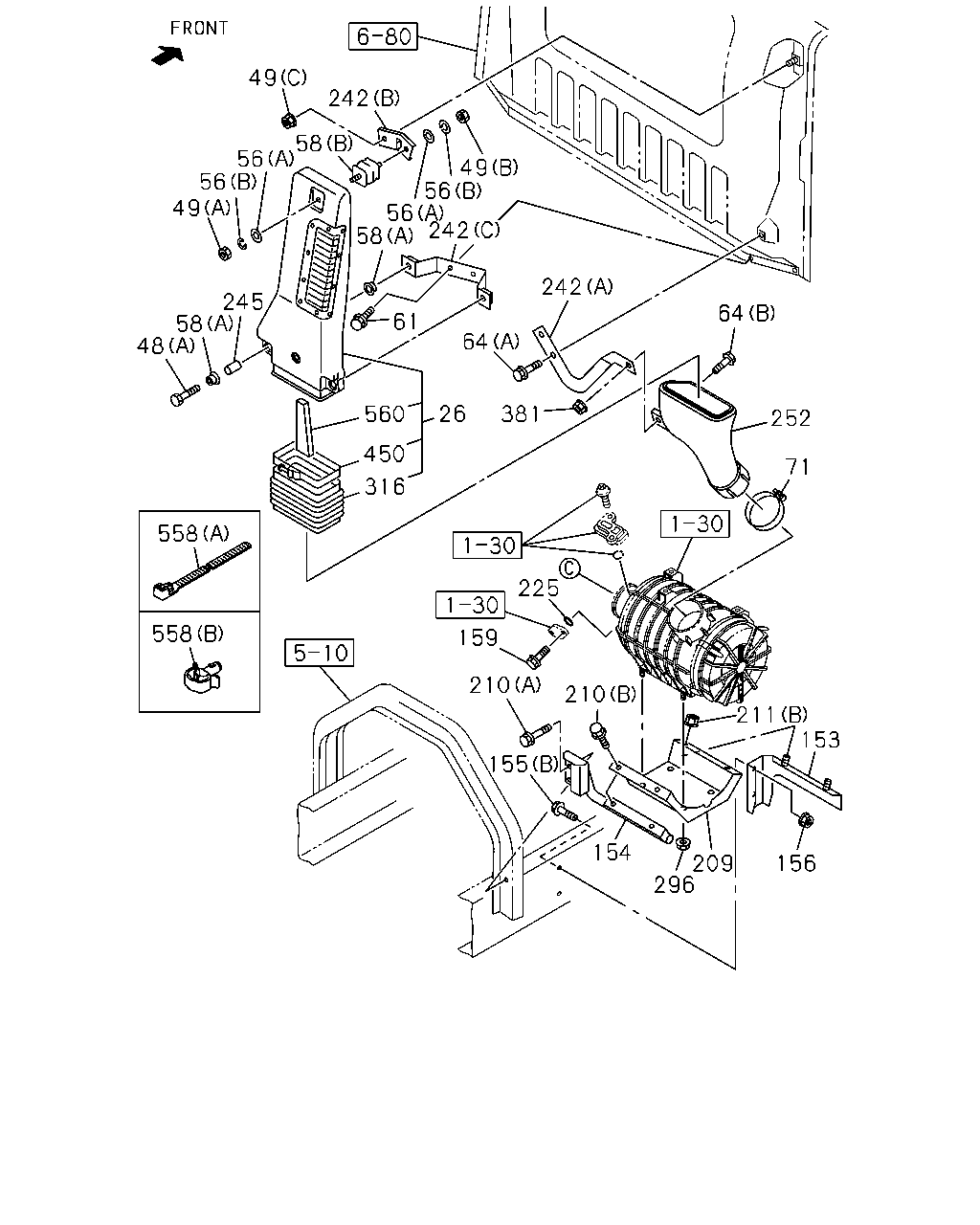

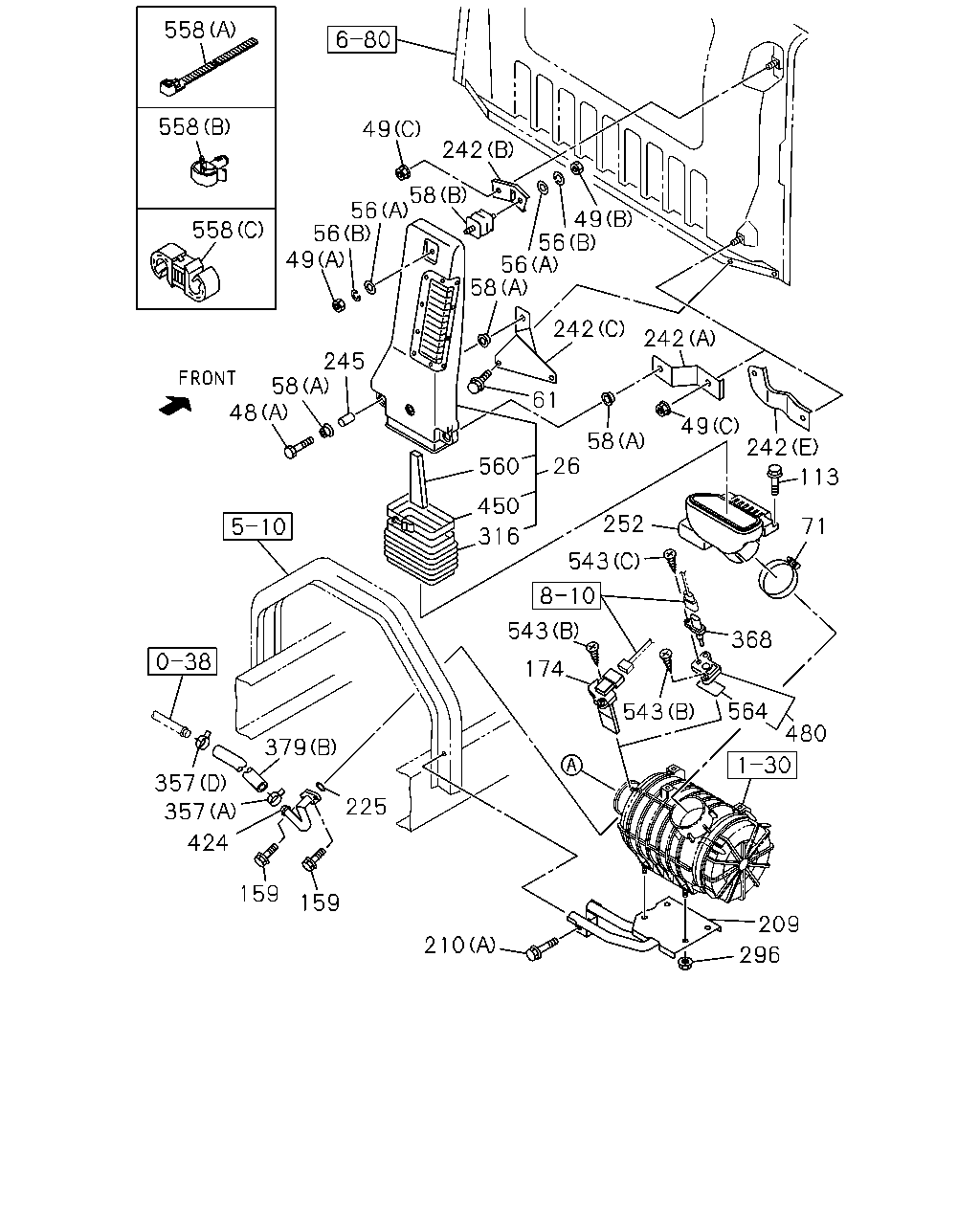

558 558 49 242 58 56 56 49 49 56 56 58 558 242 242 245 61 58 48 49 242 58 26 560 113 450 252 71 316 543 543 368 174 564 543 480 379 357 225 357 424 159 159 209 210 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	DUCT; AIR INT	8-98010-361-2	01	1	0712-
48	BOLT; AIR DUCT (A) M10X26	1-09030-044-1	02	1	0712-
48	BOLT; AIR DUCT FSS STD DBL CAB(FC*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	0712-
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	0712-
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	0712-
49	NUT; AIR DUCT FSS STD SGL CAB(FC*M) (C) M8 FLANGE	8-94279-517-0	02	1	0712-1003
49	NUT; AIR DUCT FSS STD SGL CAB(FC*M) FSS WIDE CAB(FG****) (C) M8 FLANGE	8-94279-517-0	02	1	1004-
49	NUT; AIR DUCT FSS STD DBL CAB(FC*W) (C) M8 FLANGE	8-94279-517-0	01	1	0712-
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	0712-
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0712-
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0712-
58	SUPPORT; AIR INL DUCT (B)	1-14119-452-0	01	1	0712-0810
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	0811-
61	BOLT; BRKT,AIR DUCT M8X20 FLANGE	8-98061-920-0	02	1	0712-0807
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0808-
71	CLIP; AIR DUCT ID=104-139	1-09707-200-0	01	1	0712-0812
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	0901-
113	BOLT; RESONATOR FSS STD SGL CAB(FC*M) M6X16 W/PL WASHER	8-98094-071-0	03	1	0712-1003
113	BOLT; RESONATOR FSS STD SGL CAB(FC*M) FSS WIDE CAB(FG****) M6X16 W/PL WASHER	8-98094-071-0	03	1	1004-1011
113	BOLT; RESONATOR FSS STD SGL CAB(FC*M) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> M6X16 W/PL WASHER	8-98094-071-0	03	1	1012-
113	BOLT; RESONATOR FSS WIDE CAB(FG****) EXC. VIN MODEL YEAR 2011<VZB> M6X16 W/PL WASHER	8-98094-071-0	03	1	1012-
113	BOLT; RESONATOR FSS STD SGL CAB(FC*M) EURO4 SPECIFICATION<NT4> M6X16 W/PL WASHER	8-98094-071-0	03	1	1012-
159	BOLT; AIR PIPE FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) M6X20 FLANGE	0-28050-620-0	01	1	0804-
159	BOLT; AIR PIPE FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) M6X40 FLANGE	0-28050-640-0	01	1	0804-
159	BOLT; AIR PIPE FSS STD SGL CAB(FC*M) M6X16 FLANGE	0-28050-616-0	02	1	0712-0803
159	BOLT; AIR PIPE FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M6X16 FLANGE	0-28050-616-0	02	1	0804-1003
159	BOLT; AIR PIPE FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M6X16 FLANGE	0-28050-616-0	02	1	1004-
159	BOLT; AIR PIPE FSS WIDE CAB(FG****) M6X16 FLANGE	0-28050-616-0	02	1	1004-
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0712-0811
174	SENSOR; AIR FLOW CONT EURO4 SPECIFICATION<NT4>	8-97601-967-0	01	1	0812-
209	BRACKET; ACL FSS STD SGL CAB(FC*M)	8-98099-677-0	01	1	0712-1003
209	BRACKET; ACL FSS STD SGL CAB(FC*M) FSS WIDE CAB(FG****)	8-98099-677-0	01	1	1004-
209	BRACKET; ACL FSS STD DBL CAB(FC*W)	8-98058-687-0	01	1	0712-
210	BOLT; ACL BRKT FSS STD SGL CAB(FC*M) (A) M10X25 FLANGE	0-28651-025-0	03	1	0712-1003
210	BOLT; ACL BRKT FSS STD SGL CAB(FC*M) FSS WIDE CAB(FG****) (A) M10X25 FLANGE	0-28651-025-0	03	1	1004-
210	BOLT; ACL BRKT FSS STD DBL CAB(FC*W) (B) M8X25 FLANGE	0-28650-825-0	02	1	0712-
210	BOLT; ACL BRKT FSS STD DBL CAB(FC*W) (A) M10X25 FLANGE	0-28651-025-0	02	1	0712-
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	0712-0811
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	0812-
225	GASKET; AIR PIPE EURO2 SPECIFICATION<NT2> ID=24.4	1-09623-057-0	01	1	0812-
225	GASKET; AIR PIPE ID=26.8	1-09623-058-0	01	1	0712-0801
242	BRACKET; AIR DUCT FSS WIDE CAB(FG****) (E)	8-98019-304-1	01	1	1004-
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0712-
242	BRACKET; AIR DUCT FSS STD SGL CAB(FC*M) (C)	8-98019-302-1	01	1	0712-1003
242	BRACKET; AIR DUCT FSS STD SGL CAB(FC*M) FSS WIDE CAB(FG****) (C)	8-98019-302-1	01	1	1004-
242	BRACKET; AIR DUCT FSS STD SGL CAB(FC*M) (A)	8-98019-303-1	01	1	0712-
242	BRACKET; AIR DUCT FSS STD DBL CAB(FC*W) (C)	8-98050-679-1	01	1	0712-
242	BRACKET; AIR DUCT FSS STD DBL CAB(FC*W) (A)	8-98058-693-0	01	1	0712-0712
242	BRACKET; AIR DUCT FSS STD DBL CAB(FC*W) (A)	8-98092-771-0	01	1	0801-
242	BRACKET; AIR DUCT FSS STD DBL CAB(FC*W) (D)	8-98084-231-1	01	1	0712-
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0712-
252	DUCT; AIR INT FSS STD SGL CAB(FC*M) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB>	8-98010-640-1	01	1	1012-
252	DUCT; AIR INT FSS WIDE CAB(FG****) VIN MODEL YEAR 2011<VZB>	8-98010-640-1	01	1	1012-
252	DUCT; AIR INT FSS STD SGL CAB(FC*M)	8-98095-779-0	01	1	0712-1003
252	DUCT; AIR INT FSS STD SGL CAB(FC*M) FSS WIDE CAB(FG****)	8-98095-779-0	01	1	1004-1011
252	DUCT; AIR INT FSS STD SGL CAB(FC*M) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB>	8-98095-779-0	01	1	1012-
252	DUCT; AIR INT FSS WIDE CAB(FG****) EXC. VIN MODEL YEAR 2011<VZB>	8-98095-779-0	01	1	1012-
252	DUCT; AIR INT FSS STD SGL CAB(FC*M) EURO4 SPECIFICATION<NT4>	8-98095-779-0	01	1	1012-
252	DUCT; AIR INT FSS STD DBL CAB(FC*W)	8-98050-681-0	01	1	0712-
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0712-
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	0712-
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1002-
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1002-
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=24	8-97010-605-0	01	1	0712-
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=24	8-98025-921-0	01	1	0712-
357	CLIP; RUBBER HOSE (B) ID=77-95	1-09707-198-0	01	1	0712-0810
357	CLIP; RUBBER HOSE (B) ID=75-95	8-98133-357-0	01	1	0811-1001
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1002-
357	CLIP; RUBBER HOSE (C) ID=58-76	1-09707-203-0	02	1	0712-0811
357	CLIP; RUBBER HOSE (C) ID=55-75	8-98133-349-0	02	1	0812-1001
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1002-
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=24	8-98025-921-0	02	1	0712-1003
357	CLIP; RUBBER HOSE FSS STD DBL CAB(FC*W) (A) ID=24	8-98025-921-0	02	1	0712-1003
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=24	8-98025-921-0	02	1	1004-
357	CLIP; RUBBER HOSE FSS STD DBL CAB(FC*W) FSS WIDE CAB(FG****) (A) ID=24	8-98025-921-0	02	1	1004-
368	SENSOR; TEMP EURO2 SPECIFICATION<NT2>	8-98065-377-0	01	1	0812-
379	HOSE; RUBBER FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98096-960-0	01	1	0712-
379	HOSE; RUBBER FSS STD DBL CAB(FC*W) POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98074-977-0	01	1	0712-
379	HOSE; RUBBER FSS STD DBL CAB(FC*W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98082-252-0	01	1	0712-
379	HOSE; RUBBER FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=502	8-98057-034-0	01	1	0712-1003
379	HOSE; RUBBER FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=502	8-98057-034-0	01	1	1004-
379	HOSE; RUBBER FSS WIDE CAB(FG****) (B) L=502	8-98057-034-0	01	1	1004-
424	PIPE; AIR,INL FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ)	8-98079-757-0	01	1	0804-
424	PIPE; AIR,INL FSS STD SGL CAB(FC*M)	8-98081-837-0	01	1	0712-0803
424	PIPE; AIR,INL FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98081-837-0	01	1	0804-1003
424	PIPE; AIR,INL FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98081-837-0	01	1	1004-
424	PIPE; AIR,INL FSS WIDE CAB(FG****)	8-98081-837-0	01	1	1004-
450	CLAMP; HOSE	9-09915-504-1	01	1	0712-
480	ADAPTER EURO2 SPECIFICATION<NT2>	8-98086-417-0	01	1	0812-
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (C) M5X14 W/LK WASHER	0-36220-514-0	01	1	0812-
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0712-0811
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0812-
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0812-
543	SCREW; SENSOR (B) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0712-0811
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (B) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0812-
558	CLIP; AIR FLOW SENSOR FSS WIDE CAB(FG****) ANTI LOCK BRAKE<JE5> (B) ID=5-12 L=14.5	1-09987-221-0	03	1	1004-
558	CLIP; AIR FLOW SENSOR FSS WIDE CAB(FG****) EXC. ANTI LOCK BRAKE<JE5> (C) ID=11 L=16	0-95235-025-0	01	1	1004-1004
558	CLIP; AIR FLOW SENSOR FSS STD SGL CAB(FC*M) (C) ID=10 & 15	1-09709-279-1	01	1	0712-1003
558	CLIP; AIR FLOW SENSOR FSS STD SGL CAB(FC*M) FSS WIDE CAB(FG****) (C) ID=10 & 15	1-09709-279-1	01	1	1004-
558	CLIP; AIR FLOW SENSOR FSS STD SGL CAB(FC*M) (A) L=140	5-09707-031-1	02	1	0712-0803
558	CLIP; AIR FLOW SENSOR FSS STD SGL CAB(FC*M) (B) ID=5-12 L=14.5	1-09987-221-0	01	1	0804-1003
558	CLIP; AIR FLOW SENSOR FSS STD SGL CAB(FC*M) (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1004-
558	CLIP; AIR FLOW SENSOR FSS WIDE CAB(FG****) EXC. ANTI LOCK BRAKE<JE5> (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1004-
558	CLIP; AIR FLOW SENSOR (B) ID=5-12 L=14.5	1-09987-221-0	01	1	0712-0803
558	CLIP; AIR FLOW SENSOR FSS STD DBL CAB(FC*W) (A) L=600	1-09707-107-1	02	1	0804-
558	CLIP; AIR FLOW SENSOR (A) L=600	1-09707-107-1	01	1	0712-0905
558	CLIP; AIR FLOW SENSOR FSS STD SGL CAB(FC*M) (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-1003
558	CLIP; AIR FLOW SENSOR FSS STD SGL CAB(FC*M) FSS WIDE CAB(FG****) (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1004-
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	0907-
560	FILTER; VERTICAL DUCT	8-98061-675-0	02	1	0712-0906
564	GASKET; ADAPTER EURO2 SPECIFICATION<NT2>	8-98071-416-0	01	1	0812-

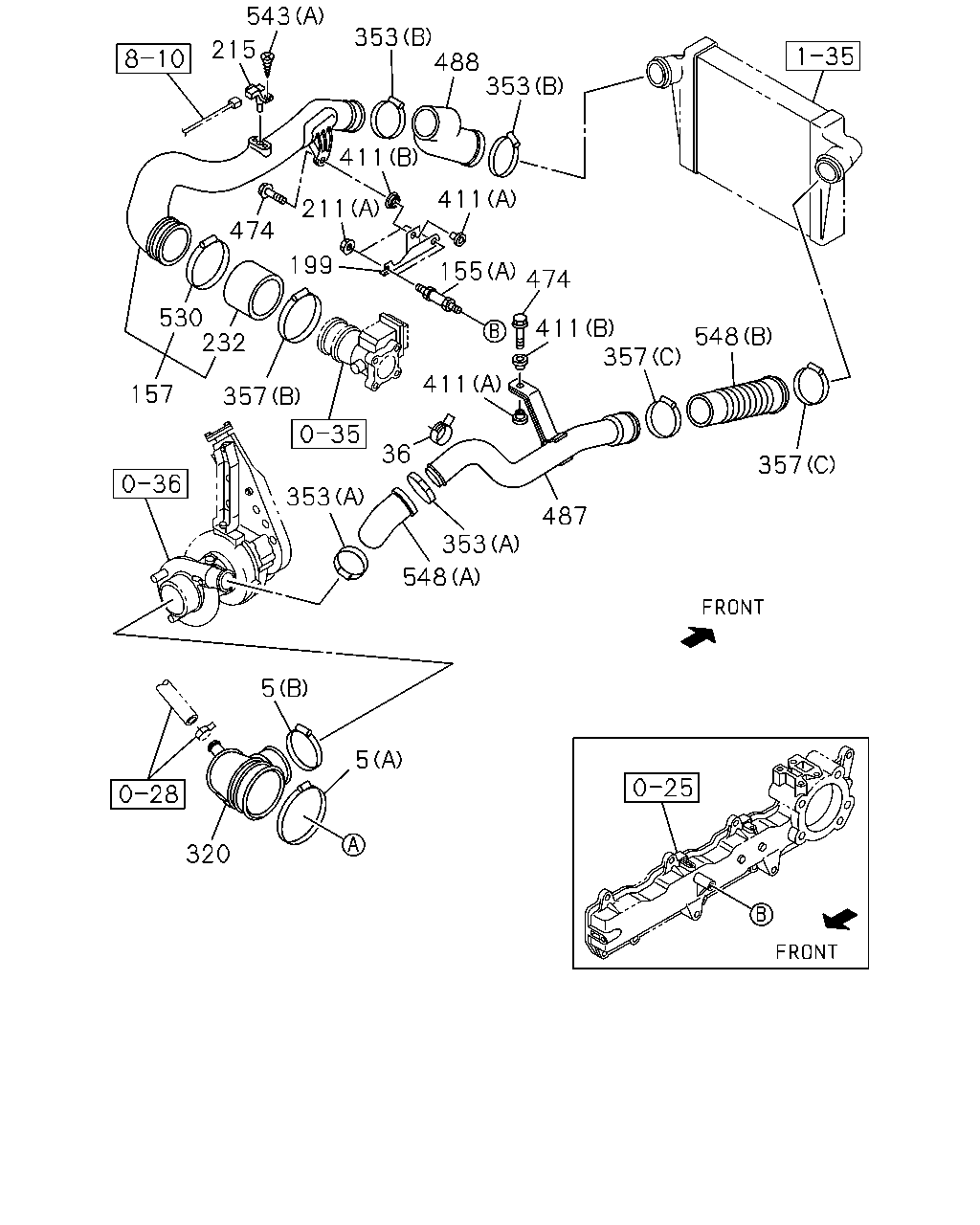

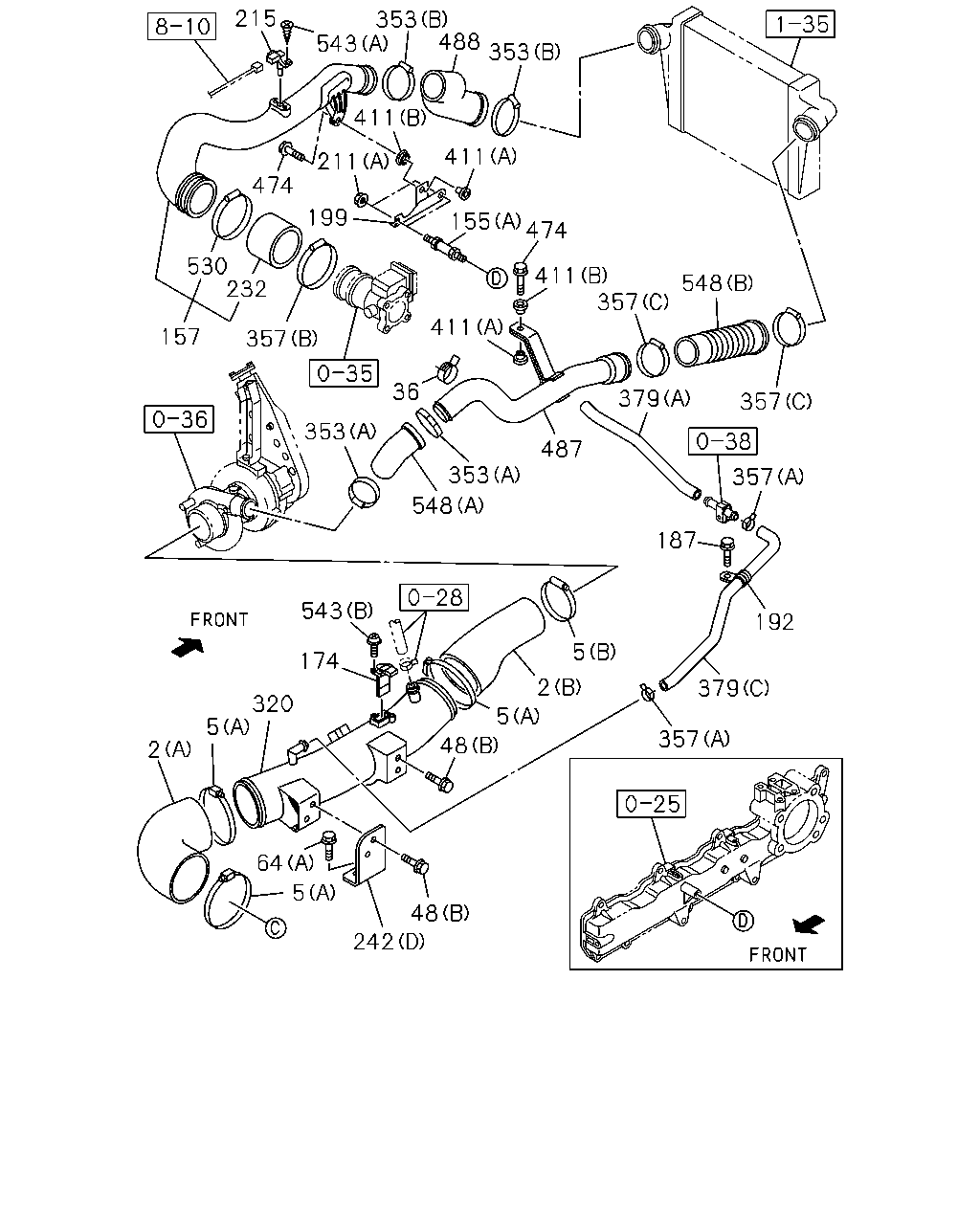

543 353 488 353 215 411 411 211 474 199 155 474 530 232 411 357 548 411 157 357 36 357 353 487 353 548 5 5 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85	8-98096-592-0	01	1	1002-
5	CLIP; AIR DUCT FSS STD SGL CAB(FC*M) EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1002-1003
5	CLIP; AIR DUCT FSS STD SGL CAB(FC*M) FSS WIDE CAB(FG****) EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1004-
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> (B) ID=65-85	8-98133-350-0	01	1	0812-1001
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=65-85	8-98133-350-0	01	1	1002-
5	CLIP; AIR DUCT FSS STD SGL CAB(FC*M) (A) ID=104-139	1-09707-200-0	01	1	0712-0812
5	CLIP; AIR DUCT FSS STD SGL CAB(FC*M) (A) ID=110-130	8-98133-359-0	01	1	0901-1001
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1002-
5	CLIP; AIR DUCT (B) ID=77-95	1-09707-198-0	01	1	0712-0810
5	CLIP; AIR DUCT (B) ID=75-95	8-98133-357-0	01	1	0811-0811
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (B) ID=75-95	8-98133-357-0	01	1	0812-1001
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (B) ID=77-99	1-09707-141-0	01	1	1002-
5	CLIP; AIR DUCT FSS STD DBL CAB(FC*W) (A) ID=104-139	1-09707-200-0	03	1	0712-0812
5	CLIP; AIR DUCT FSS STD DBL CAB(FC*W) (A) ID=110-130	8-98133-359-0	03	1	0901-1001
5	CLIP; AIR DUCT FSS STD DBL CAB(FC*W) (A) ID=104-142	1-09707-139-0	03	1	1002-
36	COVER; INT DUCT ID=22	8-94382-401-0	01	1	0712-0712
155	BOLT; BRKT (A) M10X17,M10X30 L=105	8-97233-428-0	02	1	0712-
155	BOLT; BRKT FSS STD DBL CAB(FC*W) (B) M10X30 FLANGE	0-28651-030-0	02	1	0712-
157	PIPE; AIR	8-98010-719-3	01	1	0712-
199	BRACKET; PIPE	8-97385-293-1	01	1	0712-
211	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0712-
211	NUT; BRKT FSS STD DBL CAB(FC*W) (B) M8 FLANGE	0-91180-208-0	02	1	0712-0803
211	NUT; BRKT FSS STD DBL CAB(FC*W) (B) M8 FLANGE	0-91180-108-0	02	1	0804-
215	SENSOR; MAP	8-98009-418-0	01	1	0712-
232	HOSE; CONN	8-98067-929-0	01	1	0712-
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>	8-98078-983-1	01	1	0812-
320	HOSE; CONN,ACL FSS STD SGL CAB(FC*M)	8-98010-644-1	01	1	0712-0811
320	HOSE; CONN,ACL FSS STD SGL CAB(FC*M) EURO4 SPECIFICATION<NT4>	8-98010-644-1	01	1	0812-
320	HOSE; CONN,ACL FSS STD DBL CAB(FC*W)	8-98084-232-0	01	1	0712-
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79	1-09707-136-0	02	1	1002-
353	CLIP; RUBBER HOSE (A) ID=50-69	1-09707-135-0	02	1	0712-0712
353	CLIP; RUBBER HOSE (A) ID=60-65	8-98096-418-0	02	1	0712-
353	CLIP; RUBBER HOSE (B) ID=58-76	1-09707-203-0	02	1	0712-0811
353	CLIP; RUBBER HOSE (B) ID=55-75	8-98133-349-0	02	1	0812-1001
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	02	1	1002-
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1002-
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1002-
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=24	8-97010-605-0	01	1	0712-
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=24	8-98025-921-0	01	1	0712-
357	CLIP; RUBBER HOSE (B) ID=77-95	1-09707-198-0	01	1	0712-0810
357	CLIP; RUBBER HOSE (B) ID=75-95	8-98133-357-0	01	1	0811-1001
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1002-
357	CLIP; RUBBER HOSE (C) ID=58-76	1-09707-203-0	02	1	0712-0811
357	CLIP; RUBBER HOSE (C) ID=55-75	8-98133-349-0	02	1	0812-1001
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1002-
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=24	8-98025-921-0	02	1	0712-1003
357	CLIP; RUBBER HOSE FSS STD DBL CAB(FC*W) (A) ID=24	8-98025-921-0	02	1	0712-1003
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=24	8-98025-921-0	02	1	1004-
357	CLIP; RUBBER HOSE FSS STD DBL CAB(FC*W) FSS WIDE CAB(FG****) (A) ID=24	8-98025-921-0	02	1	1004-
411	RUBBER; CUSHION (A) OD=32	8-94395-766-0	02	1	0712-
411	RUBBER; CUSHION (B) OD=23	8-97105-689-6	02	1	0712-
474	BOLT; PIPE M8X40 FLANGE	0-28650-840-0	02	1	0712-
487	PIPE; TURBO TO CHARGE AIR COOLER EURO2 SPECIFICATION<NT2>	8-98073-592-0	01	1	0812-
487	PIPE; TURBO TO CHARGE AIR COOLER	8-98038-759-3	01	1	0712-0811
487	PIPE; TURBO TO CHARGE AIR COOLER EURO4 SPECIFICATION<NT4>	8-98038-759-3	01	1	0812-
488	HOSE; RUBBER,PIPE	8-98010-723-0	01	1	0712-
530	CLAMP; AIR DUCT	8-98068-074-0	01	1	0712-0805
530	CLAMP; AIR DUCT ID=77-95	1-09707-198-0	01	1	0806-0810
530	CLAMP; AIR DUCT ID=75-95	8-98133-357-0	01	1	0811-
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (C) M5X14 W/LK WASHER	0-36220-514-0	01	1	0812-
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0712-0811
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0812-
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0812-
543	SCREW; SENSOR (B) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0712-0811
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (B) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0812-
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (A)	8-98181-971-1	01	1	1102-
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (B)	8-98181-972-1	01	1	1102-
548	HOSE; RUBBER,TURBO TO INL PIPE (A)	8-98061-809-1	01	1	0712-1101
548	HOSE; RUBBER,TURBO TO INL PIPE EXC. EURO2 SPECIFICATION<NT2> (A)	8-98061-809-1	01	1	1102-
548	HOSE; RUBBER,TURBO TO INL PIPE (B)	8-98061-810-0	01	1	0712-1101
548	HOSE; RUBBER,TURBO TO INL PIPE EXC. EURO2 SPECIFICATION<NT2> (B)	8-98061-810-0	01	1	1102-

49 242 58 56 56 49 49 56 56 242 58 242 245 58 48 64 61 64 26 381 560 252 450 71 316 558 225 558 159 210 210 211 153 155 154 209 296 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	DUCT; AIR INT	8-98010-361-2	01	1	0712-
48	BOLT; AIR DUCT (A) M10X26	1-09030-044-1	02	1	0712-
48	BOLT; AIR DUCT FSS STD DBL CAB(FC*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	0712-
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	0712-
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	0712-
49	NUT; AIR DUCT FSS STD SGL CAB(FC*M) (C) M8 FLANGE	8-94279-517-0	02	1	0712-1003
49	NUT; AIR DUCT FSS STD SGL CAB(FC*M) FSS WIDE CAB(FG****) (C) M8 FLANGE	8-94279-517-0	02	1	1004-
49	NUT; AIR DUCT FSS STD DBL CAB(FC*W) (C) M8 FLANGE	8-94279-517-0	01	1	0712-
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	0712-
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0712-
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0712-
58	SUPPORT; AIR INL DUCT (B)	1-14119-452-0	01	1	0712-0810
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	0811-
61	BOLT; BRKT,AIR DUCT M8X20 FLANGE	8-98061-920-0	02	1	0712-0807
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0808-
64	BOLT; BRKT,AIR DUCT FSS STD DBL CAB(FC*W) (A) M10X25 FLANGE	0-28651-025-0	02	1	0712-
64	BOLT; BRKT,AIR DUCT FSS STD DBL CAB(FC*W) (A) M10X25 FLANGE	0-28651-025-0	02	1	0712-
64	BOLT; BRKT,AIR DUCT FSS STD DBL CAB(FC*W) (B) M8X25 W/LK&PL WASHER	1-09030-074-0	01	1	0712-0805
64	BOLT; BRKT,AIR DUCT FSS STD DBL CAB(FC*W) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0806-
71	CLIP; AIR DUCT ID=104-139	1-09707-200-0	01	1	0712-0812
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	0901-
153	BRACKET; ACL,FRT FSS STD DBL CAB(FC*W)	8-98058-686-0	01	1	0712-
154	BRACKET; ACL,RR FSS STD DBL CAB(FC*W)	8-98058-688-1	01	1	0712-
155	BOLT; BRKT (A) M10X17,M10X30 L=105	8-97233-428-0	02	1	0712-
155	BOLT; BRKT FSS STD DBL CAB(FC*W) (B) M10X30 FLANGE	0-28651-030-0	02	1	0712-
156	NUT; BRKT FSS STD DBL CAB(FC*W) M10 FLANGE	0-91180-210-0	02	1	0712-
159	BOLT; AIR PIPE FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) M6X20 FLANGE	0-28050-620-0	01	1	0804-
159	BOLT; AIR PIPE FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) M6X40 FLANGE	0-28050-640-0	01	1	0804-
159	BOLT; AIR PIPE FSS STD SGL CAB(FC*M) M6X16 FLANGE	0-28050-616-0	02	1	0712-0803
159	BOLT; AIR PIPE FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M6X16 FLANGE	0-28050-616-0	02	1	0804-1003
159	BOLT; AIR PIPE FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M6X16 FLANGE	0-28050-616-0	02	1	1004-
159	BOLT; AIR PIPE FSS WIDE CAB(FG****) M6X16 FLANGE	0-28050-616-0	02	1	1004-
209	BRACKET; ACL FSS STD SGL CAB(FC*M)	8-98099-677-0	01	1	0712-1003
209	BRACKET; ACL FSS STD SGL CAB(FC*M) FSS WIDE CAB(FG****)	8-98099-677-0	01	1	1004-
209	BRACKET; ACL FSS STD DBL CAB(FC*W)	8-98058-687-0	01	1	0712-
210	BOLT; ACL BRKT FSS STD SGL CAB(FC*M) (A) M10X25 FLANGE	0-28651-025-0	03	1	0712-1003
210	BOLT; ACL BRKT FSS STD SGL CAB(FC*M) FSS WIDE CAB(FG****) (A) M10X25 FLANGE	0-28651-025-0	03	1	1004-
210	BOLT; ACL BRKT FSS STD DBL CAB(FC*W) (B) M8X25 FLANGE	0-28650-825-0	02	1	0712-
210	BOLT; ACL BRKT FSS STD DBL CAB(FC*W) (A) M10X25 FLANGE	0-28651-025-0	02	1	0712-
211	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0712-
211	NUT; BRKT FSS STD DBL CAB(FC*W) (B) M8 FLANGE	0-91180-208-0	02	1	0712-0803
211	NUT; BRKT FSS STD DBL CAB(FC*W) (B) M8 FLANGE	0-91180-108-0	02	1	0804-
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	0712-0811
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	0812-
225	GASKET; AIR PIPE EURO2 SPECIFICATION<NT2> ID=24.4	1-09623-057-0	01	1	0812-
225	GASKET; AIR PIPE ID=26.8	1-09623-058-0	01	1	0712-0801
242	BRACKET; AIR DUCT FSS WIDE CAB(FG****) (E)	8-98019-304-1	01	1	1004-
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0712-
242	BRACKET; AIR DUCT FSS STD SGL CAB(FC*M) (C)	8-98019-302-1	01	1	0712-1003
242	BRACKET; AIR DUCT FSS STD SGL CAB(FC*M) FSS WIDE CAB(FG****) (C)	8-98019-302-1	01	1	1004-
242	BRACKET; AIR DUCT FSS STD SGL CAB(FC*M) (A)	8-98019-303-1	01	1	0712-
242	BRACKET; AIR DUCT FSS STD DBL CAB(FC*W) (C)	8-98050-679-1	01	1	0712-
242	BRACKET; AIR DUCT FSS STD DBL CAB(FC*W) (A)	8-98058-693-0	01	1	0712-0712
242	BRACKET; AIR DUCT FSS STD DBL CAB(FC*W) (A)	8-98092-771-0	01	1	0801-
242	BRACKET; AIR DUCT FSS STD DBL CAB(FC*W) (D)	8-98084-231-1	01	1	0712-
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0712-
252	DUCT; AIR INT FSS STD SGL CAB(FC*M) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB>	8-98010-640-1	01	1	1012-
252	DUCT; AIR INT FSS WIDE CAB(FG****) VIN MODEL YEAR 2011<VZB>	8-98010-640-1	01	1	1012-
252	DUCT; AIR INT FSS STD SGL CAB(FC*M)	8-98095-779-0	01	1	0712-1003
252	DUCT; AIR INT FSS STD SGL CAB(FC*M) FSS WIDE CAB(FG****)	8-98095-779-0	01	1	1004-1011
252	DUCT; AIR INT FSS STD SGL CAB(FC*M) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB>	8-98095-779-0	01	1	1012-
252	DUCT; AIR INT FSS WIDE CAB(FG****) EXC. VIN MODEL YEAR 2011<VZB>	8-98095-779-0	01	1	1012-
252	DUCT; AIR INT FSS STD SGL CAB(FC*M) EURO4 SPECIFICATION<NT4>	8-98095-779-0	01	1	1012-
252	DUCT; AIR INT FSS STD DBL CAB(FC*W)	8-98050-681-0	01	1	0712-
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0712-
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	0712-
381	NUT; BRKT,AIR DUCT FSS STD DBL CAB(FC*W) M8 FLANGE	0-91180-108-0	01	1	0712-
450	CLAMP; HOSE	9-09915-504-1	01	1	0712-
558	CLIP; AIR FLOW SENSOR FSS WIDE CAB(FG****) ANTI LOCK BRAKE<JE5> (B) ID=5-12 L=14.5	1-09987-221-0	03	1	1004-
558	CLIP; AIR FLOW SENSOR FSS WIDE CAB(FG****) EXC. ANTI LOCK BRAKE<JE5> (C) ID=11 L=16	0-95235-025-0	01	1	1004-1004
558	CLIP; AIR FLOW SENSOR FSS STD SGL CAB(FC*M) (C) ID=10 & 15	1-09709-279-1	01	1	0712-1003
558	CLIP; AIR FLOW SENSOR FSS STD SGL CAB(FC*M) FSS WIDE CAB(FG****) (C) ID=10 & 15	1-09709-279-1	01	1	1004-
558	CLIP; AIR FLOW SENSOR FSS STD SGL CAB(FC*M) (A) L=140	5-09707-031-1	02	1	0712-0803
558	CLIP; AIR FLOW SENSOR FSS STD SGL CAB(FC*M) (B) ID=5-12 L=14.5	1-09987-221-0	01	1	0804-1003
558	CLIP; AIR FLOW SENSOR FSS STD SGL CAB(FC*M) (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1004-
558	CLIP; AIR FLOW SENSOR FSS WIDE CAB(FG****) EXC. ANTI LOCK BRAKE<JE5> (B) ID=5-12 L=14.5	1-09987-221-0	01	1	1004-
558	CLIP; AIR FLOW SENSOR (B) ID=5-12 L=14.5	1-09987-221-0	01	1	0712-0803
558	CLIP; AIR FLOW SENSOR FSS STD DBL CAB(FC*W) (A) L=600	1-09707-107-1	02	1	0804-
558	CLIP; AIR FLOW SENSOR (A) L=600	1-09707-107-1	01	1	0712-0905
558	CLIP; AIR FLOW SENSOR FSS STD SGL CAB(FC*M) (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-1003
558	CLIP; AIR FLOW SENSOR FSS STD SGL CAB(FC*M) FSS WIDE CAB(FG****) (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1004-
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	0907-
560	FILTER; VERTICAL DUCT	8-98061-675-0	02	1	0712-0906

215 353 543 488 353 411 411 211 474 199 155 474 530 232 411 357 548 411 157 357 36 379 357 353 487 353 357 548 187 543 192 5 174 2 379 320 5 5 357 48 2 64 5 48 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL FSS STD DBL CAB(FC*W) (A)	8-98058-691-1	01	1	0712-
2	HOSE; ACL FSS STD DBL CAB(FC*W) (B)	8-98081-763-0	01	1	0712-
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85	8-98096-592-0	01	1	1002-
5	CLIP; AIR DUCT FSS STD SGL CAB(FC*M) EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1002-1003
5	CLIP; AIR DUCT FSS STD SGL CAB(FC*M) FSS WIDE CAB(FG****) EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1004-
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> (B) ID=65-85	8-98133-350-0	01	1	0812-1001
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (B) ID=65-85	8-98133-350-0	01	1	1002-
5	CLIP; AIR DUCT FSS STD SGL CAB(FC*M) (A) ID=104-139	1-09707-200-0	01	1	0712-0812
5	CLIP; AIR DUCT FSS STD SGL CAB(FC*M) (A) ID=110-130	8-98133-359-0	01	1	0901-1001
5	CLIP; AIR DUCT KD PREPARATORY PACK<6HF> (A) ID=110-130	8-98133-359-0	01	1	1002-
5	CLIP; AIR DUCT (B) ID=77-95	1-09707-198-0	01	1	0712-0810
5	CLIP; AIR DUCT (B) ID=75-95	8-98133-357-0	01	1	0811-0811
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (B) ID=75-95	8-98133-357-0	01	1	0812-1001
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (B) ID=77-99	1-09707-141-0	01	1	1002-
5	CLIP; AIR DUCT FSS STD DBL CAB(FC*W) (A) ID=104-139	1-09707-200-0	03	1	0712-0812
5	CLIP; AIR DUCT FSS STD DBL CAB(FC*W) (A) ID=110-130	8-98133-359-0	03	1	0901-1001
5	CLIP; AIR DUCT FSS STD DBL CAB(FC*W) (A) ID=104-142	1-09707-139-0	03	1	1002-
36	COVER; INT DUCT ID=22	8-94382-401-0	01	1	0712-0712
48	BOLT; AIR DUCT (A) M10X26	1-09030-044-1	02	1	0712-
48	BOLT; AIR DUCT FSS STD DBL CAB(FC*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	0712-
64	BOLT; BRKT,AIR DUCT FSS STD DBL CAB(FC*W) (A) M10X25 FLANGE	0-28651-025-0	02	1	0712-
64	BOLT; BRKT,AIR DUCT FSS STD DBL CAB(FC*W) (A) M10X25 FLANGE	0-28651-025-0	02	1	0712-
64	BOLT; BRKT,AIR DUCT FSS STD DBL CAB(FC*W) (B) M8X25 W/LK&PL WASHER	1-09030-074-0	01	1	0712-0805
64	BOLT; BRKT,AIR DUCT FSS STD DBL CAB(FC*W) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0806-
155	BOLT; BRKT (A) M10X17,M10X30 L=105	8-97233-428-0	02	1	0712-
155	BOLT; BRKT FSS STD DBL CAB(FC*W) (B) M10X30 FLANGE	0-28651-030-0	02	1	0712-
157	PIPE; AIR	8-98010-719-3	01	1	0712-
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0712-0811
174	SENSOR; AIR FLOW CONT EURO4 SPECIFICATION<NT4>	8-97601-967-0	01	1	0812-
187	BOLT; INL HOSE FSS STD DBL CAB(FC*W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X16 FLANGE	0-28050-816-0	01	1	0804-
192	CLIP; HOSE FSS STD DBL CAB(FC*W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) ID=26 L=26	1-09701-236-0	01	1	0712-
199	BRACKET; PIPE	8-97385-293-1	01	1	0712-
211	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	02	1	0712-
211	NUT; BRKT FSS STD DBL CAB(FC*W) (B) M8 FLANGE	0-91180-208-0	02	1	0712-0803
211	NUT; BRKT FSS STD DBL CAB(FC*W) (B) M8 FLANGE	0-91180-108-0	02	1	0804-
215	SENSOR; MAP	8-98009-418-0	01	1	0712-
232	HOSE; CONN	8-98067-929-0	01	1	0712-
242	BRACKET; AIR DUCT FSS WIDE CAB(FG****) (E)	8-98019-304-1	01	1	1004-
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0712-
242	BRACKET; AIR DUCT FSS STD SGL CAB(FC*M) (C)	8-98019-302-1	01	1	0712-1003
242	BRACKET; AIR DUCT FSS STD SGL CAB(FC*M) FSS WIDE CAB(FG****) (C)	8-98019-302-1	01	1	1004-
242	BRACKET; AIR DUCT FSS STD SGL CAB(FC*M) (A)	8-98019-303-1	01	1	0712-
242	BRACKET; AIR DUCT FSS STD DBL CAB(FC*W) (C)	8-98050-679-1	01	1	0712-
242	BRACKET; AIR DUCT FSS STD DBL CAB(FC*W) (A)	8-98058-693-0	01	1	0712-0712
242	BRACKET; AIR DUCT FSS STD DBL CAB(FC*W) (A)	8-98092-771-0	01	1	0801-
242	BRACKET; AIR DUCT FSS STD DBL CAB(FC*W) (D)	8-98084-231-1	01	1	0712-
320	HOSE; CONN,ACL EURO2 SPECIFICATION<NT2>	8-98078-983-1	01	1	0812-
320	HOSE; CONN,ACL FSS STD SGL CAB(FC*M)	8-98010-644-1	01	1	0712-0811
320	HOSE; CONN,ACL FSS STD SGL CAB(FC*M) EURO4 SPECIFICATION<NT4>	8-98010-644-1	01	1	0812-
320	HOSE; CONN,ACL FSS STD DBL CAB(FC*W)	8-98084-232-0	01	1	0712-
353	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79	1-09707-136-0	02	1	1002-
353	CLIP; RUBBER HOSE (A) ID=50-69	1-09707-135-0	02	1	0712-0712
353	CLIP; RUBBER HOSE (A) ID=60-65	8-98096-418-0	02	1	0712-
353	CLIP; RUBBER HOSE (B) ID=58-76	1-09707-203-0	02	1	0712-0811
353	CLIP; RUBBER HOSE (B) ID=55-75	8-98133-349-0	02	1	0812-1001
353	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=55-75	8-98133-349-0	02	1	1002-
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79	1-09707-136-0	02	1	1002-
357	CLIP; RUBBER HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99	1-09707-141-0	01	1	1002-
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) (D) ID=24	8-97010-605-0	01	1	0712-
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=24	8-98025-921-0	01	1	0712-
357	CLIP; RUBBER HOSE (B) ID=77-95	1-09707-198-0	01	1	0712-0810
357	CLIP; RUBBER HOSE (B) ID=75-95	8-98133-357-0	01	1	0811-1001
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (B) ID=75-95	8-98133-357-0	01	1	1002-
357	CLIP; RUBBER HOSE (C) ID=58-76	1-09707-203-0	02	1	0712-0811
357	CLIP; RUBBER HOSE (C) ID=55-75	8-98133-349-0	02	1	0812-1001
357	CLIP; RUBBER HOSE KD PREPARATORY PACK<6HF> (C) ID=55-75	8-98133-349-0	02	1	1002-
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=24	8-98025-921-0	02	1	0712-1003
357	CLIP; RUBBER HOSE FSS STD DBL CAB(FC*W) (A) ID=24	8-98025-921-0	02	1	0712-1003
357	CLIP; RUBBER HOSE FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=24	8-98025-921-0	02	1	1004-
357	CLIP; RUBBER HOSE FSS STD DBL CAB(FC*W) FSS WIDE CAB(FG****) (A) ID=24	8-98025-921-0	02	1	1004-
379	HOSE; RUBBER FSS STD SGL CAB(FC*M) POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98096-960-0	01	1	0712-
379	HOSE; RUBBER FSS STD DBL CAB(FC*W) POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98074-977-0	01	1	0712-
379	HOSE; RUBBER FSS STD DBL CAB(FC*W) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98082-252-0	01	1	0712-
379	HOSE; RUBBER FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=502	8-98057-034-0	01	1	0712-1003
379	HOSE; RUBBER FSS STD SGL CAB(FC*M) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=502	8-98057-034-0	01	1	1004-
379	HOSE; RUBBER FSS WIDE CAB(FG****) (B) L=502	8-98057-034-0	01	1	1004-
411	RUBBER; CUSHION (A) OD=32	8-94395-766-0	02	1	0712-
411	RUBBER; CUSHION (B) OD=23	8-97105-689-6	02	1	0712-
474	BOLT; PIPE M8X40 FLANGE	0-28650-840-0	02	1	0712-
487	PIPE; TURBO TO CHARGE AIR COOLER EURO2 SPECIFICATION<NT2>	8-98073-592-0	01	1	0812-
487	PIPE; TURBO TO CHARGE AIR COOLER	8-98038-759-3	01	1	0712-0811
487	PIPE; TURBO TO CHARGE AIR COOLER EURO4 SPECIFICATION<NT4>	8-98038-759-3	01	1	0812-
488	HOSE; RUBBER,PIPE	8-98010-723-0	01	1	0712-
530	CLAMP; AIR DUCT	8-98068-074-0	01	1	0712-0805
530	CLAMP; AIR DUCT ID=77-95	1-09707-198-0	01	1	0806-0810
530	CLAMP; AIR DUCT ID=75-95	8-98133-357-0	01	1	0811-
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (C) M5X14 W/LK WASHER	0-36220-514-0	01	1	0812-
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0712-0811
543	SCREW; SENSOR EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0812-
543	SCREW; SENSOR (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0812-
543	SCREW; SENSOR (B) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0712-0811
543	SCREW; SENSOR EURO4 SPECIFICATION<NT4> (B) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0812-
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (A)	8-98181-971-1	01	1	1102-
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2> (B)	8-98181-972-1	01	1	1102-
548	HOSE; RUBBER,TURBO TO INL PIPE (A)	8-98061-809-1	01	1	0712-1101
548	HOSE; RUBBER,TURBO TO INL PIPE EXC. EURO2 SPECIFICATION<NT2> (A)	8-98061-809-1	01	1	1102-
548	HOSE; RUBBER,TURBO TO INL PIPE (B)	8-98061-810-0	01	1	0712-1101
548	HOSE; RUBBER,TURBO TO INL PIPE EXC. EURO2 SPECIFICATION<NT2> (B)	8-98061-810-0	01	1	1102-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
