Sayfa 4-11 - Isuzu EPC

4-11 — FRONT HUB AND DRUM OR ROTOR (#3812) — 273 parça

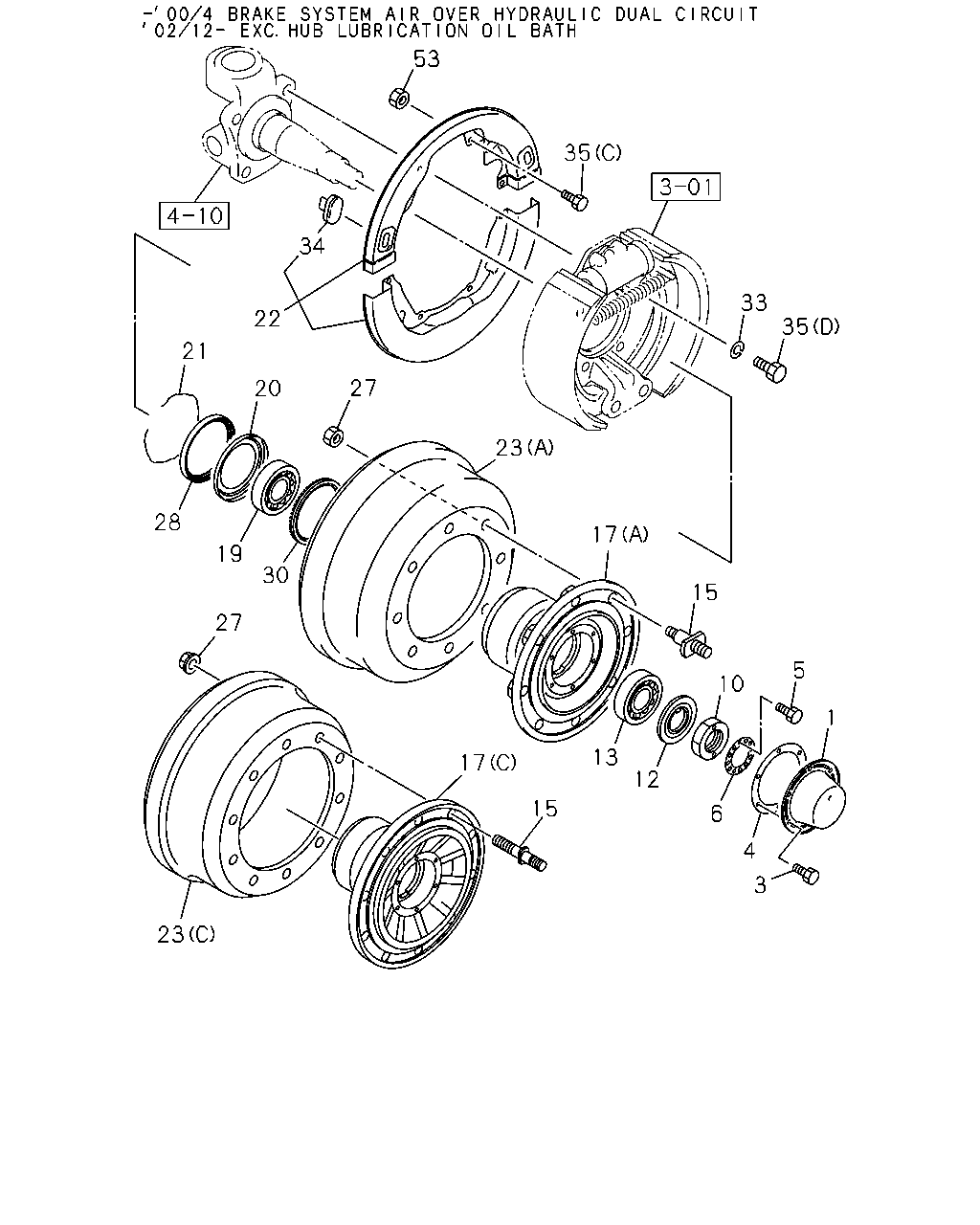

53 35 33 22 35 21 27 20 23 28 17 19 30 15 27 5 10 1 13 17 12 15 6 4 3 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> OD=156	9-42313-123-2	02	1	0303-	●	●
1	CAP; HUB,FRT AXLE	1-42313-016-1	02	1	9601-0004	●
1	CAP; HUB,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-42313-016-1	02	1	9601-0004		●
1	CAP; HUB,FRT AXLE	1-42313-016-1	02	1	0005-0211	●	●
1	CAP; HUB,FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42313-016-1	02	1	0212-0609	●	●
1	CAP; HUB,FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42313-016-1	02	1	0610-	●	●
1	CAP; HUB,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=156	9-42313-123-2	02	1	9601-0004		●
3	BOLT; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> M8X12 FLANGE	0-28080-812-0	12	1	0303-0512	●	●
3	BOLT; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> M8X12 FLANGE	0-28050-812-0	12	1	0601-	●	●
3	BOLT; HUB CAP,FRT WHEEL M8X16 FLANGE	0-28080-816-0	12	1	9601-0004	●
3	BOLT; HUB CAP,FRT WHEEL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	12	1	9601-0004		●
3	BOLT; HUB CAP,FRT WHEEL M8X16 FLANGE	0-28080-816-0	12	1	0005-0211	●	●
3	BOLT; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> M8X16 FLANGE	0-28080-816-0	12	1	0212-0512	●	●
3	BOLT; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> M8X16 FLANGE	0-28050-816-0	12	1	0601-0609	●	●
3	BOLT; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> M8X16 FLANGE	0-28050-816-0	12	1	0610-	●	●
3	BOLT; HUB CAP,FRT WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 FLANGE	0-28080-812-0	12	1	9601-0004		●
4	GASKET; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K>	1-42319-185-2	02	1	0303-	●	●
4	GASKET; HUB CAP,FRT WHEEL	1-09630-119-0	02	1	9601-0004	●
4	GASKET; HUB CAP,FRT WHEEL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09630-119-0	02	1	9601-0004		●
4	GASKET; HUB CAP,FRT WHEEL	1-09630-119-0	02	1	0005-0211	●	●
4	GASKET; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K>	1-09630-119-0	02	1	0212-0609	●	●
4	GASKET; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K>	1-09630-119-0	02	1	0610-	●	●
4	GASKET; HUB CAP,FRT WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42319-029-0	02	1	9601-9906		●
4	GASKET; HUB CAP,FRT WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42319-185-0	02	1	9907-0004		●
5	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	04	1	9601-9701	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	9702-0512	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0601-0707	●	●
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98084-271-0	04	1	0708-1201	●	●
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98200-943-0	04	1	1202-	●	●
6	WASHER; LK,FRT HUB ID=48	1-09533-012-1	02	1	9601-0707	●	●
6	WASHER; LK,FRT HUB ID=48	8-98084-561-0	02	1	0708-	●	●
10	NUT; FRT HUB BRG M48	1-09840-012-5	02	1	9601-	●	●
12	WASHER; LK,FRT HUB BRG ID=48	1-09533-016-0	02	1	9601-0911	●	●
12	WASHER; LK,FRT HUB BRG ID=48	8-98156-755-0	02	1	0912-	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-084-0	02	1	9601-9803	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-084-0	02	1	9804-9809	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-234-0	02	1	9810-	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-085-0	02	1	9601-9803	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-085-0	02	1	9804-9809	●	●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 8STUD 20X7.00T 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K> M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1502-	●	●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 8STUD 20X7.00T 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K> M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1502-	●	●
15	PIN; WHEEL,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> M22X42.8,M22X55.5 RH THREAD	1-42337-067-0	20	1	0303-0607	●	●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0608-	●	●
15	PIN; WHEEL,FRT AXLE	1-42337-052-0	20	1	9601-0004	●
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-42337-052-0	20	1	9601-0004		●
15	PIN; WHEEL,FRT AXLE	1-42337-052-0	20	1	0005-0211	●	●
15	PIN; WHEEL,FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42337-052-0	20	1	0212-0609	●	●
15	PIN; WHEEL,FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42337-052-0	20	1	0610-	●	●
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RH THREAD M24X37.5,M22X57.5 RH THREAD	1-42331-109-0	08	1	9601-0004		●
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LH THREAD M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-0	08	1	9601-0004		●
17	HUB; FRT AXLE DISC WHEEL 8STUD 20X7.00T 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-42312-128-2	02	1	1502-	●	●
17	HUB; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-42312-100-1	02	1	0303-0607	●	●
17	HUB; FRT AXLE DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-42312-100-1	02	1	0608-	●	●
17	HUB; FRT AXLE (B)	1-42312-133-0	02	1	9601-0004	●
17	HUB; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-42312-133-0	02	1	9601-0004		●
17	HUB; FRT AXLE (B)	1-42312-133-0	02	1	0005-0211	●	●
17	HUB; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (B)	1-42312-133-0	02	1	0212-0609	●	●
17	HUB; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (B)	1-42312-133-0	02	1	0610-	●	●
17	HUB; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-42312-128-2	02	1	9601-0004		●
19	BEARING; HUB INNER,FRT AXLE NSK	1-09812-142-0	02	1	9601-9803	●	●
19	BEARING; HUB INNER,FRT AXLE NSK	1-09812-142-0	02	1	9804-9809	●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-231-0	02	1	9810-	●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-143-0	02	1	9601-9803	●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-143-0	02	1	9804-9809	●	●
20	COVER; HUB BRG INNER EXC. HUB LUBRICATION OIL BATH<C5K>	1-42319-039-0	02	1	0303-	●	●
20	COVER; HUB BRG INNER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42319-039-0	02	1	9601-0004		●
21	RING; SNAP,HUB EXC. HUB LUBRICATION OIL BATH<C5K>	1-09587-017-0	02	1	0303-	●	●
21	RING; SNAP,HUB BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09587-017-0	02	1	9601-0004		●
22	COVER SET; FRT BRK DRUM EXC. HUB LUBRICATION OIL BATH<C5K>	1-47151-459-1	02	1	0303-	●	●
22	COVER SET; FRT BRK DRUM	1-47151-643-0	01	1	9601-0004	●
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-643-0	01	1	9601-0004		●
22	COVER SET; FRT BRK DRUM	1-47151-643-0	01	1	0005-0211	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K>	1-47151-643-0	01	1	0212-0609	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K>	1-47151-643-0	01	1	0610-	●	●
22	COVER SET; FRT BRK DRUM	1-47151-642-0	01	1	9601-0004	●
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-642-0	01	1	9601-0004		●
22	COVER SET; FRT BRK DRUM	1-47151-642-0	01	1	0005-0211	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K>	1-47151-642-0	01	1	0212-0609	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K>	1-47151-642-0	01	1	0610-	●	●
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-458-1	02	1	9601-0004		●
23	DRUM; BRK,FRT DISC WHEEL 8STUD 20X7.00T 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-42315-355-0	02	1	1502-	●	●
23	DRUM; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-42315-337-0	02	1	0303-0607	●	●
23	DRUM; BRK,FRT DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-42315-337-0	02	1	0608-	●	●
23	DRUM; BRK,FRT (B)	1-42315-348-2	02	1	9601-0004	●
23	DRUM; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-42315-348-2	02	1	9601-0004		●
23	DRUM; BRK,FRT (B)	1-42315-348-2	02	1	0005-0211	●	●
23	DRUM; BRK,FRT HUB LUBRICATION OIL BATH<C5K> (B)	1-42315-348-2	02	1	0212-0609	●	●
23	DRUM; BRK,FRT HUB LUBRICATION OIL BATH<C5K> (B)	1-42315-348-2	02	1	0610-	●	●
23	DRUM; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-42315-336-1	02	1	9601-0004		●
27	NUT; WHEEL PIN,FRT AXLE DISC WHEEL 8STUD 20X7.00T 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K> M22 FLANGE	1-09440-065-0	16	1	1502-	●	●
27	NUT; WHEEL PIN,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> M22	1-09400-071-0	20	1	0303-0607	●	●
27	NUT; WHEEL PIN,FRT AXLE DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> M22	1-09400-071-0	20	1	0608-	●	●
27	NUT; WHEEL PIN,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22	9-09110-522-0	16	1	9601-9609		●
27	NUT; WHEEL PIN,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22 FLANGE	1-09440-055-0	16	1	9610-9904		●
27	NUT; WHEEL PIN,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22 FLANGE	1-09440-065-0	16	1	9905-0004		●
28	SEAL; OIL,FRT HUB EXC. HUB LUBRICATION OIL BATH<C5K> OD=140	1-09625-041-0	02	1	0303-	●	●
28	SEAL; OIL,FRT HUB TBK	1-09625-449-1	02	1	9601-0004	●
28	SEAL; OIL,FRT HUB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TBK	1-09625-449-1	02	1	9601-0004		●
28	SEAL; OIL,FRT HUB TBK	1-09625-449-1	02	1	0005-0211	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> TBK	1-09625-449-1	02	1	0212-0609	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> TBK	1-09625-449-1	02	1	0610-	●	●
28	SEAL; OIL,FRT HUB JTEKT	1-09625-503-0	02	1	9601-0004	●
28	SEAL; OIL,FRT HUB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) JTEKT	1-09625-503-0	02	1	9601-0004		●
28	SEAL; OIL,FRT HUB JTEKT	1-09625-503-0	02	1	0005-0211	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> JTEKT	1-09625-503-0	02	1	0212-0609	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> JTEKT	1-09625-503-0	02	1	0610-	●	●
28	SEAL; OIL,FRT HUB BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=140	1-09625-041-0	02	1	9601-0004		●
30	RING; EXCITER,FRT HUB PROVISIONS ANTILOCK BRAKE SYSTEM<8MG>	1-42319-173-0	02	1	0610-	●	●
33	WASHER; LK,DRUM COVER ID=16.2	9-09150-816-0	04	1	9601-0603	●	●
33	WASHER; LK,DRUM COVER ID=16.2	0-91510-816-0	04	1	0604-	●	●
34	COVER; CHECK HOLE,DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K>	1-09333-151-0	04	1	0303-	●	●
34	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	9601-0004	●
34	COVER; CHECK HOLE,DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87050-011-0	04	1	9601-0004		●
34	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	0005-0211	●	●
34	COVER; CHECK HOLE,DRUM COVER HUB LUBRICATION OIL BATH<C5K>	1-87050-011-0	04	1	0212-0609	●	●
34	COVER; CHECK HOLE,DRUM COVER HUB LUBRICATION OIL BATH<C5K>	1-87050-011-0	04	1	0610-	●	●
34	COVER; CHECK HOLE,DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09333-151-0	04	1	9601-0004		●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (C) M10X16 W/LK WASHER	0-50041-016-0	12	1	0303-0906	●	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (C) M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-	●	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (D) M16X59 FLANGE	1-09044-002-2	04	1	0303-	●	●
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-2	02	1	9601-0004	●
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16X52	1-09044-001-2	02	1	9601-0004		●
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-2	02	1	0005-0211	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X52	1-09044-001-2	02	1	0212-0609	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X52	1-09044-001-2	02	1	0610-0805	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X52	1-09044-120-0	02	1	0806-	●	●
35	BOLT; DRUM COVER (A) M16X59 FLANGE	1-09044-002-2	02	1	9601-0004	●
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16X59 FLANGE	1-09044-002-2	02	1	9601-0004		●
35	BOLT; DRUM COVER (A) M16X59 FLANGE	1-09044-002-2	02	1	0005-0211	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X59 FLANGE	1-09044-002-2	02	1	0212-0609	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X59 FLANGE	1-09044-002-2	02	1	0610-	●	●
35	BOLT; DRUM COVER (B)	1-47159-177-0	08	1	9601-0004	●
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47159-177-0	08	1	9601-0004		●
35	BOLT; DRUM COVER (B)	1-47159-177-0	08	1	0005-0211	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (B)	1-47159-177-0	08	1	0212-0609	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (B)	1-47159-177-0	08	1	0610-	●	●
35	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M10X16 W/LK WASHER	0-50041-016-0	12	1	9601-0004		●
35	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M16X52	1-09044-001-2	04	1	9601-0004		●
53	NUT; DRUM COVER M16	9-99110-416-0	04	1	9601-9803	●	●
53	NUT; DRUM COVER M16	9-99110-416-0	04	1	9804-9902	●	●
53	NUT; DRUM COVER M16	9-99110-516-0	04	1	9903-0512	●	●
53	NUT; DRUM COVER M16	0-91110-516-0	04	1	0601-	●	●

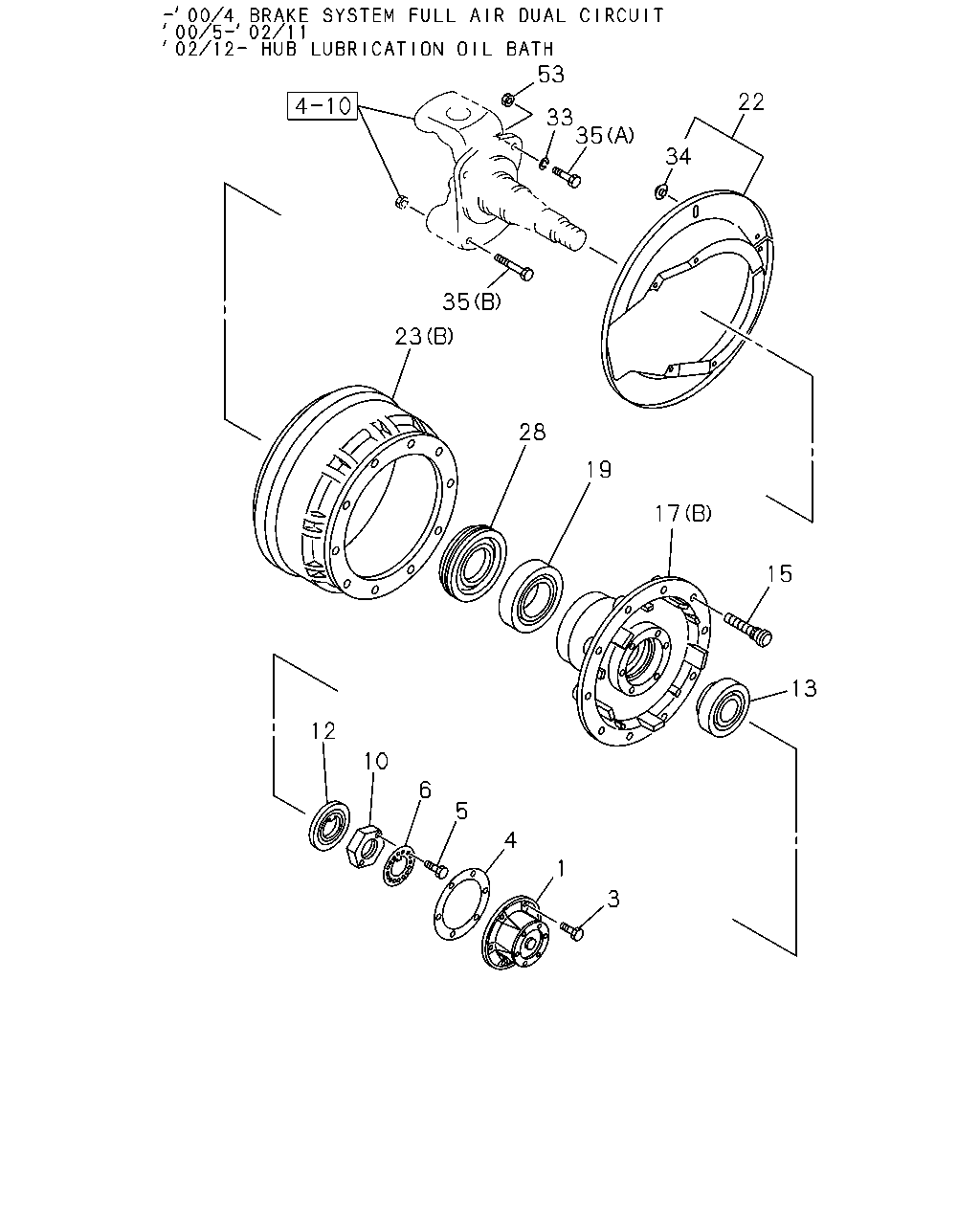

53 22 33 35 34 35 23 28 19 17 15 13 12 10 6 5 4 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAP; HUB,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> OD=156	9-42313-123-2	02	1	0303-	●	●
1	CAP; HUB,FRT AXLE	1-42313-016-1	02	1	9601-0004	●
1	CAP; HUB,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-42313-016-1	02	1	9601-0004		●
1	CAP; HUB,FRT AXLE	1-42313-016-1	02	1	0005-0211	●	●
1	CAP; HUB,FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42313-016-1	02	1	0212-0609	●	●
1	CAP; HUB,FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42313-016-1	02	1	0610-	●	●
1	CAP; HUB,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=156	9-42313-123-2	02	1	9601-0004		●
3	BOLT; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> M8X12 FLANGE	0-28080-812-0	12	1	0303-0512	●	●
3	BOLT; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K> M8X12 FLANGE	0-28050-812-0	12	1	0601-	●	●
3	BOLT; HUB CAP,FRT WHEEL M8X16 FLANGE	0-28080-816-0	12	1	9601-0004	●
3	BOLT; HUB CAP,FRT WHEEL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	12	1	9601-0004		●
3	BOLT; HUB CAP,FRT WHEEL M8X16 FLANGE	0-28080-816-0	12	1	0005-0211	●	●
3	BOLT; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> M8X16 FLANGE	0-28080-816-0	12	1	0212-0512	●	●
3	BOLT; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> M8X16 FLANGE	0-28050-816-0	12	1	0601-0609	●	●
3	BOLT; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K> M8X16 FLANGE	0-28050-816-0	12	1	0610-	●	●
3	BOLT; HUB CAP,FRT WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X12 FLANGE	0-28080-812-0	12	1	9601-0004		●
4	GASKET; HUB CAP,FRT WHEEL EXC. HUB LUBRICATION OIL BATH<C5K>	1-42319-185-2	02	1	0303-	●	●
4	GASKET; HUB CAP,FRT WHEEL	1-09630-119-0	02	1	9601-0004	●
4	GASKET; HUB CAP,FRT WHEEL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09630-119-0	02	1	9601-0004		●
4	GASKET; HUB CAP,FRT WHEEL	1-09630-119-0	02	1	0005-0211	●	●
4	GASKET; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K>	1-09630-119-0	02	1	0212-0609	●	●
4	GASKET; HUB CAP,FRT WHEEL HUB LUBRICATION OIL BATH<C5K>	1-09630-119-0	02	1	0610-	●	●
4	GASKET; HUB CAP,FRT WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42319-029-0	02	1	9601-9906		●
4	GASKET; HUB CAP,FRT WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-42319-185-0	02	1	9907-0004		●
5	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	04	1	9601-9701	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28680-616-0	04	1	9702-0512	●	●
5	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	04	1	0601-0707	●	●
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98084-271-0	04	1	0708-1201	●	●
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98200-943-0	04	1	1202-	●	●
6	WASHER; LK,FRT HUB ID=48	1-09533-012-1	02	1	9601-0707	●	●
6	WASHER; LK,FRT HUB ID=48	8-98084-561-0	02	1	0708-	●	●
10	NUT; FRT HUB BRG M48	1-09840-012-5	02	1	9601-	●	●
12	WASHER; LK,FRT HUB BRG ID=48	1-09533-016-0	02	1	9601-0911	●	●
12	WASHER; LK,FRT HUB BRG ID=48	8-98156-755-0	02	1	0912-	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-084-0	02	1	9601-9803	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	1-09812-084-0	02	1	9804-9809	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-234-0	02	1	9810-	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-085-0	02	1	9601-9803	●	●
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-085-0	02	1	9804-9809	●	●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 8STUD 20X7.00T 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K> M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1502-	●	●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 8STUD 20X7.00T 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K> M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1502-	●	●
15	PIN; WHEEL,FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> M22X42.8,M22X55.5 RH THREAD	1-42337-067-0	20	1	0303-0607	●	●
15	PIN; WHEEL,FRT AXLE DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	0608-	●	●
15	PIN; WHEEL,FRT AXLE	1-42337-052-0	20	1	9601-0004	●
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-42337-052-0	20	1	9601-0004		●
15	PIN; WHEEL,FRT AXLE	1-42337-052-0	20	1	0005-0211	●	●
15	PIN; WHEEL,FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42337-052-0	20	1	0212-0609	●	●
15	PIN; WHEEL,FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-42337-052-0	20	1	0610-	●	●
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RH THREAD M24X37.5,M22X57.5 RH THREAD	1-42331-109-0	08	1	9601-0004		●
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) LH THREAD M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-0	08	1	9601-0004		●
17	HUB; FRT AXLE DISC WHEEL 8STUD 20X7.00T 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-42312-128-2	02	1	1502-	●	●
17	HUB; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-42312-100-1	02	1	0303-0607	●	●
17	HUB; FRT AXLE DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-42312-100-1	02	1	0608-	●	●
17	HUB; FRT AXLE (B)	1-42312-133-0	02	1	9601-0004	●
17	HUB; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-42312-133-0	02	1	9601-0004		●
17	HUB; FRT AXLE (B)	1-42312-133-0	02	1	0005-0211	●	●
17	HUB; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (B)	1-42312-133-0	02	1	0212-0609	●	●
17	HUB; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (B)	1-42312-133-0	02	1	0610-	●	●
17	HUB; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-42312-128-2	02	1	9601-0004		●
19	BEARING; HUB INNER,FRT AXLE NSK	1-09812-142-0	02	1	9601-9803	●	●
19	BEARING; HUB INNER,FRT AXLE NSK	1-09812-142-0	02	1	9804-9809	●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-231-0	02	1	9810-	●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-143-0	02	1	9601-9803	●	●
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-143-0	02	1	9804-9809	●	●
22	COVER SET; FRT BRK DRUM EXC. HUB LUBRICATION OIL BATH<C5K>	1-47151-459-1	02	1	0303-	●	●
22	COVER SET; FRT BRK DRUM	1-47151-643-0	01	1	9601-0004	●
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-643-0	01	1	9601-0004		●
22	COVER SET; FRT BRK DRUM	1-47151-643-0	01	1	0005-0211	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K>	1-47151-643-0	01	1	0212-0609	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K>	1-47151-643-0	01	1	0610-	●	●
22	COVER SET; FRT BRK DRUM	1-47151-642-0	01	1	9601-0004	●
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-642-0	01	1	9601-0004		●
22	COVER SET; FRT BRK DRUM	1-47151-642-0	01	1	0005-0211	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K>	1-47151-642-0	01	1	0212-0609	●	●
22	COVER SET; FRT BRK DRUM HUB LUBRICATION OIL BATH<C5K>	1-47151-642-0	01	1	0610-	●	●
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-458-1	02	1	9601-0004		●
23	DRUM; BRK,FRT DISC WHEEL 8STUD 20X7.00T 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),WHEEL 8STUD 8.25X22.5 165-13TC(SKV) EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-42315-355-0	02	1	1502-	●	●
23	DRUM; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-42315-337-0	02	1	0303-0607	●	●
23	DRUM; BRK,FRT DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 20X7.00T(Q58),DISC WHEEL 10STUD 20X7.50V(Q64),DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-42315-337-0	02	1	0608-	●	●
23	DRUM; BRK,FRT (B)	1-42315-348-2	02	1	9601-0004	●
23	DRUM; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-42315-348-2	02	1	9601-0004		●
23	DRUM; BRK,FRT (B)	1-42315-348-2	02	1	0005-0211	●	●
23	DRUM; BRK,FRT HUB LUBRICATION OIL BATH<C5K> (B)	1-42315-348-2	02	1	0212-0609	●	●
23	DRUM; BRK,FRT HUB LUBRICATION OIL BATH<C5K> (B)	1-42315-348-2	02	1	0610-	●	●
23	DRUM; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-42315-336-1	02	1	9601-0004		●
28	SEAL; OIL,FRT HUB EXC. HUB LUBRICATION OIL BATH<C5K> OD=140	1-09625-041-0	02	1	0303-	●	●
28	SEAL; OIL,FRT HUB TBK	1-09625-449-1	02	1	9601-0004	●
28	SEAL; OIL,FRT HUB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TBK	1-09625-449-1	02	1	9601-0004		●
28	SEAL; OIL,FRT HUB TBK	1-09625-449-1	02	1	0005-0211	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> TBK	1-09625-449-1	02	1	0212-0609	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> TBK	1-09625-449-1	02	1	0610-	●	●
28	SEAL; OIL,FRT HUB JTEKT	1-09625-503-0	02	1	9601-0004	●
28	SEAL; OIL,FRT HUB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) JTEKT	1-09625-503-0	02	1	9601-0004		●
28	SEAL; OIL,FRT HUB JTEKT	1-09625-503-0	02	1	0005-0211	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> JTEKT	1-09625-503-0	02	1	0212-0609	●	●
28	SEAL; OIL,FRT HUB HUB LUBRICATION OIL BATH<C5K> JTEKT	1-09625-503-0	02	1	0610-	●	●
28	SEAL; OIL,FRT HUB BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=140	1-09625-041-0	02	1	9601-0004		●
33	WASHER; LK,DRUM COVER ID=16.2	9-09150-816-0	04	1	9601-0603	●	●
33	WASHER; LK,DRUM COVER ID=16.2	0-91510-816-0	04	1	0604-	●	●
34	COVER; CHECK HOLE,DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K>	1-09333-151-0	04	1	0303-	●	●
34	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	9601-0004	●
34	COVER; CHECK HOLE,DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-87050-011-0	04	1	9601-0004		●
34	COVER; CHECK HOLE,DRUM COVER	1-87050-011-0	04	1	0005-0211	●	●
34	COVER; CHECK HOLE,DRUM COVER HUB LUBRICATION OIL BATH<C5K>	1-87050-011-0	04	1	0212-0609	●	●
34	COVER; CHECK HOLE,DRUM COVER HUB LUBRICATION OIL BATH<C5K>	1-87050-011-0	04	1	0610-	●	●
34	COVER; CHECK HOLE,DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09333-151-0	04	1	9601-0004		●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (C) M10X16 W/LK WASHER	0-50041-016-0	12	1	0303-0906	●	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (C) M10X16 W/LK WASHER	0-50541-016-0	12	1	0907-	●	●
35	BOLT; DRUM COVER EXC. HUB LUBRICATION OIL BATH<C5K> (D) M16X59 FLANGE	1-09044-002-2	04	1	0303-	●	●
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-2	02	1	9601-0004	●
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16X52	1-09044-001-2	02	1	9601-0004		●
35	BOLT; DRUM COVER (A) M16X52	1-09044-001-2	02	1	0005-0211	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X52	1-09044-001-2	02	1	0212-0609	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X52	1-09044-001-2	02	1	0610-0805	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X52	1-09044-120-0	02	1	0806-	●	●
35	BOLT; DRUM COVER (A) M16X59 FLANGE	1-09044-002-2	02	1	9601-0004	●
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16X59 FLANGE	1-09044-002-2	02	1	9601-0004		●
35	BOLT; DRUM COVER (A) M16X59 FLANGE	1-09044-002-2	02	1	0005-0211	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X59 FLANGE	1-09044-002-2	02	1	0212-0609	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (A) M16X59 FLANGE	1-09044-002-2	02	1	0610-	●	●
35	BOLT; DRUM COVER (B)	1-47159-177-0	08	1	9601-0004	●
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47159-177-0	08	1	9601-0004		●
35	BOLT; DRUM COVER (B)	1-47159-177-0	08	1	0005-0211	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (B)	1-47159-177-0	08	1	0212-0609	●	●
35	BOLT; DRUM COVER HUB LUBRICATION OIL BATH<C5K> (B)	1-47159-177-0	08	1	0610-	●	●
35	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M10X16 W/LK WASHER	0-50041-016-0	12	1	9601-0004		●
35	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M16X52	1-09044-001-2	04	1	9601-0004		●
53	NUT; DRUM COVER M16	9-99110-416-0	04	1	9601-9803	●	●
53	NUT; DRUM COVER M16	9-99110-416-0	04	1	9804-9902	●	●
53	NUT; DRUM COVER M16	9-99110-516-0	04	1	9903-0512	●	●
53	NUT; DRUM COVER M16	0-91110-516-0	04	1	0601-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
