7-50 — FRONT SEAT (#38116) — 45 parça

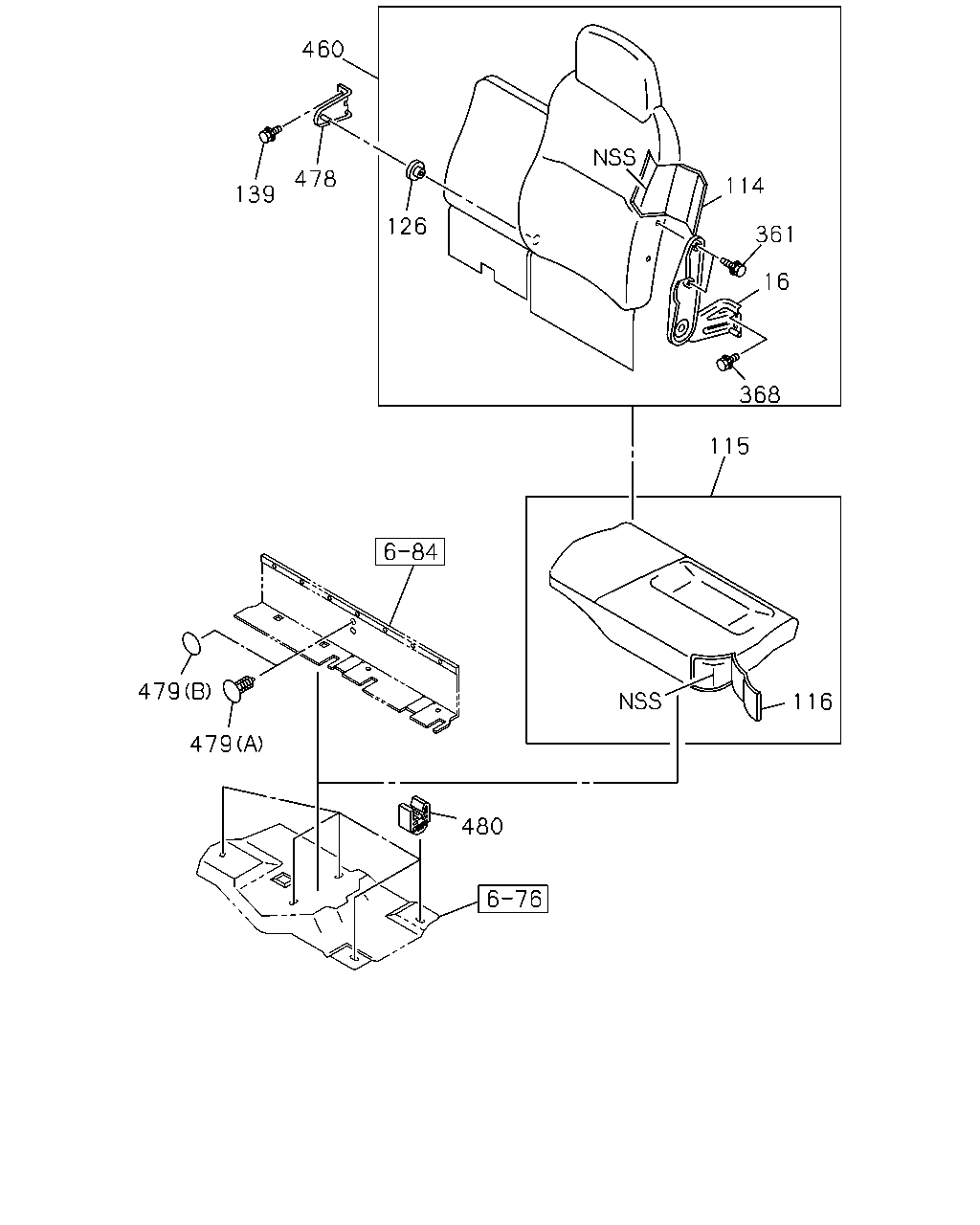

460 478 114 139 126 361 16 368 115 479 116 479 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	16.682 ADJUSTER ASM; RECLINING DRIVER	8-97854-057-3	01	1	0211-	●	●	●
16	16.682 ADJUSTER ASM; RECLINING PASSENGER BLACK	8-97859-273-3	01	1	0211-	●	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97393-766-0	01	1	0211-0501	●	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97400-500-1	01	1	0502-	●	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97393-755-1	01	1	0211-0501	●	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97400-468-2	01	1	0502-	●	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97393-769-1	01	1	0211-0501	●	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97400-502-1	01	1	0502-	●	●	●
126	16.686 BUSHING; HINGE,RECLINING	8-97854-900-0	01	1	0211-0804	●	●	●
126	16.686 BUSHING; HINGE,RECLINING	8-98069-558-0	01	1	0805-	●	●	●
139	16.679 BOLT; PASSENGER SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	03	1	0211-	●	●	●
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	02	1	0211-	●	●	●
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	0211-	●	●	●
460	16.670 BACK ASM; PASSENGER SEAT DARK GRAY	8-97393-754-2	01	1	0211-0501	●	●	●
460	16.670 BACK ASM; PASSENGER SEAT DARK GRAY	8-97400-464-2	01	1	0502-	●	●	●
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-97868-186-0	01	1	0211-	●	●	●
479	16.716 PLUG; HINGE 04.931 (A) OD=15 L=14.5	1-76378-157-0	02	1	0211-0506	●	●	●
479	16.716 PLUG; HINGE 16.165 (B) OD=25 BLACK	1-76798-019-0	02	1	0507-	●	●	●
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	0211-	●	●	●

1 18 228 24 2 16 99 17 71 19 12 13 15 69 382 67 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.720 BACK ASM; SEAT DARK GRAY	8-97393-776-1	01	1	0211-0501	●	●	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97400-492-2	01	1	0502-	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97393-778-0	01	1	0211-0501	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97400-493-1	01	1	0502-	●	●	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97393-779-1	01	1	0211-0501	●	●	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97400-494-1	01	1	0502-	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97393-780-1	01	1	0211-0501	●	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97400-495-1	01	1	0502-	●	●	●
15	16.716 FRAME; CUSHION,FRT SEAT EXC. MANUAL TILT CAB<RWZ>	8-97854-055-1	01	1	0211-	●	●	●
16	16.682 ADJUSTER ASM; RECLINING DRIVER	8-97854-057-3	01	1	0211-	●	●	●
16	16.682 ADJUSTER ASM; RECLINING PASSENGER BLACK	8-97859-273-3	01	1	0211-	●	●	●
17	16.682 BOLT; RECLINING M8X20	8-97255-906-0	02	1	0211-	●	●	●
18	16.682 COVER; RECLINING DARK GRAY	8-97867-020-0	01	1	0211-0501	●	●	●
18	16.682 COVER; RECLINING GRAY	8-97398-249-0	01	1	0502-	●	●	●
19	16.686 SCREW; COVER 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0211-0604	●	●	●
19	16.686 SCREW; COVER 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT DARK GRAY	8-97867-021-0	01	1	0211-0501	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97398-250-0	01	1	0502-0804	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97415-445-0	01	1	0805-	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE	8-97854-059-3	01	1	0211-	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	0211-	●	●	●
69	16.682 NUT; FRT SEAT M8	1-09984-109-0	01	1	0211-	●	●	●
71	16.682 BOLT; ADJ TO SEAT M8X20	8-97255-906-0	01	1	0211-	●	●	●
99	16.716 BUSHING; SEAT BACK	8-97854-087-0	01	1	0211-	●	●	●
228	16.714 SCREW; KNOB 11.377 M4X6	8-97042-273-0	01	1	0211-	●	●	●
382	16.682 WASHER; PL,DRIVER SEAT 06.514 ID=8.4 OD=22	8-94127-883-1	01	1	0211-	●	●	●
