◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51279 - NKR AUSTRALIA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#38115) — 92 parça

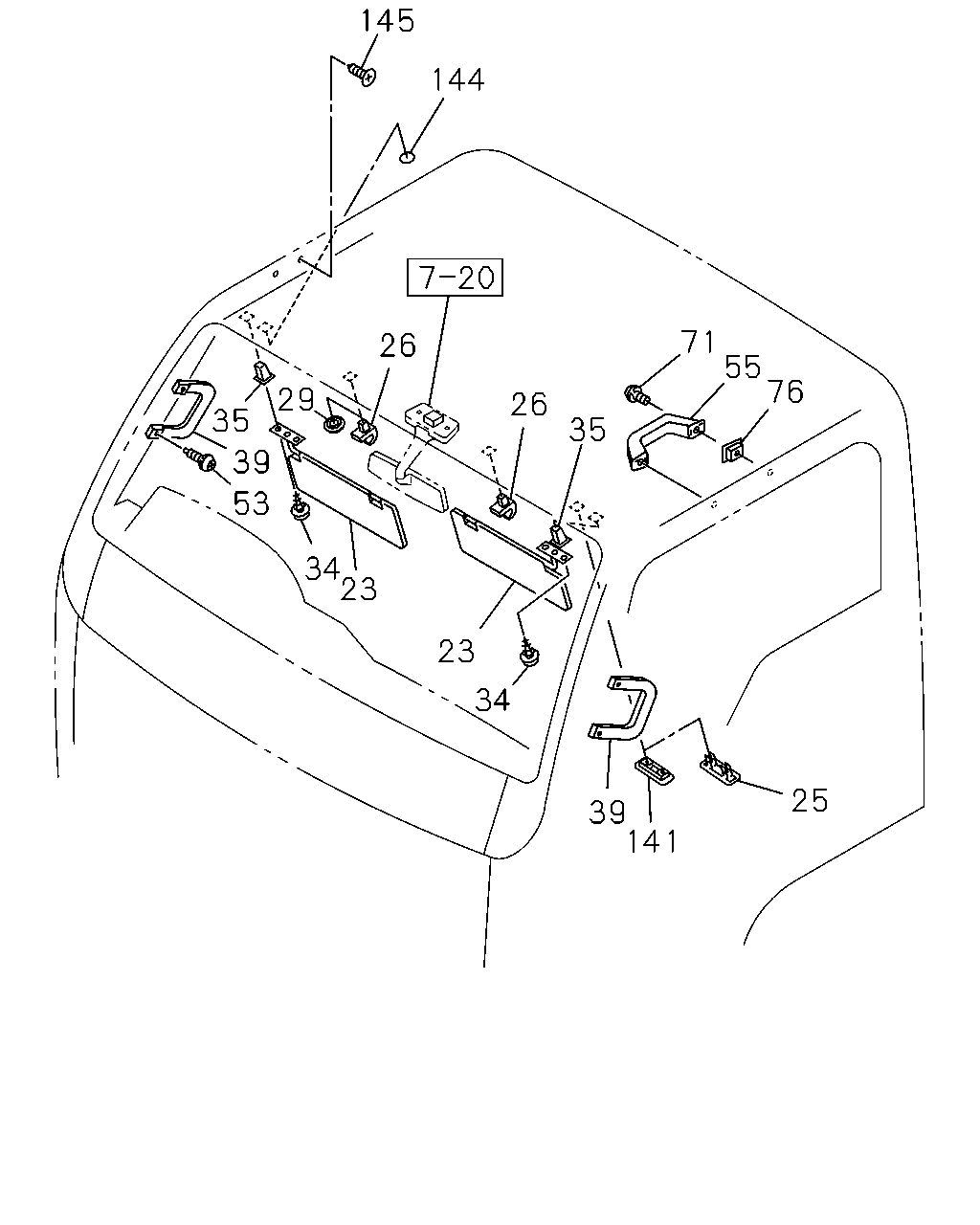

çizim 74133
145 144 71 55 76 26 29 26 35 35 39 53 34 23 23 34 25 39 141
BalonParca AdiParca NoAdetTipApplied Date A B C
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97997-505-1 01 1 0502-0509 ● ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97404-398-0 01 1 0510- ● ● ●
23 16.070 SUN VISOR
EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97997-946-1 01 1 0502-0509 ● ● ●
23 16.070 SUN VISOR
EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97404-450-0 01 1 0510- ● ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY 		8-97997-503-1 01 1 0211-0501 ● ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97997-503-1 01 1 0502-0509 ● ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97404-400-0 01 1 0510- ● ● ●
23 16.070 SUN VISOR
LIGHT GRAY 		8-97997-947-1 01 1 0211-0501 ● ● ●
23 16.070 SUN VISOR
TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97997-947-1 01 1 0502-0509 ● ● ●
23 16.070 SUN VISOR
TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97404-452-0 01 1 0510- ● ● ●
25 16.070 COVER; HOLE,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97859-846-3 01 1 0502-0610 ● ● ●
25 16.070 COVER; HOLE,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97406-201-3 01 1 0611- ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-94351-982-0 02 1 0502-0610 ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97405-171-0 02 1 0611- ● ● ●
26 16.070 HOLDER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-94351-982-0 01 1 0502-0610 ● ● ●
26 16.070 HOLDER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97405-171-0 01 1 0611- ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY 		8-97867-184-2 02 1 0211-0501 ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97867-184-2 02 1 0502-0610 ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97406-198-2 02 1 0611- ● ● ●
26 16.070 HOLDER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY 		8-97867-184-2 01 1 0211-0501 ● ● ●
26 16.070 HOLDER; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY 		8-97867-184-2 01 1 0502-0610 ● ● ●
26 16.070 HOLDER; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY 		8-97406-198-2 01 1 0611- ● ● ●
29 16.070 HOLDER; GROMMET,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 16.547 OD=15.0 		8-94279-040-0 01 1 0502- ● ● ●
34 16.070 SCREW; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 03.671 M5X20 		5-09981-059-0 02 1 0502-0612 ● ● ●
34 16.070 SCREW; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0701-0706 ● ● ●
34 16.070 SCREW; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 06.514 M5X18 TAPPING 		0-72180-518-0 02 1 0707- ● ● ●
34 16.070 SCREW; SUN VISOR
03.671 M5X20 		5-09981-059-0 04 1 0211-0501 ● ● ●
34 16.070 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20 		5-09981-059-0 04 1 0502-0612 ● ● ●
34 16.070 SCREW; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20 		5-09981-059-0 04 1 0502-0612 ● ● ●
34 16.070 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0701-0706 ● ● ●
34 16.070 SCREW; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0701-0706 ● ● ●
34 16.070 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> 06.514 M5X18 TAPPING 		0-72180-518-0 04 1 0707- ● ● ●
34 16.070 SCREW; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 06.514 M5X18 TAPPING 		0-72180-518-0 04 1 0707- ● ● ●
35 16.070 GROMMET; SCREW,SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 16.588 		8-94279-039-0 02 1 0502- ● ● ●
35 16.070 GROMMET; SCREW,SUN VISOR
16.588 		8-94279-039-0 04 1 0211-0501 ● ● ●
35 16.070 GROMMET; SCREW,SUN VISOR
SUNVISOR PASSENGER SIDE<D20> 16.588 		8-94279-039-0 04 1 0502- ● ● ●
35 16.070 GROMMET; SCREW,SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 16.588 		8-94279-039-0 04 1 0502- ● ● ●
39 16.450 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97867-209-0 02 1 0211-0501 ● ● ●
39 16.450 HANDLE; ASSIST,A-POST
GRAY 		8-97582-194-1 02 1 0502-0702 ● ● ●
39 16.450 HANDLE; ASSIST,A-POST
GRAY 		8-97409-477-0 02 1 0703- ● ● ●
53 16.450 SCREW; ASSIST HANDLE
M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0211-0612 ● ● ●
53 16.450 SCREW; ASSIST HANDLE
M6X28 		8-98004-344-0 04 1 0701- ● ● ●
55 16.450 GRIP; ASSIST,CAB SIDE UPR
16.346 DARK GRAY 		8-97098-476-2 01 1 0211-0501 ● ● ●
55 16.450 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> GRAY 		8-97582-294-2 01 1 0502-0610 ● ● ●
55 16.450 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> DARK GRAY 		8-97405-285-2 01 1 0611- ● ● ●
71 16.450 SCREW
M6X30 W/LK WASHER 		5-09981-064-0 02 1 0211-0501 ● ● ●
71 16.450 SCREW
ASSIST GRIP PASSENGER<EG5> M6X30 W/LK WASHER 		5-09981-064-0 02 1 0502-0612 ● ● ●
71 16.450 SCREW
ASSIST GRIP PASSENGER<EG5> M6X28 		8-98004-344-0 02 1 0701- ● ● ●
76 16.742 SPACER; ASSIST GRIP
DARK GRAY 		8-97859-854-0 02 1 0211-0501 ● ● ●
76 16.742 SPACER; ASSIST GRIP
INTERIOR DELUXE<RBB> GRAY 		8-97582-250-0 02 1 0502-0610 ● ● ●
76 16.742 SPACER; ASSIST GRIP
INTERIOR DELUXE<RBB> DARK GRAY 		8-97405-286-0 02 1 0611- ● ● ●
141 16.070 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY 		8-97859-845-1 01 1 0211-0501 ● ● ●
141 16.070 COVER; SUN VISOR
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY 		8-97859-845-1 01 1 0502- ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR FT ORANGE(609) EXC. TRAY ROOF HEAD<7EJ> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0502- ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0502-0610 ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611- ● ● ●
145 16.070 PLUG; HOLE
EXC. TRAY ROOF HEAD<7EJ> 16.069 OD=12 L=14.8 		8-94279-921-0 04 1 0502- ● ● ●

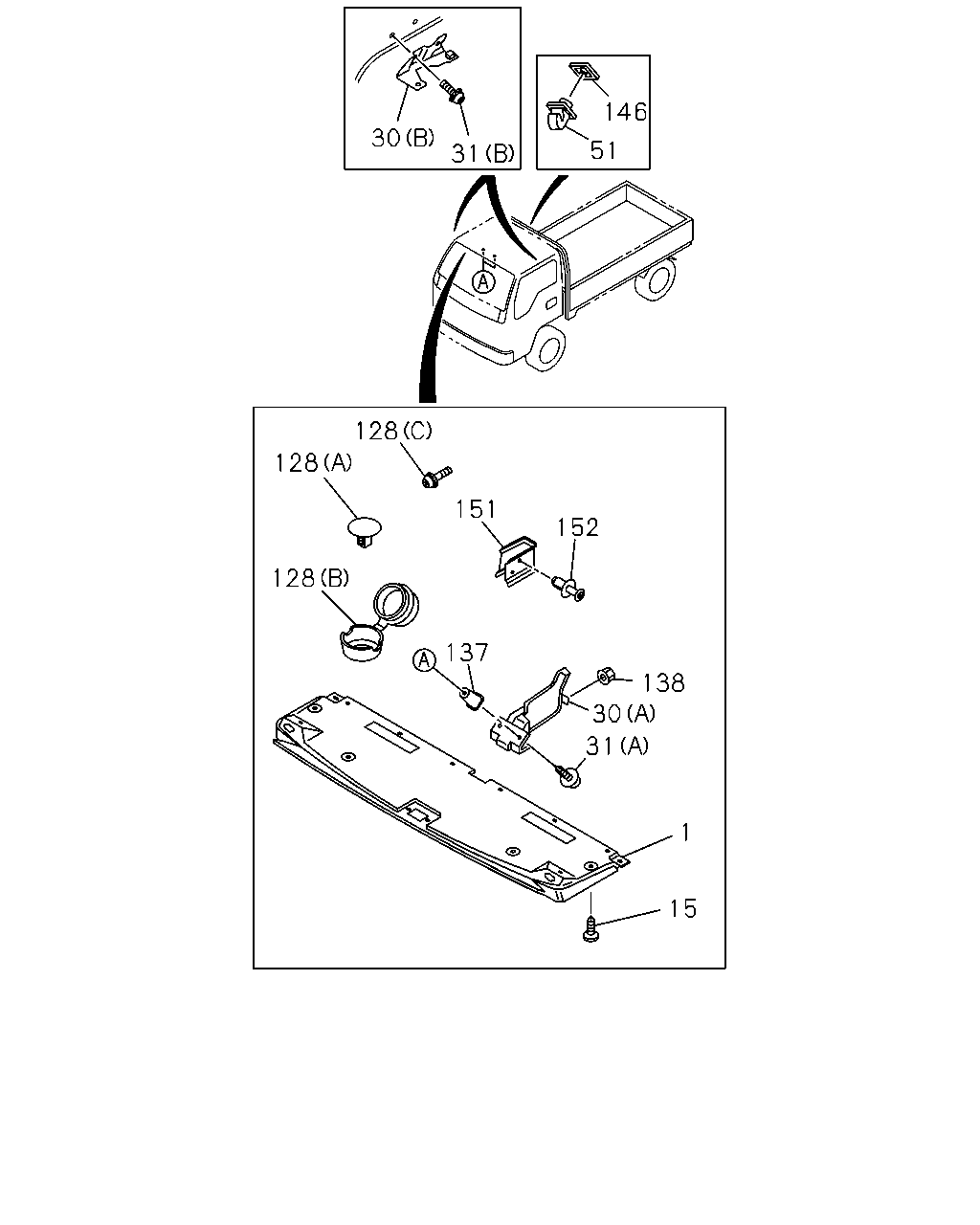

çizim 74235
146 30 51 31 128 128 151 152 128 137 138 30 31 1 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.742 BOARD; HEADER SHELF
LIGHT GRAY 		8-97994-818-0 01 1 0211-0501 ● ● ●
1 16.742 BOARD; HEADER SHELF
TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97994-818-1 01 1 0502- ● ● ●
15 16.742 FASTENER; HEADER SHELF BOARD
LIGHT GRAY, D8X15 PUSH RIVET 		8-97892-693-0 02 1 0211-0501 ● ● ●
15 16.742 FASTENER; HEADER SHELF BOARD
TRAY ROOF HEAD<7EJ> LIGHT GRAY, D8X15 PUSH RIVET 		8-97892-693-0 02 1 0502- ● ● ●
30 16.742 BRACKET ASM; HEADER SHELF
(B) 		8-97856-797-2 01 1 0211-0501 ● ● ●
30 16.742 BRACKET ASM; HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) 		8-97856-797-3 01 1 0502- ● ● ●
30 16.742 BRACKET ASM; HEADER SHELF
(B) 		8-97856-798-2 01 1 0211-0501 ● ● ●
30 16.742 BRACKET ASM; HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) 		8-97856-798-3 01 1 0502- ● ● ●
30 16.742 BRACKET ASM; HEADER SHELF
(A) 		8-97859-388-3 01 1 0211-0501 ● ● ●
30 16.742 BRACKET ASM; HEADER SHELF
TRAY ROOF HEAD<7EJ> (A) 		8-97859-388-4 01 1 0502- ● ● ●
31 16.742 SCREW; BRKT,HEADER SHELF
16.802 (A) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0405 ● ● ●
31 16.742 SCREW; BRKT,HEADER SHELF
16.263 (A) M5X16 		8-94279-341-0 02 1 0406-0501 ● ● ●
31 16.742 SCREW; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> 16.263 (A) M5X16 		8-94279-341-0 02 1 0502-0612 ● ● ●
31 16.742 SCREW; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> 16.570 (B) M6X16 		0-38050-616-0 04 1 0701- ● ● ●
31 16.742 SCREW; BRKT,HEADER SHELF
16.320 (B) M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0211-0501 ● ● ●
31 16.742 SCREW; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> 16.320 (B) M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0502-0612 ● ● ●
31 16.742 SCREW; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> 16.069 (A) M5X16 W/TORQUES 		8-98061-741-0 02 1 0701-0702 ● ● ●
31 16.742 SCREW; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> 16.263 (A) M5X16 		8-94279-341-0 02 1 0703- ● ● ●
51 16.570 HOOK; COAT HANGER
LIGHT GRAY 		8-97867-259-1 01 1 0211-0610 ● ● ●
51 16.570 HOOK; COAT HANGER
DARK GRAY 		8-97405-302-1 01 1 0611- ● ● ●
128 16.742 FASTENER; HEADER SHELF
(B) LIGHT GRAY 		8-97892-153-2 02 1 0211-0501 ● ● ●
128 16.742 FASTENER; HEADER SHELF
TRAY ROOF HEAD<7EJ> (B) LIGHT GRAY 		8-97892-153-2 02 1 0502- ● ● ●
128 16.742 FASTENER; HEADER SHELF
EXC. SUNVISOR PASSENGER SIDE<D20> (A) LIGHT GRAY 		8-97892-151-0 01 1 0211-0501 ● ● ●
128 16.742 FASTENER; HEADER SHELF
TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (A) LIGHT GRAY 		8-97892-151-0 01 1 0502- ● ● ●
128 16.742 FASTENER; HEADER SHELF
(C) 		8-97892-737-0 03 1 0211-0501 ● ● ●
128 16.742 FASTENER; HEADER SHELF
TRAY ROOF HEAD<7EJ> (C) 		8-97892-737-0 03 1 0502-0612 ● ● ●
128 16.742 FASTENER; HEADER SHELF
TRAY ROOF HEAD<7EJ> (C) M6X16 W/TORQUES 		8-98064-273-0 03 1 0701- ● ● ●
137 16.742 GROMMET; SCREW,HEADER SHELF
16.588 		8-94279-039-0 01 1 0211-0405 ● ● ●
138 16.742 NUT; BRKT,HEADER SHELF
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ●
138 16.742 NUT; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ●
138 16.742 NUT; BRKT,HEADER SHELF
TRAY ROOF HEAD<7EJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
146 16.070 SPACER; HOOK
LIGHT GRAY 		8-97867-152-1 01 1 0211-0708 ● ● ●
146 16.070 SPACER; HOOK
16.742 DARK GRAY 		8-97406-202-1 01 1 0709- ● ● ●
151 16.450 COVER; BRKT
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY 		8-97867-250-0 01 1 0502- ● ● ●
152 16.450 CLIP; BRKT
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY 		8-97867-185-0 02 1 0502- ● ● ●
