◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51279 - NKR AUSTRALIA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#38111) — 55 parça

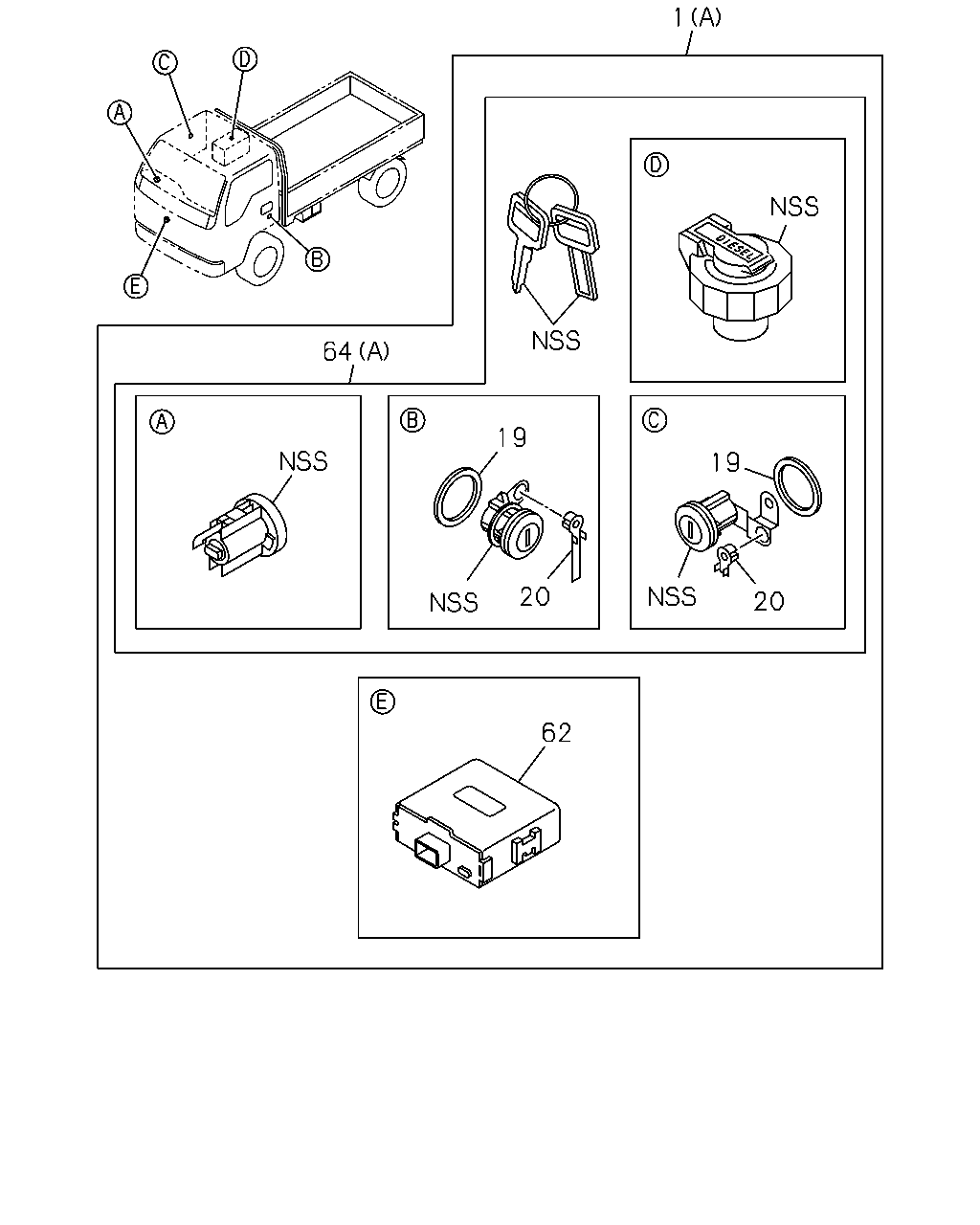

çizim 17426
1 64 19 19 20 20 62
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. MARK VEHICLE NAME<EK7> (A) 		8-97122-160-1 01 1 0211-0501 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> (A) 		8-97410-693-0 01 1 0502- ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. MARK VEHICLE NAME<EK7>,FUEL TANK CAP W/LOCK<N05> (B) 		8-97122-161-1 01 1 0211-0501 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> (B) 		8-97410-692-0 01 1 0502- ● ● ●
19 16.328 GASKET; DOOR LOCK CYL
EXC. MARK VEHICLE NAME<EK7> 		8-94128-739-0 02 1 0211-0501 ● ● ●
19 16.328 GASKET; DOOR LOCK CYL 8-94128-739-0 02 1 0502- ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
EXC. MARK VEHICLE NAME<EK7> 10.474 YELLOW 		8-97040-452-0 01 1 0211-0501 ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 YELLOW 		8-97040-452-0 01 1 0502- ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
EXC. MARK VEHICLE NAME<EK7> 10.474 BROWN 		8-97040-453-0 01 1 0211-0501 ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 BROWN 		8-97040-453-0 01 1 0502- ● ● ●
62 02.195 CONTROLLER; LOCK CYL,12V
EXC. MARK VEHICLE NAME<EK7> 		8-97122-162-0 01 1 0211-0501 ● ● ●
62 02.195 CONTROLLER; LOCK CYL,12V 8-97122-162-0 01 1 0502- ● ● ●
64 02.188 CYLINDER SET; LOCK,W/O CONTROLLE
FUEL TANK CAP W/LOCK<N05> EXC. MARK VEHICLE NAME<EK7> (A) 		8-97868-215-0 01 1 0211-0501 ● ● ●
64 02.188 CYLINDER SET; LOCK,W/O CONTROLLE
FUEL TANK CAP W/LOCK<N05> (A) 		8-98007-240-0 01 1 0502- ● ● ●
64 02.188 CYLINDER SET; LOCK,W/O CONTROLLE
EXC. MARK VEHICLE NAME<EK7>,FUEL TANK CAP W/LOCK<N05> (B) 		8-97868-214-0 01 1 0211-0501 ● ● ●
64 02.188 CYLINDER SET; LOCK,W/O CONTROLLE
EXC. FUEL TANK CAP W/LOCK<N05> (B) 		8-98007-239-0 01 1 0502- ● ● ●

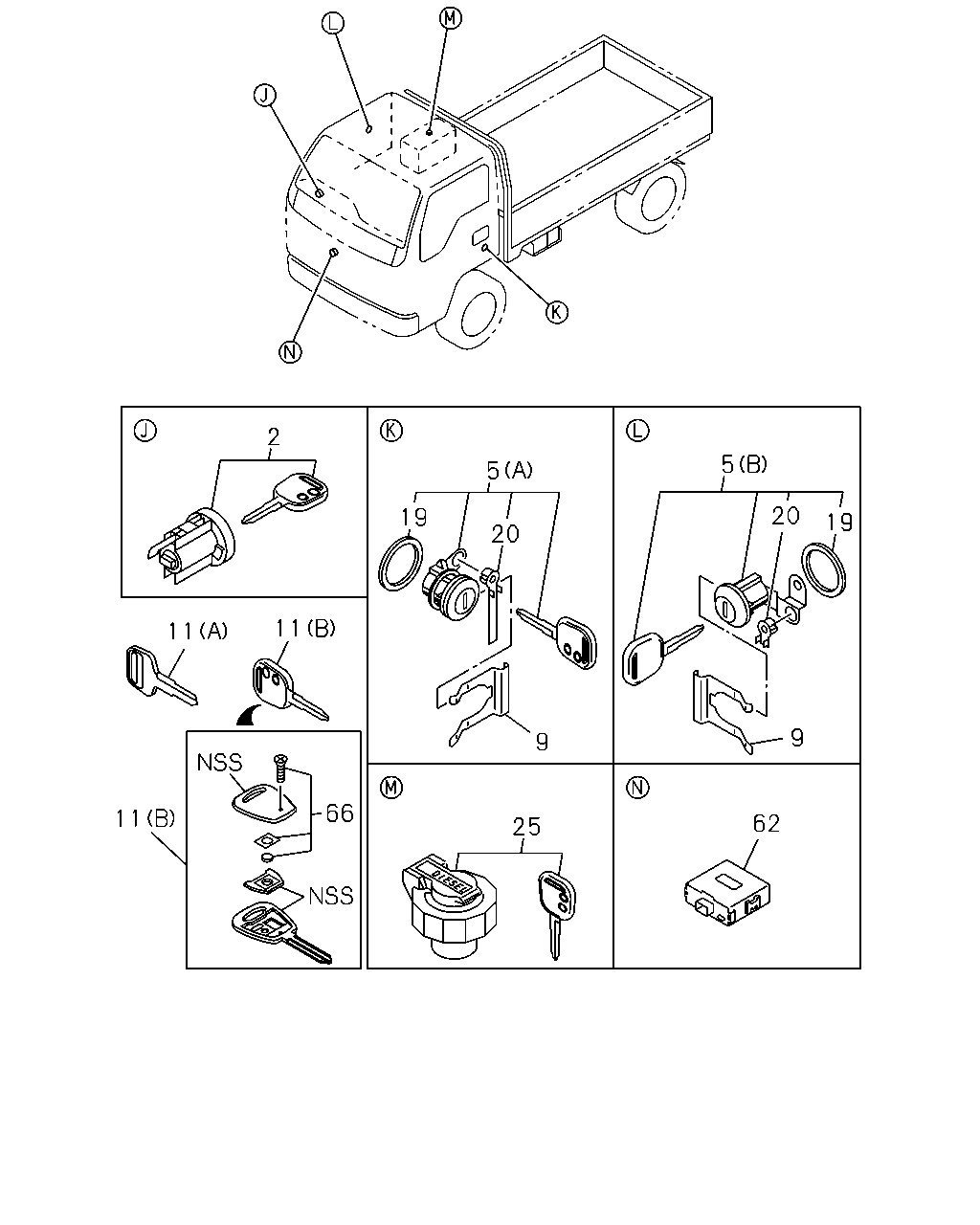

çizim 69363
2 5 5 20 19 19 20 11 11 9 9 66 11 62 25
BalonParca AdiParca NoAdetTipApplied Date A B C
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. MARK VEHICLE NAME<EK7> 		8-97868-202-0 01 1 0211-0501 ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98007-235-0 01 1 0502- ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. MARK VEHICLE NAME<EK7> (B) 		8-97868-203-0 01 1 0211-0501 ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98007-236-0 01 1 0502- ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. MARK VEHICLE NAME<EK7> (A) 		8-97868-204-0 01 1 0211-0501 ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98007-237-0 01 1 0502- ● ● ●
9 16.328 CLIP; DOOR LOCK 8-97898-277-0 02 1 0211-0610 ● ● ●
9 16.328 CLIP; DOOR LOCK 8-97410-786-0 02 1 0611- ● ● ●
11 02.187 KEY; BLANK
EXC. MARK VEHICLE NAME<EK7> (A) WO/NOTCH 		8-97076-337-0 AR 1 0211-0501 ● ● ●
11 02.187 KEY; BLANK
(A) WO/NOTCH 		8-97890-854-0 AR 1 0502- ● ● ●
11 02.187 KEY; BLANK
EXC. MARK VEHICLE NAME<EK7> (B) WO/NOTCH 		8-97121-677-1 AR 1 0211-0501 ● ● ●
19 16.328 GASKET; DOOR LOCK CYL
EXC. MARK VEHICLE NAME<EK7> 		8-94128-739-0 02 1 0211-0501 ● ● ●
19 16.328 GASKET; DOOR LOCK CYL 8-94128-739-0 02 1 0502- ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
EXC. MARK VEHICLE NAME<EK7> 10.474 YELLOW 		8-97040-452-0 01 1 0211-0501 ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 YELLOW 		8-97040-452-0 01 1 0502- ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
EXC. MARK VEHICLE NAME<EK7> 10.474 BROWN 		8-97040-453-0 01 1 0211-0501 ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 BROWN 		8-97040-453-0 01 1 0502- ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> EXC. MARK VEHICLE NAME<EK7> 		8-97868-205-0 01 1 0211-0501 ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-98007-238-0 01 1 0502- ● ● ●
62 02.195 CONTROLLER; LOCK CYL,12V
EXC. MARK VEHICLE NAME<EK7> 		8-97122-162-0 01 1 0211-0501 ● ● ●
62 02.195 CONTROLLER; LOCK CYL,12V 8-97122-162-0 01 1 0502- ● ● ●
66 02.195 BATTERY SET; TRANSMITTER KEY
EXC. MARK VEHICLE NAME<EK7> 		8-97869-042-0 01 1 0211-0501 ● ● ●
66 02.195 BATTERY SET; TRANSMITTER KEY 8-97869-042-0 01 1 0502- ● ● ●

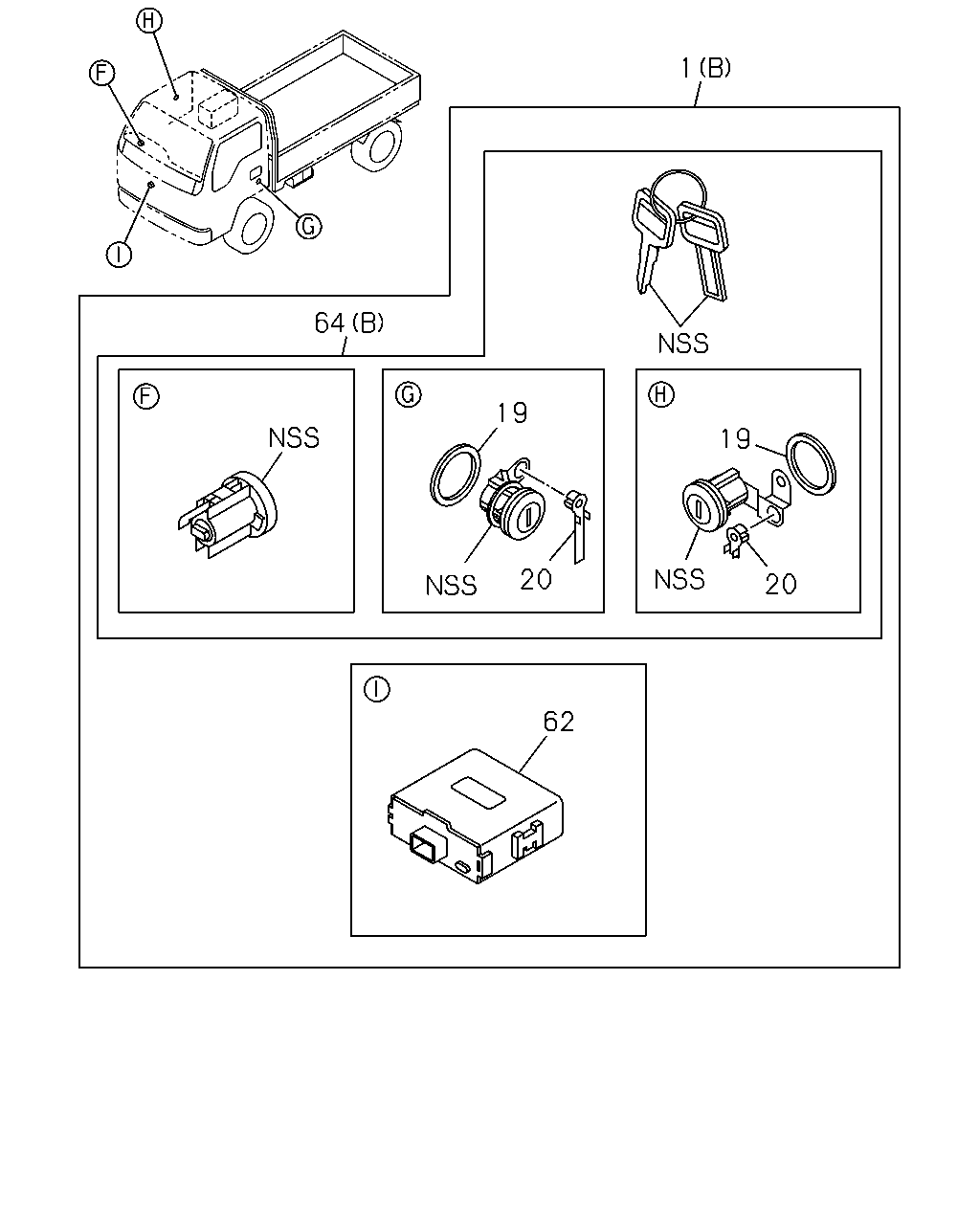

çizim 71566
1 64 19 19 20 20 62
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. MARK VEHICLE NAME<EK7> (A) 		8-97122-160-1 01 1 0211-0501 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> (A) 		8-97410-693-0 01 1 0502- ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. MARK VEHICLE NAME<EK7>,FUEL TANK CAP W/LOCK<N05> (B) 		8-97122-161-1 01 1 0211-0501 ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> (B) 		8-97410-692-0 01 1 0502- ● ● ●
19 16.328 GASKET; DOOR LOCK CYL
EXC. MARK VEHICLE NAME<EK7> 		8-94128-739-0 02 1 0211-0501 ● ● ●
19 16.328 GASKET; DOOR LOCK CYL 8-94128-739-0 02 1 0502- ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
EXC. MARK VEHICLE NAME<EK7> 10.474 YELLOW 		8-97040-452-0 01 1 0211-0501 ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 YELLOW 		8-97040-452-0 01 1 0502- ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
EXC. MARK VEHICLE NAME<EK7> 10.474 BROWN 		8-97040-453-0 01 1 0211-0501 ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 BROWN 		8-97040-453-0 01 1 0502- ● ● ●
62 02.195 CONTROLLER; LOCK CYL,12V
EXC. MARK VEHICLE NAME<EK7> 		8-97122-162-0 01 1 0211-0501 ● ● ●
62 02.195 CONTROLLER; LOCK CYL,12V 8-97122-162-0 01 1 0502- ● ● ●
64 02.188 CYLINDER SET; LOCK,W/O CONTROLLE
FUEL TANK CAP W/LOCK<N05> EXC. MARK VEHICLE NAME<EK7> (A) 		8-97868-215-0 01 1 0211-0501 ● ● ●
64 02.188 CYLINDER SET; LOCK,W/O CONTROLLE
FUEL TANK CAP W/LOCK<N05> (A) 		8-98007-240-0 01 1 0502- ● ● ●
64 02.188 CYLINDER SET; LOCK,W/O CONTROLLE
EXC. MARK VEHICLE NAME<EK7>,FUEL TANK CAP W/LOCK<N05> (B) 		8-97868-214-0 01 1 0211-0501 ● ● ●
64 02.188 CYLINDER SET; LOCK,W/O CONTROLLE
EXC. FUEL TANK CAP W/LOCK<N05> (B) 		8-98007-239-0 01 1 0502- ● ● ●
