7-20 — MIRROR AND MIRROR STAY (#38110) — 95 parça

4 162 2 159 3 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.068 MIRROR; ROOM EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97582-926-2	01	1	0502-	●	●	●
1	16.068 MIRROR; ROOM DARK GRAY	8-97868-663-1	01	1	0211-0501	●	●	●
1	16.068 MIRROR; ROOM TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97582-925-1	01	1	0502-	●	●	●
2	16.069 SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> 16.263 M5X16	8-94279-341-0	02	1	0502-0612	●	●	●
2	16.069 SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> M5X16 W/TORQUES	8-98061-741-0	02	1	0701-0702	●	●	●
2	16.069 SCREW; MIRROR TO BODY EXC. TRAY ROOF HEAD<7EJ> 16.263 M5X16	8-94279-341-0	02	1	0703-	●	●	●
2	16.069 SCREW; MIRROR TO BODY 03.671 M5X20	5-09981-059-0	02	1	0211-0501	●	●	●
2	16.069 SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	0502-0612	●	●	●
2	16.069 SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	0701-0702	●	●	●
2	16.069 SCREW; MIRROR TO BODY TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	0703-	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31	8-97859-098-2	01	1	0211-	●	●	●
3	16.069 STOPPER; RR VIEW MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=22	8-97857-352-1	01	1	0211-	●	●	●
4	16.069 GROMMET; SCREW,ROOM MIRROR 16.588	8-94279-039-0	01	1	0211-0501	●	●	●
4	16.069 GROMMET; SCREW,ROOM MIRROR TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	01	1	0502-	●	●	●
158	16.495 LENS; ROOM LAMP 16.068	5-73117-108-1	01	1	0211-	●	●	●
159	08.991 BULB; ROOM LAMP 12V 10W	8-97128-771-0	01	1	0211-	●	●	●
162	16.069 SEAL; ROOM LAMP	8-97856-532-0	01	1	0211-0501	●	●	●
162	16.069 SEAL; ROOM LAMP TRAY ROOF HEAD<7EJ>	8-97856-532-0	01	1	0502-	●	●	●

90 92 19 71 185 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	10.186 GASKET; MIRROR 16.588	8-97857-925-0	02	1	0211-0501	●	●	●
19	10.186 GASKET; MIRROR 16.588	8-97857-925-0	02	1	0211-0501	●	●	●
71	16.069 BRACKET; OUTSIDE MIRROR	8-97581-620-2	01	1	0502-0611	●	●	●
71	16.069 BRACKET; OUTSIDE MIRROR DOOR MIRROR<6VE>	8-97581-620-2	01	1	0612-	●	●	●
71	16.069 BRACKET; OUTSIDE MIRROR	8-97581-621-2	01	1	0502-0611	●	●	●
71	16.069 BRACKET; OUTSIDE MIRROR DOOR MIRROR<6VE>	8-97581-621-2	01	1	0612-	●	●	●
90	16.069 BRACKET; MIRROR STAY 16.588	8-97868-527-0	01	1	0211-0501	●	●	●
90	16.069 BRACKET; MIRROR STAY 16.588	8-97868-527-0	01	1	0211-0501	●	●	●
90	16.069 BRACKET; MIRROR STAY 16.588	8-97868-528-0	01	1	0211-0501	●	●	●
90	16.069 BRACKET; MIRROR STAY 16.588	8-97868-528-0	01	1	0211-0501	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR EXC. DOOR MIRROR<6VE> M8X30 W/LK WASHER	8-98020-347-0	10	1	0612-	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	0211-0501	●	●	●
185	16.069 BOLT; BRKT M8X30 W/LK WASHER	8-94279-183-1	06	1	0502-0504	●	●	●
185	16.069 BOLT; BRKT M8X12.5 HEX SOCKET W/LK WASHER	8-97232-181-0	06	1	0505-0610	●	●	●
185	16.069 BOLT; BRKT M8X12.5 W/LK WASHER	8-98020-348-0	06	1	0611-0611	●	●	●
185	16.069 BOLT; BRKT DOOR MIRROR<6VE> M8X12.5 W/LK WASHER	8-98020-348-0	06	1	0612-	●	●	●

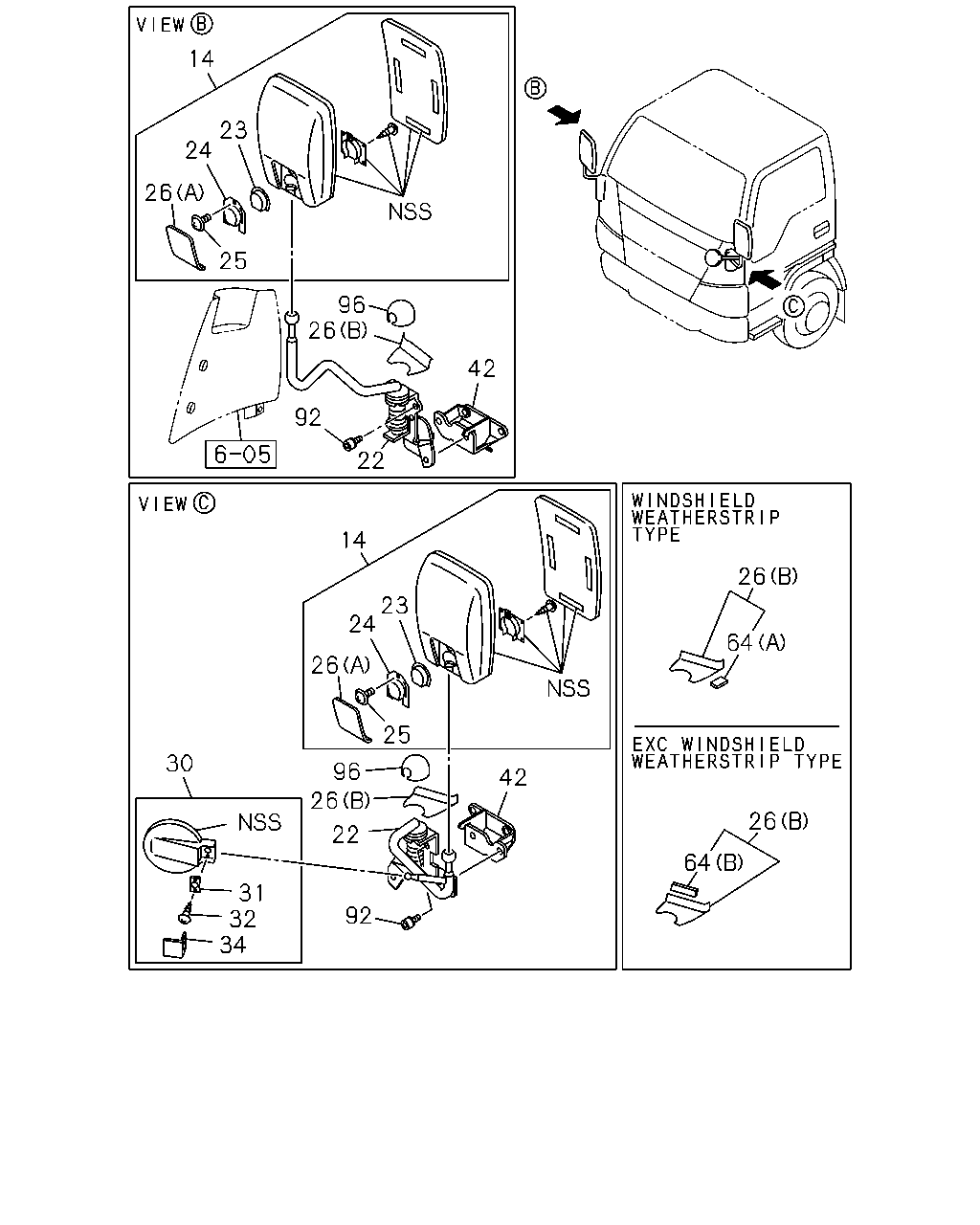

14 23 24 26 25 96 26 42 92 22 14 26 23 24 64 26 25 30 96 26 42 26 22 64 31 32 34 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	16.068 MIRROR ASM; OUTSIDE EXC. DOOR MIRROR<6VE>	8-94262-542-3	01	1	0612-	●	●	●
14	16.068 MIRROR ASM; OUTSIDE O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-94262-542-3	01	1	0612-	●	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF>	8-97581-745-5	01	1	0612-0701	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF>	8-98039-579-1	01	1	0702-	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> EXC. UNDER MIRROR<RR9>	8-97583-376-3	01	1	0612-0701	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> EXC. UNDER MIRROR<RR9> 06.069	8-98039-586-1	01	1	0702-	●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>	8-97581-747-5	01	1	0612-0701	●	●	●
22	16.069 STAY; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>	8-98039-581-1	01	1	0702-	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37> UNDER MIRROR<RR9>	8-97583-374-5	01	1	0612-0701			●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37> UNDER MIRROR<RR9>	8-98039-583-1	01	1	0702-			●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37> EXC. UNDER MIRROR<RR9>	8-97583-375-4	01	1	0612-0701			●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37> EXC. UNDER MIRROR<RR9>	8-98039-585-1	01	1	0702-			●
23	16.069 WASHER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=2.0	8-94262-545-0	01	1	0612-	●	●	●
23	16.069 WASHER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=2.0	8-94262-545-0	01	1	0612-	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> T=1.6	8-94262-546-1	01	1	0612-	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=1.6	8-94262-546-1	01	1	0612-	●	●	●
25	16.069 SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> M6X30	8-94279-365-0	01	1	0612-	●	●	●
25	16.069 SCREW; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M6X30	8-94279-365-0	01	1	0612-	●	●	●
26	16.069 COVER; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE> (A) T=2.3	8-94262-547-2	01	1	0612-	●	●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) T=2.3	8-94262-547-2	01	1	0612-	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE> (B) WHITE	8-97589-159-1	01	1	0612-	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE> (B) WHITE	8-97589-166-0	01	1	0612-	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR FT ORANGE(609) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BEIGE	8-97588-871-5	01	1	0612-0807	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR FT ORANGE(609) EXC. IDENTIFICATION LABEL FOR KD<6UT>, DOOR MIRROR<6VE> (B) BEIGE	8-97588-871-5	01	1	0808-0809	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR FT ORANGE(609) IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BEIGE	8-97588-871-5	01	1	0808-0809	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR FT ORANGE(609) EXC. DOOR MIRROR<6VE>,KD PREPARATORY PACK VAR.4<7TV> (B) BEIGE	8-97588-871-5	01	1	0810-	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR FT ORANGE(609) KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BEIGE	8-97588-871-5	01	1	0810-	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR FT ORANGE(609) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BEIGE	8-97588-872-4	01	1	0612-0807	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR FT ORANGE(609) EXC. IDENTIFICATION LABEL FOR KD<6UT>, DOOR MIRROR<6VE> (B) BEIGE	8-97588-872-4	01	1	0808-0809	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR FT ORANGE(609) IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BEIGE	8-97588-872-4	01	1	0808-0809	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR FT ORANGE(609) EXC. DOOR MIRROR<6VE>,KD PREPARATORY PACK VAR.4<7TV> (B) BEIGE	8-97588-872-4	01	1	0810-	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR FT ORANGE(609) KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BEIGE	8-97588-872-4	01	1	0810-	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-831-5	01	1	0612-0807	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. IDENTIFICATION LABEL FOR KD<6UT>, DOOR MIRROR<6VE> (B) WHITE	8-97582-831-5	01	1	0808-0809	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-831-5	01	1	0808-0809	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,KD PREPARATORY PACK VAR.4<7TV> (B) WHITE	8-97582-831-5	01	1	0810-	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-831-5	01	1	0810-	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-840-4	01	1	0612-0807	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. IDENTIFICATION LABEL FOR KD<6UT>, DOOR MIRROR<6VE> (B) WHITE	8-97582-840-4	01	1	0808-0809	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-840-4	01	1	0808-0809	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) EXC. DOOR MIRROR<6VE>,KD PREPARATORY PACK VAR.4<7TV> (B) WHITE	8-97582-840-4	01	1	0810-	●	●	●
26	16.069 COVER; OUTSIDE MIRROR BODY COLOR ARC WHITE(729) KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE	8-97582-840-4	01	1	0810-	●	●	●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF>	8-94262-625-2	01	1	0612-	●	●
30	16.068 MIRROR; UNDER O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37> UNDER MIRROR<RR9>	8-94262-625-2	01	1	0612-			●
31	16.069 PLATE; MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF>	8-94262-631-0	01	1	0612-	●	●
31	16.069 PLATE; MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37> UNDER MIRROR<RR9>	8-94262-631-0	01	1	0612-			●
32	16.069 SCREW; UNDER MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF> M5X18	8-94279-372-0	02	1	0612-	●	●
32	16.069 SCREW; UNDER MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37> UNDER MIRROR<RR9> M5X18	8-94279-372-0	02	1	0612-			●
34	16.069 CAP; MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF>	8-94262-629-0	01	1	0612-	●	●
34	16.069 CAP; MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL SHORT S TAY<D37> UNDER MIRROR<RR9>	8-94262-629-0	01	1	0612-			●
42	16.069 ATTACHMENT; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>	8-97581-625-2	01	1	0612-	●	●	●
42	16.069 ATTACHMENT; OUTSIDE MIRROR EXC. DOOR MIRROR<6VE>	8-97581-755-2	01	1	0612-	●	●	●
64	16.069 SEAL; MIRROR BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. DOOR MIRROR<6VE> (A)	8-98015-058-0	02	1	0612-	●	●	●
64	16.069 SEAL; MIRROR EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-98015-057-0	02	1	0612-0807	●	●	●
64	16.069 SEAL; MIRROR EXC. IDENTIFICATION LABEL FOR KD<6UT>, DOOR MIRROR<6VE> (B)	8-98015-057-0	02	1	0808-0809	●	●	●
64	16.069 SEAL; MIRROR IDENTIFICATION LABEL FOR KD<6UT> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-98015-057-0	02	1	0808-0809	●	●	●
64	16.069 SEAL; MIRROR EXC. DOOR MIRROR<6VE>,KD PREPARATORY PACK VAR.4<7TV> (B)	8-98015-057-0	02	1	0810-	●	●	●
64	16.069 SEAL; MIRROR KD PREPARATORY PACK VAR.4<7TV> EXC. DOOR MIRROR<6VE>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-98015-057-0	02	1	0810-	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR EXC. DOOR MIRROR<6VE> M8X30 W/LK WASHER	8-98020-347-0	10	1	0612-	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR M8X30 W/LK WASHER	8-94279-183-1	06	1	0211-0501	●	●	●
96	16.069 CAP; MIRROR STAY EXC. DOOR MIRROR<6VE>	8-97581-631-2	02	1	0612-	●	●	●
