◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51405 - NHR(RHD)EURO4 W/DOC ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#38099) — 24 parça
çizim 114974
376 376 376 376 376 60 62
BalonParca AdiParca NoAdetTipApplied Date
60 05.601 BOLT; MBR
07.039 M10X30 		0-20851-030-0 04 1 1202-
62 05.601 NUT; MBR
04.085 M10 FLANGE 		0-91180-210-0 04 1 1202-
376 07.039 RIVET; FRAME
(A) D10X24 TAPER END 		9-06751-024-0 AR 1 1202-
376 07.039 RIVET; FRAME
(B) D10X26 TAPER END 		9-06751-026-0 AR 1 1202-
376 07.039 RIVET; FRAME
(C) D10X30 TAPER END 		9-06751-030-0 AR 1 1202-
376 07.039 RIVET; FRAME
(D) D10X32 TAPER END 		9-06751-032-0 AR 1 1202-
376 07.039 RIVET; FRAME
07.105 (E) D12X30 TAPER END 		9-06751-230-0 AR 1 1202-
çizim 114975
2 20 34 75 75 345
BalonParca AdiParca NoAdetTipApplied Date
2 07.010 MEMBER; CROSS,1ST 8-97384-741-5 01 1 1202-
20 07.012 MEMBER; CROSS,2ND 8-98038-419-2 01 1 1202-
34 07.012 MEMBER; CROSS,3RD 8-97384-743-1 01 1 1202-
75 07.039 GUSSET; 5TH C/MBR 8-98011-863-0 04 1 1202-
345 07.012 MEMBER; CROSS,5TH 8-98011-861-2 01 1 1202-

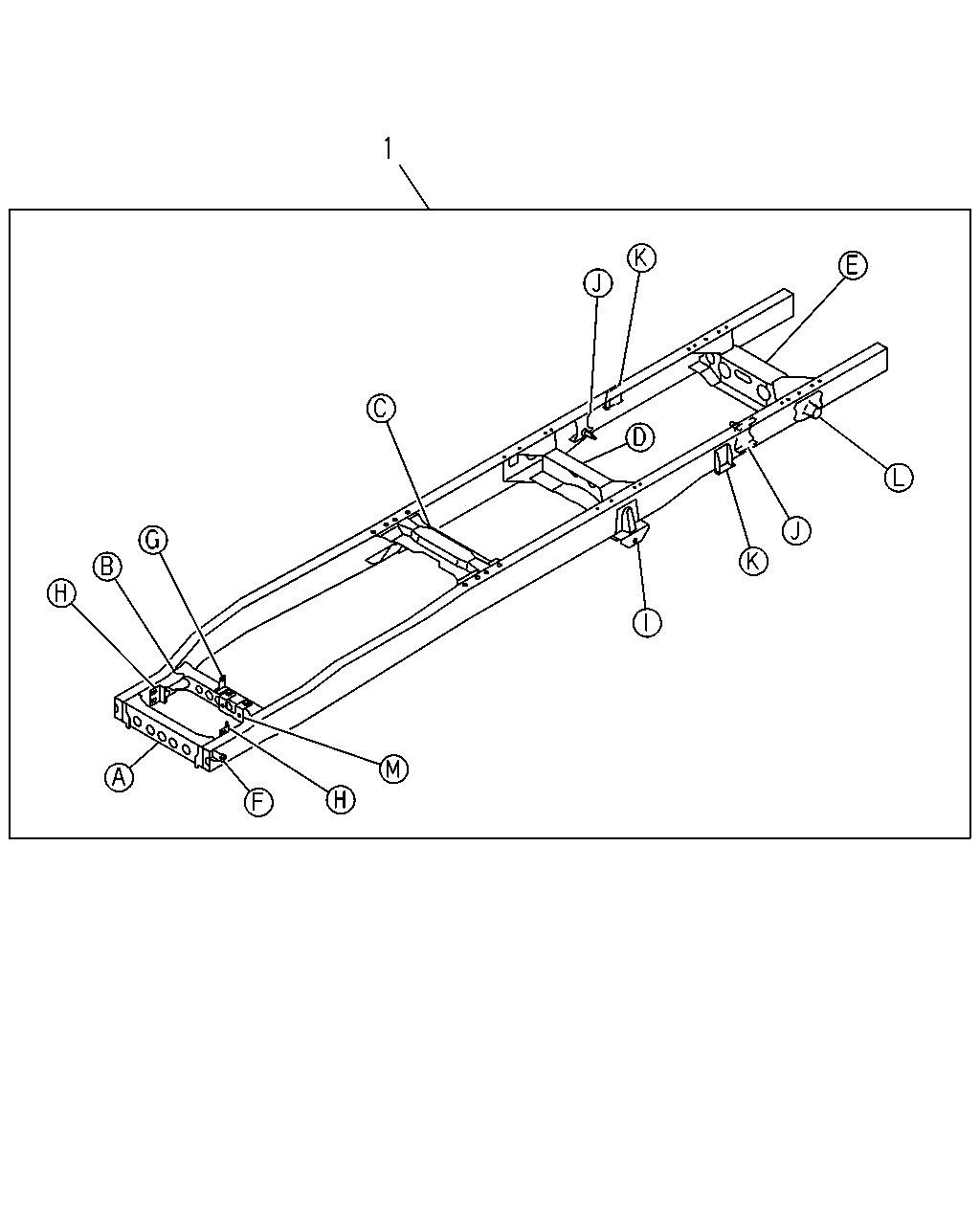

çizim 114977
1
BalonParca AdiParca NoAdetTipApplied Date
1 07.003 FRAME ASM 8-98189-791-0 01 1 1202-

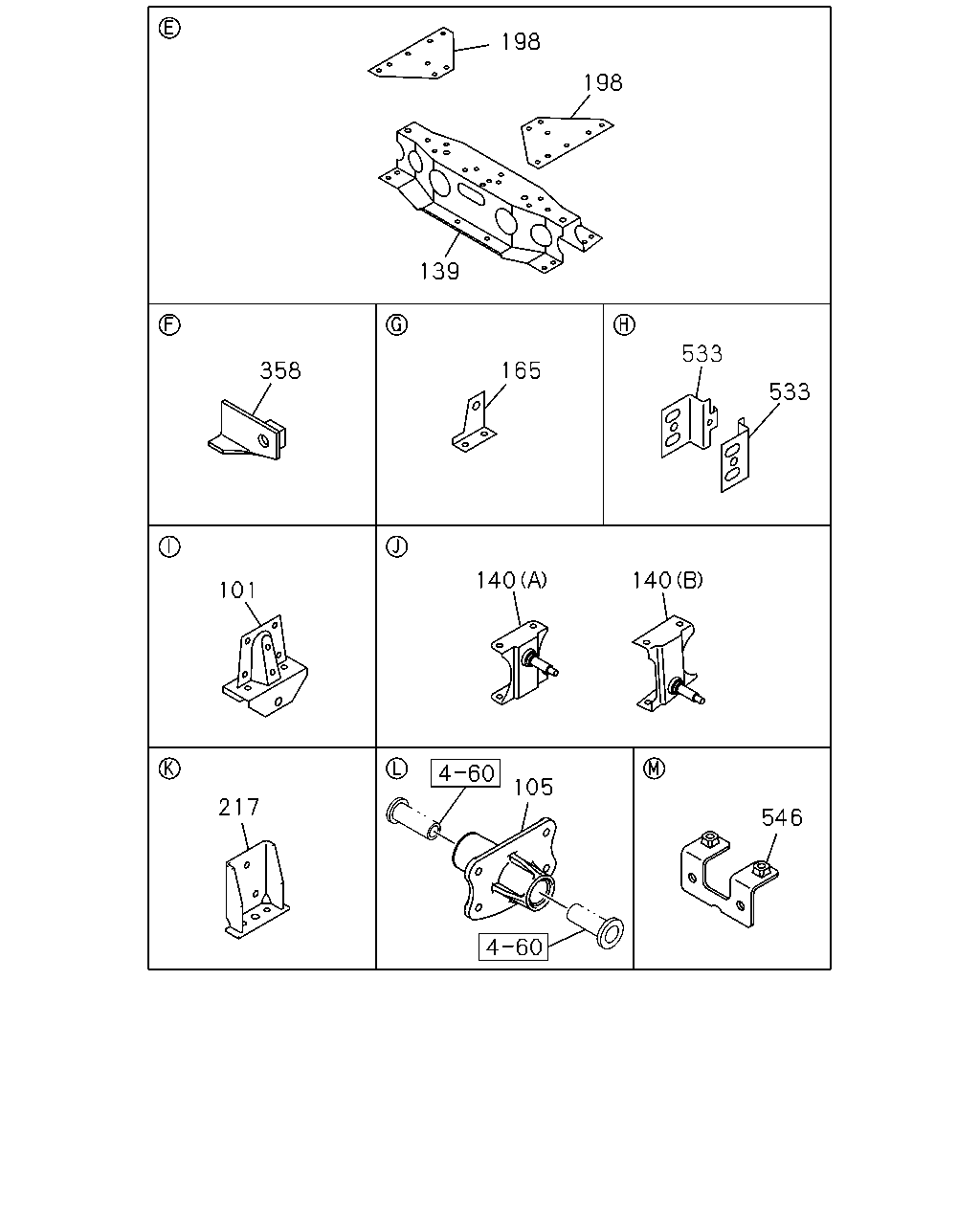

çizim 114982
198 198 139 533 358 165 533 140 140 101 105 217 546
BalonParca AdiParca NoAdetTipApplied Date
101 07.112 BRACKET; RR SPR,FRT 8-97164-485-1 02 1 1202-
105 07.112 BRACKET; RR SPR,RR 8-97164-482-0 02 1 1202-
139 07.012 MEMBER; CROSS,6TH 8-98006-168-1 01 1 1202-
140 07.112 BRACKET; S/ABS,RR
(B) 		8-98006-177-1 01 1 1202-
140 07.112 BRACKET; S/ABS,RR
(A) 		8-98006-179-1 01 1 1202-
165 01.270 BRACKET; RAD STAY 8-98000-886-0 01 1 1202-
198 07.039 GUSSET; 6TH C/MBR 8-98011-865-0 02 1 1202-
217 07.535 BRACKET; HELPER RUBBER,RR SPRING 8-97163-899-1 02 1 1202-
358 07.039 BRACKET; CAB EARTH 8-97232-590-0 01 1 1202-
533 07.010 STIFFENER; REINFORCEMENT 8-98006-680-1 02 1 1202-
546 03.671 BRACKET; ECM 8-98119-084-0 01 1 1202-
