Sayfa 4-80 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51405 - NHR(RHD)EURO4 W/DOC ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶

4-80 — ROAD WHEEL (#38098) — 22 parça

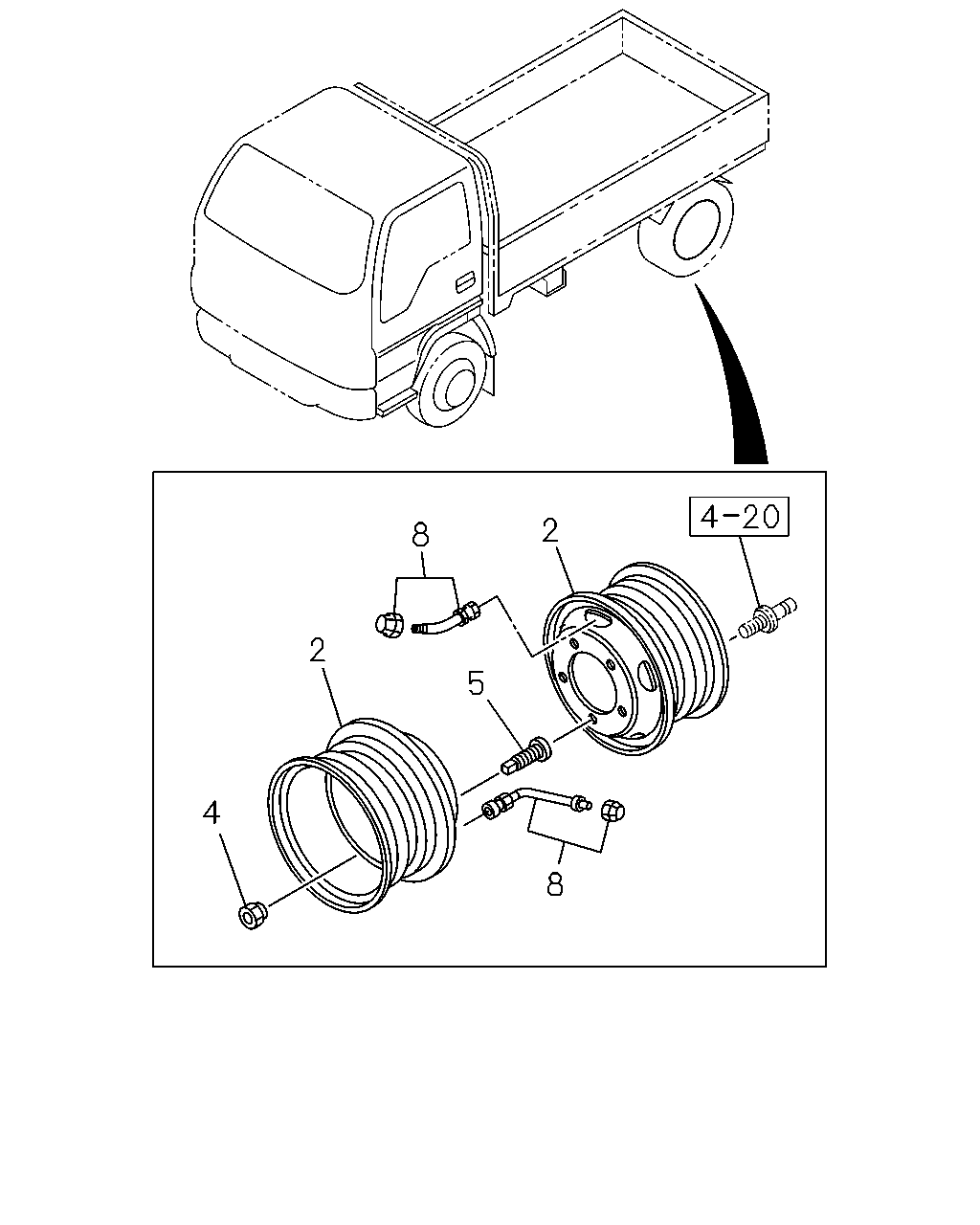

2 8 2 4 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	05.803 WHEEL; DISC SPARE 13X4J OFFSET=98 SILVER 6-HOLE	8-97145-127-0	01	1	1202-
2	05.803 WHEEL; DISC REAR 13X4J OFFSET=98 SILVER 6-HOLE	8-97145-127-0	04	1	1202-
2	05.803 WHEEL; DISC SPARE 15X5J OFFSET=116.5 PLATINUM SILVER	8-98002-072-0	01	1	1202-
2	05.803 WHEEL; DISC FRONT 15X5J OFFSET=116.5 PLATINUM SILVER	8-98002-072-0	02	1	1202-
4	05.813 NUT; WHEEL,RR AXLE M25 RH THREAD	8-98007-830-0	06	1	1202-
4	05.813 NUT; WHEEL,RR AXLE M25 LH THREAD	8-98007-831-0	06	1	1202-
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M25,INNER M16 RH THREAD	8-98007-828-0	06	1	1202-
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M25,INNER M16 LH THREAD	8-98007-829-0	06	1	1202-
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	1207-
8	05.875 VALVE; TIRE FRONT	8-98221-106-0	02	1	1207-
8	05.875 VALVE; TIRE SPARE	8-98221-108-0	01	1	1207-
8	05.875 VALVE; TIRE REAR	8-98221-108-0	04	1	1207-

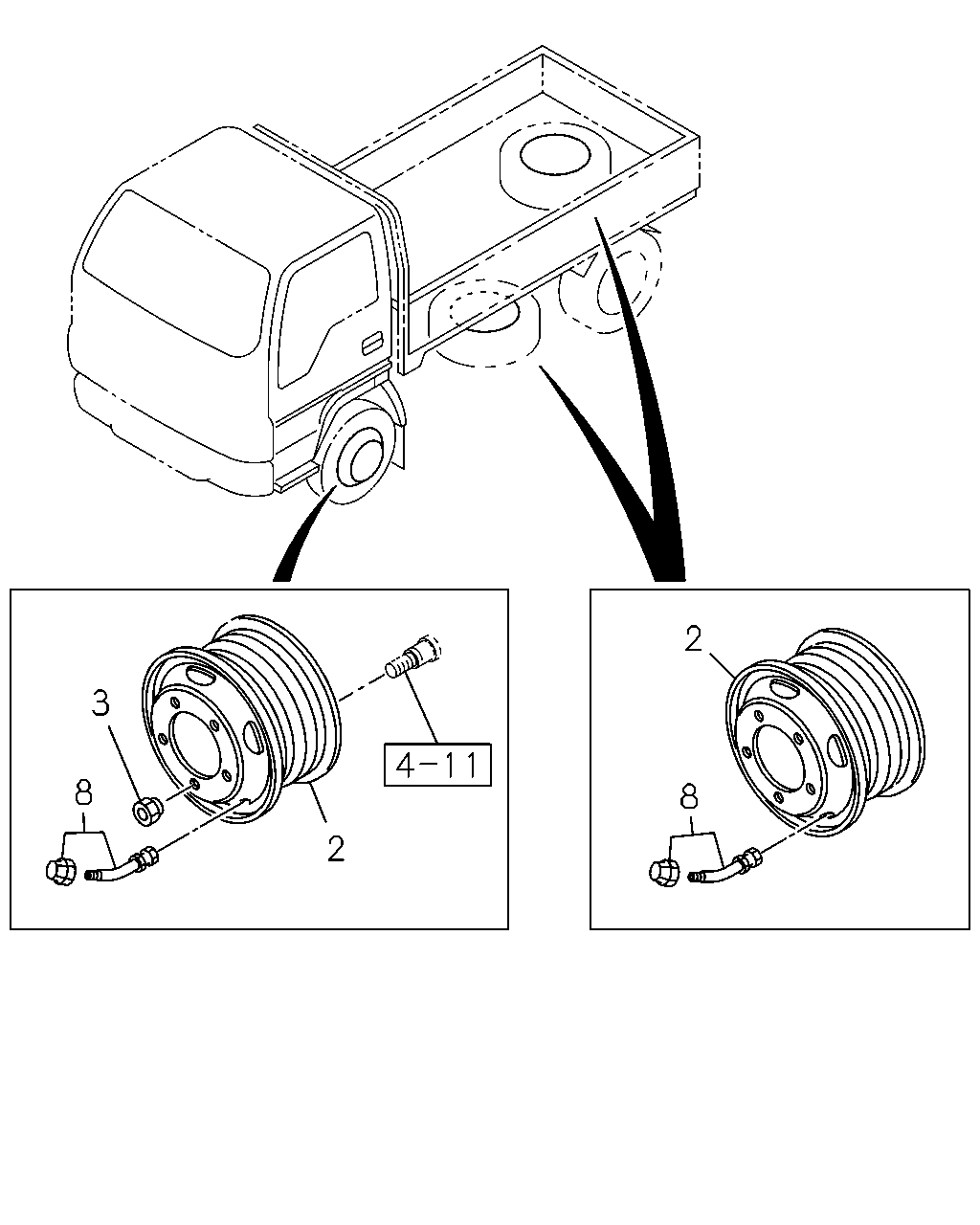

3 8 2 2 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	05.803 WHEEL; DISC SPARE 13X4J OFFSET=98 SILVER 6-HOLE	8-97145-127-0	01	1	1202-
2	05.803 WHEEL; DISC REAR 13X4J OFFSET=98 SILVER 6-HOLE	8-97145-127-0	04	1	1202-
2	05.803 WHEEL; DISC SPARE 15X5J OFFSET=116.5 PLATINUM SILVER	8-98002-072-0	01	1	1202-
2	05.803 WHEEL; DISC FRONT 15X5J OFFSET=116.5 PLATINUM SILVER	8-98002-072-0	02	1	1202-
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	1202-
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	1202-
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	1207-
8	05.875 VALVE; TIRE FRONT	8-98221-106-0	02	1	1207-
8	05.875 VALVE; TIRE SPARE	8-98221-108-0	01	1	1207-
8	05.875 VALVE; TIRE REAR	8-98221-108-0	04	1	1207-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
