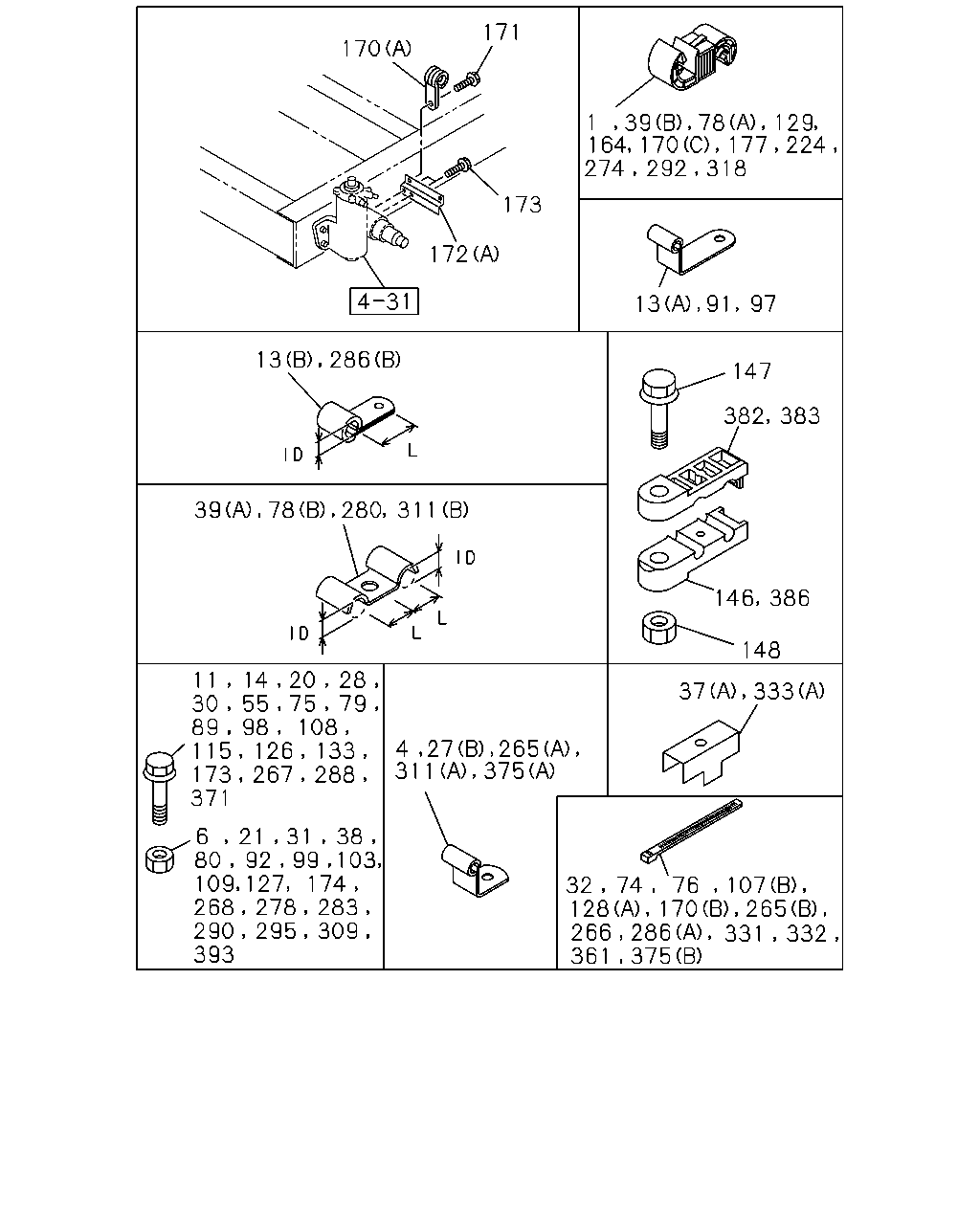

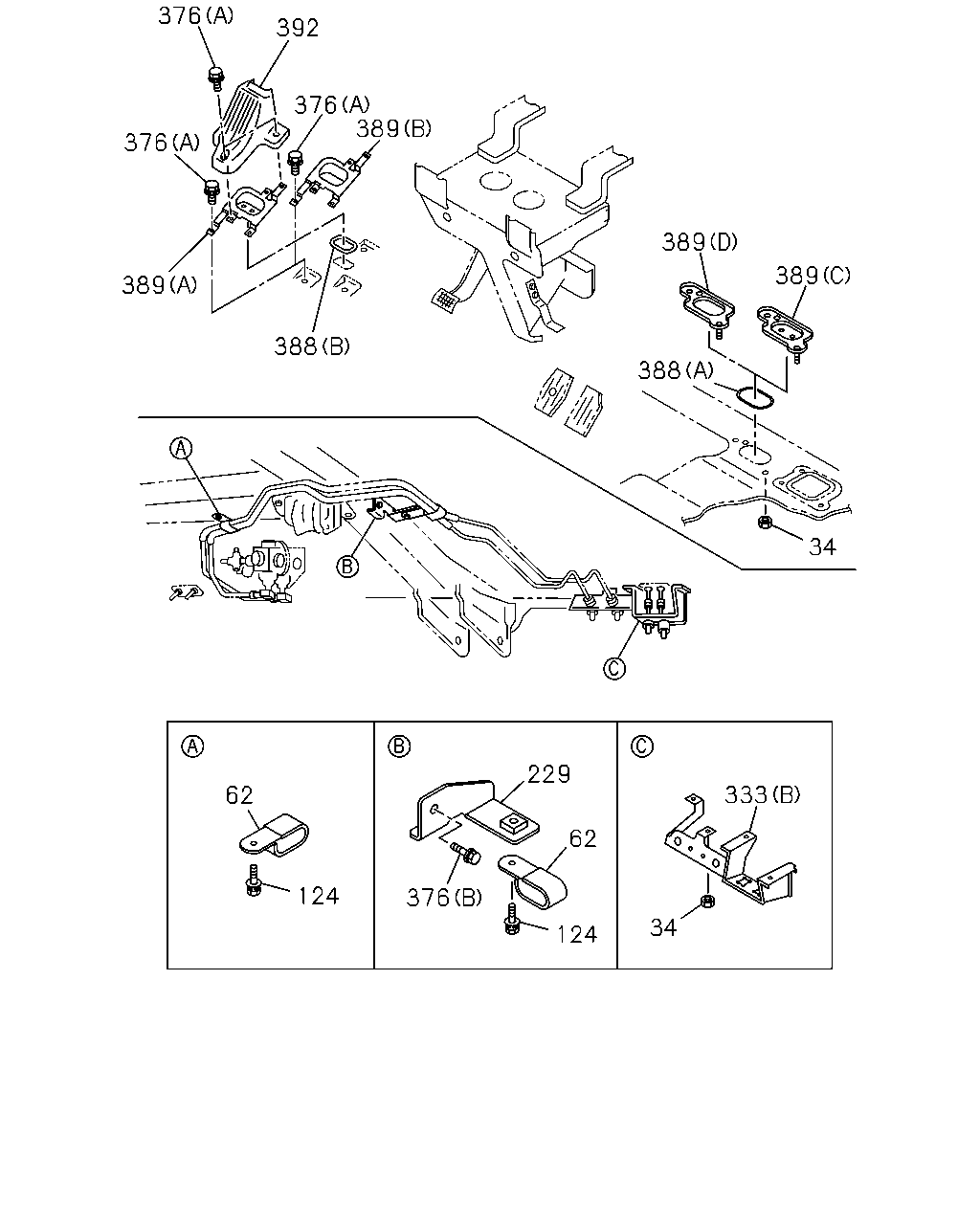

3-78 — FIXING PARTS; AIR PIPING (#3809) — 881 parça

171 170 1 129 173 172 13 91 97 147 39 311 148 11 108 115 126 133 371 37 333 38 393 107 128 332 39 78 164 170 177 224 318 292 274 382 383 13 286 78 280 14 28 30 55 75 79 89 98 173 267 288 6 31 80 92 99 103 109 127 174 268 278 283 290 295 309 4 27 265 311 375 146 386 32 76 170 265 331 286 266 361 375 20 21 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; AIR PIPE 6HE1 TC ENG(57L) ID=6.35 & 6.35	1-09709-273-1	01	1	9601-9705	●
1	CLIP; AIR PIPE 6HE1 TC ENG(57L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 6.35	1-09709-273-1	01	1	9706-9803	●
4	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 H=20 L=20	5-09700-351-0	01	1	9601-0004	●	●
4	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=11 H=20 L=20	5-09700-351-0	01	1	0005-0707	●	●
4	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●	●
6	NUT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9601-9606	●	●
6	NUT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9607-0004	●	●
6	NUT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	01	1	0005-0602	●	●
6	NUT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
11	BOLT; CLIP BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	01	1	0202-0512	●	●
11	BOLT; CLIP BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
13	CLIP; AIR PIPE 6HK1 TCC ENG(81L) (A) ID=7 L=38 H=21	1-09700-916-0	02	1	0608-	●
13	CLIP; AIR PIPE 6HH1 STD ENG(65L) (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9601-9705		●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9601-9705	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9706-9803	●	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9804-9806	●	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9807-0004	●	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0005-	●	●
13	CLIP; AIR PIPE 6HH1 STD ENG(65L) (B) ID=7 L=40	9-09524-675-0	01	1	9601-9705		●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) ID=7 L=40	9-09524-675-0	01	1	9601-9705	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) ID=7 L=40	9-09524-675-0	01	1	9706-9803	●	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> (B) ID=7 L=40	9-09524-675-0	01	1	9804-9806	●	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> (B) ID=7 L=40	9-09524-675-0	01	1	9807-0004	●	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) ID=7 L=40	9-09524-675-0	01	1	0005-0606	●	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) ID=7 L=40	0-95234-675-0	01	1	0607-	●	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L) (B) ID=7 L=20	9-09524-635-0	01	1	9601-9705	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L) (B) ID=7 L=20	9-09524-635-0	01	1	9706-9803	●	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> (B) ID=7 L=20	9-09524-635-0	01	1	9804-9806	●	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L) EXHAUST BRAKE<NF8> (B) ID=7 L=20	9-09524-635-0	01	1	9807-0004	●	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L) (B) ID=7 L=20	9-09524-635-0	01	1	0005-0606	●	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L) (B) ID=7 L=20	0-95234-635-0	01	1	0607-0607	●	●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L) (B) ID=7 L=20	0-95234-635-0	01	1	0608-		●
13	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HK1 TCC ENG(81L) (B) ID=7 L=20	0-95234-635-0	01	1	0608-	●
14	BOLT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	01	1	9601-9606	●	●
14	BOLT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9607-0004	●	●
14	BOLT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	01	1	0005-0512	●	●
14	BOLT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
20	BOLT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE	0-28650-830-0	01	1	0701-		●
20	BOLT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M8X30 FLANGE	0-28650-830-0	01	1	0701-	●
20	BOLT; CLIP 6SD1 STD ENG(37L),6HH1 STD ENG(65L) M8X20 FLANGE	0-28080-820-0	01	1	9601-9608	●	●
20	BOLT; CLIP 6SD1 STD ENG(37L),6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	01	1	9607-9705	●	●
20	BOLT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	01	1	9706-9803		●
20	BOLT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	01	1	9706-9803	●
20	BOLT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	01	1	9804-9806	●	●
20	BOLT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR ASSIST CLUTCH<PK1>,AIR HORN<WB8>,ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE	0-28680-825-0	01	1	9804-9806	●	●
20	BOLT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	01	1	9807-0004	●	●
20	BOLT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR ASSIST CLUTCH<PK1>,AIR HORN<WB8>,ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE	0-28680-825-0	01	1	9807-0004	●	●
20	BOLT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	01	1	0005-0512	●	●
20	BOLT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE	0-28680-825-0	01	1	0005-0512	●	●
20	BOLT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE	0-28650-825-0	01	1	0601-0607	●	●
20	BOLT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X25 FLANGE	0-28650-825-0	01	1	0601-0607	●	●
20	BOLT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE	0-28650-825-0	01	1	0608-0612	●	●
20	BOLT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X25 FLANGE	0-28650-825-0	01	1	0608-0612		●
20	BOLT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M8X25 FLANGE	0-28650-825-0	01	1	0608-0612	●
20	BOLT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> M8X25 FLANGE	0-28650-825-0	01	1	0701-	●	●
21	NUT; CLIP ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	03	1	9601-9606	●	●
21	NUT; CLIP ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	03	1	9607-0004	●	●
21	NUT; CLIP ZF 9S109 OD M/T(Y2L) M8 FLANGE	0-91150-108-0	03	1	0005-0602	●	●
21	NUT; CLIP ZF 9S109 OD M/T(Y2L) M8 FLANGE	0-91180-108-0	03	1	0603-1102	●	●
21	NUT; CLIP ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	1103-	●	●
21	NUT; CLIP 6SD1 STD ENG(37L),6HH1 STD ENG(65L) M8	9-09110-408-0	01	1	9601-9606	●	●
21	NUT; CLIP MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9601-9606	●	●
21	NUT; CLIP 6SD1 STD ENG(37L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	9607-9705	●	●
21	NUT; CLIP MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9607-9705	●	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9706-9803		●
21	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9706-9803	●
21	NUT; CLIP MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9804-9806	●	●
21	NUT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9804-9806	●	●
21	NUT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR ASSIST CLUTCH<PK1>,AIR HORN<WB8>,ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91150-108-0	01	1	9804-9806	●	●
21	NUT; CLIP MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9807-0004	●	●
21	NUT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9807-0004	●	●
21	NUT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR ASSIST CLUTCH<PK1>,AIR HORN<WB8>,ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91150-108-0	01	1	9807-0004	●	●
21	NUT; CLIP MAL6S M/T(Y1V),ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91150-108-0	01	1	0005-0602	●	●
21	NUT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	0005-0602	●	●
21	NUT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91150-108-0	01	1	0005-0602	●	●
21	NUT; CLIP MAL6S M/T(Y1V),ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	01	1	0603-0607	●	●
21	NUT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	01	1	0603-0607	●	●
21	NUT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	01	1	0603-0607	●	●
21	NUT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	01	1	0608-	●	●
21	NUT; CLIP MAL6S M/T(Y1V) M8 FLANGE	0-91180-108-0	01	1	0608-		●
21	NUT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	01	1	0608-		●
21	NUT; CLIP MAL6S M/T(Y1V),ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	01	1	0608-	●
21	NUT; CLIP 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M8 FLANGE	0-91180-108-0	01	1	0608-	●
21	NUT; CLIP 6SD1 STD ENG(37L),6HH1 STD ENG(65L) M8	9-09110-408-0	01	1	9607-9608	●	●
27	CLIP; FLEX HOSE ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=28 H=45 L=30	1-09700-948-0	01	1	9601-0004	●	●
27	CLIP; FLEX HOSE ZF 9S109 OD M/T(Y2L) (A) ID=28 H=45 L=30	1-09700-948-0	01	1	0005-0207	●	●
27	CLIP; FLEX HOSE ZF 9S109 OD M/T(Y2L) (A) ID=25 H=30 L=35	1-09700-875-0	02	1	0208-1102	●	●
27	CLIP; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) ID=25 H=30 L=35	1-09700-875-0	01	1	1103-	●	●
27	CLIP; FLEX HOSE ZF9S1110 M/T(Y5E) (A) ID=25 H=30 L=35	1-09700-875-0	01	1	1103-		●
27	CLIP; FLEX HOSE ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=25 H=60 L=35	1-09701-103-0	01	1	9601-0004	●	●
27	CLIP; FLEX HOSE ZF 9S109 OD M/T(Y2L) (B) ID=25 H=60 L=35	1-09701-103-0	01	1	0005-1102	●	●
27	CLIP; FLEX HOSE ZF9S1110 M/T(Y5E) (B) ID=25 H=60 L=35	1-09701-103-0	02	1	1103-		●
27	CLIP; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=25 H=30 L=35	1-09700-875-0	02	1	9601-9605	●	●
27	CLIP; FLEX HOSE MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=25 H=30 L=35	1-09700-875-0	02	1	9601-9605	●	●
27	CLIP; FLEX HOSE MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=25 H=30 L=35	1-09700-875-0	03	1	9606-0004	●	●
27	CLIP; FLEX HOSE MAL6S M/T(Y1V),ALLISON MD3060P A/T(Y4G) (A) ID=25 H=30 L=35	1-09700-875-0	03	1	0005-	●	●
27	CLIP; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=25 H=30 L=35	1-09700-875-0	01	1	9606-0004	●	●
27	CLIP; FLEX HOSE ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=25 H=30 L=35	1-09700-875-0	01	1	9606-0004	●	●
27	CLIP; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) ID=25 H=30 L=35	1-09700-875-0	01	1	0005-0207	●	●
27	CLIP; FLEX HOSE ZF 9S109 OD M/T(Y2L) (A) ID=25 H=30 L=35	1-09700-875-0	01	1	0005-0207	●	●
27	CLIP; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) ID=25 H=30 L=35	1-09700-875-0	01	1	0208-1102	●	●
28	BOLT; CLIP,FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	04	1	9601-9606	●	●
28	BOLT; CLIP,FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	04	1	9607-0004	●	●
28	BOLT; CLIP,FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X25 FLANGE	0-28680-825-0	04	1	0005-0209	●	●
28	BOLT; CLIP,FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X20 FLANGE	0-28680-820-0	04	1	0210-0512	●	●
28	BOLT; CLIP,FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
30	BOLT; CLIP BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28080-830-0	01	1	9601-9606	●	●
30	BOLT; CLIP BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28680-835-0	01	1	9607-0004	●	●
30	BOLT; CLIP BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X35 FLANGE	0-28680-835-0	01	1	0005-0512	●	●
30	BOLT; CLIP BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X35 FLANGE	0-28650-835-0	01	1	0601-	●	●
31	NUT; CLIP BRKT 6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	5-09440-006-0	02	1	9601-9605	●	●
31	NUT; CLIP BRKT MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	5-09440-006-0	03	1	9606-0004	●	●
31	NUT; CLIP BRKT MAL6S M/T(Y1V),ALLISON MD3060P A/T(Y4G) M10 FLANGE	5-09440-006-0	03	1	0005-	●	●
31	NUT; CLIP BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9601-9606	●	●
31	NUT; CLIP BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9607-0004	●	●
31	NUT; CLIP BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	01	1	0005-0602	●	●
31	NUT; CLIP BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
32	CLIP; BAND,RUBBER SLEEVE ZF 9S109 OD M/T(Y2L) L=250	1-09707-126-0	01	1	9604-1102	●	●
32	CLIP; BAND,RUBBER SLEEVE ZF 9S109 OD M/T(Y2L),ZF9S1110 M/T(Y5E) L=250	1-09707-126-0	01	1	1103-	●	●
37	BRACKET; PIPE CLIP 6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> (A)	1-47475-427-1	02	1	9809-0004	●
37	BRACKET; PIPE CLIP 6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> (B) M8 W/NUT	1-47475-729-0	01	1	9809-0004	●
38	NUT; BRKT 6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9809-0004	●
39	CLIP; AIR PIPE (A) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9601-0004		●
39	CLIP; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9601-0004	●
39	CLIP; AIR PIPE (A) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0005-0109	●	●
39	CLIP; AIR PIPE EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0110-	●	●
39	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) ID=6.35 & 15	1-09709-276-1	01	1	9804-9806		●
39	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) ID=6.35 & 15	1-09709-276-1	01	1	9804-9806	●
39	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (B) ID=6.35 & 15	1-09709-276-1	01	1	9807-9808		●
39	CLIP; AIR PIPE 6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> (B) ID=6.35 & 15	1-09709-276-1	01	1	9807-9808	●
39	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) ID=6.35 & 15	1-09709-276-1	01	1	9807-9808	●
39	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (B) ID=6.35 & 15	1-09709-276-1	01	1	9809-0004		●
39	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (B) ID=6.35 & 15	1-09709-276-1	01	1	9809-0004	●
39	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) ID=6.35 & 15	1-09709-276-1	01	1	0005-0109	●	●
39	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> (B) ID=6.35 & 15	1-09709-276-1	01	1	0110-0607	●	●
39	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> (B) ID=6.35 & 15	1-09709-276-1	01	1	0608-		●
39	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) EXC. AIR DRYER<PS7> (B) ID=6.35 & 15	1-09709-276-1	01	1	0608-	●
39	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> (B) ID=15 & 15	1-09709-282-1	01	1	0110-0612	●	●
39	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> (B) ID=15 & 15	1-09709-282-1	01	1	0701-	●	●
39	CLIP; AIR PIPE 6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9809-0004	●
39	CLIP; AIR PIPE 6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	9809-0004	●
39	CLIP; AIR PIPE 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) ID=15 & 15 ID=15 & 15	1-09709-282-1	01	1	9601-9609	●
39	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) ID=15 & 15 ID=15 & 15	1-09709-282-1	01	1	9610-9806	●
39	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) ID=15 & 15	1-09709-282-1	01	1	9807-9808	●
39	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> (B) ID=15 & 15	1-09709-282-1	01	1	9809-0004	●
55	BOLT; PIPE CLIP 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	04	1	9601-9606	●	●
55	BOLT; PIPE CLIP 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	04	1	9607-9705	●	●
55	BOLT; PIPE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	04	1	9706-9806		●
55	BOLT; PIPE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	04	1	9706-9806	●
55	BOLT; PIPE CLIP 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	04	1	9807-0004		●
55	BOLT; PIPE CLIP 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	04	1	9807-0004	●
55	BOLT; PIPE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	04	1	0005-0512	●	●
55	BOLT; PIPE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE	0-28650-830-0	04	1	0601-0607	●	●
55	BOLT; PIPE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE	0-28650-830-0	04	1	0608-		●
55	BOLT; PIPE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M8X30 FLANGE	0-28650-830-0	04	1	0608-	●
55	BOLT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●
55	BOLT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	02	1	9607-0004	●	●
55	BOLT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●	●
55	BOLT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
74	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=250	1-09707-126-0	01	1	9601-9602		●
74	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	01	1	9601-9602	●
75	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	01	1	9601-9803	●
75	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606	●
75	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	9607-9803	●
75	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28080-825-0	03	1	9601-9606	●
75	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	03	1	9607-9803	●
76	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=250	1-09707-126-0	01	1	9601-9602		●
76	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	01	1	9601-9602	●
76	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=250	1-09707-126-0	07	1	9601-9602		●
76	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) L=250	1-09707-126-0	07	1	9601-9602	●
76	CLIP; NYLON TUBE 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) L=250	1-09707-126-0	06	1	9601-9602	●	●
76	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=250	1-09707-126-0	06	1	9601-9602	●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	04	1	0110-0607		●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	04	1	0110-0607	●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	04	1	0608-		●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	04	1	0608-	●
78	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> (A) ID=6.35 & 15	1-09709-276-1	01	1	0110-0612	●	●
78	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	01	1	0701-	●	●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	03	1	9601-9601	●	●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	03	1	9601-9601	●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	02	1	9602-0004	●	●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) ID=6.35 & 15	1-09709-276-1	02	1	0005-0109	●	●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	02	1	0110-	●	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6.35 & 15	1-09709-276-1	01	1	9601-9803	●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	04	1	9804-0004	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=10 & 15	1-09709-279-1	02	1	9601-9803	●
78	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	01	1	9804-9806	●
78	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	01	1	9807-9808	●
78	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> (A) ID=6.35 & 15	1-09709-276-1	01	1	9809-0004	●
78	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=12 & 15	1-09709-281-1	01	1	9601-9803	●
78	CLIP; AIR PIPE 6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> (B) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	9809-0004	●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9601-9601	●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	04	1	9602-9803	●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	05	1	9804-0004	●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	06	1	0110-	●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	02	1	9601-9601	●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) ID=6.35 & 15	1-09709-276-1	02	1	9601-9601	●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9602-9803	●
78	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9804-9806	●	●
79	BOLT; PIPE CLIP 6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	02	1	9809-0004	●
79	BOLT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8X50 FLANGE	0-28080-850-0	01	1	9601-9601	●
79	BOLT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X50 FLANGE	0-28080-850-0	01	1	9602-9803	●
79	BOLT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X50 FLANGE	0-28080-850-0	01	1	9804-9806	●	●
80	NUT; CLIP,AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M8	9-09110-408-0	01	1	9601-9601	●
80	NUT; CLIP,AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9602-9606	●
80	NUT; CLIP,AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9607-9803	●
80	NUT; CLIP,AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9804-9806	●	●
89	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	01	1	9601-9803	●
91	CLIP; AIR PIPE 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 H=20 L=20	5-09700-351-0	04	1	9601-9705	●	●
91	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=11 H=20 L=20	5-09700-351-0	04	1	9706-9806		●
91	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 H=20 L=20	5-09700-351-0	04	1	9706-9806	●
91	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) ID=11 H=20 L=20	5-09700-351-0	04	1	9807-0004		●
91	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 H=20 L=20	5-09700-351-0	04	1	9807-0004	●
91	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=11 H=20 L=20	5-09700-351-0	04	1	0005-0607	●	●
91	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=11 H=20 L=20	5-09700-351-0	04	1	0608-0707		●
91	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) ID=11 H=20 L=20	5-09700-351-0	04	1	0608-0707	●
91	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=11 H=20 L=20	8-98033-780-0	04	1	0708-		●
91	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) ID=11 H=20 L=20	8-98033-780-0	04	1	0708-	●
91	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 H=20 L=20	5-09700-351-0	02	1	9601-0004	●	●
91	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=11 H=20 L=20	5-09700-351-0	02	1	0005-0707	●	●
91	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=11 H=20 L=20	8-98033-780-0	02	1	0708-	●	●
92	NUT; PIPE CLIP 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9601-9606	●	●
92	NUT; PIPE CLIP 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9607-9705	●	●
92	NUT; PIPE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	9706-9806		●
92	NUT; PIPE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9706-9806	●
92	NUT; PIPE CLIP 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	9807-0004		●
92	NUT; PIPE CLIP 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9807-0004	●
92	NUT; PIPE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●
92	NUT; PIPE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	02	1	0603-0607	●	●
92	NUT; PIPE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	02	1	0608-		●
92	NUT; PIPE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M8 FLANGE	0-91180-108-0	02	1	0608-	●
92	NUT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9601-9606	●	●
92	NUT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9607-0004	●	●
92	NUT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	01	1	0005-0602	●	●
92	NUT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
97	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 H=20 L=20	5-09700-351-0	01	1	9601-0004	●	●
97	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=11 H=20 L=20	5-09700-351-0	01	1	0005-0707	●	●
97	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-	●	●
98	BOLT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	01	1	9601-9606	●	●
98	BOLT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	01	1	9607-0004	●	●
98	BOLT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	01	1	0005-0512	●	●
98	BOLT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
99	NUT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9601-9606	●	●
99	NUT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9607-0004	●	●
99	NUT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	01	1	0005-0602	●	●
99	NUT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
103	NUT; PIPE CLIP 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9601-9606	●	●
103	NUT; PIPE CLIP 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9607-9705	●	●
103	NUT; PIPE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	9706-9806		●
103	NUT; PIPE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9706-9806	●
103	NUT; PIPE CLIP 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	9807-0004		●
103	NUT; PIPE CLIP 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9807-0004	●
103	NUT; PIPE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●
103	NUT; PIPE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	02	1	0603-0607	●	●
103	NUT; PIPE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	02	1	0608-		●
103	NUT; PIPE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M8 FLANGE	0-91180-108-0	02	1	0608-	●
103	NUT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9601-9606	●	●
103	NUT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9607-0004	●	●
103	NUT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	01	1	0005-0602	●	●
103	NUT; PIPE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
107	CLIP; NYLON TUBE 6HK1 TCC ENG(81L) (C) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0608-	●
107	CLIP; NYLON TUBE 6HK1 TCC ENG(81L) (D) ID=29 L=35	1-09701-301-0	01	1	0608-	●
107	CLIP; NYLON TUBE (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9601-9803		●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9601-9803	●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9804-0004	●	●
107	CLIP; NYLON TUBE (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0005-0607	●	●
107	CLIP; NYLON TUBE (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0608-	●	●
107	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9601-9803		●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9601-9803	●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9804-0004	●	●
107	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	0005-	●	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) L=250	1-09707-126-0	14	1	9601-9602		●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	14	1	9601-9602	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) L=250	1-09707-126-0	13	1	9603-0004		●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	13	1	9603-0004	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) L=250	1-09707-126-0	13	1	0005-0607		●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (B) L=250	1-09707-126-0	13	1	0005-0607	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) (B) L=250	1-09707-126-0	13	1	0608-		●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (B) L=250	1-09707-126-0	13	1	0608-	●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L) (B) L=250	1-09707-126-0	01	1	0106-0201	●	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) (B) L=250	1-09707-126-0	01	1	0202-0607	●	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) (B) L=250	1-09707-126-0	01	1	0608-0904		●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HK1 TCC ENG(81L) (B) L=250	1-09707-126-0	01	1	0608-0904	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) L=250	1-09707-126-0	01	1	0905-	●	●
107	CLIP; NYLON TUBE 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9601-9609	●	●
107	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9610-9705		●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9610-9705	●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9706-9803		●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9706-9803	●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9804-9806	●	●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9807-9905	●	●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9906-0004	●	●
107	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	02	1	0005-	●	●
107	CLIP; NYLON TUBE 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	08	1	9601-0004	●	●
107	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	08	1	0005-0006	●	●
107	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	09	1	0007-0105	●	●
107	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	10	1	0106-0607	●	●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	10	1	0608-0608	●	●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	10	1	0608-		●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) (B) L=250	1-09707-126-0	10	1	0608-	●
107	CLIP; NYLON TUBE ALLISON MD3060P A/T(Y4G) (B) L=250	1-09707-126-0	02	1	0105-	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	15	1	9601-9602	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	14	1	9603-0004	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) L=250	1-09707-126-0	14	1	0005-	●
108	BOLT; TUBE CLIP 6HK1 TCC ENG(81L) M8X20 FLANGE	0-28650-820-0	03	1	0608-	●
108	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9601-9803		●
108	BOLT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	02	1	9601-9803	●
108	BOLT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	02	1	9804-0004	●	●
108	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●	●
108	BOLT; TUBE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
108	BOLT; TUBE CLIP 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	03	1	9601-9606	●	●
108	BOLT; TUBE CLIP 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	03	1	9607-9609	●	●
108	BOLT; TUBE CLIP 6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	03	1	9610-9705		●
108	BOLT; TUBE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	03	1	9610-9705	●
108	BOLT; TUBE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	03	1	9706-9806		●
108	BOLT; TUBE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	03	1	9706-9806	●
108	BOLT; TUBE CLIP 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	03	1	9807-0004		●
108	BOLT; TUBE CLIP 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	03	1	9807-0004	●
108	BOLT; TUBE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	03	1	0005-0512	●	●
108	BOLT; TUBE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE	0-28650-830-0	03	1	0601-0607	●	●
108	BOLT; TUBE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE	0-28650-830-0	03	1	0608-		●
108	BOLT; TUBE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M8X30 FLANGE	0-28650-830-0	03	1	0608-	●
108	BOLT; TUBE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	02	1	9804-0004	●	●
108	BOLT; TUBE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●	●
108	BOLT; TUBE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
109	NUT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9601-9606	●	●
109	NUT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●
109	NUT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	04	1	9804-0004	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	04	1	0005-0602	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
109	NUT; TUBE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
109	NUT; TUBE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V) M8 FLANGE	0-91180-108-0	01	1	0603-0607	●	●
109	NUT; TUBE CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V) M8 FLANGE	0-91180-108-0	01	1	0608-	●	●
109	NUT; TUBE CLIP 6HK1 TCC ENG(81L) M8 FLANGE	0-91180-108-0	01	1	0608-	●
115	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●
115	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	02	1	9607-9801	●
115	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	02	1	9802-9803	●
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	03	1	9601-9606	●	●
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	03	1	9607-0004	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	03	1	0005-0512	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28080-830-0	02	1	9601-9606	●	●
126	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28680-835-0	02	1	9607-9803	●	●
126	BOLT; CLIP BRKT 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28080-830-0	01	1	9601-9606	●	●
126	BOLT; CLIP BRKT 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28680-835-0	01	1	9607-9705	●	●
126	BOLT; CLIP BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X35 FLANGE	0-28680-835-0	01	1	9706-9803		●
126	BOLT; CLIP BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28680-835-0	01	1	9706-9803	●
126	BOLT; CLIP BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●
126	BOLT; CLIP BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	02	1	9607-0004	●
126	BOLT; CLIP BRKT WHEEL BASE 5000MM(50W) M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●
126	BOLT; CLIP BRKT WHEEL BASE 5000MM(50W) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	05	1	9601-9606	●	●
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	05	1	9607-9803	●	●
127	NUT; CLIP BRKT 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9601-9606	●	●
127	NUT; CLIP BRKT 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9607-9705	●	●
127	NUT; CLIP BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	9706-9803		●
127	NUT; CLIP BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9706-9803	●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	9804-9807		●
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9804-9807	●
127	NUT; CLIP BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9804-9807	●
127	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	03	1	9808-0004	●	●
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0005-0602	●	●
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
127	NUT; CLIP BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9601-9606	●
127	NUT; CLIP BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9607-9803	●
127	NUT; CLIP BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9808-0004	●
127	NUT; CLIP BRKT WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●
127	NUT; CLIP BRKT WHEEL BASE 5000MM(50W) M8 FLANGE	0-91180-108-0	02	1	0603-	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (A) L=250	1-09707-126-0	16	1	1303-	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) (A) L=250	1-09707-126-0	21	1	0701-	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	19	1	0605-0607	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	19	1	0608-1302	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	19	1	1303-	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	19	1	1303-	●
128	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	02	1	9601-9602		●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	02	1	9601-9602	●
128	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	02	1	9601-9602	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	16	1	9603-0004	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	16	1	0005-0006	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	14	1	0007-1302	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	14	1	0007-1302	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	14	1	1303-	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	09	1	9601-9602		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	09	1	9601-9602	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	13	1	9603-9705		●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	13	1	9603-9705	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	13	1	9706-9806		●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	13	1	9706-9806	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	13	1	9807-0004		●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	13	1	9807-0004	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	13	1	0005-0006		●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	13	1	0005-0006	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	13	1	0007-0607		●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 3900MM(39W) (A) L=250	1-09707-126-0	13	1	0608-1302		●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 3900MM(39W) (A) L=250	1-09707-126-0	15	1	1303-		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) FRAME EQUIPMENT HEAVY DUTY(F03) (A) L=250	1-09707-126-0	15	1	1303-	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	05	1	9601-9602		●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	05	1	9601-9602	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	11	1	9603-0004		●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	11	1	9603-0004	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	11	1	0005-0006		●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	11	1	0005-0006	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	12	1	0007-0607		●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	12	1	0007-0607	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) (A) L=250	1-09707-126-0	12	1	0608-		●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	12	1	0608-	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=21 L=30 H=40	1-09700-991-1	01	1	9601-9705	●	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) ID=21 L=30 H=40	1-09700-991-1	01	1	9706-9806		●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=21 L=30 H=40	1-09700-991-1	01	1	9706-9806	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (B) ID=21 L=30 H=40	1-09700-991-1	01	1	9807-9903		●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=21 L=30 H=40	1-09700-991-1	01	1	9807-9903	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	01	1	0202-	●	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	10	1	9601-9602	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	14	1	9603-0004	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	14	1	0005-0006	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	11	1	9601-9602	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	15	1	9603-9609	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	15	1	9610-0004	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	15	1	0005-1302	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	18	1	1303-	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	12	1	9601-9602	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	06	1	9601-9602	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	17	1	9603-9609	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	17	1	9610-9705	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	17	1	9610-9705	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	17	1	9706-9806	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	17	1	9807-0004	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	17	1	0005-0006	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	17	1	0007-0604	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	17	1	0007-0604	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	17	1	0605-1302	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	17	1	0605-1302	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	17	1	1303-	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	07	1	9601-9602	●
129	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 & 12	1-09709-278-1	01	1	9601-9803	●
133	BOLT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●
133	BOLT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	02	1	9607-0004	●	●
133	BOLT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●	●
133	BOLT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
146	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10	1-09709-242-0	01	1	9601-9803	●
147	BOLT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X70 FLANGE	0-28080-870-0	03	1	9601-9803	●
148	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	03	1	9601-9606	●
148	NUT; PIPE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	03	1	9607-9803	●
164	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 10.0	1-09709-274-1	02	1	9601-9803	●
164	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 & 10	1-09709-277-1	01	1	9601-9803	●
164	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 & 10	1-09709-277-1	02	1	9804-9804	●
164	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 & 12	1-09709-278-1	01	1	9601-9803	●
164	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 & 15	1-09709-279-1	01	1	9601-9803	●
164	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12 & 15	1-09709-281-1	01	1	9804-0004	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9601-0004	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=26 L=27	1-09701-006-0	01	1	9601-9803	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=28 H=45 L=30	1-09700-948-0	01	1	9804-0004	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250	1-09707-126-0	14	1	9804-0004	●
170	CLIP; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=12 & 15	1-09709-281-1	01	1	9804-0004	●
171	BOLT; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 FLANGE	0-28080-816-0	02	1	9601-9803	●
171	BOLT; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28680-820-0	02	1	9804-0004	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47477-650-0	01	1	9601-0004	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=100 H=30	1-47477-645-2	05	1	9804-9806	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=100 H=30	1-47477-645-2	03	1	9807-0004	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=115 H=30	1-47477-715-3	01	1	9804-9804	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=60 H=30	1-47477-716-1	01	1	9804-0004	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-47477-908-0	01	1	9804-9804	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=125	1-47477-975-0	02	1	9804-0004	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16 FLANGE	0-28181-016-0	02	1	9601-0004	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	07	1	9804-9804	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	08	1	9804-9806	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	06	1	9807-0004	●
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28680-830-0	02	1	9804-9804	●
174	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	09	1	9804-9804	●
174	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	08	1	9804-9806	●
174	NUT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	06	1	9807-0004	●
177	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 10.0	1-09709-274-1	03	1	9601-9803	●
177	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 & 10	1-09709-277-1	03	1	9601-9803	●
224	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 10.0	1-09709-274-1	02	1	9601-9803	●
224	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 & 15	1-09709-279-1	01	1	9601-9803	●
265	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9601-9808	●	●
265	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	01	1	9601-9808	●	●
266	CLIP; NYLON TUBE L=250	1-09707-126-0	01	1	9804-0004		●
266	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	01	1	9804-0004	●
266	CLIP; NYLON TUBE L=250	1-09707-126-0	01	1	0005-0006	●	●
266	CLIP; NYLON TUBE L=250	1-09707-126-0	02	1	0007-	●	●
267	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606	●	●
267	BOLT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	01	1	9607-9808	●	●
268	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9601-9606	●	●
268	NUT; CLIP BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9607-9808	●	●
274	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 6.35	1-09709-273-1	01	1	9601-9803	●
278	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9601-9606	●
278	NUT; CLIP,AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9607-9803	●
280	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9601-9803	●
283	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	04	1	9601-9606	●
283	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	04	1	9607-9803	●
286	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	11	1	0412-0607	●	●
286	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	11	1	0608-		●
286	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) (A) L=250	1-09707-126-0	11	1	0608-	●
286	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	07	1	9603-9610		●
286	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	07	1	9603-9610	●
286	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	10	1	9611-0008		●
286	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	10	1	9611-0008	●
286	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	11	1	0009-0411		●
286	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	11	1	0009-0411	●
286	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	11	1	0009-0411	●
286	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	07	1	0412-		●
286	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) EXC. CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	07	1	0412-	●
286	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	06	1	9603-9609	●	●
286	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	06	1	9603-9609	●
286	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	06	1	9610-9610	●	●
286	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	06	1	9610-9610	●
286	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	09	1	9611-9705	●	●
286	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	09	1	9611-9705	●
286	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	09	1	9706-9803	●	●
286	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	09	1	9706-9803	●
286	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	09	1	9804-9806	●	●
286	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	09	1	9804-9806	●
286	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	09	1	9807-0004	●	●
286	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	09	1	9807-0004	●
286	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	09	1	0005-0006	●	●
286	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	09	1	0005-0006	●
286	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	11	1	0007-0008	●	●
286	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V) (B) ID=15 L=28	1-09701-216-0	01	1	0105-0208	●	●
286	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V) (B) ID=18 L=28	1-09701-067-0	01	1	0209-	●	●
286	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	09	1	0007-0008	●
286	CLIP; NYLON TUBE 6SD1 TCN ENG(31L) CHINA SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=250	1-09707-126-0	10	1	0009-	●
288	BOLT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●
288	BOLT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9712	●	●
288	BOLT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8X20 FLANGE	0-28680-820-0	02	1	9801-9803	●	●
288	BOLT; CLIP,AIR PIPE 6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	02	1	9804-0004	●	●
288	BOLT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●
288	BOLT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8X20 FLANGE	0-28080-820-0	03	1	9601-9606	●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	03	1	9607-9705	●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8X25 FLANGE	0-28680-825-0	03	1	9706-9712	●	●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8X20 FLANGE	0-28680-820-0	03	1	9801-9803	●	●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28680-820-0	03	1	9804-9806	●	●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8X20 FLANGE	0-28680-820-0	03	1	0005-0512	●	●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8X20 FLANGE	0-28650-820-0	03	1	0601-0607	●	●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28650-820-0	03	1	0608-0608	●	●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L) EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28650-820-0	03	1	0608-0609	●	●
288	BOLT; CLIP,AIR PIPE 6HK1 TCC ENG(81L) M8X20 FLANGE	0-28650-820-0	03	1	0608-0609	●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8X20 FLANGE	0-28650-820-0	03	1	0610-		●
288	BOLT; CLIP,AIR PIPE 6HE1 TC ENG(57L),6HK1 TCC ENG(81L) M8X20 FLANGE	0-28650-820-0	03	1	0610-	●
290	NUT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8	9-09110-408-0	02	1	9601-9606	●	●
290	NUT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●
290	NUT; CLIP,AIR PIPE 6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	02	1	9804-0004	●	●
290	NUT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●
290	NUT; CLIP,AIR PIPE 6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
290	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8	9-09110-408-0	03	1	9601-9606	●
290	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	03	1	9607-9705	●
290	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	03	1	9706-9803	●	●
290	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L) EXHAUST BRAKE<NF8> M8 FLANGE	0-91150-108-0	03	1	9804-9806	●	●
290	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8 FLANGE	0-91150-108-0	03	1	0005-0602	●	●
290	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8 FLANGE	0-91180-108-0	03	1	0603-0607	●	●
290	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L) M8 FLANGE	0-91180-108-0	03	1	0608-		●
290	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L),6HK1 TCC ENG(81L) M8 FLANGE	0-91180-108-0	03	1	0608-	●
292	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> ID=6.35 & 15	1-09709-276-1	03	1	0110-0612	●	●
292	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	03	1	0701-	●	●
292	CLIP; AIR PIPE 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	9601-9609	●
292	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 15	1-09709-276-1	02	1	9601-9609	●
292	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	9610-9806	●
292	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 15	1-09709-276-1	02	1	9610-9806	●
292	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	9807-9808	●
292	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 15	1-09709-276-1	02	1	9807-9808	●
292	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> ID=6.35 & 15	1-09709-276-1	02	1	9809-0004	●
292	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 15	1-09709-276-1	02	1	9809-0004	●
295	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	0404-0602	●	●
295	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0603-0607	●	●
295	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0608-		●
295	NUT; CLIP,AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) EXC. AIR DRYER<PS7> M8 FLANGE	0-91180-108-0	01	1	0608-	●
295	NUT; CLIP,AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8	9-09110-408-0	01	1	9601-9601	●
309	NUT; BRKT FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	02	1	9601-9606	●	●
309	NUT; BRKT FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	9607-0004	●	●
309	NUT; BRKT FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●
309	NUT; BRKT FIX 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
311	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=6 H=20 L=20	1-09700-603-0	04	1	9601-9803	●
311	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9601-9803	●
318	CLIP; AIR PIPE 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=6.35 & 15	1-09709-276-1	01	1	9601-9705	●	●
318	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=6.35 & 15	1-09709-276-1	01	1	9706-9806		●
318	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=6.35 & 15	1-09709-276-1	01	1	9706-9806	●
318	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) ID=6.35 & 15	1-09709-276-1	01	1	9807-9808		●
318	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=6.35 & 15	1-09709-276-1	01	1	9807-9808	●
318	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) ID=6.35 & 15	1-09709-276-1	01	1	9809-0004		●
318	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	01	1	9809-0004	●
318	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> ID=6.35 & 15	1-09709-276-1	01	1	9809-0004	●
318	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=6.35 & 15	1-09709-276-1	01	1	0005-0109	●	●
318	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	01	1	0110-0607	●	●
318	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> ID=6.35 & 15	1-09709-276-1	01	1	0110-0607	●	●
318	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> EXC. VERTICAL TAIL PIPE<NC4> ID=6.35 & 15	1-09709-276-1	01	1	0608-0612	●	●
318	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	01	1	0608-0612		●
318	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	01	1	0608-0612	●
318	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=6.35 & 15	1-09709-276-1	01	1	0701-		●
318	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	01	1	0701-	●
318	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	01	1	0701-	●
318	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) AIR DRYER<PS7> ID=6.35 & 6.35	1-09709-273-1	01	1	0110-	●	●
318	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 12	1-09709-275-1	02	1	9601-9803	●
318	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 15	1-09709-276-1	02	1	9804-0004	●
318	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=6.35 & 6.35	1-09709-273-1	01	1	9601-9803	●
318	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 6.35	1-09709-273-1	01	1	9804-9806	●
318	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=6.35 & 6.35	1-09709-273-1	01	1	9804-9806	●
318	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 6.35	1-09709-273-1	01	1	9807-0004	●
318	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> ID=6.35 & 6.35	1-09709-273-1	01	1	9807-0004	●
318	CLIP; AIR PIPE 6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> ID=6.35 & 6.35	1-09709-273-1	01	1	9807-0004	●
331	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	02	1	9601-9602	●	●
331	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	06	1	9603-0004	●	●
331	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) L=250	1-09707-126-0	06	1	0005-	●	●
332	CLIP; BAND BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	02	1	9604-9803	●	●
332	CLIP; BAND L=250	1-09707-126-0	02	1	9804-0004		●
332	CLIP; BAND BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	1-09707-126-0	02	1	9804-0004	●
332	CLIP; BAND L=250	1-09707-126-0	02	1	0005-	●	●
333	BRACKET; BRK AIR PIPE (A)	1-47475-427-1	01	1	9601-0004		●
333	BRACKET; BRK AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A)	1-47475-427-1	01	1	9601-0004	●
333	BRACKET; BRK AIR PIPE (A)	1-47475-427-1	01	1	0005-0109	●	●
333	BRACKET; BRK AIR PIPE EXC. AIR DRYER<PS7> (A)	1-47475-427-1	01	1	0110-	●	●
333	BRACKET; BRK AIR PIPE (B)	1-79738-804-4	01	1	9601-	●	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE L=140	5-09707-031-1	01	1	9601-0004		●
361	CLIP; FLEX HOSE,AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=140	5-09707-031-1	01	1	9601-0004	●
361	CLIP; FLEX HOSE,AIR PRESS GAGE L=140	5-09707-031-1	01	1	0005-	●	●
371	BOLT; CLIP,AIR PIPE M8X50 FLANGE	0-28080-850-0	01	1	9601-0004		●
371	BOLT; CLIP,AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> M8X50 FLANGE	0-28080-850-0	01	1	9601-0004	●
371	BOLT; CLIP,AIR PIPE M8X50 FLANGE	0-28080-850-0	01	1	0005-0109	●	●
371	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8X50 FLANGE	0-28080-850-0	01	1	0110-0512	●	●
371	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8X50 FLANGE	0-28050-850-0	01	1	0601-	●	●
375	CLIP; AIR PIPE 6SD1 STD ENG(37L),6HH1 STD ENG(65L) (A) ID=14 H=50 L=20	1-09700-843-0	01	1	9601-9705	●	●
375	CLIP; AIR PIPE 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) ID=14 H=50 L=20	1-09700-843-0	01	1	9706-9803		●
375	CLIP; AIR PIPE 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=14 H=50 L=20	1-09700-843-0	01	1	9706-9803	●
375	CLIP; AIR PIPE 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=9 H=60	1-09700-956-0	01	1	9804-9806	●	●
375	CLIP; AIR PIPE 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR ASSIST CLUTCH<PK1>,AIR HORN<WB8>,ASSISTOR SHIFT CONTROL<WX8> (A) ID=9 H=60	1-09700-956-0	01	1	9804-9806	●	●
375	CLIP; AIR PIPE 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=9 H=60	1-09700-956-0	01	1	9807-0004	●	●
375	CLIP; AIR PIPE 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR ASSIST CLUTCH<PK1>,AIR HORN<WB8>,ASSISTOR SHIFT CONTROL<WX8> (A) ID=9 H=60	1-09700-956-0	01	1	9807-0004	●	●
375	CLIP; AIR PIPE 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) ID=9 H=60	1-09700-956-0	01	1	0005-0607	●	●
375	CLIP; AIR PIPE 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (A) ID=9 H=60	1-09700-956-0	01	1	0005-0607	●	●
375	CLIP; AIR PIPE 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) PTO CONTROL<SV6> EXC. AIR SUSP DRIVER SEAT<A56>,AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8> (A) ID=9 H=60	1-09700-956-0	01	1	0608-	●	●
375	CLIP; AIR PIPE 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) ID=9 H=60	1-09700-956-0	01	1	0608-		●
375	CLIP; AIR PIPE 6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) (A) ID=9 H=60	1-09700-956-0	01	1	0608-	●
375	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	01	1	9601-9709	●	●
375	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	01	1	9710-9803	●	●
375	CLIP; AIR PIPE 6HE1 TC ENG(57L) AIR SUSP DRIVER SEAT<A56> EURO2 SPECIFICATION<THN> (B) L=250	1-09707-126-0	01	1	9710-9803		●
375	CLIP; AIR PIPE 6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> EURO2 SPECIFICATION<THN> (B) L=250	1-09707-126-0	01	1	9710-9803	●
375	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6HH1 STD ENG(65L) EXHAUST BRAKE<NF8> (B) L=250	1-09707-126-0	01	1	9804-0004	●	●
375	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	01	1	0005-0008	●	●
375	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	01	1	0009-0604	●	●
375	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	01	1	0009-0604	●	●
375	CLIP; AIR PIPE 6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	01	1	0605-0607	●	●
375	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	01	1	0605-0607	●	●
375	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	01	1	0608-0608	●	●
375	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	01	1	0608-0608	●	●
375	CLIP; AIR PIPE 6SD1 TCN ENG(31L),6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	01	1	0608-	●	●
375	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	01	1	0608-		●
375	CLIP; AIR PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) (B) L=250	1-09707-126-0	01	1	0608-	●
382	CLIP; UPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 & 10	1-09709-241-0	03	1	9601-9803	●
383	CLIP; LWR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10 & 10	1-09709-241-0	03	1	9601-9803	●
386	CLIP; CENTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=10	1-09709-242-0	03	1	9601-9803	●
393	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	02	1	9601-9606	●
393	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	9607-0004	●

16 29 16 27 107 128 29 379 172 322 16 172 297 37 107 172 107 16 22 172 376

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=55	1-47476-177-0	01	1	9601-0004	●	●
16	BRACKET; PIPE CLIP (C) L=55	1-47476-177-0	01	1	0005-0502	●	●
16	BRACKET; PIPE CLIP (C) L=55 B=25	1-47478-439-0	01	1	0503-	●	●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47476-699-2	01	1	9601-9803	●	●
16	BRACKET; PIPE CLIP (A)	1-47476-699-2	01	1	9804-0004		●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47476-699-2	01	1	9804-0004	●
16	BRACKET; PIPE CLIP (A)	1-47476-699-2	01	1	0005-	●	●
16	BRACKET; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=100 H=30	1-47477-645-2	02	1	9601-9803	●	●
16	BRACKET; PIPE CLIP 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=100 H=30	1-47477-645-2	01	1	9601-9705	●	●
16	BRACKET; PIPE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=100 H=30	1-47477-645-2	01	1	9706-9803		●
16	BRACKET; PIPE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=100 H=30	1-47477-645-2	01	1	9706-9803	●
16	BRACKET; PIPE CLIP WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=150 H=30	1-47477-629-2	02	1	9601-0004	●
16	BRACKET; PIPE CLIP WHEEL BASE 5000MM(50W) (D) L=150 H=30	1-47477-629-2	02	1	0005-	●
22	BRACKET; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-47477-571-3	01	1	0202-	●	●
27	CLIP; FLEX HOSE ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=28 H=45 L=30	1-09700-948-0	01	1	9601-0004	●	●
27	CLIP; FLEX HOSE ZF 9S109 OD M/T(Y2L) (A) ID=28 H=45 L=30	1-09700-948-0	01	1	0005-0207	●	●
27	CLIP; FLEX HOSE ZF 9S109 OD M/T(Y2L) (A) ID=25 H=30 L=35	1-09700-875-0	02	1	0208-1102	●	●
27	CLIP; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) ID=25 H=30 L=35	1-09700-875-0	01	1	1103-	●	●
27	CLIP; FLEX HOSE ZF9S1110 M/T(Y5E) (A) ID=25 H=30 L=35	1-09700-875-0	01	1	1103-		●
27	CLIP; FLEX HOSE ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=25 H=60 L=35	1-09701-103-0	01	1	9601-0004	●	●
27	CLIP; FLEX HOSE ZF 9S109 OD M/T(Y2L) (B) ID=25 H=60 L=35	1-09701-103-0	01	1	0005-1102	●	●
27	CLIP; FLEX HOSE ZF9S1110 M/T(Y5E) (B) ID=25 H=60 L=35	1-09701-103-0	02	1	1103-		●
27	CLIP; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=25 H=30 L=35	1-09700-875-0	02	1	9601-9605	●	●
27	CLIP; FLEX HOSE MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=25 H=30 L=35	1-09700-875-0	02	1	9601-9605	●	●
27	CLIP; FLEX HOSE MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=25 H=30 L=35	1-09700-875-0	03	1	9606-0004	●	●
27	CLIP; FLEX HOSE MAL6S M/T(Y1V),ALLISON MD3060P A/T(Y4G) (A) ID=25 H=30 L=35	1-09700-875-0	03	1	0005-	●	●
27	CLIP; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=25 H=30 L=35	1-09700-875-0	01	1	9606-0004	●	●
27	CLIP; FLEX HOSE ZF 9S109 OD M/T(Y2L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=25 H=30 L=35	1-09700-875-0	01	1	9606-0004	●	●
27	CLIP; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) ID=25 H=30 L=35	1-09700-875-0	01	1	0005-0207	●	●
27	CLIP; FLEX HOSE ZF 9S109 OD M/T(Y2L) (A) ID=25 H=30 L=35	1-09700-875-0	01	1	0005-0207	●	●
27	CLIP; FLEX HOSE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) ID=25 H=30 L=35	1-09700-875-0	01	1	0208-1102	●	●
29	BRACKET; CLIP,AIR PIPE 6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47477-190-2	02	1	9601-9605	●	●
29	BRACKET; CLIP,AIR PIPE MAL6S M/T(Y1V) (A)	1-82699-639-1	03	1	9606-9809	●	●
29	BRACKET; CLIP,AIR PIPE MAL6S M/T(Y1V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-82699-639-1	03	1	9810-0004	●	●
29	BRACKET; CLIP,AIR PIPE MAL6S M/T(Y1V),ALLISON MD3060P A/T(Y4G) (A)	1-82699-639-1	03	1	0005-	●	●
29	BRACKET; CLIP,AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=105 B=25	1-47476-161-0	01	1	9601-0004	●	●
29	BRACKET; CLIP,AIR PIPE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) L=105 B=25	1-47476-161-0	01	1	0005-	●	●
37	BRACKET; PIPE CLIP 6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> (A)	1-47475-427-1	02	1	9809-0004	●
37	BRACKET; PIPE CLIP 6HE1 TC ENG(57L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VERTICAL TAIL PIPE<NC4> AIR DRYER<PS7> (B) M8 W/NUT	1-47475-729-0	01	1	9809-0004	●
107	CLIP; NYLON TUBE 6HK1 TCC ENG(81L) (C) ID=29 H=50 L=45.5	1-09701-027-0	01	1	0608-	●
107	CLIP; NYLON TUBE 6HK1 TCC ENG(81L) (D) ID=29 L=35	1-09701-301-0	01	1	0608-	●
107	CLIP; NYLON TUBE (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9601-9803		●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9601-9803	●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9804-0004	●	●
107	CLIP; NYLON TUBE (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0005-0607	●	●
107	CLIP; NYLON TUBE (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0608-	●	●
107	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9601-9803		●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9601-9803	●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	9804-0004	●	●
107	CLIP; NYLON TUBE (A) ID=24.5 H=35 L=25	1-09700-990-0	01	1	0005-	●	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) L=250	1-09707-126-0	14	1	9601-9602		●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W), WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	14	1	9601-9602	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) L=250	1-09707-126-0	13	1	9603-0004		●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	13	1	9603-0004	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) L=250	1-09707-126-0	13	1	0005-0607		●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (B) L=250	1-09707-126-0	13	1	0005-0607	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) (B) L=250	1-09707-126-0	13	1	0608-		●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (B) L=250	1-09707-126-0	13	1	0608-	●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L) (B) L=250	1-09707-126-0	01	1	0106-0201	●	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) (B) L=250	1-09707-126-0	01	1	0202-0607	●	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L) (B) L=250	1-09707-126-0	01	1	0608-0904		●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L),6HE1 TC ENG(57L),6HK1 TCC ENG(81L) (B) L=250	1-09707-126-0	01	1	0608-0904	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (B) L=250	1-09707-126-0	01	1	0905-	●	●
107	CLIP; NYLON TUBE 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9601-9609	●	●
107	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9610-9705		●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9610-9705	●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9706-9803		●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9706-9803	●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9804-9806	●	●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9807-9905	●	●
107	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9906-0004	●	●
107	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	02	1	0005-	●	●
107	CLIP; NYLON TUBE 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	08	1	9601-0004	●	●
107	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	08	1	0005-0006	●	●
107	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	09	1	0007-0105	●	●
107	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	10	1	0106-0607	●	●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	10	1	0608-0608	●	●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=250	1-09707-126-0	10	1	0608-		●
107	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) (B) L=250	1-09707-126-0	10	1	0608-	●
107	CLIP; NYLON TUBE ALLISON MD3060P A/T(Y4G) (B) L=250	1-09707-126-0	02	1	0105-	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	15	1	9601-9602	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=250	1-09707-126-0	14	1	9603-0004	●
107	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5500MM(55W) (B) L=250	1-09707-126-0	14	1	0005-	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (A) L=250	1-09707-126-0	16	1	1303-	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L) WHEEL BASE 6200MM(62W) (A) L=250	1-09707-126-0	21	1	0701-	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	19	1	0605-0607	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	19	1	0608-1302	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	19	1	1303-	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	19	1	1303-	●
128	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	02	1	9601-9602		●
128	CLIP; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	02	1	9601-9602	●
128	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	02	1	9601-9602	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	16	1	9603-0004	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	16	1	0005-0006	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	14	1	0007-1302	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	14	1	0007-1302	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	14	1	1303-	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	09	1	9601-9602		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	09	1	9601-9602	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	13	1	9603-9705		●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	13	1	9603-9705	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	13	1	9706-9806		●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	13	1	9706-9806	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	13	1	9807-0004		●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	13	1	9807-0004	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	13	1	0005-0006		●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	13	1	0005-0006	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) L=250	1-09707-126-0	13	1	0007-0607		●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 3900MM(39W) (A) L=250	1-09707-126-0	13	1	0608-1302		●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 3900MM(39W) (A) L=250	1-09707-126-0	15	1	1303-		●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) FRAME EQUIPMENT HEAVY DUTY(F03) (A) L=250	1-09707-126-0	15	1	1303-	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	05	1	9601-9602		●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	05	1	9601-9602	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	11	1	9603-0004		●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	11	1	9603-0004	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	11	1	0005-0006		●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	11	1	0005-0006	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	12	1	0007-0607		●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	12	1	0007-0607	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 3900MM(39W) (A) L=250	1-09707-126-0	12	1	0608-		●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	12	1	0608-	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=21 L=30 H=40	1-09700-991-1	01	1	9601-9705	●	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) ID=21 L=30 H=40	1-09700-991-1	01	1	9706-9806		●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=21 L=30 H=40	1-09700-991-1	01	1	9706-9806	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) (B) ID=21 L=30 H=40	1-09700-991-1	01	1	9807-9903		●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=21 L=30 H=40	1-09700-991-1	01	1	9807-9903	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) (A) L=250	1-09707-126-0	01	1	0202-	●	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	10	1	9601-9602	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	14	1	9603-0004	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4200MM(42W) (A) L=250	1-09707-126-0	14	1	0005-0006	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	11	1	9601-9602	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	15	1	9603-9609	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	15	1	9610-0004	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	15	1	0005-1302	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 4600MM(46W) (A) L=250	1-09707-126-0	18	1	1303-	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	12	1	9601-9602	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 4600MM(46W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	06	1	9601-9602	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	17	1	9603-9609	●
128	CLIP; NYLON TUBE 6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	17	1	9610-9705	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	17	1	9610-9705	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	17	1	9706-9806	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	17	1	9807-0004	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	17	1	0005-0006	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	17	1	0007-0604	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	17	1	0007-0604	●
128	CLIP; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 5500MM(55W) (A) L=250	1-09707-126-0	17	1	0605-1302	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	17	1	0605-1302	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W) (A) L=250	1-09707-126-0	17	1	1303-	●
128	CLIP; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=250	1-09707-126-0	07	1	9601-9602	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47477-650-0	01	1	9601-0004	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=100 H=30	1-47477-645-2	05	1	9804-9806	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=100 H=30	1-47477-645-2	03	1	9807-0004	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=115 H=30	1-47477-715-3	01	1	9804-9804	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=60 H=30	1-47477-716-1	01	1	9804-0004	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-47477-908-0	01	1	9804-9804	●
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) L=125	1-47477-975-0	02	1	9804-0004	●
297	NUT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	0009-0602	●	●
297	NUT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	01	1	0603-0607	●	●
297	NUT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91180-108-0	01	1	0608-		●
297	NUT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) M8 FLANGE	0-91180-108-0	01	1	0608-	●
322	BRACKET; CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=90	1-47477-755-1	01	1	0009-0607	●	●
322	BRACKET; CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=90	1-47477-755-1	01	1	0608-		●
322	BRACKET; CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) L=90	1-47477-755-1	01	1	0608-	●
322	BRACKET; CLIP 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V) L=95	1-82699-085-0	01	1	0105-	●	●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-0004		●
376	BOLT; BRKT DUAL AIR GAUGE<UG2> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-0004	●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0005-0607	●	●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0608-	●	●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9601-0004	●	●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0607	●	●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0608-	●	●
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-0904	●	●
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●	●
376	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) M8X25 FLANGE	0-28680-825-0	01	1	0009-0512	●	●
376	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-0607	●	●
376	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) M8X25 FLANGE	0-28650-825-0	01	1	0608-		●
376	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) (C) M8X25 FLANGE	0-28650-825-0	01	1	0608-	●
376	BOLT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V) (C) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
376	BOLT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V) (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
379	BRACKET; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-514-3	02	1	9601-0004	●	●
379	BRACKET; NYLON TUBE 6SD1 TCN ENG(31L),6SD1 STD ENG(37L)	1-47477-514-3	02	1	0005-	●	●

376 392 376 389 376 389 389 389 388 388 34 229 333 62 62 124 376 34 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	NUT; BRKT M8 FLANGE	8-94279-517-0	01	1	9601-9611	●	●
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-0605	●	●
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0606-	●	●
34	NUT; BRKT M8 FLANGE	8-94279-517-0	03	1	9601-9611	●	●
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	9612-0605	●	●
34	NUT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
34	NUT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
62	CLIP; AIR PIPE ID=13X2 L=20	9-09535-236-0	02	1	9601-0606	●	●
62	CLIP; AIR PIPE ID=13X2 L=20	0-95325-236-0	02	1	0607-	●	●
124	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9601-0904	●	●
124	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
229	BRACKET; PIPE CLIP	1-79738-819-0	01	1	9601-0004	●	●
229	BRACKET; PIPE CLIP	1-79738-858-0	01	1	0005-	●	●
333	BRACKET; BRK AIR PIPE (A)	1-47475-427-1	01	1	9601-0004		●
333	BRACKET; BRK AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A)	1-47475-427-1	01	1	9601-0004	●
333	BRACKET; BRK AIR PIPE (A)	1-47475-427-1	01	1	0005-0109	●	●
333	BRACKET; BRK AIR PIPE EXC. AIR DRYER<PS7> (A)	1-47475-427-1	01	1	0110-	●	●
333	BRACKET; BRK AIR PIPE (B)	1-79738-804-4	01	1	9601-	●	●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-0004		●
376	BOLT; BRKT DUAL AIR GAUGE<UG2> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9601-0004	●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0005-0607	●	●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0608-	●	●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9601-0004	●	●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0607	●	●
376	BOLT; BRKT (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0608-	●	●
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-0904	●	●
376	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-	●	●
376	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) M8X25 FLANGE	0-28680-825-0	01	1	0009-0512	●	●
376	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-0607	●	●
376	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) M8X25 FLANGE	0-28650-825-0	01	1	0608-		●
376	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L),6HK1 TCC ENG(81L) (C) M8X25 FLANGE	0-28650-825-0	01	1	0608-	●
376	BOLT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V) (C) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
376	BOLT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) MAL6S M/T(Y1V) (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
388	SEAL (A) L=280	1-79738-793-1	01	1	9601-	●	●
388	SEAL (B) L=215	1-79738-794-1	01	1	9601-	●	●
389	BRACKET; UNION (A)	1-79738-790-1	01	1	9601-0004		●
389	BRACKET; UNION DUAL AIR GAUGE<UG2> (A)	1-79738-790-1	01	1	9601-0004	●
389	BRACKET; UNION (A)	1-79738-790-1	01	1	0005-	●	●
389	BRACKET; UNION (C)	1-79738-806-1	01	1	9601-9803		●
389	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-79738-806-1	01	1	9601-9803	●
389	BRACKET; UNION (C)	1-79738-839-0	01	1	9804-0004		●
389	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-79738-839-0	01	1	9804-0004	●
389	BRACKET; UNION (C)	1-79738-839-0	01	1	0005-	●	●
389	BRACKET; UNION EXC. DUAL AIR GAUGE<UG2> (B)	1-79738-795-1	01	1	9601-0004	●
389	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-79738-811-1	01	1	9601-0004	●
392	COVER; BRKT	1-73996-264-1	01	1	9601-0004		●
392	COVER; BRKT DUAL AIR GAUGE<UG2>	1-73996-264-1	01	1	9601-0004	●
392	COVER; BRKT	1-73996-264-1	01	1	0005-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
