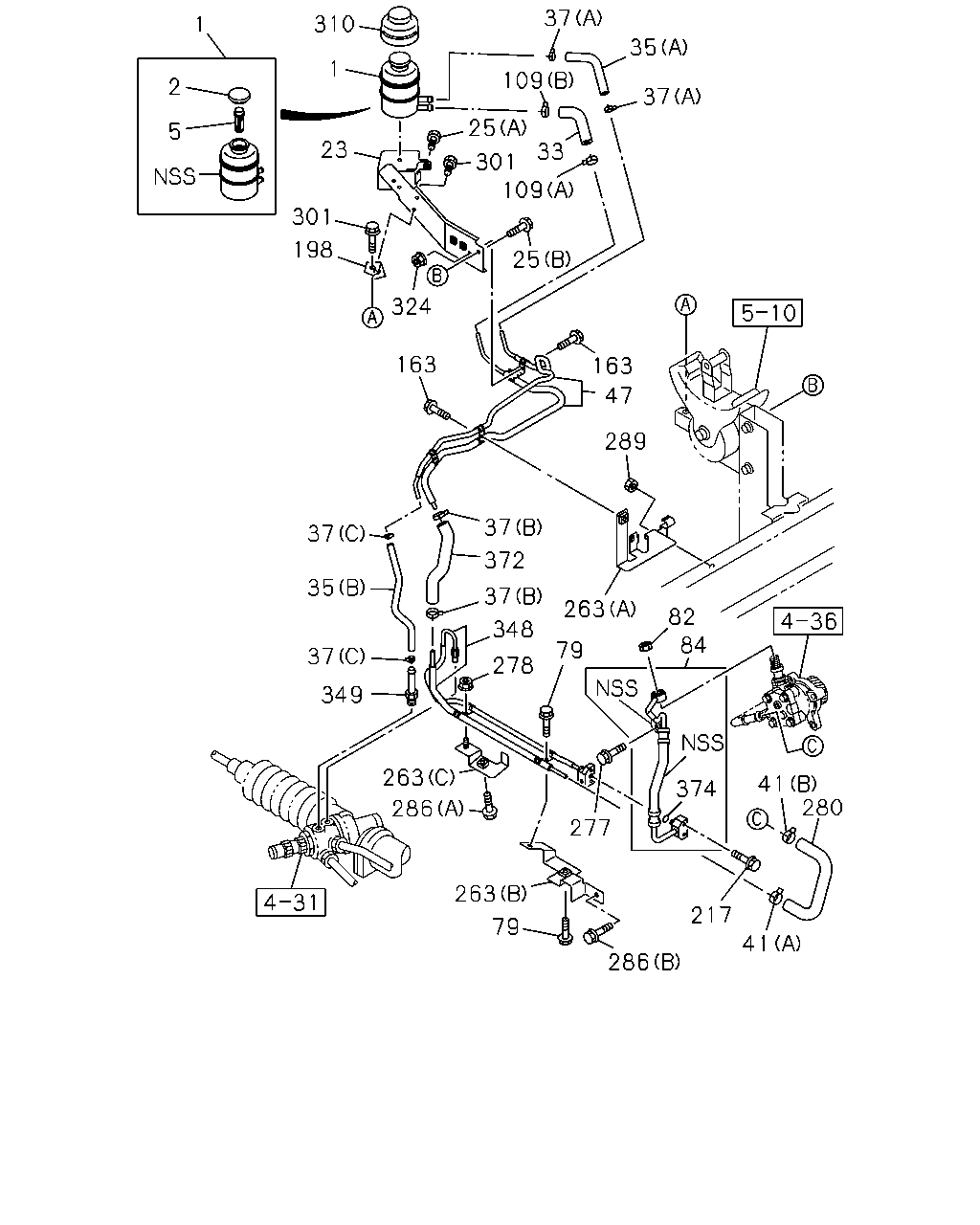

1 |
06.635 TANK ASM; OIL,P/S
|
8-97107-987-0 |
01 |
1 |
1202- |
| |
2 |
06.672 CAP; OIL TANK,P/S
06.635
|
8-94146-153-2 |
01 |
1 |
1202- |
| |
5 |
06.600 STRAINER; OIL TANK,P/S
|
8-97094-732-0 |
01 |
1 |
1202- |
| |
23 |
06.672 BRACKET; OIL TANK,P/S
|
8-98077-631-0 |
01 |
1 |
1202- |
| |
25 |
06.635 BOLT; OIL TANK BRKT
00.785
(A)
M6X20 FLANGE
|
0-28450-620-0 |
01 |
1 |
1202- |
| |
25 |
06.635 BOLT; OIL TANK BRKT
06.216
(B)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1202- |
| |
33 |
06.672 HOSE; RUBBER,POWER STRG
|
8-98054-267-0 |
01 |
1 |
1202- |
| |
35 |
06.671 HOSE; RETURN,P/S TANK
(A)
|
8-98054-266-0 |
01 |
1 |
1202- |
| |
35 |
06.671 HOSE; RETURN,P/S TANK
(B)
|
8-98117-895-0 |
01 |
1 |
1202- |
| |
37 |
01.762 CLIP; HOSE,P/S
03.162
(A)
ID=16
|
8-98008-098-0 |
02 |
1 |
1202- |
| |
37 |
01.762 CLIP; HOSE,P/S
04.681
(B)
ID=21
|
8-98150-355-0 |
02 |
1 |
1202- |
| |
37 |
01.762 CLIP; HOSE,P/S
04.681
(C)
ID=11-17
|
8-98173-762-1 |
02 |
1 |
1202- |
| |
41 |
06.672 CLIP; HOSE,P/S
08.846
(A)
ID=21.7
|
8-97203-074-0 |
01 |
1 |
1202- |
| |
41 |
06.672 CLIP; HOSE,P/S
04.681
(B)
ID=21
|
8-98150-355-0 |
01 |
1 |
1202- |
| |
47 |
06.671 PIPE; RETURN
|
8-98054-223-0 |
01 |
1 |
1202- |
| |
79 |
06.672 BOLT; BRKT
01.531
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1202- |
| |
82 |
06.672 NUT; FLEX HOSE,P/S
06.606
M12 SELF LOCK
|
8-97028-390-1 |
01 |
1 |
1202- |
| |
84 |
06.670 HOSE; FLEX,P/S
|
8-98027-970-3 |
01 |
1 |
1202- |
| |
109 |
06.672 CLIP; RUBBER HOSE
03.278
(B)
ID=22
|
8-97359-141-0 |
01 |
1 |
1202- |
| |
109 |
06.672 CLIP; RUBBER HOSE
04.681
(A)
ID=21
|
8-98150-355-0 |
01 |
1 |
1202- |
| |
163 |
06.671 BOLT; OIL PIPE
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1202- |
| |
198 |
06.672 STAY; OIL TANK,POWER STEERING
|
8-97081-778-2 |
01 |
1 |
1202- |
| |
217 |
06.672 BOLT; FLEX HOSE,P/S
03.162
M6X35 FLANGE
|
0-28650-635-0 |
02 |
1 |
1202- |
| |
263 |
06.672 BRACKET; P/S PIPE
(A)
|
8-98008-078-0 |
01 |
1 |
1202- |
| |
263 |
06.672 BRACKET; P/S PIPE
(C)
|
8-98028-334-2 |
01 |
1 |
1202- |
| |
263 |
06.672 BRACKET; P/S PIPE
(B)
|
8-98028-335-2 |
01 |
1 |
1202- |
| |
277 |
06.672 BOLT; HOSE CLIP
02.343
M8X12 FLANGE
|
0-28050-812-0 |
01 |
1 |
1202- |
| |
278 |
06.670 NUT; HOSE CLIP
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1202- |
| |
280 |
06.672 HOSE; P/S OIL PUMP,INL
|
8-98027-972-0 |
01 |
1 |
1202- |
| |
286 |
06.672 BOLT; CLIP,P/S HOSE
01.531
(A)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
1202- |
| |
286 |
06.672 BOLT; CLIP,P/S HOSE
03.403
(B)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
1202- |
| |
289 |
06.673 NUT; BRKT,POWER STRG
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1202- |
| |
301 |
06.672 BOLT; STAY,OIL TANK
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1202- |
| |
310 |
06.672 COVER; OIL TANK
|
8-97103-394-0 |
01 |
1 |
1202- |
| |
324 |
06.660 NUT; OIL PIPE
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1202- |
| |
348 |
06.671 PIPE; OIL,P/S PRESS
|
8-98156-804-0 |
01 |
1 |
1202- |
| |
349 |
06.671 PIPE; OIL,P/S RETURN
|
8-98008-162-1 |
01 |
1 |
1202- |
| |
372 |
06.673 HOSE; RUBBER
|
8-98054-269-0 |
01 |
1 |
1202- |
| |
374 |
06.673 GASKET; HOSE,P/S
|
8-98139-036-0 |
01 |
1 |
1202- |
