Isuzu WW
▶
TRUCKS
▶
NHR
▶
51405 - NHR(RHD)EURO4 W/DOC
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-31 - STEERING COLUMN AND SHAFT
▶
4-31 — STEERING COLUMN AND SHAFT
(#38087) — 33 parça
◀

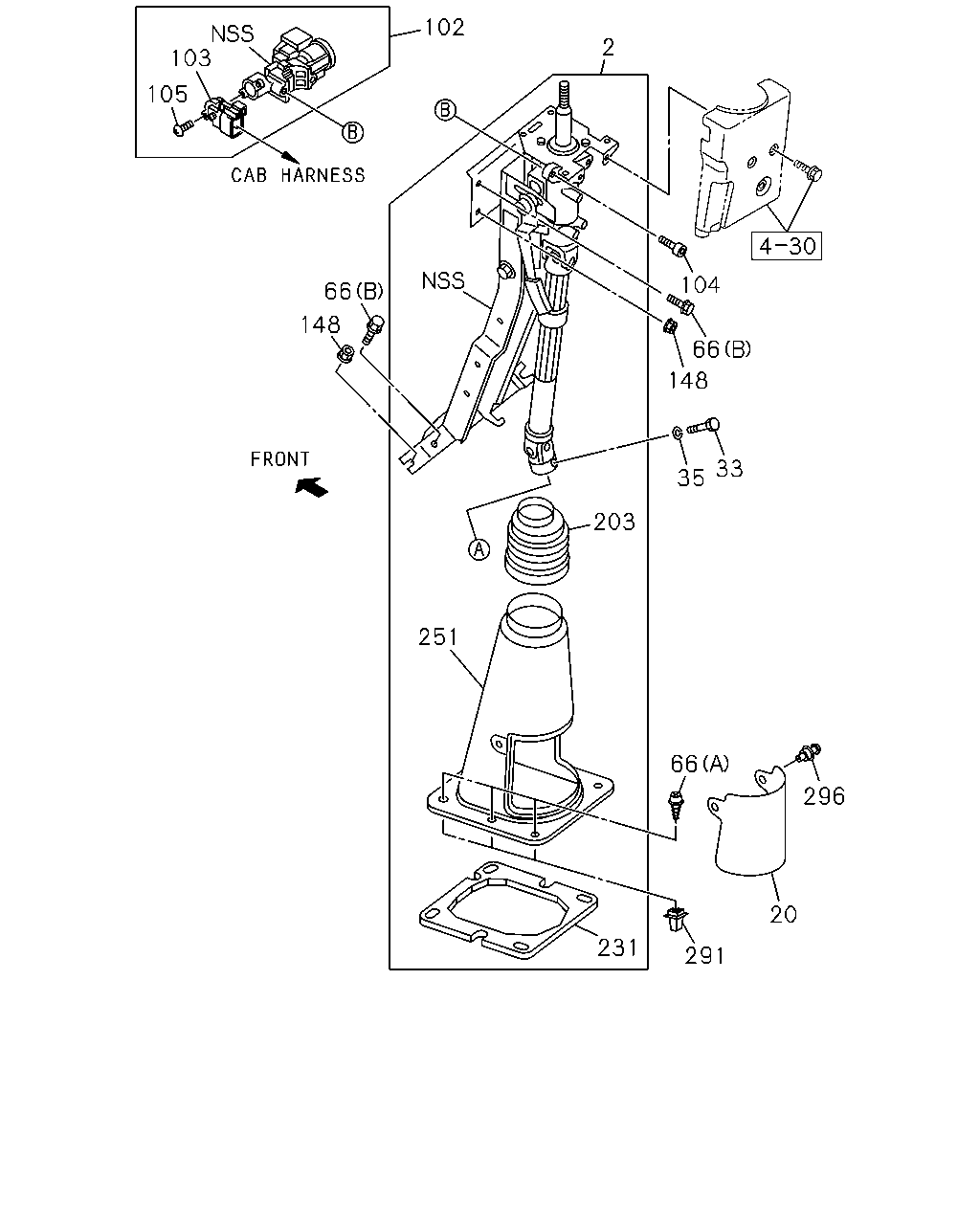

[431A] FIXING;STEERING SHAFT (17 parça)

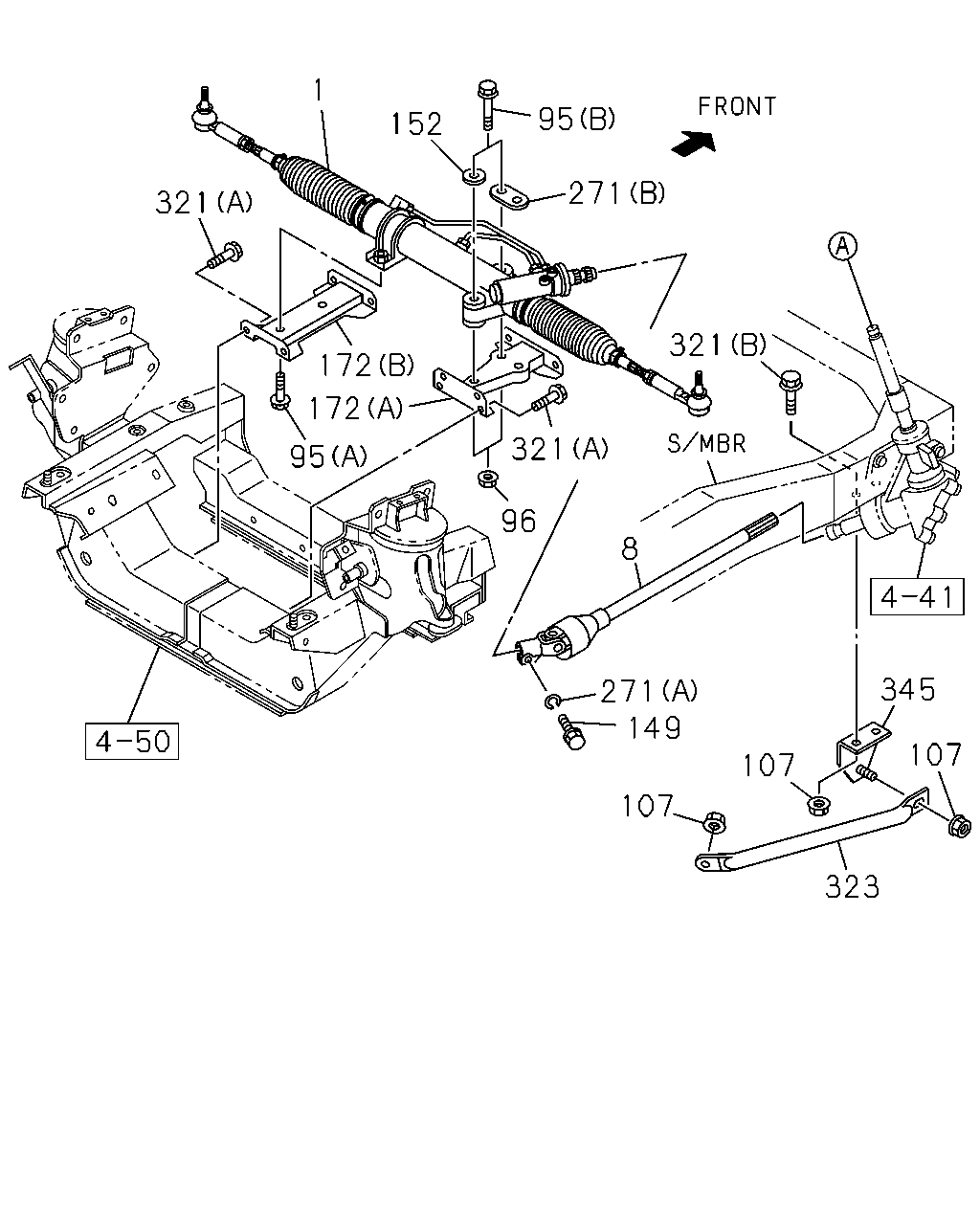

[431A] FIXING;STEERING UNIT (16 parça)
▶
102
103
2
105
104
66
148
66
148
33
35
203
251
66
296
20
231
291
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
06.518 SHAFT ASM; STRG
BLACK
8-97406-374-8
01
1
1202-
20
06.525 COVER; STRG SHAFT
BLACK
8-97405-159-0
01
1
1202-
33
06.525 BOLT; STRG SHAFT TO UNIT
M8X30
8-97359-615-0
01
1
1202-
35
06.525 WASHER; LK,STRG SHAFT
02.559 ID=8.2
0-91510-808-0
01
1
1202-
66
06.514 BOLT; STRG COLUMN
01.531 (B) M8X20 FLANGE
0-28650-820-0
02
1
1202-
66
06.514 BOLT; STRG COLUMN
(A) M5X18 TAPPING
0-72180-518-0
06
1
1202-
66
06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER
8-98051-939-0
02
1
1202-
102
06.500 LOCK ASM; STRG
8-98006-150-0
01
1
1202-
103
02.188 SWITCH; IGNITION
8-98045-349-0
01
1
1202-
104
06.500 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT
8-97321-385-0
02
1
1202-
105
06.500 SCREW; IGN SW
8-98045-346-0
02
1
1202-
148
06.514 NUT; COLUMN TO BRKT
01.840 M8 W/DISHED WASHER
8-97329-625-0
03
1
1202-
203
06.525 BOOT; STRG COLUMN LWR
8-98137-331-0
01
1
1202-
231
06.525 SEAL; RUBBER,STRG COLUMN
8-98137-329-0
01
1
1202-
251
06.518 COVER; LWR
BLACK
8-97417-048-0
01
1
1202-
291
06.518 GROMMET; STRG SHAFT COVER
04.931 H=15
8-94463-268-1
06
1
1202-
296
06.525 CLIP; COVER
BLACK
8-97868-409-0
01
1
1202-
1
95
152
271
321
321
172
172
321
95
96
8
345
271
149
107
107
107
323
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
8-98001-408-3
01
1
1202-
8
06.525 JOINT; UNIVERSAL
8-98115-710-0
01
1
1202-
95
06.509 BOLT; STRG UNIT
07.874 (A) M14X30 FLANGE
0-28651-430-0
02
1
1202-
95
06.509 BOLT; STRG UNIT
06.525 (B) M14X80 FLANGE
0-28851-480-0
03
1
1202-
96
06.509 NUT; STRG UNIT
00.429 M14 FLANGE
0-91180-214-0
03
1
1202-
107
06.514 NUT; BRKT
05.816 M12 FLANGE
0-91180-212-0
08
1
1202-
149
06.525 BOLT; GEAR BOX
M8X30
8-97359-615-0
02
1
1202-
152
00.796 WASHER; LK,STRG UNIT
03.704 ID=15 OD=40
9-09851-995-0
01
1
1202-
172
06.509 BRACKET; STRG
(A)
8-98034-269-1
01
1
1202-
172
06.509 BRACKET; STRG
(B)
8-98034-270-2
01
1
1202-
271
06.514 WASHER; LK,GEAR BOX
02.559 (A) ID=8.2
0-91510-808-0
02
1
1202-
271
06.514 WASHER; LK,GEAR BOX
(B)
8-97354-092-0
01
1
1202-
321
06.514 BOLT; BRKT,STRG
07.395 (A) M12X30 FLANGE
0-28651-230-0
10
1
1202-
321
06.514 BOLT; BRKT,STRG
06.509 (B) M12X30 FLANGE
0-28661-230-0
04
1
1202-
323
06.518 ROD; GUARD,STRG SHAFT
8-98033-649-0
02
1
1202-
345
06.509 BRACKET; ROD
06.518
8-98033-651-0
02
1
1202-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
