Isuzu WW
▶
TRUCKS
▶
NHR
▶
51405 - NHR(RHD)EURO4 W/DOC
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

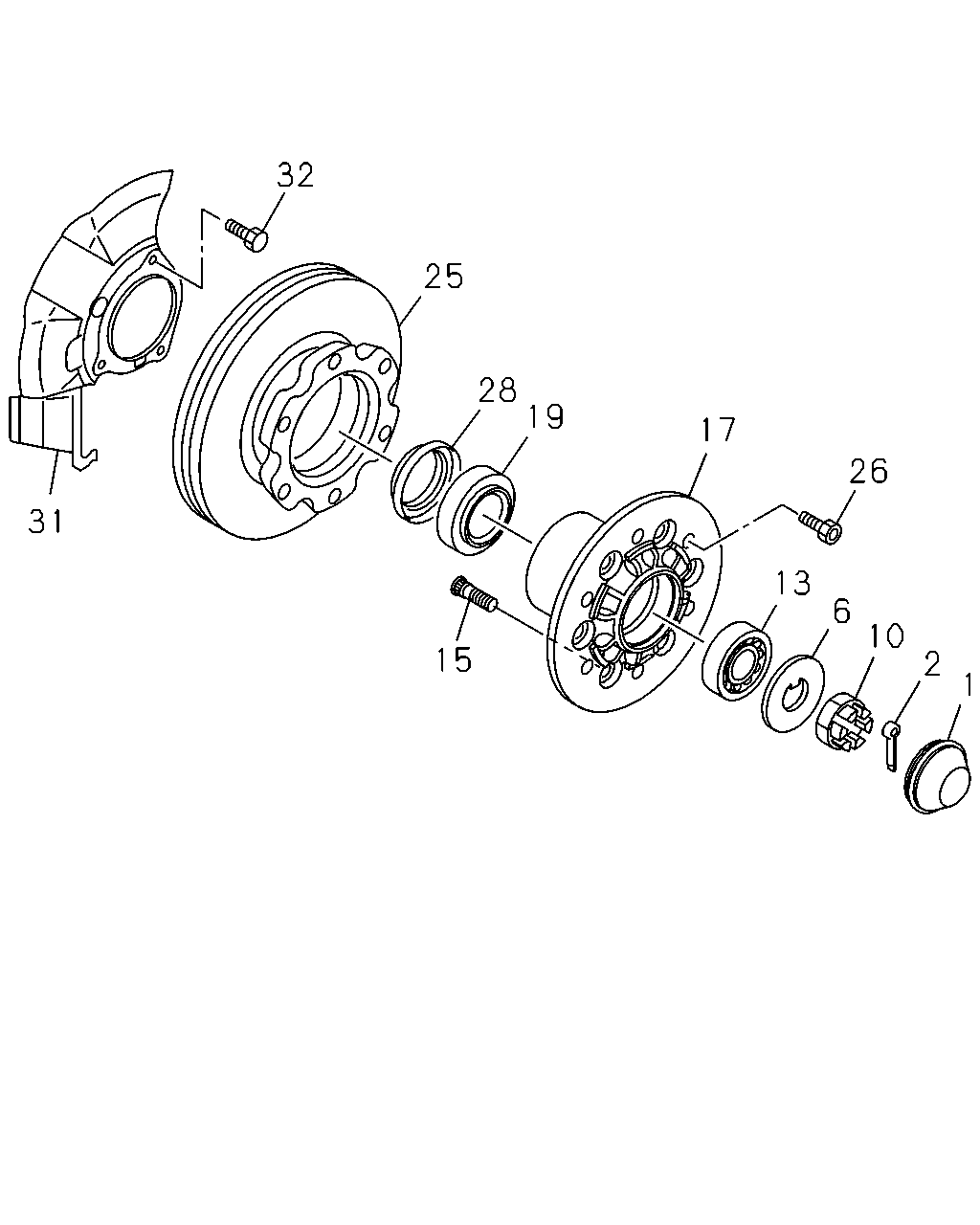

4-11 — FRONT HUB AND DRUM OR ROTOR
(#38083) — 19 parça
32
25
28
19
17
26
31
13
6
10
15
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
06.330 CAP; HUB,FRT AXLE
8-97360-101-0
02
1
1202-1406
1
06.330 CAP; HUB,FRT AXLE
8-98276-604-0
02
1
1407-1511
1
06.330 CAP; HUB,FRT AXLE
8-98331-242-0
02
1
1512-
2
05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40
0-81125-040-0
02
1
1202-
6
05.812 WASHER; LK,FRT HUB
06.321
8-94247-356-1
02
1
1202-1502
6
05.812 WASHER; LK,FRT HUB
8-98282-435-0
02
1
1503-
10
05.812 NUT; FRT HUB BRG
06.022
8-94247-357-1
02
1
1202-
13
06.313 BEARING; HUB OUTER,FRT AXLE
NSK
9-00093-172-0
02
1
1202-
13
06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS
5-87610-134-0
02
1
1202-
15
05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD
8-98028-532-1
05
1
1202-
15
05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD
8-98028-533-1
05
1
1202-
17
06.307 HUB; FRT AXLE
8-98049-155-0
02
1
1202-
19
06.311 BEARING; HUB INNER,FRT AXLE
NSK
8-97034-255-0
02
1
1202-
25
05.809 ROTOR; DISC BRK,FRT
8-98001-343-0
02
1
1202-
26
05.812 BOLT; BRK,DISC TO HUB
8-98021-781-0
10
1
1202-
28
06.326 SEAL; OIL,FRT HUB
8-97211-082-0
02
1
1202-
31
04.665 COVER; DUST,FRT BRAKE
8-97353-960-1
01
1
1202-
31
04.665 COVER; DUST,FRT BRAKE
8-97353-961-1
01
1
1202-
32
04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER
8-98029-928-0
06
1
1202-
