Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#3808) — 352 parça

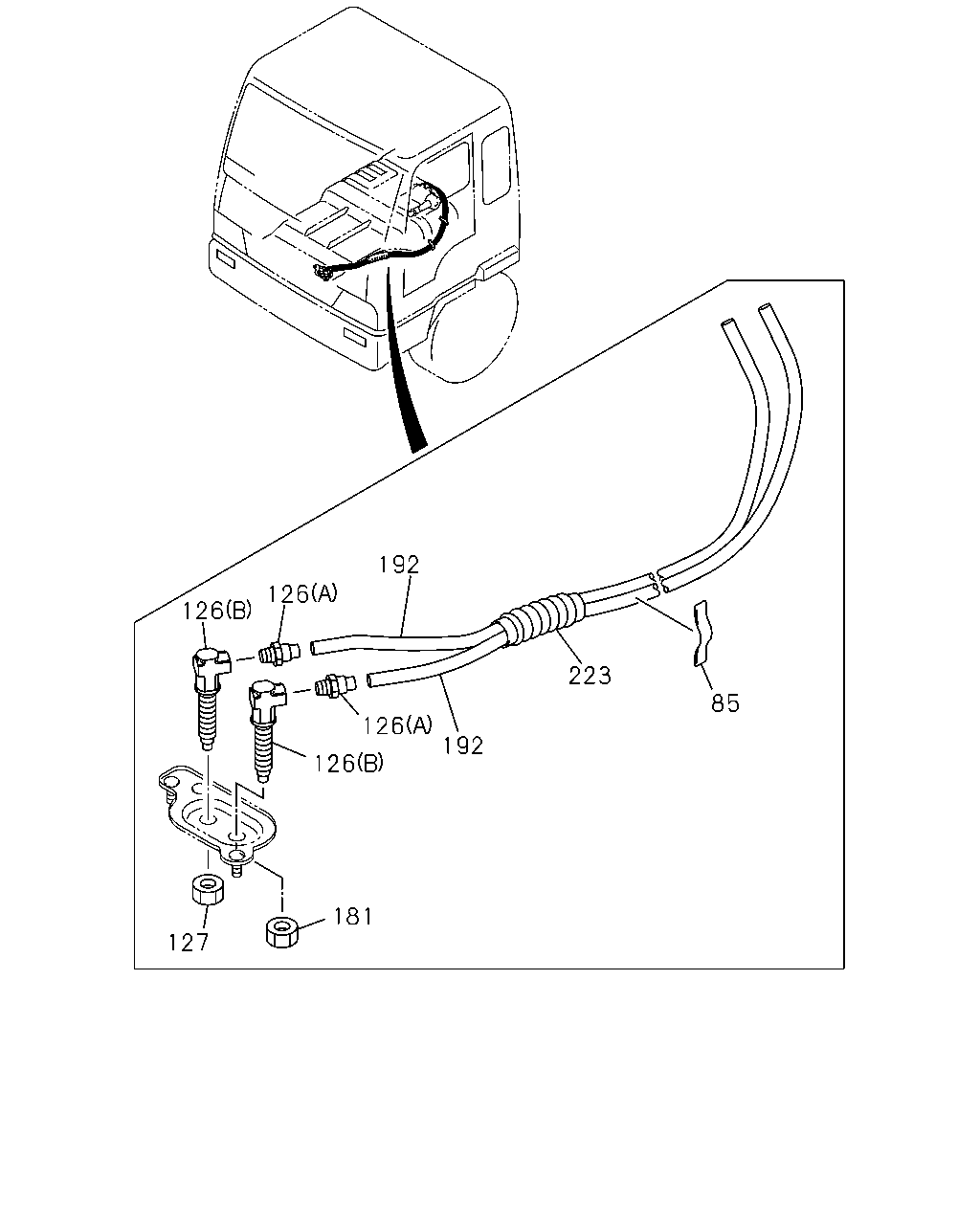

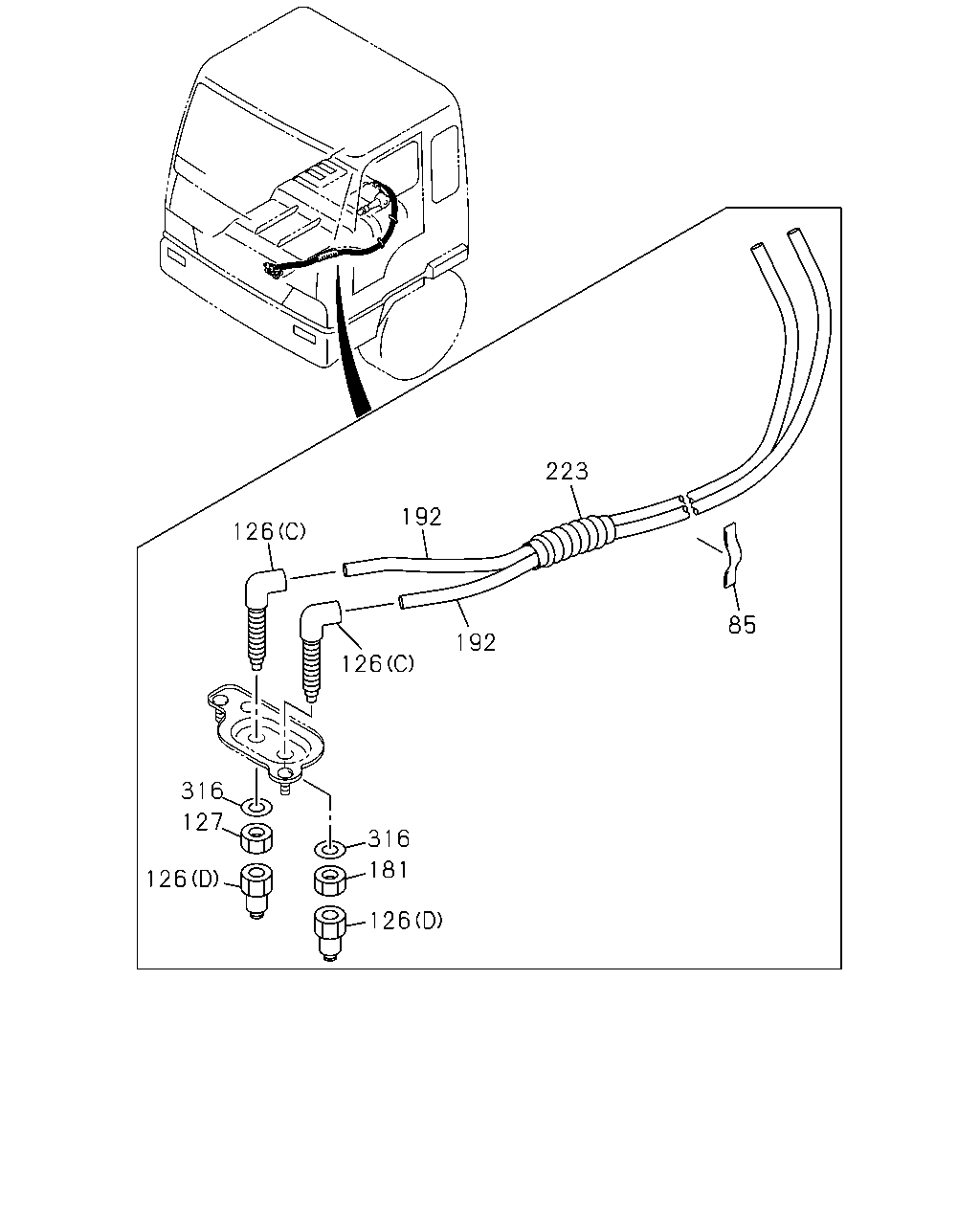

192 192 223 72 223 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	NUT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91150-108-0	01	1	0202-0602	●	●
72	NUT; BRKT 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0301-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-0607	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0608-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-9803	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9804-0004	●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9804-0004		●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-0607	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0608-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0403-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-9803	●	●
192	TUBE; NYLON 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0608-		●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9804-0607	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0608-	●	●
192	TUBE; NYLON 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 5500MM(55W) SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0608-		●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0608-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9601-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	9601-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0701-	●	●

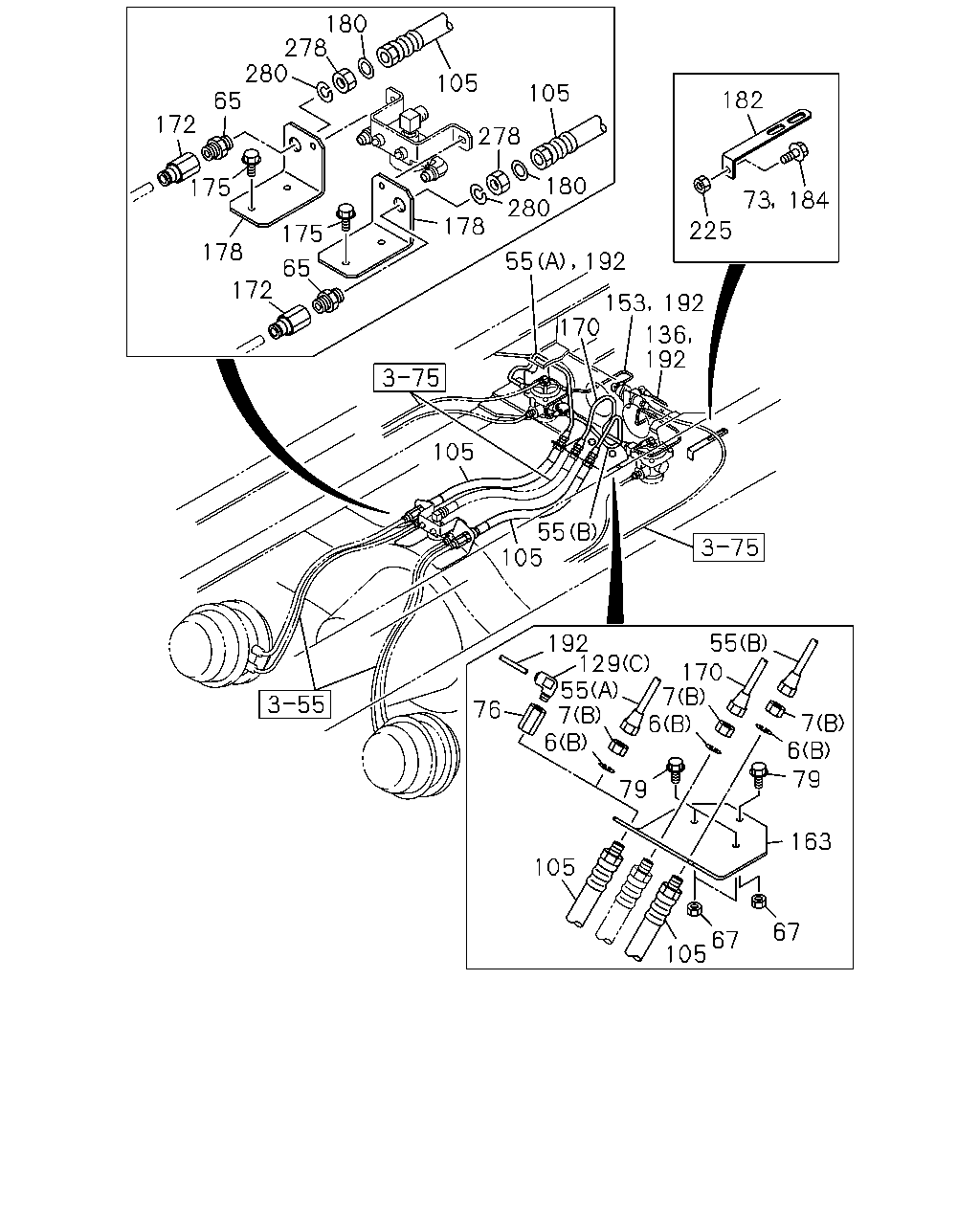

180 278 280 65 105 105 182 172 278 180 280 175 73 184 178 225 175 178 55 192 65 172 153 170 192 136 192 105 55 105 55 170 7 6 192 129 55 7 6 76 7 6 79 79 163 105 67 67 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9601-0603	●	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	02	1	0604-	●	●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	9-09150-520-0	02	1	9601-9803	●	●
6	WASHER; LK,FLEX HOSE (B) ID=20.2	9-09150-520-0	02	1	9804-0004	●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	9-09150-520-0	02	1	9804-0004		●
6	WASHER; LK,FLEX HOSE (B) ID=20.2	9-09150-520-0	02	1	0005-0603	●	●
6	WASHER; LK,FLEX HOSE (B) ID=20.2	0-91510-520-0	02	1	0604-	●	●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9601-0512	●	●
7	NUT; FLEX HOSE (A) M16	0-91111-516-0	02	1	0601-	●	●
7	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	9-99111-420-0	02	1	9601-9803	●	●
7	NUT; FLEX HOSE (B) M20	9-99111-420-0	02	1	9804-0004	●
7	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	9-99111-420-0	02	1	9804-0004		●
7	NUT; FLEX HOSE (B) M20	9-99111-420-0	02	1	0005-0512	●	●
7	NUT; FLEX HOSE (B) M20	0-91111-520-0	02	1	0601-	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-49113-329-0	01	1	9601-9803	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (B) L=426	1-49118-958-0	01	1	9804-0004	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=426	1-49118-958-0	01	1	9804-0004		●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE (B) L=426	1-49118-958-0	01	1	0005-	●	●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-49113-328-0	01	1	9601-9803	●	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER M20 STRAIGHT	1-09654-240-1	02	1	9601-0004	●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20 STRAIGHT	1-09654-240-1	02	1	9601-0004		●
65	CONNECTOR; FLEX HOSE,POWER CHAMBER M20 STRAIGHT	1-09654-240-1	02	1	0005-	●	●
67	NUT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	03	1	9601-9606	●	●
67	NUT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	03	1	9607-9803	●	●
67	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	03	1	9804-0004	●
67	NUT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	03	1	9804-0004		●
67	NUT; HOSE BRKT M8 FLANGE	0-91150-108-0	03	1	0005-0602	●	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
73	BOLT; CLIP 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28080-830-0	01	1	9601-9606	●	●
73	BOLT; CLIP 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28680-835-0	01	1	9607-9705	●	●
73	BOLT; CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X35 FLANGE	0-28680-835-0	01	1	9706-9806	●
73	BOLT; CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28680-835-0	01	1	9706-9806		●
73	BOLT; CLIP 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M8X35 FLANGE	0-28680-835-0	01	1	9807-9903	●
73	BOLT; CLIP 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28680-835-0	01	1	9807-9903		●
76	ADAPTER; NYLON TUBE M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	9804-0004	●
76	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	9804-0004		●
76	ADAPTER; NYLON TUBE M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0005-	●	●
79	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	03	1	9601-9606	●	●
79	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	03	1	9607-9803	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	03	1	9804-0004	●
79	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	03	1	9804-0004		●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	03	1	0005-0512	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
105	HOSE; FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=610	0-07807-610-1	02	1	9601-9803	●	●
105	HOSE; FLEX L=610	0-07807-610-1	02	1	9804-0004	●
105	HOSE; FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=610	0-07807-610-1	02	1	9804-0004		●
105	HOSE; FLEX L=610	0-07807-610-1	02	1	0005-0605	●	●
105	HOSE; FLEX L=610	0-57807-610-1	02	1	0606-	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9601-9811	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9601-9811		●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0004	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0004		●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0005-0007	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0607	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0608-	●	●
129	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9601-9811	●	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9812-0004	●	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0005-	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-0004	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-0004		●
129	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-	●	●
136	PIPE; AIR,DBL CHECK VLV TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-49116-286-0	01	1	9601-9803	●	●
153	PIPE; AIR,RELAY VLV TO DBL CHECK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-49115-567-0	01	1	9601-9803	●	●
163	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-787-0	01	1	9601-9803	●	●
163	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-997-1	01	1	9804-0004	●	●
163	BRACKET; FLEX HOSE	1-47477-997-1	01	1	0005-	●	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-49113-330-0	01	1	9601-9803	●	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE L=510	1-49118-957-0	01	1	9804-0004	●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=510	1-49118-957-0	01	1	9804-0004		●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE L=510	1-49118-957-0	01	1	0005-	●	●
172	ADAPTER; UNION DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9601-0004	●
172	ADAPTER; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	9601-0004		●
172	ADAPTER; UNION DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007	●	●
172	ADAPTER; UNION DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-	●	●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-9705	●
175	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	04	1	9607-9705		●
175	BOLT; HOSE BRKT M8X20 FLANGE	0-28080-820-0	04	1	9706-9803	●
175	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	04	1	9706-9803		●
175	BOLT; HOSE BRKT M8X25 FLANGE	0-28680-825-0	04	1	9804-9901	●
175	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	04	1	9804-9901		●
175	BOLT; HOSE BRKT M8X20 FLANGE	0-28080-820-0	04	1	9902-0004	●
175	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	04	1	9902-0004		●
175	BOLT; HOSE BRKT M8X20 FLANGE	0-28080-820-0	04	1	0005-0108	●	●
175	BOLT; HOSE BRKT M8X16 FLANGE	0-28080-816-0	04	1	0109-0512	●	●
175	BOLT; HOSE BRKT M8X16 FLANGE	0-28050-816-0	04	1	0601-	●	●
178	BRACKET; UNION	1-47477-517-0	01	1	9601-0004	●
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-517-0	01	1	9601-0004		●
178	BRACKET; UNION	1-47477-517-0	01	1	0005-	●	●
178	BRACKET; UNION	1-47477-516-0	01	1	9601-0004	●
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-516-0	01	1	9601-0004		●
178	BRACKET; UNION	1-47477-516-0	01	1	0005-	●	●
180	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	9601-0004	●
180	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	02	1	9601-0004		●
180	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0005-	●	●
182	BRACKET; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=150 H=30	1-47477-629-2	01	1	9601-9808	●	●
184	BOLT; TUBE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9601-9606	●
184	BOLT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606		●
184	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-9808	●
184	BOLT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	01	1	9607-9808		●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0301-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-0607	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0608-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-9803	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9804-0004	●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9804-0004		●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-0607	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0608-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0403-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-9803	●	●
192	TUBE; NYLON 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0608-		●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9804-0607	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0608-	●	●
192	TUBE; NYLON 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 5500MM(55W) SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0608-		●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0608-	●	●
225	NUT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9601-9606	●	●
225	NUT; TUBE CLIP 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	9-09110-408-0	01	1	9601-9606	●	●
225	NUT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9607-9609	●	●
225	NUT; TUBE CLIP 6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9607-9609	●	●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	9610-9705	●
225	NUT; TUBE CLIP 6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	9610-9705	●
225	NUT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9610-9705		●
225	NUT; TUBE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9610-9705		●
225	NUT; TUBE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	9706-9806	●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	9706-9806	●
225	NUT; TUBE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9706-9806		●
225	NUT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9706-9806		●
225	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	9807-9808	●
225	NUT; TUBE CLIP 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	9807-9808	●
225	NUT; TUBE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9807-9808		●
225	NUT; TUBE CLIP 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9807-9808		●
225	NUT; TUBE CLIP 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	9809-9903	●
225	NUT; TUBE CLIP 6HE1 TC ENG(57L),6HE1 TCN ENG(58L),6HH1 STD ENG(65L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	01	1	9809-9903		●
278	NUT; UNION M20	9-99111-420-0	02	1	9601-9803	●
278	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	9-99111-420-0	02	1	9601-9803		●
278	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	9-99111-420-0	02	1	9804-0004	●	●
278	NUT; UNION M20	9-99111-420-0	02	1	0005-0512	●	●
278	NUT; UNION M20	0-91111-520-0	02	1	0601-	●	●
278	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	01	1	9601-9803		●
280	WASHER; LK ID=20.2	9-09150-520-0	02	1	9601-9803	●
280	WASHER; LK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	9-09150-520-0	02	1	9601-9803		●
280	WASHER; LK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=20.2	9-09150-520-0	02	1	9804-0004	●	●
280	WASHER; LK ID=20.2	9-09150-520-0	02	1	0005-0603	●	●
280	WASHER; LK ID=20.2	0-91510-520-0	02	1	0604-	●	●

223 192 126 85 192 126 316 127 316 181 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
85	GASKET; NYLON TUBE 100X30	1-72498-014-1	05	1	9601-9903	●
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X30	1-72498-014-1	05	1	9601-9903		●
85	GASKET; NYLON TUBE 100X40	1-72498-022-0	05	1	9904-0004	●
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-0	05	1	9904-0004		●
85	GASKET; NYLON TUBE 100X40	1-72498-022-1	05	1	0005-	●	●
126	UNION; NYLON TUBE (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9601-9803	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9601-9803		●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	9804-0004	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	9804-0004		●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0005-0706	●	●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	8-98078-117-0	02	1	0707-	●	●
126	UNION; NYLON TUBE (B)	1-09660-743-0	02	1	9601-9803	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09660-743-0	02	1	9601-9803		●
126	UNION; NYLON TUBE (D) DIN8 & M20 STRAIGHT	1-09661-056-0	02	1	9804-0004	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN8 & M20 STRAIGHT	1-09661-056-0	02	1	9804-0004		●
126	UNION; NYLON TUBE (D) DIN8 & M20 STRAIGHT	1-09661-056-0	02	1	0005-0007	●	●
126	UNION; NYLON TUBE (D) DIN8 & M20 STRAIGHT	1-09661-381-0	02	1	0008-0706	●	●
127	NUT; UNION M18	9-99111-418-0	01	1	9601-9803	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18	9-99111-418-0	01	1	9601-9803		●
127	NUT; UNION M20	9-99111-420-0	01	1	9804-0004	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	9-99111-420-0	01	1	9804-0004		●
127	NUT; UNION M20	9-99111-420-0	01	1	0005-0512	●	●
127	NUT; UNION M20	0-91111-520-0	01	1	0601-	●	●
181	NUT; TUBE UNION M18	9-99111-418-0	01	1	9601-9803	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18	9-99111-418-0	01	1	9601-9803		●
181	NUT; TUBE UNION M20	9-99111-420-0	01	1	9804-0004	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	9-99111-420-0	01	1	9804-0004		●
181	NUT; TUBE UNION M20	9-99111-420-0	01	1	0005-0512	●	●
181	NUT; TUBE UNION M20	0-91111-520-0	01	1	0601-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0301-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-0607	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0608-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-9803	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9804-0004	●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9804-0004		●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-0607	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0608-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0403-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-9803	●	●
192	TUBE; NYLON 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0608-		●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9804-0607	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0608-	●	●
192	TUBE; NYLON 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 5500MM(55W) SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0608-		●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0608-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9601-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	9601-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0701-	●	●
316	WASHER; PL ID=21	9-09160-520-0	02	1	9804-0004	●
316	WASHER; PL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21	9-09160-520-0	02	1	9804-0004		●
316	WASHER; PL ID=21	9-09160-520-0	02	1	0005-0605	●	●
316	WASHER; PL ID=21	0-91610-520-0	02	1	0606-	●	●

118 87 192 102 96 102 98 96 278 97 37 192 91 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-09660-807-2	01	1	9601-9803		●
37	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16 ELBOW	9-09235-210-1	02	1	9601-9803		●
87	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49115-525-0	01	1	9601-9803		●
91	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	02	1	9601-9803		●
96	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2923 SERVICED BY L=3300	1-47426-426-0	01	1	9601-9605		●
96	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2925 SERVICED BY L=3300	1-47426-426-0	01	1	9606-9803		●
97	UNION; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09660-807-2	01	1	9601-9803		●
98	NUT; PIPE UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	01	1	9601-9803		●
102	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=2649 SERVICED BY L=2900	1-47426-425-0	01	1	9601-9803		●
118	PIPE; AIR,UNION TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-49115-526-0	01	1	9601-9803		●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0301-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-0607	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0608-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-9803	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9804-0004	●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9804-0004		●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-0607	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0608-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0403-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-9803	●	●
192	TUBE; NYLON 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0608-		●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9804-0607	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0608-	●	●
192	TUBE; NYLON 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 5500MM(55W) SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0608-		●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0608-	●	●
278	NUT; UNION M20	9-99111-420-0	02	1	9601-9803	●
278	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	9-99111-420-0	02	1	9601-9803		●
278	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20	9-99111-420-0	02	1	9804-0004	●	●
278	NUT; UNION M20	9-99111-420-0	02	1	0005-0512	●	●
278	NUT; UNION M20	0-91111-520-0	02	1	0601-	●	●
278	NUT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	9-99111-416-0	01	1	9601-9803		●

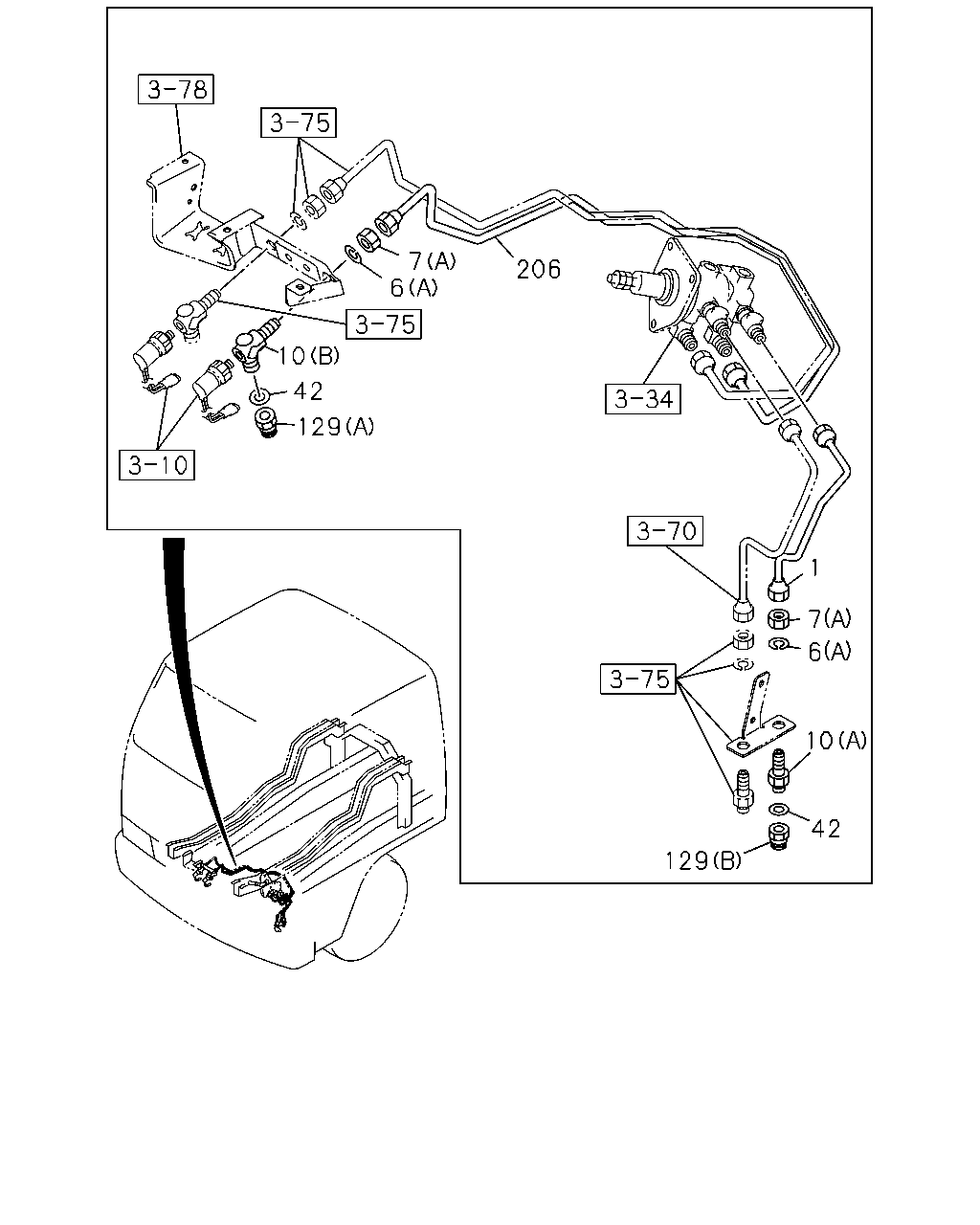

7 6 206 10 42 129 1 7 6 10 42 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=423	1-49113-428-2	01	1	9601-0004	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> L=423	1-49113-428-2	01	1	9601-0004		●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=423	1-49113-428-2	01	1	0005-0607	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=423	1-49113-428-2	01	1	0608-	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2>	1-49116-436-1	01	1	9601-0004		●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9601-0603	●	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	02	1	0604-	●	●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	9-09150-520-0	02	1	9601-9803	●	●
6	WASHER; LK,FLEX HOSE (B) ID=20.2	9-09150-520-0	02	1	9804-0004	●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	9-09150-520-0	02	1	9804-0004		●
6	WASHER; LK,FLEX HOSE (B) ID=20.2	9-09150-520-0	02	1	0005-0603	●	●
6	WASHER; LK,FLEX HOSE (B) ID=20.2	0-91510-520-0	02	1	0604-	●	●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9601-0512	●	●
7	NUT; FLEX HOSE (A) M16	0-91111-516-0	02	1	0601-	●	●
7	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	9-99111-420-0	02	1	9601-9803	●	●
7	NUT; FLEX HOSE (B) M20	9-99111-420-0	02	1	9804-0004	●
7	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	9-99111-420-0	02	1	9804-0004		●
7	NUT; FLEX HOSE (B) M20	9-99111-420-0	02	1	0005-0512	●	●
7	NUT; FLEX HOSE (B) M20	0-91111-520-0	02	1	0601-	●	●
10	CONNECTOR; FLEX HOSE (A)	1-09654-324-0	01	1	9601-9803	●	●
10	CONNECTOR; FLEX HOSE (A) M16 STRAIGHT	1-09654-380-0	01	1	9804-	●	●
10	CONNECTOR; FLEX HOSE (B)	1-09656-700-0	01	1	9601-9811	●	●
10	CONNECTOR; FLEX HOSE (B) M16X2 & PT1/4 3WAY	1-09656-329-1	01	1	9812-	●	●
42	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	02	1	9601-9803	●	●
42	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	01	1	9804-9811	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9601-9811	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9601-9811		●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0004	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9812-0004		●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0005-0007	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0607	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0608-	●	●
129	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9601-9811	●	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9812-0004	●	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0005-	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-0004	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9804-0004		●
129	CONNECTOR; NYLON TUBE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=1145	1-49116-438-0	01	1	9601-0004	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=1267	1-49121-665-0	01	1	0005-	●	●

192 126 126 223 85 126 192 126 181 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
85	GASKET; NYLON TUBE 100X30	1-72498-014-1	05	1	9601-9903	●
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X30	1-72498-014-1	05	1	9601-9903		●
85	GASKET; NYLON TUBE 100X40	1-72498-022-0	05	1	9904-0004	●
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-0	05	1	9904-0004		●
85	GASKET; NYLON TUBE 100X40	1-72498-022-1	05	1	0005-	●	●
126	UNION; NYLON TUBE (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9601-9803	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9601-9803		●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	9804-0004	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	9804-0004		●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0005-0706	●	●
126	UNION; NYLON TUBE (C) DIN8 & M20 ELBOW	8-98078-117-0	02	1	0707-	●	●
126	UNION; NYLON TUBE (B)	1-09660-743-0	02	1	9601-9803	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09660-743-0	02	1	9601-9803		●
126	UNION; NYLON TUBE (D) DIN8 & M20 STRAIGHT	1-09661-056-0	02	1	9804-0004	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN8 & M20 STRAIGHT	1-09661-056-0	02	1	9804-0004		●
126	UNION; NYLON TUBE (D) DIN8 & M20 STRAIGHT	1-09661-056-0	02	1	0005-0007	●	●
126	UNION; NYLON TUBE (D) DIN8 & M20 STRAIGHT	1-09661-381-0	02	1	0008-0706	●	●
127	NUT; UNION M18	9-99111-418-0	01	1	9601-9803	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18	9-99111-418-0	01	1	9601-9803		●
127	NUT; UNION M20	9-99111-420-0	01	1	9804-0004	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	9-99111-420-0	01	1	9804-0004		●
127	NUT; UNION M20	9-99111-420-0	01	1	0005-0512	●	●
127	NUT; UNION M20	0-91111-520-0	01	1	0601-	●	●
181	NUT; TUBE UNION M18	9-99111-418-0	01	1	9601-9803	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18	9-99111-418-0	01	1	9601-9803		●
181	NUT; TUBE UNION M20	9-99111-420-0	01	1	9804-0004	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	9-99111-420-0	01	1	9804-0004		●
181	NUT; TUBE UNION M20	9-99111-420-0	01	1	0005-0512	●	●
181	NUT; TUBE UNION M20	0-91111-520-0	01	1	0601-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0301-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-0607	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0608-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-9803	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9804-0004	●
192	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9804-0004		●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0212	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0301-0607	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0608-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0403-	●	●
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	9601-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-9803	●	●
192	TUBE; NYLON 6SD1 TCN ENG(31L),6SD1 STD ENG(37L) WHEEL BASE 5500MM(55W) SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0608-		●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9804-0607	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0608-	●	●
192	TUBE; NYLON 6HE1 TC ENG(57L),6HH1 STD ENG(65L) WHEEL BASE 5500MM(55W) SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0608-		●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0608-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9601-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	9601-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0701-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
